2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#44638) — 37 parça

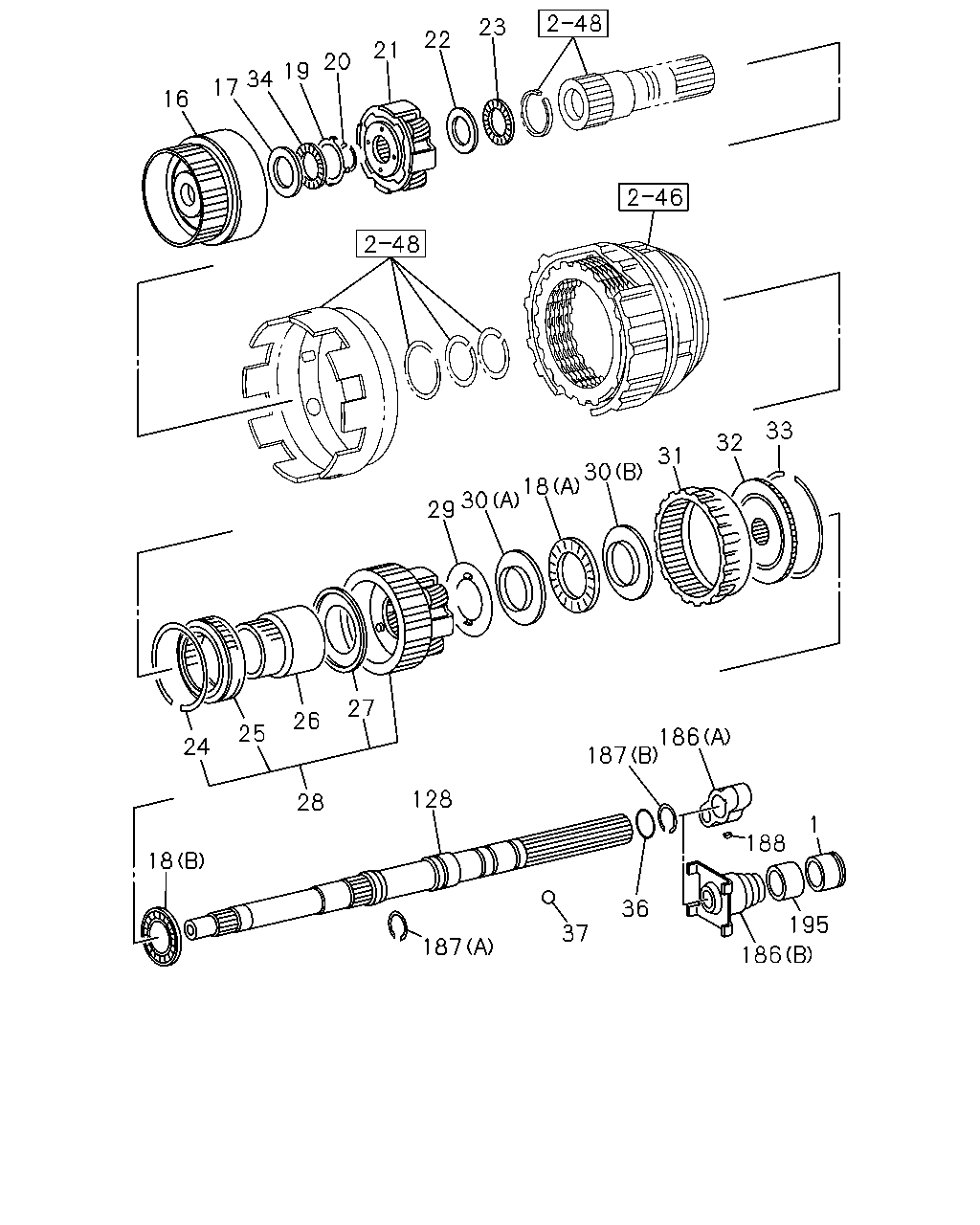

çizim 64247
23 22 21 20 19 34 17 16 33 32 31 30 18 30 29 27 26 25 186 187 24 128 28 1 188 18 36 195 186 37 187
BalonParca AdiParca NoAdetTipApplied Date
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T
4X2 CREW CAB(TFB*W*) 		8-97181-547-0 01 1 9907-
16 04.256 GEAR ASM; FRT PLANETARY,A/T 8-97143-082-0 01 1 9806-
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-94479-836-0 01 1 9806-
18 04.187 BEARING; THRUST,RR PLANETARY GEA
04.166 (A) 		8-94479-847-0 01 1 9806-
18 04.187 BEARING; THRUST,RR PLANETARY GEA
04.164 (B) 		8-94479-855-0 01 1 9806-
19 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-94479-837-0 01 1 9806-
20 04.164 RING; RET,PLANETARY GEAR,A/T 8-94479-842-0 01 1 9806-
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 8-94479-839-0 01 1 9806-
22 04.167 RACE; THRUST BRG,FRT PLANETARY S 8-94479-840-0 01 1 9806-
23 04.164 BEARING; THRUST,PLANETARY SHAFT, 8-94479-841-0 01 1 9806-
24 04.164 RING; RET,FRT PLANETARY,A/T 8-97143-129-0 01 1 9806-
25 04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY 8-94364-924-0 01 1 9806-
26 04.168 RACE; ONEWAY CLU,A/T 8-97019-542-0 01 1 9806-
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T 8-94313-577-0 01 1 9806-
28 04.187 GEAR ASM; RR PLANETARY,A/T 8-94479-850-0 01 1 9806-
29 04.158 WASHER; THRUST,FRT PLANETARY,A/T
04.164 		8-94479-851-0 01 1 9806-
30 04.180 RACE; THRUST BRG,RR PLANETARY FL
(A) 		8-94479-848-0 01 1 9806-
30 04.180 RACE; THRUST BRG,RR PLANETARY FL
(B) 		8-94479-849-0 01 1 9806-
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-94479-854-0 01 1 9806-
32 04.164 FLANGE; RING GEAR,RR PLANETARY,A 8-94479-852-0 01 1 9806-
33 04.166 RING; RET,PLANETARY GEAR,A/T 8-94479-853-0 01 1 9806-
34 04.164 BEARING; THRUST,FRT PLANETARY SH
04.187 		8-94479-838-0 01 1 9806-
36 04.164 RING; SEALING,FRT PLANETARY SHAF 8-94479-902-0 01 1 9806-
37 04.256 BALL; SPD DRIVE
4X2 CREW CAB(TFB*W*) 		8-94167-674-0 01 1 9907-
128 04.175 SHAFT; OUTPUT,A/T 8-97069-456-0 01 1 9806-9906
128 04.175 SHAFT; OUTPUT,A/T
4X4 CREW CAB(TFS*W*) 		8-97069-456-0 01 1 9907-
128 04.175 SHAFT; OUTPUT,A/T
4X2 CREW CAB(TFB*W*) 		8-97184-427-0 01 1 9907-
186 04.329 ROTOR; SPEED SENSOR
(A) 		8-97069-450-0 01 1 9806-9906
186 04.329 ROTOR; SPEED SENSOR
4X4 CREW CAB(TFS*W*) (A) 		8-97069-450-0 01 1 9907-
186 04.329 ROTOR; SPEED SENSOR
4X2 CREW CAB(TFB*W*) (B) 		8-97211-747-0 01 1 9907-
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
(B) 		8-97069-451-0 01 1 9806-0012
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X2 CREW CAB(TFB*W*) (B) 		8-97069-451-0 01 1 0101-
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
(A) 		8-97069-457-0 01 1 9806-0012
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X2 CREW CAB(TFB*W*) (A) 		8-97069-457-0 01 1 0101-
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X4 CREW CAB(TFS*W*) 04.337 (B) 		8-94479-905-0 01 1 0101-
188 04.330 KEY; SPEED SENSOR ROTOR
04.337 		8-94479-904-0 01 1 9806-
195 04.337 SPACER; SPEEDMETER,DRIVE
4X2 CREW CAB(TFB*W*) 		8-97184-425-0 01 1 9907-
