2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#44636) — 72 parça

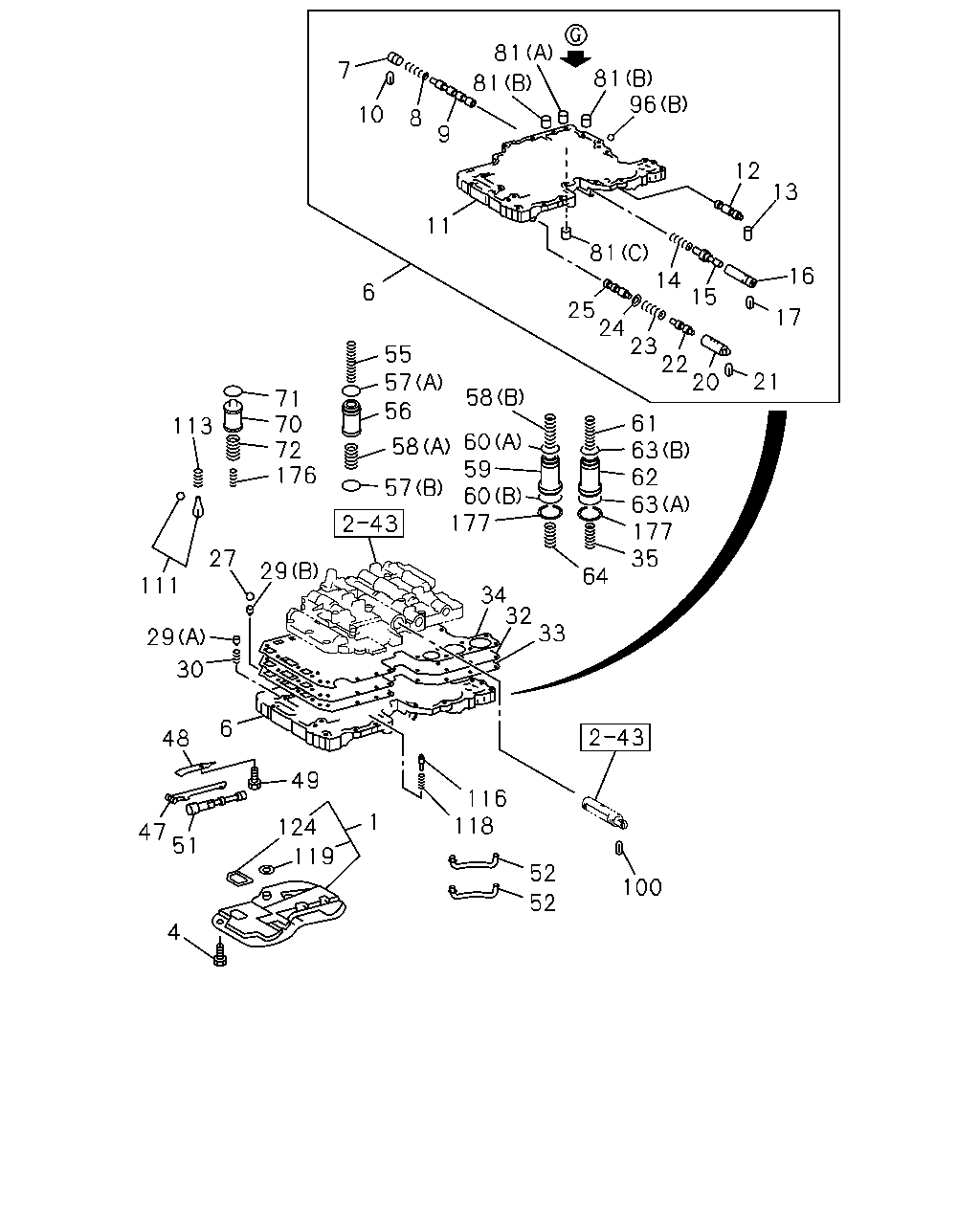

çizim 16424
81 81 7 81 96 10 8 9 12 13 11 81 14 15 25 24 23 22 20 16 6 17 55 57 56 21 58 71 70 72 176 61 63 62 63 177 35 113 58 60 59 60 177 57 27 29 64 111 34 32 33 29 30 6 48 49 116 118 1 124 119 47 51 52 52 100 4
BalonParca AdiParca NoAdetTipApplied Date
1 04.197 STRAINER ASM; OIL,A/T 8-97027-386-0 01 1 9806-
4 04.197 BOLT; OIL STRAINER,A/T
04.265 M6X12 		8-94479-927-0 04 1 9806-
6 04.265 BODY ASM; VLV LWR,A/T 8-97214-537-0 01 1 9806-
7 04.265 PLUG; VLV,1-2 SHIFT,VLV LWR,A/T 8-94480-059-0 01 1 9806-
8 04.265 SPRING; 1ST VALVE 8-94480-057-0 01 1 9806-
9 04.262 VALVE; 1-2 SHIFT UPR,VLV LWR,A/T 8-94480-058-0 01 1 9806-
10 04.265 RETAINER; 1-2 SHIFT VLV,VLV LWR, 8-94480-060-0 01 1 9806-
11 04.265 BODY; VLV LWR,A/T 8-97143-367-0 01 1 9806-
12 04.265 PLUG; LWR BODY 8-97023-521-0 01 1 9806-
13 04.265 PIN; LWR BODY 8-94480-078-0 01 1 9806-
14 04.246 SPRING; ACCUMLATOR CONT VALVE 8-94364-915-0 01 1 9806-
15 04.265 VALVE; ACCUMLATOR CONT 8-94364-914-0 01 1 9806-
16 04.265 SLEEVE; ACCUMLATOR CONT VALVE 8-94364-916-0 01 1 9806-
17 04.265 RETAINER; ACCUMLATOR CONT VALVE 5-34538-004-0 01 1 9806-
20 04.265 SLEEVE; REG VLV,VLV LWR,A/T 8-97025-815-0 01 1 9806-
21 04.265 RETAINER; SLEEVE,VLV LWR,A/T 8-94480-053-0 01 1 9806-
22 04.265 PLUNGER; REG VLV,VLV LWR,A/T 8-97025-814-0 01 1 9806-
23 04.265 SPRING; REG VLV,VLV LWR,A/T 8-97025-813-0 01 1 9806-
24 04.265 WASHER; PRIMARY VALVE 8-94480-054-0 01 1 9806-
25 04.265 VALVE; REG,PRIMARY,VLV LWR,A/T 8-94480-052-0 01 1 9806-
27 04.265 BALL; STEEL,VLV,A/T
04.256 		8-94167-674-0 01 1 9806-
29 04.265 VALVE; ORIFICE,CHECK,A/T
(A) 		8-94480-086-0 01 1 9806-
29 04.265 VALVE; ORIFICE,CHECK,A/T
(B) 		8-97184-332-0 01 1 9806-
30 04.265 SPRING; ORIFICE,CHECK,A/T 8-94479-759-0 01 1 9806-
32 04.265 PLATE; SEPARATOR,VLV BODY,A/T 8-97214-540-0 01 1 9806-
33 04.265 GASKET; LWR,VLV BODY,A/T 8-97019-529-0 01 1 9806-
34 04.265 GASKET; UPR,VLV BODY,A/T 8-97019-528-0 01 1 9806-
35 04.265 SPRING; LWR VLV BODY 8-97025-856-0 01 1 9806-
47 04.050 SPRING; DETENT,A/T 8-94480-098-0 01 1 9806-
48 04.052 PLATE; DETENT SPR,A/T 8-94480-097-0 01 1 9806-
49 04.052 BOLT; DETENT SPR PLATE,A/T
04.265 L=16 		8-94480-096-0 01 1 9806-
51 04.265 VALVE; MANUAL,A/T 8-94480-099-0 01 1 9806-
52 04.052 TUBE; DETENT SW,A/T 8-97027-211-0 02 1 9806-
55 04.246 SPRING; ACCUMLATOR PISTON 8-97027-208-0 01 1 9806-
56 04.241 PISTON; ACCUMLATOR 8-97027-207-0 01 1 9806-
57 04.241 GASKET; 2ND SPD PISTON,A/T
(A) ID=20 		8-97184-885-0 01 1 9806-
57 04.241 GASKET; 2ND SPD PISTON,A/T
(B) ID=27 		8-97184-886-0 01 1 9806-
58 04.164 SPRING; DIRECT CLU (C-2 ACCUM),A
(A) 		8-97027-209-0 01 1 9806-
58 04.164 SPRING; DIRECT CLU (C-2 ACCUM),A
(B) 		8-97184-329-0 01 1 9806-
59 04.166 PISTON; DIRECT CLU,A/T 8-97025-819-0 01 1 9806-
60 04.169 GASKET; DIRECT CLU PISTON,A/T
(A) 		8-97184-887-0 01 1 9806-
60 04.169 GASKET; DIRECT CLU PISTON,A/T
04.167 (B) 		8-97184-888-0 01 1 9806-
61 04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T 8-97184-330-0 01 1 9806-
62 04.166 PISTON; FWD CLU,A/T 8-97025-817-0 01 1 9806-
63 04.167 GASKET; FWD CLU,A/T
(A) 		8-97184-888-0 01 1 9806-
63 04.167 GASKET; FWD CLU,A/T
(B) ID=24 		8-97184-889-0 01 1 9806-
64 04.164 SPRING; DIRECT CLU 8-97184-335-0 01 1 9806-
70 04.241 PISTON; ACCUMLATOR 8-97027-205-0 01 1 9806-
71 04.241 GASKET; ACCUMLATOR PISTON 8-97184-884-0 01 1 9806-
72 04.233 SPRING; ACCUMLATOR PISTON 8-97027-206-0 01 1 9806-
81 04.197 STRAINER; SOLENOID OIL
(A) 		8-94480-090-0 01 1 9806-
81 04.197 STRAINER; SOLENOID OIL
(B) 		8-94480-091-0 02 1 9806-
81 04.197 STRAINER; SOLENOID OIL
(C) 		8-97027-387-0 01 1 9806-
96 04.262 BALL; RUBBER,VLV LWR,A/T
04.265 (B) OD=6.35 		8-94364-913-0 01 1 9806-
96 04.262 BALL; RUBBER,VLV LWR,A/T
(A) OD=5.595 		8-94473-576-0 08 1 9806-
100 04.265 PIN; LOCATING 8-94480-078-0 01 1 9806-9906
111 04.169 BODY; CHECK BALL 8-94479-931-0 01 1 9806-
113 04.164 SPRING; CHECK BALL 8-94479-930-0 01 1 9806-
116 04.265 VALVE; PRESSURE RELIEF 8-94480-088-0 01 1 9806-
118 04.265 SPRING; PRESSURE RELIEF VALVE 8-94480-087-0 01 1 9806-
119 04.197 GASKET; OIL STRAINER 8-94479-923-0 01 1 9806-
124 04.197 GASKET; SPACER,OIL STRAINER 8-94479-924-0 01 1 9806-
176 04.265 SPRING; ACCUM INNER 8-97025-825-0 01 1 9806-
177 04.265 RING; SNAP
ID=19 		8-97025-821-0 03 1 9806-

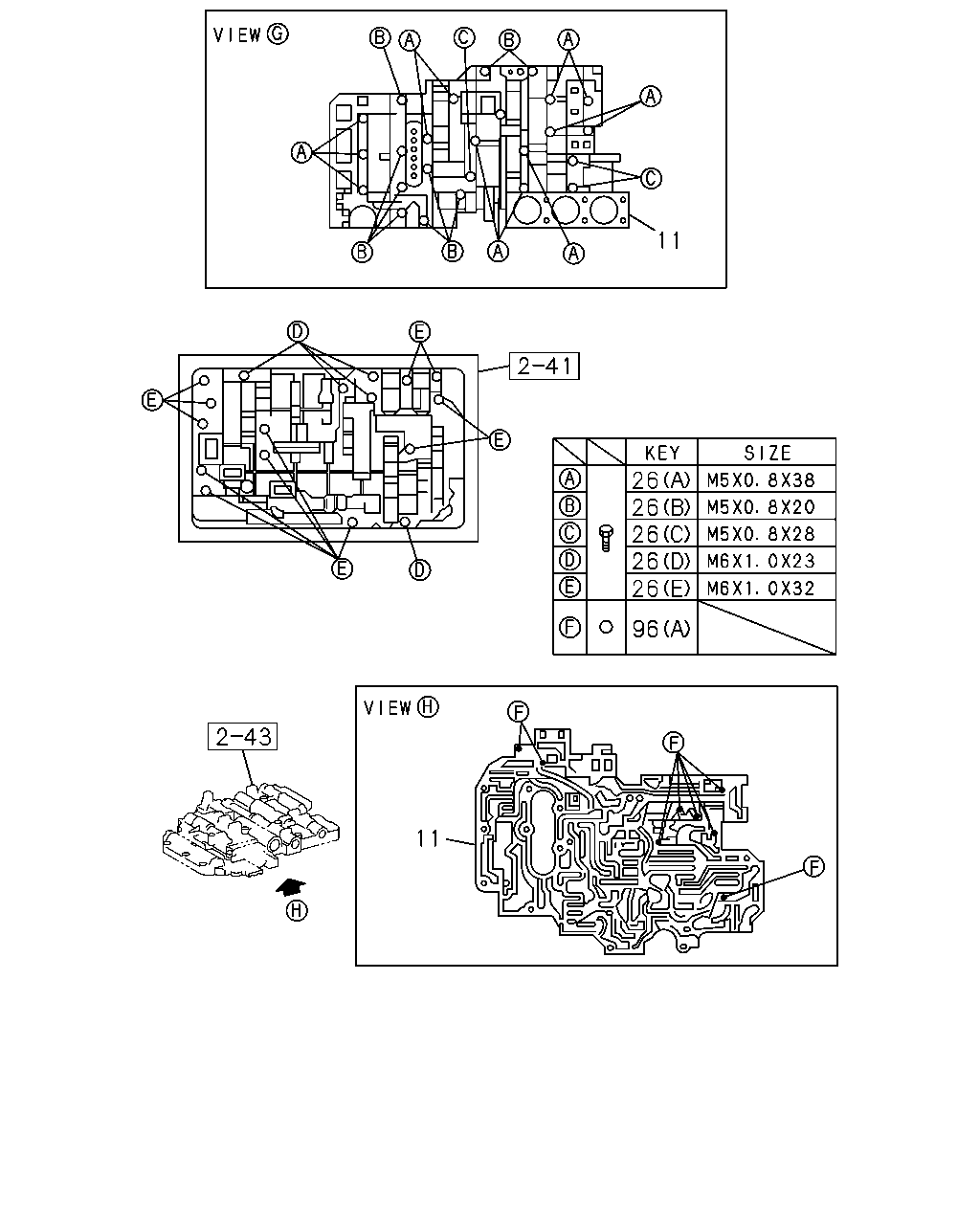

çizim 65307
11 26 26 26 26 26 96 11
BalonParca AdiParca NoAdetTipApplied Date
11 04.265 BODY; VLV LWR,A/T 8-97143-367-0 01 1 9806-
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(C) M5X28 		8-94473-616-0 03 1 9806-
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(B) M5X20 		8-94473-620-0 09 1 9806-
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(D) M6X23 		8-94479-925-0 05 1 9806-
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(E) M6X32 		8-94479-926-0 12 1 9806-
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(A) M5X38 		8-94480-095-0 13 1 9806-
96 04.262 BALL; RUBBER,VLV LWR,A/T
04.265 (B) OD=6.35 		8-94364-913-0 01 1 9806-
96 04.262 BALL; RUBBER,VLV LWR,A/T
(A) OD=5.595 		8-94473-576-0 08 1 9806-
