Isuzu WW
▶
PICKUP
▶
TFR
▶
50802 - TFR/TFS(EUROPE)-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-42 - AUTO TRANS OIL PAN AND OIL CONTROL
▶

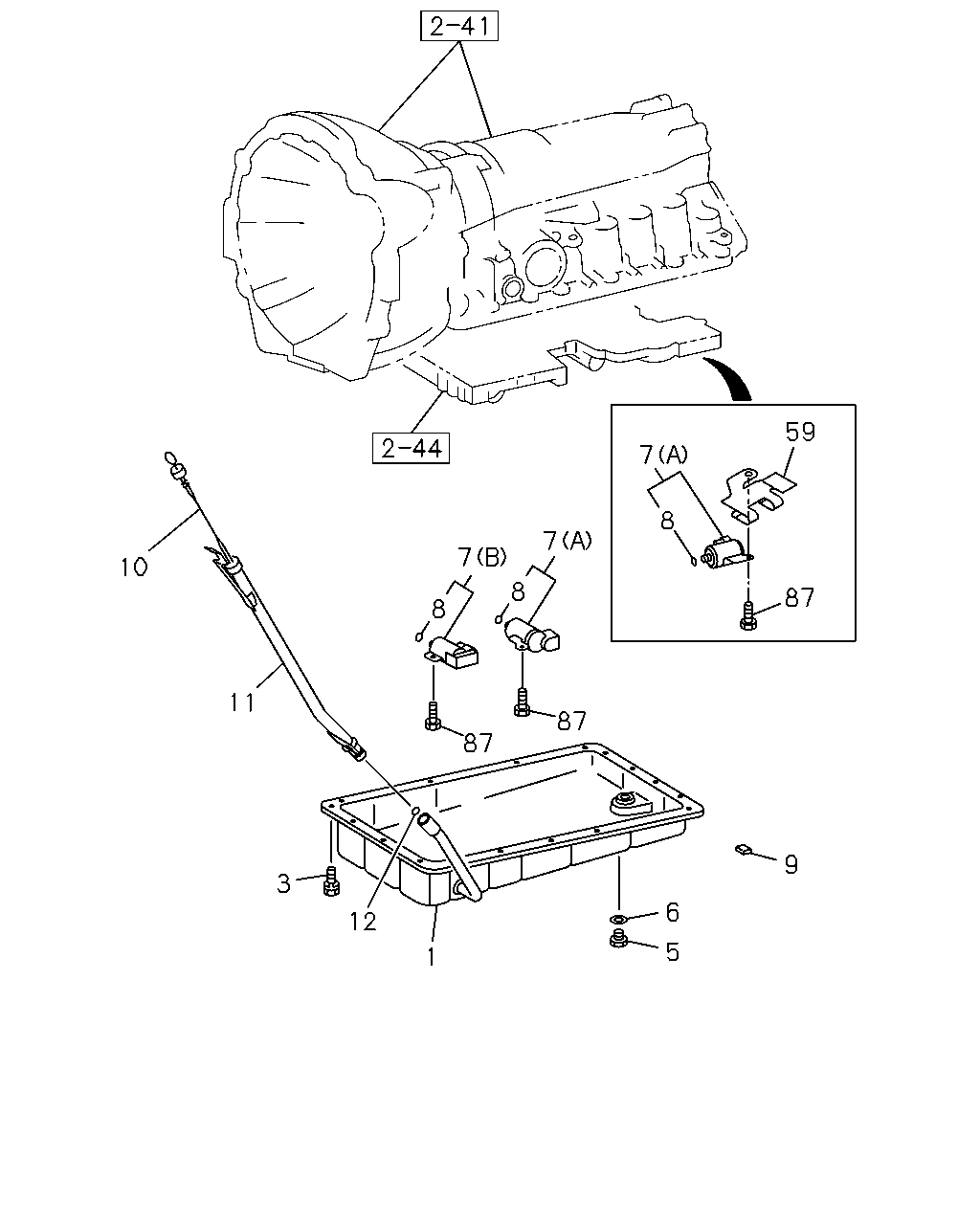

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL
(#44634) — 15 parça
59
7
8
7
7
8
10
87
8
11
87
87
9
3
6
12
5
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.195 PAN ASM; OIL,A/T
8-97027-212-0
01
1
9806-
3
04.196 BOLT; OIL PAN TO CASE
8-97130-928-0
19
1
9806-
5
04.195 PLUG; OIL PAN
5-34132-003-0
01
1
9806-
6
04.195 GASKET; OIL PAN TO PLUG
ID=12
5-34132-002-0
01
1
9806-
7
04.265 SOLENOID; DOWN SHIFT,A/T
(A)
8-97214-538-0
02
1
9806-
7
04.265 SOLENOID; DOWN SHIFT,A/T
(B)
8-97214-539-0
01
1
9806-
8
04.265 GASKET; DOWN SHIFT SOLENOID,A/T
ID=6.1
8-94480-101-0
03
1
9806-
9
04.195 MAGNET; OIL PAN
5-34138-004-0
02
1
9806-
10
04.197 GAUGE; OIL LEVEL
8-97079-360-2
01
1
9806-9906
10
04.197 GAUGE; OIL LEVEL
4X4 CREW CAB(TFS*W*)
8-97079-360-2
01
1
9907-
10
04.197 GAUGE; OIL LEVEL
4X2 CREW CAB(TFB*W*)
8-97044-281-3
01
1
9907-
11
04.197 TUBE; OIL FILLER
8-97061-029-3
01
1
9806-
12
04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8
9-09561-110-0
01
1
9806-
59
04.265 CLIP; SOLENOID WIRE
8-97126-813-0
01
1
9806-
87
04.265 BOLT; SOLENOID
M6X12
8-94479-927-0
03
1
9806-
