2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#44633) — 65 parça

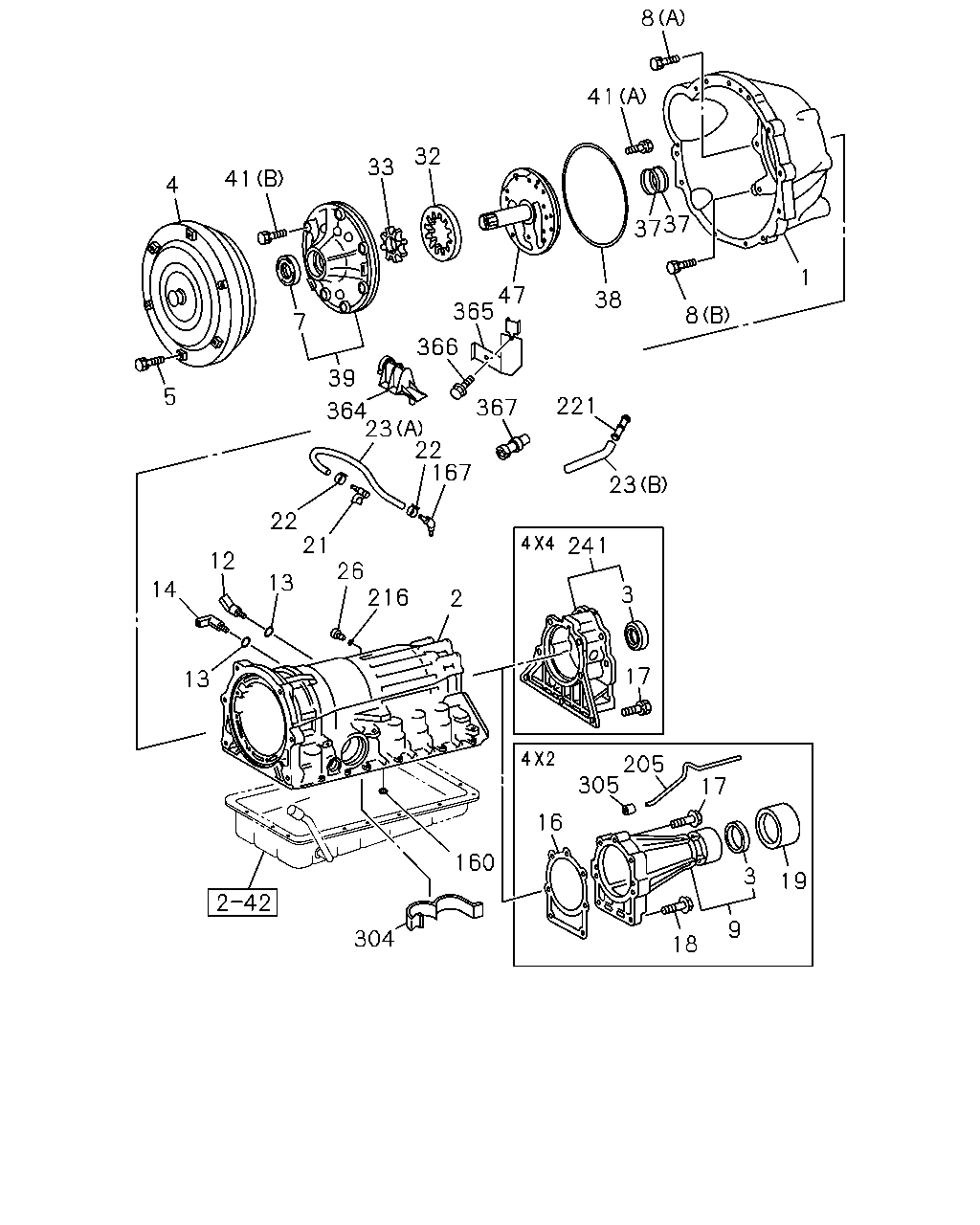

çizim 16144
8 41 32 33 41 4 37 37 1 47 365 38 8 7 366 39 364 23 22 167 5 221 367 23 22 21 26 216 241 12 13 14 3 2 17 13 205 305 17 16 3 160 19 9 304 18
BalonParca AdiParca NoAdetTipApplied Date
1 04.103 HOUSING; CONV,A/T 8-97179-520-0 01 1 9806-
2 04.103 CASE ASM; A/T
04.317 		8-94450-758-0 01 1 9806-9906
2 04.103 CASE ASM; A/T
4X4 CREW CAB(TFS*W*) 04.317 		8-94450-758-0 01 1 9907-
2 04.103 CASE ASM; A/T
4X2 CREW CAB(TFB*W*) 		8-97229-173-0 01 1 9907-
3 04.241 SEAL; OIL,RR COVER,A/T 8-97069-465-0 01 1 9806-9906
3 04.241 SEAL; OIL,RR COVER,A/T
4X4 CREW CAB(TFS*W*) 		8-97069-465-0 01 1 9907-
3 04.241 SEAL; OIL,RR COVER,A/T
4X2 CREW CAB(TFB*W*) 		8-97184-430-0 01 1 9907-
4 04.115 CONVERTER ASM; TORQUE,A/T 8-97214-535-0 01 1 9806-
5 04.008 BOLT; RR PLATE TO TORQUE CONV
M8X10 		8-94460-742-0 06 1 9806-
7 04.226 SEAL; OIL,LIP,A/T 8-94479-742-0 01 1 9806-
8 04.217 BOLT; HSG TO CASE
(A) M10X35 		8-90257-082-0 04 1 9806-
8 04.217 BOLT; HSG TO CASE
(B) M12X68 		8-97025-830-0 02 1 9806-
9 04.317 COVER ASM; RR,A/T
4X2 CREW CAB(TFB*W*) 		8-97184-429-0 01 1 9907-
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP
04.265 		8-94450-762-0 01 1 9806-
13 04.205 GASKET; OIL COOLER PIPE
04.265 ID=11.7 		8-94479-724-0 02 1 9806-
14 04.205 UNION; OIL COOLER RETURN PIPE
04.265 		8-94450-761-0 01 1 9806-
16 04.318 GASKET; EXT HSG
4X2 CREW CAB(TFB*W*) 		8-97032-928-0 01 1 9907-
17 04.319 BOLT; REAR COVER TO CASE 8-94479-936-0 07 1 9806-9906
17 04.319 BOLT; REAR COVER TO CASE
4X4 CREW CAB(TFS*W*) 		8-94479-936-0 07 1 9907-
17 04.319 BOLT; REAR COVER TO CASE
4X2 CREW CAB(TFB*W*) M10X45 		8-94473-632-0 04 1 9907-
18 04.319 BOLT; RR CVR TO CASE,LWR,A/T
4X2 CREW CAB(TFB*W*) M10X35 		8-94479-951-0 02 1 9907-
19 04.241 COVER; DUST,REAR COVER
4X2 CREW CAB(TFB*W*) 		8-97184-432-0 01 1 9907-
21 04.104 PLUG; BREATHER,A/T 8-94479-729-0 01 1 9806-9906
21 04.104 PLUG; BREATHER,A/T
4X4 CREW CAB(TFS*W*) 		8-94479-729-0 01 1 9907-0001
22 04.101 CLIP; BREATHER HOSE,A/T 8-94479-730-0 02 1 9806-9906
22 04.101 CLIP; BREATHER HOSE,A/T
4X4 CREW CAB(TFS*W*) 		8-94479-730-0 02 1 9907-0001
22 04.101 CLIP; BREATHER HOSE,A/T
4X2 CREW CAB(TFB*W*) 		8-94479-730-0 01 1 9907-0001
22 04.101 CLIP; BREATHER HOSE,A/T 8-94479-730-0 01 1 0002-
23 04.101 HOSE; BREATHER,A/T
(A) 		8-97069-455-0 01 1 9806-9906
23 04.101 HOSE; BREATHER,A/T
4X4 CREW CAB(TFS*W*) (A) 		8-97069-455-0 01 1 9907-0001
23 04.101 HOSE; BREATHER,A/T
4X4 CREW CAB(TFS*W*) (A) 		8-97254-783-0 01 1 0002-0009
23 04.101 HOSE; BREATHER,A/T
(A) 		8-97254-783-0 01 1 0010-
23 04.101 HOSE; BREATHER,A/T
(B) 		8-97231-906-0 01 1 9907-
23 04.101 HOSE; BREATHER,A/T
4X2 CREW CAB(TFB*W*) (A) 		8-97240-971-0 01 1 9907-0009
26 04.195 PLUG; TRANS CASE
04.103 		5-34119-002-0 02 1 9806-
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.715 "H"MARK W=10.715 H MARK 		8-97184-337-0 01 1 9806-
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.695 "F"MARK W=10.695 F MARK 		8-97213-029-0 01 1 9806-
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.705 "G"MARK W=10.705 G MARK 		8-97213-030-0 01 1 9806-
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.725 "J"MARK W=10.725 J MARK 		8-97213-031-0 01 1 9806-
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.735 "K"MARK W=10.735 K MARK 		8-97213-032-0 01 1 9806-
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.715 "H"MARK W=10.715 H MARK 		8-97147-426-0 01 1 9806-
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.695 "F"MARK W=10.695 F MARK 		8-97213-025-0 01 1 9806-
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.705 "G"MARK W=10.705 G MARK 		8-97213-026-0 01 1 9806-
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.725 "J"MARK W=10.725 J MARK 		8-97213-027-0 01 1 9806-
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.735 "K"MARK W=10.735 K MARK 		8-97213-028-0 01 1 9806-
37 04.226 RING; SEAL,OIL PUMP,A/T 8-94479-747-0 02 1 9806-
38 04.226 GASKET; OIL PUMP,A/T 8-94479-748-0 01 1 9806-
39 04.224 BODY SUB ASM; FRT,OIL PUMP,A/T 8-94479-741-0 01 1 9806-
41 04.226 BOLT; OIL PUMP HSG,A/T
(B) M8X35 		8-94479-749-0 07 1 9806-
41 04.226 BOLT; OIL PUMP HSG,A/T
(A) M6X15.5 		8-97019-532-0 13 1 9806-
47 04.226 SHAFT; OIL PUMP,A/T 8-97019-531-0 01 1 9806-
160 04.265 GASKET; BRK DRUM,A/T 8-94313-576-0 01 1 9806-
167 04.052 CONNECTOR; CASE,A/T
04.104 		8-97126-812-0 01 1 9806-
205 04.103 TUBE; EXT HSG
4X2 CREW CAB(TFB*W*) 		8-97184-431-0 01 1 9907-
216 04.265 GASKET; SOLENOID OUTER
04.103 ID=6 		5-34119-001-0 02 1 9806-
221 04.104 PIPE; BREATHER,A/T
04.515 		8-97228-323-0 01 1 9907-
241 04.317 ADAPTER; A/T 8-97132-838-0 01 1 9806-9906
241 04.317 ADAPTER; A/T
4X4 CREW CAB(TFS*W*) 		8-97132-838-0 01 1 9907-
304 04.205 SPRING; LEAF,A/T 8-97184-331-0 01 1 9806-
305 04.103 GASKET; TUBE,EXT HSG
4X2 CREW CAB(TFB*W*) 		8-97027-228-0 01 1 9907-
364 04.104 COVER; AIR BREATHER,A/T 8-97228-324-0 01 1 9907-
365 04.104 BRACKET; BREATHER HOSE,A/T 8-97231-740-1 01 1 9907-
366 04.104 BOLT; BRKT,BREATHER HOSE
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9907-0108
366 04.104 BOLT; BRKT,BREATHER HOSE
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0109-
367 04.104 BREATHER; AIR,MISSION 8-97164-362-0 01 1 9907-
