◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-40 - AUTO TRANS ASM AND REPAIR KIT ▶
2-40 — AUTO TRANS ASM AND REPAIR KIT (#44632) — 17 parça

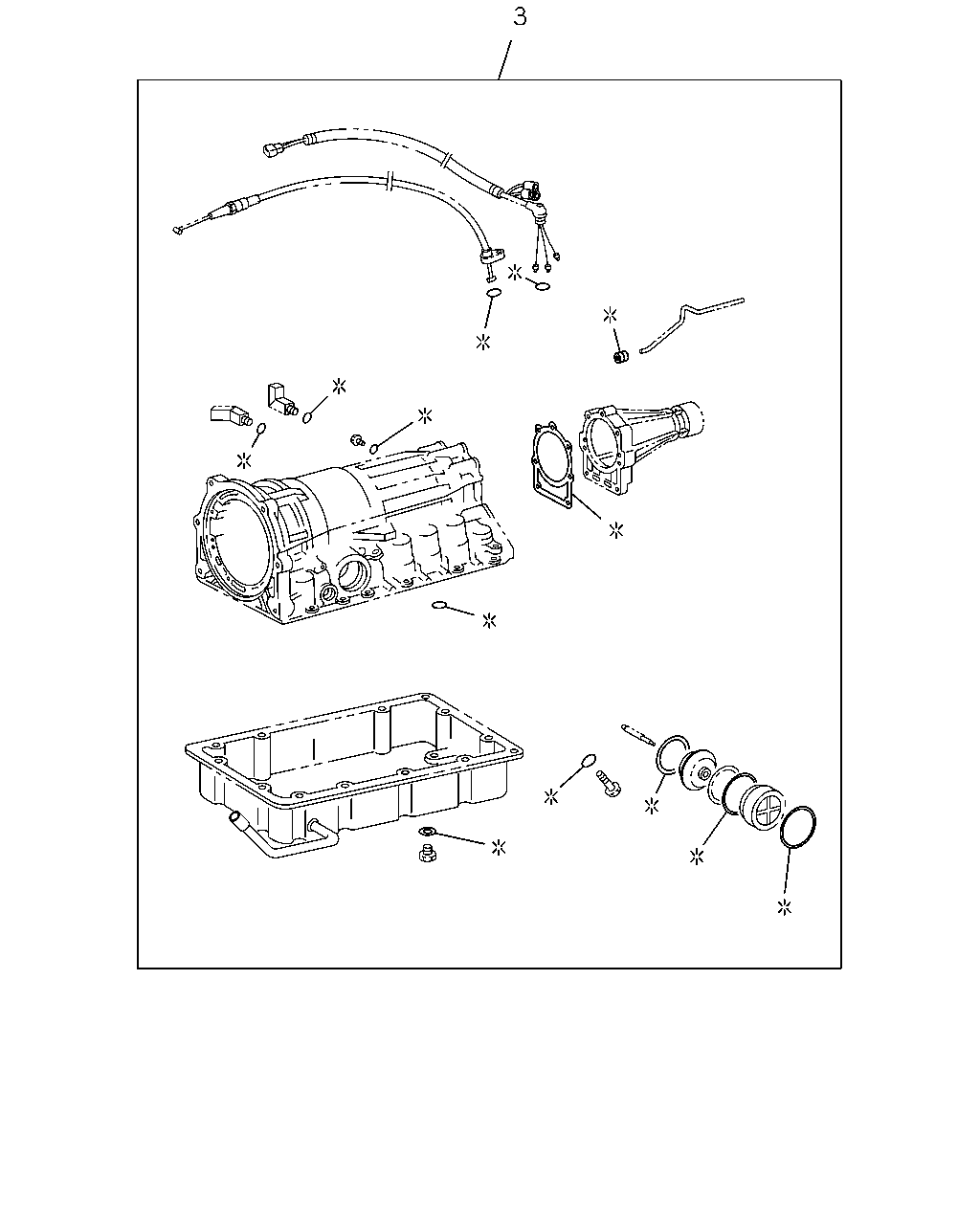

çizim 15581
3
BalonParca AdiParca NoAdetTipApplied Date
3 04.005 REPAIR KIT; SEAL & GASKET,A/T 8-97186-631-0 01 1 9806-9906
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4 CREW CAB(TFS*W*) 		8-97186-631-0 01 1 9907-
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2 CREW CAB(TFB*W*) 		8-97186-630-0 01 1 9907-

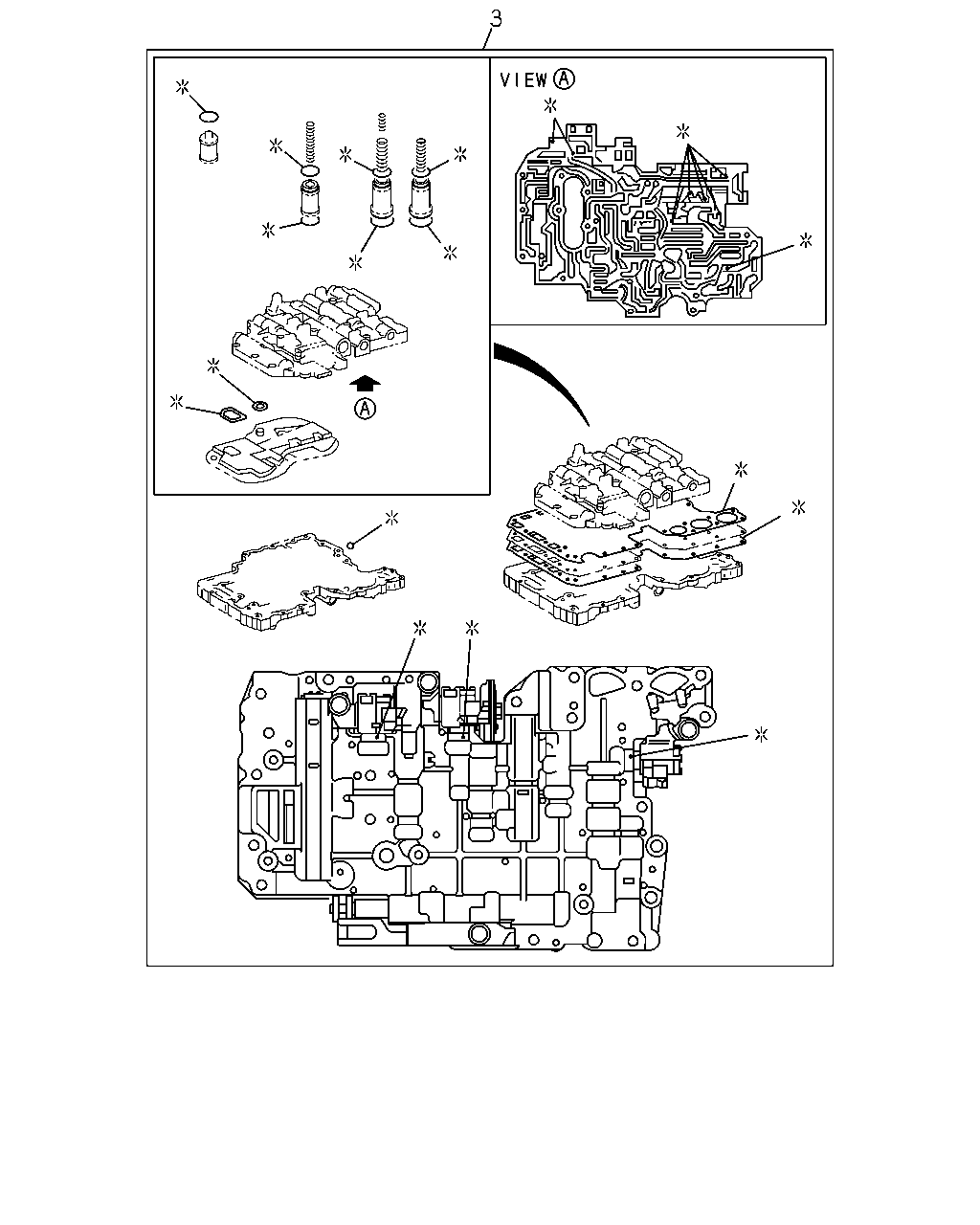

çizim 15585
3
BalonParca AdiParca NoAdetTipApplied Date
3 04.005 REPAIR KIT; SEAL & GASKET,A/T 8-97186-631-0 01 1 9806-9906
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4 CREW CAB(TFS*W*) 		8-97186-631-0 01 1 9907-
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2 CREW CAB(TFB*W*) 		8-97186-630-0 01 1 9907-

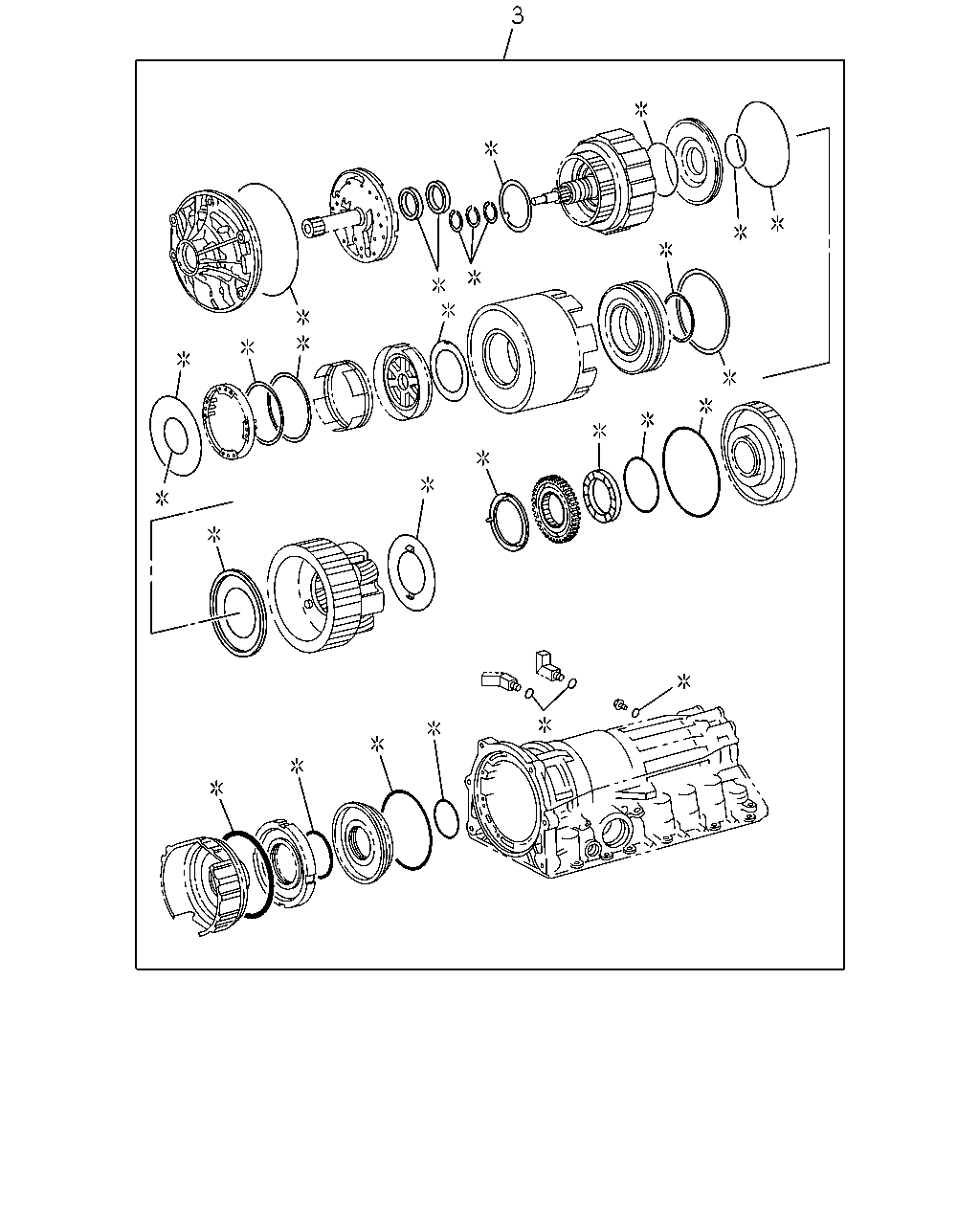

çizim 15717
3
BalonParca AdiParca NoAdetTipApplied Date
3 04.005 REPAIR KIT; SEAL & GASKET,A/T 8-97186-631-0 01 1 9806-9906
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4 CREW CAB(TFS*W*) 		8-97186-631-0 01 1 9907-
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2 CREW CAB(TFB*W*) 		8-97186-630-0 01 1 9907-

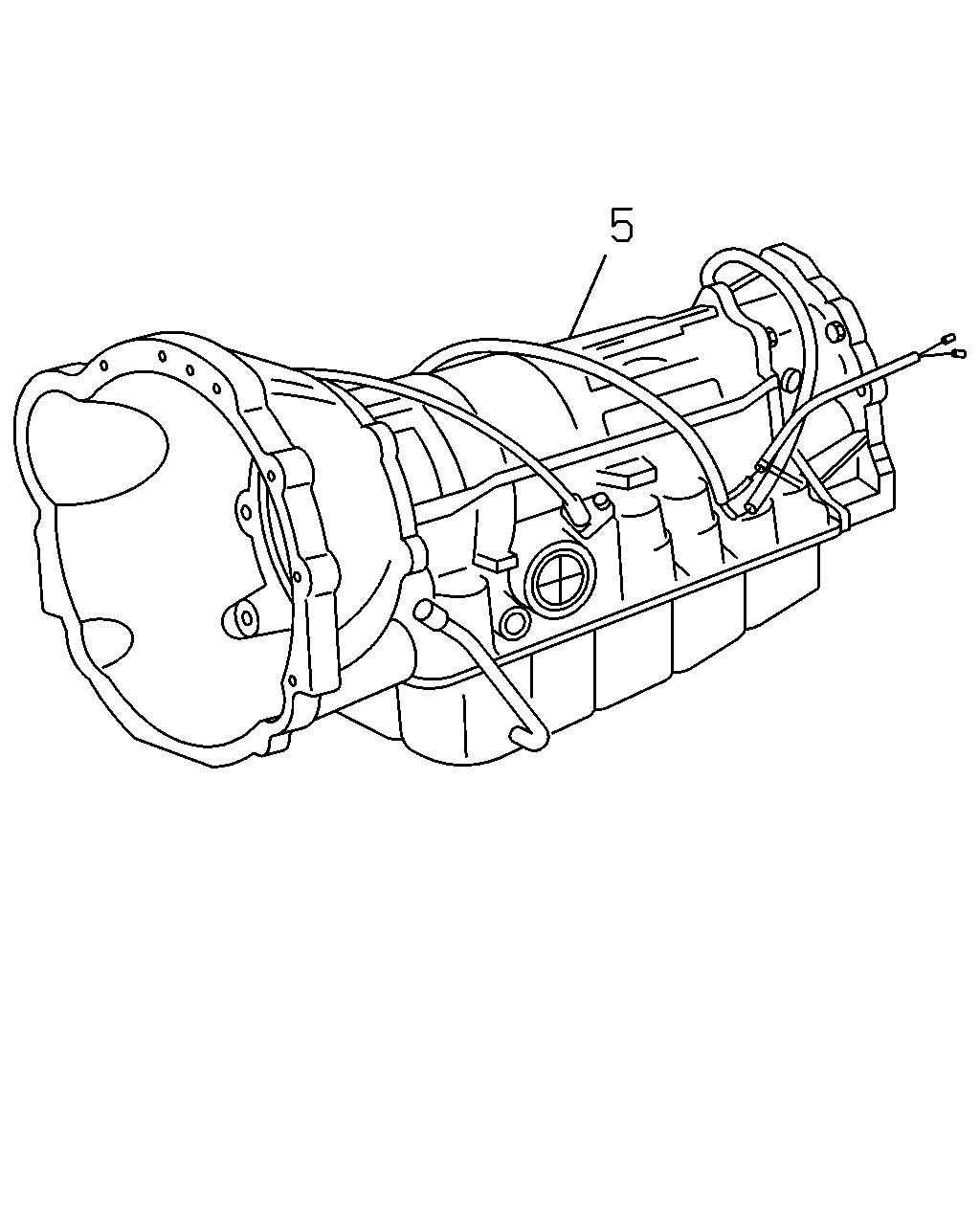

çizim 65272
5
BalonParca AdiParca NoAdetTipApplied Date
5 04.003 TRANSMISSION ASM; AUTO 8-97208-936-1 01 1 9806-9906
5 04.003 TRANSMISSION ASM; AUTO
4X4 CREW CAB(TFS*W*) 		8-97208-936-1 01 1 9907-0001
5 04.003 TRANSMISSION ASM; AUTO
4X4 CREW CAB(TFS*W*) 		8-97246-012-1 01 1 0002-
5 04.003 TRANSMISSION ASM; AUTO
4X2 CREW CAB(TFB*W*) 		8-97222-004-1 01 1 9907-0009
5 04.003 TRANSMISSION ASM; AUTO
4X2 CREW CAB(TFB*W*) 		8-97246-011-1 01 1 0010-

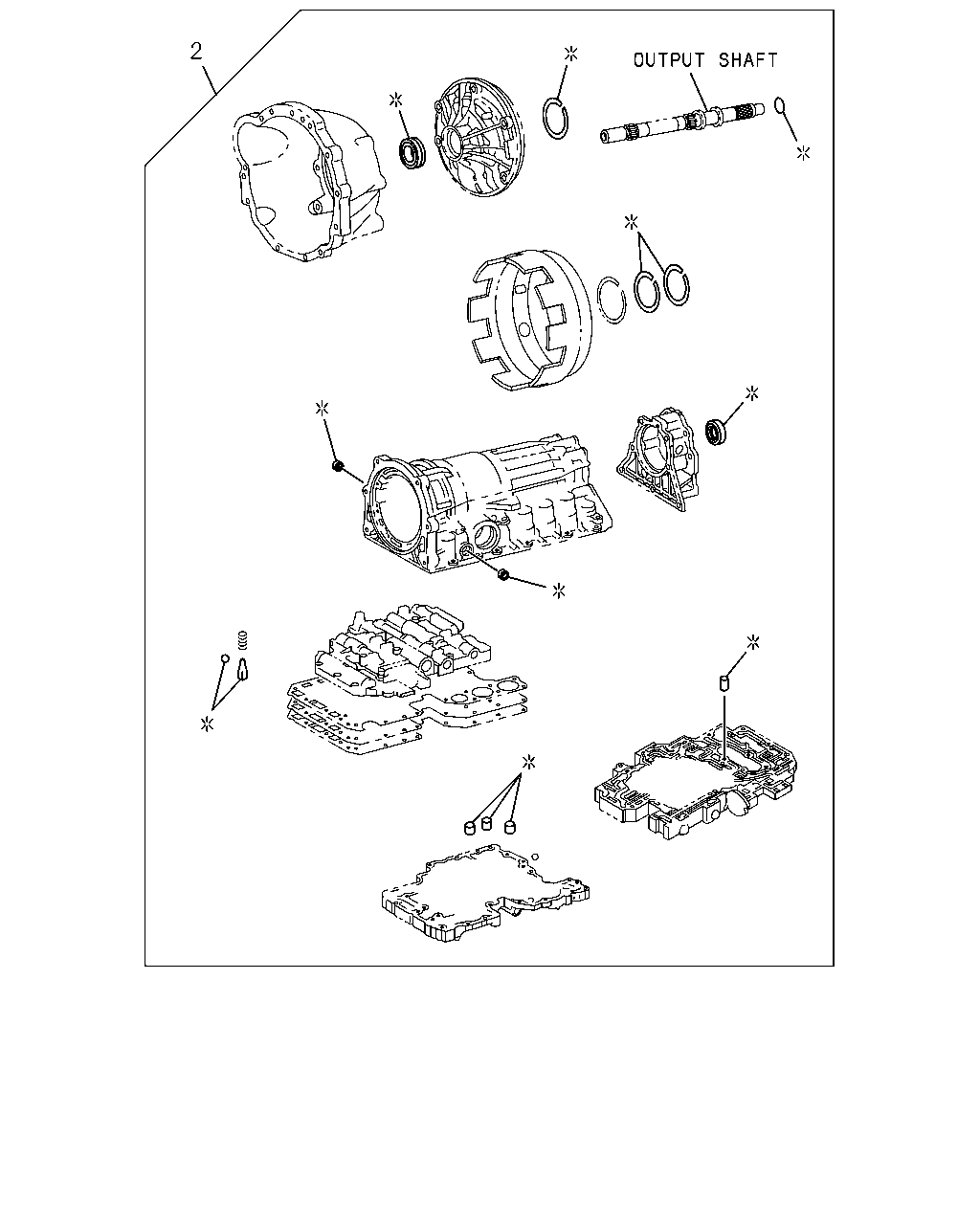

çizim 65295
2
BalonParca AdiParca NoAdetTipApplied Date
2 04.005 REPAIR KIT; A/T 8-97186-384-0 01 1 9806-9906
2 04.005 REPAIR KIT; A/T
4X4 CREW CAB(TFS*W*) 		8-97186-384-0 01 1 9907-
2 04.005 REPAIR KIT; A/T
4X2 CREW CAB(TFB*W*) 		8-97186-383-0 01 1 9907-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
