Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#44630) — 373 parça

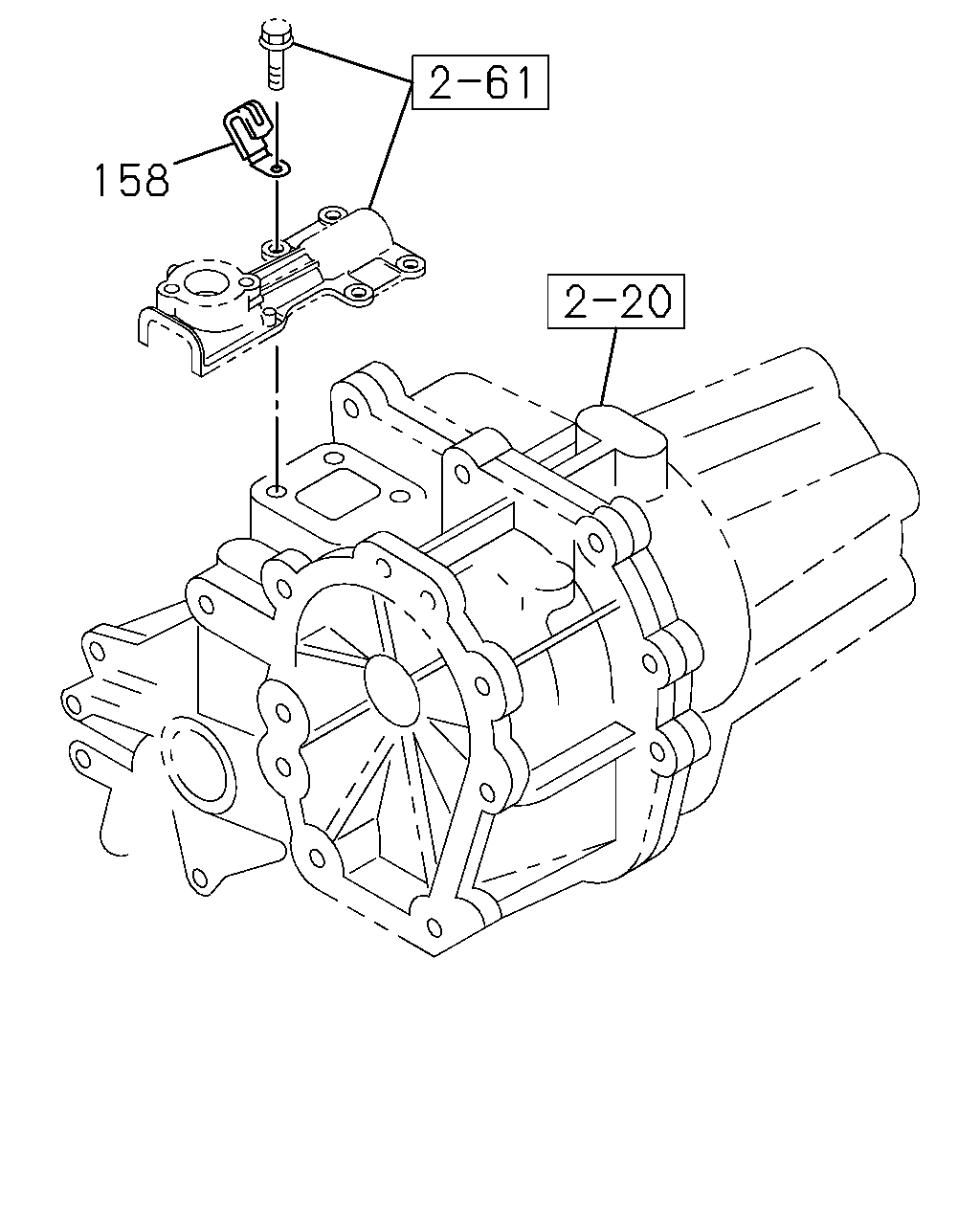

158

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	158	04.105 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	02	1	9804-	●
	158	04.105 CLIP; HARNESS 4X4(TFS***) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9806-		●

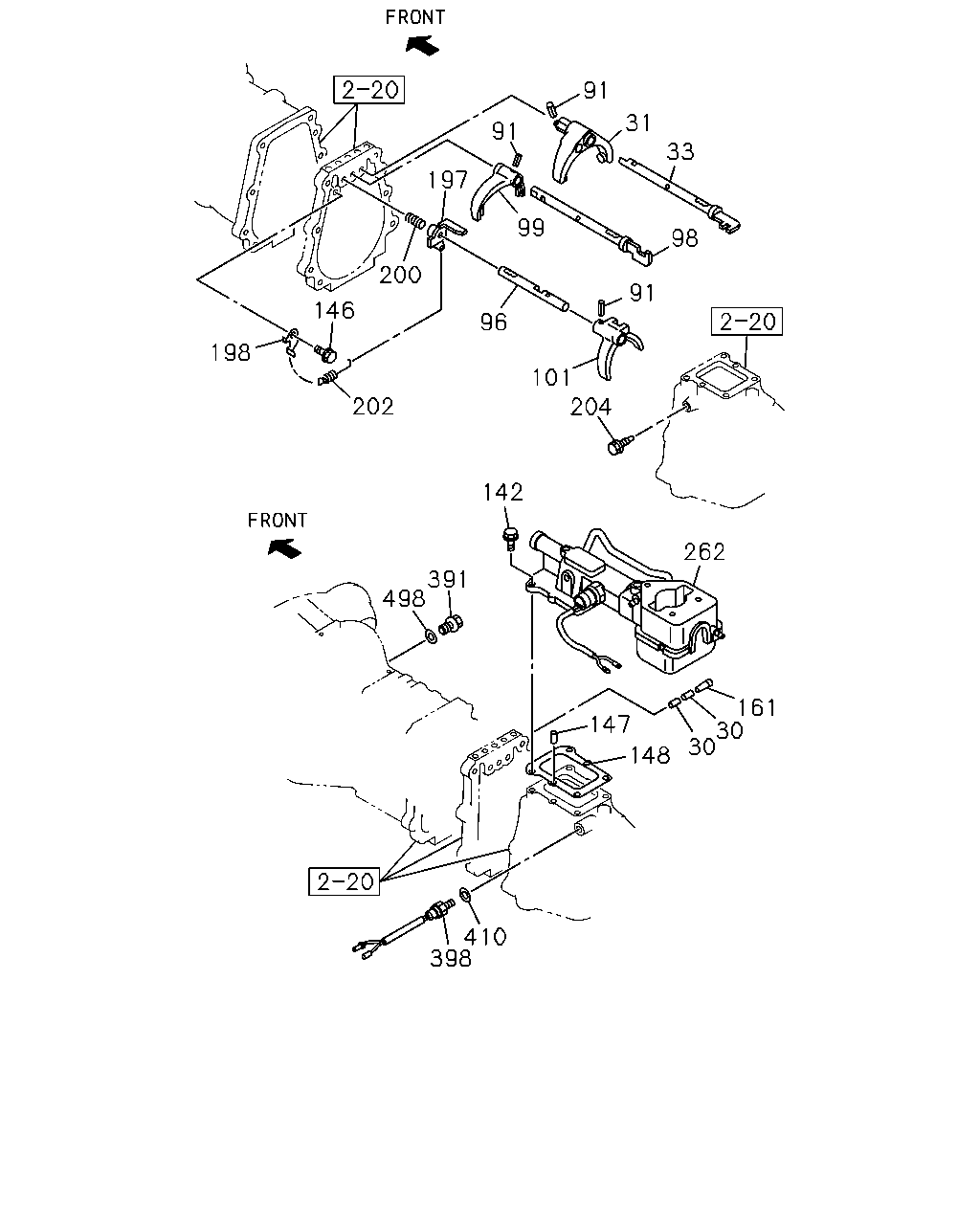

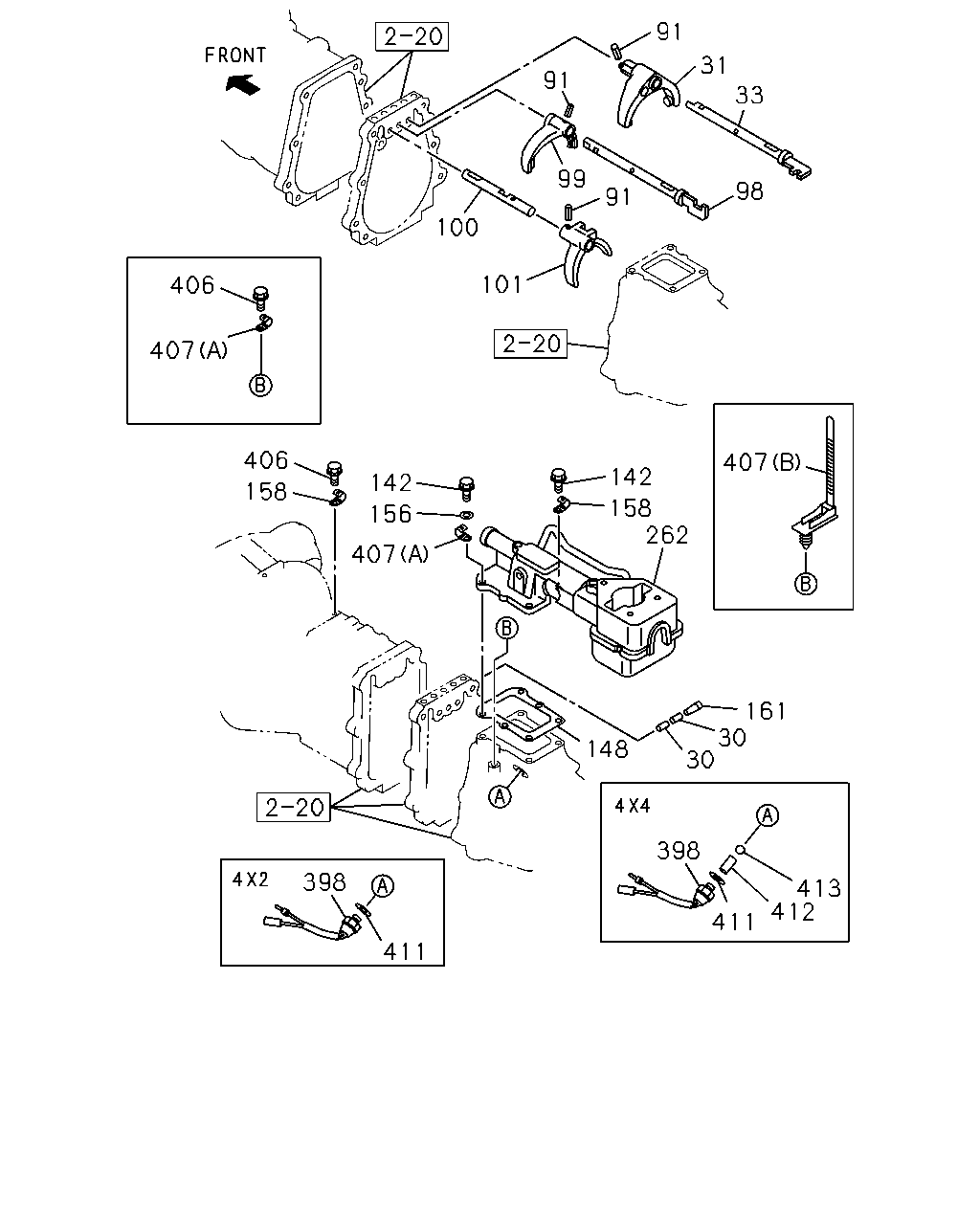

91 31 33 91 91 99 98 100 101 406 407 406 158 407 142 158 262 142 156 407 161 30 30 148 398 398 413 412 411 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	9804-	●		●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	9804-	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9804-			●
33	04.309 ROD; SHIFT,LOW & 2ND	8-94455-849-1	01	1	9804-9901	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97211-465-0	01	1	9902-9902	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	9903-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	9804-			●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	9804-	●		●
98	04.309 ROD; SHIFT,TOP & 3RD	8-94372-767-0	01	1	9804-9901	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97211-461-0	01	1	9902-9902	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	9903-	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	9804-			●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	9804-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9804-			●
100	04.309 ROD; SHIFT,REV & 5TH	8-97115-185-0	01	1	9804-	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	9804-	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	9804-			●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	9804-	●		●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	9804-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9804-			●
156	00.349 WASHER; PL,HARNESS CLIP 4X4(TFS***) 16.674 ID=8.4	9-09160-508-0	01	1	9804-9804	●
158	04.105 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	02	1	9804-	●
158	04.105 CLIP; HARNESS 4X4(TFS***) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9806-		●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	9804-	●		●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4JG2 ENG(RJC)	8-97358-140-0	01	1	0306-			●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97358-139-0	01	1	0310-			●
262	04.105 BOX ASM; SHIFT CONT BLUE MARK	8-97104-409-4	01	1	9804-9808	●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	9809-	●
262	04.105 BOX ASM; SHIFT CONT BLACK MARK	8-97172-637-1	01	1	9804-9811			●
262	04.105 BOX ASM; SHIFT CONT	8-97215-046-1	01	1	9812-0003			●
262	04.105 BOX ASM; SHIFT CONT	8-97257-822-0	01	1	0004-0107			●
262	04.105 BOX ASM; SHIFT CONT 4JG2 ENG(RJC)	8-97257-822-0	01	1	0108-0305			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97257-822-0	01	1	0108-0305			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JG2 ENG(RJC)	8-97357-584-0	01	1	0306-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97357-584-0	01	1	0306-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97257-823-0	01	1	0108-0309			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97357-583-0	01	1	0310-			●
398	02.698 SWITCH; REV LAMP 04.439	8-94411-366-1	01	1	9804-	●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	9804-			●
406	02.559 BOLT; HARNESS CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-	●
406	02.559 BOLT; HARNESS CLIP 4X4(TFS***) 00.206 M8X12 W/LK WASHER	0-50040-812-0	01	1	9804-9804	●
407	02.698 CLIP; SWITCH HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9804-9804	●
407	02.698 CLIP; SWITCH HARNESS 4X4(TFS***) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9804-9804	●
407	02.698 CLIP; SWITCH HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9805-	●
407	02.698 CLIP; SWITCH HARNESS 4X4(TFS***) 04.105 (B) L=140	8-97122-360-0	01	1	9805-	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9804-	●
412	02.698 PLUNGER; REV LAMP SW 4X4(TFS***) 04.302 D=5.5 L=26.7	8-94161-122-0	01	1	9804-	●
413	04.307 BALL; BACK SW 4X4(TFS***)	9-00097-517-0	01	1	9804-	●

262 186 511 195 140 271 268 459 140 22 132 166 459 22 261 479 174 271 479 289 172 391 274

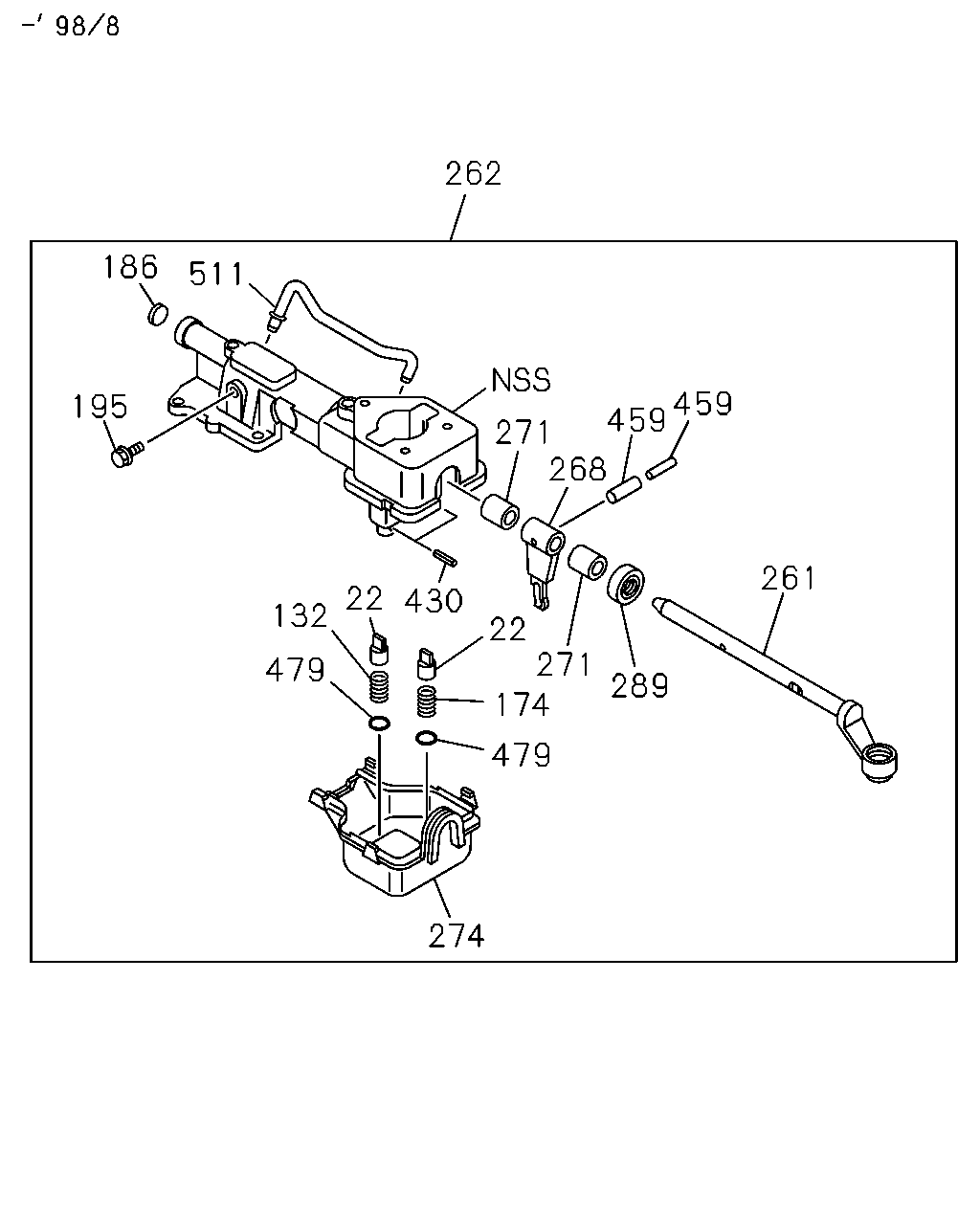

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	9809-0003	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0004-	●		●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9804-9808	●		●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9809-0003			●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	9809-0003	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0004-	●		●
132	04.027 SPRING; SELECT STOP	8-97103-106-0	01	1	9804-9808	●		●
132	04.027 SPRING; SELECT STOP	8-97103-106-0	01	1	9809-0003			●
140	04.104 BREATHER; AIR,TRANS (A)	8-97172-655-0	01	1	9804-0003			●
140	04.104 BREATHER; AIR,TRANS 04.510 (A)	8-97173-544-0	01	1	0004-			●
140	04.104 BREATHER; AIR,TRANS (B)	8-97172-656-0	01	1	9804-0003			●
140	04.104 BREATHER; AIR,TRANS 04.510 (B)	8-97173-545-0	01	1	0004-0305			●
140	04.104 BREATHER; AIR,TRANS 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 04.510	8-97173-545-0	01	1	0306-0309			●
166	04.302 PIN; SPR,SELECT LEVER 04.307 D=4.2 L=25	8-97103-142-0	02	1	9804-0003			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9804-9811			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 04.075 ID=14.2	8-94462-114-0	01	1	0108-			●
174	04.307 SPRING; REV	8-97181-394-0	01	1	9809-0003	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0004-	●		●
174	04.307 SPRING; REV	8-97103-105-0	01	1	9804-9808	●		●
174	04.307 SPRING; REV	8-97103-105-0	01	1	9809-0003			●
186	04.105 PLUG; SHIFTER ROD 00.253 OD=16	9-11129-081-0	01	1	9804-9808	●		●
186	04.105 PLUG; SHIFTER ROD 00.253 OD=16	9-11129-081-0	01	1	9809-0003			●
195	04.105 BOLT 01.656 M8X12 FLANGE	8-94479-696-1	01	1	9804-9808	●		●
195	04.105 BOLT 01.656 M8X12 FLANGE	8-94479-696-1	01	1	9809-0003			●
261	04.309 ROD; GEAR CONT	8-97103-092-1	01	1	9804-9808	●
261	04.309 ROD; GEAR CONT	8-97203-908-1	01	1	9809-0005	●
261	04.309 ROD; GEAR CONT	8-97103-090-1	01	1	9804-9811			●
261	04.309 ROD; GEAR CONT	8-97103-092-1	01	1	9812-0003			●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0004-0005			●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0006-0107	●		●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0108-	●
261	04.309 ROD; GEAR CONT 4JG2 ENG(RJC)	8-97257-825-0	01	1	0108-			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97257-825-0	01	1	0108-			●
261	04.309 ROD; GEAR CONT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97257-909-0	01	1	0108-			●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4JG2 ENG(RJC)	8-97358-140-0	01	1	0306-			●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97358-139-0	01	1	0310-			●
262	04.105 BOX ASM; SHIFT CONT BLUE MARK	8-97104-409-4	01	1	9804-9808	●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	9809-	●
262	04.105 BOX ASM; SHIFT CONT BLACK MARK	8-97172-637-1	01	1	9804-9811			●
262	04.105 BOX ASM; SHIFT CONT	8-97215-046-1	01	1	9812-0003			●
262	04.105 BOX ASM; SHIFT CONT	8-97257-822-0	01	1	0004-0107			●
262	04.105 BOX ASM; SHIFT CONT 4JG2 ENG(RJC)	8-97257-822-0	01	1	0108-0305			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97257-822-0	01	1	0108-0305			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JG2 ENG(RJC)	8-97357-584-0	01	1	0306-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97357-584-0	01	1	0306-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97257-823-0	01	1	0108-0309			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97357-583-0	01	1	0310-			●
268	04.302 LEVER; CONT,INTERNAL	8-97104-410-0	01	1	9804-9808	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	9809-	●
268	04.302 LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9804-0003			●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0004-			●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	9809-0003	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0004-	●		●
271	04.105 BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9804-9808	●		●
271	04.105 BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9809-0003			●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	9809-0003	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0004-	●		●
274	04.105 COVER; SHAFT,QUAD BOX	8-97103-093-2	01	1	9804-9808	●		●
274	04.105 COVER; SHAFT,QUAD BOX	8-97103-093-3	01	1	9809-0003			●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97181-327-0	01	1	9809-0003	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97181-327-0	01	1	0004-	●		●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9804-9808	●		●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9809-0003			●
391	04.104 PLUG; SW HOLE M14X11	8-94252-142-0	01	1	9804-9811			●
391	04.104 PLUG; SW HOLE M14X11	8-94252-142-0	01	1	9804-9811			●
391	04.104 PLUG; SW HOLE M14X11	8-94252-142-0	01	1	9812-			●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	9809-0003	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0004-	●		●
459	04.302 PIN; SPR,ROD TO ARM 04.042 OUTER OD=5.4	9-09678-510-0	01	1	9804-9808	●		●
459	04.302 PIN; SPR,ROD TO ARM 04.042 OUTER OD=5.4	9-09678-510-0	01	1	9809-0003			●
459	04.302 PIN; SPR,ROD TO ARM 04.042 INNER OD=3.3	9-09678-519-0	01	1	9804-9808	●		●
459	04.302 PIN; SPR,ROD TO ARM 04.042 INNER OD=3.3	9-09678-519-0	01	1	9809-0003			●
479	04.307 PLATE; SELECT D=13	8-97103-110-0	02	1	9804-9808	●		●
479	04.307 PLATE; SELECT D=13	8-97103-110-0	02	1	9809-0003			●
511	04.302 PIPE; AIR	8-97104-725-0	01	1	9804-9808	●
511	04.302 PIPE; AIR	8-97172-589-0	01	1	9804-0003			●

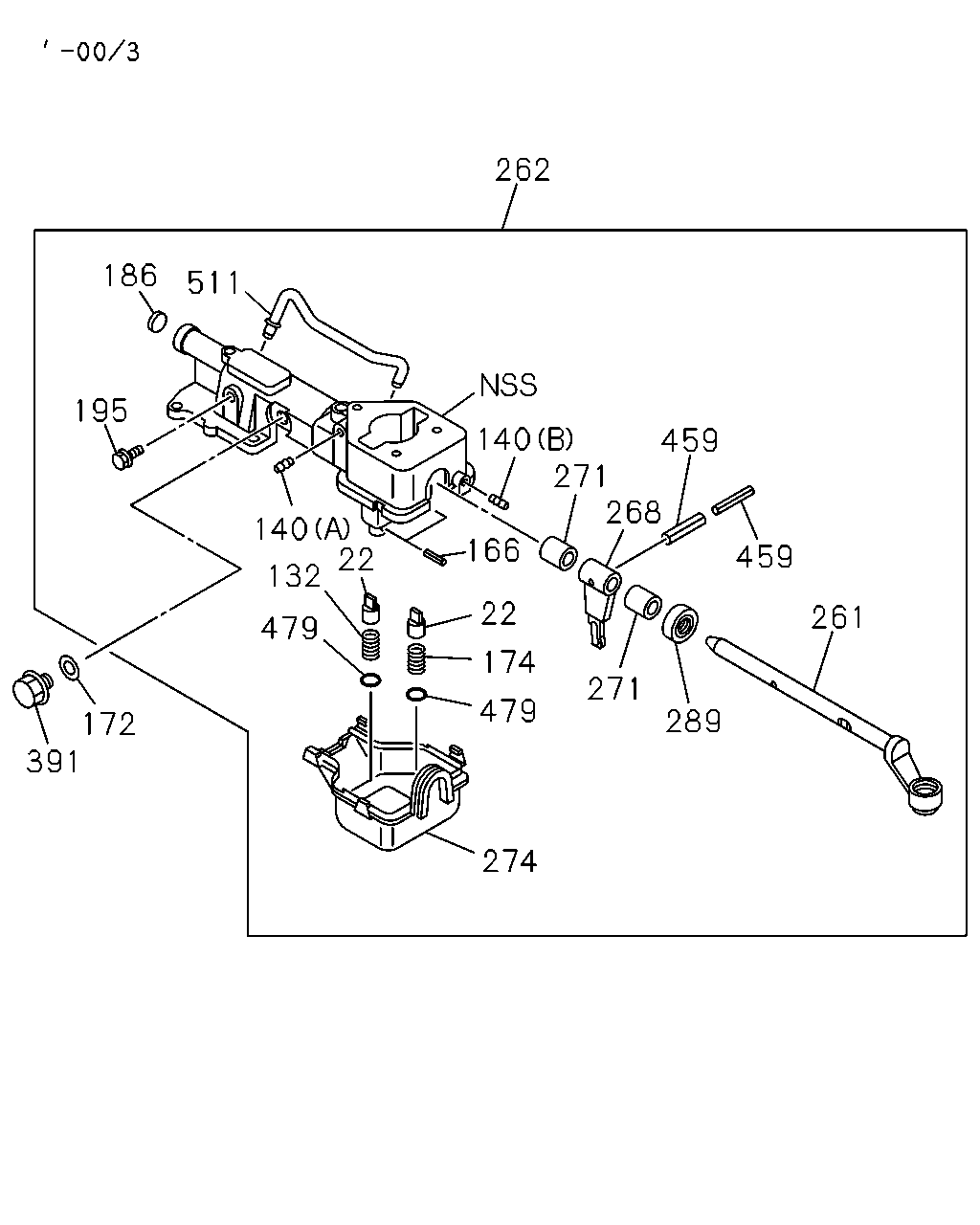

262 186 511 459 459 195 271 268 22 430 132 261 22 271 174 479 289 479 274

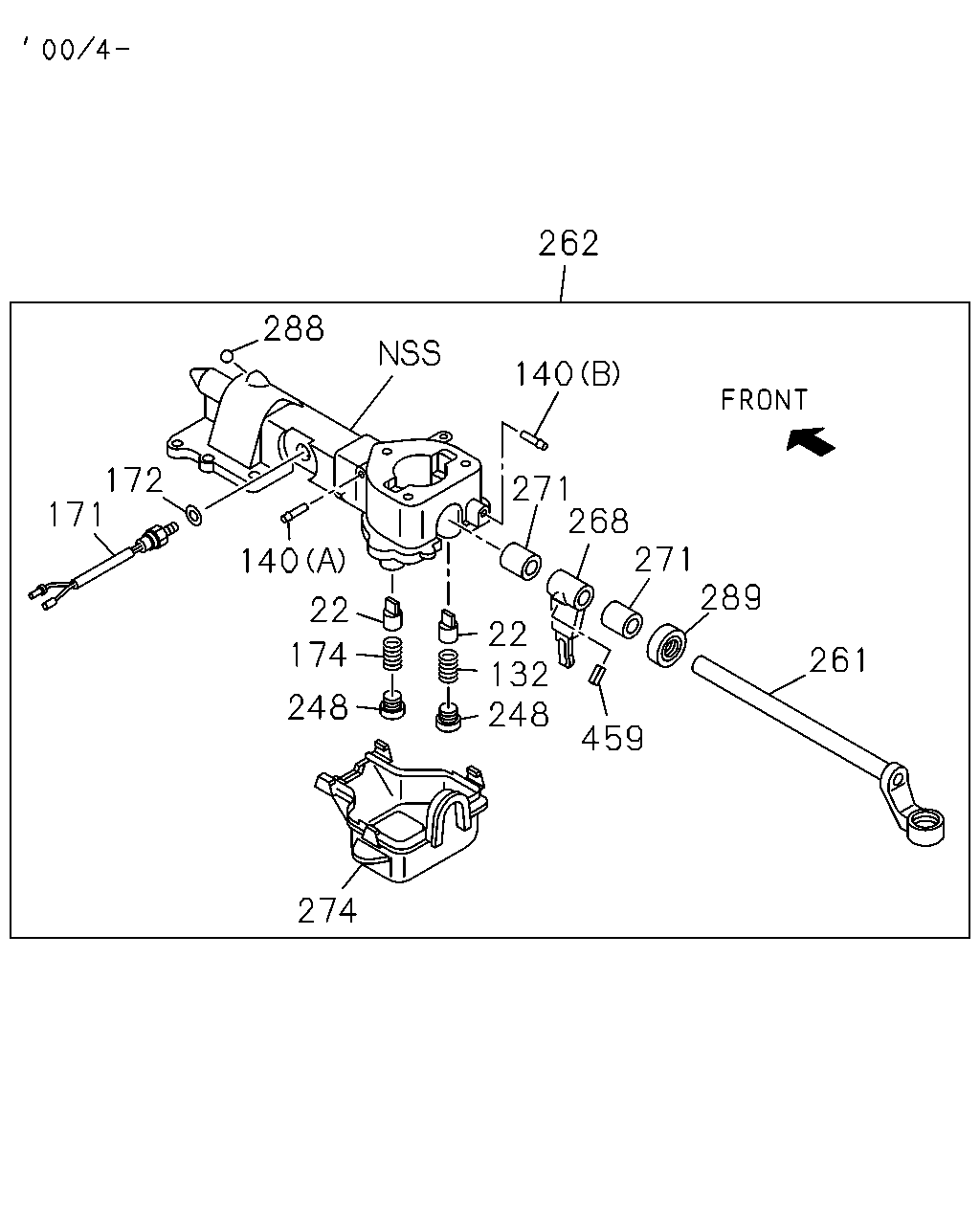

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	9809-0003	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0004-	●		●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9804-9808	●		●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9809-0003			●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	9809-0003	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0004-	●		●
132	04.027 SPRING; SELECT STOP	8-97103-106-0	01	1	9804-9808	●		●
132	04.027 SPRING; SELECT STOP	8-97103-106-0	01	1	9809-0003			●
174	04.307 SPRING; REV	8-97181-394-0	01	1	9809-0003	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0004-	●		●
174	04.307 SPRING; REV	8-97103-105-0	01	1	9804-9808	●		●
174	04.307 SPRING; REV	8-97103-105-0	01	1	9809-0003			●
186	04.105 PLUG; SHIFTER ROD 00.253 OD=16	9-11129-081-0	01	1	9804-9808	●		●
186	04.105 PLUG; SHIFTER ROD 00.253 OD=16	9-11129-081-0	01	1	9809-0003			●
195	04.105 BOLT 01.656 M8X12 FLANGE	8-94479-696-1	01	1	9804-9808	●		●
195	04.105 BOLT 01.656 M8X12 FLANGE	8-94479-696-1	01	1	9809-0003			●
261	04.309 ROD; GEAR CONT	8-97103-092-1	01	1	9804-9808	●
261	04.309 ROD; GEAR CONT	8-97203-908-1	01	1	9809-0005	●
261	04.309 ROD; GEAR CONT	8-97103-090-1	01	1	9804-9811			●
261	04.309 ROD; GEAR CONT	8-97103-092-1	01	1	9812-0003			●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0004-0005			●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0006-0107	●		●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0108-	●
261	04.309 ROD; GEAR CONT 4JG2 ENG(RJC)	8-97257-825-0	01	1	0108-			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97257-825-0	01	1	0108-			●
261	04.309 ROD; GEAR CONT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97257-909-0	01	1	0108-			●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4JG2 ENG(RJC)	8-97358-140-0	01	1	0306-			●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97358-139-0	01	1	0310-			●
262	04.105 BOX ASM; SHIFT CONT BLUE MARK	8-97104-409-4	01	1	9804-9808	●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	9809-	●
262	04.105 BOX ASM; SHIFT CONT BLACK MARK	8-97172-637-1	01	1	9804-9811			●
262	04.105 BOX ASM; SHIFT CONT	8-97215-046-1	01	1	9812-0003			●
262	04.105 BOX ASM; SHIFT CONT	8-97257-822-0	01	1	0004-0107			●
262	04.105 BOX ASM; SHIFT CONT 4JG2 ENG(RJC)	8-97257-822-0	01	1	0108-0305			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97257-822-0	01	1	0108-0305			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JG2 ENG(RJC)	8-97357-584-0	01	1	0306-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97357-584-0	01	1	0306-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97257-823-0	01	1	0108-0309			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97357-583-0	01	1	0310-			●
268	04.302 LEVER; CONT,INTERNAL	8-97104-410-0	01	1	9804-9808	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	9809-	●
268	04.302 LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9804-0003			●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0004-			●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	9809-0003	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0004-	●		●
271	04.105 BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9804-9808	●		●
271	04.105 BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9809-0003			●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	9809-0003	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0004-	●		●
274	04.105 COVER; SHAFT,QUAD BOX	8-97103-093-2	01	1	9804-9808	●		●
274	04.105 COVER; SHAFT,QUAD BOX	8-97103-093-3	01	1	9809-0003			●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97181-327-0	01	1	9809-0003	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97181-327-0	01	1	0004-	●		●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9804-9808	●		●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9809-0003			●
430	04.307 PIN; SPR,SHIFT ROD D=4.2 L=25	8-97103-142-0	02	1	9804-9808	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	9809-0003	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0004-	●		●
459	04.302 PIN; SPR,ROD TO ARM 04.042 OUTER OD=5.4	9-09678-510-0	01	1	9804-9808	●		●
459	04.302 PIN; SPR,ROD TO ARM 04.042 OUTER OD=5.4	9-09678-510-0	01	1	9809-0003			●
459	04.302 PIN; SPR,ROD TO ARM 04.042 INNER OD=3.3	9-09678-519-0	01	1	9804-9808	●		●
459	04.302 PIN; SPR,ROD TO ARM 04.042 INNER OD=3.3	9-09678-519-0	01	1	9809-0003			●
479	04.307 PLATE; SELECT D=13	8-97103-110-0	02	1	9804-9808	●		●
479	04.307 PLATE; SELECT D=13	8-97103-110-0	02	1	9809-0003			●
511	04.302 PIPE; AIR	8-97104-725-0	01	1	9804-9808	●
511	04.302 PIPE; AIR	8-97172-589-0	01	1	9804-0003			●

262 288 140 172 171 271 268 271 289 140 22 22 132 248 174 261 248 459 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	9809-0003	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0004-	●		●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9804-9808	●		●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9809-0003			●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	9809-0003	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0004-	●		●
132	04.027 SPRING; SELECT STOP	8-97103-106-0	01	1	9804-9808	●		●
132	04.027 SPRING; SELECT STOP	8-97103-106-0	01	1	9809-0003			●
140	04.104 BREATHER; AIR,TRANS (A)	8-97172-655-0	01	1	9804-0003			●
140	04.104 BREATHER; AIR,TRANS 04.510 (A)	8-97173-544-0	01	1	0004-			●
140	04.104 BREATHER; AIR,TRANS (B)	8-97172-656-0	01	1	9804-0003			●
140	04.104 BREATHER; AIR,TRANS 04.510 (B)	8-97173-545-0	01	1	0004-0305			●
140	04.104 BREATHER; AIR,TRANS 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 04.510	8-97173-545-0	01	1	0306-0309			●
171	04.054 SWITCH; NEUTRAL 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97138-631-0	01	1	0108-			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9804-9811			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 04.075 ID=14.2	8-94462-114-0	01	1	0108-			●
174	04.307 SPRING; REV	8-97181-394-0	01	1	9809-0003	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0004-	●		●
174	04.307 SPRING; REV	8-97103-105-0	01	1	9804-9808	●		●
174	04.307 SPRING; REV	8-97103-105-0	01	1	9809-0003			●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	9809-0003	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0004-	●		●
261	04.309 ROD; GEAR CONT	8-97103-092-1	01	1	9804-9808	●
261	04.309 ROD; GEAR CONT	8-97203-908-1	01	1	9809-0005	●
261	04.309 ROD; GEAR CONT	8-97103-090-1	01	1	9804-9811			●
261	04.309 ROD; GEAR CONT	8-97103-092-1	01	1	9812-0003			●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0004-0005			●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0006-0107	●		●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0108-	●
261	04.309 ROD; GEAR CONT 4JG2 ENG(RJC)	8-97257-825-0	01	1	0108-			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97257-825-0	01	1	0108-			●
261	04.309 ROD; GEAR CONT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97257-909-0	01	1	0108-			●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4JG2 ENG(RJC)	8-97358-140-0	01	1	0306-			●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97358-139-0	01	1	0310-			●
262	04.105 BOX ASM; SHIFT CONT BLUE MARK	8-97104-409-4	01	1	9804-9808	●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	9809-	●
262	04.105 BOX ASM; SHIFT CONT BLACK MARK	8-97172-637-1	01	1	9804-9811			●
262	04.105 BOX ASM; SHIFT CONT	8-97215-046-1	01	1	9812-0003			●
262	04.105 BOX ASM; SHIFT CONT	8-97257-822-0	01	1	0004-0107			●
262	04.105 BOX ASM; SHIFT CONT 4JG2 ENG(RJC)	8-97257-822-0	01	1	0108-0305			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97257-822-0	01	1	0108-0305			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JG2 ENG(RJC)	8-97357-584-0	01	1	0306-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97357-584-0	01	1	0306-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97257-823-0	01	1	0108-0309			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97357-583-0	01	1	0310-			●
268	04.302 LEVER; CONT,INTERNAL	8-97104-410-0	01	1	9804-9808	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	9809-	●
268	04.302 LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9804-0003			●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0004-			●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	9809-0003	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0004-	●		●
271	04.105 BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9804-9808	●		●
271	04.105 BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9809-0003			●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	9809-0003	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0004-	●		●
274	04.105 COVER; SHAFT,QUAD BOX	8-97103-093-2	01	1	9804-9808	●		●
274	04.105 COVER; SHAFT,QUAD BOX	8-97103-093-3	01	1	9809-0003			●
288	04.307 PLUG; AIR BREATHER	8-97184-906-0	01	1	9809-0005	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	0004-0005			●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	0006-	●		●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97181-327-0	01	1	9809-0003	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97181-327-0	01	1	0004-	●		●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9804-9808	●		●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9809-0003			●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	9809-0003	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0004-	●		●
459	04.302 PIN; SPR,ROD TO ARM 04.042 OUTER OD=5.4	9-09678-510-0	01	1	9804-9808	●		●
459	04.302 PIN; SPR,ROD TO ARM 04.042 OUTER OD=5.4	9-09678-510-0	01	1	9809-0003			●
459	04.302 PIN; SPR,ROD TO ARM 04.042 INNER OD=3.3	9-09678-519-0	01	1	9804-9808	●		●
459	04.302 PIN; SPR,ROD TO ARM 04.042 INNER OD=3.3	9-09678-519-0	01	1	9809-0003			●

262 288 271 268 271 289 22 174 248 22 132 261 248 459 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	9809-0003	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0004-	●		●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9804-9808	●		●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9809-0003			●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	9809-0003	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0004-	●		●
132	04.027 SPRING; SELECT STOP	8-97103-106-0	01	1	9804-9808	●		●
132	04.027 SPRING; SELECT STOP	8-97103-106-0	01	1	9809-0003			●
174	04.307 SPRING; REV	8-97181-394-0	01	1	9809-0003	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0004-	●		●
174	04.307 SPRING; REV	8-97103-105-0	01	1	9804-9808	●		●
174	04.307 SPRING; REV	8-97103-105-0	01	1	9809-0003			●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	9809-0003	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0004-	●		●
261	04.309 ROD; GEAR CONT	8-97103-092-1	01	1	9804-9808	●
261	04.309 ROD; GEAR CONT	8-97203-908-1	01	1	9809-0005	●
261	04.309 ROD; GEAR CONT	8-97103-090-1	01	1	9804-9811			●
261	04.309 ROD; GEAR CONT	8-97103-092-1	01	1	9812-0003			●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0004-0005			●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0006-0107	●		●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0108-	●
261	04.309 ROD; GEAR CONT 4JG2 ENG(RJC)	8-97257-825-0	01	1	0108-			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97257-825-0	01	1	0108-			●
261	04.309 ROD; GEAR CONT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97257-909-0	01	1	0108-			●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4JG2 ENG(RJC)	8-97358-140-0	01	1	0306-			●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97358-139-0	01	1	0310-			●
262	04.105 BOX ASM; SHIFT CONT BLUE MARK	8-97104-409-4	01	1	9804-9808	●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	9809-	●
262	04.105 BOX ASM; SHIFT CONT BLACK MARK	8-97172-637-1	01	1	9804-9811			●
262	04.105 BOX ASM; SHIFT CONT	8-97215-046-1	01	1	9812-0003			●
262	04.105 BOX ASM; SHIFT CONT	8-97257-822-0	01	1	0004-0107			●
262	04.105 BOX ASM; SHIFT CONT 4JG2 ENG(RJC)	8-97257-822-0	01	1	0108-0305			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97257-822-0	01	1	0108-0305			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JG2 ENG(RJC)	8-97357-584-0	01	1	0306-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97357-584-0	01	1	0306-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97257-823-0	01	1	0108-0309			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97357-583-0	01	1	0310-			●
268	04.302 LEVER; CONT,INTERNAL	8-97104-410-0	01	1	9804-9808	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	9809-	●
268	04.302 LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9804-0003			●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0004-			●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	9809-0003	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0004-	●		●
271	04.105 BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9804-9808	●		●
271	04.105 BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9809-0003			●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	9809-0003	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0004-	●		●
274	04.105 COVER; SHAFT,QUAD BOX	8-97103-093-2	01	1	9804-9808	●		●
274	04.105 COVER; SHAFT,QUAD BOX	8-97103-093-3	01	1	9809-0003			●
288	04.307 PLUG; AIR BREATHER	8-97184-906-0	01	1	9809-0005	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	0004-0005			●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	0006-	●		●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97181-327-0	01	1	9809-0003	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97181-327-0	01	1	0004-	●		●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9804-9808	●		●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9809-0003			●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	9809-0003	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0004-	●		●
459	04.302 PIN; SPR,ROD TO ARM 04.042 OUTER OD=5.4	9-09678-510-0	01	1	9804-9808	●		●
459	04.302 PIN; SPR,ROD TO ARM 04.042 OUTER OD=5.4	9-09678-510-0	01	1	9809-0003			●
459	04.302 PIN; SPR,ROD TO ARM 04.042 INNER OD=3.3	9-09678-519-0	01	1	9804-9808	●		●
459	04.302 PIN; SPR,ROD TO ARM 04.042 INNER OD=3.3	9-09678-519-0	01	1	9809-0003			●

91 31 91 33 197 99 98 200 146 91 96 198 101 204 202 142 262 391 498 161 30 30 147 148 410 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	9804-	●		●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	9804-	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9804-			●
33	04.309 ROD; SHIFT,LOW & 2ND	8-94455-849-1	01	1	9804-9901	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97211-465-0	01	1	9902-9902	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	9903-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	9804-			●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	9804-	●		●
96	04.309 ROD; SHIFT,5TH	8-94440-079-1	01	1	9804-			●
98	04.309 ROD; SHIFT,TOP & 3RD	8-94372-767-0	01	1	9804-9901	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97211-461-0	01	1	9902-9902	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	9903-	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	9804-			●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	9804-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9804-			●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	9804-	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	9804-			●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	9804-	●		●
146	04.032 BOLT; REV INHIBITOR 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9804-0011			●
146	04.032 BOLT; REV INHIBITOR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	0012-			●
147	04.020 PIN; KNOCK 4X2(TFB***) 04.510 OD=6 L=12	9-08150-612-0	02	1	9804-			●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	9804-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9804-			●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	9804-	●		●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	9804-			●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	9804-			●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	9804-			●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	9804-			●
204	04.309 STOPPER; REV INHIBITOR	8-94479-434-2	01	1	9804-			●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4JG2 ENG(RJC)	8-97358-140-0	01	1	0306-			●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97358-139-0	01	1	0310-			●
262	04.105 BOX ASM; SHIFT CONT BLUE MARK	8-97104-409-4	01	1	9804-9808	●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	9809-	●
262	04.105 BOX ASM; SHIFT CONT BLACK MARK	8-97172-637-1	01	1	9804-9811			●
262	04.105 BOX ASM; SHIFT CONT	8-97215-046-1	01	1	9812-0003			●
262	04.105 BOX ASM; SHIFT CONT	8-97257-822-0	01	1	0004-0107			●
262	04.105 BOX ASM; SHIFT CONT 4JG2 ENG(RJC)	8-97257-822-0	01	1	0108-0305			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97257-822-0	01	1	0108-0305			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JG2 ENG(RJC)	8-97357-584-0	01	1	0306-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97357-584-0	01	1	0306-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97257-823-0	01	1	0108-0309			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97357-583-0	01	1	0310-			●
391	04.104 PLUG; SW HOLE M14X11	8-94252-142-0	01	1	9804-9811			●
391	04.104 PLUG; SW HOLE M14X11	8-94252-142-0	01	1	9804-9811			●
391	04.104 PLUG; SW HOLE M14X11	8-94252-142-0	01	1	9812-			●
398	02.698 SWITCH; REV LAMP 04.439	8-94411-366-1	01	1	9804-	●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	9804-			●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9804-			●
498	04.075 GASKET; SWITCH,1ST & 2ND 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9804-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
