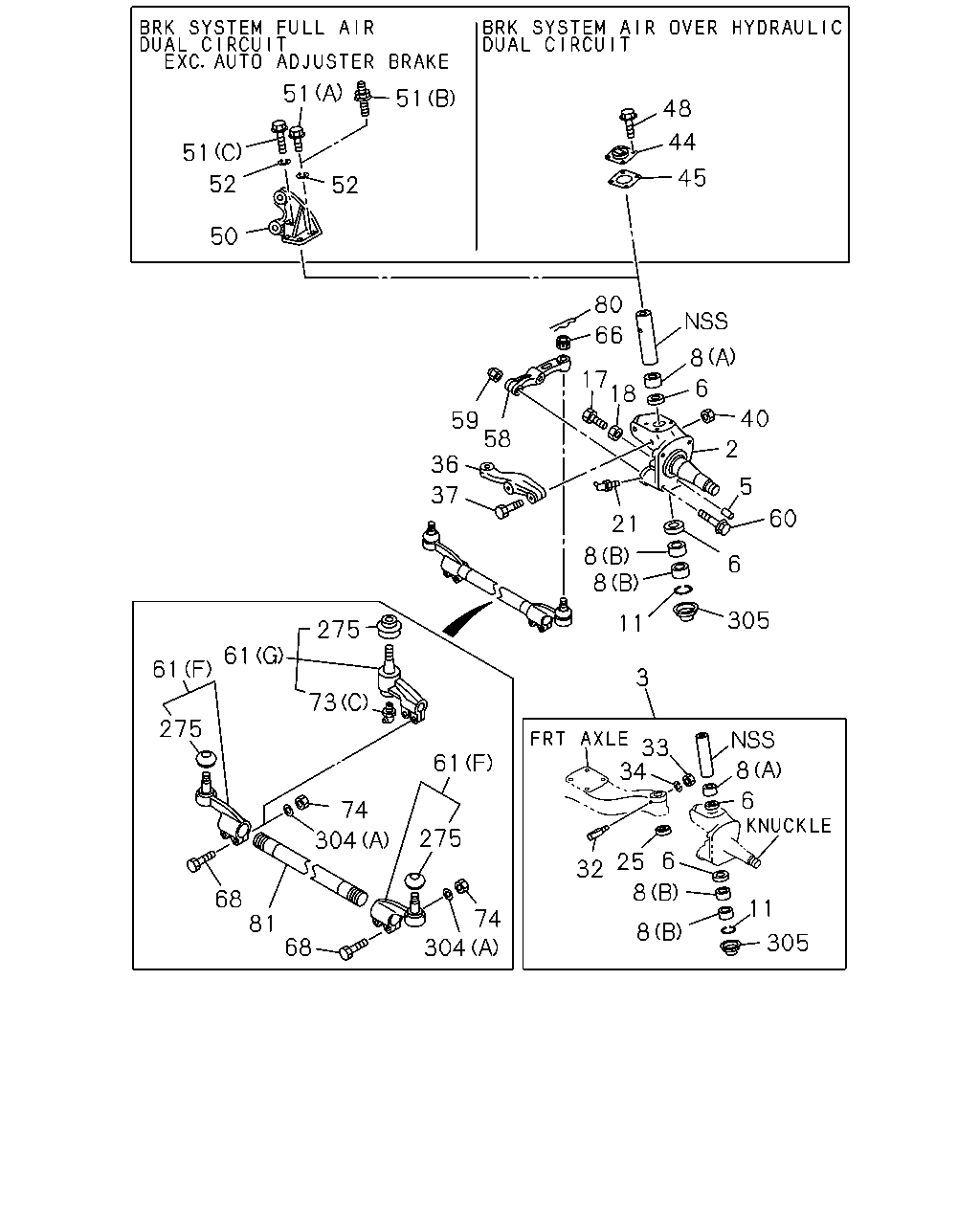

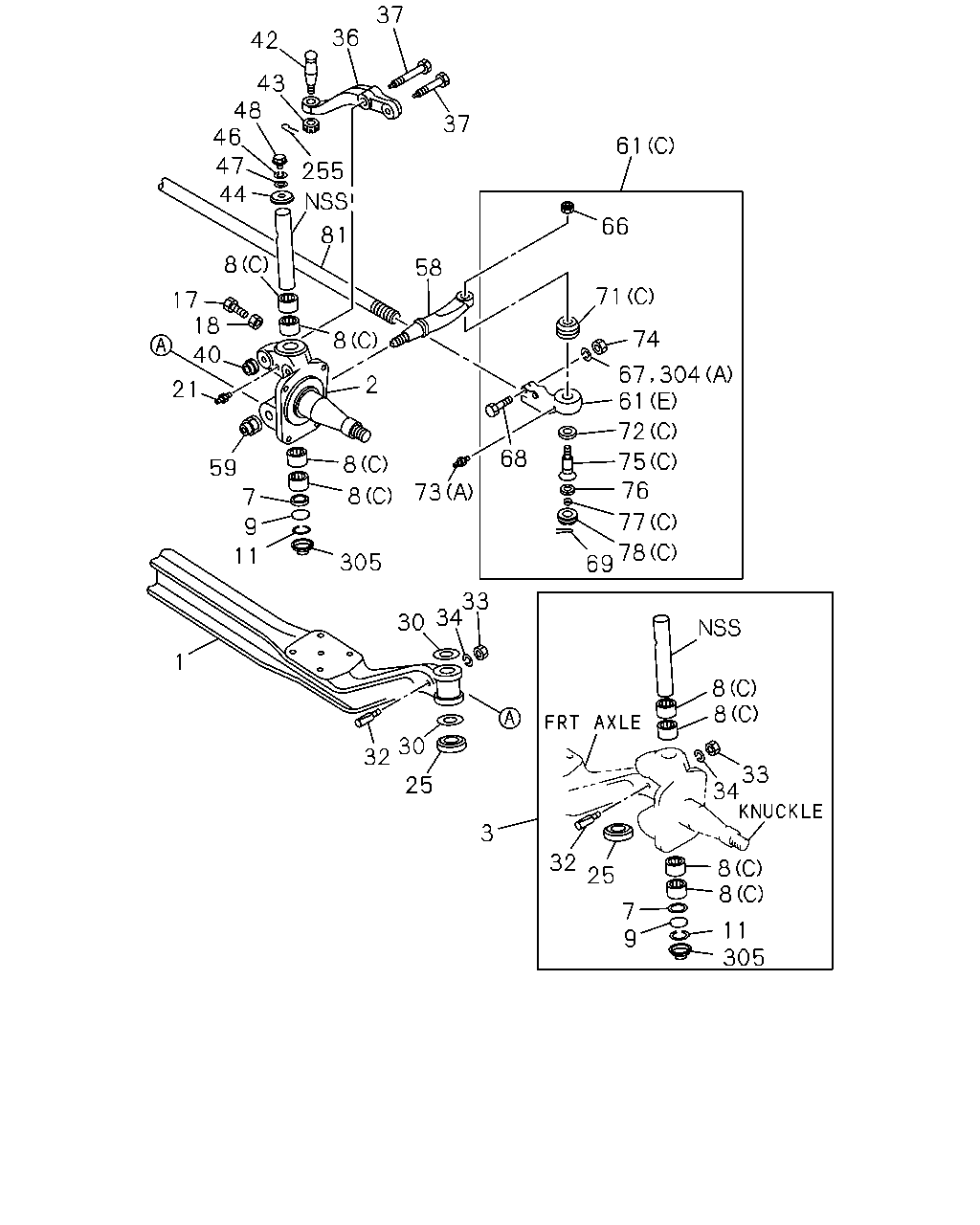

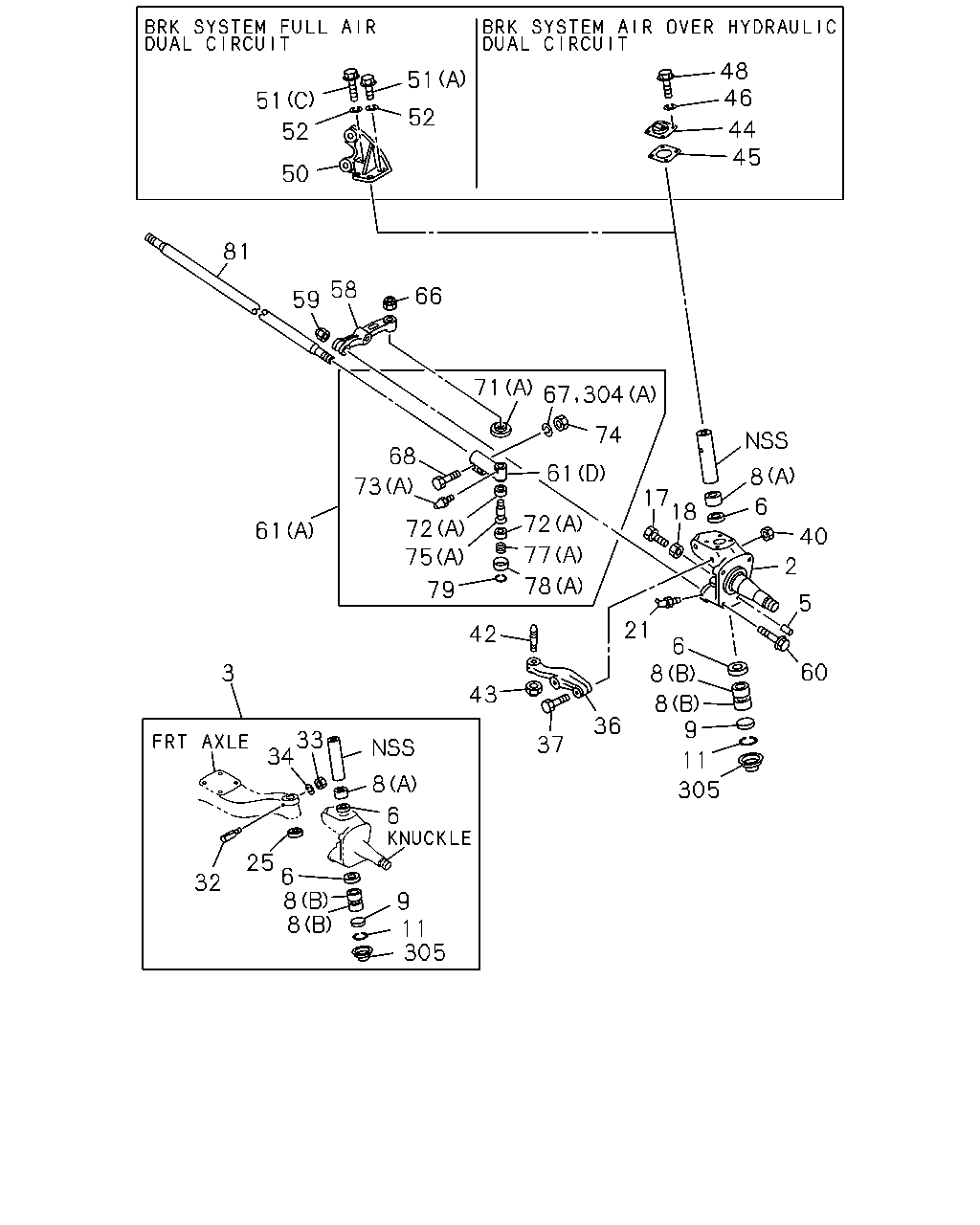

4-10 — FRONT AXLE (#4463) — 952 parça

51 48 44 45 52 52 50 80 66 17 18 6 40 59 58 2 36 5 37 60 21 8 8 6 305 11 275 61 61 3 73 275 33 34 61 8 6 74 275 304 6 25 32 8 68 81 11 74 304 8 305 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-039-7	01	1	9101-9412	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-083-0	01	1	9501-9504	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-039-7	01	1	9101-9412	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-083-0	01	1	9501-9504	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43132-046-3	01	1	9101-9404	●	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43132-079-0	01	1	9405-9504	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	9505-	●	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43131-046-4	01	1	9101-9404	●	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43131-079-0	01	1	9405-9504	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	9505-	●	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-044-6	01	1	9101-9412		●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-089-0	01	1	9501-9504		●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-044-6	01	1	9101-9412		●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-089-0	01	1	9501-9504		●
3	KING PIN SET	1-87830-738-6	02	1	9505-	●	●
3	KING PIN SET FRT & RR SPR LONG SPAN<W55>	1-87830-039-5	02	1	9101-9404	●	●
3	KING PIN SET FRT & RR SPR LONG SPAN<W55>	1-87830-737-0	02	1	9405-9412	●	●
3	KING PIN SET FRT & RR SPR LONG SPAN<W55>	1-87830-738-0	02	1	9501-9504	●	●
3	KING PIN SET EXC. FRT & RR SPR LONG SPAN<W55>	1-87830-363-0	02	1	9101-9412	●	●
3	KING PIN SET EXC. FRT & RR SPR LONG SPAN<W55>	1-87830-804-0	02	1	9501-9504	●	●
5	PIN; KNUCKLE TO DRUM COVER FRT & RR SPR LONG SPAN<W55>	9-09878-625-0	02	1	9101-9404	●	●
5	PIN; KNUCKLE TO DRUM COVER FRT & RR SPR LONG SPAN<W55>	1-09740-072-0	02	1	9405-9504	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9505-	●	●
6	SEAL; KING PIN FRT & RR SPR LONG SPAN<W55>	9-09926-024-0	04	1	9101-9504	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	9505-	●	●
8	BEARING; NEEDLE,KING PIN FRT & RR SPR LONG SPAN<W55> (B) LOWER NTN	9-00096-242-0	04	1	9101-9504	●	●
8	BEARING; NEEDLE,KING PIN (B) LOWER NTN	9-00096-242-0	04	1	9505-	●	●
8	BEARING; NEEDLE,KING PIN FRT & RR SPR LONG SPAN<W55> (A) UPPER NTN	9-00096-243-0	02	1	9101-9504	●	●
8	BEARING; NEEDLE,KING PIN (A) UPPER NTN	9-00096-243-0	02	1	9505-	●	●
8	BEARING; NEEDLE,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> (C) NTN	1-09811-071-0	08	1	9101-9504	●	●
8	BEARING; NEEDLE,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> (C) NSK	1-09811-072-0	08	1	9101-9504	●	●
11	RING; SNAP,KNUCKLE PLUG FRT & RR SPR LONG SPAN<W55>	9-09950-204-0	02	1	9101-9412	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9501-	●	●
17	BOLT; STOPPER KNUCKLE FRT & RR SPR LONG SPAN<W55> M18X43	1-09009-065-0	02	1	9101-9504	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9505-0705	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-	●	●
17	BOLT; STOPPER KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55> M14X47	1-09009-058-0	02	1	9101-9504	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRT & RR SPR LONG SPAN<W55> M18	9-99110-518-0	02	1	9101-9504	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9505-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-	●	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55> M14	9-99112-814-0	02	1	9101-9504	●	●
21	NIPPLE; GREASE,KING PIN FRT & RR SPR LONG SPAN<W55> ELBOW 90DEGREE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9101-9504	●	●
21	NIPPLE; GREASE,KING PIN ELBOW 90DEGREE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9505-9704	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9705-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN FRT & RR SPR LONG SPAN<W55> ELBOW 110DEGREE PT1/8 ELBOW	9-09031-210-0	02	1	9101-9504	●	●
21	NIPPLE; GREASE,KING PIN ELBOW 110DEGREE PT1/8 ELBOW	9-09031-210-0	02	1	9505-9704	●	●
21	NIPPLE; GREASE,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> PT1/8 STRAIGHT	9-09031-010-0	04	1	9101-9504	●	●
25	BEARING; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> NTN	1-09829-027-1	02	1	9101-9412	●	●
25	BEARING; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> NSK	1-09829-043-2	02	1	9501-9504	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9505-	●	●
25	BEARING; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> NTN	1-09829-026-0	02	1	9101-9504	●	●
25	BEARING; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> NSK	1-09829-028-0	02	1	9101-9504	●	●
32	BOLT; KEY,KING PIN FRT & RR SPR LONG SPAN<W55>	1-43116-002-1	02	1	9101-9504	●	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	9505-	●	●
32	BOLT; KEY,KING PIN EXC. FRT & RR SPR LONG SPAN<W55>	1-43116-005-1	02	1	9101-9504	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9101-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9101-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43133-030-1	01	1	9101-9501	●
36	ARM; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43133-068-0	01	1	9502-9504	●
36	ARM; KNUCKLE FRT & RR SPR LONG SPAN<W55>	1-43133-028-3	01	1	9101-9504	●	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	9505-	●	●
36	ARM; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43133-031-1	01	1	9101-9503		●
36	ARM; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43133-069-0	01	1	9504-9504		●
37	BOLT; KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M22X167	1-09000-153-0	01	1	9101-9111	●	●
37	BOLT; KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M22X179	1-09000-578-0	01	1	9112-9504	●	●
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	9505-0704	●	●
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M22X179	9-09806-848-1	01	1	9101-9111	●	●
37	BOLT; KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M22X167	9-09806-847-2	01	1	9112-9504	●	●
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	9505-0704	●	●
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM EXC. FRT & RR SPR LONG SPAN<W55> M22X162	1-09000-107-0	01	1	9101-9504	●	●
37	BOLT; KNUCKLE ARM EXC. FRT & RR SPR LONG SPAN<W55> M22X147	1-09000-108-0	01	1	9101-9504	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9101-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
44	COVER; KING PIN BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55>	1-43175-014-1	02	1	9101-9504	●	●
44	COVER; KING PIN BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	9505-0203	●	●
44	COVER; KING PIN EXC. FRT & RR SPR LONG SPAN<W55>	1-43175-012-0	02	1	9101-9202	●	●
44	COVER; KING PIN EXC. FRT & RR SPR LONG SPAN<W55>	1-43175-016-0	02	1	9203-9504	●	●
45	GASKET; KING PIN COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55>	1-42319-044-0	02	1	9101-9504	●	●
45	GASKET; KING PIN COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-044-0	02	1	9505-0203	●	●
48	BOLT; COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55> M12X18	0-20801-218-0	08	1	9101-9108	●	●
48	BOLT; COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55> M12X20 W/LK WASHER	0-50041-220-0	08	1	9109-9501	●	●
48	BOLT; COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55> M12X16 FLANGE	0-28081-216-0	08	1	9502-9504	●	●
48	BOLT; COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	9505-0203	●	●
48	BOLT; COVER EXC. FRT & RR SPR LONG SPAN<W55> M12X25	1-09009-081-0	02	1	9101-9504	●	●
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55>	1-43145-010-1	01	1	9101-9504	●	●
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-010-3	01	1	9505-0203	●	●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0204-	●	●
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55>	1-43145-009-1	01	1	9101-9504	●	●
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-009-3	01	1	9505-0203	●	●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0204-	●	●
51	BOLT; POWER CHAMBER BRKT PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) M12X25 FLANGE	0-28651-225-0	02	1	0706-		●
51	BOLT; POWER CHAMBER BRKT PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0706-		●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55> (C) M12X60	0-10806-260-0	02	1	9101-9504	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12X60	0-10806-260-0	02	1	9505-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12X60 FLANGE	0-28081-260-0	02	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT (C) M12X60 FLANGE	0-28081-260-0	02	1	0204-0512	●	●
51	BOLT; POWER CHAMBER BRKT (C) M12X60 FLANGE	0-28051-260-0	02	1	0601-	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X14,M12X18 L=45.7	1-09029-070-0	04	1	9505-9509	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (A) M12X28	0-20801-228-0	02	1	9803-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (A) M12X25 FLANGE	0-28681-225-0	02	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (B) M8X14,M12X18 L=45.7	1-09029-070-0	04	1	9803-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (B) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55> (A) M12X28	0-20801-228-0	06	1	9101-9504	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X28	0-20801-228-0	02	1	9505-9509	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X28	0-20801-228-0	06	1	9510-9802	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> (A) M12X28	0-20801-228-0	06	1	9803-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> (A) M12X25 FLANGE	0-28681-225-0	06	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28681-225-0	06	1	0204-0512	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28651-225-0	06	1	0601-0705	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28651-225-0	06	1	0706-	●
51	BOLT; POWER CHAMBER BRKT EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) M12X25 FLANGE	0-28651-225-0	06	1	0706-		●
52	WASHER; LK,POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	08	1	9101-0004	●	●
58	ARM; TIE ROD FRT & RR SPR LONG SPAN<W55>	1-43135-036-0	01	1	9101-9404	●	●
58	ARM; TIE ROD FRT & RR SPR LONG SPAN<W55>	1-43135-043-0	01	1	9405-9504	●	●
58	ARM; TIE ROD	1-43135-042-3	01	1	9505-	●	●
58	ARM; TIE ROD FRT & RR SPR LONG SPAN<W55>	1-43134-036-0	01	1	9101-9404	●	●
58	ARM; TIE ROD FRT & RR SPR LONG SPAN<W55>	1-43134-043-0	01	1	9405-9504	●	●
58	ARM; TIE ROD	1-43134-042-3	01	1	9505-	●	●
58	ARM; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55>	1-43135-015-1	01	1	9101-9504	●	●
58	ARM; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55>	1-43134-015-1	01	1	9101-9504	●	●
59	NUT; TIE ROD ARM FRT & RR SPR LONG SPAN<W55> M22	9-09844-670-0	04	1	9101-9504	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9505-0704	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-	●	●
59	NUT; TIE ROD ARM EXC. FRT & RR SPR LONG SPAN<W55> M27	1-09449-016-0	02	1	9101-9504	●	●
60	BOLT; TIE ROD ARM FRT & RR SPR LONG SPAN<W55> M22X193	1-09000-154-1	04	1	9101-9504	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9505-0704	●	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (A)	1-43150-436-1	01	1	9101-9504	●	●
61	ROD END; TIE ROD (F)	1-43150-737-1	01	1	9505-9812	●	●
61	ROD END; TIE ROD (F)	1-43150-802-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD (G)	8-98171-445-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD (G)	8-98236-801-0	01	1	1307-	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (D)	1-43156-010-2	01	1	9101-9207	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (A)	1-43150-435-1	01	1	9101-9504	●	●
61	ROD END; TIE ROD (F)	1-43150-736-1	01	1	9505-9812	●	●
61	ROD END; TIE ROD (F)	1-43150-801-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD (G)	8-98171-444-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD (G)	8-98236-800-0	01	1	1307-	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (D)	1-43155-009-2	01	1	9101-9207	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-470-0	01	1	9101-9504	●	●
61	ROD END; TIE ROD STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-470-0	01	1	9505-0306	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-471-0	01	1	9101-9504	●	●
61	ROD END; TIE ROD STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-471-0	01	1	9505-0306	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-527-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-525-1	01	1	9109-9504	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43156-019-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43156-035-0	01	1	9109-9504	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-526-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-524-1	01	1	9109-9504	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43155-019-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43155-035-0	01	1	9109-9504	●	●
66	NUT; TIE ROD END M24	9-09844-669-2	02	1	9101-9504	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9505-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9101-9504	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9505-0704	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-	●	●
73	NIPPLE; GREASE,TIE ROD END (C)	1-43159-133-0	02	1	1010-	●	●
73	NIPPLE; GREASE,TIE ROD END (A) L=20.0 PT1/8 STRAIGHT	9-09031-010-0	02	1	9101-9504	●	●
73	NIPPLE; GREASE,TIE ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B) M6 STRAIGHT	9-09031-006-0	02	1	9101-9504	●	●
73	NIPPLE; GREASE,TIE ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B) M6 STRAIGHT	9-09031-006-0	02	1	9505-0306	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9101-9207	●	●
74	NUT; TIE ROD END EXC. FRT & RR SPR LONG SPAN<W55> M12	9-99110-512-0	04	1	9208-9210	●	●
74	NUT; TIE ROD END FRT & RR SPR LONG SPAN<W55> M12	9-99110-512-0	04	1	9208-9210	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9211-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9505-0606	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
81	ROD; TIE FRT & RR SPR LONG SPAN<W55>	9-43151-119-1	01	1	9101-9504	●	●
81	ROD; TIE	1-43151-119-0	01	1	9505-1009	●	●
81	ROD; TIE	8-98172-133-0	01	1	1010-1109	●	●
81	ROD; TIE	8-98193-965-0	01	1	1110-	●	●
81	ROD; TIE EXC. FRT & RR SPR LONG SPAN<W55>	1-43151-035-1	01	1	9101-9108	●	●
81	ROD; TIE EXC. FRT & RR SPR LONG SPAN<W55>	1-43151-077-0	01	1	9109-9504	●	●
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9505-9812	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-1009	●	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
304	WASHER; PL STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0307-0907	●	●
304	WASHER; PL FRT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0307-0907	●	●
304	WASHER; PL STABILIZER SHAFT FRT & RR<FE6> (B) ID=21	0-91614-520-0	02	1	0908-	●	●
304	WASHER; PL FRT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9411-0704	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-	●	●
305	COVER; KNUCKLE FRT & RR SPR LONG SPAN<W55>	1-43175-021-0	02	1	9405-9412	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9501-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●

48 46 52 44 45 52 50 81 58 66 59 71 304 74 68 61 73 17 18 6 72 72 75 61 40 77 2 78 79 5 21 42 6 8 60 3 43 8 9 36 33 34 37 11 8 305 6 25 6 8 8 32 9 11 305 51 51 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-039-7	01	1	9101-9412	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-083-0	01	1	9501-9504	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-039-7	01	1	9101-9412	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-083-0	01	1	9501-9504	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43132-046-3	01	1	9101-9404	●	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43132-079-0	01	1	9405-9504	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	9505-	●	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43131-046-4	01	1	9101-9404	●	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43131-079-0	01	1	9405-9504	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	9505-	●	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-044-6	01	1	9101-9412		●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-089-0	01	1	9501-9504		●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-044-6	01	1	9101-9412		●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-089-0	01	1	9501-9504		●
3	KING PIN SET	1-87830-738-6	02	1	9505-	●	●
3	KING PIN SET FRT & RR SPR LONG SPAN<W55>	1-87830-039-5	02	1	9101-9404	●	●
3	KING PIN SET FRT & RR SPR LONG SPAN<W55>	1-87830-737-0	02	1	9405-9412	●	●
3	KING PIN SET FRT & RR SPR LONG SPAN<W55>	1-87830-738-0	02	1	9501-9504	●	●
3	KING PIN SET EXC. FRT & RR SPR LONG SPAN<W55>	1-87830-363-0	02	1	9101-9412	●	●
3	KING PIN SET EXC. FRT & RR SPR LONG SPAN<W55>	1-87830-804-0	02	1	9501-9504	●	●
5	PIN; KNUCKLE TO DRUM COVER FRT & RR SPR LONG SPAN<W55>	9-09878-625-0	02	1	9101-9404	●	●
5	PIN; KNUCKLE TO DRUM COVER FRT & RR SPR LONG SPAN<W55>	1-09740-072-0	02	1	9405-9504	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9505-	●	●
6	SEAL; KING PIN FRT & RR SPR LONG SPAN<W55>	9-09926-024-0	04	1	9101-9504	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	9505-	●	●
8	BEARING; NEEDLE,KING PIN FRT & RR SPR LONG SPAN<W55> (B) LOWER NTN	9-00096-242-0	04	1	9101-9504	●	●
8	BEARING; NEEDLE,KING PIN (B) LOWER NTN	9-00096-242-0	04	1	9505-	●	●
8	BEARING; NEEDLE,KING PIN FRT & RR SPR LONG SPAN<W55> (A) UPPER NTN	9-00096-243-0	02	1	9101-9504	●	●
8	BEARING; NEEDLE,KING PIN (A) UPPER NTN	9-00096-243-0	02	1	9505-	●	●
8	BEARING; NEEDLE,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> (C) NTN	1-09811-071-0	08	1	9101-9504	●	●
8	BEARING; NEEDLE,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> (C) NSK	1-09811-072-0	08	1	9101-9504	●	●
9	PLUG; KNUCKLE	9-09201-363-0	02	1	9101-9404	●	●
9	PLUG; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	9-09201-363-0	02	1	9405-9412	●	●
11	RING; SNAP,KNUCKLE PLUG FRT & RR SPR LONG SPAN<W55>	9-09950-204-0	02	1	9101-9412	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9501-	●	●
17	BOLT; STOPPER KNUCKLE FRT & RR SPR LONG SPAN<W55> M18X43	1-09009-065-0	02	1	9101-9504	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9505-0705	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-	●	●
17	BOLT; STOPPER KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55> M14X47	1-09009-058-0	02	1	9101-9504	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRT & RR SPR LONG SPAN<W55> M18	9-99110-518-0	02	1	9101-9504	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9505-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-	●	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55> M14	9-99112-814-0	02	1	9101-9504	●	●
21	NIPPLE; GREASE,KING PIN FRT & RR SPR LONG SPAN<W55> ELBOW 90DEGREE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9101-9504	●	●
21	NIPPLE; GREASE,KING PIN ELBOW 90DEGREE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9505-9704	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9705-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN FRT & RR SPR LONG SPAN<W55> ELBOW 110DEGREE PT1/8 ELBOW	9-09031-210-0	02	1	9101-9504	●	●
21	NIPPLE; GREASE,KING PIN ELBOW 110DEGREE PT1/8 ELBOW	9-09031-210-0	02	1	9505-9704	●	●
21	NIPPLE; GREASE,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> PT1/8 STRAIGHT	9-09031-010-0	04	1	9101-9504	●	●
25	BEARING; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> NTN	1-09829-027-1	02	1	9101-9412	●	●
25	BEARING; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> NSK	1-09829-043-2	02	1	9501-9504	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9505-	●	●
25	BEARING; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> NTN	1-09829-026-0	02	1	9101-9504	●	●
25	BEARING; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> NSK	1-09829-028-0	02	1	9101-9504	●	●
32	BOLT; KEY,KING PIN FRT & RR SPR LONG SPAN<W55>	1-43116-002-1	02	1	9101-9504	●	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	9505-	●	●
32	BOLT; KEY,KING PIN EXC. FRT & RR SPR LONG SPAN<W55>	1-43116-005-1	02	1	9101-9504	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9101-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9101-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43133-030-1	01	1	9101-9501	●
36	ARM; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43133-068-0	01	1	9502-9504	●
36	ARM; KNUCKLE FRT & RR SPR LONG SPAN<W55>	1-43133-028-3	01	1	9101-9504	●	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	9505-	●	●
36	ARM; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43133-031-1	01	1	9101-9503		●
36	ARM; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43133-069-0	01	1	9504-9504		●
37	BOLT; KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M22X167	1-09000-153-0	01	1	9101-9111	●	●
37	BOLT; KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M22X179	1-09000-578-0	01	1	9112-9504	●	●
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	9505-0704	●	●
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M22X179	9-09806-848-1	01	1	9101-9111	●	●
37	BOLT; KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M22X167	9-09806-847-2	01	1	9112-9504	●	●
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	9505-0704	●	●
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM EXC. FRT & RR SPR LONG SPAN<W55> M22X162	1-09000-107-0	01	1	9101-9504	●	●
37	BOLT; KNUCKLE ARM EXC. FRT & RR SPR LONG SPAN<W55> M22X147	1-09000-108-0	01	1	9101-9504	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9101-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
42	JOINT; BALL,KNUCKLE ARM FRT & RR SPR LONG SPAN<W55>	9-09881-092-3	01	1	9101-9504	●	●
42	JOINT; BALL,KNUCKLE ARM EXC. FRT & RR SPR LONG SPAN<W55>	1-09762-006-0	01	1	9101-9503	●	●
42	JOINT; BALL,KNUCKLE ARM EXC. FRT & RR SPR LONG SPAN<W55>	1-44361-112-0	01	1	9504-9504	●	●
43	NUT; JOINT BALL,KNUCKLE ARM M24	9-09844-669-2	01	1	9101-9503	●	●
43	NUT; JOINT BALL,KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M24	9-09844-669-2	01	1	9504-9504	●	●
43	NUT; JOINT BALL,KNUCKLE ARM EXC. FRT & RR SPR LONG SPAN<W55> M24 SLOTTED	1-09442-020-0	01	1	9504-9504	●	●
44	COVER; KING PIN BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55>	1-43175-014-1	02	1	9101-9504	●	●
44	COVER; KING PIN BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	9505-0203	●	●
44	COVER; KING PIN EXC. FRT & RR SPR LONG SPAN<W55>	1-43175-012-0	02	1	9101-9202	●	●
44	COVER; KING PIN EXC. FRT & RR SPR LONG SPAN<W55>	1-43175-016-0	02	1	9203-9504	●	●
45	GASKET; KING PIN COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55>	1-42319-044-0	02	1	9101-9504	●	●
45	GASKET; KING PIN COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-044-0	02	1	9505-0203	●	●
46	WASHER; LK,COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55> ID=12.2	9-09150-512-0	08	1	9101-9108	●	●
46	WASHER; LK,COVER EXC. FRT & RR SPR LONG SPAN<W55> ID=12.2	9-09150-512-0	02	1	9101-9504	●	●
48	BOLT; COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55> M12X18	0-20801-218-0	08	1	9101-9108	●	●
48	BOLT; COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55> M12X20 W/LK WASHER	0-50041-220-0	08	1	9109-9501	●	●
48	BOLT; COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55> M12X16 FLANGE	0-28081-216-0	08	1	9502-9504	●	●
48	BOLT; COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	9505-0203	●	●
48	BOLT; COVER EXC. FRT & RR SPR LONG SPAN<W55> M12X25	1-09009-081-0	02	1	9101-9504	●	●

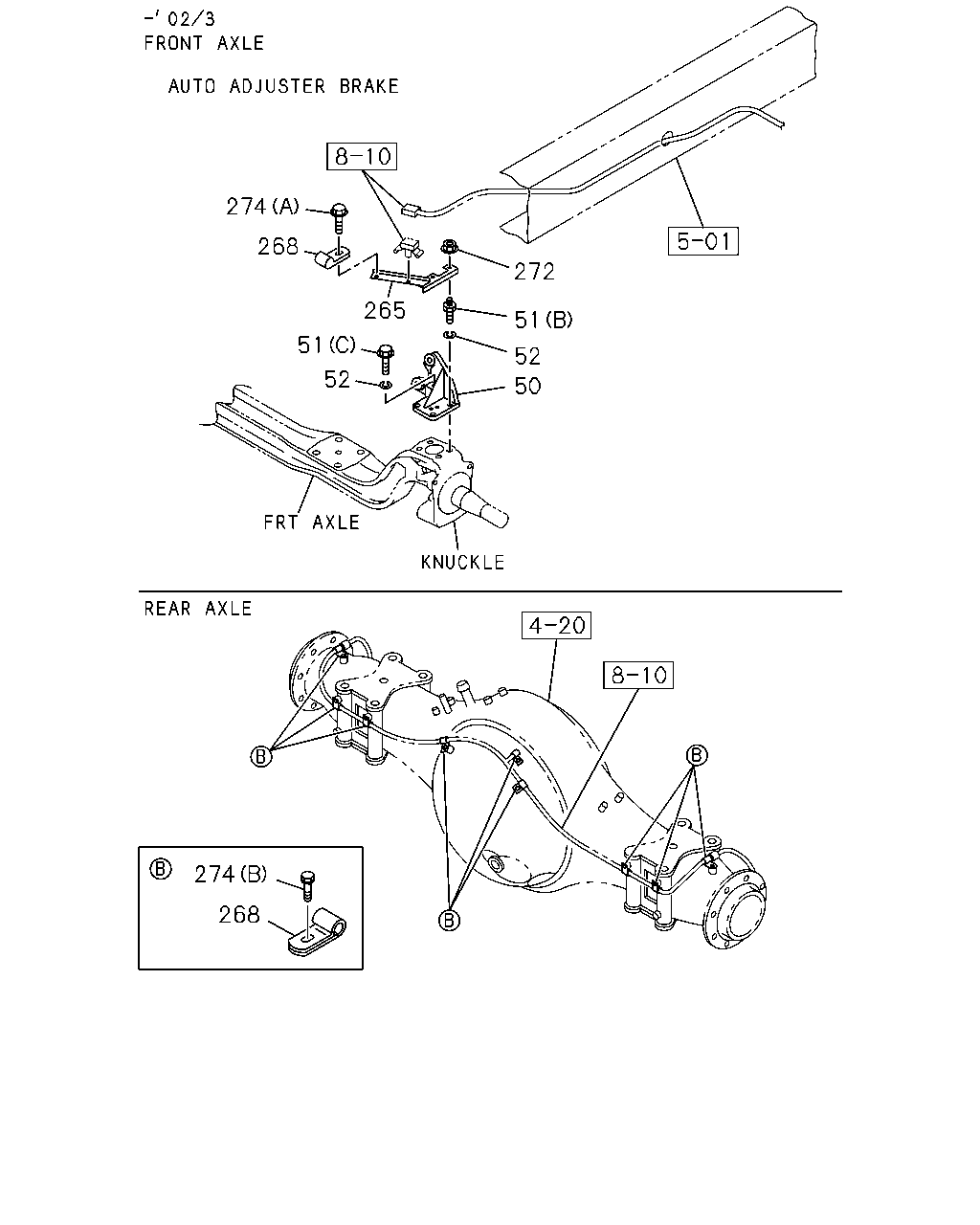

50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55>	1-43145-010-1	01	1	9101-9504	●	●
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-010-3	01	1	9505-0203	●	●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0204-	●	●
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55>	1-43145-009-1	01	1	9101-9504	●	●
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-009-3	01	1	9505-0203	●	●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0204-	●	●
51	BOLT; POWER CHAMBER BRKT PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) M12X25 FLANGE	0-28651-225-0	02	1	0706-		●
51	BOLT; POWER CHAMBER BRKT PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0706-		●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55> (C) M12X60	0-10806-260-0	02	1	9101-9504	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12X60	0-10806-260-0	02	1	9505-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12X60 FLANGE	0-28081-260-0	02	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT (C) M12X60 FLANGE	0-28081-260-0	02	1	0204-0512	●	●
51	BOLT; POWER CHAMBER BRKT (C) M12X60 FLANGE	0-28051-260-0	02	1	0601-	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X14,M12X18 L=45.7	1-09029-070-0	04	1	9505-9509	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (A) M12X28	0-20801-228-0	02	1	9803-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (A) M12X25 FLANGE	0-28681-225-0	02	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (B) M8X14,M12X18 L=45.7	1-09029-070-0	04	1	9803-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (B) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55> (A) M12X28	0-20801-228-0	06	1	9101-9504	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X28	0-20801-228-0	02	1	9505-9509	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X28	0-20801-228-0	06	1	9510-9802	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> (A) M12X28	0-20801-228-0	06	1	9803-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> (A) M12X25 FLANGE	0-28681-225-0	06	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28681-225-0	06	1	0204-0512	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28651-225-0	06	1	0601-0705	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28651-225-0	06	1	0706-	●
51	BOLT; POWER CHAMBER BRKT EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) M12X25 FLANGE	0-28651-225-0	06	1	0706-		●
52	WASHER; LK,POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	08	1	9101-0004	●	●
58	ARM; TIE ROD FRT & RR SPR LONG SPAN<W55>	1-43135-036-0	01	1	9101-9404	●	●
58	ARM; TIE ROD FRT & RR SPR LONG SPAN<W55>	1-43135-043-0	01	1	9405-9504	●	●
58	ARM; TIE ROD	1-43135-042-3	01	1	9505-	●	●
58	ARM; TIE ROD FRT & RR SPR LONG SPAN<W55>	1-43134-036-0	01	1	9101-9404	●	●
58	ARM; TIE ROD FRT & RR SPR LONG SPAN<W55>	1-43134-043-0	01	1	9405-9504	●	●
58	ARM; TIE ROD	1-43134-042-3	01	1	9505-	●	●
58	ARM; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55>	1-43135-015-1	01	1	9101-9504	●	●
58	ARM; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55>	1-43134-015-1	01	1	9101-9504	●	●
59	NUT; TIE ROD ARM FRT & RR SPR LONG SPAN<W55> M22	9-09844-670-0	04	1	9101-9504	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9505-0704	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-	●	●
59	NUT; TIE ROD ARM EXC. FRT & RR SPR LONG SPAN<W55> M27	1-09449-016-0	02	1	9101-9504	●	●
60	BOLT; TIE ROD ARM FRT & RR SPR LONG SPAN<W55> M22X193	1-09000-154-1	04	1	9101-9504	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9505-0704	●	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (A)	1-43150-436-1	01	1	9101-9504	●	●
61	ROD END; TIE ROD (F)	1-43150-737-1	01	1	9505-9812	●	●
61	ROD END; TIE ROD (F)	1-43150-802-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD (G)	8-98171-445-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD (G)	8-98236-801-0	01	1	1307-	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (D)	1-43156-010-2	01	1	9101-9207	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (A)	1-43150-435-1	01	1	9101-9504	●	●
61	ROD END; TIE ROD (F)	1-43150-736-1	01	1	9505-9812	●	●
61	ROD END; TIE ROD (F)	1-43150-801-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD (G)	8-98171-444-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD (G)	8-98236-800-0	01	1	1307-	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (D)	1-43155-009-2	01	1	9101-9207	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-470-0	01	1	9101-9504	●	●
61	ROD END; TIE ROD STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-470-0	01	1	9505-0306	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-471-0	01	1	9101-9504	●	●
61	ROD END; TIE ROD STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-471-0	01	1	9505-0306	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-527-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-525-1	01	1	9109-9504	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43156-019-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43156-035-0	01	1	9109-9504	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-526-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-524-1	01	1	9109-9504	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43155-019-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43155-035-0	01	1	9109-9504	●	●
66	NUT; TIE ROD END M24	9-09844-669-2	02	1	9101-9504	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9505-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9101-9207	●	●
67	WASHER; LK,TIE ROD END EXC. FRT & RR SPR LONG SPAN<W55> ID=12.2	9-09150-512-0	04	1	9208-9210	●	●
67	WASHER; LK,TIE ROD END FRT & RR SPR LONG SPAN<W55> ID=12.2	9-09150-812-0	04	1	9208-9210	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9211-9410	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9101-9504	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9505-0704	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-	●	●
71	BOOT; TIE ROD END FRT & RR SPR LONG SPAN<W55> (A) ID=31 & 49	1-43159-038-0	02	1	9101-9504	●	●
71	BOOT; TIE ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43159-036-0	02	1	9101-9504	●	●
71	BOOT; TIE ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B) D=18.5,29	1-43159-036-0	02	1	9505-0306	●	●
71	BOOT; TIE ROD END EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43159-037-0	02	1	9101-9504	●	●
72	SEAT; BALL,TIE ROD JOINT FRT & RR SPR LONG SPAN<W55> (A)	1-44371-012-1	04	1	9101-9504	●	●
72	SEAT; BALL,TIE ROD JOINT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-44370-002-0	02	1	9101-9504	●	●
72	SEAT; BALL,TIE ROD JOINT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-44370-002-0	02	1	9505-0306	●	●
72	SEAT; BALL,TIE ROD JOINT EXC. FRT & RR SPR LONG SPAN<W55> (C)	9-09881-625-0	02	1	9101-9504	●	●
73	NIPPLE; GREASE,TIE ROD END (C)	1-43159-133-0	02	1	1010-	●	●
73	NIPPLE; GREASE,TIE ROD END (A) L=20.0 PT1/8 STRAIGHT	9-09031-010-0	02	1	9101-9504	●	●
73	NIPPLE; GREASE,TIE ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B) M6 STRAIGHT	9-09031-006-0	02	1	9101-9504	●	●
73	NIPPLE; GREASE,TIE ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B) M6 STRAIGHT	9-09031-006-0	02	1	9505-0306	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9101-9207	●	●
74	NUT; TIE ROD END EXC. FRT & RR SPR LONG SPAN<W55> M12	9-99110-512-0	04	1	9208-9210	●	●
74	NUT; TIE ROD END FRT & RR SPR LONG SPAN<W55> M12	9-99110-512-0	04	1	9208-9210	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9211-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
75	JOINT; BALL,DRAG LINK FRT & RR SPR LONG SPAN<W55> (A)	9-44361-169-3	02	1	9101-9504	●	●
75	JOINT; BALL,DRAG LINK FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-87090-211-0	02	1	9101-9504	●	●
75	JOINT; BALL,DRAG LINK STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-87090-211-0	02	1	9505-0306	●	●
75	JOINT; BALL,DRAG LINK EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-44361-059-0	02	1	9101-9504	●	●
77	SPRING; TIE ROD END FRT & RR SPR LONG SPAN<W55> (A)	9-09941-272-0	02	1	9101-9504	●	●
77	SPRING; TIE ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-09580-080-0	02	1	9101-9504	●	●
77	SPRING; TIE ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-09580-080-0	02	1	9505-0306	●	●
77	SPRING; TIE ROD END EXC. FRT & RR SPR LONG SPAN<W55> (C)	9-09940-324-0	02	1	9101-9504	●	●
78	PLUG; ADJ,ROD END FRT & RR SPR LONG SPAN<W55> (A)	1-44375-014-0	02	1	9101-9504	●	●
78	PLUG; ADJ,ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-44375-001-0	02	1	9101-9504	●	●
78	PLUG; ADJ,ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-44375-001-0	02	1	9505-0306	●	●
78	PLUG; ADJ,ROD END EXC. FRT & RR SPR LONG SPAN<W55> (C)	9-09881-679-0	02	1	9101-9504	●	●
79	RING; SNAP,ADJ PLUG FRT & RR SPR LONG SPAN<W55>	1-09589-006-0	02	1	9101-9504	●	●
81	ROD; TIE FRT & RR SPR LONG SPAN<W55>	9-43151-119-1	01	1	9101-9504	●	●
81	ROD; TIE	1-43151-119-0	01	1	9505-1009	●	●
81	ROD; TIE	8-98172-133-0	01	1	1010-1109	●	●
81	ROD; TIE	8-98193-965-0	01	1	1110-	●	●
81	ROD; TIE EXC. FRT & RR SPR LONG SPAN<W55>	1-43151-035-1	01	1	9101-9108	●	●
81	ROD; TIE EXC. FRT & RR SPR LONG SPAN<W55>	1-43151-077-0	01	1	9109-9504	●	●
304	WASHER; PL STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0307-0907	●	●
304	WASHER; PL FRT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0307-0907	●	●
304	WASHER; PL STABILIZER SHAFT FRT & RR<FE6> (B) ID=21	0-91614-520-0	02	1	0908-	●	●
304	WASHER; PL FRT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9411-0704	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-	●	●
305	COVER; KNUCKLE FRT & RR SPR LONG SPAN<W55>	1-43175-021-0	02	1	9405-9412	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9501-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●

37 36 42 43 48 46 37 61 47 44 255 66 81 8 58 71 17 18 74 8 40 2 304 61 21 72 68 75 8 59 76 73 8 7 77 9 78 69 11 305 33 34 30 1 8 8 30 32 33 34 25 3 32 8 8 25 7 9 11 305 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT FRT & RR SPR LONG SPAN<W55>	1-43111-077-2	01	1	9101-9403	●	●
1	AXLE; FRT FRT & RR SPR LONG SPAN<W55>	1-43111-113-1	01	1	9404-9504	●	●
1	AXLE; FRT	1-43111-113-6	01	1	9505-	●	●
1	AXLE; FRT EXC. FRT & RR SPR LONG SPAN<W55>	1-43111-070-0	01	1	9101-9412	●	●
1	AXLE; FRT EXC. FRT & RR SPR LONG SPAN<W55>	1-43111-133-0	01	1	9501-9504	●	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-039-7	01	1	9101-9412	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-083-0	01	1	9501-9504	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-039-7	01	1	9101-9412	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-083-0	01	1	9501-9504	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43132-046-3	01	1	9101-9404	●	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43132-079-0	01	1	9405-9504	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	9505-	●	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43131-046-4	01	1	9101-9404	●	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43131-079-0	01	1	9405-9504	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	9505-	●	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-044-6	01	1	9101-9412		●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-089-0	01	1	9501-9504		●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-044-6	01	1	9101-9412		●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-089-0	01	1	9501-9504		●
3	KING PIN SET	1-87830-738-6	02	1	9505-	●	●
3	KING PIN SET FRT & RR SPR LONG SPAN<W55>	1-87830-039-5	02	1	9101-9404	●	●
3	KING PIN SET FRT & RR SPR LONG SPAN<W55>	1-87830-737-0	02	1	9405-9412	●	●
3	KING PIN SET FRT & RR SPR LONG SPAN<W55>	1-87830-738-0	02	1	9501-9504	●	●
3	KING PIN SET EXC. FRT & RR SPR LONG SPAN<W55>	1-87830-363-0	02	1	9101-9412	●	●
3	KING PIN SET EXC. FRT & RR SPR LONG SPAN<W55>	1-87830-804-0	02	1	9501-9504	●	●
7	SEAL; OIL,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> NSK	1-09625-087-0	02	1	9101-9504	●	●
7	SEAL; OIL,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> NTN	1-09625-089-0	02	1	9101-9504	●	●
8	BEARING; NEEDLE,KING PIN FRT & RR SPR LONG SPAN<W55> (B) LOWER NTN	9-00096-242-0	04	1	9101-9504	●	●
8	BEARING; NEEDLE,KING PIN (B) LOWER NTN	9-00096-242-0	04	1	9505-	●	●
8	BEARING; NEEDLE,KING PIN FRT & RR SPR LONG SPAN<W55> (A) UPPER NTN	9-00096-243-0	02	1	9101-9504	●	●
8	BEARING; NEEDLE,KING PIN (A) UPPER NTN	9-00096-243-0	02	1	9505-	●	●
8	BEARING; NEEDLE,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> (C) NTN	1-09811-071-0	08	1	9101-9504	●	●
8	BEARING; NEEDLE,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> (C) NSK	1-09811-072-0	08	1	9101-9504	●	●
9	PLUG; KNUCKLE	9-09201-363-0	02	1	9101-9404	●	●
9	PLUG; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	9-09201-363-0	02	1	9405-9412	●	●
11	RING; SNAP,KNUCKLE PLUG FRT & RR SPR LONG SPAN<W55>	9-09950-204-0	02	1	9101-9412	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9501-	●	●
17	BOLT; STOPPER KNUCKLE FRT & RR SPR LONG SPAN<W55> M18X43	1-09009-065-0	02	1	9101-9504	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9505-0705	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-	●	●
17	BOLT; STOPPER KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55> M14X47	1-09009-058-0	02	1	9101-9504	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRT & RR SPR LONG SPAN<W55> M18	9-99110-518-0	02	1	9101-9504	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9505-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-	●	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55> M14	9-99112-814-0	02	1	9101-9504	●	●
21	NIPPLE; GREASE,KING PIN FRT & RR SPR LONG SPAN<W55> ELBOW 90DEGREE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9101-9504	●	●
21	NIPPLE; GREASE,KING PIN ELBOW 90DEGREE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9505-9704	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9705-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN FRT & RR SPR LONG SPAN<W55> ELBOW 110DEGREE PT1/8 ELBOW	9-09031-210-0	02	1	9101-9504	●	●
21	NIPPLE; GREASE,KING PIN ELBOW 110DEGREE PT1/8 ELBOW	9-09031-210-0	02	1	9505-9704	●	●
21	NIPPLE; GREASE,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> PT1/8 STRAIGHT	9-09031-010-0	04	1	9101-9504	●	●
25	BEARING; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> NTN	1-09829-027-1	02	1	9101-9412	●	●
25	BEARING; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> NSK	1-09829-043-2	02	1	9501-9504	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9505-	●	●
25	BEARING; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> NTN	1-09829-026-0	02	1	9101-9504	●	●
25	BEARING; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> NSK	1-09829-028-0	02	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=4.875 -4.900	1-43171-185-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=4.900 -4.925	1-43171-186-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=4.925 -4.950	1-43171-187-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=4.950 -4.975	1-43171-188-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=4.975 -5.000	1-43171-189-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.000 -5.025	1-43171-190-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.025 -5.050	1-43171-191-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.050 -5.075	1-43171-192-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.075 -5.100	1-43171-193-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.100 -5.125	1-43171-194-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.125 -5.150	1-43171-195-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.150 -5.175	1-43171-196-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.175 -5.200	1-43171-197-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.200 -5.225	1-43171-198-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.225 -5.250	1-43171-199-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=2.800	1-43171-229-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=2.850	1-43171-230-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=2.900	1-43171-231-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=2.950	1-43171-232-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.000	1-43171-233-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.050	1-43171-234-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.100	1-43171-235-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.150	1-43171-236-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.200	1-43171-237-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.250	1-43171-238-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.300	1-43171-239-0	AR	1	9101-9504	●	●
32	BOLT; KEY,KING PIN FRT & RR SPR LONG SPAN<W55>	1-43116-002-1	02	1	9101-9504	●	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	9505-	●	●
32	BOLT; KEY,KING PIN EXC. FRT & RR SPR LONG SPAN<W55>	1-43116-005-1	02	1	9101-9504	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9101-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9101-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43133-030-1	01	1	9101-9501	●
36	ARM; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43133-068-0	01	1	9502-9504	●
36	ARM; KNUCKLE FRT & RR SPR LONG SPAN<W55>	1-43133-028-3	01	1	9101-9504	●	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	9505-	●	●
36	ARM; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43133-031-1	01	1	9101-9503		●
36	ARM; KNUCKLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43133-069-0	01	1	9504-9504		●
37	BOLT; KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M22X167	1-09000-153-0	01	1	9101-9111	●	●
37	BOLT; KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M22X179	1-09000-578-0	01	1	9112-9504	●	●
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	9505-0704	●	●
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M22X179	9-09806-848-1	01	1	9101-9111	●	●
37	BOLT; KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M22X167	9-09806-847-2	01	1	9112-9504	●	●
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	9505-0704	●	●
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM EXC. FRT & RR SPR LONG SPAN<W55> M22X162	1-09000-107-0	01	1	9101-9504	●	●
37	BOLT; KNUCKLE ARM EXC. FRT & RR SPR LONG SPAN<W55> M22X147	1-09000-108-0	01	1	9101-9504	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9101-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
42	JOINT; BALL,KNUCKLE ARM FRT & RR SPR LONG SPAN<W55>	9-09881-092-3	01	1	9101-9504	●	●
42	JOINT; BALL,KNUCKLE ARM EXC. FRT & RR SPR LONG SPAN<W55>	1-09762-006-0	01	1	9101-9503	●	●
42	JOINT; BALL,KNUCKLE ARM EXC. FRT & RR SPR LONG SPAN<W55>	1-44361-112-0	01	1	9504-9504	●	●
43	NUT; JOINT BALL,KNUCKLE ARM M24	9-09844-669-2	01	1	9101-9503	●	●
43	NUT; JOINT BALL,KNUCKLE ARM FRT & RR SPR LONG SPAN<W55> M24	9-09844-669-2	01	1	9504-9504	●	●
43	NUT; JOINT BALL,KNUCKLE ARM EXC. FRT & RR SPR LONG SPAN<W55> M24 SLOTTED	1-09442-020-0	01	1	9504-9504	●	●
44	COVER; KING PIN BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55>	1-43175-014-1	02	1	9101-9504	●	●
44	COVER; KING PIN BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	9505-0203	●	●
44	COVER; KING PIN EXC. FRT & RR SPR LONG SPAN<W55>	1-43175-012-0	02	1	9101-9202	●	●
44	COVER; KING PIN EXC. FRT & RR SPR LONG SPAN<W55>	1-43175-016-0	02	1	9203-9504	●	●
46	WASHER; LK,COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55> ID=12.2	9-09150-512-0	08	1	9101-9108	●	●
46	WASHER; LK,COVER EXC. FRT & RR SPR LONG SPAN<W55> ID=12.2	9-09150-512-0	02	1	9101-9504	●	●
47	WASHER; PL,COVER,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> ID=12.5 OD=32	9-09164-712-0	02	1	9101-9504	●	●
48	BOLT; COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55> M12X18	0-20801-218-0	08	1	9101-9108	●	●
48	BOLT; COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55> M12X20 W/LK WASHER	0-50041-220-0	08	1	9109-9501	●	●
48	BOLT; COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55> M12X16 FLANGE	0-28081-216-0	08	1	9502-9504	●	●
48	BOLT; COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	9505-0203	●	●
48	BOLT; COVER EXC. FRT & RR SPR LONG SPAN<W55> M12X25	1-09009-081-0	02	1	9101-9504	●	●
58	ARM; TIE ROD FRT & RR SPR LONG SPAN<W55>	1-43135-036-0	01	1	9101-9404	●	●
58	ARM; TIE ROD FRT & RR SPR LONG SPAN<W55>	1-43135-043-0	01	1	9405-9504	●	●
58	ARM; TIE ROD	1-43135-042-3	01	1	9505-	●	●
58	ARM; TIE ROD FRT & RR SPR LONG SPAN<W55>	1-43134-036-0	01	1	9101-9404	●	●
58	ARM; TIE ROD FRT & RR SPR LONG SPAN<W55>	1-43134-043-0	01	1	9405-9504	●	●
58	ARM; TIE ROD	1-43134-042-3	01	1	9505-	●	●
58	ARM; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55>	1-43135-015-1	01	1	9101-9504	●	●
58	ARM; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55>	1-43134-015-1	01	1	9101-9504	●	●
59	NUT; TIE ROD ARM FRT & RR SPR LONG SPAN<W55> M22	9-09844-670-0	04	1	9101-9504	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9505-0704	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-	●	●
59	NUT; TIE ROD ARM EXC. FRT & RR SPR LONG SPAN<W55> M27	1-09449-016-0	02	1	9101-9504	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (A)	1-43150-436-1	01	1	9101-9504	●	●
61	ROD END; TIE ROD (F)	1-43150-737-1	01	1	9505-9812	●	●
61	ROD END; TIE ROD (F)	1-43150-802-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD (G)	8-98171-445-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD (G)	8-98236-801-0	01	1	1307-	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (D)	1-43156-010-2	01	1	9101-9207	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (A)	1-43150-435-1	01	1	9101-9504	●	●
61	ROD END; TIE ROD (F)	1-43150-736-1	01	1	9505-9812	●	●
61	ROD END; TIE ROD (F)	1-43150-801-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD (G)	8-98171-444-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD (G)	8-98236-800-0	01	1	1307-	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (D)	1-43155-009-2	01	1	9101-9207	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-470-0	01	1	9101-9504	●	●
61	ROD END; TIE ROD STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-470-0	01	1	9505-0306	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-471-0	01	1	9101-9504	●	●
61	ROD END; TIE ROD STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-471-0	01	1	9505-0306	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-527-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-525-1	01	1	9109-9504	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43156-019-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43156-035-0	01	1	9109-9504	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-526-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-524-1	01	1	9109-9504	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43155-019-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43155-035-0	01	1	9109-9504	●	●
66	NUT; TIE ROD END M24	9-09844-669-2	02	1	9101-9504	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9505-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9101-9207	●	●
67	WASHER; LK,TIE ROD END EXC. FRT & RR SPR LONG SPAN<W55> ID=12.2	9-09150-512-0	04	1	9208-9210	●	●
67	WASHER; LK,TIE ROD END FRT & RR SPR LONG SPAN<W55> ID=12.2	9-09150-812-0	04	1	9208-9210	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9211-9410	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9101-9504	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9505-0704	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-	●	●
69	PIN; SPLIT,TIE ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> OD=2.8 L=55	9-08113-055-0	02	1	9101-9504	●	●
69	PIN; SPLIT,TIE ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> OD=2.8 L=55	9-08113-055-0	02	1	9505-0306	●	●
69	PIN; SPLIT,TIE ROD END EXC. FRT & RR SPR LONG SPAN<W55>	9-08115-090-0	02	1	9101-9504	●	●
71	BOOT; TIE ROD END FRT & RR SPR LONG SPAN<W55> (A) ID=31 & 49	1-43159-038-0	02	1	9101-9504	●	●
71	BOOT; TIE ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43159-036-0	02	1	9101-9504	●	●
71	BOOT; TIE ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B) D=18.5,29	1-43159-036-0	02	1	9505-0306	●	●
71	BOOT; TIE ROD END EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43159-037-0	02	1	9101-9504	●	●
72	SEAT; BALL,TIE ROD JOINT FRT & RR SPR LONG SPAN<W55> (A)	1-44371-012-1	04	1	9101-9504	●	●
72	SEAT; BALL,TIE ROD JOINT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-44370-002-0	02	1	9101-9504	●	●
72	SEAT; BALL,TIE ROD JOINT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-44370-002-0	02	1	9505-0306	●	●
72	SEAT; BALL,TIE ROD JOINT EXC. FRT & RR SPR LONG SPAN<W55> (C)	9-09881-625-0	02	1	9101-9504	●	●
73	NIPPLE; GREASE,TIE ROD END (C)	1-43159-133-0	02	1	1010-	●	●
73	NIPPLE; GREASE,TIE ROD END (A) L=20.0 PT1/8 STRAIGHT	9-09031-010-0	02	1	9101-9504	●	●
73	NIPPLE; GREASE,TIE ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B) M6 STRAIGHT	9-09031-006-0	02	1	9101-9504	●	●
73	NIPPLE; GREASE,TIE ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B) M6 STRAIGHT	9-09031-006-0	02	1	9505-0306	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9101-9207	●	●
74	NUT; TIE ROD END EXC. FRT & RR SPR LONG SPAN<W55> M12	9-99110-512-0	04	1	9208-9210	●	●
74	NUT; TIE ROD END FRT & RR SPR LONG SPAN<W55> M12	9-99110-512-0	04	1	9208-9210	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9211-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
75	JOINT; BALL,DRAG LINK FRT & RR SPR LONG SPAN<W55> (A)	9-44361-169-3	02	1	9101-9504	●	●
75	JOINT; BALL,DRAG LINK FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-87090-211-0	02	1	9101-9504	●	●
75	JOINT; BALL,DRAG LINK STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-87090-211-0	02	1	9505-0306	●	●
75	JOINT; BALL,DRAG LINK EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-44361-059-0	02	1	9101-9504	●	●
76	SEAT; SPR,DRAG LINK EXC. FRT & RR SPR LONG SPAN<W55> OD=35	1-44373-006-0	02	1	9101-9504	●	●
77	SPRING; TIE ROD END FRT & RR SPR LONG SPAN<W55> (A)	9-09941-272-0	02	1	9101-9504	●	●
77	SPRING; TIE ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-09580-080-0	02	1	9101-9504	●	●
77	SPRING; TIE ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-09580-080-0	02	1	9505-0306	●	●
77	SPRING; TIE ROD END EXC. FRT & RR SPR LONG SPAN<W55> (C)	9-09940-324-0	02	1	9101-9504	●	●
78	PLUG; ADJ,ROD END FRT & RR SPR LONG SPAN<W55> (A)	1-44375-014-0	02	1	9101-9504	●	●
78	PLUG; ADJ,ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-44375-001-0	02	1	9101-9504	●	●
78	PLUG; ADJ,ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-44375-001-0	02	1	9505-0306	●	●
78	PLUG; ADJ,ROD END EXC. FRT & RR SPR LONG SPAN<W55> (C)	9-09881-679-0	02	1	9101-9504	●	●
81	ROD; TIE FRT & RR SPR LONG SPAN<W55>	9-43151-119-1	01	1	9101-9504	●	●
81	ROD; TIE	1-43151-119-0	01	1	9505-1009	●	●
81	ROD; TIE	8-98172-133-0	01	1	1010-1109	●	●
81	ROD; TIE	8-98193-965-0	01	1	1110-	●	●
81	ROD; TIE EXC. FRT & RR SPR LONG SPAN<W55>	1-43151-035-1	01	1	9101-9108	●	●
81	ROD; TIE EXC. FRT & RR SPR LONG SPAN<W55>	1-43151-077-0	01	1	9109-9504	●	●
255	PIN; SPLIT,JOINT BALL EXC. FRT & RR SPR LONG SPAN<W55> OD=4.6 L=35	9-08115-035-0	01	1	9504-9504	●	●
304	WASHER; PL STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0307-0907	●	●
304	WASHER; PL FRT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0307-0907	●	●
304	WASHER; PL STABILIZER SHAFT FRT & RR<FE6> (B) ID=21	0-91614-520-0	02	1	0908-	●	●
304	WASHER; PL FRT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9411-0704	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-	●	●
305	COVER; KNUCKLE FRT & RR SPR LONG SPAN<W55>	1-43175-021-0	02	1	9405-9412	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9501-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●

116 116 116 116 115 112 115 115 112 115 112 115 114 115 115 112 115 114 110 128 127 111 105 110 234 91 111 87 91 127 234 128 103 296 93 93 82 87 237 303 87 304 93 87 93 2 237 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

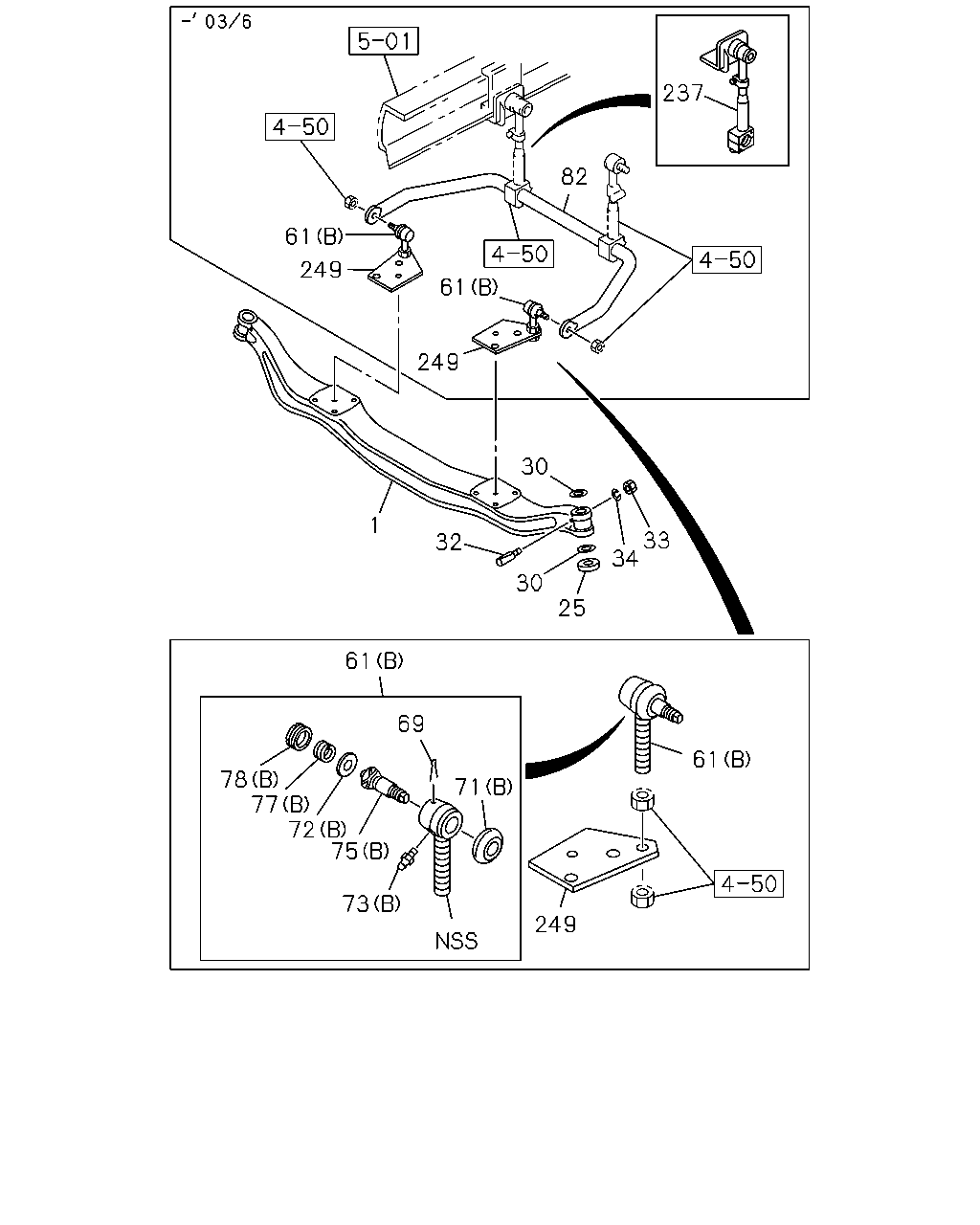

1	AXLE; FRT FRT & RR SPR LONG SPAN<W55>	1-43111-077-2	01	1	9101-9403	●	●
1	AXLE; FRT FRT & RR SPR LONG SPAN<W55>	1-43111-113-1	01	1	9404-9504	●	●
1	AXLE; FRT	1-43111-113-6	01	1	9505-	●	●
1	AXLE; FRT EXC. FRT & RR SPR LONG SPAN<W55>	1-43111-070-0	01	1	9101-9412	●	●
1	AXLE; FRT EXC. FRT & RR SPR LONG SPAN<W55>	1-43111-133-0	01	1	9501-9504	●	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-039-7	01	1	9101-9412	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-083-0	01	1	9501-9504	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-039-7	01	1	9101-9412	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-083-0	01	1	9501-9504	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43132-046-3	01	1	9101-9404	●	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43132-079-0	01	1	9405-9504	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	9505-	●	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43131-046-4	01	1	9101-9404	●	●
2	KNUCKLE; FRT AXLE FRT & RR SPR LONG SPAN<W55>	1-43131-079-0	01	1	9405-9504	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	9505-	●	●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-044-6	01	1	9101-9412		●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43132-089-0	01	1	9501-9504		●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-044-6	01	1	9101-9412		●
2	KNUCKLE; FRT AXLE EXC. FRT & RR SPR LONG SPAN<W55>	1-43131-089-0	01	1	9501-9504		●
82	BAR; STAB,FRT SUSP FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6> FRT SPR HEAVY DUTY<F60>	1-51771-086-0	01	1	9101-9504	●
82	BAR; STAB,FRT SUSP FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> EXC. FRT SPR HEAVY DUTY<F60>	1-51771-039-1	01	1	9101-9504	●
82	BAR; STAB,FRT SUSP FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51771-039-1	01	1	9101-9504		●
82	BAR; STAB,FRT SUSP STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51771-039-1	01	1	9505-0306	●	●
82	BAR; STAB,FRT SUSP STABILIZER SHAFT FRT & RR<FE6>	1-51771-203-0	01	1	0307-	●	●
82	BAR; STAB,FRT SUSP FRT STABILIZER SHAFT<F59>	1-51771-203-0	01	1	0307-	●	●
87	BRACKET; STABILIZER STABILIZER SHAFT FRT & RR<FE6> (A) OUTER	1-51781-083-1	02	1	0307-0912	●	●
87	BRACKET; STABILIZER FRT STABILIZER SHAFT<F59> (A) OUTER	1-51781-083-1	02	1	0307-0912	●	●
87	BRACKET; STABILIZER STABILIZER SHAFT FRT & RR<FE6> (A) OUTER	8-98012-958-0	02	1	1001-	●	●
87	BRACKET; STABILIZER FRT STABILIZER SHAFT<F59> (A) OUTER	8-98012-958-0	02	1	1001-	●	●
87	BRACKET; STABILIZER STABILIZER SHAFT FRT & RR<FE6> (B) INNER	1-51781-084-1	02	1	0307-0912	●	●
87	BRACKET; STABILIZER FRT STABILIZER SHAFT<F59> (B) INNER	1-51781-084-1	02	1	0307-0912	●	●
87	BRACKET; STABILIZER STABILIZER SHAFT FRT & RR<FE6> (B) INNER	8-98012-959-0	02	1	1001-	●	●
87	BRACKET; STABILIZER FRT STABILIZER SHAFT<F59> (B) INNER	8-98012-959-0	02	1	1001-	●	●
91	BUSHING; RUBBER,STAB BAR STABILIZER SHAFT FRT & RR<FE6>	1-51779-087-1	04	1	0307-	●	●
91	BUSHING; RUBBER,STAB BAR FRT STABILIZER SHAFT<F59>	1-51779-087-1	04	1	0307-	●	●
93	BUSHING; STABILIZER STABILIZER SHAFT FRT & RR<FE6>	1-51689-015-3	04	1	0307-	●	●
93	BUSHING; STABILIZER FRT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0307-	●	●
103	NUT; BRKT FIX STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	0307-0512	●	●
103	NUT; BRKT FIX FRT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	0307-0512	●	●
103	NUT; BRKT FIX STABILIZER SHAFT FRT & RR<FE6> M14	0-91110-514-0	04	1	0601-	●	●
103	NUT; BRKT FIX FRT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0601-	●	●
105	BOLT; BRKT FIX STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0307-0910	●	●
105	BOLT; BRKT FIX FRT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0307-0910	●	●
105	BOLT; BRKT FIX STABILIZER SHAFT FRT & RR<FE6> M14X70	0-10956-470-0	04	1	0911-	●	●
105	BOLT; BRKT FIX FRT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0911-	●	●
110	CLAMP; STAB TO ROD STABILIZER SHAFT FRT & RR<FE6> (A)	1-51789-027-2	02	1	0307-	●	●
110	CLAMP; STAB TO ROD FRT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0307-	●	●
110	CLAMP; STAB TO ROD STABILIZER SHAFT FRT & RR<FE6> (B)	1-51789-028-1	02	1	0307-	●	●
110	CLAMP; STAB TO ROD FRT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0307-	●	●
111	BOLT; CLAMP TO ROD STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	0307-0910	●	●
111	BOLT; CLAMP TO ROD FRT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	0307-0910	●	●
111	BOLT; CLAMP TO ROD STABILIZER SHAFT FRT & RR<FE6> (A) M12X30	0-20851-230-0	02	1	0911-	●	●
111	BOLT; CLAMP TO ROD FRT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0911-	●	●
111	BOLT; CLAMP TO ROD STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	0307-0910	●	●
111	BOLT; CLAMP TO ROD FRT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	0307-0910	●	●
111	BOLT; CLAMP TO ROD STABILIZER SHAFT FRT & RR<FE6> (B) M12X50	0-20851-250-0	04	1	0911-	●	●
111	BOLT; CLAMP TO ROD FRT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0911-	●	●
112	BUSHING; ROD STABILIZER SHAFT FRT & RR<FE6>	9-51631-039-0	04	1	0307-	●	●
112	BUSHING; ROD FRT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	0307-	●	●
114	ROD; STAB BAR STABILIZER SHAFT FRT & RR<FE6>	1-51773-083-2	02	1	0307-	●	●
114	ROD; STAB BAR FRT STABILIZER SHAFT<F59>	1-51773-083-2	02	1	0307-	●	●
115	WASHER; CENTER,STAB TO FRAME STABILIZER SHAFT FRT & RR<FE6> (A) OUTER ID=16.5	9-51631-040-0	04	1	0307-	●	●
115	WASHER; CENTER,STAB TO FRAME FRT STABILIZER SHAFT<F59> (A) OUTER ID=16.5	9-51631-040-0	04	1	0307-	●	●
115	WASHER; CENTER,STAB TO FRAME STABILIZER SHAFT FRT & RR<FE6> (B) INNER ID=20.8	9-51631-041-0	04	1	0307-	●	●
115	WASHER; CENTER,STAB TO FRAME FRT STABILIZER SHAFT<F59> (B) INNER ID=20.8	9-51631-041-0	04	1	0307-	●	●
116	NUT; LK,STAB TO FRAME STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	0307-0512	●	●
116	NUT; LK,STAB TO FRAME FRT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	0307-0512	●	●
116	NUT; LK,STAB TO FRAME STABILIZER SHAFT FRT & RR<FE6> M14	0-91111-514-0	04	1	0601-	●	●
116	NUT; LK,STAB TO FRAME FRT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0601-	●	●
127	NUT; CLAMP STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	0307-0512	●	●
127	NUT; CLAMP FRT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	0307-0512	●	●
127	NUT; CLAMP STABILIZER SHAFT FRT & RR<FE6> M12	0-91110-512-0	06	1	0601-	●	●
127	NUT; CLAMP FRT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0601-	●	●
128	WASHER; LK,CLAMP STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	0307-0603	●	●
128	WASHER; LK,CLAMP FRT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	0307-0603	●	●
128	WASHER; LK,CLAMP STABILIZER SHAFT FRT & RR<FE6> ID=12.2	0-91510-512-0	06	1	0604-0912	●	●
128	WASHER; LK,CLAMP FRT STABILIZER SHAFT<F59> ID=12.2	0-91510-512-0	06	1	0604-0912	●	●
128	WASHER; LK,CLAMP STABILIZER SHAFT FRT & RR<FE6> ID=12.2	0-91510-812-0	06	1	1001-	●	●
128	WASHER; LK,CLAMP FRT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1001-	●	●
234	WASHER; STAB STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	0307-0910	●	●
234	WASHER; STAB FRT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	0307-0910	●	●
234	WASHER; STAB STABILIZER SHAFT FRT & RR<FE6> ID=15	8-98010-627-1	08	1	0911-	●	●
234	WASHER; STAB FRT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0911-	●	●
237	SUPPORT; STAB BAR STABILIZER SHAFT FRT & RR<FE6>	1-51681-662-0	02	1	0307-	●	●
237	SUPPORT; STAB BAR FRT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0307-	●	●
237	SUPPORT; STAB BAR FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51770-071-5	02	1	9101-0306	●	●
296	PIN; STAB STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	0307-0907	●	●
296	PIN; STAB FRT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	0307-0907	●	●
296	PIN; STAB STABILIZER SHAFT FRT & RR<FE6>	8-98022-874-1	02	1	0908-	●	●
296	PIN; STAB FRT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	0908-	●	●
303	NUT; PIN STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	0307-0512	●	●
303	NUT; PIN FRT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	0307-0512	●	●
303	NUT; PIN STABILIZER SHAFT FRT & RR<FE6> M20	0-91110-520-0	02	1	0601-	●	●
303	NUT; PIN FRT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0601-	●	●
304	WASHER; PL STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0307-0907	●	●
304	WASHER; PL FRT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0307-0907	●	●
304	WASHER; PL STABILIZER SHAFT FRT & RR<FE6> (B) ID=21	0-91614-520-0	02	1	0908-	●	●
304	WASHER; PL FRT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9411-0704	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-	●	●

272 267 267 267 265 274 51 267 274 274 267 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	BOLT; POWER CHAMBER BRKT PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) M12X25 FLANGE	0-28651-225-0	02	1	0706-		●
51	BOLT; POWER CHAMBER BRKT PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0706-		●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55> (C) M12X60	0-10806-260-0	02	1	9101-9504	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12X60	0-10806-260-0	02	1	9505-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12X60 FLANGE	0-28081-260-0	02	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT (C) M12X60 FLANGE	0-28081-260-0	02	1	0204-0512	●	●
51	BOLT; POWER CHAMBER BRKT (C) M12X60 FLANGE	0-28051-260-0	02	1	0601-	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X14,M12X18 L=45.7	1-09029-070-0	04	1	9505-9509	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (A) M12X28	0-20801-228-0	02	1	9803-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (A) M12X25 FLANGE	0-28681-225-0	02	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (B) M8X14,M12X18 L=45.7	1-09029-070-0	04	1	9803-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (B) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55> (A) M12X28	0-20801-228-0	06	1	9101-9504	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X28	0-20801-228-0	02	1	9505-9509	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X28	0-20801-228-0	06	1	9510-9802	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> (A) M12X28	0-20801-228-0	06	1	9803-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> (A) M12X25 FLANGE	0-28681-225-0	06	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28681-225-0	06	1	0204-0512	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28651-225-0	06	1	0601-0705	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28651-225-0	06	1	0706-	●
51	BOLT; POWER CHAMBER BRKT EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) M12X25 FLANGE	0-28651-225-0	06	1	0706-		●
265	BRACKET; CLIP I BEAM PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98044-305-0	01	1	0706-0812		●
265	BRACKET; CLIP I BEAM PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98140-697-0	01	1	0901-		●
265	BRACKET; CLIP I BEAM PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98044-306-0	01	1	0706-0812		●
265	BRACKET; CLIP I BEAM PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98140-698-0	01	1	0901-		●
265	BRACKET; CLIP I BEAM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3>	1-82699-622-0	01	1	9803-0203	●	●
265	BRACKET; CLIP I BEAM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3>	1-82699-621-0	01	1	9803-0203	●	●
267	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) ID=11 L=16	0-95235-025-0	04	1	0706-		●
267	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) ID=11 L=16	0-95235-025-0	10	1	0706-		●
267	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) ID=11X2 L=20	0-95325-035-0	01	1	0706-		●
267	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) L=140	5-09707-031-1	01	1	0706-		●
267	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) ID=11 H=20 L=20	5-09700-351-0	02	1	0706-0707		●
267	CLIP; HARNESS PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) ID=11 H=20 L=20	8-98033-780-0	02	1	0708-		●
272	NUT; CLIP PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> M8 FLANGE	0-91180-108-0	04	1	0706-		●
272	NUT; CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> M8 FLANGE	0-91150-108-0	04	1	9803-0203	●	●
274	BOLT; CLIP PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) M8X16 FLANGE	0-28050-816-0	02	1	0706-		●
274	BOLT; CLIP PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) M8X10 FLANGE	0-28050-810-0	10	1	0706-		●
274	BOLT; CLIP PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) M8X16 FLANGE	0-28050-816-0	01	1	0706-		●
274	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> (B) M8X12 W/LK WASHER	0-50040-812-0	11	1	9803-0203	●	●
274	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (A) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9803-0203	●	●

274 268 272 265 51 51 52 52 50 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55>	1-43145-010-1	01	1	9101-9504	●	●
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-010-3	01	1	9505-0203	●	●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0204-	●	●
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55>	1-43145-009-1	01	1	9101-9504	●	●
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-009-3	01	1	9505-0203	●	●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0204-	●	●
51	BOLT; POWER CHAMBER BRKT PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) M12X25 FLANGE	0-28651-225-0	02	1	0706-		●
51	BOLT; POWER CHAMBER BRKT PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0706-		●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55> (C) M12X60	0-10806-260-0	02	1	9101-9504	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12X60	0-10806-260-0	02	1	9505-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12X60 FLANGE	0-28081-260-0	02	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT (C) M12X60 FLANGE	0-28081-260-0	02	1	0204-0512	●	●
51	BOLT; POWER CHAMBER BRKT (C) M12X60 FLANGE	0-28051-260-0	02	1	0601-	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X14,M12X18 L=45.7	1-09029-070-0	04	1	9505-9509	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (A) M12X28	0-20801-228-0	02	1	9803-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (A) M12X25 FLANGE	0-28681-225-0	02	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (B) M8X14,M12X18 L=45.7	1-09029-070-0	04	1	9803-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (B) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55> (A) M12X28	0-20801-228-0	06	1	9101-9504	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X28	0-20801-228-0	02	1	9505-9509	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X28	0-20801-228-0	06	1	9510-9802	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> (A) M12X28	0-20801-228-0	06	1	9803-0004	●	●
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> (A) M12X25 FLANGE	0-28681-225-0	06	1	0005-0203	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28681-225-0	06	1	0204-0512	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28651-225-0	06	1	0601-0705	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28651-225-0	06	1	0706-	●
51	BOLT; POWER CHAMBER BRKT EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) M12X25 FLANGE	0-28651-225-0	06	1	0706-		●
52	WASHER; LK,POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	08	1	9101-0004	●	●
265	BRACKET; CLIP I BEAM PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98044-305-0	01	1	0706-0812		●
265	BRACKET; CLIP I BEAM PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98140-697-0	01	1	0901-		●
265	BRACKET; CLIP I BEAM PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98044-306-0	01	1	0706-0812		●
265	BRACKET; CLIP I BEAM PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98140-698-0	01	1	0901-		●
265	BRACKET; CLIP I BEAM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3>	1-82699-622-0	01	1	9803-0203	●	●
265	BRACKET; CLIP I BEAM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3>	1-82699-621-0	01	1	9803-0203	●	●
268	CLIP; HARNESS BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> ID=11 L=16	9-09525-025-0	09	1	9803-0203	●	●
268	CLIP; HARNESS BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> ID=11 L=16	9-09525-025-0	06	1	9803-0203	●	●
272	NUT; CLIP PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> M8 FLANGE	0-91180-108-0	04	1	0706-		●
272	NUT; CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> M8 FLANGE	0-91150-108-0	04	1	9803-0203	●	●
274	BOLT; CLIP PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) M8X16 FLANGE	0-28050-816-0	02	1	0706-		●
274	BOLT; CLIP PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) M8X10 FLANGE	0-28050-810-0	10	1	0706-		●
274	BOLT; CLIP PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) M8X16 FLANGE	0-28050-816-0	01	1	0706-		●
274	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> (B) M8X12 W/LK WASHER	0-50040-812-0	11	1	9803-0203	●	●
274	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> (A) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9803-0203	●	●

237 82 61 249 61 249 30 1 33 34 32 30 25 61 69 61 78 77 72 75 71 73 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT FRT & RR SPR LONG SPAN<W55>	1-43111-077-2	01	1	9101-9403	●	●
1	AXLE; FRT FRT & RR SPR LONG SPAN<W55>	1-43111-113-1	01	1	9404-9504	●	●
1	AXLE; FRT	1-43111-113-6	01	1	9505-	●	●
1	AXLE; FRT EXC. FRT & RR SPR LONG SPAN<W55>	1-43111-070-0	01	1	9101-9412	●	●
1	AXLE; FRT EXC. FRT & RR SPR LONG SPAN<W55>	1-43111-133-0	01	1	9501-9504	●	●
25	BEARING; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> NTN	1-09829-027-1	02	1	9101-9412	●	●
25	BEARING; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> NSK	1-09829-043-2	02	1	9501-9504	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9505-	●	●
25	BEARING; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> NTN	1-09829-026-0	02	1	9101-9504	●	●
25	BEARING; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> NSK	1-09829-028-0	02	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=4.875 -4.900	1-43171-185-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=4.900 -4.925	1-43171-186-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=4.925 -4.950	1-43171-187-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=4.950 -4.975	1-43171-188-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=4.975 -5.000	1-43171-189-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.000 -5.025	1-43171-190-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.025 -5.050	1-43171-191-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.050 -5.075	1-43171-192-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.075 -5.100	1-43171-193-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.100 -5.125	1-43171-194-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.125 -5.150	1-43171-195-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.150 -5.175	1-43171-196-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.175 -5.200	1-43171-197-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.200 -5.225	1-43171-198-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN FRT & RR SPR LONG SPAN<W55> T=5.225 -5.250	1-43171-199-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9505-	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=2.800	1-43171-229-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=2.850	1-43171-230-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=2.900	1-43171-231-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=2.950	1-43171-232-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.000	1-43171-233-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.050	1-43171-234-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.100	1-43171-235-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.150	1-43171-236-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.200	1-43171-237-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.250	1-43171-238-0	AR	1	9101-9504	●	●
30	WASHER; THRUST,KING PIN EXC. FRT & RR SPR LONG SPAN<W55> T=3.300	1-43171-239-0	AR	1	9101-9504	●	●
32	BOLT; KEY,KING PIN FRT & RR SPR LONG SPAN<W55>	1-43116-002-1	02	1	9101-9504	●	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	9505-	●	●
32	BOLT; KEY,KING PIN EXC. FRT & RR SPR LONG SPAN<W55>	1-43116-005-1	02	1	9101-9504	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9101-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9101-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (A)	1-43150-436-1	01	1	9101-9504	●	●
61	ROD END; TIE ROD (F)	1-43150-737-1	01	1	9505-9812	●	●
61	ROD END; TIE ROD (F)	1-43150-802-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD (G)	8-98171-445-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD (G)	8-98236-801-0	01	1	1307-	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (D)	1-43156-010-2	01	1	9101-9207	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (A)	1-43150-435-1	01	1	9101-9504	●	●
61	ROD END; TIE ROD (F)	1-43150-736-1	01	1	9505-9812	●	●
61	ROD END; TIE ROD (F)	1-43150-801-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD (G)	8-98171-444-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD (G)	8-98236-800-0	01	1	1307-	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> (D)	1-43155-009-2	01	1	9101-9207	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-470-0	01	1	9101-9504	●	●
61	ROD END; TIE ROD STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-470-0	01	1	9505-0306	●	●
61	ROD END; TIE ROD FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-471-0	01	1	9101-9504	●	●
61	ROD END; TIE ROD STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43150-471-0	01	1	9505-0306	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-527-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-525-1	01	1	9109-9504	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43156-019-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43156-035-0	01	1	9109-9504	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-526-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43150-524-1	01	1	9109-9504	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43155-019-0	01	1	9101-9108	●	●
61	ROD END; TIE ROD EXC. FRT & RR SPR LONG SPAN<W55> (E)	1-43155-035-0	01	1	9109-9504	●	●
69	PIN; SPLIT,TIE ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> OD=2.8 L=55	9-08113-055-0	02	1	9101-9504	●	●
69	PIN; SPLIT,TIE ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> OD=2.8 L=55	9-08113-055-0	02	1	9505-0306	●	●
69	PIN; SPLIT,TIE ROD END EXC. FRT & RR SPR LONG SPAN<W55>	9-08115-090-0	02	1	9101-9504	●	●
71	BOOT; TIE ROD END FRT & RR SPR LONG SPAN<W55> (A) ID=31 & 49	1-43159-038-0	02	1	9101-9504	●	●
71	BOOT; TIE ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-43159-036-0	02	1	9101-9504	●	●
71	BOOT; TIE ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B) D=18.5,29	1-43159-036-0	02	1	9505-0306	●	●
71	BOOT; TIE ROD END EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-43159-037-0	02	1	9101-9504	●	●
72	SEAT; BALL,TIE ROD JOINT FRT & RR SPR LONG SPAN<W55> (A)	1-44371-012-1	04	1	9101-9504	●	●
72	SEAT; BALL,TIE ROD JOINT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-44370-002-0	02	1	9101-9504	●	●
72	SEAT; BALL,TIE ROD JOINT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-44370-002-0	02	1	9505-0306	●	●
72	SEAT; BALL,TIE ROD JOINT EXC. FRT & RR SPR LONG SPAN<W55> (C)	9-09881-625-0	02	1	9101-9504	●	●
73	NIPPLE; GREASE,TIE ROD END (C)	1-43159-133-0	02	1	1010-	●	●
73	NIPPLE; GREASE,TIE ROD END (A) L=20.0 PT1/8 STRAIGHT	9-09031-010-0	02	1	9101-9504	●	●
73	NIPPLE; GREASE,TIE ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B) M6 STRAIGHT	9-09031-006-0	02	1	9101-9504	●	●
73	NIPPLE; GREASE,TIE ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B) M6 STRAIGHT	9-09031-006-0	02	1	9505-0306	●	●
75	JOINT; BALL,DRAG LINK FRT & RR SPR LONG SPAN<W55> (A)	9-44361-169-3	02	1	9101-9504	●	●
75	JOINT; BALL,DRAG LINK FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-87090-211-0	02	1	9101-9504	●	●
75	JOINT; BALL,DRAG LINK STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-87090-211-0	02	1	9505-0306	●	●
75	JOINT; BALL,DRAG LINK EXC. FRT & RR SPR LONG SPAN<W55> (C)	1-44361-059-0	02	1	9101-9504	●	●
77	SPRING; TIE ROD END FRT & RR SPR LONG SPAN<W55> (A)	9-09941-272-0	02	1	9101-9504	●	●
77	SPRING; TIE ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-09580-080-0	02	1	9101-9504	●	●
77	SPRING; TIE ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-09580-080-0	02	1	9505-0306	●	●
77	SPRING; TIE ROD END EXC. FRT & RR SPR LONG SPAN<W55> (C)	9-09940-324-0	02	1	9101-9504	●	●
78	PLUG; ADJ,ROD END FRT & RR SPR LONG SPAN<W55> (A)	1-44375-014-0	02	1	9101-9504	●	●
78	PLUG; ADJ,ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-44375-001-0	02	1	9101-9504	●	●
78	PLUG; ADJ,ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B)	1-44375-001-0	02	1	9505-0306	●	●
78	PLUG; ADJ,ROD END EXC. FRT & RR SPR LONG SPAN<W55> (C)	9-09881-679-0	02	1	9101-9504	●	●
82	BAR; STAB,FRT SUSP FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6> FRT SPR HEAVY DUTY<F60>	1-51771-086-0	01	1	9101-9504	●
82	BAR; STAB,FRT SUSP FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> EXC. FRT SPR HEAVY DUTY<F60>	1-51771-039-1	01	1	9101-9504	●
82	BAR; STAB,FRT SUSP FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51771-039-1	01	1	9101-9504		●
82	BAR; STAB,FRT SUSP STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51771-039-1	01	1	9505-0306	●	●
82	BAR; STAB,FRT SUSP STABILIZER SHAFT FRT & RR<FE6>	1-51771-203-0	01	1	0307-	●	●
82	BAR; STAB,FRT SUSP FRT STABILIZER SHAFT<F59>	1-51771-203-0	01	1	0307-	●	●
237	SUPPORT; STAB BAR STABILIZER SHAFT FRT & RR<FE6>	1-51681-662-0	02	1	0307-	●	●
237	SUPPORT; STAB BAR FRT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0307-	●	●
237	SUPPORT; STAB BAR FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51770-071-5	02	1	9101-0306	●	●
249	BRACKET; ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51781-035-0	02	1	9101-9504	●	●
249	BRACKET; ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51781-035-0	02	1	9505-0306	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
