2-25 — SPEEDOMETER DRIVEN GEAR (#44628) — 191 parça

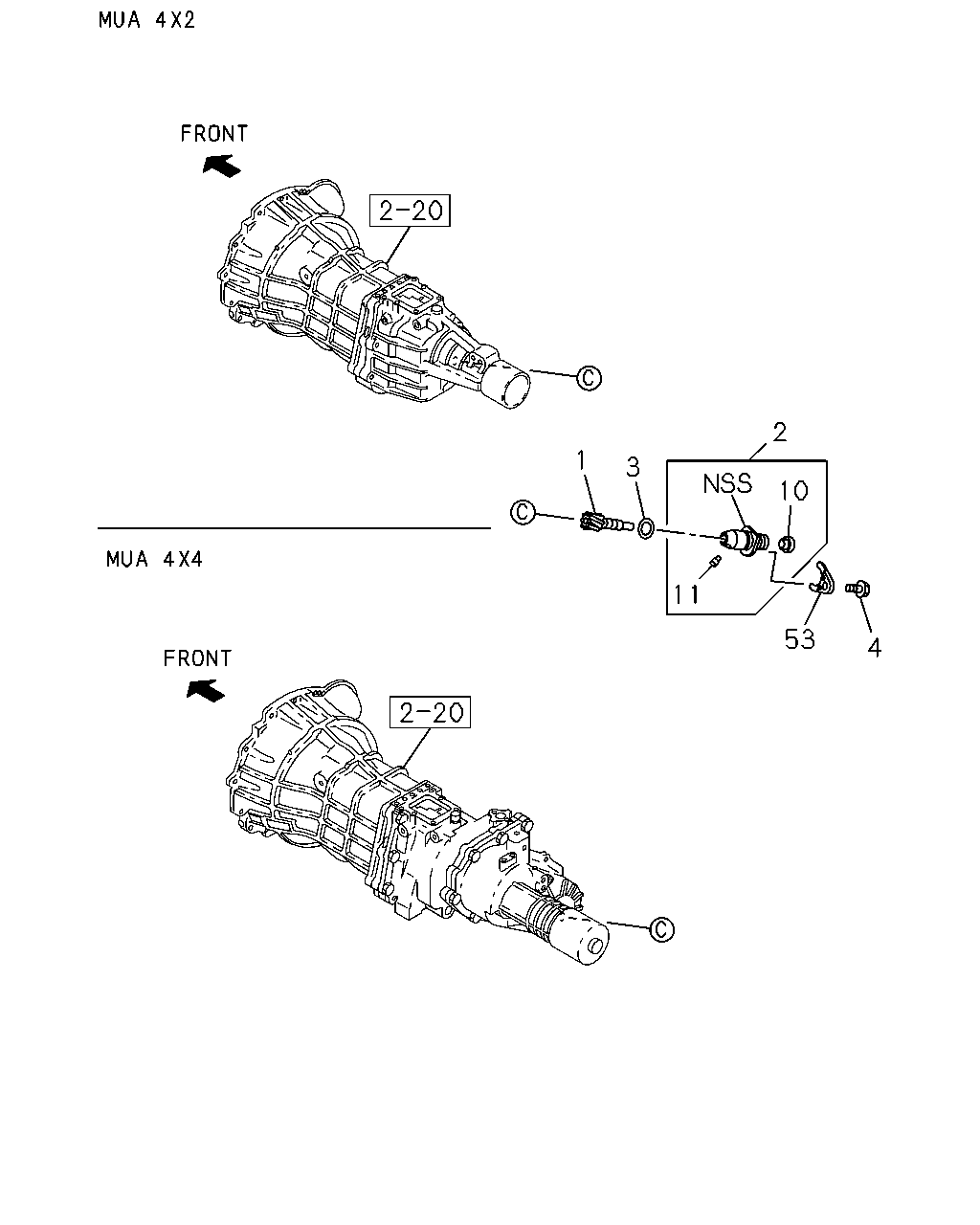

çizim 15582
2 1 3 10 11 53 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) Z=18 		8-94473-304-1 01 1 9804-9805 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) FRT&RR 205SR16 6JJX16 STYLED(AUY) Z=18 		8-94473-304-1 01 1 9804-9805 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) FRT&RR 205/80R16 6JJX16 MICHELIN STYLED(ASV) Z=16 		8-94473-308-1 01 1 9804-9906 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JA1 ENG(RLE) Z=16 		8-94473-308-1 01 1 9907-0107 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JA1 ENG(RLE) Z=16 		8-94473-308-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> Z=16 		8-94473-308-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) Z=19 		8-94473-303-1 01 1 9907-0107 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) Z=19 		8-94473-303-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JG2 ENG(RJC) Z=19 		8-94473-303-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4JG2 ENG(RJC) Z=18 		8-97012-086-1 01 1 9804-9805 ●
1 04.337 GEAR; DRIVEN,SPD
Z=18 		8-97012-086-1 01 1 9806-9906 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JG2 ENG(RJC) Z=18 		8-97012-086-1 01 1 9907-0107 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JG2 ENG(RJC) Z=18 		8-97012-086-2 01 1 0108- ● ●
1 04.337 GEAR; DRIVEN,SPD
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> Z=18 		8-97012-086-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 CREW CAB(TFB*W*) Z=19 		8-97229-170-0 01 1 9907- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-4 01 1 9804- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9804-9805 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9806- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4(TFS***) 		8-97021-133-4 01 1 9806- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2 CREW CAB(TFB*W*) 		8-97181-543-0 01 1 9907- ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9804-9805 ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		9-09921-100-0 01 1 9806- ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=21.7 OD=28.7 		9-09921-100-0 01 1 9806- ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804- ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9804-9805 ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9806- ●
4 04.338 BOLT; RET,DRIVEN GEAR
4X4(TFS***) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9806- ●
4 04.338 BOLT; RET,DRIVEN GEAR
4X2 CREW CAB(TFB*W*) M8X14 W/WASHER 		8-94480-043-0 01 1 9907- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-1 01 1 9804- ● ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 4X2 CREW CAB(TFB*W*) (A) NOK 		8-94480-040-0 01 1 9907- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 4X2 CREW CAB(TFB*W*) (A) JTEKT 		8-97181-544-0 01 1 9907- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 4X2 CREW CAB(TFB*W*) (B) ID=19 		8-97181-545-0 01 1 9907- ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV 8-94446-571-1 01 1 9804- ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 9804-9805 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 9806-0206 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
4X4(TFS***) 		8-97021-019-0 01 1 9806-0206 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97352-311-0 01 1 0207-0207 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
4X4(TFS***) 		8-97352-311-0 01 1 0207-0207 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 0207- ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
4X4(TFS***) 		8-97021-019-0 01 1 0207- ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
4X2 CREW CAB(TFB*W*) 04.265 		8-94479-720-0 01 1 9907- ●

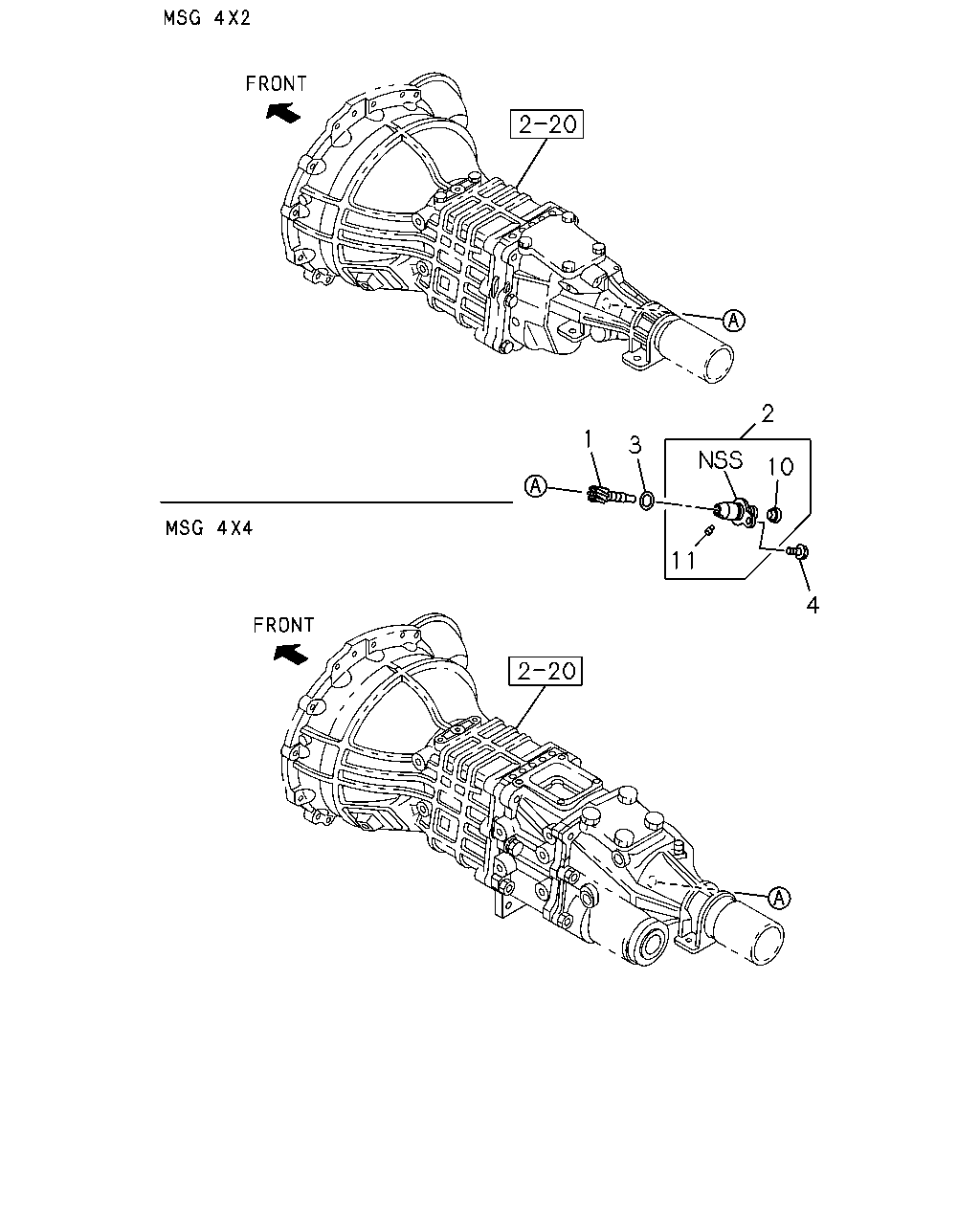

çizim 16643
2 1 3 10 11 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) Z=18 		8-94473-304-1 01 1 9804-9805 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) FRT&RR 205SR16 6JJX16 STYLED(AUY) Z=18 		8-94473-304-1 01 1 9804-9805 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) FRT&RR 205/80R16 6JJX16 MICHELIN STYLED(ASV) Z=16 		8-94473-308-1 01 1 9804-9906 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JA1 ENG(RLE) Z=16 		8-94473-308-1 01 1 9907-0107 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JA1 ENG(RLE) Z=16 		8-94473-308-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> Z=16 		8-94473-308-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) Z=19 		8-94473-303-1 01 1 9907-0107 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) Z=19 		8-94473-303-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JG2 ENG(RJC) Z=19 		8-94473-303-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4JG2 ENG(RJC) Z=18 		8-97012-086-1 01 1 9804-9805 ●
1 04.337 GEAR; DRIVEN,SPD
Z=18 		8-97012-086-1 01 1 9806-9906 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JG2 ENG(RJC) Z=18 		8-97012-086-1 01 1 9907-0107 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JG2 ENG(RJC) Z=18 		8-97012-086-2 01 1 0108- ● ●
1 04.337 GEAR; DRIVEN,SPD
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> Z=18 		8-97012-086-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 CREW CAB(TFB*W*) Z=19 		8-97229-170-0 01 1 9907- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-4 01 1 9804- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9804-9805 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9806- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4(TFS***) 		8-97021-133-4 01 1 9806- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2 CREW CAB(TFB*W*) 		8-97181-543-0 01 1 9907- ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9804-9805 ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		9-09921-100-0 01 1 9806- ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=21.7 OD=28.7 		9-09921-100-0 01 1 9806- ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804- ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9804-9805 ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9806- ●
4 04.338 BOLT; RET,DRIVEN GEAR
4X4(TFS***) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9806- ●
4 04.338 BOLT; RET,DRIVEN GEAR
4X2 CREW CAB(TFB*W*) M8X14 W/WASHER 		8-94480-043-0 01 1 9907- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-1 01 1 9804- ● ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 4X2 CREW CAB(TFB*W*) (A) NOK 		8-94480-040-0 01 1 9907- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 4X2 CREW CAB(TFB*W*) (A) JTEKT 		8-97181-544-0 01 1 9907- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 4X2 CREW CAB(TFB*W*) (B) ID=19 		8-97181-545-0 01 1 9907- ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV 8-94446-571-1 01 1 9804- ● ●
çizim 64518
43 22 15 22 23 43 43 22 25 43
BalonParca AdiParca NoAdetTipApplied Date A B C
15 00.685 BOLT; UNDER COVER TO TRANS
(A) M10X35 FLANGE 		0-28081-035-0 01 1 9804- ●
15 00.685 BOLT; UNDER COVER TO TRANS
04.525 (B) M10X40 FLANGE 		0-28081-040-0 01 1 9804- ●
15 00.685 BOLT; UNDER COVER TO TRANS
M10X45 FLANGE 		0-28081-045-0 01 1 9804- ●
15 00.685 BOLT; UNDER COVER TO TRANS
04.686 M6X16 W/LK WASHER 		0-50040-616-0 04 1 9806-9806 ●
15 00.685 BOLT; UNDER COVER TO TRANS
04.439 M6X16 FLANGE 		0-28680-616-0 04 1 9807- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28081-035-0 01 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X45 FLANGE 		0-28081-045-0 01 1 9804-9808 ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X45 FLANGE 		0-28081-045-0 01 1 9809- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
00.780 M12X90 FLANGE 		0-28081-290-0 01 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 03 1 9804-9808 ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 03 1 9809- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X60 FLANGE 		0-28081-060-0 02 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M12X40 FLANGE 		0-28081-240-0 01 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 04 1 9806-9808 ●
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M12X40 FLANGE 		0-28081-240-0 02 1 9806-9808 ●
22 00.685 BOLT; TRANS CASE TO ENG
M12X45 FLANGE 		0-28081-245-0 02 1 9809- ●
22 00.685 BOLT; TRANS CASE TO ENG
M12X176 		8-97163-249-0 02 1 9806- ●
23 00.685 BOLT; STARTER TO TRANS CASE
M12X70 FLANGE 		0-28081-270-0 02 1 9804-9807 ●
23 00.685 BOLT; STARTER TO TRANS CASE
M12X70 FLANGE 		0-28081-270-0 02 1 9808-9808 ● ●
23 00.685 BOLT; STARTER TO TRANS CASE
M12X70 FLANGE 		0-28081-270-0 02 1 9809- ●
23 00.685 BOLT; STARTER TO TRANS CASE
M12X68 FLANGE 		8-94480-344-1 02 1 9806-9807 ●
23 00.685 BOLT; STARTER TO TRANS CASE
M12X60 FLANGE 		0-28081-260-0 02 1 9809- ●
25 00.685 WASHER; PL,TRANS CASE
03.430 ID=12.5 		9-09160-512-0 01 1 9804- ●
43 00.685 NUT; TRANS CASE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9804-9805 ●
43 00.685 NUT; TRANS CASE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9806- ● ●
43 00.685 NUT; TRANS CASE
05.586 (B) M12 FLANGE 		0-91150-112-0 02 1 9804- ●
43 00.685 NUT; TRANS CASE
05.816 (C) M12 		9-99110-412-0 01 1 9804- ●

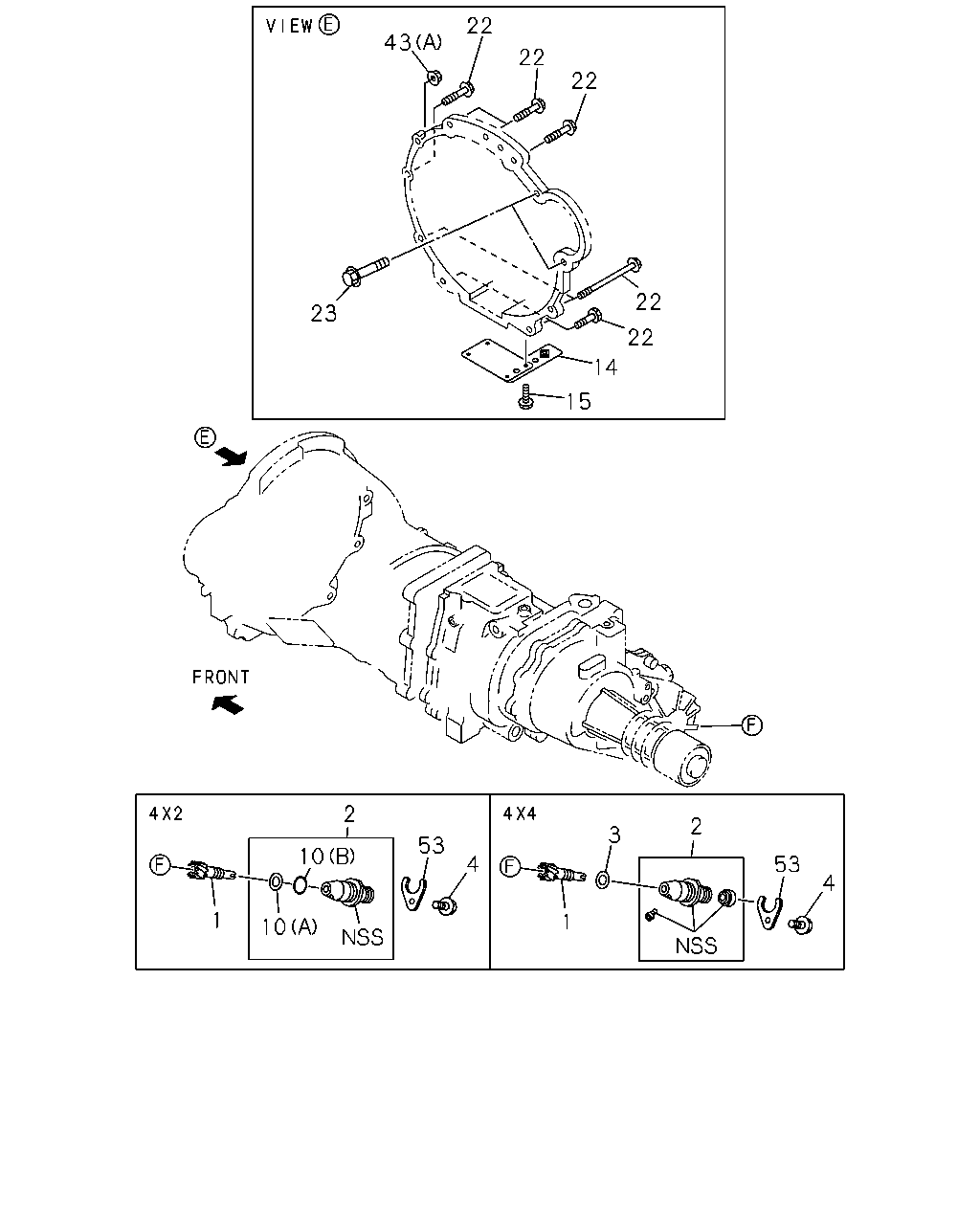

çizim 64519
22 43 22 22 22 23 22 14 15 2 2 3 53 10 53 4 4 1 1 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) Z=18 		8-94473-304-1 01 1 9804-9805 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) FRT&RR 205SR16 6JJX16 STYLED(AUY) Z=18 		8-94473-304-1 01 1 9804-9805 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) FRT&RR 205/80R16 6JJX16 MICHELIN STYLED(ASV) Z=16 		8-94473-308-1 01 1 9804-9906 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JA1 ENG(RLE) Z=16 		8-94473-308-1 01 1 9907-0107 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JA1 ENG(RLE) Z=16 		8-94473-308-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> Z=16 		8-94473-308-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) Z=19 		8-94473-303-1 01 1 9907-0107 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) Z=19 		8-94473-303-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JG2 ENG(RJC) Z=19 		8-94473-303-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4JG2 ENG(RJC) Z=18 		8-97012-086-1 01 1 9804-9805 ●
1 04.337 GEAR; DRIVEN,SPD
Z=18 		8-97012-086-1 01 1 9806-9906 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JG2 ENG(RJC) Z=18 		8-97012-086-1 01 1 9907-0107 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JG2 ENG(RJC) Z=18 		8-97012-086-2 01 1 0108- ● ●
1 04.337 GEAR; DRIVEN,SPD
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> Z=18 		8-97012-086-2 01 1 0108- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 CREW CAB(TFB*W*) Z=19 		8-97229-170-0 01 1 9907- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-4 01 1 9804- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9804-9805 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9806- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4(TFS***) 		8-97021-133-4 01 1 9806- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2 CREW CAB(TFB*W*) 		8-97181-543-0 01 1 9907- ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9804-9805 ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		9-09921-100-0 01 1 9806- ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=21.7 OD=28.7 		9-09921-100-0 01 1 9806- ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804- ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9804-9805 ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9806- ●
4 04.338 BOLT; RET,DRIVEN GEAR
4X4(TFS***) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9806- ●
4 04.338 BOLT; RET,DRIVEN GEAR
4X2 CREW CAB(TFB*W*) M8X14 W/WASHER 		8-94480-043-0 01 1 9907- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-1 01 1 9804- ● ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 4X2 CREW CAB(TFB*W*) (A) NOK 		8-94480-040-0 01 1 9907- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 4X2 CREW CAB(TFB*W*) (A) JTEKT 		8-97181-544-0 01 1 9907- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 4X2 CREW CAB(TFB*W*) (B) ID=19 		8-97181-545-0 01 1 9907- ●
14 00.679 COVER; UNDER,TRANS 8-97061-582-0 01 1 9806- ●
15 00.685 BOLT; UNDER COVER TO TRANS
(A) M10X35 FLANGE 		0-28081-035-0 01 1 9804- ●
15 00.685 BOLT; UNDER COVER TO TRANS
04.525 (B) M10X40 FLANGE 		0-28081-040-0 01 1 9804- ●
15 00.685 BOLT; UNDER COVER TO TRANS
M10X45 FLANGE 		0-28081-045-0 01 1 9804- ●
15 00.685 BOLT; UNDER COVER TO TRANS
04.686 M6X16 W/LK WASHER 		0-50040-616-0 04 1 9806-9806 ●
15 00.685 BOLT; UNDER COVER TO TRANS
04.439 M6X16 FLANGE 		0-28680-616-0 04 1 9807- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28081-035-0 01 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X45 FLANGE 		0-28081-045-0 01 1 9804-9808 ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X45 FLANGE 		0-28081-045-0 01 1 9809- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
00.780 M12X90 FLANGE 		0-28081-290-0 01 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 03 1 9804-9808 ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 03 1 9809- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X60 FLANGE 		0-28081-060-0 02 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M12X40 FLANGE 		0-28081-240-0 01 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 04 1 9806-9808 ●
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M12X40 FLANGE 		0-28081-240-0 02 1 9806-9808 ●
22 00.685 BOLT; TRANS CASE TO ENG
M12X45 FLANGE 		0-28081-245-0 02 1 9809- ●
22 00.685 BOLT; TRANS CASE TO ENG
M12X176 		8-97163-249-0 02 1 9806- ●
23 00.685 BOLT; STARTER TO TRANS CASE
M12X70 FLANGE 		0-28081-270-0 02 1 9804-9807 ●
23 00.685 BOLT; STARTER TO TRANS CASE
M12X70 FLANGE 		0-28081-270-0 02 1 9808-9808 ● ●
23 00.685 BOLT; STARTER TO TRANS CASE
M12X70 FLANGE 		0-28081-270-0 02 1 9809- ●
23 00.685 BOLT; STARTER TO TRANS CASE
M12X68 FLANGE 		8-94480-344-1 02 1 9806-9807 ●
23 00.685 BOLT; STARTER TO TRANS CASE
M12X60 FLANGE 		0-28081-260-0 02 1 9809- ●
43 00.685 NUT; TRANS CASE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9804-9805 ●
43 00.685 NUT; TRANS CASE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9806- ● ●
43 00.685 NUT; TRANS CASE
05.586 (B) M12 FLANGE 		0-91150-112-0 02 1 9804- ●
43 00.685 NUT; TRANS CASE
05.816 (C) M12 		9-99110-412-0 01 1 9804- ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 9804-9805 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 9806-0206 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
4X4(TFS***) 		8-97021-019-0 01 1 9806-0206 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97352-311-0 01 1 0207-0207 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
4X4(TFS***) 		8-97352-311-0 01 1 0207-0207 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 0207- ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
4X4(TFS***) 		8-97021-019-0 01 1 0207- ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
4X2 CREW CAB(TFB*W*) 04.265 		8-94479-720-0 01 1 9907- ●
çizim 64653
22 15 22 22 15 22
BalonParca AdiParca NoAdetTipApplied Date A B C
15 00.685 BOLT; UNDER COVER TO TRANS
(A) M10X35 FLANGE 		0-28081-035-0 01 1 9804- ●
15 00.685 BOLT; UNDER COVER TO TRANS
04.525 (B) M10X40 FLANGE 		0-28081-040-0 01 1 9804- ●
15 00.685 BOLT; UNDER COVER TO TRANS
M10X45 FLANGE 		0-28081-045-0 01 1 9804- ●
15 00.685 BOLT; UNDER COVER TO TRANS
04.686 M6X16 W/LK WASHER 		0-50040-616-0 04 1 9806-9806 ●
15 00.685 BOLT; UNDER COVER TO TRANS
04.439 M6X16 FLANGE 		0-28680-616-0 04 1 9807- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28081-035-0 01 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X45 FLANGE 		0-28081-045-0 01 1 9804-9808 ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X45 FLANGE 		0-28081-045-0 01 1 9809- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
00.780 M12X90 FLANGE 		0-28081-290-0 01 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 03 1 9804-9808 ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 03 1 9809- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X60 FLANGE 		0-28081-060-0 02 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M12X40 FLANGE 		0-28081-240-0 01 1 9804- ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 04 1 9806-9808 ●
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M12X40 FLANGE 		0-28081-240-0 02 1 9806-9808 ●
22 00.685 BOLT; TRANS CASE TO ENG
M12X45 FLANGE 		0-28081-245-0 02 1 9809- ●
22 00.685 BOLT; TRANS CASE TO ENG
M12X176 		8-97163-249-0 02 1 9806- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
