2-20 — MANUAL TRANSMISSION ASM AND CASE (#44627) — 480 parça

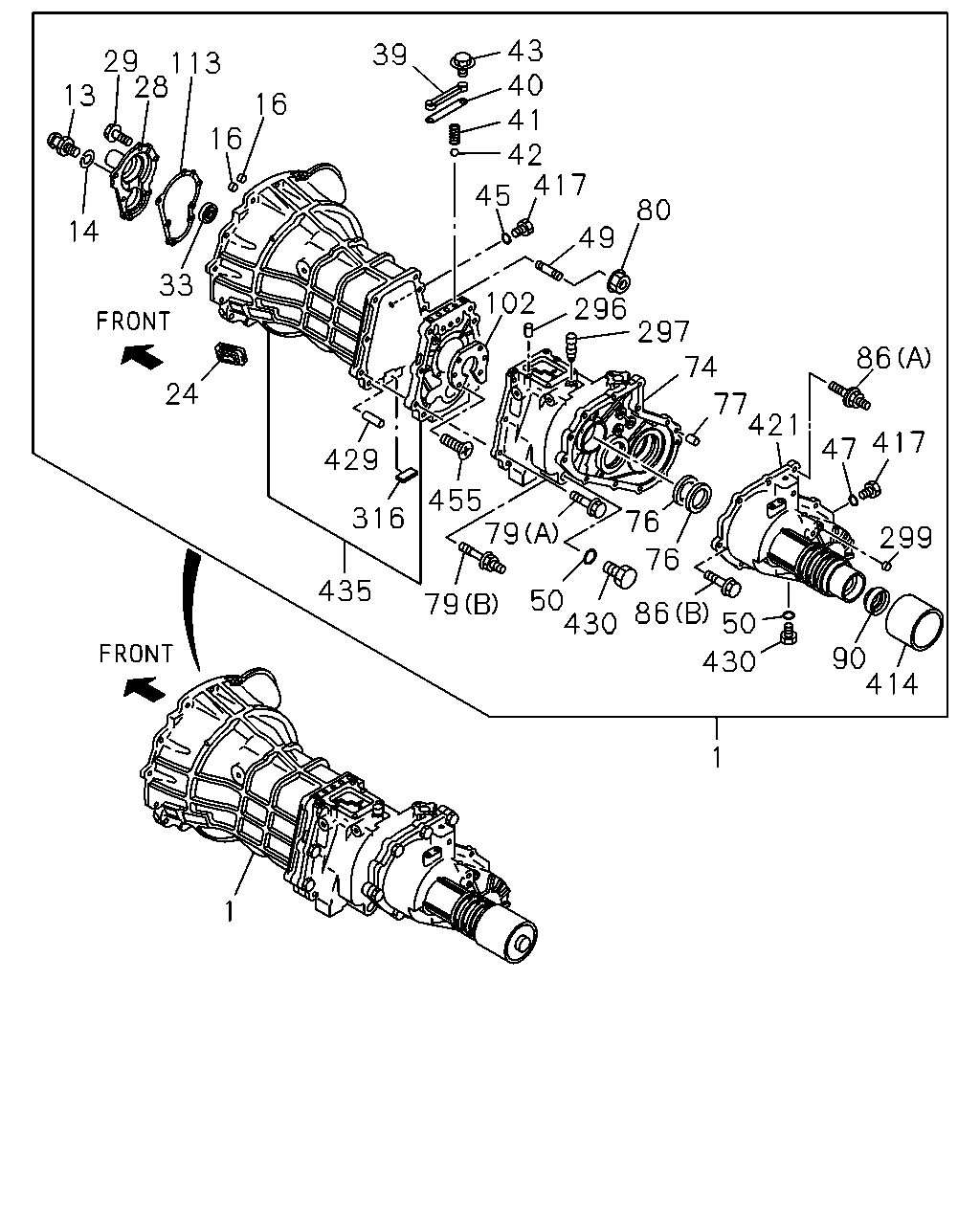

43 40 41 42 417 45 39 29 113 28 13 16 16 33 14 80 49 102 296 297 74 77 421 86 24 47 417 429 299 50 86 430 50 430 76 76 455 79 316 435 79 90 414 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97112-188-0	01	1	9804-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97217-278-0	01	1	9907-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) FRT&RR 205/80R16 6JJX16 MICHELIN STYLED(ASV)	8-97112-238-0	01	1	9804-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97112-238-0	01	1	9907-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) FRT&RR 205SR16 6JJX16 STYLED(AUY)	8-97112-237-0	01	1	9804-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97181-379-0	01	1	9804-9906		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97174-806-0	01	1	9907-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97301-031-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97181-386-0	01	1	9804-0107		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JG2 ENG(RJC)	8-97181-386-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-97301-033-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX)	8-97301-032-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97218-935-0	01	1	0108-		●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	9804-	●	●
14	04.302 WASHER; LK,SUPPORT 04.634 ID=12.2	9-09150-512-0	01	1	9804-		●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	9804-	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	9804-	●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	9804-	●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	9804-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9804-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	9804-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9804-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9804-		●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	9804-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	9804-	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9804-		●
41	04.311 SPRING; DETENT BALL L=25.6	8-94435-336-0	03	1	9804-	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9804-		●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9804-	●	●
43	04.311 BOLT; PLATE TO PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	9804-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9804-	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	9804-9805	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	9806-	●	●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 04.317 M10X64 L=84	8-94176-859-1	02	1	9804-	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X51.5 L=72	8-97036-714-1	01	1	9804-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9804-9805	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9804-9805		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9806-9906	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9806-9906		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9907-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9907-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	9907-			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	02	1	9804-		●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-94322-521-1	01	1	9804-	●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-97149-125-1	01	1	9804-		●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-97164-349-0	01	1	9806-			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-700-0	01	1	0108-			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-701-2	01	1	0108-			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.318	8-94340-317-0	01	1	9804-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-700-0	02	1	9804-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-701-2	02	1	9804-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-700-0	01	1	9806-			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-701-2	01	1	9806-			●
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) 04.502 D=10 L=20	5-09740-014-0	02	1	9804-	●
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) 4JG2 ENG(RJC),4JA1 ENG(RLE) OD=10 L=20	8-97135-423-0	02	1	9804-9805		●
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) OD=10 L=20	8-97135-423-0	02	1	9806-		●	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 00.685 M10X35 FLANGE	0-28081-035-0	06	1	9804-	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 04.317 (A) M10X55 FLANGE	8-94473-959-1	06	1	9804-		●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) (B) M10X18 M10X55 L=83	8-97036-715-0	01	1	9804-		●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 00.002 M10	9-09110-510-0	02	1	9804-	●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 04.785 M10 FLANGE	0-91150-110-0	01	1	9804-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) M10X55 FLANGE	8-94473-959-1	08	1	9804-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A) M10X55 FLANGE	8-94473-959-1	06	1	9804-9805		●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A) M10X55 FLANGE	8-94473-959-1	07	1	9806-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) 04.510 (B) M10X18,55 FLANGE M10X18 M10X55 L=83	8-97036-715-0	01	1	9804-		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JG2 ENG(RJC),4JA1 ENG(RLE) (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9804-9805		●
86	04.317 BOLT; RR COVER 4X4(TFS***) (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9806-		●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JG2 ENG(RJC),4JA1 ENG(RLE) (B) M10X35 FLANGE	8-94448-818-1	09	1	9804-9805		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 00.685 (B) M10X35 FLANGE	0-28081-035-0	09	1	9806-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) NOK	8-94422-387-0	01	1	9804-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-704-0	01	1	9804-0010		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-2	01	1	9804-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-706-0	01	1	9806-0010			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-707-2	01	1	9806-			●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	9804-		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	9804-	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9804-		●
296	04.510 PIN; QUAD BOX TO CASE 4X4(TFS***) OD=6 L=12	9-08150-612-0	02	1	9804-		●
297	04.104 BREATHER; AIR,TRANSFER CASE 4X4(TFS***)	8-97172-677-1	01	1	9804-		●
297	04.104 BREATHER; AIR,TRANSFER CASE 4X4(TFS***)	8-97173-541-1	01	1	9806-			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.309 OD=14	5-09609-004-0	03	1	9804-9805		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 04.309 OD=14	5-09609-004-0	03	1	9806-		●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	9804-		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-94310-493-0	01	1	9804-	●
414	04.317 COVER; DUST,RR COVER	8-94310-493-0	01	1	9804-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 08.971	8-94310-917-0	01	1	9804-9805	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	9804-9805		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	01	1	9804-9805		●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 08.971	8-94310-917-0	01	1	9806-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	01	1	9806-		●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	9806-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 04.103	8-94451-478-0	01	1	9804-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97219-929-0	01	1	0108-0308			●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97369-829-0	01	1	0309-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97112-207-3	01	1	9804-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	9804-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97039-529-3	01	1	9804-9812		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97217-334-0	01	1	9901-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97126-772-1	01	1	9806-9809			●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97069-364-5	01	1	9810-9812			●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97219-929-0	01	1	9901-			●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9804-	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9804-9805	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9804-9805		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9806-9906	●		●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9806-9906		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9907-	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9907-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	01	1	9907-			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	02	1	9804-		●
435	04.103 CASE; TRANS	8-97170-229-0	01	1	9804-9901	●
435	04.103 CASE; TRANS	8-97211-483-0	01	1	9902-9902	●
435	04.103 CASE; TRANS	8-97211-484-0	01	1	9903-0210	●
435	04.103 CASE; TRANS	8-97330-878-0	01	1	0211-	●
435	04.103 CASE; TRANS	8-97087-054-0	01	1	9804-0002		●
435	04.103 CASE; TRANS	8-97252-840-1	01	1	0003-0107		●
435	04.103 CASE; TRANS 4JG2 ENG(RJC)	8-97252-840-1	01	1	0108-		●
435	04.103 CASE; TRANS 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97252-840-1	01	1	0108-		●
435	04.103 CASE; TRANS 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97301-098-0	01	1	0108-		●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	9804-		●

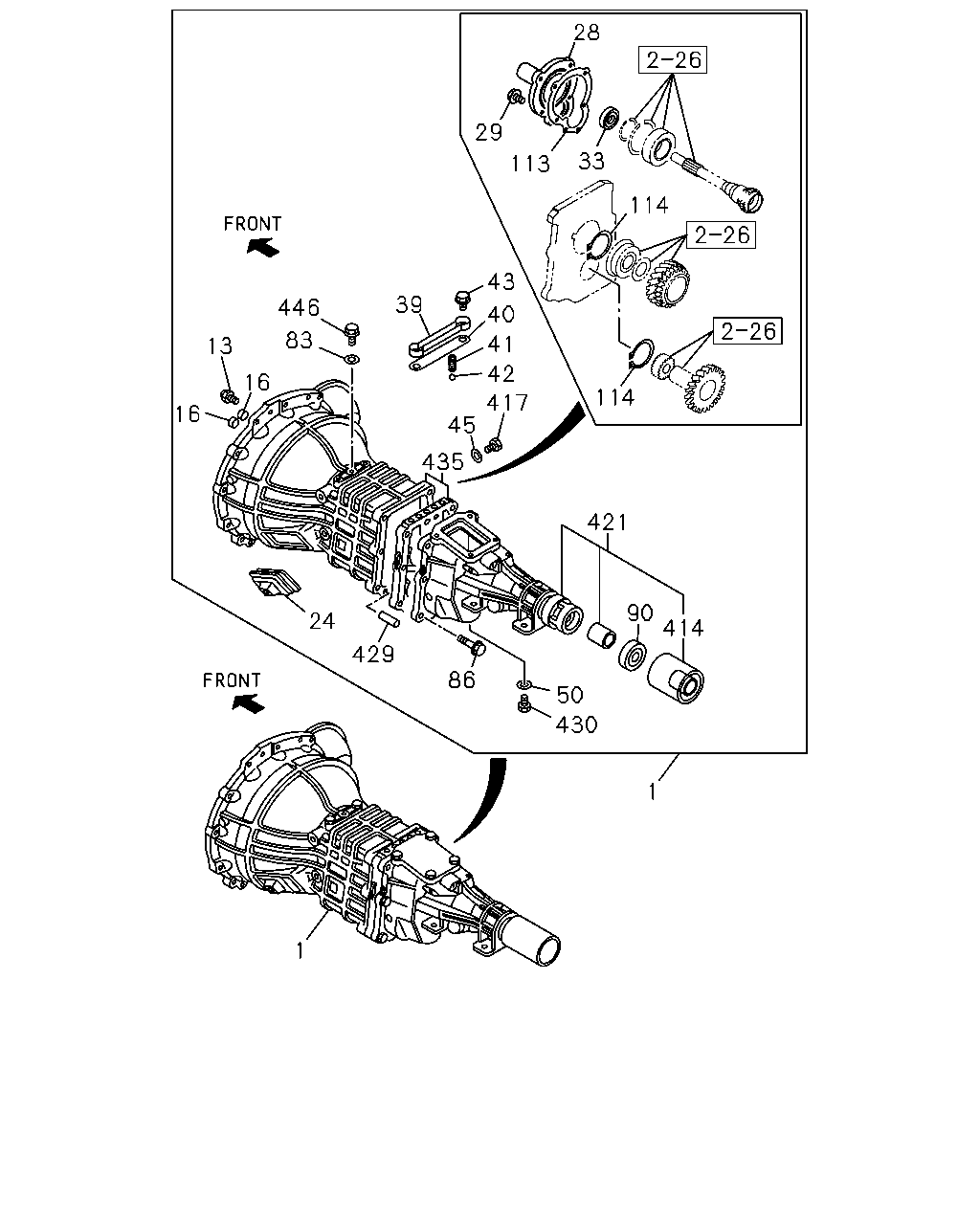

28 113 29 33 114 43 40 41 42 417 45 39 446 13 83 16 16 114 156 435 47 61 48 56 66 74 77 24 49 429 78 76 75 57 58 59 60 81 80 50 430 79 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97112-188-0	01	1	9804-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97217-278-0	01	1	9907-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) FRT&RR 205/80R16 6JJX16 MICHELIN STYLED(ASV)	8-97112-238-0	01	1	9804-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97112-238-0	01	1	9907-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) FRT&RR 205SR16 6JJX16 STYLED(AUY)	8-97112-237-0	01	1	9804-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97181-379-0	01	1	9804-9906		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97174-806-0	01	1	9907-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97301-031-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97181-386-0	01	1	9804-0107		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JG2 ENG(RJC)	8-97181-386-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-97301-033-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX)	8-97301-032-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97218-935-0	01	1	0108-		●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	9804-	●	●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	9804-	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	9804-	●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	9804-	●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	9804-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9804-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	9804-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9804-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9804-		●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	9804-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	9804-	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9804-		●
41	04.311 SPRING; DETENT BALL L=25.6	8-94435-336-0	03	1	9804-	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9804-		●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9804-	●	●
43	04.311 BOLT; PLATE TO PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	9804-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9804-	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	9804-9805	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	9806-	●	●	●
48	04.510 PLUG; OIL FILLER,TRANSFER CASE 4X4(TFS***) 08.971	8-94310-917-0	01	1	9804-	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 04.317 M10X64 L=84	8-94176-859-1	02	1	9804-	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X51.5 L=72	8-97036-714-1	01	1	9804-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9804-9805	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9804-9805		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9806-9906	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9806-9906		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9907-	●

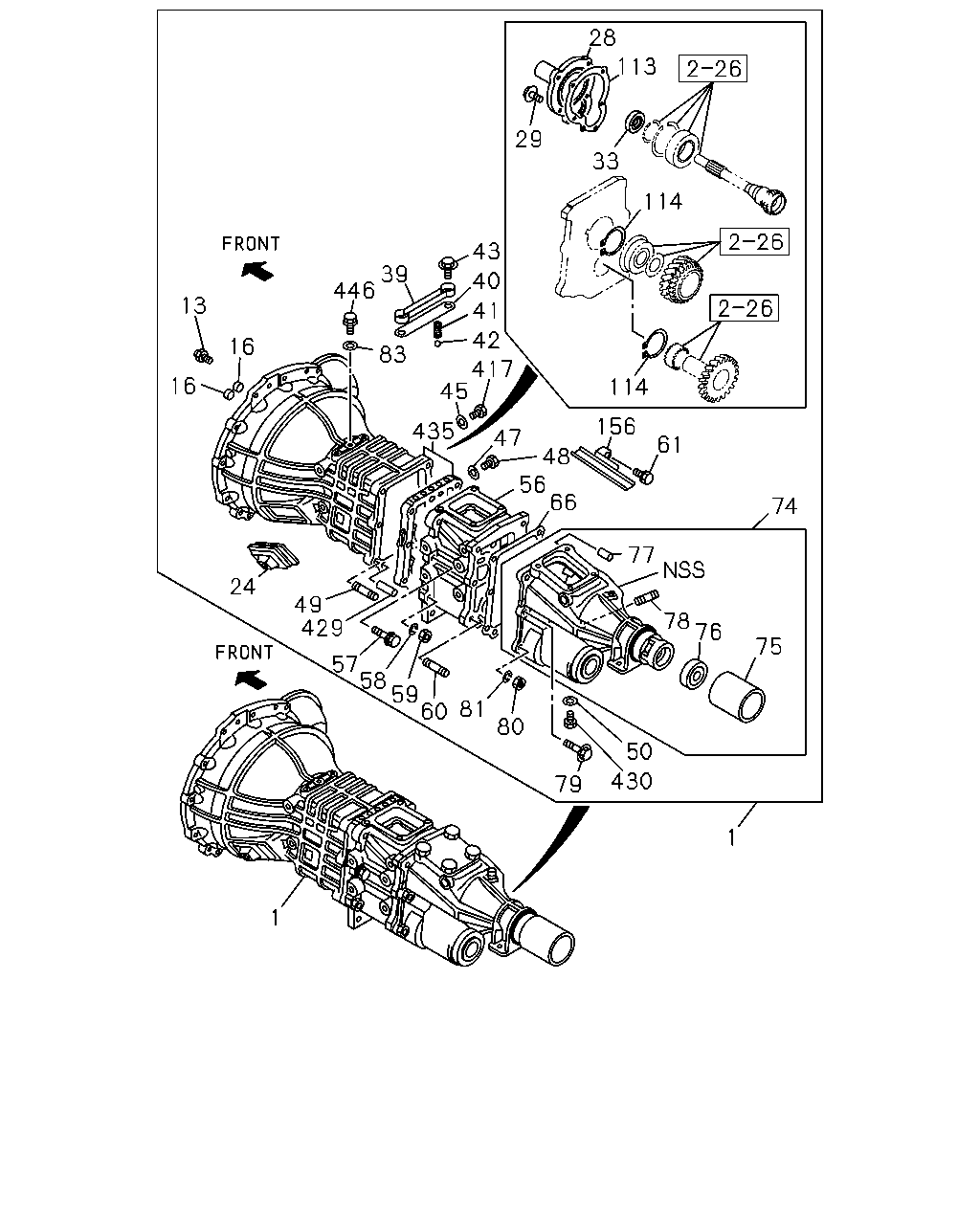

50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9907-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	9907-			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	02	1	9804-		●
56	04.510 CASE; ADAPTER,TRANSFER 4X4(TFS***)	8-94435-168-2	01	1	9804-	●
57	04.510 BOLT; ADAPTER CASE 4X4(TFS***) 04.317 M10X55 FLANGE	8-94473-959-1	06	1	9804-	●
58	04.510 WASHER; LK,ADAPTER CASE 4X4(TFS***) 00.002 ID=10.2	9-09150-510-0	02	1	9804-	●
59	04.510 NUT; ADAPTER CASE 4X4(TFS***) 00.002 M10	9-09110-510-0	02	1	9804-	●
60	04.510 STUD; ADAPTER,TRANSFER CASE 4X4(TFS***) 04.104 M10X50	8-94161-987-0	02	1	9804-	●
61	04.510 BOLT; OIL GUIDE,ADAPTER CASE 4X4(TFS***) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-	●
66	04.510 GASKET; ADAPTER,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.318	8-94482-496-0	01	1	9804-	●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-94322-521-1	01	1	9804-	●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-97149-125-1	01	1	9804-		●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-97164-349-0	01	1	9806-			●
75	04.510 COVER; DUST,PROP SHAFT YOKE 4X4(TFS***) 04.317	8-94310-493-0	01	1	9804-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-700-0	01	1	0108-			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-701-2	01	1	0108-			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.318	8-94340-317-0	01	1	9804-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-700-0	02	1	9804-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-701-2	02	1	9804-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-700-0	01	1	9806-			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-701-2	01	1	9806-			●
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) 04.502 D=10 L=20	5-09740-014-0	02	1	9804-	●
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) 4JG2 ENG(RJC),4JA1 ENG(RLE) OD=10 L=20	8-97135-423-0	02	1	9804-9805		●
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) OD=10 L=20	8-97135-423-0	02	1	9806-		●	●
78	04.510 STUD; TRANSFER CASE 4X4(TFS***) 04.502 M10X30 L=45	9-04411-030-0	01	1	9804-	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 00.685 M10X35 FLANGE	0-28081-035-0	06	1	9804-	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 04.317 (A) M10X55 FLANGE	8-94473-959-1	06	1	9804-		●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) (B) M10X18 M10X55 L=83	8-97036-715-0	01	1	9804-		●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 00.002 M10	9-09110-510-0	02	1	9804-	●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 04.785 M10 FLANGE	0-91150-110-0	01	1	9804-		●
81	04.510 WASHER; LK,TRANSFER CASE 4X4(TFS***) 00.002 ID=10.2	9-09150-510-0	02	1	9804-	●
83	04.105 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9804-9902	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	9804-	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9804-		●
114	04.105 RING; SNAP,BALL BRG 04.422 ID=49.6	5-09589-004-0	01	1	9804-	●
114	04.105 RING; SNAP,BALL BRG 04.412 ID=71.7	5-09589-005-0	01	1	9804-	●
156	04.510 GUIDE; OIL,TRANSFER CASE 4X4(TFS***)	8-94161-124-1	01	1	9804-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 08.971	8-94310-917-0	01	1	9804-9805	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	9804-9805		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	01	1	9804-9805		●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 08.971	8-94310-917-0	01	1	9806-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	01	1	9806-		●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	9806-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 04.103	8-94451-478-0	01	1	9804-	●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9804-	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9804-9805	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9804-9805		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9806-9906	●		●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9806-9906		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9907-	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9907-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	01	1	9907-			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	02	1	9804-		●
435	04.103 CASE; TRANS	8-97170-229-0	01	1	9804-9901	●
435	04.103 CASE; TRANS	8-97211-483-0	01	1	9902-9902	●
435	04.103 CASE; TRANS	8-97211-484-0	01	1	9903-0210	●
435	04.103 CASE; TRANS	8-97330-878-0	01	1	0211-	●
435	04.103 CASE; TRANS	8-97087-054-0	01	1	9804-0002		●
435	04.103 CASE; TRANS	8-97252-840-1	01	1	0003-0107		●
435	04.103 CASE; TRANS 4JG2 ENG(RJC)	8-97252-840-1	01	1	0108-		●
435	04.103 CASE; TRANS 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97252-840-1	01	1	0108-		●
435	04.103 CASE; TRANS 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97301-098-0	01	1	0108-		●
446	04.105 PLUG; CASE,TRANS 04.104 M14X11	8-94252-142-0	01	1	9804-9902	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	6	04.083 NUT; CASE,TRANS 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-	●

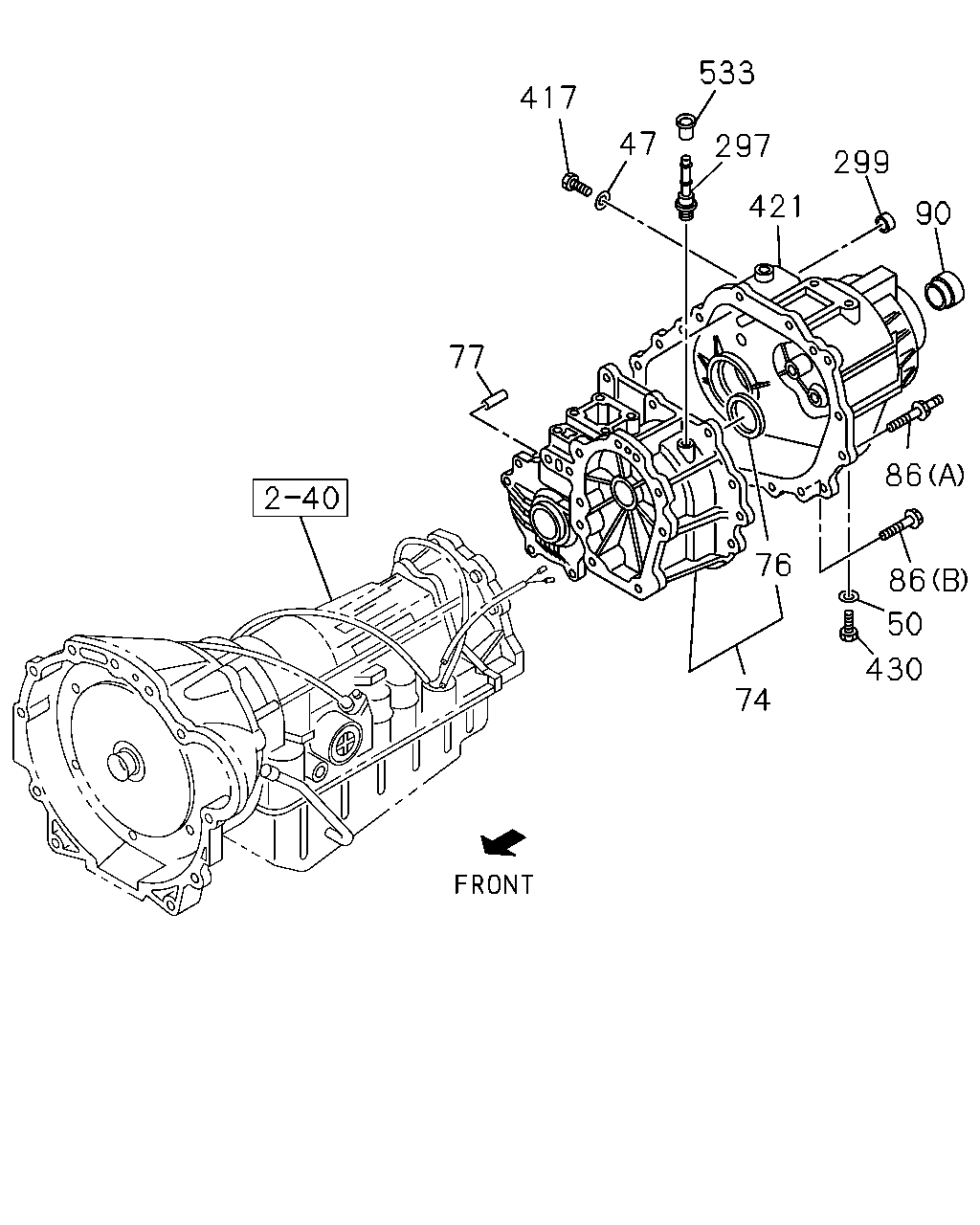

533 417 47 297 299 421 90 76 77 86 86 50 430 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	9804-9805	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	9806-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9804-9805	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9804-9805		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9806-9906	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9806-9906		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9907-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9907-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	9907-			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	02	1	9804-		●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-94322-521-1	01	1	9804-	●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-97149-125-1	01	1	9804-		●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-97164-349-0	01	1	9806-			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-700-0	01	1	0108-			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-701-2	01	1	0108-			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.318	8-94340-317-0	01	1	9804-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-700-0	02	1	9804-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-701-2	02	1	9804-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-700-0	01	1	9806-			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-701-2	01	1	9806-			●
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) 04.502 D=10 L=20	5-09740-014-0	02	1	9804-	●
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) 4JG2 ENG(RJC),4JA1 ENG(RLE) OD=10 L=20	8-97135-423-0	02	1	9804-9805		●
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) OD=10 L=20	8-97135-423-0	02	1	9806-		●	●
86	04.317 BOLT; RR COVER 4X2(TFB***) M10X55 FLANGE	8-94473-959-1	08	1	9804-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A) M10X55 FLANGE	8-94473-959-1	06	1	9804-9805		●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A) M10X55 FLANGE	8-94473-959-1	07	1	9806-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) 04.510 (B) M10X18,55 FLANGE M10X18 M10X55 L=83	8-97036-715-0	01	1	9804-		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JG2 ENG(RJC),4JA1 ENG(RLE) (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9804-9805		●
86	04.317 BOLT; RR COVER 4X4(TFS***) (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9806-		●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JG2 ENG(RJC),4JA1 ENG(RLE) (B) M10X35 FLANGE	8-94448-818-1	09	1	9804-9805		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 00.685 (B) M10X35 FLANGE	0-28081-035-0	09	1	9806-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) NOK	8-94422-387-0	01	1	9804-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-704-0	01	1	9804-0010		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-2	01	1	9804-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-706-0	01	1	9806-0010			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-707-2	01	1	9806-			●
297	04.104 BREATHER; AIR,TRANSFER CASE 4X4(TFS***)	8-97172-677-1	01	1	9804-		●
297	04.104 BREATHER; AIR,TRANSFER CASE 4X4(TFS***)	8-97173-541-1	01	1	9806-			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.309 OD=14	5-09609-004-0	03	1	9804-9805		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 04.309 OD=14	5-09609-004-0	03	1	9806-		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 08.971	8-94310-917-0	01	1	9804-9805	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	9804-9805		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	01	1	9804-9805		●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 08.971	8-94310-917-0	01	1	9806-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	01	1	9806-		●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	9806-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 04.103	8-94451-478-0	01	1	9804-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97219-929-0	01	1	0108-0308			●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97369-829-0	01	1	0309-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97112-207-3	01	1	9804-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	9804-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97039-529-3	01	1	9804-9812		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97217-334-0	01	1	9901-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97126-772-1	01	1	9806-9809			●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97069-364-5	01	1	9810-9812			●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97219-929-0	01	1	9901-			●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9804-9805	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9804-9805		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9806-9906	●		●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9806-9906		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9907-	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9907-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	01	1	9907-			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	02	1	9804-		●
533	04.104 CAP; AIR BREATHER 4X4(TFS***)	8-94362-237-0	01	1	9806-			●

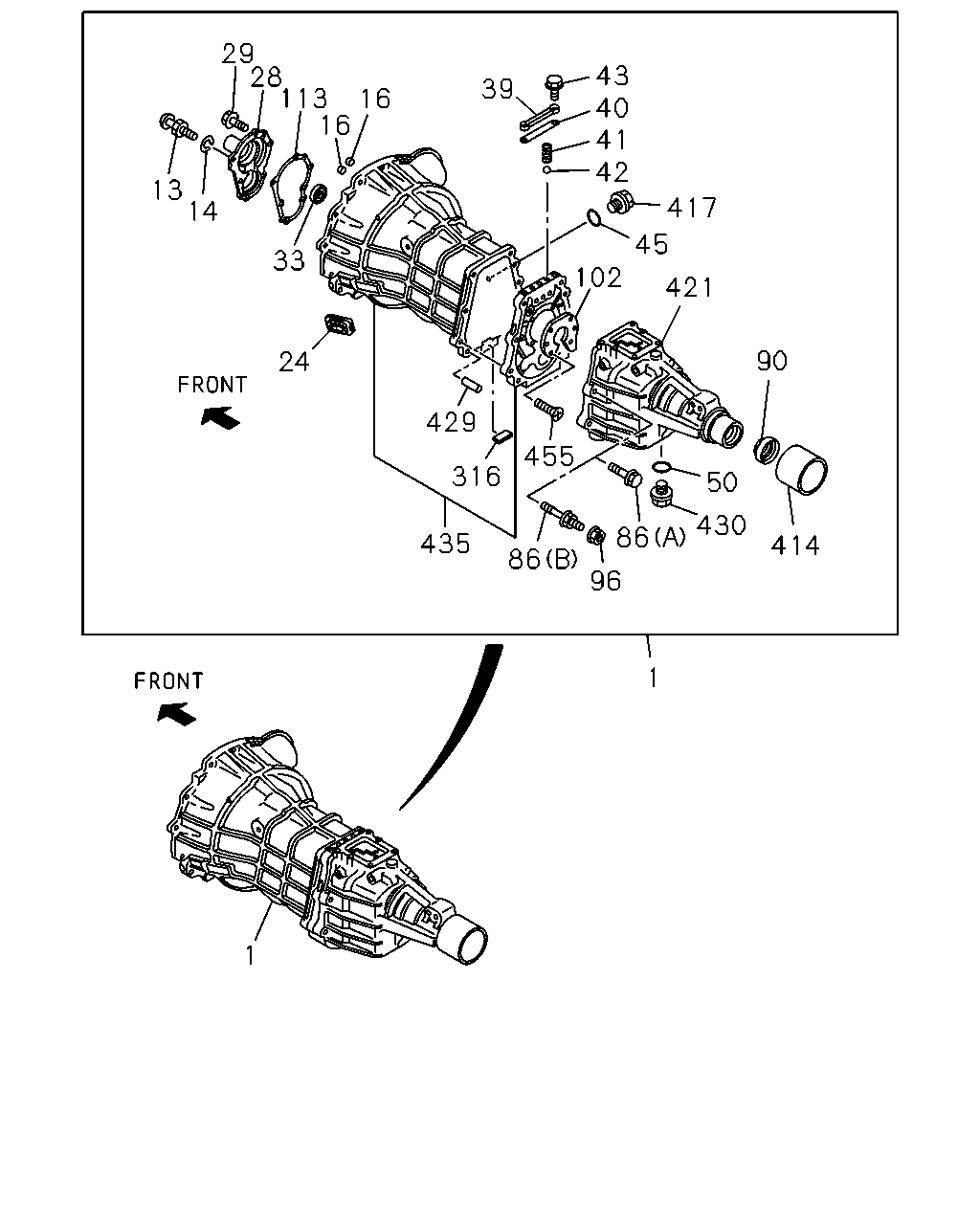

28 33 29 113 114 43 40 41 42 417 45 39 446 83 13 114 16 16 435 421 90 414 24 429 86 50 430 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97112-188-0	01	1	9804-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97217-278-0	01	1	9907-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) FRT&RR 205/80R16 6JJX16 MICHELIN STYLED(ASV)	8-97112-238-0	01	1	9804-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97112-238-0	01	1	9907-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) FRT&RR 205SR16 6JJX16 STYLED(AUY)	8-97112-237-0	01	1	9804-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97181-379-0	01	1	9804-9906		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97174-806-0	01	1	9907-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97301-031-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97181-386-0	01	1	9804-0107		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JG2 ENG(RJC)	8-97181-386-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-97301-033-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX)	8-97301-032-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97218-935-0	01	1	0108-		●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	9804-	●	●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	9804-	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	9804-	●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	9804-	●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	9804-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9804-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	9804-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9804-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9804-		●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	9804-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	9804-	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9804-		●
41	04.311 SPRING; DETENT BALL L=25.6	8-94435-336-0	03	1	9804-	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9804-		●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9804-	●	●
43	04.311 BOLT; PLATE TO PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	9804-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9804-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9804-9805	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9804-9805		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9806-9906	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9806-9906		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9907-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9907-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	9907-			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	02	1	9804-		●
83	04.105 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9804-9902	●
86	04.317 BOLT; RR COVER 4X2(TFB***) M10X55 FLANGE	8-94473-959-1	08	1	9804-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A) M10X55 FLANGE	8-94473-959-1	06	1	9804-9805		●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A) M10X55 FLANGE	8-94473-959-1	07	1	9806-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) 04.510 (B) M10X18,55 FLANGE M10X18 M10X55 L=83	8-97036-715-0	01	1	9804-		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JG2 ENG(RJC),4JA1 ENG(RLE) (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9804-9805		●
86	04.317 BOLT; RR COVER 4X4(TFS***) (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9806-		●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JG2 ENG(RJC),4JA1 ENG(RLE) (B) M10X35 FLANGE	8-94448-818-1	09	1	9804-9805		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 00.685 (B) M10X35 FLANGE	0-28081-035-0	09	1	9806-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) NOK	8-94422-387-0	01	1	9804-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-704-0	01	1	9804-0010		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-2	01	1	9804-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-706-0	01	1	9806-0010			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-707-2	01	1	9806-			●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	9804-	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9804-		●
114	04.105 RING; SNAP,BALL BRG 04.422 ID=49.6	5-09589-004-0	01	1	9804-	●
114	04.105 RING; SNAP,BALL BRG 04.412 ID=71.7	5-09589-005-0	01	1	9804-	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-94310-493-0	01	1	9804-	●
414	04.317 COVER; DUST,RR COVER	8-94310-493-0	01	1	9804-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 08.971	8-94310-917-0	01	1	9804-9805	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	9804-9805		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	01	1	9804-9805		●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 08.971	8-94310-917-0	01	1	9806-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	01	1	9806-		●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	9806-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 04.103	8-94451-478-0	01	1	9804-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97219-929-0	01	1	0108-0308			●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97369-829-0	01	1	0309-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97112-207-3	01	1	9804-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	9804-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97039-529-3	01	1	9804-9812		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97217-334-0	01	1	9901-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97126-772-1	01	1	9806-9809			●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97069-364-5	01	1	9810-9812			●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97219-929-0	01	1	9901-			●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9804-	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9804-9805	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9804-9805		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9806-9906	●		●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9806-9906		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9907-	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9907-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	01	1	9907-			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	02	1	9804-		●
435	04.103 CASE; TRANS	8-97170-229-0	01	1	9804-9901	●
435	04.103 CASE; TRANS	8-97211-483-0	01	1	9902-9902	●
435	04.103 CASE; TRANS	8-97211-484-0	01	1	9903-0210	●
435	04.103 CASE; TRANS	8-97330-878-0	01	1	0211-	●
435	04.103 CASE; TRANS	8-97087-054-0	01	1	9804-0002		●
435	04.103 CASE; TRANS	8-97252-840-1	01	1	0003-0107		●
435	04.103 CASE; TRANS 4JG2 ENG(RJC)	8-97252-840-1	01	1	0108-		●
435	04.103 CASE; TRANS 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97252-840-1	01	1	0108-		●
435	04.103 CASE; TRANS 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97301-098-0	01	1	0108-		●
446	04.105 PLUG; CASE,TRANS 04.104 M14X11	8-94252-142-0	01	1	9804-9902	●

29 28 113 16 16 43 40 41 42 39 417 45 33 102 13 14 421 24 90 429 455 316 50 430 86 86 96 435 414 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97112-188-0	01	1	9804-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97217-278-0	01	1	9907-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) FRT&RR 205/80R16 6JJX16 MICHELIN STYLED(ASV)	8-97112-238-0	01	1	9804-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97112-238-0	01	1	9907-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) FRT&RR 205SR16 6JJX16 STYLED(AUY)	8-97112-237-0	01	1	9804-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97181-379-0	01	1	9804-9906		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97174-806-0	01	1	9907-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97301-031-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97181-386-0	01	1	9804-0107		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JG2 ENG(RJC)	8-97181-386-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-97301-033-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX)	8-97301-032-0	01	1	0108-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97218-935-0	01	1	0108-		●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	9804-	●	●
14	04.302 WASHER; LK,SUPPORT 04.634 ID=12.2	9-09150-512-0	01	1	9804-		●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	9804-	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	9804-	●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	9804-	●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	9804-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9804-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	9804-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9804-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9804-		●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	9804-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	9804-	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9804-		●
41	04.311 SPRING; DETENT BALL L=25.6	8-94435-336-0	03	1	9804-	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9804-		●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9804-	●	●
43	04.311 BOLT; PLATE TO PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	9804-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9804-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9804-9805	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9804-9805		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9806-9906	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9806-9906		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9907-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9907-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	9907-			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	02	1	9804-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) M10X55 FLANGE	8-94473-959-1	08	1	9804-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A) M10X55 FLANGE	8-94473-959-1	06	1	9804-9805		●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A) M10X55 FLANGE	8-94473-959-1	07	1	9806-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) 04.510 (B) M10X18,55 FLANGE M10X18 M10X55 L=83	8-97036-715-0	01	1	9804-		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JG2 ENG(RJC),4JA1 ENG(RLE) (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9804-9805		●
86	04.317 BOLT; RR COVER 4X4(TFS***) (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9806-		●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JG2 ENG(RJC),4JA1 ENG(RLE) (B) M10X35 FLANGE	8-94448-818-1	09	1	9804-9805		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 00.685 (B) M10X35 FLANGE	0-28081-035-0	09	1	9806-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) NOK	8-94422-387-0	01	1	9804-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-704-0	01	1	9804-0010		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-2	01	1	9804-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-706-0	01	1	9806-0010			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-707-2	01	1	9806-			●
96	04.083 NUT; RR COVER 4X2(TFB***) 08.917 M10 FLANGE	0-91150-210-0	01	1	9804-9805		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	9804-		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	9804-	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9804-		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	9804-		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-94310-493-0	01	1	9804-	●
414	04.317 COVER; DUST,RR COVER	8-94310-493-0	01	1	9804-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 08.971	8-94310-917-0	01	1	9804-9805	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	9804-9805		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	01	1	9804-9805		●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 08.971	8-94310-917-0	01	1	9806-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	01	1	9806-		●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	9806-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 04.103	8-94451-478-0	01	1	9804-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97219-929-0	01	1	0108-0308			●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97369-829-0	01	1	0309-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97112-207-3	01	1	9804-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	9804-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97039-529-3	01	1	9804-9812		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97217-334-0	01	1	9901-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97126-772-1	01	1	9806-9809			●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97069-364-5	01	1	9810-9812			●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97219-929-0	01	1	9901-			●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9804-	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9804-9805	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9804-9805		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9806-9906	●		●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9806-9906		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9907-	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9907-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	01	1	9907-			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	02	1	9804-		●
435	04.103 CASE; TRANS	8-97170-229-0	01	1	9804-9901	●
435	04.103 CASE; TRANS	8-97211-483-0	01	1	9902-9902	●
435	04.103 CASE; TRANS	8-97211-484-0	01	1	9903-0210	●
435	04.103 CASE; TRANS	8-97330-878-0	01	1	0211-	●
435	04.103 CASE; TRANS	8-97087-054-0	01	1	9804-0002		●
435	04.103 CASE; TRANS	8-97252-840-1	01	1	0003-0107		●
435	04.103 CASE; TRANS 4JG2 ENG(RJC)	8-97252-840-1	01	1	0108-		●
435	04.103 CASE; TRANS 4X4(TFS***) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97252-840-1	01	1	0108-		●
435	04.103 CASE; TRANS 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97301-098-0	01	1	0108-		●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	9804-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
