◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#44625) — 27 parça

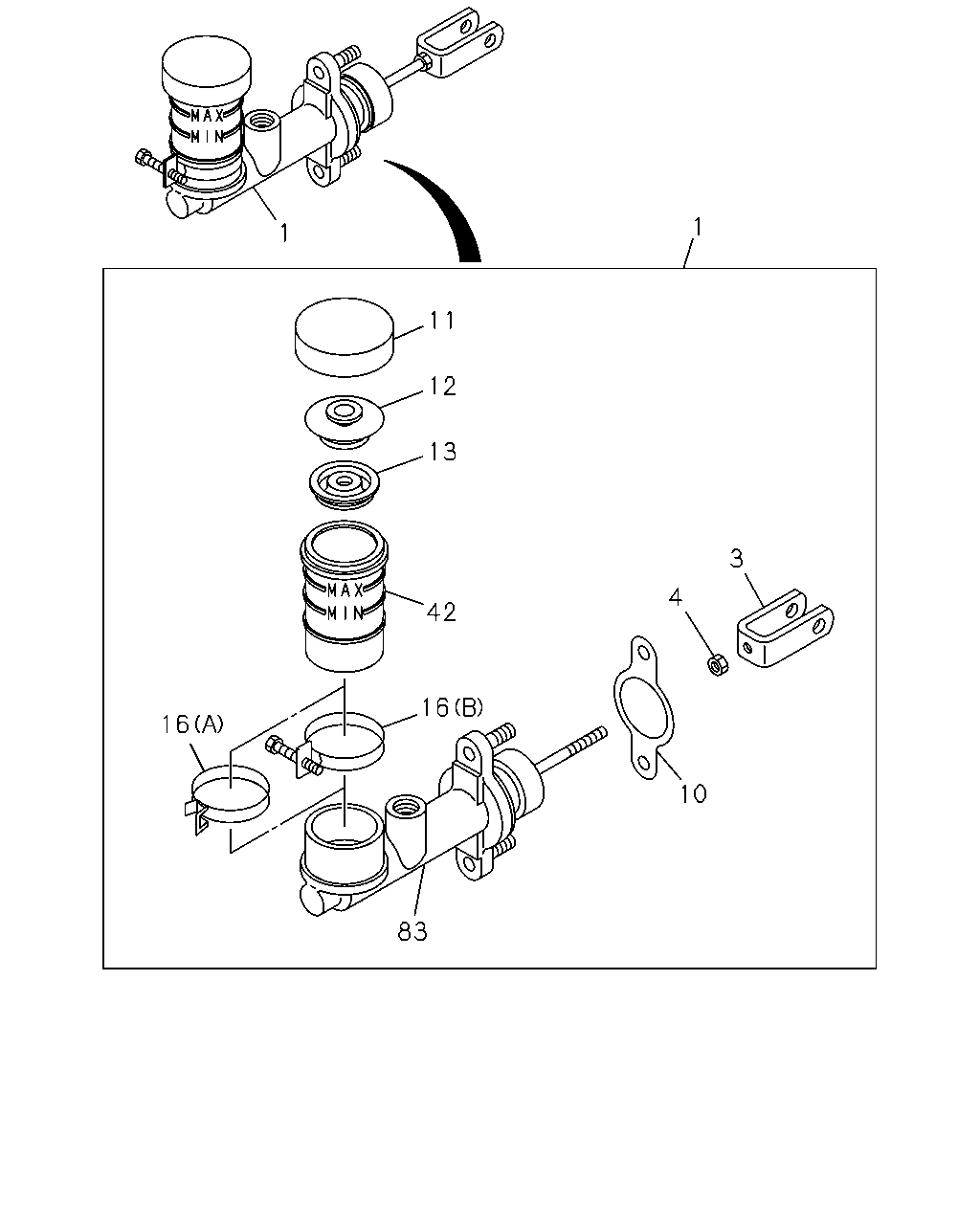

çizim 64655
1 1 11 12 13 3 4 42 16 16 10 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97192-669-1 01 1 9804-9807 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97201-007-0 01 1 9808-0107 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. CHARGE AIR COOLER<6PL> 		8-97201-007-0 01 1 0108- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
CHARGE AIR COOLER<6PL> 		8-97312-266-0 01 1 0108- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN) 		8-97137-261-2 01 1 9804- ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9804- ●
3 00.777 JOINT; JAW,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-201-0 01 1 9804- ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9804- ●
4 00.777 NUT; JAW JOINT
M/T MUA 5 SPEED(RMN) 00.787 M8 		9-09111-408-0 01 1 9804- ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 9804- ●
10 00.777 GASKET; CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-97184-654-0 01 1 9804- ●
11 00.777 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9804- ●
11 00.777 CAP; OUTER,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-207-0 01 1 9804- ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9804- ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-206-0 01 1 9804- ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 9804- ●
13 00.777 GASKET; OIL TANK
M/T MUA 5 SPEED(RMN) 		8-94412-205-0 01 1 9804- ●
16 00.775 CLIP; OIL TANK,CLU M/CYL
(A) 		8-97192-550-0 01 1 9804-9807 ●
16 00.775 CLIP; OIL TANK,CLU M/CYL
M/T MUA 5 SPEED(RMN) (B) 		8-94412-202-0 01 1 9804-9807 ●
16 00.775 CLIP; OIL TANK,CLU M/CYL
(B) 		8-94412-202-0 01 1 9808- ●
16 00.775 CLIP; OIL TANK,CLU M/CYL
M/T MUA 5 SPEED(RMN) (B) 		8-94412-202-0 01 1 9808- ●
42 00.777 TANK; OIL,CLU 8-97037-335-0 01 1 9804- ●
42 00.777 TANK; OIL,CLU
M/T MUA 5 SPEED(RMN) 		8-97037-335-0 01 1 9804- ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER 8-97213-040-0 01 1 9804-0107 ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER
EXC. CHARGE AIR COOLER<6PL> 		8-97213-040-0 01 1 0108- ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER
CHARGE AIR COOLER<6PL> 		8-97312-427-0 01 1 0108- ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN) 		8-97213-039-0 01 1 9804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
