◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#44624) — 18 parça

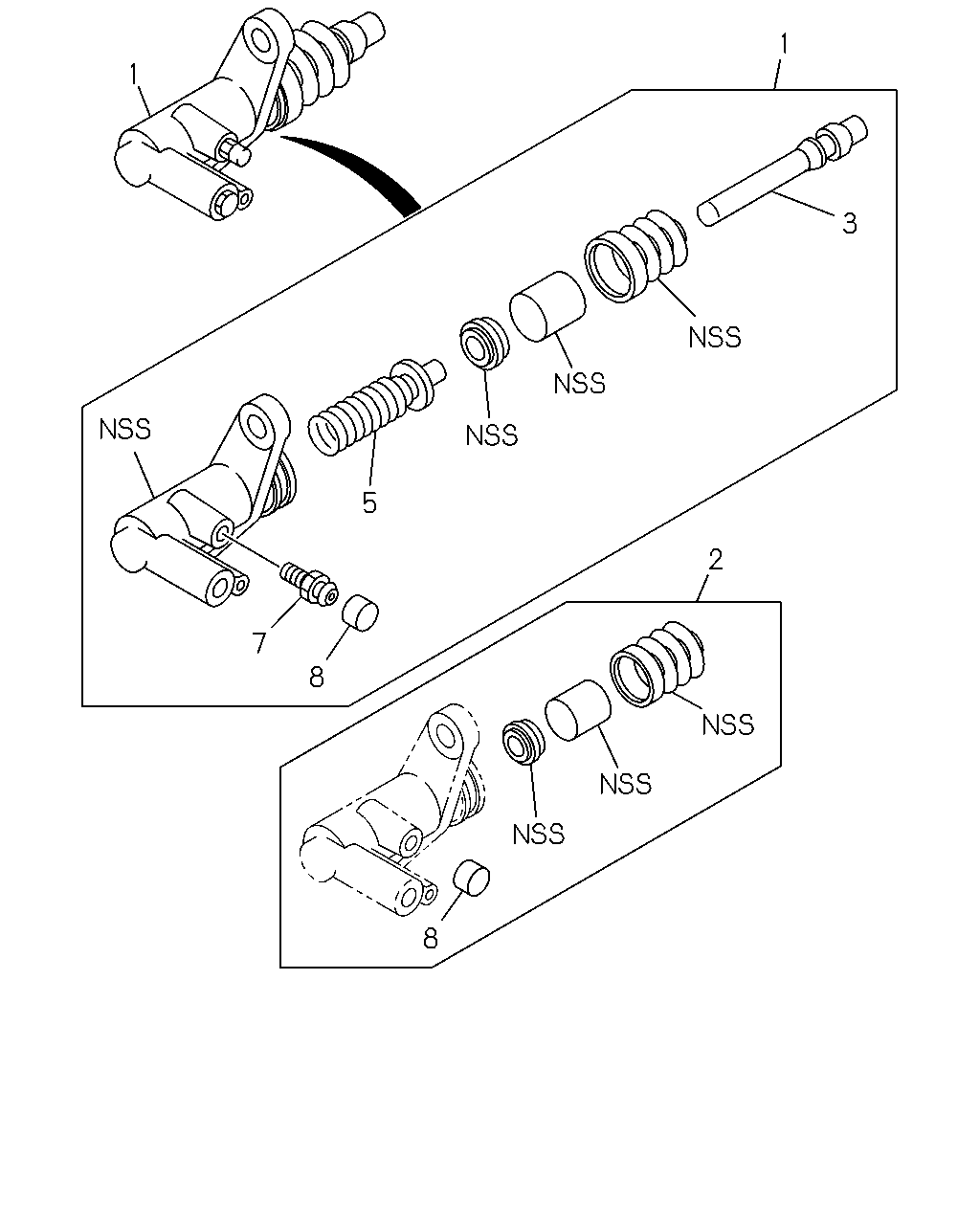

çizim 15741
1 1 3 5 2 7 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.780 CYLINDER; SLAVE,CLU 8-97039-704-0 01 1 9804-0107 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CHARGE AIR COOLER<6PL> 		8-97039-704-0 01 1 0108- ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED(RMN) 		8-94389-195-1 01 1 9804-0107 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 		8-94389-195-1 01 1 0108- ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED(RMN) 		8-94389-195-1 01 1 0108- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
00.030 		5-87831-081-0 01 1 9804-0107 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CHARGE AIR COOLER<6PL> 00.030 		5-87831-081-0 01 1 0108- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN) 		5-87830-813-2 01 1 9804-0107 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 		5-87830-813-2 01 1 0108- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN) 		5-87830-813-2 01 1 0108- ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94136-252-0 01 1 9804- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97016-025-0 01 1 9804-0107 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CHARGE AIR COOLER<6PL> 		8-97016-025-0 01 1 0108- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED(RMN) 		8-97016-024-0 01 1 9804-0107 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 		8-97016-024-0 01 1 0108- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED(RMN) 		8-97016-024-0 01 1 0108- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) M8X16.5 		8-94115-113-0 01 1 9804- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) OD=9.5 		9-47619-005-0 01 1 9804- ● ●
