◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#44623) — 20 parça

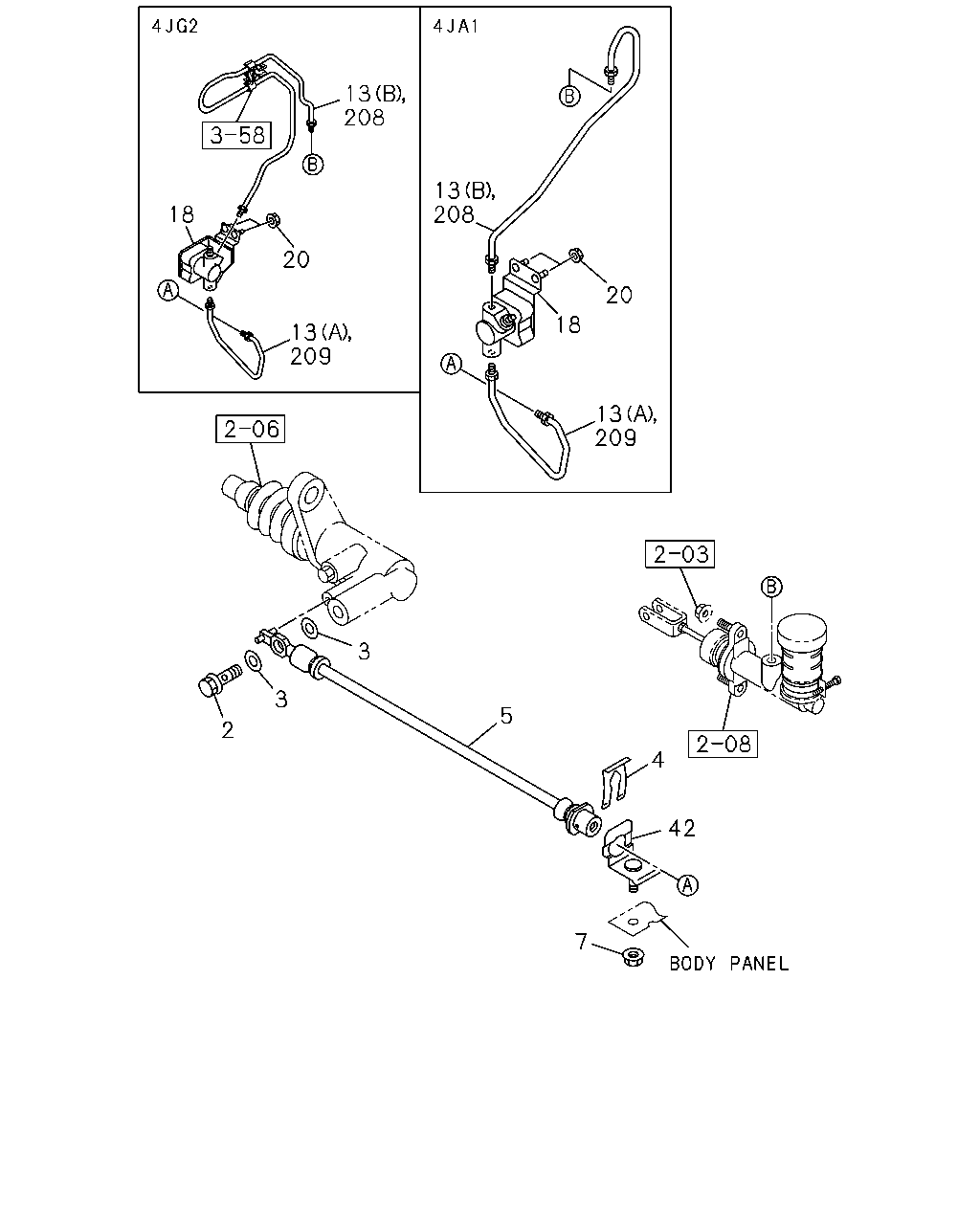

çizim 65213
13 208 13 208 18 20 20 18 13 209 13 209 3 3 5 2 4 42 7
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.782 BOLT; EYE,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.665 M10X22 		5-09675-017-0 01 1 9804- ● ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 9804- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94436-216-0 01 1 9804- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
L=320 		8-97014-916-1 01 1 9804- ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED(RMN) L=290 		8-97066-439-0 01 1 9804- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9804- ● ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
(B) M/CYL-D/CYL 		8-94435-228-4 01 1 9804-9906 ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
(A) D/CYL-F/HOSE 		8-94435-229-3 01 1 9804-9906 ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
(B) M/CYL-D/CYL 		8-97138-883-0 01 1 9804-9807 ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MUA 5 SPEED(RMN) (B) M/CYL-D/CYL 		8-97138-883-0 01 1 9808-9906 ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MUA 5 SPEED(RMN) (A) D/CYL-F/HOSE 		8-97066-883-2 01 1 9804-9906 ●
18 00.830 DAMPER ASM; CLU OIL 8-97130-319-0 01 1 9804- ●
18 00.830 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED(RMN) 		8-97132-841-0 01 1 9804- ●
20 00.837 NUT; CLU OIL DAMPER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9804- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97145-667-1 01 1 9804- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN) 		8-97130-249-1 01 1 9804- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-94435-228-5 01 1 9907- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED(RMN) 		8-97138-883-1 01 1 9907- ●
209 00.785 PIPE; OIL,DAMPER CYL TO FLEX HOS 8-94435-229-4 01 1 9907- ●
209 00.785 PIPE; OIL,DAMPER CYL TO FLEX HOS
M/T MUA 5 SPEED(RMN) 		8-97066-883-3 01 1 9907- ●
