1-57 — EXHAUST THROTTLE BODY (#44620) — 94 parça

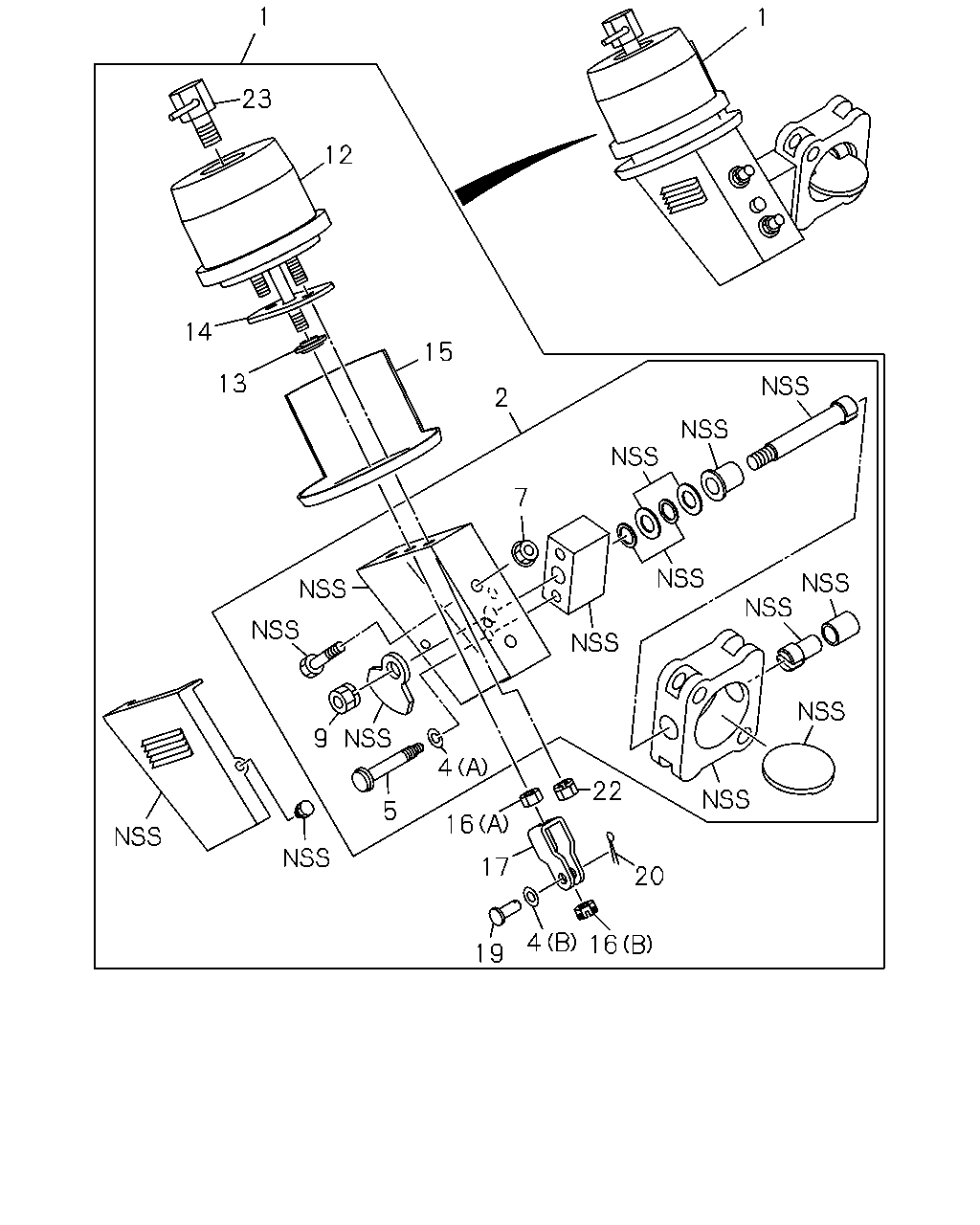

çizim 64671
1 1 23 12 14 15 13 2 7 9 4 22 5 16 17 20 4 16 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.440 BODY ASM; EXH THROTTLE 8-97128-894-0 01 1 9804-9906 ● ●
1 03.440 BODY ASM; EXH THROTTLE 8-97128-894-0 01 1 9907-0107 ●
1 03.440 BODY ASM; EXH THROTTLE
EXC. ISRAEL EQUIPMENT(7LX) 		8-97128-894-0 01 1 9907-0107 ●
1 03.440 BODY ASM; EXH THROTTLE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 		8-97128-894-1 01 1 0108- ●
1 03.440 BODY ASM; EXH THROTTLE
EXC. CHARGE AIR COOLER<6PL> 		8-97128-894-1 01 1 0108- ●
2 03.440 BODY; EXH THROTTLE 8-97131-329-0 01 1 9804-9906 ● ●
2 03.440 BODY; EXH THROTTLE 8-97131-329-0 01 1 9907-0107 ●
2 03.440 BODY; EXH THROTTLE
EXC. ISRAEL EQUIPMENT(7LX) 		8-97131-329-0 01 1 9907-0107 ●
2 03.440 BODY; EXH THROTTLE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 		8-97131-329-0 01 1 0108- ●
2 03.440 BODY; EXH THROTTLE
EXC. CHARGE AIR COOLER<6PL> 		8-97131-329-0 01 1 0108- ●
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
00.002 (A) LK WASHER ID=8.2 		9-09150-508-0 02 1 9804-9906 ● ●
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
00.002 (A) LK WASHER ID=8.2 		9-09150-508-0 02 1 9907-0107 ●
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
EXC. ISRAEL EQUIPMENT(7LX) 00.002 (A) LK WASHER ID=8.2 		9-09150-508-0 02 1 9907-0107 ●
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 00.002 (A) ID=8.2 		9-09150-508-0 02 1 0108- ●
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
EXC. CHARGE AIR COOLER<6PL> 00.002 (A) ID=8.2 		9-09150-508-0 02 1 0108- ●
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
01.276 (B) ID=8.4 OD=18 		9-09164-608-0 01 1 9804-9906 ● ●
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
01.276 (B) ID=8.4 OD=18 		9-09164-608-0 01 1 9907-0107 ●
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
EXC. ISRAEL EQUIPMENT(7LX) 01.276 (B) ID=8.4 OD=18 		9-09164-608-0 01 1 9907-0107 ●
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 01.276 (B) ID=8.4 OD=18 		9-09164-608-0 01 1 0108- ●
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
EXC. CHARGE AIR COOLER<6PL> 01.276 (B) ID=8.4 OD=18 		9-09164-608-0 01 1 0108- ●
5 03.444 BOLT; BRKT TO VLV
04.027 M5X8 		0-20800-508-0 02 1 9804-9906 ● ●
5 03.444 BOLT; BRKT TO VLV
04.027 M5X8 		0-20800-508-0 02 1 9907-0107 ●
5 03.444 BOLT; BRKT TO VLV
EXC. ISRAEL EQUIPMENT(7LX) 04.027 M5X8 		0-20800-508-0 02 1 9907-0107 ●
5 03.444 BOLT; BRKT TO VLV
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 04.027 M5X8 		0-20800-508-0 02 1 0108- ●
5 03.444 BOLT; BRKT TO VLV
EXC. CHARGE AIR COOLER<6PL> 04.027 M5X8 		0-20800-508-0 02 1 0108- ●
7 03.444 NUT; LOCK,BOLT
07.633 M8 FLANGE 		0-91150-108-0 02 1 9804-9906 ● ●
7 03.444 NUT; LOCK,BOLT
07.633 M8 FLANGE 		0-91150-108-0 02 1 9907-0107 ●
7 03.444 NUT; LOCK,BOLT
EXC. ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9907-0107 ●
7 03.444 NUT; LOCK,BOLT
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ●
7 03.444 NUT; LOCK,BOLT
EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ●
9 03.440 NUT; LEVER,EXH THROTTLE BODY
00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 9804-9906 ● ●
9 03.440 NUT; LEVER,EXH THROTTLE BODY
00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 9907-0107 ●
9 03.440 NUT; LEVER,EXH THROTTLE BODY
EXC. ISRAEL EQUIPMENT(7LX) 00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 9907-0107 ●
9 03.440 NUT; LEVER,EXH THROTTLE BODY
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 0108-0201 ●
9 03.440 NUT; LEVER,EXH THROTTLE BODY
EXC. CHARGE AIR COOLER<6PL> 00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 0108-0201 ●
9 03.440 NUT; LEVER,EXH THROTTLE BODY
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0202- ●
9 03.440 NUT; LEVER,EXH THROTTLE BODY
EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0202- ●
12 03.440 CHAMBER; POWER,EXH THROTTLE BODY
03.634 		8-97039-374-0 01 1 9804-9906 ● ●
12 03.440 CHAMBER; POWER,EXH THROTTLE BODY
03.634 		8-97039-374-0 01 1 9907-0107 ●
12 03.440 CHAMBER; POWER,EXH THROTTLE BODY
EXC. ISRAEL EQUIPMENT(7LX) 03.634 		8-97039-374-0 01 1 9907-0107 ●
12 03.440 CHAMBER; POWER,EXH THROTTLE BODY
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.634 		8-97039-374-0 01 1 0108- ●
12 03.440 CHAMBER; POWER,EXH THROTTLE BODY
EXC. CHARGE AIR COOLER<6PL> 03.634 		8-97039-374-0 01 1 0108- ●
13 03.440 BEARING; POWER CHAMBER
03.634 		8-94383-629-0 01 1 9804-9906 ● ●
13 03.440 BEARING; POWER CHAMBER
03.634 		8-94383-629-0 01 1 9907-0107 ●
13 03.440 BEARING; POWER CHAMBER
EXC. ISRAEL EQUIPMENT(7LX) 03.634 		8-94383-629-0 01 1 9907-0107 ●
13 03.440 BEARING; POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.634 		8-94383-629-0 01 1 0108- ●
13 03.440 BEARING; POWER CHAMBER
EXC. CHARGE AIR COOLER<6PL> 03.634 		8-94383-629-0 01 1 0108- ●
14 03.440 GASKET; POWER CHAMBER
03.634 		8-94328-234-0 01 1 9804-9906 ● ●
14 03.440 GASKET; POWER CHAMBER
03.634 		8-94328-234-0 01 1 9907-0107 ●
14 03.440 GASKET; POWER CHAMBER
EXC. ISRAEL EQUIPMENT(7LX) 03.634 		8-94328-234-0 01 1 9907-0107 ●
14 03.440 GASKET; POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.634 		8-94328-234-0 01 1 0108- ●
14 03.440 GASKET; POWER CHAMBER
EXC. CHARGE AIR COOLER<6PL> 03.634 		8-94328-234-0 01 1 0108- ●
15 03.440 INSULATOR; POWER CHAMBER
03.634 		8-94383-633-0 01 1 9804-9906 ● ●
15 03.440 INSULATOR; POWER CHAMBER
03.634 		8-94383-633-0 01 1 9907-0107 ●
15 03.440 INSULATOR; POWER CHAMBER
EXC. ISRAEL EQUIPMENT(7LX) 03.634 		8-94383-633-0 01 1 9907-0107 ●
15 03.440 INSULATOR; POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.634 		8-94383-633-0 01 1 0108- ●
15 03.440 INSULATOR; POWER CHAMBER
EXC. CHARGE AIR COOLER<6PL> 03.634 		8-94383-633-0 01 1 0108- ●
16 03.440 NUT; LK,POWER CHAMBER
05.122 (A) 		8-94311-428-0 01 1 9804-9906 ● ●
16 03.440 NUT; LK,POWER CHAMBER
05.122 (A) 		8-94311-428-0 01 1 9907-0107 ●
16 03.440 NUT; LK,POWER CHAMBER
EXC. ISRAEL EQUIPMENT(7LX) 05.122 (A) 		8-94311-428-0 01 1 9907-0107 ●
16 03.440 NUT; LK,POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 05.122 (A) 		8-94311-428-0 01 1 0108- ●
16 03.440 NUT; LK,POWER CHAMBER
EXC. CHARGE AIR COOLER<6PL> 05.122 (A) 		8-94311-428-0 01 1 0108- ●
16 03.440 NUT; LK,POWER CHAMBER
(B) 		8-94388-225-0 01 1 9804-9906 ● ●
16 03.440 NUT; LK,POWER CHAMBER
(B) 		8-94388-225-0 01 1 9907-0107 ●
16 03.440 NUT; LK,POWER CHAMBER
EXC. ISRAEL EQUIPMENT(7LX) (B) 		8-94388-225-0 01 1 9907-0107 ●
16 03.440 NUT; LK,POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 		8-94388-225-0 01 1 0108- ●
16 03.440 NUT; LK,POWER CHAMBER
EXC. CHARGE AIR COOLER<6PL> (B) 		8-94388-225-0 01 1 0108- ●
17 03.440 CLEVIS; EXH THROTTLE BODY
03.636 		8-97039-375-0 01 1 9804-9906 ● ●
17 03.440 CLEVIS; EXH THROTTLE BODY
03.636 		8-97039-375-0 01 1 9907-0107 ●
17 03.440 CLEVIS; EXH THROTTLE BODY
EXC. ISRAEL EQUIPMENT(7LX) 03.636 		8-97039-375-0 01 1 9907-0107 ●
17 03.440 CLEVIS; EXH THROTTLE BODY
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.636 		8-97039-375-0 01 1 0108- ●
17 03.440 CLEVIS; EXH THROTTLE BODY
EXC. CHARGE AIR COOLER<6PL> 03.636 		8-97039-375-0 01 1 0108- ●
19 03.440 PIN; LEVER
03.636 		8-94311-452-0 01 1 9804-9906 ● ●
19 03.440 PIN; LEVER
03.636 		8-94311-452-0 01 1 9907-0107 ●
19 03.440 PIN; LEVER
EXC. ISRAEL EQUIPMENT(7LX) 03.636 		8-94311-452-0 01 1 9907-0107 ●
19 03.440 PIN; LEVER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.636 		8-94311-452-0 01 1 0108- ●
19 03.440 PIN; LEVER
EXC. CHARGE AIR COOLER<6PL> 03.636 		8-94311-452-0 01 1 0108- ●
20 03.440 PIN; SPLIT,LEVER
03.636 		8-97028-428-0 01 1 9804-9906 ● ●
20 03.440 PIN; SPLIT,LEVER
03.636 		8-97028-428-0 01 1 9907-0107 ●
20 03.440 PIN; SPLIT,LEVER
EXC. ISRAEL EQUIPMENT(7LX) 03.636 		8-97028-428-0 01 1 9907-0107 ●
20 03.440 PIN; SPLIT,LEVER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.636 		8-97028-428-0 01 1 0108- ●
20 03.440 PIN; SPLIT,LEVER
EXC. CHARGE AIR COOLER<6PL> 03.636 		8-97028-428-0 01 1 0108- ●
22 03.440 NUT; BRKT TO POWER CHAMBER
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9804-9906 ● ●
22 03.440 NUT; BRKT TO POWER CHAMBER
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9907-0107 ●
22 03.440 NUT; BRKT TO POWER CHAMBER
EXC. ISRAEL EQUIPMENT(7LX) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9907-0107 ●
22 03.440 NUT; BRKT TO POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0108-0201 ●
22 03.440 NUT; BRKT TO POWER CHAMBER
EXC. CHARGE AIR COOLER<6PL> 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0108-0201 ●
22 03.440 NUT; BRKT TO POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0202- ●
22 03.440 NUT; BRKT TO POWER CHAMBER
EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0202- ●
23 03.440 ELBOW; CONNECTOR,POWER CHAMBER 8-97018-078-0 01 1 9804-9906 ● ●
23 03.440 ELBOW; CONNECTOR,POWER CHAMBER 8-97018-078-0 01 1 9907-0107 ●
23 03.440 ELBOW; CONNECTOR,POWER CHAMBER
EXC. ISRAEL EQUIPMENT(7LX) 		8-97018-078-0 01 1 9907-0107 ●
23 03.440 ELBOW; CONNECTOR,POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 		8-97018-078-0 01 1 0108- ●
23 03.440 ELBOW; CONNECTOR,POWER CHAMBER
EXC. CHARGE AIR COOLER<6PL> 		8-97018-078-0 01 1 0108- ●
