◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#4462) — 210 parça

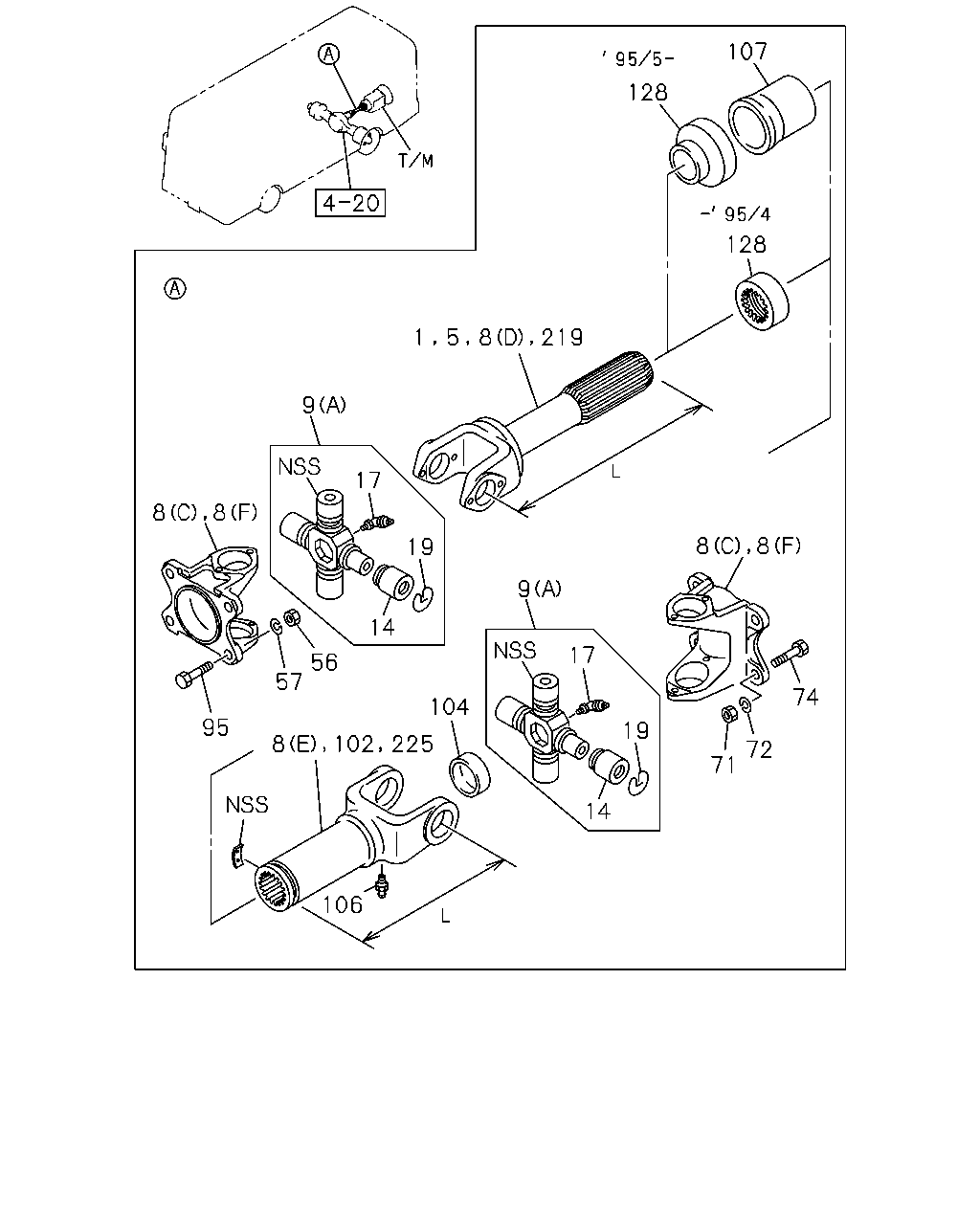

çizim 37031
107 128 128 1 9 17 19 9 14 17 56 57 74 104 95 19 8 72 71 14 106 5 8 219 8 8 8 8 102 225
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
MBG5B M/T(X4K) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> L=466 		1-37123-177-0 01 1 9101-9504 ● ● ●
5 YOKE; STUB,PROP SHAFT
MT643 A/T ALLISON(PR7) L=275 		1-37171-094-0 01 1 9101-9504 ● ● ●
5 YOKE; STUB,PROP SHAFT
L=387 		1-37171-086-0 01 1 9505-9701 ● ● ●
5 YOKE; STUB,PROP SHAFT
6HH1 STD ENG(65L) L=387 		1-37171-086-0 01 1 9702-9805 ● ● ●
5 YOKE; STUB,PROP SHAFT
6HH1 STD ENG(65L) L=387 		1-37171-086-0 01 1 9806-9808 ● ● ●
5 YOKE; STUB,PROP SHAFT
6HE1 TCC ENG(76L) FULLER M/T<X9B> L=387 		1-37171-086-0 01 1 9806-9808 ●
5 YOKE; STUB,PROP SHAFT
MLD6 M/T<X9Y> L=387 		1-37171-086-1 01 1 9809-0203 ● ● ●
5 YOKE; STUB,PROP SHAFT
MLD6 M/T<X9Y> L=387 		1-37171-086-1 01 1 0204- ● ●
5 YOKE; STUB,PROP SHAFT
6HE1 TCC ENG(76L) L=271 		1-37171-126-0 01 1 9702-9710 ● ●
5 YOKE; STUB,PROP SHAFT
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=271 		1-37171-126-0 01 1 9710-9802 ● ●
5 YOKE; STUB,PROP SHAFT
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> L=271 		1-37171-126-0 01 1 9803-9808 ● ●
5 YOKE; STUB,PROP SHAFT
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) L=271 		1-37171-126-1 01 1 9809-0203 ● ● ●
5 YOKE; STUB,PROP SHAFT
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) L=271 		1-37171-126-1 01 1 0204- ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG6P M/T(X4L),MBG6R M/T(X4N) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) L=208 		1-37241-068-0 01 1 9101-9504 ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG6P M/T(X4L),MBG6R M/T(X4N),MBG6S M/T(X5D) NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> (E) L=208 		1-37241-068-0 01 1 9101-9504 ●
8 YOKE; FLANGE,PROP SHAFT
ISUZU M/T<X9A> (C) 		1-37211-031-1 02 1 9101-9504 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG6P M/T(X4L),MBG6R M/T(X4N),MBG6S M/T(X5D), MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> (D) L=348 		1-37171-060-0 01 1 9101-9504 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG5B M/T(X4K) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) L=348 		1-37171-060-0 01 1 9101-9504 ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG5B M/T(X4K) NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> (D) L=348 		1-37171-060-0 01 1 9101-9504 ●
8 YOKE; FLANGE,PROP SHAFT
MT643 A/T ALLISON(PR7) (A) 		1-37211-042-0 02 1 9101-9504 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(F) 		1-37211-056-3 02 1 9505-0203 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(F) 		1-37211-056-3 02 1 0204- ● ●
8 YOKE; FLANGE,PROP SHAFT
MT643 A/T ALLISON(PR7) (B) L=164 		1-37241-087-0 01 1 9101-9504 ● ● ●
9 JOURNAL ASM; PROP SHAFT
ISUZU M/T<X9A> (A) 		1-37300-047-2 02 1 9101-9504 ● ● ●
9 JOURNAL ASM; PROP SHAFT
MT643 A/T ALLISON(PR7) (B) 		1-37300-026-0 01 1 9101-9504 ● ● ●
9 JOURNAL ASM; PROP SHAFT
MT643 A/T ALLISON(PR7) (A) 		1-37300-071-0 01 1 9101-9504 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 02 1 9505-9808 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 02 1 9809-0203 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0204-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ● ●
14 COVER; DUST,SPIDER
MLD6 M/T<X9Y> 		1-37319-012-0 08 1 9810-9811 ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 9812-0203 ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 0204-1505 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ISUZU M/T<X9A> PT1/8 ELBOW 		9-09031-210-0 02 1 9101-9504 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9505-0203 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0204-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MT643 A/T ALLISON(PR7) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9101-9504 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ISUZU M/T<X9A> OD=44 T=1.95 BLUE 		1-09587-036-1 08 1 9101-9504 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ISUZU M/T<X9A> OD=44 T=2.00 WHITE 		1-09587-037-3 08 1 9101-9504 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ISUZU M/T<X9A> OD=44 T=2.05 YELLOW 		1-09587-038-2 08 1 9101-9504 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9505-0203 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0204- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9505-0203 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0204- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9505-0203 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0204- ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 9101-9504 ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 9505-0203 ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 0204-0512 ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9101-9504 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9505-0203 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0204-0603 ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9101-9504 ● ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9505-0203 ● ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 0204-0512 ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9101-9504 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9505-0203 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0204-0603 ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ● ●
74 BOLT; YOKE,TRANS
M14X40 		1-09000-187-0 04 1 9101-9504 ● ● ●
74 BOLT; YOKE,TRANS
FULLER M/T<X9B> M14X40 		1-09000-187-0 04 1 9811- ●
95 BOLT; YOKE,FINAL
ISUZU M/T<X9A> M14X40 		1-09000-187-0 04 1 9101-9504 ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9505-0203 ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0204- ● ●
95 BOLT; YOKE,FINAL
MT643 A/T ALLISON(PR7) M14X45 		9-09801-107-0 04 1 9101-9504 ● ● ●
102 YOKE; TRANSFER TO AXLE
MBG5B M/T(X4K) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=257 		1-37241-054-0 01 1 9101-9504 ● ●
104 PLUG; SLEEVE YOKE 1-09600-033-0 01 1 9101-9504 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9505-9701 ● ● ●
104 PLUG; SLEEVE YOKE
6HH1 STD ENG(65L) 		1-09600-064-0 01 1 9702-9805 ● ● ●
104 PLUG; SLEEVE YOKE
6HH1 STD ENG(65L) 		1-09600-064-0 01 1 9806-9808 ● ● ●
104 PLUG; SLEEVE YOKE
6HE1 TCC ENG(76L) FULLER M/T<X9B> 		1-09600-064-0 01 1 9806-9808 ●
104 PLUG; SLEEVE YOKE
MLD6 M/T<X9Y> 		1-09600-064-0 01 1 9809-0203 ● ● ●
104 PLUG; SLEEVE YOKE
MLD6 M/T<X9Y> 		1-09600-064-0 01 1 0204- ● ●
104 PLUG; SLEEVE YOKE
MBG5B M/T(X4K) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 		1-09600-023-0 01 1 9101-9504 ● ● ●
104 PLUG; SLEEVE YOKE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 		1-09600-033-0 01 1 9702-9802 ● ●
104 PLUG; SLEEVE YOKE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> 		1-09600-033-0 01 1 9803-9808 ● ●
104 PLUG; SLEEVE YOKE
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) 		1-09600-033-0 01 1 9809-0203 ● ● ●
104 PLUG; SLEEVE YOKE
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) 		1-09600-033-0 01 1 0204- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9101-9504 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9505-0203 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0204-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9505-9701 ● ● ●
107 COVER; RET,SLEEVE
6HH1 STD ENG(65L) 		1-37249-060-0 01 1 9702-9805 ● ● ●
107 COVER; RET,SLEEVE
6HH1 STD ENG(65L) 		1-37249-060-0 01 1 9806-9808 ● ● ●
107 COVER; RET,SLEEVE
6HE1 TCC ENG(76L) FULLER M/T<X9B> 		1-37249-060-0 01 1 9806-9808 ●
107 COVER; RET,SLEEVE
MLD6 M/T<X9Y> 		1-37249-060-0 01 1 9809-0203 ● ● ●
107 COVER; RET,SLEEVE
MLD6 M/T<X9Y> 		1-37249-060-1 01 1 0204- ● ●
128 SEAL; SLEEVE 1-37247-002-1 01 1 9101-9504 ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9505-9701 ● ● ●
128 SEAL; SLEEVE
6HH1 STD ENG(65L) 		1-37247-015-0 01 1 9702-9805 ● ● ●
128 SEAL; SLEEVE
6HH1 STD ENG(65L) 		1-37247-015-0 01 1 9806-9808 ● ● ●
128 SEAL; SLEEVE
6HE1 TCC ENG(76L) FULLER M/T<X9B> 		1-37247-015-0 01 1 9806-9808 ●
128 SEAL; SLEEVE
MLD6 M/T<X9Y> 		1-37247-015-0 01 1 9809-9809 ● ● ●
128 SEAL; SLEEVE
MLD6 M/T<X9Y> 		1-37247-024-0 01 1 9810-0203 ● ● ●
128 SEAL; SLEEVE
MLD6 M/T<X9Y> 		1-37247-024-0 01 1 0204- ● ●
128 SEAL; SLEEVE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 		1-37247-002-1 01 1 9702-9802 ● ●
128 SEAL; SLEEVE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> 		1-37247-002-1 01 1 9803-9808 ● ●
128 SEAL; SLEEVE
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) 		1-37247-002-1 01 1 9809-0203 ● ● ●
128 SEAL; SLEEVE
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) 		1-37247-002-1 01 1 0204- ● ●
219 YOKE; DIFF SIDE
MBG6P M/T(X4L),MBG6R M/T(X4N) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=273 		1-37171-076-0 01 1 9101-9504 ● ●
219 YOKE; DIFF SIDE
MBG6P M/T(X4L),MBG6R M/T(X4N),MBG6S M/T(X5D) NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> L=273 		1-37171-076-0 01 1 9101-9504 ●
225 YOKE; SLEEVE,PROP SHAFT
MBG5B M/T(X4K) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> L=257 		1-37241-054-0 01 1 9101-9504 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-1 01 1 9505-9701 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
6HH1 STD ENG(65L) L=271 		1-37241-099-1 01 1 9702-9805 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
6HH1 STD ENG(65L) L=271 		1-37241-099-1 01 1 9806-9808 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
6HE1 TCC ENG(76L) FULLER M/T<X9B> L=271 		1-37241-099-1 01 1 9806-9808 ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6 M/T<X9Y> L=271 		1-37241-099-2 01 1 9809-0203 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6 M/T<X9Y> L=271 		1-37241-099-2 01 1 0204- ● ●
225 YOKE; SLEEVE,PROP SHAFT
MBG6P M/T(X4L),MBG6R M/T(X4N),MBG6S M/T(X5D), MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> L=228 		1-37241-012-1 01 1 9101-9504 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MBG5B M/T(X4K) NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> L=228 		1-37241-012-1 01 1 9101-9504 ●
225 YOKE; SLEEVE,PROP SHAFT
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=214 		1-37241-121-0 01 1 9702-9802 ● ●
225 YOKE; SLEEVE,PROP SHAFT
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> L=214 		1-37241-121-0 01 1 9803-9808 ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) L=214 		1-37241-121-1 01 1 9809-0203 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) L=214 		1-37241-121-1 01 1 0204- ● ●

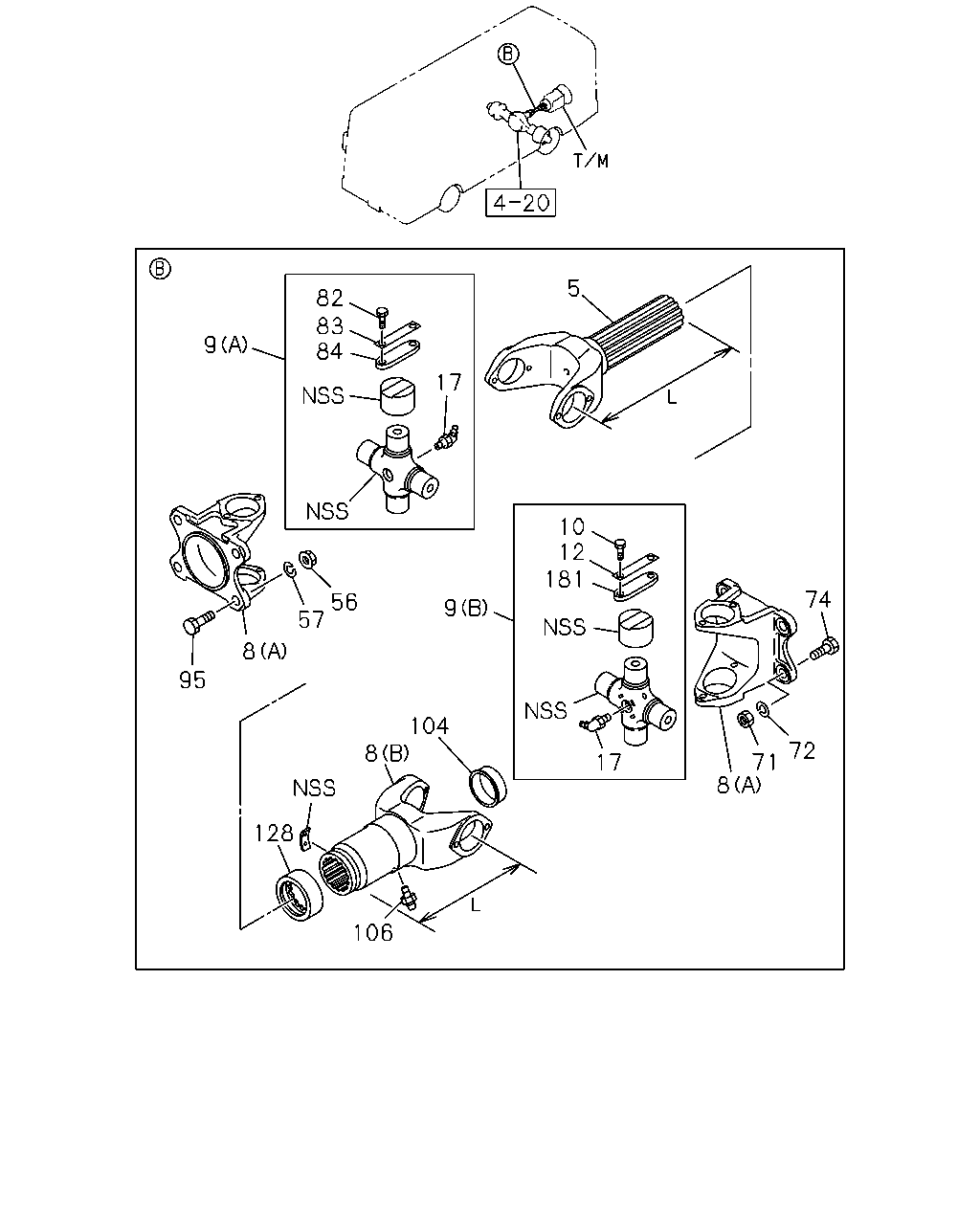

çizim 37032
5 82 83 84 9 17 10 12 181 74 56 57 9 8 95 104 8 72 71 17 8 128 106
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 YOKE; STUB,PROP SHAFT
MT643 A/T ALLISON(PR7) L=275 		1-37171-094-0 01 1 9101-9504 ● ● ●
5 YOKE; STUB,PROP SHAFT
L=387 		1-37171-086-0 01 1 9505-9701 ● ● ●
5 YOKE; STUB,PROP SHAFT
6HH1 STD ENG(65L) L=387 		1-37171-086-0 01 1 9702-9805 ● ● ●
5 YOKE; STUB,PROP SHAFT
6HH1 STD ENG(65L) L=387 		1-37171-086-0 01 1 9806-9808 ● ● ●
5 YOKE; STUB,PROP SHAFT
6HE1 TCC ENG(76L) FULLER M/T<X9B> L=387 		1-37171-086-0 01 1 9806-9808 ●
5 YOKE; STUB,PROP SHAFT
MLD6 M/T<X9Y> L=387 		1-37171-086-1 01 1 9809-0203 ● ● ●
5 YOKE; STUB,PROP SHAFT
MLD6 M/T<X9Y> L=387 		1-37171-086-1 01 1 0204- ● ●
5 YOKE; STUB,PROP SHAFT
6HE1 TCC ENG(76L) L=271 		1-37171-126-0 01 1 9702-9710 ● ●
5 YOKE; STUB,PROP SHAFT
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=271 		1-37171-126-0 01 1 9710-9802 ● ●
5 YOKE; STUB,PROP SHAFT
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> L=271 		1-37171-126-0 01 1 9803-9808 ● ●
5 YOKE; STUB,PROP SHAFT
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) L=271 		1-37171-126-1 01 1 9809-0203 ● ● ●
5 YOKE; STUB,PROP SHAFT
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) L=271 		1-37171-126-1 01 1 0204- ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG6P M/T(X4L),MBG6R M/T(X4N) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) L=208 		1-37241-068-0 01 1 9101-9504 ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG6P M/T(X4L),MBG6R M/T(X4N),MBG6S M/T(X5D) NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> (E) L=208 		1-37241-068-0 01 1 9101-9504 ●
8 YOKE; FLANGE,PROP SHAFT
ISUZU M/T<X9A> (C) 		1-37211-031-1 02 1 9101-9504 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG6P M/T(X4L),MBG6R M/T(X4N),MBG6S M/T(X5D), MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> (D) L=348 		1-37171-060-0 01 1 9101-9504 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG5B M/T(X4K) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) L=348 		1-37171-060-0 01 1 9101-9504 ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG5B M/T(X4K) NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> (D) L=348 		1-37171-060-0 01 1 9101-9504 ●
8 YOKE; FLANGE,PROP SHAFT
MT643 A/T ALLISON(PR7) (A) 		1-37211-042-0 02 1 9101-9504 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(F) 		1-37211-056-3 02 1 9505-0203 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(F) 		1-37211-056-3 02 1 0204- ● ●
8 YOKE; FLANGE,PROP SHAFT
MT643 A/T ALLISON(PR7) (B) L=164 		1-37241-087-0 01 1 9101-9504 ● ● ●
9 JOURNAL ASM; PROP SHAFT
ISUZU M/T<X9A> (A) 		1-37300-047-2 02 1 9101-9504 ● ● ●
9 JOURNAL ASM; PROP SHAFT
MT643 A/T ALLISON(PR7) (B) 		1-37300-026-0 01 1 9101-9504 ● ● ●
9 JOURNAL ASM; PROP SHAFT
MT643 A/T ALLISON(PR7) (A) 		1-37300-071-0 01 1 9101-9504 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 02 1 9505-9808 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 02 1 9809-0203 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0204-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ● ●
10 BOLT; UJT
MT643 A/T ALLISON(PR7) M8X20 		9-09802-702-0 08 1 9101-9504 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MT643 A/T ALLISON(PR7) 		1-37356-004-0 04 1 9101-9504 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
ISUZU M/T<X9A> PT1/8 ELBOW 		9-09031-210-0 02 1 9101-9504 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9505-0203 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0204-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MT643 A/T ALLISON(PR7) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9101-9504 ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 9101-9504 ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 9505-0203 ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 0204-0512 ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9101-9504 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9505-0203 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0204-0603 ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9101-9504 ● ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9505-0203 ● ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 0204-0512 ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9101-9504 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9505-0203 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0204-0603 ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ● ●
74 BOLT; YOKE,TRANS
M14X40 		1-09000-187-0 04 1 9101-9504 ● ● ●
74 BOLT; YOKE,TRANS
FULLER M/T<X9B> M14X40 		1-09000-187-0 04 1 9811- ●
82 BOLT; LK PLATE,UJT,PROP SHAFT
MT643 A/T ALLISON(PR7) M8X20 		9-09802-702-0 08 1 9101-9504 ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
MT643 A/T ALLISON(PR7) 		1-37356-004-0 04 1 9101-9504 ● ● ●
84 COVER; UJT,PROP SHAFT
MT643 A/T ALLISON(PR7) 		1-37355-002-1 04 1 9101-9504 ● ● ●
95 BOLT; YOKE,FINAL
ISUZU M/T<X9A> M14X40 		1-09000-187-0 04 1 9101-9504 ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9505-0203 ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0204- ● ●
95 BOLT; YOKE,FINAL
MT643 A/T ALLISON(PR7) M14X45 		9-09801-107-0 04 1 9101-9504 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-033-0 01 1 9101-9504 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9505-9701 ● ● ●
104 PLUG; SLEEVE YOKE
6HH1 STD ENG(65L) 		1-09600-064-0 01 1 9702-9805 ● ● ●
104 PLUG; SLEEVE YOKE
6HH1 STD ENG(65L) 		1-09600-064-0 01 1 9806-9808 ● ● ●
104 PLUG; SLEEVE YOKE
6HE1 TCC ENG(76L) FULLER M/T<X9B> 		1-09600-064-0 01 1 9806-9808 ●
104 PLUG; SLEEVE YOKE
MLD6 M/T<X9Y> 		1-09600-064-0 01 1 9809-0203 ● ● ●
104 PLUG; SLEEVE YOKE
MLD6 M/T<X9Y> 		1-09600-064-0 01 1 0204- ● ●
104 PLUG; SLEEVE YOKE
MBG5B M/T(X4K) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 		1-09600-023-0 01 1 9101-9504 ● ● ●
104 PLUG; SLEEVE YOKE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 		1-09600-033-0 01 1 9702-9802 ● ●
104 PLUG; SLEEVE YOKE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> 		1-09600-033-0 01 1 9803-9808 ● ●
104 PLUG; SLEEVE YOKE
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) 		1-09600-033-0 01 1 9809-0203 ● ● ●
104 PLUG; SLEEVE YOKE
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) 		1-09600-033-0 01 1 0204- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9101-9504 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9505-0203 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0204-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
128 SEAL; SLEEVE 1-37247-002-1 01 1 9101-9504 ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9505-9701 ● ● ●
128 SEAL; SLEEVE
6HH1 STD ENG(65L) 		1-37247-015-0 01 1 9702-9805 ● ● ●
128 SEAL; SLEEVE
6HH1 STD ENG(65L) 		1-37247-015-0 01 1 9806-9808 ● ● ●
128 SEAL; SLEEVE
6HE1 TCC ENG(76L) FULLER M/T<X9B> 		1-37247-015-0 01 1 9806-9808 ●
128 SEAL; SLEEVE
MLD6 M/T<X9Y> 		1-37247-015-0 01 1 9809-9809 ● ● ●
128 SEAL; SLEEVE
MLD6 M/T<X9Y> 		1-37247-024-0 01 1 9810-0203 ● ● ●
128 SEAL; SLEEVE
MLD6 M/T<X9Y> 		1-37247-024-0 01 1 0204- ● ●
128 SEAL; SLEEVE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 		1-37247-002-1 01 1 9702-9802 ● ●
128 SEAL; SLEEVE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> 		1-37247-002-1 01 1 9803-9808 ● ●
128 SEAL; SLEEVE
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) 		1-37247-002-1 01 1 9809-0203 ● ● ●
128 SEAL; SLEEVE
FULLER FSB6406A M/T(MWO),MLD7Q M/T(X5K) 		1-37247-002-1 01 1 0204- ● ●
181 COVER; BRG,PROP SHAFT
MT643 A/T ALLISON(PR7) 		1-37355-002-1 04 1 9101-9504 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
