Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#44619) — 514 parça

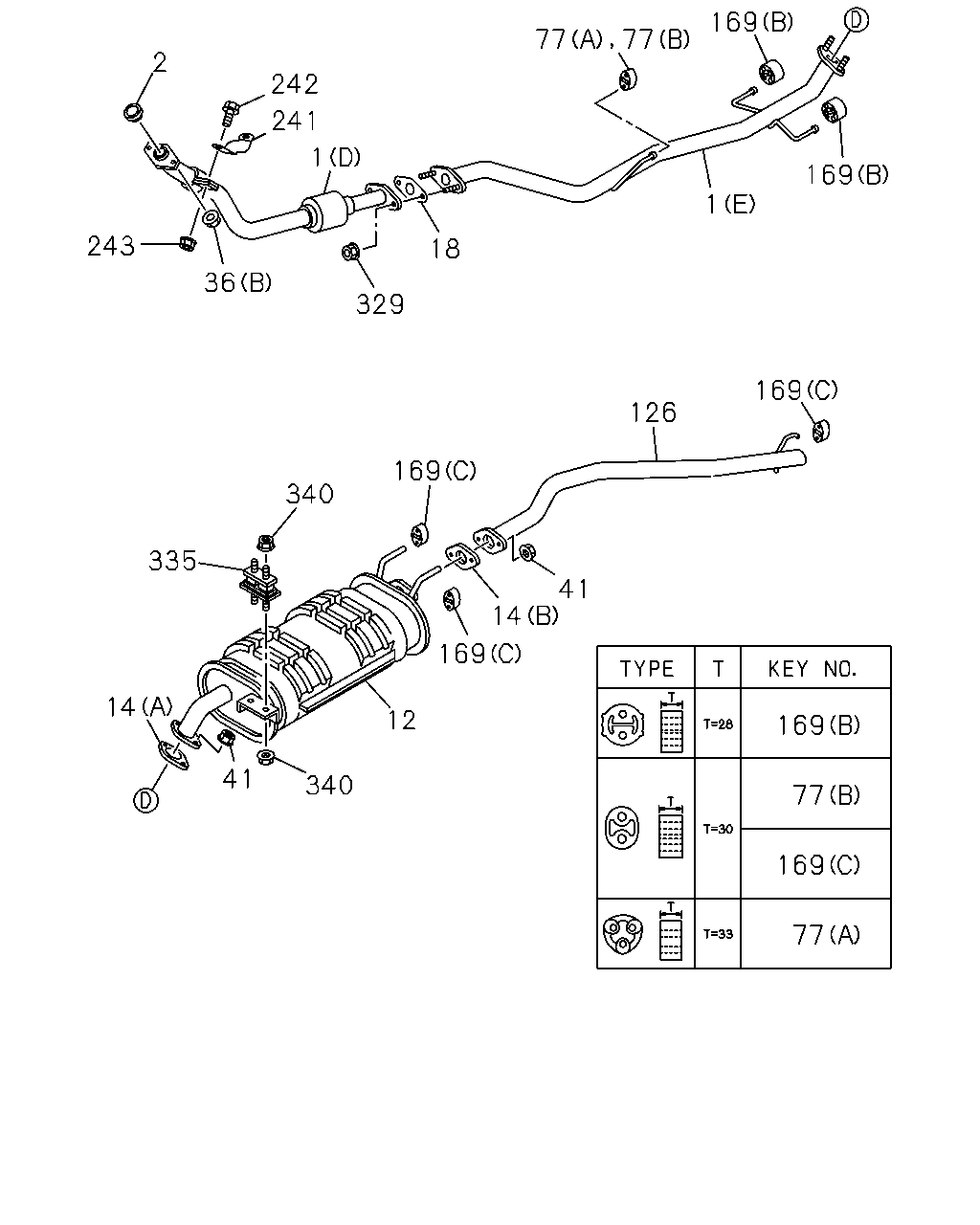

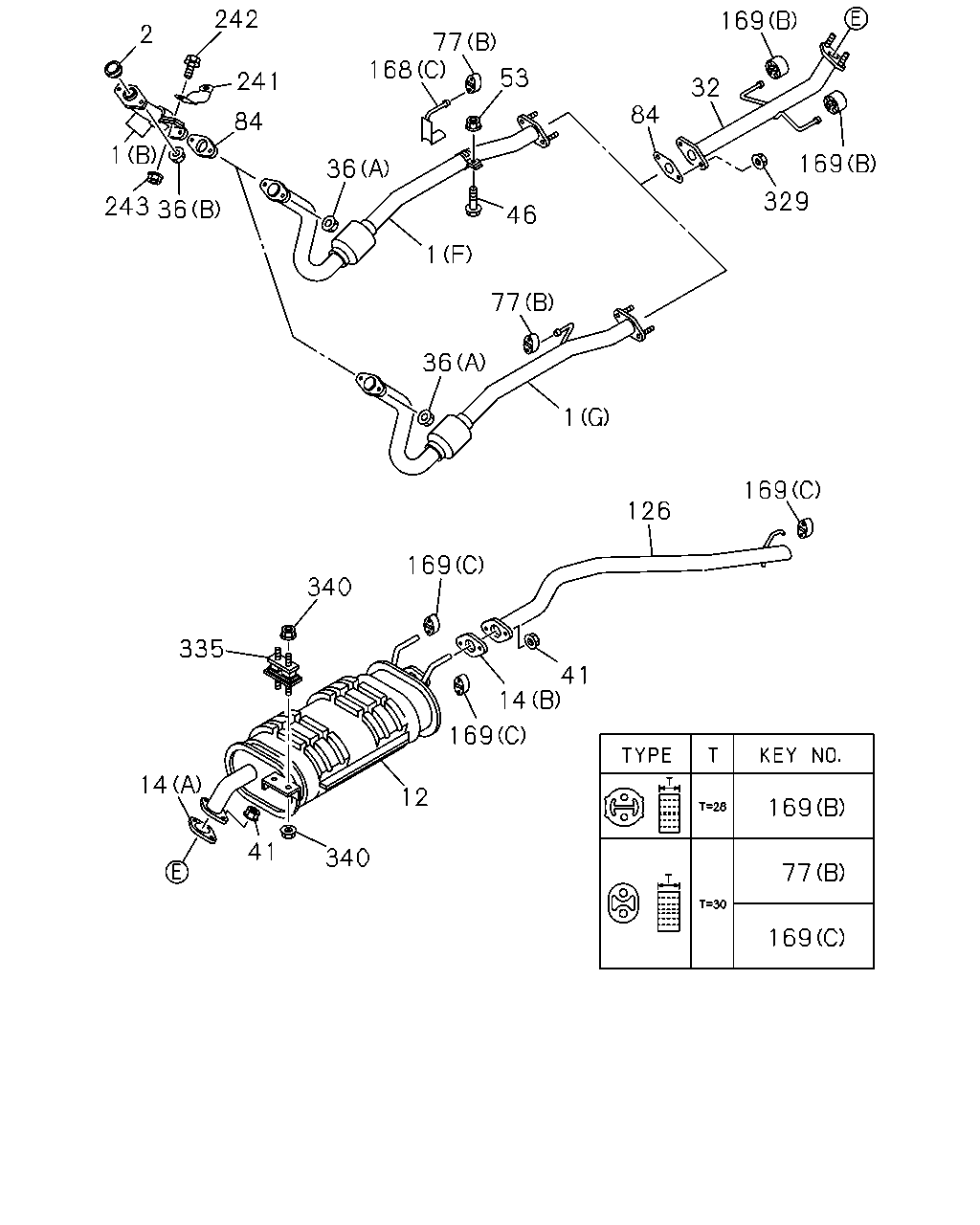

242 169 2 77 168 53 241 32 1 84 84 169 36 329 243 36 46 1 77 36 1 169 126 169 340 335 41 14 169 14 12 169 41 340 77 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97132-204-0	01	1	9804-9906	●
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97216-472-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. CHARGE AIR COOLER<6PL> (A)	8-97216-472-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97134-960-0	01	1	9804-9906	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97216-474-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> (C)	8-97216-474-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97218-322-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> (B)	8-97218-322-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (J)	8-97307-312-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (I)	8-97307-383-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97037-890-1	01	1	9804-9906	●	●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) (B)	8-97037-890-1	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> (B)	8-97037-890-1	01	1	0108-		●
1	03.609 PIPE; EXH 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (B)	8-97037-890-1	01	1	0108-		●
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97070-892-1	01	1	9804-9906		●
1	03.609 PIPE; EXH 4X2(TFB***) M/T MUA 5 SPEED(RMN) EXC. ISRAEL EQUIPMENT(7LX) (A)	8-97216-479-0	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X2(TFB***) CHARGE AIR COOLER<6PL> (A)	8-97307-310-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (D)	8-97224-009-0	01	1	9907-		●
1	03.609 PIPE; EXH 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (E)	8-97224-010-0	01	1	9907-		●
1	03.609 PIPE; EXH 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) M/T MUA 5 SPEED(RMN) ISRAEL EQUIPMENT(7LX) (A)	8-97223-861-0	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) M/T MUA 5 SPEED(RMN) (A)	8-97223-861-0	01	1	0108-		●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97070-913-0	01	1	9804-9805		●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD) (F)	8-97210-468-0	01	1	9806-9906		●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD) (G)	8-97216-486-1	01	1	9907-		●
1	03.609 PIPE; EXH 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-97070-913-0	01	1	9806-9906		●
1	03.609 PIPE; EXH 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-97216-484-0	01	1	9907-		●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9804-	●	●
12	03.701 SILENCER ASM; EXH	8-97115-328-0	01	1	9804-0107	●
12	03.701 SILENCER ASM; EXH TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX)	8-97115-328-0	01	1	0108-	●
12	03.701 SILENCER ASM; EXH CHARGE AIR COOLER<6PL> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX)	8-97310-266-0	01	1	0108-	●
12	03.701 SILENCER ASM; EXH	8-97070-883-4	01	1	9804-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-0	02	1	0101-0107	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. ISRAEL EQUIPMENT(7LX) 03.611 (A) ID=55	8-97093-574-0	02	1	0101-0107		●
14	03.704 GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.611 (A) ID=55	8-97093-574-1	02	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CHARGE AIR COOLER<6PL> 03.611 (A) ID=55	8-97093-574-1	02	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9804-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-0	02	1	9804-0012	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ISRAEL EQUIPMENT(7LX) 03.611 (A) ID=55	8-97093-574-0	01	1	0101-0107		●
14	03.704 GASKET; SILENCER TO EXH PIPE CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> 03.611 (A) ID=55	8-97093-574-1	01	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-1	01	1	0108-		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***)	8-97070-888-1	01	1	9804-9805		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97070-888-1	01	1	9806-9906		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) M/T MUA 5 SPEED(RMN) ISRAEL EQUIPMENT(7LX)	8-97223-862-0	01	1	9907-0107		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97223-862-0	01	1	0108-		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) A/T AISIN(RMD)	8-97210-469-0	01	1	9806-9806		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) A/T AISIN(RMD)	8-97212-332-0	01	1	9807-9906		●
32	03.609 PIPE; EXH,FRT 4X4 CREW CAB(TFSW) A/T AISIN(RMD) ISRAEL EQUIPMENT(7LX)	8-97223-863-0	01	1	9907-0107		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) A/T AISIN(RMD)	8-97223-863-0	01	1	0108-		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) M/T MUA 5 SPEED(RMN) EXC. ISRAEL EQUIPMENT(7LX)	8-97216-485-0	01	1	9907-0107		●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	9804-	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9804-9906	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) A/T AISIN(RMD) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4X4(TFS***) A/T AISIN(RMD) M8X40 FLANGE	0-28680-840-0	01	1	9806-9906		●
53	03.704 NUT; BRKT TO CLAMP 4X4(TFS***) A/T AISIN(RMD) 01.540 M8 FLANGE	0-91150-208-0	01	1	9806-9906		●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.704 (A)	8-97080-694-0	01	1	9804-9805	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.704 (A)	8-97080-694-0	01	1	9806-9906	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.706 (A)	8-97120-442-0	01	1	9907-0009	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.706 (A)	8-97120-442-0	01	1	0010-	●
77	03.613 RUBBER; CUSHION,BRKT 4X2(TFB***) A/T AISIN(RMD) 03.706 (A)	8-97120-442-0	01	1	0010-		●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 03.706 (A)	8-97120-442-0	01	1	0010-		●
77	03.613 RUBBER; CUSHION,BRKT A/T AISIN(RMD) 03.706 (B) T=30	8-94468-696-0	01	1	9806-0009		●
77	03.613 RUBBER; CUSHION,BRKT 4X4 CREW CAB(TFSW) A/T AISIN(RMD) 03.706 (B) T=30	8-94468-696-0	01	1	0010-		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	01	1	9804-9805	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) TURBOCHARGER<K51> ID=55	8-97093-574-0	01	1	9807-9906	●
84	03.611 GASKET; EXH PIPE 4X4 CREW CAB(TFSW) A/T AISIN(RMD) ID=55	8-97093-574-0	01	1	9807-9906		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	02	1	9804-9805		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	01	1	9806-9806	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) M/T MUA 5 SPEED(RMN) ID=55	8-97093-574-0	01	1	9806-9806		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) M/T MUA 5 SPEED(RMN) ID=55	8-97093-574-0	02	1	9807-9906		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-1	01	1	9907-	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-1	01	1	9907-		●
126	03.705 PIPE; EXH,RR	8-97022-339-1	01	1	9804-9906	●
126	03.705 PIPE; EXH,RR	8-97216-477-0	01	1	9907-0107	●
126	03.705 PIPE; EXH,RR EXC. CHARGE AIR COOLER<6PL>	8-97216-477-0	01	1	0108-	●
126	03.705 PIPE; EXH,RR CHARGE AIR COOLER<6PL>	8-97307-314-0	01	1	0108-	●
126	03.705 PIPE; EXH,RR	8-97070-901-0	01	1	9804-		●
168	03.613 BRACKET; EXH PIPE,FRT 4X4(TFS***) (A)	8-97043-727-1	01	1	9804-9805	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (A)	8-97043-727-1	01	1	9806-9906	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4X2(TFB***) (B)	8-97105-047-0	01	1	9804-9906		●
168	03.613 BRACKET; EXH PIPE,FRT 4X4(TFS***) A/T AISIN(RMD) (C)	8-94478-688-1	01	1	9806-9906		●
169	03.706 RING; DAMPER,EXH PIPE (D) T=16	8-94472-679-0	02	1	9804-9906	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	9911-0009	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MUA 5 SPEED(RMN) (A) T=38	8-94207-180-0	02	1	9911-0009		●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (A) T=38	8-94207-180-0	02	1	0010-	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	9804-0107	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	0108-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9804-9906	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MUA 5 SPEED(RMN) (B) T=28 D=55	8-97023-183-0	02	1	9907-9910		●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9911-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9911-	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	9804-9906	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	02	1	9804-		●
241	03.611 BRACKET; EXH PIPE TO TRANS 03.613	8-97037-539-0	01	1	9804-	●	●
242	03.613 BOLT; PIPE BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9804-	●	●
243	03.613 NUT; PIPE BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9804-0109	●	●
243	03.613 NUT; PIPE BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0110-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4X4(TFS***) 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9804-		●
340	03.706 NUT; RUBBER,SUPPORT 01.540 M8 FLANGE	0-91150-208-0	04	1	9804-0109		●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE	0-91150-108-0	04	1	0110-		●

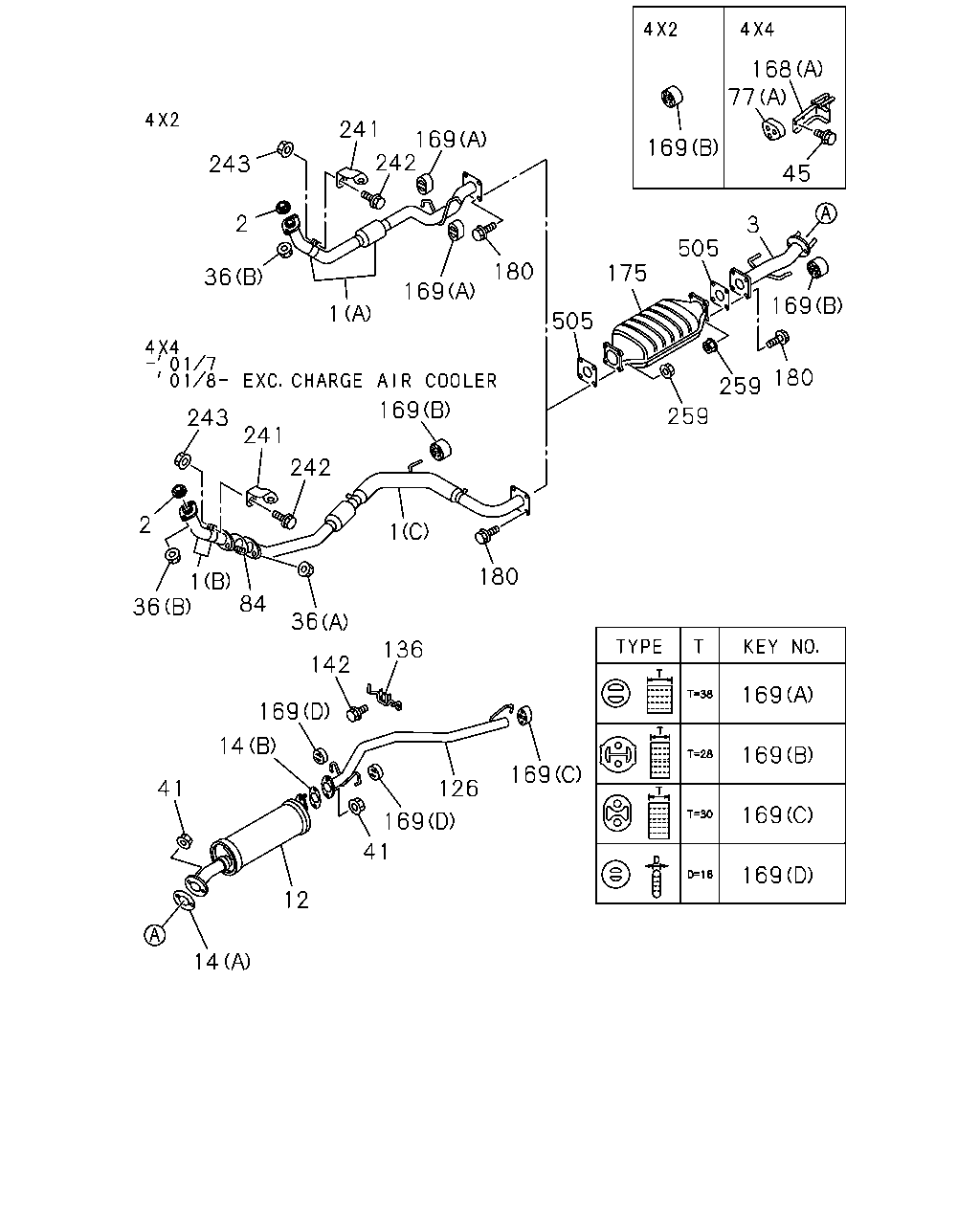

168 77 241 169 242 169 243 45 2 3 505 180 175 36 169 169 1 505 180 259 169 259 243 241 242 2 1 180 36 84 136 142 169 169 14 169 169 126 41 169 169 41 169 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97132-204-0	01	1	9804-9906	●
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97216-472-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. CHARGE AIR COOLER<6PL> (A)	8-97216-472-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97134-960-0	01	1	9804-9906	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97216-474-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> (C)	8-97216-474-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97218-322-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> (B)	8-97218-322-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (J)	8-97307-312-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (I)	8-97307-383-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97037-890-1	01	1	9804-9906	●	●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) (B)	8-97037-890-1	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> (B)	8-97037-890-1	01	1	0108-		●
1	03.609 PIPE; EXH 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (B)	8-97037-890-1	01	1	0108-		●
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97070-892-1	01	1	9804-9906		●
1	03.609 PIPE; EXH 4X2(TFB***) M/T MUA 5 SPEED(RMN) EXC. ISRAEL EQUIPMENT(7LX) (A)	8-97216-479-0	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X2(TFB***) CHARGE AIR COOLER<6PL> (A)	8-97307-310-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (D)	8-97224-009-0	01	1	9907-		●
1	03.609 PIPE; EXH 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (E)	8-97224-010-0	01	1	9907-		●
1	03.609 PIPE; EXH 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) M/T MUA 5 SPEED(RMN) ISRAEL EQUIPMENT(7LX) (A)	8-97223-861-0	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) M/T MUA 5 SPEED(RMN) (A)	8-97223-861-0	01	1	0108-		●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97070-913-0	01	1	9804-9805		●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD) (F)	8-97210-468-0	01	1	9806-9906		●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD) (G)	8-97216-486-1	01	1	9907-		●
1	03.609 PIPE; EXH 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-97070-913-0	01	1	9806-9906		●
1	03.609 PIPE; EXH 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-97216-484-0	01	1	9907-		●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9804-	●	●
3	03.609 PIPE; EXH,CENTER	8-97188-394-0	01	1	9804-9906	●
3	03.609 PIPE; EXH,CENTER	8-97216-475-0	01	1	9907-0107	●
3	03.609 PIPE; EXH,CENTER EXC. CHARGE AIR COOLER<6PL>	8-97216-475-0	01	1	0108-	●
12	03.701 SILENCER ASM; EXH	8-97115-328-0	01	1	9804-0107	●
12	03.701 SILENCER ASM; EXH TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX)	8-97115-328-0	01	1	0108-	●
12	03.701 SILENCER ASM; EXH CHARGE AIR COOLER<6PL> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX)	8-97310-266-0	01	1	0108-	●
12	03.701 SILENCER ASM; EXH	8-97070-883-4	01	1	9804-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-0	02	1	0101-0107	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. ISRAEL EQUIPMENT(7LX) 03.611 (A) ID=55	8-97093-574-0	02	1	0101-0107		●
14	03.704 GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.611 (A) ID=55	8-97093-574-1	02	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CHARGE AIR COOLER<6PL> 03.611 (A) ID=55	8-97093-574-1	02	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9804-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-0	02	1	9804-0012	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ISRAEL EQUIPMENT(7LX) 03.611 (A) ID=55	8-97093-574-0	01	1	0101-0107		●
14	03.704 GASKET; SILENCER TO EXH PIPE CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> 03.611 (A) ID=55	8-97093-574-1	01	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-1	01	1	0108-		●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	9804-	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9804-9906	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) A/T AISIN(RMD) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-	●	●
45	03.613 BOLT; BRKT 4X4(TFS***) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9804-9805	●	●
45	03.613 BOLT; BRKT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9806-9906	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.704 (A)	8-97080-694-0	01	1	9804-9805	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.704 (A)	8-97080-694-0	01	1	9806-9906	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.706 (A)	8-97120-442-0	01	1	9907-0009	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.706 (A)	8-97120-442-0	01	1	0010-	●
77	03.613 RUBBER; CUSHION,BRKT 4X2(TFB***) A/T AISIN(RMD) 03.706 (A)	8-97120-442-0	01	1	0010-		●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 03.706 (A)	8-97120-442-0	01	1	0010-		●
77	03.613 RUBBER; CUSHION,BRKT A/T AISIN(RMD) 03.706 (B) T=30	8-94468-696-0	01	1	9806-0009		●
77	03.613 RUBBER; CUSHION,BRKT 4X4 CREW CAB(TFSW) A/T AISIN(RMD) 03.706 (B) T=30	8-94468-696-0	01	1	0010-		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	01	1	9804-9805	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) TURBOCHARGER<K51> ID=55	8-97093-574-0	01	1	9807-9906	●
84	03.611 GASKET; EXH PIPE 4X4 CREW CAB(TFSW) A/T AISIN(RMD) ID=55	8-97093-574-0	01	1	9807-9906		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	02	1	9804-9805		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	01	1	9806-9806	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) M/T MUA 5 SPEED(RMN) ID=55	8-97093-574-0	01	1	9806-9806		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) M/T MUA 5 SPEED(RMN) ID=55	8-97093-574-0	02	1	9807-9906		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-1	01	1	9907-	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-1	01	1	9907-		●
126	03.705 PIPE; EXH,RR	8-97022-339-1	01	1	9804-9906	●
126	03.705 PIPE; EXH,RR	8-97216-477-0	01	1	9907-0107	●
126	03.705 PIPE; EXH,RR EXC. CHARGE AIR COOLER<6PL>	8-97216-477-0	01	1	0108-	●
126	03.705 PIPE; EXH,RR CHARGE AIR COOLER<6PL>	8-97307-314-0	01	1	0108-	●
126	03.705 PIPE; EXH,RR	8-97070-901-0	01	1	9804-		●
136	03.616 BRACKET; MTG,EXH PIPE 03.706	8-94235-437-0	01	1	9804-9906	●
142	03.611 BOLT; MTG BRKT M10X20 FLANGE	0-28681-020-0	01	1	9804-9906	●
168	03.613 BRACKET; EXH PIPE,FRT 4X4(TFS***) (A)	8-97043-727-1	01	1	9804-9805	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (A)	8-97043-727-1	01	1	9806-9906	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4X2(TFB***) (B)	8-97105-047-0	01	1	9804-9906		●
168	03.613 BRACKET; EXH PIPE,FRT 4X4(TFS***) A/T AISIN(RMD) (C)	8-94478-688-1	01	1	9806-9906		●
169	03.706 RING; DAMPER,EXH PIPE (D) T=16	8-94472-679-0	02	1	9804-9906	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	9911-0009	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MUA 5 SPEED(RMN) (A) T=38	8-94207-180-0	02	1	9911-0009		●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (A) T=38	8-94207-180-0	02	1	0010-	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	9804-0107	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	0108-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9804-9906	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MUA 5 SPEED(RMN) (B) T=28 D=55	8-97023-183-0	02	1	9907-9910		●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9911-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9911-	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	9804-9906	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	02	1	9804-		●
175	03.685 CONVERTER; CATALYST	8-97185-795-0	01	1	9804-0107	●
175	03.685 CONVERTER; CATALYST EXC. CHARGE AIR COOLER<6PL>	8-97185-795-0	01	1	0108-	●
175	03.685 CONVERTER; CATALYST CHARGE AIR COOLER<6PL> ENG QUICK WARM UP SYSTEM<6JZ>	8-97305-386-0	01	1	0108-	●
175	03.685 CONVERTER; CATALYST CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97308-029-0	01	1	0108-	●
180	03.708 BOLT; CONV TO PIPE 03.613 M10X40 FLANGE	0-28681-040-0	08	1	9804-0107	●
180	03.708 BOLT; CONV TO PIPE EXC. CHARGE AIR COOLER<6PL> 03.613 M10X40 FLANGE	0-28681-040-0	08	1	0108-	●
180	03.708 BOLT; CONV TO PIPE CHARGE AIR COOLER<6PL> 03.613 M10X40 FLANGE	0-28681-040-0	04	1	0108-	●
241	03.611 BRACKET; EXH PIPE TO TRANS 03.613	8-97037-539-0	01	1	9804-	●	●
242	03.613 BOLT; PIPE BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9804-	●	●
243	03.613 NUT; PIPE BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9804-0109	●	●
243	03.613 NUT; PIPE BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0110-	●	●
259	03.613 NUT; CONV MTG M10	8-94201-308-1	08	1	9804-0107	●
259	03.613 NUT; CONV MTG CHARGE AIR COOLER<6PL> M10	8-94201-308-1	04	1	0108-	●
259	03.613 NUT; CONV MTG EXC. CHARGE AIR COOLER<6PL> M10	8-94201-308-1	08	1	0108-	●
505	03.611 GASKET; CONV TO EXH PIPE ID=71	8-94324-194-0	02	1	9804-0107	●
505	03.611 GASKET; CONV TO EXH PIPE CHARGE AIR COOLER<6PL> ID=71	8-94324-194-0	01	1	0108-	●
505	03.611 GASKET; CONV TO EXH PIPE EXC. CHARGE AIR COOLER<6PL> ID=71	8-94324-194-0	02	1	0108-	●

169 168 169 2 169 242 1 241 169 52 43 324 243 36 168 77 169 242 45 241 2 84 169 84 1 32 1 243 329 36 169 126 36 169 340 335 41 14 77 169 169 14 12 169 41 340 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97132-204-0	01	1	9804-9906	●
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97216-472-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. CHARGE AIR COOLER<6PL> (A)	8-97216-472-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97134-960-0	01	1	9804-9906	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97216-474-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> (C)	8-97216-474-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97218-322-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> (B)	8-97218-322-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (J)	8-97307-312-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (I)	8-97307-383-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97037-890-1	01	1	9804-9906	●	●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) (B)	8-97037-890-1	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> (B)	8-97037-890-1	01	1	0108-		●
1	03.609 PIPE; EXH 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (B)	8-97037-890-1	01	1	0108-		●
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97070-892-1	01	1	9804-9906		●
1	03.609 PIPE; EXH 4X2(TFB***) M/T MUA 5 SPEED(RMN) EXC. ISRAEL EQUIPMENT(7LX) (A)	8-97216-479-0	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X2(TFB***) CHARGE AIR COOLER<6PL> (A)	8-97307-310-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (D)	8-97224-009-0	01	1	9907-		●
1	03.609 PIPE; EXH 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (E)	8-97224-010-0	01	1	9907-		●
1	03.609 PIPE; EXH 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) M/T MUA 5 SPEED(RMN) ISRAEL EQUIPMENT(7LX) (A)	8-97223-861-0	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) M/T MUA 5 SPEED(RMN) (A)	8-97223-861-0	01	1	0108-		●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97070-913-0	01	1	9804-9805		●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD) (F)	8-97210-468-0	01	1	9806-9906		●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD) (G)	8-97216-486-1	01	1	9907-		●
1	03.609 PIPE; EXH 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-97070-913-0	01	1	9806-9906		●
1	03.609 PIPE; EXH 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-97216-484-0	01	1	9907-		●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9804-	●	●
12	03.701 SILENCER ASM; EXH	8-97115-328-0	01	1	9804-0107	●
12	03.701 SILENCER ASM; EXH TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX)	8-97115-328-0	01	1	0108-	●
12	03.701 SILENCER ASM; EXH CHARGE AIR COOLER<6PL> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX)	8-97310-266-0	01	1	0108-	●
12	03.701 SILENCER ASM; EXH	8-97070-883-4	01	1	9804-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-0	02	1	0101-0107	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. ISRAEL EQUIPMENT(7LX) 03.611 (A) ID=55	8-97093-574-0	02	1	0101-0107		●
14	03.704 GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.611 (A) ID=55	8-97093-574-1	02	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CHARGE AIR COOLER<6PL> 03.611 (A) ID=55	8-97093-574-1	02	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9804-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-0	02	1	9804-0012	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ISRAEL EQUIPMENT(7LX) 03.611 (A) ID=55	8-97093-574-0	01	1	0101-0107		●
14	03.704 GASKET; SILENCER TO EXH PIPE CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> 03.611 (A) ID=55	8-97093-574-1	01	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-1	01	1	0108-		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***)	8-97070-888-1	01	1	9804-9805		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97070-888-1	01	1	9806-9906		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) M/T MUA 5 SPEED(RMN) ISRAEL EQUIPMENT(7LX)	8-97223-862-0	01	1	9907-0107		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97223-862-0	01	1	0108-		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) A/T AISIN(RMD)	8-97210-469-0	01	1	9806-9806		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) A/T AISIN(RMD)	8-97212-332-0	01	1	9807-9906		●
32	03.609 PIPE; EXH,FRT 4X4 CREW CAB(TFSW) A/T AISIN(RMD) ISRAEL EQUIPMENT(7LX)	8-97223-863-0	01	1	9907-0107		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) A/T AISIN(RMD)	8-97223-863-0	01	1	0108-		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***) M/T MUA 5 SPEED(RMN) EXC. ISRAEL EQUIPMENT(7LX)	8-97216-485-0	01	1	9907-0107		●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	9804-	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9804-9906	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) A/T AISIN(RMD) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-	●	●
43	03.611 CLAMP; EXH PIPE 4X2(TFB***)	8-94473-418-0	01	1	9804-9906		●
45	03.613 BOLT; BRKT 4X4(TFS***) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9804-9805	●	●
45	03.613 BOLT; BRKT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9806-9906	●	●
52	03.613 NUT; BRKT 4X2(TFB***) 01.540 M8 FLANGE	0-91150-208-0	01	1	9804-9906		●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.704 (A)	8-97080-694-0	01	1	9804-9805	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.704 (A)	8-97080-694-0	01	1	9806-9906	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.706 (A)	8-97120-442-0	01	1	9907-0009	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.706 (A)	8-97120-442-0	01	1	0010-	●
77	03.613 RUBBER; CUSHION,BRKT 4X2(TFB***) A/T AISIN(RMD) 03.706 (A)	8-97120-442-0	01	1	0010-		●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 03.706 (A)	8-97120-442-0	01	1	0010-		●
77	03.613 RUBBER; CUSHION,BRKT A/T AISIN(RMD) 03.706 (B) T=30	8-94468-696-0	01	1	9806-0009		●
77	03.613 RUBBER; CUSHION,BRKT 4X4 CREW CAB(TFSW) A/T AISIN(RMD) 03.706 (B) T=30	8-94468-696-0	01	1	0010-		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	01	1	9804-9805	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) TURBOCHARGER<K51> ID=55	8-97093-574-0	01	1	9807-9906	●
84	03.611 GASKET; EXH PIPE 4X4 CREW CAB(TFSW) A/T AISIN(RMD) ID=55	8-97093-574-0	01	1	9807-9906		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	02	1	9804-9805		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	01	1	9806-9806	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) M/T MUA 5 SPEED(RMN) ID=55	8-97093-574-0	01	1	9806-9806		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) M/T MUA 5 SPEED(RMN) ID=55	8-97093-574-0	02	1	9807-9906		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-1	01	1	9907-	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-1	01	1	9907-		●
126	03.705 PIPE; EXH,RR	8-97022-339-1	01	1	9804-9906	●
126	03.705 PIPE; EXH,RR	8-97216-477-0	01	1	9907-0107	●
126	03.705 PIPE; EXH,RR EXC. CHARGE AIR COOLER<6PL>	8-97216-477-0	01	1	0108-	●
126	03.705 PIPE; EXH,RR CHARGE AIR COOLER<6PL>	8-97307-314-0	01	1	0108-	●
126	03.705 PIPE; EXH,RR	8-97070-901-0	01	1	9804-		●
168	03.613 BRACKET; EXH PIPE,FRT 4X4(TFS***) (A)	8-97043-727-1	01	1	9804-9805	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (A)	8-97043-727-1	01	1	9806-9906	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4X2(TFB***) (B)	8-97105-047-0	01	1	9804-9906		●
168	03.613 BRACKET; EXH PIPE,FRT 4X4(TFS***) A/T AISIN(RMD) (C)	8-94478-688-1	01	1	9806-9906		●
169	03.706 RING; DAMPER,EXH PIPE (D) T=16	8-94472-679-0	02	1	9804-9906	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	9911-0009	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MUA 5 SPEED(RMN) (A) T=38	8-94207-180-0	02	1	9911-0009		●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (A) T=38	8-94207-180-0	02	1	0010-	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	9804-0107	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	0108-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9804-9906	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MUA 5 SPEED(RMN) (B) T=28 D=55	8-97023-183-0	02	1	9907-9910		●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9911-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9911-	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	9804-9906	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	02	1	9804-		●
241	03.611 BRACKET; EXH PIPE TO TRANS 03.613	8-97037-539-0	01	1	9804-	●	●
242	03.613 BOLT; PIPE BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9804-	●	●
243	03.613 NUT; PIPE BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9804-0109	●	●
243	03.613 NUT; PIPE BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0110-	●	●
324	03.613 BOLT; BRKT 4X2(TFB***) 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9804-9906		●
329	03.613 NUT; EXH PIPE TO PIPE 4X4(TFS***) 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9804-		●
340	03.706 NUT; RUBBER,SUPPORT 01.540 M8 FLANGE	0-91150-208-0	04	1	9804-0109		●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE	0-91150-108-0	04	1	0110-		●

169 77 77 2 242 241 1 169 1 243 18 36 329 169 126 169 340 335 41 14 169 14 12 169 41 340 77 169 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97132-204-0	01	1	9804-9906	●
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97216-472-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. CHARGE AIR COOLER<6PL> (A)	8-97216-472-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97134-960-0	01	1	9804-9906	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97216-474-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> (C)	8-97216-474-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97218-322-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> (B)	8-97218-322-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (J)	8-97307-312-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (I)	8-97307-383-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97037-890-1	01	1	9804-9906	●	●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) (B)	8-97037-890-1	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> (B)	8-97037-890-1	01	1	0108-		●
1	03.609 PIPE; EXH 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (B)	8-97037-890-1	01	1	0108-		●
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97070-892-1	01	1	9804-9906		●
1	03.609 PIPE; EXH 4X2(TFB***) M/T MUA 5 SPEED(RMN) EXC. ISRAEL EQUIPMENT(7LX) (A)	8-97216-479-0	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X2(TFB***) CHARGE AIR COOLER<6PL> (A)	8-97307-310-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (D)	8-97224-009-0	01	1	9907-		●
1	03.609 PIPE; EXH 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (E)	8-97224-010-0	01	1	9907-		●
1	03.609 PIPE; EXH 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) M/T MUA 5 SPEED(RMN) ISRAEL EQUIPMENT(7LX) (A)	8-97223-861-0	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) M/T MUA 5 SPEED(RMN) (A)	8-97223-861-0	01	1	0108-		●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97070-913-0	01	1	9804-9805		●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD) (F)	8-97210-468-0	01	1	9806-9906		●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD) (G)	8-97216-486-1	01	1	9907-		●
1	03.609 PIPE; EXH 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-97070-913-0	01	1	9806-9906		●
1	03.609 PIPE; EXH 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-97216-484-0	01	1	9907-		●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9804-	●	●
12	03.701 SILENCER ASM; EXH	8-97115-328-0	01	1	9804-0107	●
12	03.701 SILENCER ASM; EXH TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX)	8-97115-328-0	01	1	0108-	●
12	03.701 SILENCER ASM; EXH CHARGE AIR COOLER<6PL> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX)	8-97310-266-0	01	1	0108-	●
12	03.701 SILENCER ASM; EXH	8-97070-883-4	01	1	9804-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-0	02	1	0101-0107	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. ISRAEL EQUIPMENT(7LX) 03.611 (A) ID=55	8-97093-574-0	02	1	0101-0107		●
14	03.704 GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.611 (A) ID=55	8-97093-574-1	02	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CHARGE AIR COOLER<6PL> 03.611 (A) ID=55	8-97093-574-1	02	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9804-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-0	02	1	9804-0012	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ISRAEL EQUIPMENT(7LX) 03.611 (A) ID=55	8-97093-574-0	01	1	0101-0107		●
14	03.704 GASKET; SILENCER TO EXH PIPE CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> 03.611 (A) ID=55	8-97093-574-1	01	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-1	01	1	0108-		●
18	03.611 GASKET; EXH PIPE TO PIPE A/T AISIN(RMD) ID=55	8-97093-574-1	01	1	9806-		●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	9804-	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9804-9906	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) A/T AISIN(RMD) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.704 (A)	8-97080-694-0	01	1	9804-9805	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.704 (A)	8-97080-694-0	01	1	9806-9906	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.706 (A)	8-97120-442-0	01	1	9907-0009	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.706 (A)	8-97120-442-0	01	1	0010-	●
77	03.613 RUBBER; CUSHION,BRKT 4X2(TFB***) A/T AISIN(RMD) 03.706 (A)	8-97120-442-0	01	1	0010-		●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 03.706 (A)	8-97120-442-0	01	1	0010-		●
77	03.613 RUBBER; CUSHION,BRKT A/T AISIN(RMD) 03.706 (B) T=30	8-94468-696-0	01	1	9806-0009		●
77	03.613 RUBBER; CUSHION,BRKT 4X4 CREW CAB(TFSW) A/T AISIN(RMD) 03.706 (B) T=30	8-94468-696-0	01	1	0010-		●
126	03.705 PIPE; EXH,RR	8-97022-339-1	01	1	9804-9906	●
126	03.705 PIPE; EXH,RR	8-97216-477-0	01	1	9907-0107	●
126	03.705 PIPE; EXH,RR EXC. CHARGE AIR COOLER<6PL>	8-97216-477-0	01	1	0108-	●
126	03.705 PIPE; EXH,RR CHARGE AIR COOLER<6PL>	8-97307-314-0	01	1	0108-	●
126	03.705 PIPE; EXH,RR	8-97070-901-0	01	1	9804-		●
169	03.706 RING; DAMPER,EXH PIPE (D) T=16	8-94472-679-0	02	1	9804-9906	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	9911-0009	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MUA 5 SPEED(RMN) (A) T=38	8-94207-180-0	02	1	9911-0009		●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (A) T=38	8-94207-180-0	02	1	0010-	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	9804-0107	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	0108-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9804-9906	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MUA 5 SPEED(RMN) (B) T=28 D=55	8-97023-183-0	02	1	9907-9910		●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9911-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9911-	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	9804-9906	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	02	1	9804-		●
241	03.611 BRACKET; EXH PIPE TO TRANS 03.613	8-97037-539-0	01	1	9804-	●	●
242	03.613 BOLT; PIPE BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9804-	●	●
243	03.613 NUT; PIPE BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9804-0109	●	●
243	03.613 NUT; PIPE BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0110-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4X4(TFS***) 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9804-		●
340	03.706 NUT; RUBBER,SUPPORT 01.540 M8 FLANGE	0-91150-208-0	04	1	9804-0109		●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE	0-91150-108-0	04	1	0110-		●

175 77 242 505 241 169 243 259 2 1 36 84 180 169 14 169 126 41 41 12 14 169 169 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97132-204-0	01	1	9804-9906	●
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97216-472-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. CHARGE AIR COOLER<6PL> (A)	8-97216-472-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97134-960-0	01	1	9804-9906	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97216-474-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> (C)	8-97216-474-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97218-322-0	01	1	9907-0107	●
1	03.609 PIPE; EXH 4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> (B)	8-97218-322-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (J)	8-97307-312-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (I)	8-97307-383-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97037-890-1	01	1	9804-9906	●	●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) (B)	8-97037-890-1	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> (B)	8-97037-890-1	01	1	0108-		●
1	03.609 PIPE; EXH 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (B)	8-97037-890-1	01	1	0108-		●
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97070-892-1	01	1	9804-9906		●
1	03.609 PIPE; EXH 4X2(TFB***) M/T MUA 5 SPEED(RMN) EXC. ISRAEL EQUIPMENT(7LX) (A)	8-97216-479-0	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X2(TFB***) CHARGE AIR COOLER<6PL> (A)	8-97307-310-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (D)	8-97224-009-0	01	1	9907-		●
1	03.609 PIPE; EXH 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (E)	8-97224-010-0	01	1	9907-		●
1	03.609 PIPE; EXH 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) M/T MUA 5 SPEED(RMN) ISRAEL EQUIPMENT(7LX) (A)	8-97223-861-0	01	1	9907-0107		●
1	03.609 PIPE; EXH 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) M/T MUA 5 SPEED(RMN) (A)	8-97223-861-0	01	1	0108-		●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97070-913-0	01	1	9804-9805		●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD) (F)	8-97210-468-0	01	1	9806-9906		●
1	03.609 PIPE; EXH 4X4(TFS***) A/T AISIN(RMD) (G)	8-97216-486-1	01	1	9907-		●
1	03.609 PIPE; EXH 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-97070-913-0	01	1	9806-9906		●
1	03.609 PIPE; EXH 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-97216-484-0	01	1	9907-		●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9804-	●	●
12	03.701 SILENCER ASM; EXH	8-97115-328-0	01	1	9804-0107	●
12	03.701 SILENCER ASM; EXH TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX)	8-97115-328-0	01	1	0108-	●
12	03.701 SILENCER ASM; EXH CHARGE AIR COOLER<6PL> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX)	8-97310-266-0	01	1	0108-	●
12	03.701 SILENCER ASM; EXH	8-97070-883-4	01	1	9804-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-0	02	1	0101-0107	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. ISRAEL EQUIPMENT(7LX) 03.611 (A) ID=55	8-97093-574-0	02	1	0101-0107		●
14	03.704 GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.611 (A) ID=55	8-97093-574-1	02	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CHARGE AIR COOLER<6PL> 03.611 (A) ID=55	8-97093-574-1	02	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9804-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-0	02	1	9804-0012	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ISRAEL EQUIPMENT(7LX) 03.611 (A) ID=55	8-97093-574-0	01	1	0101-0107		●
14	03.704 GASKET; SILENCER TO EXH PIPE CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> 03.611 (A) ID=55	8-97093-574-1	01	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-1	01	1	0108-		●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	9804-	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9804-9906	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) A/T AISIN(RMD) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9907-		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.704 (A)	8-97080-694-0	01	1	9804-9805	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.704 (A)	8-97080-694-0	01	1	9806-9906	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.706 (A)	8-97120-442-0	01	1	9907-0009	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.706 (A)	8-97120-442-0	01	1	0010-	●
77	03.613 RUBBER; CUSHION,BRKT 4X2(TFB***) A/T AISIN(RMD) 03.706 (A)	8-97120-442-0	01	1	0010-		●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 03.706 (A)	8-97120-442-0	01	1	0010-		●
77	03.613 RUBBER; CUSHION,BRKT A/T AISIN(RMD) 03.706 (B) T=30	8-94468-696-0	01	1	9806-0009		●
77	03.613 RUBBER; CUSHION,BRKT 4X4 CREW CAB(TFSW) A/T AISIN(RMD) 03.706 (B) T=30	8-94468-696-0	01	1	0010-		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	01	1	9804-9805	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) TURBOCHARGER<K51> ID=55	8-97093-574-0	01	1	9807-9906	●
84	03.611 GASKET; EXH PIPE 4X4 CREW CAB(TFSW) A/T AISIN(RMD) ID=55	8-97093-574-0	01	1	9807-9906		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	02	1	9804-9805		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	01	1	9806-9806	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) M/T MUA 5 SPEED(RMN) ID=55	8-97093-574-0	01	1	9806-9806		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) M/T MUA 5 SPEED(RMN) ID=55	8-97093-574-0	02	1	9807-9906		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-1	01	1	9907-	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-1	01	1	9907-		●
126	03.705 PIPE; EXH,RR	8-97022-339-1	01	1	9804-9906	●
126	03.705 PIPE; EXH,RR	8-97216-477-0	01	1	9907-0107	●
126	03.705 PIPE; EXH,RR EXC. CHARGE AIR COOLER<6PL>	8-97216-477-0	01	1	0108-	●
126	03.705 PIPE; EXH,RR CHARGE AIR COOLER<6PL>	8-97307-314-0	01	1	0108-	●
126	03.705 PIPE; EXH,RR	8-97070-901-0	01	1	9804-		●
169	03.706 RING; DAMPER,EXH PIPE (D) T=16	8-94472-679-0	02	1	9804-9906	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	9911-0009	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MUA 5 SPEED(RMN) (A) T=38	8-94207-180-0	02	1	9911-0009		●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (A) T=38	8-94207-180-0	02	1	0010-	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	9804-0107	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	0108-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9804-9906	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (B) T=28 D=55	8-97023-183-0	02	1	9907-9910	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) M/T MUA 5 SPEED(RMN) (B) T=28 D=55	8-97023-183-0	02	1	9907-9910		●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9911-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9911-	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	9804-9906	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	02	1	9804-		●
175	03.685 CONVERTER; CATALYST	8-97185-795-0	01	1	9804-0107	●
175	03.685 CONVERTER; CATALYST EXC. CHARGE AIR COOLER<6PL>	8-97185-795-0	01	1	0108-	●
175	03.685 CONVERTER; CATALYST CHARGE AIR COOLER<6PL> ENG QUICK WARM UP SYSTEM<6JZ>	8-97305-386-0	01	1	0108-	●
175	03.685 CONVERTER; CATALYST CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97308-029-0	01	1	0108-	●
180	03.708 BOLT; CONV TO PIPE 03.613 M10X40 FLANGE	0-28681-040-0	08	1	9804-0107	●
180	03.708 BOLT; CONV TO PIPE EXC. CHARGE AIR COOLER<6PL> 03.613 M10X40 FLANGE	0-28681-040-0	08	1	0108-	●
180	03.708 BOLT; CONV TO PIPE CHARGE AIR COOLER<6PL> 03.613 M10X40 FLANGE	0-28681-040-0	04	1	0108-	●
241	03.611 BRACKET; EXH PIPE TO TRANS 03.613	8-97037-539-0	01	1	9804-	●	●
242	03.613 BOLT; PIPE BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9804-	●	●
243	03.613 NUT; PIPE BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9804-0109	●	●
243	03.613 NUT; PIPE BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0110-	●	●
259	03.613 NUT; CONV MTG M10	8-94201-308-1	08	1	9804-0107	●
259	03.613 NUT; CONV MTG CHARGE AIR COOLER<6PL> M10	8-94201-308-1	04	1	0108-	●
259	03.613 NUT; CONV MTG EXC. CHARGE AIR COOLER<6PL> M10	8-94201-308-1	08	1	0108-	●
505	03.611 GASKET; CONV TO EXH PIPE ID=71	8-94324-194-0	02	1	9804-0107	●
505	03.611 GASKET; CONV TO EXH PIPE CHARGE AIR COOLER<6PL> ID=71	8-94324-194-0	01	1	0108-	●
505	03.611 GASKET; CONV TO EXH PIPE EXC. CHARGE AIR COOLER<6PL> ID=71	8-94324-194-0	02	1	0108-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
