Sayfa 1-41 - Isuzu EPC

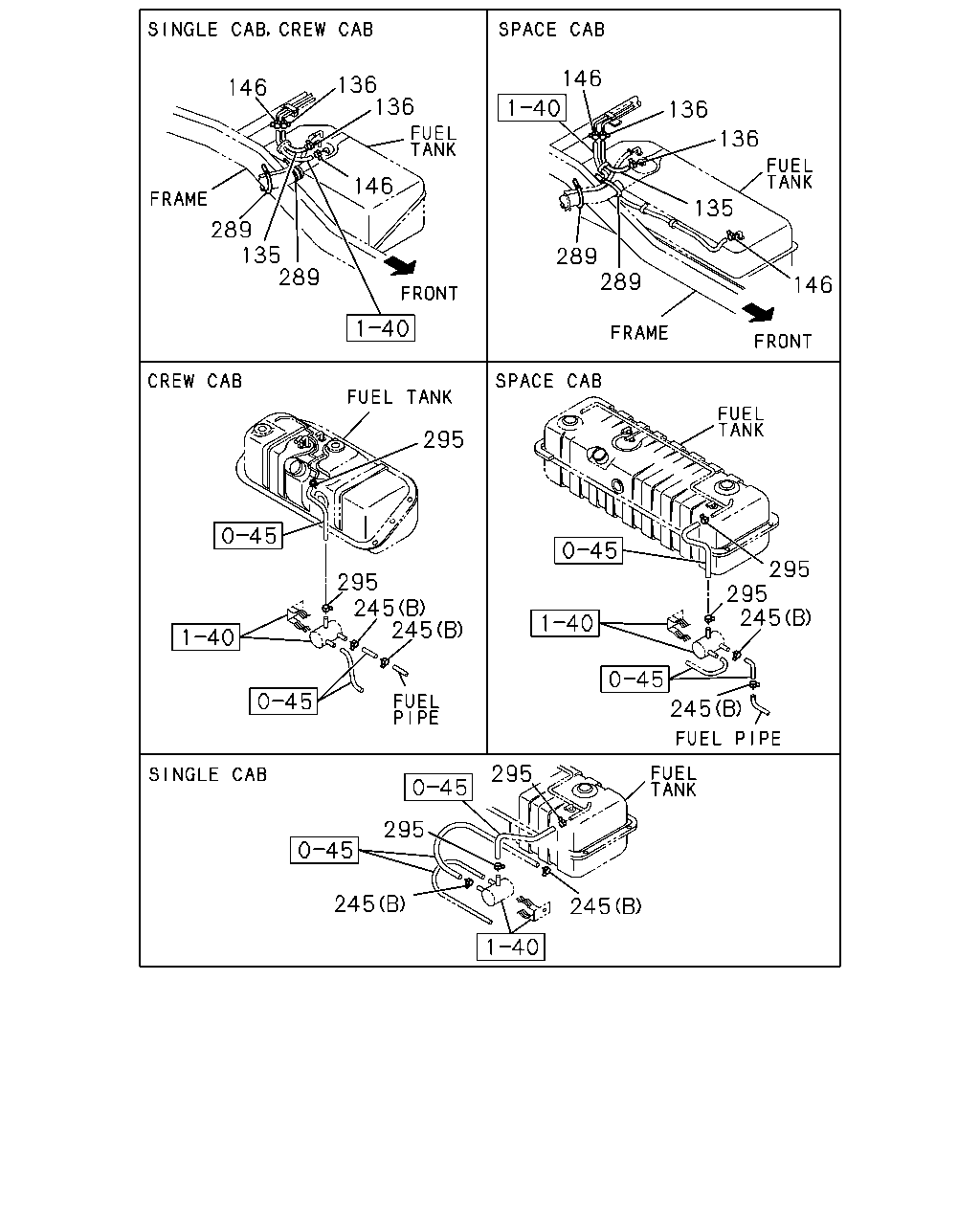

1-41 — FUEL PIPING; CHASSIS (#44618) — 182 parça

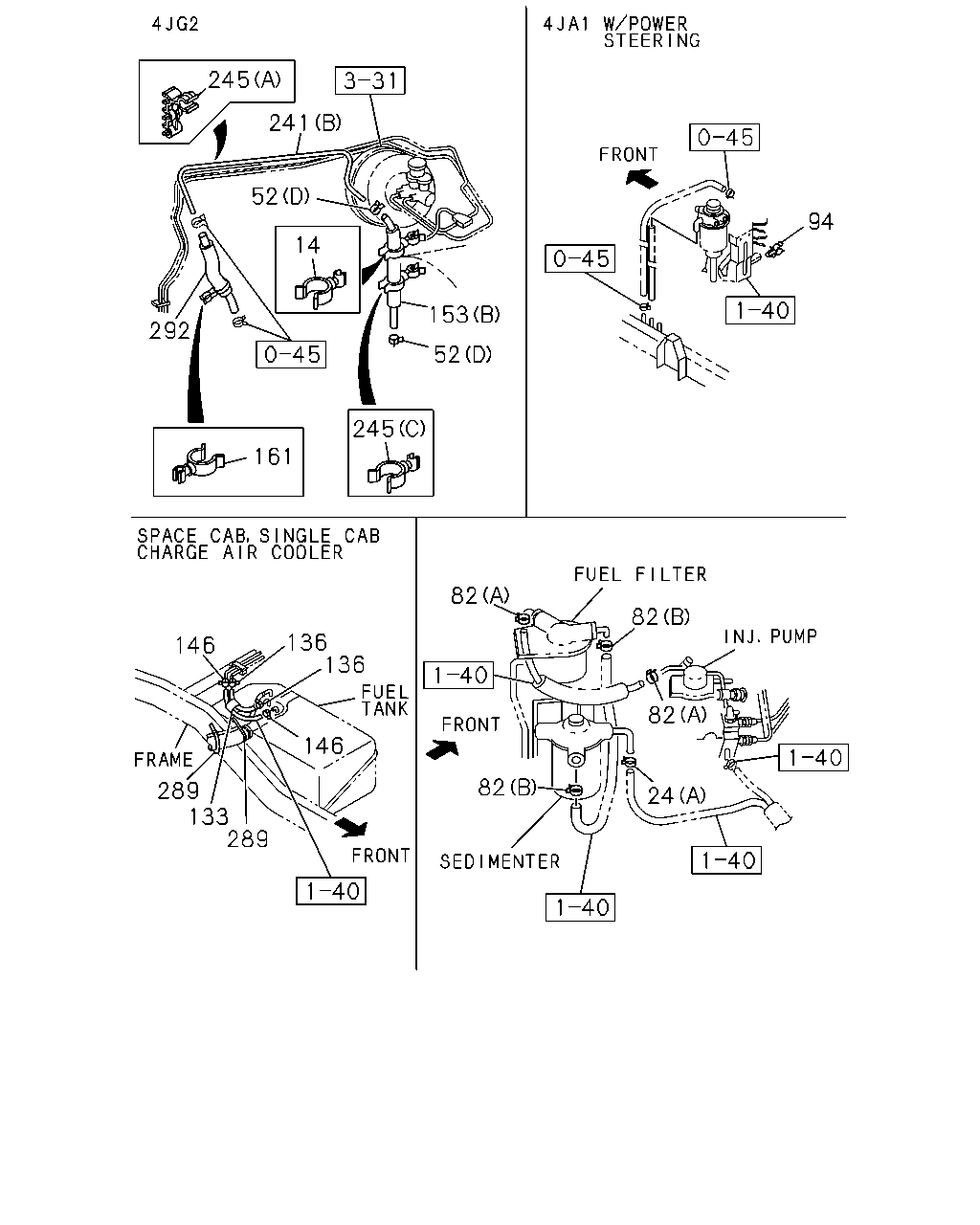

245 241 52 94 14 153 292 52 245 161 82 82 136 136 146 146 82 82 289 133 289 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.162 CLIP; HOSE 04.930 ID=10 & 16.5	8-94360-745-0	01	1	9907-0211	●
24	03.162 CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> 06.672 (B) ID=20.2X2	8-94480-371-0	01	1	0108-		●
24	03.162 CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> 02.483 (B) ID=25.5 & 13	8-97181-208-0	02	1	0108-		●
24	03.162 CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> 03.280 (A) ID=17.1	8-94122-679-0	02	1	0108-		●
24	03.162 CLIP; FUEL HOSE (A) ID=14	8-97173-221-0	02	1	9804-0107	●	●
24	03.162 CLIP; FUEL HOSE EXC. CHARGE AIR COOLER<6PL> (A) ID=14	8-97173-221-0	02	1	0108-	●	●
52	03.145 CLIP; EVAP PIPE CHARGE AIR COOLER<6PL> ENG QUICK WARM UP SYSTEM<6JZ> 04.342 (C) ID=8.3 & 10	8-94176-792-0	01	1	0108-0211		●
52	03.145 CLIP; EVAP PIPE 06.672 (A) ID=17	8-94382-792-1	01	1	9804-0211		●
52	03.145 CLIP; EVAP PIPE (B)	8-94423-042-0	01	1	9804-0211		●
52	03.145 CLIP; EVAP PIPE CHARGE AIR COOLER<6PL> 04.930 (C) ID=10 & 16.5	8-94360-745-0	01	1	0108-0211		●
52	03.145 CLIP; EVAP PIPE 03.163 (C) ID=11	8-97173-219-0	02	1	9804-0211	●
82	03.163 CLIP; FUEL HOSE 01.166 (B) ID=14	8-94238-572-0	02	1	9804-0109	●
82	03.163 CLIP; FUEL HOSE EXC. CHARGE AIR COOLER<6PL> 01.166 (B) ID=14	8-94238-572-0	02	1	0110-		●
82	03.163 CLIP; FUEL HOSE 01.166 (B) ID=14	8-94238-572-0	02	1	0110-	●
82	03.163 CLIP; FUEL HOSE 03.278 (A)	8-94463-508-0	02	1	9804-0012	●
82	03.163 CLIP; FUEL HOSE 03.278 (A)	8-94463-508-0	01	1	0101-	●
94	03.890 CLIP; HOSE,FILTER POWER STEERING<N40> 01.166 ID=21 BLACK	8-94422-733-0	01	1	9804-9906		●
94	03.890 CLIP; HOSE,FILTER 01.166 ID=21 BLACK	8-94422-733-0	01	1	9907-		●
133	03.300 HOSE ASM; FUEL,PIPE TO TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) CHARGE AIR COOLER<6PL>	8-97301-114-0	01	1	0108-0108		●
133	03.300 HOSE ASM; FUEL,PIPE TO TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) CHARGE AIR COOLER<6PL>	8-97323-823-0	01	1	0109-		●
136	03.162 CLIP; HOSE,FUEL TANK CHARGE AIR COOLER<6PL> 03.280 ID=17.1	8-94122-679-0	02	1	0108-		●
136	03.162 CLIP; HOSE,FUEL TANK ID=14	8-97173-221-0	02	1	9804-0107	●	●
136	03.162 CLIP; HOSE,FUEL TANK EXC. CHARGE AIR COOLER<6PL> ID=14	8-97173-221-0	02	1	0108-	●	●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE 03.162 ID=13	8-97173-220-0	02	1	9804-0209	●	●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE ID=11	8-97173-219-0	02	1	0210-	●	●
153	03.162 HOSE; RUBBER,PIPE TO ACL (A) L=780	8-97109-400-1	01	1	9804-0012		●
153	03.162 HOSE; RUBBER,PIPE TO ACL (A)	8-97306-236-0	01	1	0101-0107		●
153	03.162 HOSE; RUBBER,PIPE TO ACL EXC. CHARGE AIR COOLER<6PL> (A)	8-97306-236-0	01	1	0108-0211		●
153	03.162 HOSE; RUBBER,PIPE TO ACL CHARGE AIR COOLER<6PL> (A)	8-97306-891-0	01	1	0108-0211		●
153	03.162 HOSE; RUBBER,PIPE TO ACL (B) L=490	8-97070-778-0	01	1	9804-9906	●
153	03.162 HOSE; RUBBER,PIPE TO ACL (B) L=490	8-97227-954-0	01	1	9907-0211	●
161	03.162 CLIP; HOSE TO PIPE 02.183 ID=16.5 & 4.8	8-94415-087-0	01	1	0101-0211		●
161	03.162 CLIP; HOSE TO PIPE 03.430 ID=6 & 16.5	8-94165-402-0	01	1	9804-0012	●
161	03.162 CLIP; HOSE TO PIPE 02.183 ID=16.5 & 4.8	8-94415-087-0	02	1	0101-0211	●
161	03.162 CLIP; HOSE TO PIPE AIR CONDITIONER MANUAL CONT(C60) 00.855 ID=8.3 & 16.5	8-94169-027-0	01	1	0101-0211	●
161	03.162 CLIP; HOSE TO PIPE AIR CONDITIONER MANUAL CONT(C60) 03.145 ID=25 & 11	8-97068-799-0	01	1	0101-0211	●
241	03.163 PIPE; EVAP 4X2 CREW CAB(TFBW) (A)	8-97122-653-0	01	1	9804-9906	●	●
241	03.163 PIPE; EVAP 4X2 CREW CAB(TFBW) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (A)	8-97122-653-0	01	1	9907-0211	●	●
241	03.163 PIPE; EVAP 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) (A)	8-97122-652-0	01	1	9804-0211	●	●
241	03.163 PIPE; EVAP 4X4 CREW CAB(TFSW) (A)	8-97122-654-0	01	1	9804-0211	●	●
241	03.163 PIPE; EVAP 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) (A)	8-97132-330-0	01	1	9804-0211	●	●
241	03.163 PIPE; EVAP (B)	8-97070-779-1	01	1	9804-0012	●
241	03.163 PIPE; EVAP (B)	8-97306-367-0	01	1	0101-0211	●
241	03.163 PIPE; EVAP 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (A)	8-97224-933-0	01	1	9907-0211	●
245	03.162 CLIP; EVAP HOSE CHARGE AIR COOLER<6PL> AIR CONDITIONER MANUAL CONT(C60) 03.145 (D)	8-94423-042-0	01	1	0108-0211		●
245	03.162 CLIP; EVAP HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	9804-0211	●	●
245	03.162 CLIP; EVAP HOSE 02.183 (C) ID=16.5 & 4.8	8-94415-087-0	01	1	9804-0211	●
245	03.162 CLIP; EVAP HOSE (A) ID=6.4 & 4.8 & 4.8 & 4.8	8-97035-565-2	01	1	9804-0211	●
289	03.008 CLIP; BAND,HOSE CREW CAB(TF*W) EXC. CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	01	1	0108-	●	●
289	03.008 CLIP; BAND,HOSE L=330	5-09709-118-0	02	1	9804-	●	●
289	03.008 CLIP; BAND,HOSE CREW CAB(TF*W) 03.162 L=140	5-09707-031-1	01	1	0101-0107	●	●
292	03.163 HOSE; EVAP,FUEL PIPE	8-97070-777-0	01	1	9804-0012	●
292	03.163 HOSE; EVAP,FUEL PIPE	8-97306-237-0	01	1	0101-0211	●

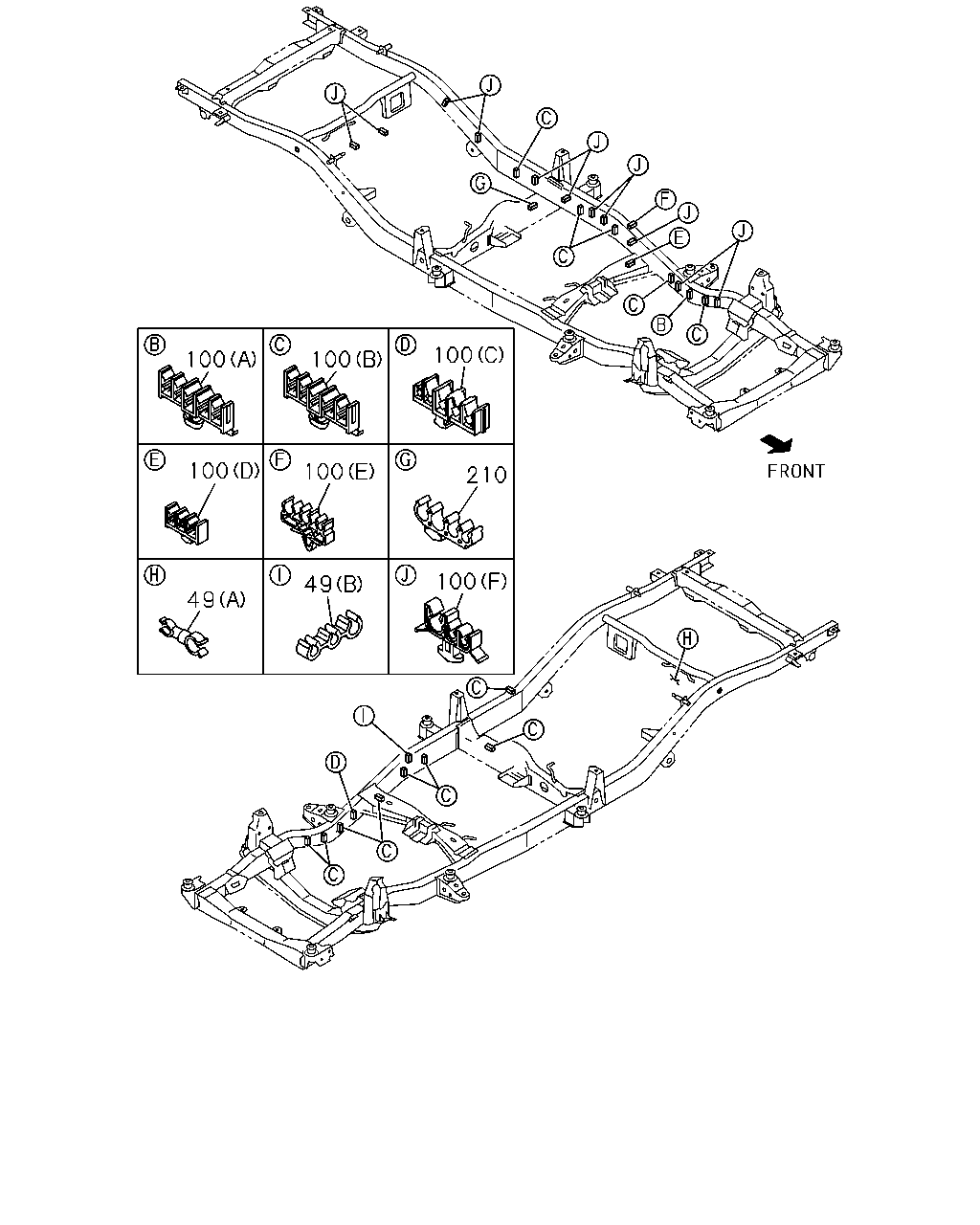

100 100 100 100 100 210 100 49 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	03.162 CLIP; PIPE TO FRAME 03.425 (A) ID=6 & 8.3	8-94167-742-0	01	1	9804-0005	●	●
49	03.162 CLIP; PIPE TO FRAME 03.425 (A) ID=6 & 8.3	8-94167-742-0	02	1	0006-0012	●	●
49	03.162 CLIP; PIPE TO FRAME 03.425 (A) ID=6 & 8.3	8-94167-742-0	01	1	0101-0107	●	●
49	03.162 CLIP; PIPE TO FRAME EXC. CHARGE AIR COOLER<6PL> 03.425 (A) ID=6 & 8.3	8-94167-742-0	01	1	0108-	●	●
49	03.162 CLIP; PIPE TO FRAME 4X2 CREW CAB(TFBW) A/T AISIN(RMD) 04.686 (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9907-	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) (D) YELLOW	8-97061-372-0	01	1	9804-9906	●	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (D) YELLOW	8-97061-372-0	01	1	9907-0107	●	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CHARGE AIR COOLER<6PL> (D)	8-97061-372-0	01	1	0108-0209	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) EXC. CHARGE AIR COOLER<6PL>	8-97061-372-0	01	1	0210-	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (B) WHITE L=7.4	8-94435-550-0	12	1	9804-9906	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) AIR BAG DRIVER(AJ3) (B) WHITE L=7.4	8-94435-550-0	06	1	9907-0012	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) AIR BAG DRIVER(AJ3) (B) WHITE L=7.4	8-94435-550-0	07	1	0101-0107	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) EXC. AIR BAG DRIVER(AJ3) (B) WHITE L=7.4	8-94435-550-0	11	1	9907-0107	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) (B) WHITE L=7.4	8-94435-550-0	13	1	9804-9906	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B) WHITE L=7.4	8-94435-550-0	12	1	9907-0107	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CHARGE AIR COOLER<6PL> (B) L=7.4	8-94435-550-0	12	1	0108-	●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (A) BLACK L=8.9	8-94435-551-1	04	1	9804-9906	●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (E) BLUE	8-97061-373-0	01	1	9907-	●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (C) BLUE L=8.5	8-97014-423-0	01	1	9804-	●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (E) BLUE	8-97061-373-0	01	1	9804-9906	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) AIR BAG DRIVER(AJ3) (A) BLACK L=8.9	8-94435-551-1	05	1	9907-0012	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) AIR BAG DRIVER(AJ3) (A) BLACK L=8.9	8-94435-551-1	04	1	0101-0107	●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) EXC. AIR BAG DRIVER(AJ3) (A) BLACK L=8.9	8-94435-551-1	04	1	0101-0107	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) EXC. AIR BAG DRIVER(AJ3),CHARGE AIR COOLER<6PL> (A) L=8.9	8-94435-551-1	04	1	0108-	●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) AIR BAG DRIVER(AJ3) (A) BLACK L=8.9	8-94435-551-1	07	1	9907-0107	●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) AIR BAG DRIVER(AJ3) EXC. CHARGE AIR COOLER<6PL> (A) L=8.9	8-94435-551-1	07	1	0108-	●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) EXC. AIR BAG DRIVER(AJ3) (A) BLACK L=8.9	8-94435-551-1	04	1	9907-0012	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SPACE CAB(TFSC) (B) WHITE L=7.4	8-94435-550-0	04	1	9804-9906	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SPACE CAB(TFSC) EXC. AIR BAG DRIVER(AJ3) (B) WHITE L=7.4	8-94435-550-0	04	1	9907-0107	●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) CHARGE AIR COOLER<6PL> (F)	8-97245-523-0	10	1	0108-		●
100	03.162 CLIP; FUEL PIPE 4X4 SPACE CAB(TFSC) AIR BAG DRIVER(AJ3) (B) WHITE L=7.4	8-94435-550-0	01	1	9907-0107	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (F)	8-97245-523-0	11	1	0108-0207	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) CHARGE AIR COOLER<6PL> (F)	8-97245-523-0	11	1	0108-0207		●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (F)	8-97245-523-0	12	1	0208-	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) CHARGE AIR COOLER<6PL> (F)	8-97245-523-0	12	1	0208-		●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) (B) WHITE L=7.4	8-94435-550-0	05	1	9804-9906	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) EXC. AIR BAG DRIVER(AJ3) (B) WHITE L=7.4	8-94435-550-0	05	1	9907-0107	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) EXC. AIR BAG DRIVER(AJ3),CHARGE AIR COOLER<6PL> (B) L=7.4	8-94435-550-0	05	1	0108-	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) AIR BAG DRIVER(AJ3) (B) WHITE L=7.4	8-94435-550-0	02	1	9907-0107	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) AIR BAG DRIVER(AJ3) EXC. CHARGE AIR COOLER<6PL> (B) L=7.4	8-94435-550-0	02	1	0108-	●	●
100	03.162 CLIP; FUEL PIPE 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (B) WHITE L=7.4	8-94435-550-0	10	1	9907-	●
210	03.162 CLIP; FEED PIPE BLACK	8-97069-378-0	01	1	9804-0107	●	●
210	03.162 CLIP; FEED PIPE EXC. CHARGE AIR COOLER<6PL>	8-97069-378-0	01	1	0108-	●	●

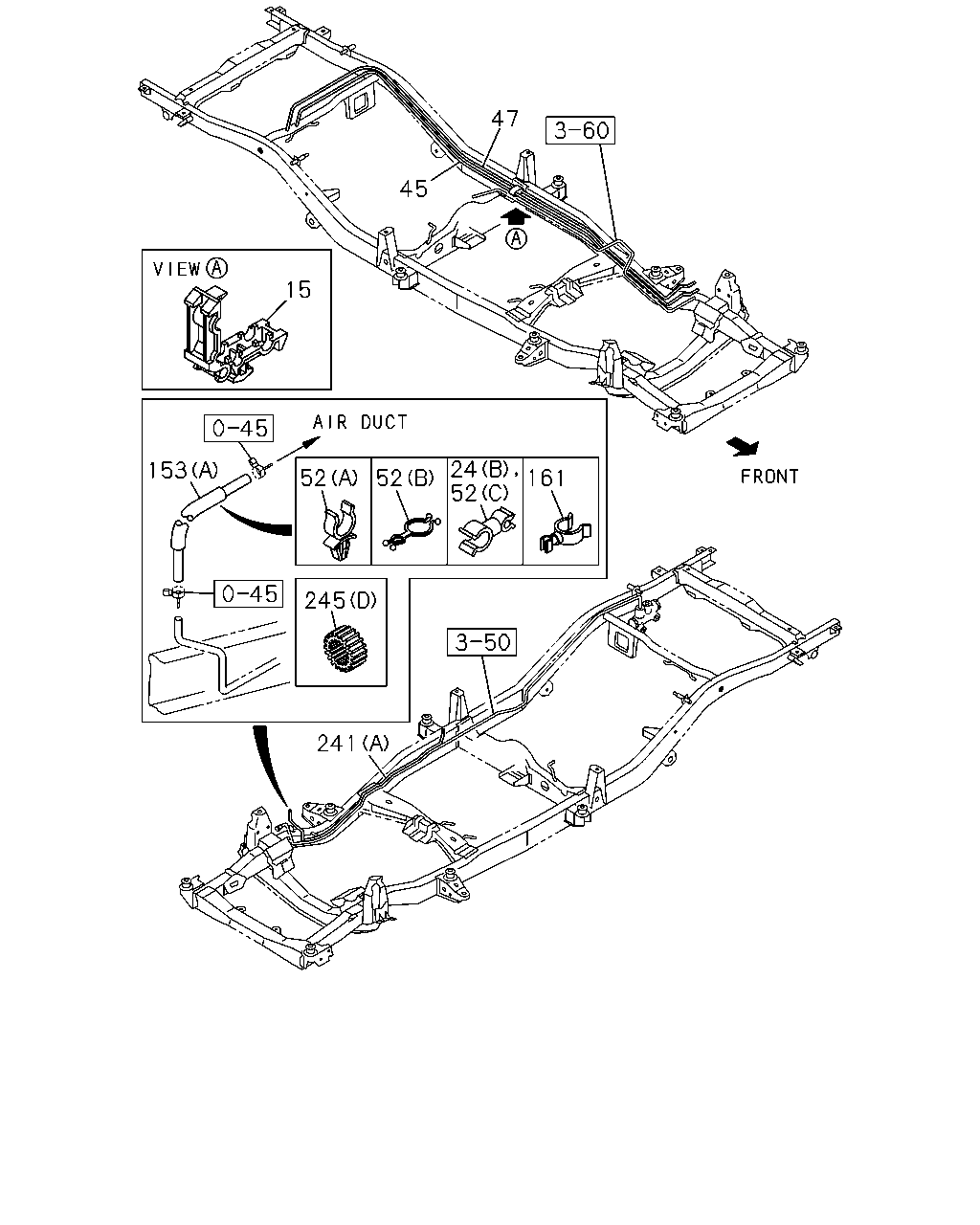

47 45 15 24 52 153 52 52 161 245 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) BLUE	8-94455-380-1	04	1	9804-9906	●	●
15	03.162 CLIP; FUEL PIPE	8-97231-261-0	05	1	9907-0107	●	●
15	03.162 CLIP; FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97231-261-0	05	1	0108-	●	●
15	03.162 CLIP; FUEL PIPE 4X4(TFS***) BLUE	8-94455-380-1	05	1	9804-9906	●	●
24	03.162 CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> 06.672 (B) ID=20.2X2	8-94480-371-0	01	1	0108-		●
24	03.162 CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> 02.483 (B) ID=25.5 & 13	8-97181-208-0	02	1	0108-		●
24	03.162 CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> 03.280 (A) ID=17.1	8-94122-679-0	02	1	0108-		●
24	03.162 CLIP; FUEL HOSE (A) ID=14	8-97173-221-0	02	1	9804-0107	●	●
24	03.162 CLIP; FUEL HOSE EXC. CHARGE AIR COOLER<6PL> (A) ID=14	8-97173-221-0	02	1	0108-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SPACE CAB(TFBC)	8-97301-004-5	01	1	0108-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) CHARGE AIR COOLER<6PL>	8-97301-004-5	01	1	0108-		●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SPACE CAB(TFSC)	8-97301-005-1	01	1	0108-		●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) CHARGE AIR COOLER<6PL>	8-97301-005-1	01	1	0108-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***)	8-97070-758-1	01	1	9804-9811	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***)	8-97210-672-0	01	1	9812-9906	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-97222-236-0	01	1	9907-0107	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CHARGE AIR COOLER<6PL>	8-97222-236-0	01	1	0108-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***)	8-97173-226-0	01	1	9804-9811	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***)	8-97210-673-0	01	1	9812-9904	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***)	8-97219-159-0	01	1	9905-9906	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***)	8-97222-254-0	01	1	9907-0107	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 CREW CAB(TFBW) A/T AISIN(RMD)	8-97222-254-0	01	1	9907-0107	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) EXC. CHARGE AIR COOLER<6PL>	8-97222-254-0	01	1	0108-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 CREW CAB(TFBW) A/T AISIN(RMD)	8-97222-254-0	01	1	0108-	●
47	03.163 PIPE; FUEL,RETURN 4X2 SPACE CAB(TFBC)	8-97301-006-3	01	1	0108-	●	●
47	03.163 PIPE; FUEL,RETURN 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) CHARGE AIR COOLER<6PL>	8-97301-006-3	01	1	0108-		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) CHARGE AIR COOLER<6PL>	8-97301-007-0	01	1	0108-		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***)	8-97070-760-2	01	1	9804-9811	●	●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***)	8-97210-596-0	01	1	9812-9906	●	●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-97222-237-0	01	1	9907-0107	●	●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CHARGE AIR COOLER<6PL>	8-97222-237-1	01	1	0108-	●	●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***)	8-97173-227-0	01	1	9804-9811	●	●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***)	8-97210-671-0	01	1	9812-9904	●	●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***)	8-97219-160-0	01	1	9905-9906	●	●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***)	8-97222-257-0	01	1	9907-0107	●	●
47	03.163 PIPE; FUEL,RETURN 4X2 CREW CAB(TFBW) A/T AISIN(RMD)	8-97222-257-0	01	1	9907-0107	●
47	03.163 PIPE; FUEL,RETURN 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) EXC. CHARGE AIR COOLER<6PL>	8-97222-257-1	01	1	0108-0302	●	●
47	03.163 PIPE; FUEL,RETURN 4X2 CREW CAB(TFBW) A/T AISIN(RMD)	8-97222-257-1	01	1	0108-0302	●
47	03.163 PIPE; FUEL,RETURN 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) EXC. CHARGE AIR COOLER<6PL>	8-97365-524-0	01	1	0303-	●	●
47	03.163 PIPE; FUEL,RETURN 4X2 CREW CAB(TFBW) A/T AISIN(RMD)	8-97365-524-0	01	1	0303-	●
52	03.145 CLIP; EVAP PIPE CHARGE AIR COOLER<6PL> ENG QUICK WARM UP SYSTEM<6JZ> 04.342 (C) ID=8.3 & 10	8-94176-792-0	01	1	0108-0211		●
52	03.145 CLIP; EVAP PIPE 06.672 (A) ID=17	8-94382-792-1	01	1	9804-0211		●
52	03.145 CLIP; EVAP PIPE (B)	8-94423-042-0	01	1	9804-0211		●
52	03.145 CLIP; EVAP PIPE CHARGE AIR COOLER<6PL> 04.930 (C) ID=10 & 16.5	8-94360-745-0	01	1	0108-0211		●
52	03.145 CLIP; EVAP PIPE 03.163 (C) ID=11	8-97173-219-0	02	1	9804-0211	●
153	03.162 HOSE; RUBBER,PIPE TO ACL (A) L=780	8-97109-400-1	01	1	9804-0012		●
153	03.162 HOSE; RUBBER,PIPE TO ACL (A)	8-97306-236-0	01	1	0101-0107		●
153	03.162 HOSE; RUBBER,PIPE TO ACL EXC. CHARGE AIR COOLER<6PL> (A)	8-97306-236-0	01	1	0108-0211		●
153	03.162 HOSE; RUBBER,PIPE TO ACL CHARGE AIR COOLER<6PL> (A)	8-97306-891-0	01	1	0108-0211		●
153	03.162 HOSE; RUBBER,PIPE TO ACL (B) L=490	8-97070-778-0	01	1	9804-9906	●
153	03.162 HOSE; RUBBER,PIPE TO ACL (B) L=490	8-97227-954-0	01	1	9907-0211	●
161	03.162 CLIP; HOSE TO PIPE 02.183 ID=16.5 & 4.8	8-94415-087-0	01	1	0101-0211		●
161	03.162 CLIP; HOSE TO PIPE 03.430 ID=6 & 16.5	8-94165-402-0	01	1	9804-0012	●
161	03.162 CLIP; HOSE TO PIPE 02.183 ID=16.5 & 4.8	8-94415-087-0	02	1	0101-0211	●
161	03.162 CLIP; HOSE TO PIPE AIR CONDITIONER MANUAL CONT(C60) 00.855 ID=8.3 & 16.5	8-94169-027-0	01	1	0101-0211	●
161	03.162 CLIP; HOSE TO PIPE AIR CONDITIONER MANUAL CONT(C60) 03.145 ID=25 & 11	8-97068-799-0	01	1	0101-0211	●
241	03.163 PIPE; EVAP 4X2 CREW CAB(TFBW) (A)	8-97122-653-0	01	1	9804-9906	●	●
241	03.163 PIPE; EVAP 4X2 CREW CAB(TFBW) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (A)	8-97122-653-0	01	1	9907-0211	●	●
241	03.163 PIPE; EVAP 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) (A)	8-97122-652-0	01	1	9804-0211	●	●
241	03.163 PIPE; EVAP 4X4 CREW CAB(TFSW) (A)	8-97122-654-0	01	1	9804-0211	●	●
241	03.163 PIPE; EVAP 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) (A)	8-97132-330-0	01	1	9804-0211	●	●
241	03.163 PIPE; EVAP (B)	8-97070-779-1	01	1	9804-0012	●
241	03.163 PIPE; EVAP (B)	8-97306-367-0	01	1	0101-0211	●
241	03.163 PIPE; EVAP 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (A)	8-97224-933-0	01	1	9907-0211	●
245	03.162 CLIP; EVAP HOSE CHARGE AIR COOLER<6PL> AIR CONDITIONER MANUAL CONT(C60) 03.145 (D)	8-94423-042-0	01	1	0108-0211		●
245	03.162 CLIP; EVAP HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	9804-0211	●	●
245	03.162 CLIP; EVAP HOSE 02.183 (C) ID=16.5 & 4.8	8-94415-087-0	01	1	9804-0211	●
245	03.162 CLIP; EVAP HOSE (A) ID=6.4 & 4.8 & 4.8 & 4.8	8-97035-565-2	01	1	9804-0211	●

146 136 136 146 146 136 136 289 135 289 135 289 289 146 295 295 295 245 295 245 245 245 295 295 245 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
135	03.163 HOSE; FUEL TANK TO FUEL PIPE CREW CAB(TF*W) CHARGE AIR COOLER<6PL> L=400 SERVICED BY L=3000	0-01262-300-0	01	1	0108-		●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE CREW CAB(TF*W) 08.962 L=400 SERVICED BY L=3000	0-01258-300-0	01	1	9804-0107	●	●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE CREW CAB(TF*W) EXC. CHARGE AIR COOLER<6PL> 08.962 L=400 SERVICED BY L=3000	0-01258-300-0	01	1	0108-	●	●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 08.962 L=560 SERVICED BY L=3000	0-01258-300-0	01	1	9804-0107	●	●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL> 08.962 L=560 SERVICED BY L=3000	0-01258-300-0	01	1	0108-	●	●
136	03.162 CLIP; HOSE,FUEL TANK CHARGE AIR COOLER<6PL> 03.280 ID=17.1	8-94122-679-0	02	1	0108-		●
136	03.162 CLIP; HOSE,FUEL TANK ID=14	8-97173-221-0	02	1	9804-0107	●	●
136	03.162 CLIP; HOSE,FUEL TANK EXC. CHARGE AIR COOLER<6PL> ID=14	8-97173-221-0	02	1	0108-	●	●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE 03.162 ID=13	8-97173-220-0	02	1	9804-0209	●	●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE ID=11	8-97173-219-0	02	1	0210-	●	●
245	03.162 CLIP; EVAP HOSE CHARGE AIR COOLER<6PL> AIR CONDITIONER MANUAL CONT(C60) 03.145 (D)	8-94423-042-0	01	1	0108-0211		●
245	03.162 CLIP; EVAP HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	9804-0211	●	●
245	03.162 CLIP; EVAP HOSE 02.183 (C) ID=16.5 & 4.8	8-94415-087-0	01	1	9804-0211	●
245	03.162 CLIP; EVAP HOSE (A) ID=6.4 & 4.8 & 4.8 & 4.8	8-97035-565-2	01	1	9804-0211	●
289	03.008 CLIP; BAND,HOSE CREW CAB(TF*W) EXC. CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	01	1	0108-	●	●
289	03.008 CLIP; BAND,HOSE L=330	5-09709-118-0	02	1	9804-	●	●
289	03.008 CLIP; BAND,HOSE CREW CAB(TF*W) 03.162 L=140	5-09707-031-1	01	1	0101-0107	●	●
295	03.003 CLIP; HOSE,EVAP 03.163 ID=11	8-97173-219-0	02	1	9804-0211	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
