Sayfa 1-40 - Isuzu EPC

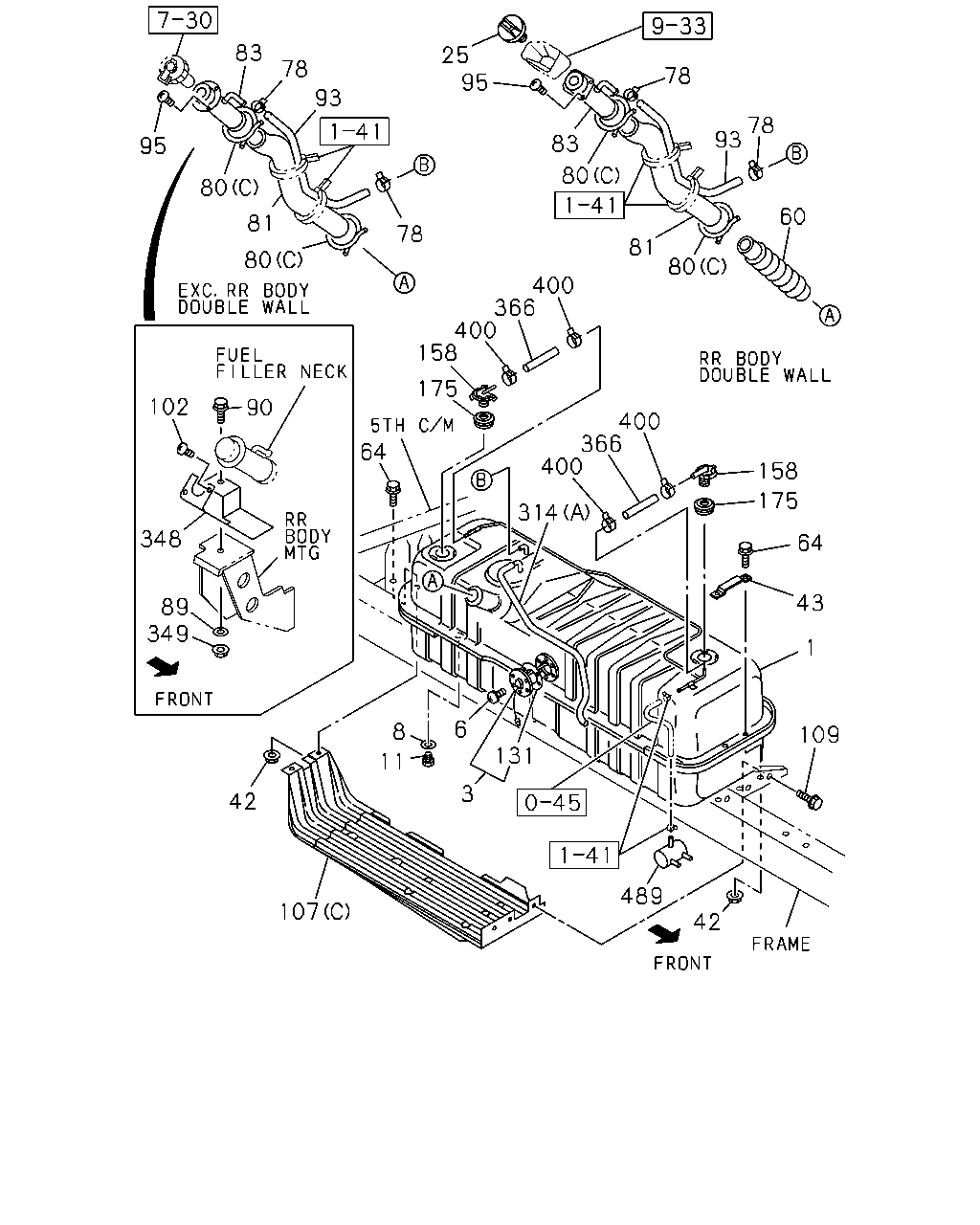

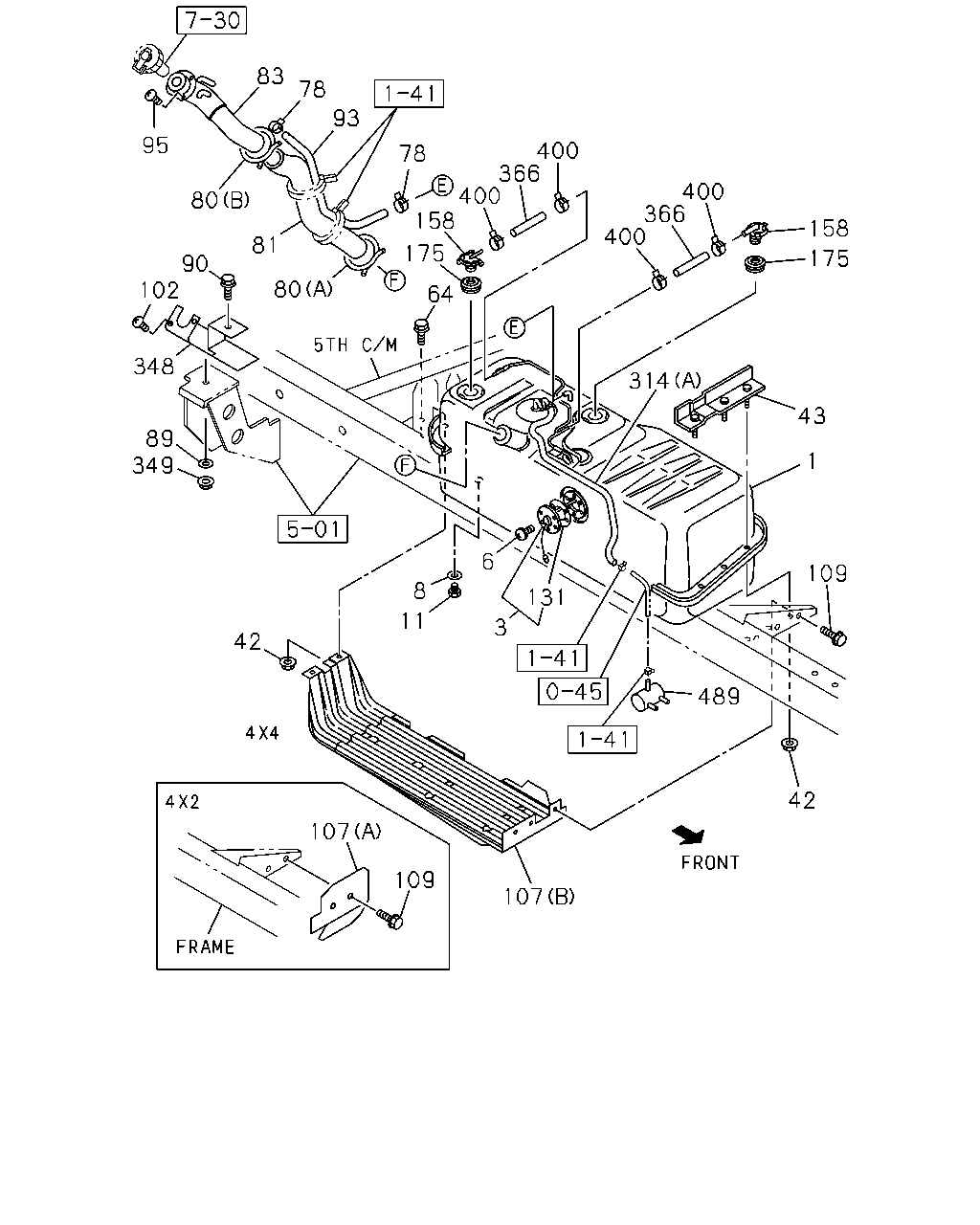

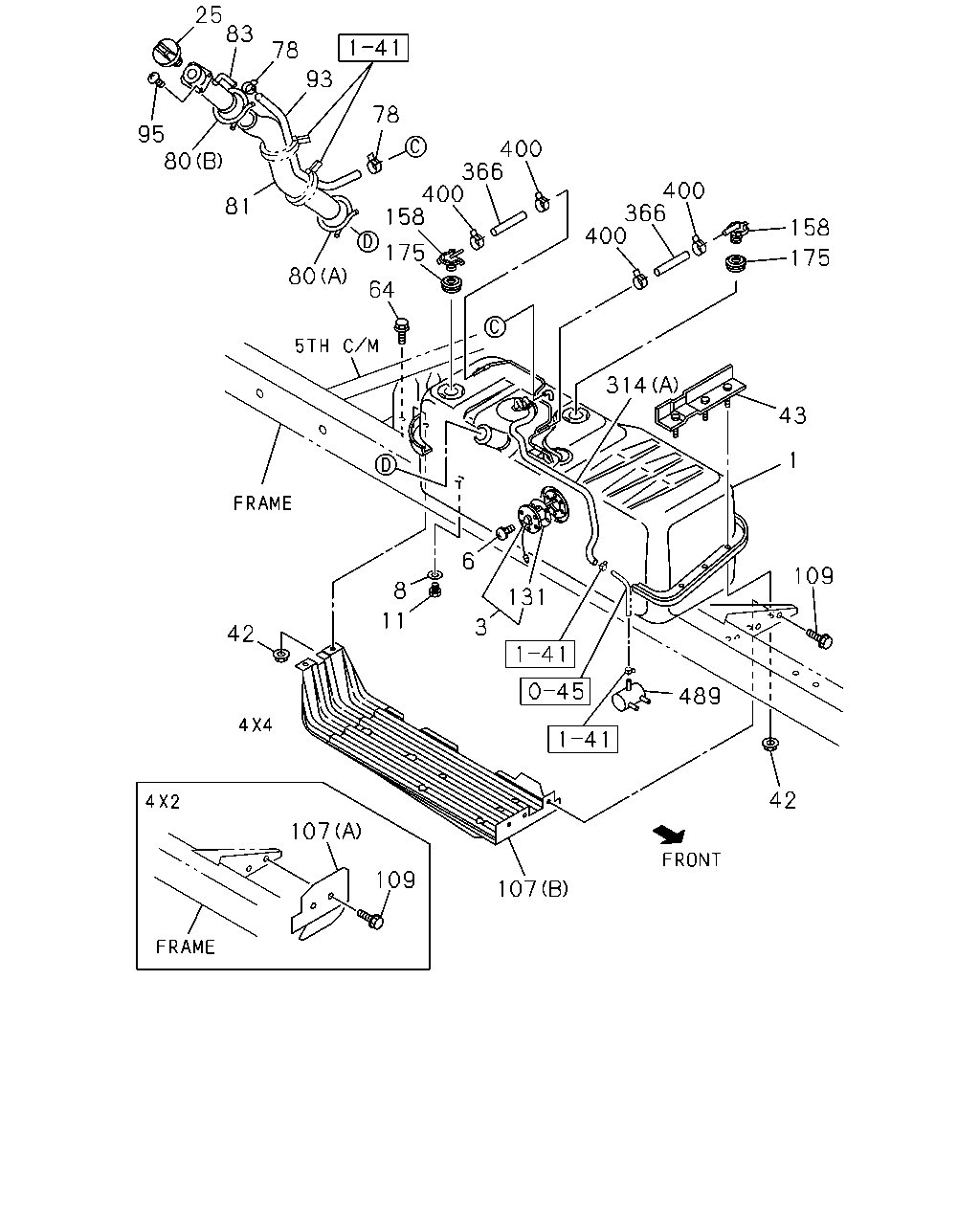

1-40 — FUEL TANK (#44617) — 378 parça

83 78 93 95 400 366 400 158 78 400 366 400 80 158 81 175 175 90 102 80 64 348 314 43 89 349 1 6 109 8 131 11 3 42 489 42 107 109 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL CREW CAB(TF*W) CHARGE AIR COOLER<6PL>	8-97318-162-1	01	1	0108-0301	●
1	03.001 TANK; FUEL CREW CAB(TF*W) CHARGE AIR COOLER<6PL>	8-97358-933-0	01	1	0302-	●
1	03.001 TANK; FUEL 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) CHARGE AIR COOLER<6PL>	8-97318-161-1	01	1	0108-0301	●
1	03.001 TANK; FUEL 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) CHARGE AIR COOLER<6PL>	8-97358-932-0	01	1	0302-	●
1	03.001 TANK; FUEL CREW CAB(TF*W)	8-97112-519-4	01	1	9804-0107	●	●
1	03.001 TANK; FUEL CREW CAB(TF*W) EXC. CHARGE AIR COOLER<6PL>	8-97112-519-6	01	1	0108-	●	●
1	03.001 TANK; FUEL 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF)	8-97061-427-3	01	1	9804-0107	●	●
1	03.001 TANK; FUEL SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL>	8-97061-427-5	01	1	0108-	●	●
3	03.107 UNIT; FUEL TANK,SUB CREW CAB(TF*W) CHARGE AIR COOLER<6PL>	8-97317-687-0	01	1	0108-	●
3	03.107 UNIT; FUEL TANK,SUB 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) CHARGE AIR COOLER<6PL>	8-97317-688-0	01	1	0108-	●
3	03.107 UNIT; FUEL TANK,SUB CREW CAB(TF*W) 03.001	8-94318-396-0	01	1	9804-0107	●	●
3	03.107 UNIT; FUEL TANK,SUB CREW CAB(TF*W) EXC. CHARGE AIR COOLER<6PL> 03.001	8-94318-396-0	01	1	0108-	●	●
3	03.107 UNIT; FUEL TANK,SUB 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 03.001	8-94318-398-0	01	1	9804-0107	●	●
3	03.107 UNIT; FUEL TANK,SUB SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL> 03.001	8-94318-398-0	01	1	0108-	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9804-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9804-0105	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-0105	●	●
42	03.023 NUT; SUPPORT BELT CREW CAB(TF*W) M8 FLANGE	8-94328-243-1	06	1	9804-	●	●
42	03.023 NUT; SUPPORT BELT 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) M8 FLANGE	8-94328-243-1	05	1	9804-	●	●
43	03.015 BRACKET; FUEL TANK CREW CAB(TF*W)	8-94318-376-1	01	1	9804-	●	●
43	03.015 BRACKET; FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF)	8-94328-269-0	01	1	9804-	●	●
64	03.023 BOLT; FUEL TANK CREW CAB(TF*W) 01.276 M8X24	8-97034-130-1	03	1	9804-	●	●
64	03.023 BOLT; FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 01.276 M8X24	8-97034-130-1	05	1	9804-	●	●
78	03.003 CLIP; BREATHER HOSE 04.681 ID=16	8-97173-222-0	02	1	9804-0209	●	●
78	03.003 CLIP; BREATHER HOSE 03.162 ID=14	8-97173-221-0	02	1	0210-	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 03.003 (A) ID=59	8-94435-876-0	01	1	9804-	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 01.166 (B) ID=54	9-09915-412-1	01	1	9804-0110	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 03.609 (B) ID=57	9-09915-036-1	01	1	0111-	●	●
80	03.008 CLIP; FILLER HOSE 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 03.003 (C) ID=59	8-94435-876-0	02	1	9804-	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W)	8-97132-227-2	01	1	9804-	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97117-704-0	01	1	9804-9906	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW)	8-97117-704-1	01	1	9907-	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-94468-249-1	01	1	9804-9906	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-94468-249-2	01	1	9907-0204	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-94468-249-2	01	1	0205-	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97117-683-0	01	1	9804-9906	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) RR BODY DBL WALL CTR PULL(6MW)	8-97117-683-0	01	1	9907-	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97208-078-0	01	1	9804-9906	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-97208-078-0	01	1	9907-	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97122-699-0	01	1	9804-9906	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW)	8-97122-699-0	01	1	9907-	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-94460-704-4	01	1	9804-9906	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-94460-704-4	01	1	9907-	●	●
89	03.028 WASHER; PL,FILLER NECK EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9804-9906	●	●
89	03.028 WASHER; PL,FILLER NECK EXC. RR BODY DBL WALL CTR PULL(6MW) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9907-	●	●
90	03.008 BOLT; FILLER TO BODY EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9804-9906	●	●
90	03.008 BOLT; FILLER TO BODY EXC. RR BODY DBL WALL CTR PULL(6MW) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9907-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	9804-0204	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	9804-0204	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	0205-0209	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	0205-0209	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW) 08.962 L=660 SERVICED BY L=3000	0-04790-300-0	01	1	0210-0210	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) 08.962 L=660 SERVICED BY L=3000	0-04790-300-0	01	1	0210-0210	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW) 08.962 L=640 SERVICED BY L=3000	0-04790-300-0	01	1	0210-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) 08.962 L=640 SERVICED BY L=3000	0-04790-300-0	01	1	0210-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9804-0204	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	0205-0209	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW) 08.962 L=560 SERVICED BY L=3000	0-04790-300-0	01	1	0210-0210	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW) 08.962 SERVICED BY L=3000	0-04790-300-0	01	1	0210-	●	●
95	03.028 SCREW; FILLER NECK 12.182 M6X16	8-94381-646-0	03	1	9804-0010	●	●
95	03.028 SCREW; FILLER NECK RR BODY DBL WALL CTR PULL(6MW) 12.182 M6X16	8-94381-646-0	03	1	0011-0104	●	●
95	03.028 SCREW; FILLER NECK 12.182 M6X16	8-94381-646-0	03	1	0105-	●	●
102	03.008 SCREW; FUEL FILLER EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 12.182 M6X16	8-94381-646-0	02	1	9804-9906	●	●
102	03.008 SCREW; FUEL FILLER EXC. RR BODY DBL WALL CTR PULL(6MW) 12.182 M6X16	8-94381-646-0	02	1	9907-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X2(TFB***) FUEL TANK GUARD<6LM> (C)	8-94434-723-1	01	1	9804-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) (C)	8-94434-723-1	01	1	9804-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X2 CREW CAB(TFBW) (A)	8-94313-765-0	01	1	9804-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 CREW CAB(TFSW) (B)	8-97160-116-0	01	1	9804-9805	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 CREW CAB(TFSW) (B)	8-97211-786-0	01	1	9806-	●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2(TFB***) FUEL TANK GUARD<6LM> 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9804-	●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2 CREW CAB LONG(TFB6WF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9804-	●	●
131	03.164 GASKET; SAFETY VENT 03.112 ID=42 OD=71	5-83148-001-0	01	1	9804-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT 03.130	8-94173-276-0	02	1	9804-	●	●
175	03.675 SEAL; VALVE 03.163	8-94246-338-2	02	1	9804-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) CHARGE AIR COOLER<6PL> (B) L=400	8-97323-850-0	01	1	0108-	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2(TFB***) CHARGE AIR COOLER<6PL> (B) L=370	8-97323-852-1	01	1	0108-	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) (A) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	9804-0209	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) (A) L=440	8-97351-536-0	01	1	0210-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	9804-0107	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL> (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0108-0209	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL> (A) L=1060	8-97351-539-0	01	1	0210-	●	●
348	03.028 BRACKET; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97208-079-0	01	1	9804-9903	●	●
348	03.028 BRACKET; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97224-589-0	01	1	9904-9906	●	●
348	03.028 BRACKET; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-97224-589-0	01	1	9907-0203	●	●
348	03.028 BRACKET; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-97224-589-0	01	1	0204-0204	●	●
348	03.028 BRACKET; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-97224-589-0	01	1	0205-	●	●
348	03.028 BRACKET; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-94313-471-1	01	1	9804-9906	●	●
348	03.028 BRACKET; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-94313-471-1	01	1	9907-0203	●	●
348	03.028 BRACKET; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-94313-471-1	01	1	0204-0204	●	●
348	03.028 BRACKET; FUEL FILLER 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-94313-471-1	01	1	0205-	●	●
349	03.023 NUT; FUEL FILLER EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.559 M8	9-09110-408-0	01	1	9804-9906	●	●
349	03.023 NUT; FUEL FILLER EXC. RR BODY DBL WALL CTR PULL(6MW) 02.559 M8	9-09110-408-0	01	1	9907-	●	●
366	03.145 HOSE; EVAP 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9804-	●	●
400	03.162 CLIP; HOSE,EVAP ID=8.5	8-94166-071-0	04	1	9804-0205	●	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9804-9906	●	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9907-0211	●	●

25 83 78 93 78 95 80 400 366 400 158 400 366 400 81 158 175 175 80 64 314 43 1 6 109 8 131 11 3 42 489 42 107 109 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL CREW CAB(TF*W) CHARGE AIR COOLER<6PL>	8-97318-162-1	01	1	0108-0301	●
1	03.001 TANK; FUEL CREW CAB(TF*W) CHARGE AIR COOLER<6PL>	8-97358-933-0	01	1	0302-	●
1	03.001 TANK; FUEL 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) CHARGE AIR COOLER<6PL>	8-97318-161-1	01	1	0108-0301	●
1	03.001 TANK; FUEL 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) CHARGE AIR COOLER<6PL>	8-97358-932-0	01	1	0302-	●
1	03.001 TANK; FUEL CREW CAB(TF*W)	8-97112-519-4	01	1	9804-0107	●	●
1	03.001 TANK; FUEL CREW CAB(TF*W) EXC. CHARGE AIR COOLER<6PL>	8-97112-519-6	01	1	0108-	●	●
1	03.001 TANK; FUEL 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF)	8-97061-427-3	01	1	9804-0107	●	●
1	03.001 TANK; FUEL SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL>	8-97061-427-5	01	1	0108-	●	●
3	03.107 UNIT; FUEL TANK,SUB CREW CAB(TF*W) CHARGE AIR COOLER<6PL>	8-97317-687-0	01	1	0108-	●
3	03.107 UNIT; FUEL TANK,SUB 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) CHARGE AIR COOLER<6PL>	8-97317-688-0	01	1	0108-	●
3	03.107 UNIT; FUEL TANK,SUB CREW CAB(TF*W) 03.001	8-94318-396-0	01	1	9804-0107	●	●
3	03.107 UNIT; FUEL TANK,SUB CREW CAB(TF*W) EXC. CHARGE AIR COOLER<6PL> 03.001	8-94318-396-0	01	1	0108-	●	●
3	03.107 UNIT; FUEL TANK,SUB 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 03.001	8-94318-398-0	01	1	9804-0107	●	●
3	03.107 UNIT; FUEL TANK,SUB SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL> 03.001	8-94318-398-0	01	1	0108-	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9804-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9804-0105	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-0105	●	●
25	03.028 CAP; FILLER,FUEL TANK RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-94310-199-4	01	1	9804-9906	●	●
25	03.028 CAP; FILLER,FUEL TANK RR BODY DBL WALL CTR PULL(6MW)	8-94310-199-4	01	1	9907-	●	●
42	03.023 NUT; SUPPORT BELT CREW CAB(TF*W) M8 FLANGE	8-94328-243-1	06	1	9804-	●	●
42	03.023 NUT; SUPPORT BELT 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) M8 FLANGE	8-94328-243-1	05	1	9804-	●	●
43	03.015 BRACKET; FUEL TANK CREW CAB(TF*W)	8-94318-376-1	01	1	9804-	●	●
43	03.015 BRACKET; FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF)	8-94328-269-0	01	1	9804-	●	●
64	03.023 BOLT; FUEL TANK CREW CAB(TF*W) 01.276 M8X24	8-97034-130-1	03	1	9804-	●	●
64	03.023 BOLT; FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 01.276 M8X24	8-97034-130-1	05	1	9804-	●	●
78	03.003 CLIP; BREATHER HOSE 04.681 ID=16	8-97173-222-0	02	1	9804-0209	●	●
78	03.003 CLIP; BREATHER HOSE 03.162 ID=14	8-97173-221-0	02	1	0210-	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 03.003 (A) ID=59	8-94435-876-0	01	1	9804-	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 01.166 (B) ID=54	9-09915-412-1	01	1	9804-0110	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 03.609 (B) ID=57	9-09915-036-1	01	1	0111-	●	●
80	03.008 CLIP; FILLER HOSE 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 03.003 (C) ID=59	8-94435-876-0	02	1	9804-	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W)	8-97132-227-2	01	1	9804-	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97117-704-0	01	1	9804-9906	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW)	8-97117-704-1	01	1	9907-	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-94468-249-1	01	1	9804-9906	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-94468-249-2	01	1	9907-0204	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-94468-249-2	01	1	0205-	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97117-683-0	01	1	9804-9906	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) RR BODY DBL WALL CTR PULL(6MW)	8-97117-683-0	01	1	9907-	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97208-078-0	01	1	9804-9906	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-97208-078-0	01	1	9907-	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97122-699-0	01	1	9804-9906	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW)	8-97122-699-0	01	1	9907-	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-94460-704-4	01	1	9804-9906	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-94460-704-4	01	1	9907-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	9804-0204	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	9804-0204	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	0205-0209	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	0205-0209	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW) 08.962 L=660 SERVICED BY L=3000	0-04790-300-0	01	1	0210-0210	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) 08.962 L=660 SERVICED BY L=3000	0-04790-300-0	01	1	0210-0210	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW) 08.962 L=640 SERVICED BY L=3000	0-04790-300-0	01	1	0210-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) 08.962 L=640 SERVICED BY L=3000	0-04790-300-0	01	1	0210-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9804-0204	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	0205-0209	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW) 08.962 L=560 SERVICED BY L=3000	0-04790-300-0	01	1	0210-0210	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW) 08.962 SERVICED BY L=3000	0-04790-300-0	01	1	0210-	●	●
95	03.028 SCREW; FILLER NECK 12.182 M6X16	8-94381-646-0	03	1	9804-0010	●	●
95	03.028 SCREW; FILLER NECK RR BODY DBL WALL CTR PULL(6MW) 12.182 M6X16	8-94381-646-0	03	1	0011-0104	●	●
95	03.028 SCREW; FILLER NECK 12.182 M6X16	8-94381-646-0	03	1	0105-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X2(TFB***) FUEL TANK GUARD<6LM> (C)	8-94434-723-1	01	1	9804-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) (C)	8-94434-723-1	01	1	9804-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X2 CREW CAB(TFBW) (A)	8-94313-765-0	01	1	9804-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 CREW CAB(TFSW) (B)	8-97160-116-0	01	1	9804-9805	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 CREW CAB(TFSW) (B)	8-97211-786-0	01	1	9806-	●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2(TFB***) FUEL TANK GUARD<6LM> 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9804-	●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2 CREW CAB LONG(TFB6WF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9804-	●	●
131	03.164 GASKET; SAFETY VENT 03.112 ID=42 OD=71	5-83148-001-0	01	1	9804-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT 03.130	8-94173-276-0	02	1	9804-	●	●
175	03.675 SEAL; VALVE 03.163	8-94246-338-2	02	1	9804-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) CHARGE AIR COOLER<6PL> (B) L=400	8-97323-850-0	01	1	0108-	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2(TFB***) CHARGE AIR COOLER<6PL> (B) L=370	8-97323-852-1	01	1	0108-	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) (A) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	9804-0209	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) (A) L=440	8-97351-536-0	01	1	0210-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	9804-0107	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL> (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0108-0209	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL> (A) L=1060	8-97351-539-0	01	1	0210-	●	●
366	03.145 HOSE; EVAP 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9804-	●	●
400	03.162 CLIP; HOSE,EVAP ID=8.5	8-94166-071-0	04	1	9804-0205	●	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9804-9906	●	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9907-0211	●	●

83 25 95 78 78 93 78 93 83 95 80 80 60 81 78 81 80 80 400 366 400 158 175 102 90 400 366 400 64 158 175 314 348 64 43 89 349 1 6 8 109 131 11 3 42 489 107 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL CREW CAB(TF*W) CHARGE AIR COOLER<6PL>	8-97318-162-1	01	1	0108-0301	●
1	03.001 TANK; FUEL CREW CAB(TF*W) CHARGE AIR COOLER<6PL>	8-97358-933-0	01	1	0302-	●
1	03.001 TANK; FUEL 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) CHARGE AIR COOLER<6PL>	8-97318-161-1	01	1	0108-0301	●
1	03.001 TANK; FUEL 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) CHARGE AIR COOLER<6PL>	8-97358-932-0	01	1	0302-	●
1	03.001 TANK; FUEL CREW CAB(TF*W)	8-97112-519-4	01	1	9804-0107	●	●
1	03.001 TANK; FUEL CREW CAB(TF*W) EXC. CHARGE AIR COOLER<6PL>	8-97112-519-6	01	1	0108-	●	●
1	03.001 TANK; FUEL 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF)	8-97061-427-3	01	1	9804-0107	●	●
1	03.001 TANK; FUEL SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL>	8-97061-427-5	01	1	0108-	●	●
3	03.107 UNIT; FUEL TANK,SUB CREW CAB(TF*W) CHARGE AIR COOLER<6PL>	8-97317-687-0	01	1	0108-	●
3	03.107 UNIT; FUEL TANK,SUB 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) CHARGE AIR COOLER<6PL>	8-97317-688-0	01	1	0108-	●
3	03.107 UNIT; FUEL TANK,SUB CREW CAB(TF*W) 03.001	8-94318-396-0	01	1	9804-0107	●	●
3	03.107 UNIT; FUEL TANK,SUB CREW CAB(TF*W) EXC. CHARGE AIR COOLER<6PL> 03.001	8-94318-396-0	01	1	0108-	●	●
3	03.107 UNIT; FUEL TANK,SUB 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 03.001	8-94318-398-0	01	1	9804-0107	●	●
3	03.107 UNIT; FUEL TANK,SUB SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL> 03.001	8-94318-398-0	01	1	0108-	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9804-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9804-0105	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-0105	●	●
25	03.028 CAP; FILLER,FUEL TANK RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-94310-199-4	01	1	9804-9906	●	●
25	03.028 CAP; FILLER,FUEL TANK RR BODY DBL WALL CTR PULL(6MW)	8-94310-199-4	01	1	9907-	●	●
42	03.023 NUT; SUPPORT BELT CREW CAB(TF*W) M8 FLANGE	8-94328-243-1	06	1	9804-	●	●
42	03.023 NUT; SUPPORT BELT 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) M8 FLANGE	8-94328-243-1	05	1	9804-	●	●
43	03.015 BRACKET; FUEL TANK CREW CAB(TF*W)	8-94318-376-1	01	1	9804-	●	●
43	03.015 BRACKET; FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF)	8-94328-269-0	01	1	9804-	●	●
60	03.008 PROTECTOR; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-94318-424-0	01	1	9804-9906	●	●
60	03.008 PROTECTOR; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW)	8-94318-424-0	01	1	9907-	●	●
64	03.023 BOLT; FUEL TANK CREW CAB(TF*W) 01.276 M8X24	8-97034-130-1	03	1	9804-	●	●
64	03.023 BOLT; FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 01.276 M8X24	8-97034-130-1	05	1	9804-	●	●
78	03.003 CLIP; BREATHER HOSE 04.681 ID=16	8-97173-222-0	02	1	9804-0209	●	●
78	03.003 CLIP; BREATHER HOSE 03.162 ID=14	8-97173-221-0	02	1	0210-	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 03.003 (A) ID=59	8-94435-876-0	01	1	9804-	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 01.166 (B) ID=54	9-09915-412-1	01	1	9804-0110	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 03.609 (B) ID=57	9-09915-036-1	01	1	0111-	●	●
80	03.008 CLIP; FILLER HOSE 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 03.003 (C) ID=59	8-94435-876-0	02	1	9804-	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W)	8-97132-227-2	01	1	9804-	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97117-704-0	01	1	9804-9906	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW)	8-97117-704-1	01	1	9907-	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-94468-249-1	01	1	9804-9906	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-94468-249-2	01	1	9907-0204	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-94468-249-2	01	1	0205-	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97117-683-0	01	1	9804-9906	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) RR BODY DBL WALL CTR PULL(6MW)	8-97117-683-0	01	1	9907-	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97208-078-0	01	1	9804-9906	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-97208-078-0	01	1	9907-	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97122-699-0	01	1	9804-9906	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW)	8-97122-699-0	01	1	9907-	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-94460-704-4	01	1	9804-9906	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-94460-704-4	01	1	9907-	●	●
89	03.028 WASHER; PL,FILLER NECK EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9804-9906	●	●
89	03.028 WASHER; PL,FILLER NECK EXC. RR BODY DBL WALL CTR PULL(6MW) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9907-	●	●
90	03.008 BOLT; FILLER TO BODY EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9804-9906	●	●
90	03.008 BOLT; FILLER TO BODY EXC. RR BODY DBL WALL CTR PULL(6MW) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9907-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	9804-0204	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	9804-0204	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	0205-0209	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	0205-0209	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW) 08.962 L=660 SERVICED BY L=3000	0-04790-300-0	01	1	0210-0210	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) 08.962 L=660 SERVICED BY L=3000	0-04790-300-0	01	1	0210-0210	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DBL WALL CTR PULL(6MW) 08.962 L=640 SERVICED BY L=3000	0-04790-300-0	01	1	0210-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) 08.962 L=640 SERVICED BY L=3000	0-04790-300-0	01	1	0210-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9804-0204	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	0205-0209	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW) 08.962 L=560 SERVICED BY L=3000	0-04790-300-0	01	1	0210-0210	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW) 08.962 SERVICED BY L=3000	0-04790-300-0	01	1	0210-	●	●
95	03.028 SCREW; FILLER NECK 12.182 M6X16	8-94381-646-0	03	1	9804-0010	●	●
95	03.028 SCREW; FILLER NECK RR BODY DBL WALL CTR PULL(6MW) 12.182 M6X16	8-94381-646-0	03	1	0011-0104	●	●
95	03.028 SCREW; FILLER NECK 12.182 M6X16	8-94381-646-0	03	1	0105-	●	●
102	03.008 SCREW; FUEL FILLER EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 12.182 M6X16	8-94381-646-0	02	1	9804-9906	●	●
102	03.008 SCREW; FUEL FILLER EXC. RR BODY DBL WALL CTR PULL(6MW) 12.182 M6X16	8-94381-646-0	02	1	9907-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X2(TFB***) FUEL TANK GUARD<6LM> (C)	8-94434-723-1	01	1	9804-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) (C)	8-94434-723-1	01	1	9804-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X2 CREW CAB(TFBW) (A)	8-94313-765-0	01	1	9804-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 CREW CAB(TFSW) (B)	8-97160-116-0	01	1	9804-9805	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 CREW CAB(TFSW) (B)	8-97211-786-0	01	1	9806-	●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2(TFB***) FUEL TANK GUARD<6LM> 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9804-	●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2 CREW CAB LONG(TFB6WF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9804-	●	●
131	03.164 GASKET; SAFETY VENT 03.112 ID=42 OD=71	5-83148-001-0	01	1	9804-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT 03.130	8-94173-276-0	02	1	9804-	●	●
175	03.675 SEAL; VALVE 03.163	8-94246-338-2	02	1	9804-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) CHARGE AIR COOLER<6PL> (B) L=400	8-97323-850-0	01	1	0108-	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2(TFB***) CHARGE AIR COOLER<6PL> (B) L=370	8-97323-852-1	01	1	0108-	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) (A) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	9804-0209	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) (A) L=440	8-97351-536-0	01	1	0210-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	9804-0107	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL> (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0108-0209	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL> (A) L=1060	8-97351-539-0	01	1	0210-	●	●
348	03.028 BRACKET; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97208-079-0	01	1	9804-9903	●	●
348	03.028 BRACKET; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-97224-589-0	01	1	9904-9906	●	●
348	03.028 BRACKET; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-97224-589-0	01	1	9907-0203	●	●
348	03.028 BRACKET; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-97224-589-0	01	1	0204-0204	●	●
348	03.028 BRACKET; FUEL FILLER CREW CAB(TF*W) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-97224-589-0	01	1	0205-	●	●
348	03.028 BRACKET; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-94313-471-1	01	1	9804-9906	●	●
348	03.028 BRACKET; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-94313-471-1	01	1	9907-0203	●	●
348	03.028 BRACKET; FUEL FILLER 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW)	8-94313-471-1	01	1	0204-0204	●	●
348	03.028 BRACKET; FUEL FILLER 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DBL WALL CTR PULL(6MW)	8-94313-471-1	01	1	0205-	●	●
349	03.023 NUT; FUEL FILLER EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.559 M8	9-09110-408-0	01	1	9804-9906	●	●
349	03.023 NUT; FUEL FILLER EXC. RR BODY DBL WALL CTR PULL(6MW) 02.559 M8	9-09110-408-0	01	1	9907-	●	●
366	03.145 HOSE; EVAP 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9804-	●	●
400	03.162 CLIP; HOSE,EVAP ID=8.5	8-94166-071-0	04	1	9804-0205	●	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9804-9906	●	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9907-0211	●	●

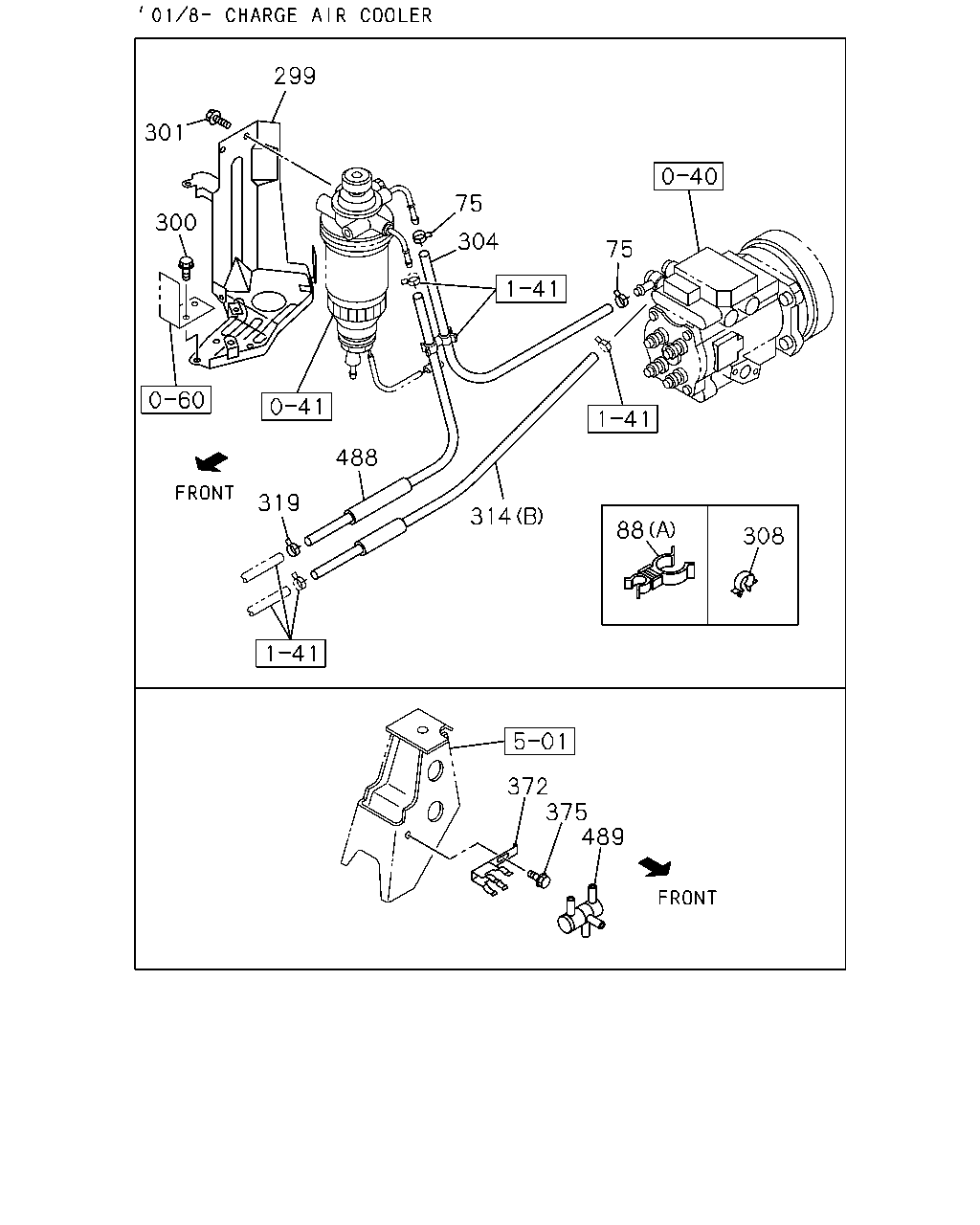

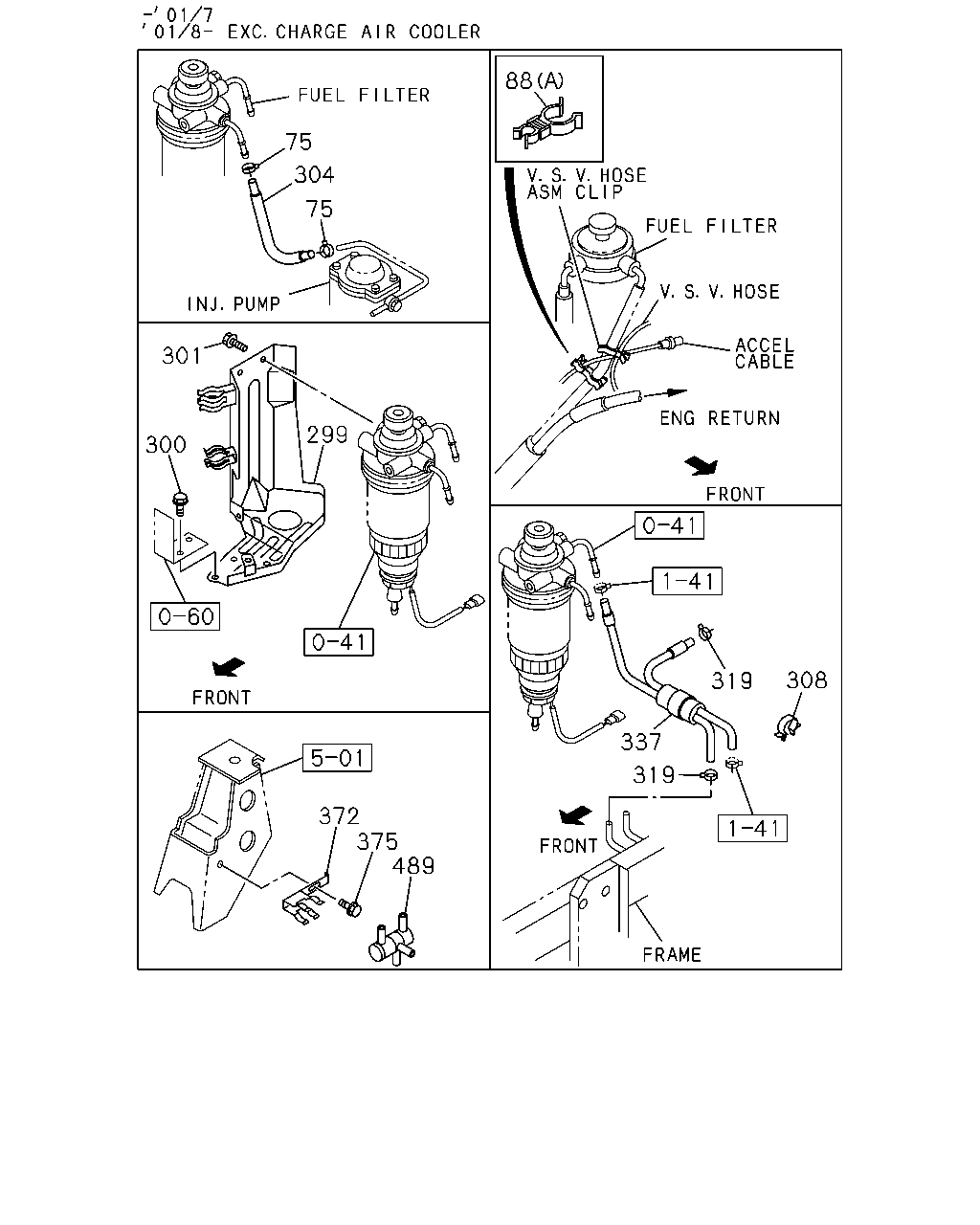

88 75 304 75 301 299 300 308 319 337 319 372 375 489

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
75	03.162 CLIP; RUB HOSE CHARGE AIR COOLER<6PL> ID=19	8-97240-196-0	01	1	0108-0108	●
75	03.162 CLIP; RUB HOSE CHARGE AIR COOLER<6PL> ID=19	8-97240-196-0	01	1	0108-0108	●
75	03.162 CLIP; RUB HOSE CHARGE AIR COOLER<6PL> ID=19	8-97240-196-0	02	1	0108-	●
75	03.162 CLIP; RUB HOSE 01.166 ID=14	8-94238-572-0	02	1	9804-0109	●
75	03.162 CLIP; RUB HOSE 4X2 SPACE CAB(TFBC) 01.166 ID=14	8-94238-572-0	02	1	9804-0109		●
88	03.162 CLIP; FUEL HOSE 04.661 (A) ID=14.5 & 6	8-94312-791-0	01	1	9804-0105	●
88	03.162 CLIP; FUEL HOSE 04.661 (A) ID=14.5 & 6	8-94312-791-0	01	1	0106-0107	●	●
88	03.162 CLIP; FUEL HOSE EXC. CHARGE AIR COOLER<6PL> 04.661 (A) ID=14.5 & 6	8-94312-791-0	01	1	0108-	●	●
88	03.162 CLIP; FUEL HOSE 4X2 SPACE CAB(TFBC) ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=13.2 & 7.5	8-94315-426-0	01	1	0108-	●	●
88	03.162 CLIP; FUEL HOSE 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) ID=13.2 & 7.5	8-94315-426-0	01	1	0108-	●
88	03.162 CLIP; FUEL HOSE (B)	1-09709-226-0	01	1	9804-		●
88	03.162 CLIP; FUEL HOSE 04.128 (A) ID=14.5 & 7.5	8-94315-424-0	01	1	9804-0105		●
299	03.162 BRACKET; FUEL FILTER	8-97142-691-0	01	1	9804-0107	●
299	03.162 BRACKET; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97142-691-0	01	1	0108-	●
299	03.162 BRACKET; FUEL FILTER CHARGE AIR COOLER<6PL>	8-97258-091-0	01	1	0108-	●
299	03.162 BRACKET; FUEL FILTER	8-97079-660-3	01	1	9804-		●
300	03.162 BOLT; BRKT TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9804-	●
300	03.162 BOLT; BRKT TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-		●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9804-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ L=440	8-94133-604-2	01	1	9804-0107	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ EXC. CHARGE AIR COOLER<6PL> L=440	8-94133-604-2	01	1	0108-	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ CHARGE AIR COOLER<6PL> L=340 SERVICED BY L=3000	0-01262-300-0	01	1	0108-	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ L=480	8-97132-542-0	01	1	9804-9906		●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ L=390	8-97231-763-0	01	1	9907-		●
308	03.163 CLIP; HOSE CHARGE AIR COOLER<6PL> 02.343 ID=20	8-94410-200-0	01	1	0108-	●
319	03.163 CLIP; RUBBER HOSE 03.162 ID=13	8-97173-220-0	02	1	9804-	●	●
337	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97109-425-1	01	1	9804-0107	●
337	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. CHARGE AIR COOLER<6PL>	8-97109-425-2	01	1	0108-	●
337	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97100-961-1	01	1	9804-		●
372	03.164 CLIP; CONT VALVE	8-94413-704-0	01	1	9804-0211	●	●
375	03.164 BOLT; CONT VALVE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-0211	●	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9804-9906	●	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9907-0211	●	●

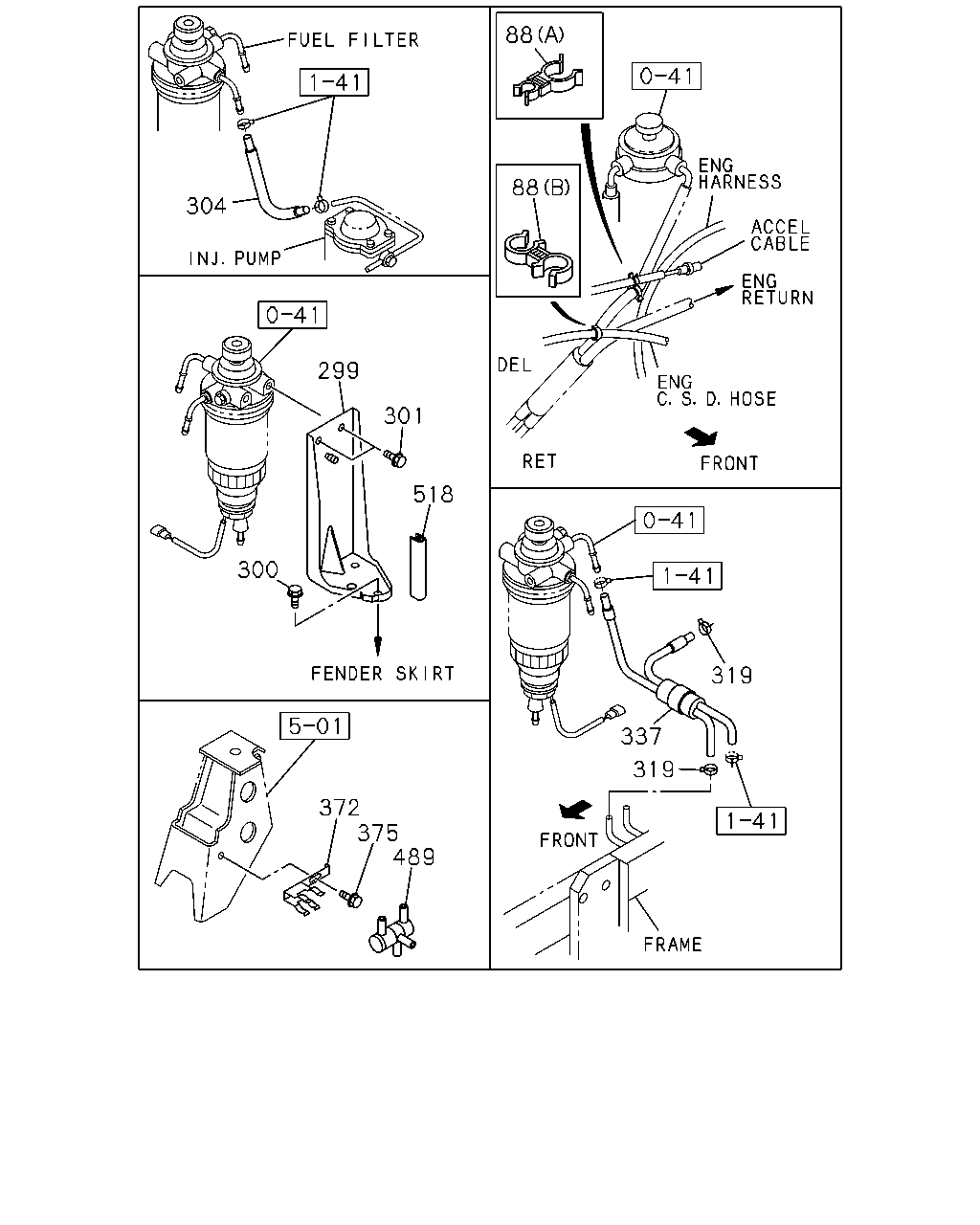

88 88 304 299 301 518 300 319 337 319 372 375 489

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	03.162 CLIP; FUEL HOSE 04.661 (A) ID=14.5 & 6	8-94312-791-0	01	1	9804-0105	●
88	03.162 CLIP; FUEL HOSE 04.661 (A) ID=14.5 & 6	8-94312-791-0	01	1	0106-0107	●	●
88	03.162 CLIP; FUEL HOSE EXC. CHARGE AIR COOLER<6PL> 04.661 (A) ID=14.5 & 6	8-94312-791-0	01	1	0108-	●	●
88	03.162 CLIP; FUEL HOSE 4X2 SPACE CAB(TFBC) ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=13.2 & 7.5	8-94315-426-0	01	1	0108-	●	●
88	03.162 CLIP; FUEL HOSE 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) ID=13.2 & 7.5	8-94315-426-0	01	1	0108-	●
88	03.162 CLIP; FUEL HOSE (B)	1-09709-226-0	01	1	9804-		●
88	03.162 CLIP; FUEL HOSE 04.128 (A) ID=14.5 & 7.5	8-94315-424-0	01	1	9804-0105		●
299	03.162 BRACKET; FUEL FILTER	8-97142-691-0	01	1	9804-0107	●
299	03.162 BRACKET; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97142-691-0	01	1	0108-	●
299	03.162 BRACKET; FUEL FILTER CHARGE AIR COOLER<6PL>	8-97258-091-0	01	1	0108-	●
299	03.162 BRACKET; FUEL FILTER	8-97079-660-3	01	1	9804-		●
300	03.162 BOLT; BRKT TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9804-	●
300	03.162 BOLT; BRKT TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-		●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9804-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ L=440	8-94133-604-2	01	1	9804-0107	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ EXC. CHARGE AIR COOLER<6PL> L=440	8-94133-604-2	01	1	0108-	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ CHARGE AIR COOLER<6PL> L=340 SERVICED BY L=3000	0-01262-300-0	01	1	0108-	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ L=480	8-97132-542-0	01	1	9804-9906		●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ L=390	8-97231-763-0	01	1	9907-		●
319	03.163 CLIP; RUBBER HOSE 03.162 ID=13	8-97173-220-0	02	1	9804-	●	●
337	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97109-425-1	01	1	9804-0107	●
337	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. CHARGE AIR COOLER<6PL>	8-97109-425-2	01	1	0108-	●
337	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97100-961-1	01	1	9804-		●
372	03.164 CLIP; CONT VALVE	8-94413-704-0	01	1	9804-0211	●	●
375	03.164 BOLT; CONT VALVE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-0211	●	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9804-9906	●	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9907-0211	●	●
518	03.163 PROTECTOR; BRKT 03.162 L=88	8-97069-335-0	01	1	9804-9909		●
518	03.163 PROTECTOR; BRKT 03.162 L=88	8-97069-335-0	02	1	9910-		●

299 301 75 300 304 75 488 319 314 88 308 372 375 489

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
75	03.162 CLIP; RUB HOSE CHARGE AIR COOLER<6PL> ID=19	8-97240-196-0	01	1	0108-0108	●
75	03.162 CLIP; RUB HOSE CHARGE AIR COOLER<6PL> ID=19	8-97240-196-0	01	1	0108-0108	●
75	03.162 CLIP; RUB HOSE CHARGE AIR COOLER<6PL> ID=19	8-97240-196-0	02	1	0108-	●
75	03.162 CLIP; RUB HOSE 01.166 ID=14	8-94238-572-0	02	1	9804-0109	●
75	03.162 CLIP; RUB HOSE 4X2 SPACE CAB(TFBC) 01.166 ID=14	8-94238-572-0	02	1	9804-0109		●
88	03.162 CLIP; FUEL HOSE 04.661 (A) ID=14.5 & 6	8-94312-791-0	01	1	9804-0105	●
88	03.162 CLIP; FUEL HOSE 04.661 (A) ID=14.5 & 6	8-94312-791-0	01	1	0106-0107	●	●
88	03.162 CLIP; FUEL HOSE EXC. CHARGE AIR COOLER<6PL> 04.661 (A) ID=14.5 & 6	8-94312-791-0	01	1	0108-	●	●
88	03.162 CLIP; FUEL HOSE 4X2 SPACE CAB(TFBC) ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=13.2 & 7.5	8-94315-426-0	01	1	0108-	●	●
88	03.162 CLIP; FUEL HOSE 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) ID=13.2 & 7.5	8-94315-426-0	01	1	0108-	●
88	03.162 CLIP; FUEL HOSE (B)	1-09709-226-0	01	1	9804-		●
88	03.162 CLIP; FUEL HOSE 04.128 (A) ID=14.5 & 7.5	8-94315-424-0	01	1	9804-0105		●
299	03.162 BRACKET; FUEL FILTER	8-97142-691-0	01	1	9804-0107	●
299	03.162 BRACKET; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97142-691-0	01	1	0108-	●
299	03.162 BRACKET; FUEL FILTER CHARGE AIR COOLER<6PL>	8-97258-091-0	01	1	0108-	●
299	03.162 BRACKET; FUEL FILTER	8-97079-660-3	01	1	9804-		●
300	03.162 BOLT; BRKT TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9804-	●
300	03.162 BOLT; BRKT TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-		●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9804-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ L=440	8-94133-604-2	01	1	9804-0107	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ EXC. CHARGE AIR COOLER<6PL> L=440	8-94133-604-2	01	1	0108-	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ CHARGE AIR COOLER<6PL> L=340 SERVICED BY L=3000	0-01262-300-0	01	1	0108-	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ L=480	8-97132-542-0	01	1	9804-9906		●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ L=390	8-97231-763-0	01	1	9907-		●
308	03.163 CLIP; HOSE CHARGE AIR COOLER<6PL> 02.343 ID=20	8-94410-200-0	01	1	0108-	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) CHARGE AIR COOLER<6PL> (B) L=400	8-97323-850-0	01	1	0108-	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2(TFB***) CHARGE AIR COOLER<6PL> (B) L=370	8-97323-852-1	01	1	0108-	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) (A) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	9804-0209	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) (A) L=440	8-97351-536-0	01	1	0210-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	9804-0107	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL> (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0108-0209	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN SINGLE CAB(TF*S) EXC. CHARGE AIR COOLER<6PL> (A) L=1060	8-97351-539-0	01	1	0210-	●	●
319	03.163 CLIP; RUBBER HOSE 03.162 ID=13	8-97173-220-0	02	1	9804-	●	●
372	03.164 CLIP; CONT VALVE	8-94413-704-0	01	1	9804-0211	●	●
375	03.164 BOLT; CONT VALVE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-0211	●	●
488	03.163 HOSE; RUBBER 4X4(TFS***) CHARGE AIR COOLER<6PL> L=590	8-97323-848-0	01	1	0108-	●
488	03.163 HOSE; RUBBER 4X2(TFB***) CHARGE AIR COOLER<6PL> L=540	8-97323-851-1	01	1	0108-	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9804-9906	●	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9907-0211	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
