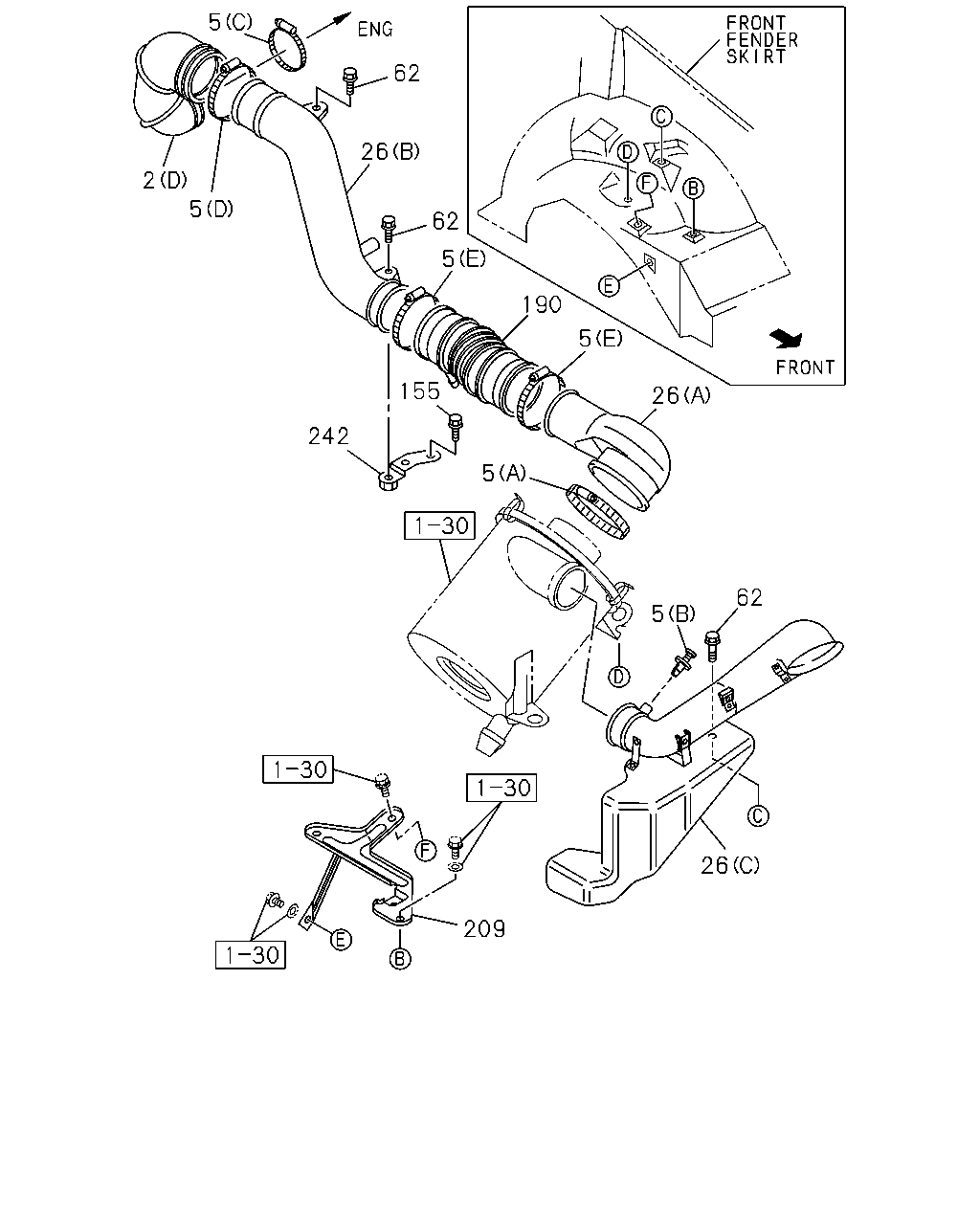

1-31 — AIR DUCT (#44615) — 132 parça

5 62 26 2 5 62 5 190 5 155 26 242 5 62 5 26 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.417 HOSE; ACL (A)	8-97106-248-0	01	1	9804-0107	●
2	03.417 HOSE; ACL EXC. CHARGE AIR COOLER<6PL> (A)	8-97106-248-0	01	1	0108-	●
2	03.417 HOSE; ACL (B)	8-97131-727-0	01	1	9804-0107	●
2	03.417 HOSE; ACL EXC. CHARGE AIR COOLER<6PL> (B)	8-97131-727-0	01	1	0108-	●
2	03.417 HOSE; ACL CHARGE AIR COOLER<6PL> (C)	8-97253-459-1	01	1	0108-	●
2	03.417 HOSE; ACL (D)	8-97129-707-0	01	1	9804-		●
5	03.407 CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9804-0107	●	●
5	03.407 CLIP; AIR DUCT EXC. CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-114-0	01	1	0108-	●	●
5	03.407 CLIP; AIR DUCT 03.417 (E) ID=58-79	8-94126-771-0	02	1	9804-0107	●	●
5	03.407 CLIP; AIR DUCT EXC. CHARGE AIR COOLER<6PL> 03.417 (E) ID=58-79	8-94126-771-0	02	1	0108-	●
5	03.407 CLIP; AIR DUCT 03.417 (E) ID=58-79	8-94126-771-0	02	1	0108-		●
5	03.407 CLIP; AIR DUCT 03.003 (B) D6X11 POP RIVET	8-94298-119-0	01	1	9804-0107	●	●
5	03.407 CLIP; AIR DUCT EXC. CHARGE AIR COOLER<6PL> 03.003 (B) D6X11 POP RIVET	8-94298-119-0	01	1	0108-	●
5	03.407 CLIP; AIR DUCT 03.003 (B) D6X11 POP RIVET	8-94298-119-0	01	1	0108-		●
5	03.407 CLIP; AIR DUCT (C) ID=50-69	8-94316-991-0	01	1	9804-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=68-85	8-94320-428-0	01	1	9804-0107	●	●
5	03.407 CLIP; AIR DUCT EXC. CHARGE AIR COOLER<6PL> (D) ID=68-85	8-94320-428-0	01	1	0108-	●
5	03.407 CLIP; AIR DUCT (D) ID=68-85	8-94320-428-0	01	1	0108-		●
26	03.417 DUCT; AIR INT (C)	8-97161-656-0	01	1	9804-0107	●
26	03.417 DUCT; AIR INT EXC. CHARGE AIR COOLER<6PL> (C)	8-97161-656-0	01	1	0108-	●
26	03.417 DUCT; AIR INT CHARGE AIR COOLER<6PL> (D)	8-97307-211-0	01	1	0108-	●
26	03.417 DUCT; AIR INT (A)	8-94382-047-2	01	1	9804-0107	●	●
26	03.417 DUCT; AIR INT EXC. CHARGE AIR COOLER<6PL> (A)	8-94382-047-2	01	1	0108-	●
26	03.417 DUCT; AIR INT (A)	8-94382-047-2	01	1	0108-		●
26	03.417 DUCT; AIR INT (B)	8-97128-956-2	01	1	9804-0107	●	●
26	03.417 DUCT; AIR INT EXC. CHARGE AIR COOLER<6PL> (B)	8-97128-956-2	01	1	0108-	●
26	03.417 DUCT; AIR INT (B)	8-97128-956-2	01	1	0108-		●
26	03.417 DUCT; AIR INT (C)	8-97082-061-1	01	1	9804-		●
62	03.417 BOLT; AIR INT DUCT 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-	●
62	03.417 BOLT; AIR INT DUCT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-0107	●	●
62	03.417 BOLT; AIR INT DUCT EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0108-	●
62	03.417 BOLT; AIR INT DUCT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0108-		●
62	03.417 BOLT; AIR INT DUCT 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9804-		●
155	03.417 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-	●	●
190	03.417 HOSE; CONN,DUCT TO ACL	8-97069-744-5	01	1	9804-		●
209	03.405 BRACKET; ACL	8-97131-733-0	01	1	9804-0107	●
209	03.405 BRACKET; ACL EXC. CHARGE AIR COOLER<6PL>	8-97131-733-0	01	1	0108-	●
209	03.405 BRACKET; ACL CHARGE AIR COOLER<6PL>	8-97304-278-1	01	1	0108-	●
209	03.405 BRACKET; ACL	8-97086-960-1	01	1	9804-		●
242	03.417 BRACKET; AIR DUCT CHARGE AIR COOLER<6PL>	8-97253-461-0	01	1	0108-	●
242	03.417 BRACKET; AIR DUCT	8-94387-686-1	01	1	9804-0107	●	●
242	03.417 BRACKET; AIR DUCT EXC. CHARGE AIR COOLER<6PL>	8-94387-686-1	01	1	0108-	●
242	03.417 BRACKET; AIR DUCT	8-94387-686-1	01	1	0108-		●

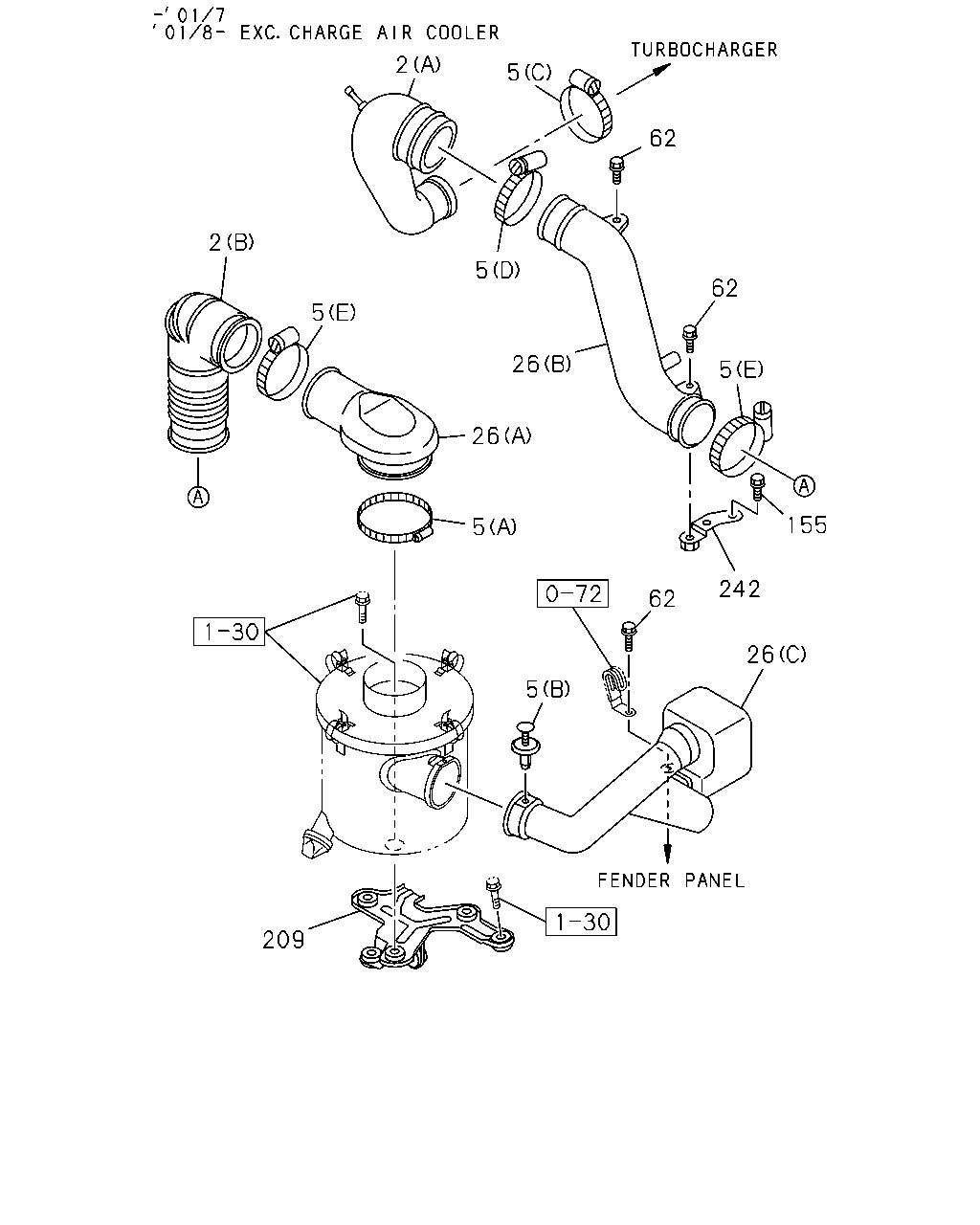

2 5 62 2 5 62 5 26 5 26 155 5 242 62 26 5 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.417 HOSE; ACL (A)	8-97106-248-0	01	1	9804-0107	●
2	03.417 HOSE; ACL EXC. CHARGE AIR COOLER<6PL> (A)	8-97106-248-0	01	1	0108-	●
2	03.417 HOSE; ACL (B)	8-97131-727-0	01	1	9804-0107	●
2	03.417 HOSE; ACL EXC. CHARGE AIR COOLER<6PL> (B)	8-97131-727-0	01	1	0108-	●
2	03.417 HOSE; ACL CHARGE AIR COOLER<6PL> (C)	8-97253-459-1	01	1	0108-	●
2	03.417 HOSE; ACL (D)	8-97129-707-0	01	1	9804-		●
5	03.407 CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9804-0107	●	●
5	03.407 CLIP; AIR DUCT EXC. CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-114-0	01	1	0108-	●	●
5	03.407 CLIP; AIR DUCT 03.417 (E) ID=58-79	8-94126-771-0	02	1	9804-0107	●	●
5	03.407 CLIP; AIR DUCT EXC. CHARGE AIR COOLER<6PL> 03.417 (E) ID=58-79	8-94126-771-0	02	1	0108-	●
5	03.407 CLIP; AIR DUCT 03.417 (E) ID=58-79	8-94126-771-0	02	1	0108-		●
5	03.407 CLIP; AIR DUCT 03.003 (B) D6X11 POP RIVET	8-94298-119-0	01	1	9804-0107	●	●
5	03.407 CLIP; AIR DUCT EXC. CHARGE AIR COOLER<6PL> 03.003 (B) D6X11 POP RIVET	8-94298-119-0	01	1	0108-	●
5	03.407 CLIP; AIR DUCT 03.003 (B) D6X11 POP RIVET	8-94298-119-0	01	1	0108-		●
5	03.407 CLIP; AIR DUCT (C) ID=50-69	8-94316-991-0	01	1	9804-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=68-85	8-94320-428-0	01	1	9804-0107	●	●
5	03.407 CLIP; AIR DUCT EXC. CHARGE AIR COOLER<6PL> (D) ID=68-85	8-94320-428-0	01	1	0108-	●
5	03.407 CLIP; AIR DUCT (D) ID=68-85	8-94320-428-0	01	1	0108-		●
26	03.417 DUCT; AIR INT (C)	8-97161-656-0	01	1	9804-0107	●
26	03.417 DUCT; AIR INT EXC. CHARGE AIR COOLER<6PL> (C)	8-97161-656-0	01	1	0108-	●
26	03.417 DUCT; AIR INT CHARGE AIR COOLER<6PL> (D)	8-97307-211-0	01	1	0108-	●
26	03.417 DUCT; AIR INT (A)	8-94382-047-2	01	1	9804-0107	●	●
26	03.417 DUCT; AIR INT EXC. CHARGE AIR COOLER<6PL> (A)	8-94382-047-2	01	1	0108-	●
26	03.417 DUCT; AIR INT (A)	8-94382-047-2	01	1	0108-		●
26	03.417 DUCT; AIR INT (B)	8-97128-956-2	01	1	9804-0107	●	●
26	03.417 DUCT; AIR INT EXC. CHARGE AIR COOLER<6PL> (B)	8-97128-956-2	01	1	0108-	●
26	03.417 DUCT; AIR INT (B)	8-97128-956-2	01	1	0108-		●
26	03.417 DUCT; AIR INT (C)	8-97082-061-1	01	1	9804-		●
62	03.417 BOLT; AIR INT DUCT 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-	●
62	03.417 BOLT; AIR INT DUCT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-0107	●	●
62	03.417 BOLT; AIR INT DUCT EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0108-	●
62	03.417 BOLT; AIR INT DUCT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0108-		●
62	03.417 BOLT; AIR INT DUCT 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9804-		●
155	03.417 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-	●	●
209	03.405 BRACKET; ACL	8-97131-733-0	01	1	9804-0107	●
209	03.405 BRACKET; ACL EXC. CHARGE AIR COOLER<6PL>	8-97131-733-0	01	1	0108-	●
209	03.405 BRACKET; ACL CHARGE AIR COOLER<6PL>	8-97304-278-1	01	1	0108-	●
209	03.405 BRACKET; ACL	8-97086-960-1	01	1	9804-		●
242	03.417 BRACKET; AIR DUCT CHARGE AIR COOLER<6PL>	8-97253-461-0	01	1	0108-	●
242	03.417 BRACKET; AIR DUCT	8-94387-686-1	01	1	9804-0107	●	●
242	03.417 BRACKET; AIR DUCT EXC. CHARGE AIR COOLER<6PL>	8-94387-686-1	01	1	0108-	●
242	03.417 BRACKET; AIR DUCT	8-94387-686-1	01	1	0108-		●

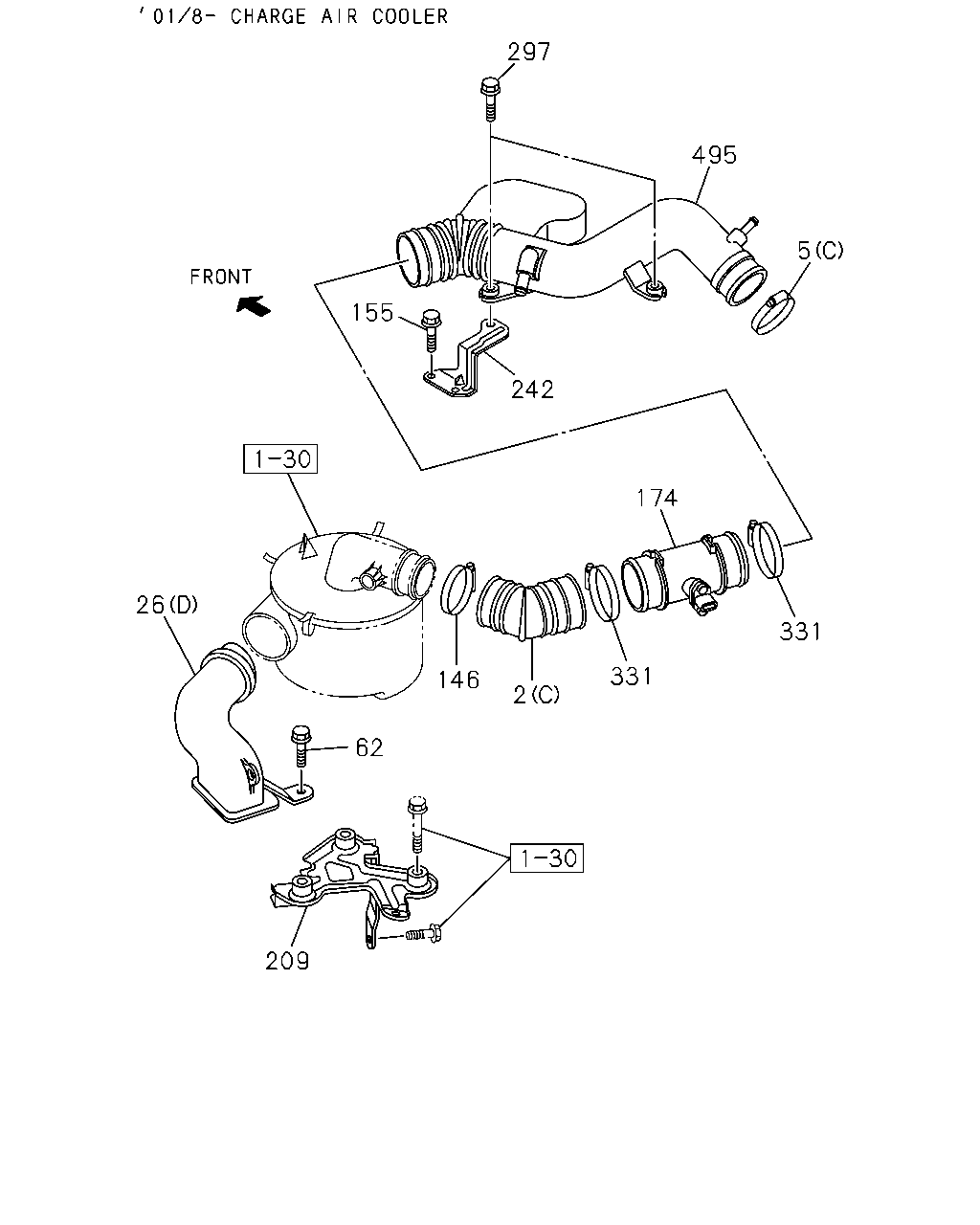

297 495 5 155 242 174 26 331 331 146 2 62 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.417 HOSE; ACL (A)	8-97106-248-0	01	1	9804-0107	●
2	03.417 HOSE; ACL EXC. CHARGE AIR COOLER<6PL> (A)	8-97106-248-0	01	1	0108-	●
2	03.417 HOSE; ACL (B)	8-97131-727-0	01	1	9804-0107	●
2	03.417 HOSE; ACL EXC. CHARGE AIR COOLER<6PL> (B)	8-97131-727-0	01	1	0108-	●
2	03.417 HOSE; ACL CHARGE AIR COOLER<6PL> (C)	8-97253-459-1	01	1	0108-	●
2	03.417 HOSE; ACL (D)	8-97129-707-0	01	1	9804-		●
5	03.407 CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9804-0107	●	●
5	03.407 CLIP; AIR DUCT EXC. CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-114-0	01	1	0108-	●	●
5	03.407 CLIP; AIR DUCT 03.417 (E) ID=58-79	8-94126-771-0	02	1	9804-0107	●	●
5	03.407 CLIP; AIR DUCT EXC. CHARGE AIR COOLER<6PL> 03.417 (E) ID=58-79	8-94126-771-0	02	1	0108-	●
5	03.407 CLIP; AIR DUCT 03.417 (E) ID=58-79	8-94126-771-0	02	1	0108-		●
5	03.407 CLIP; AIR DUCT 03.003 (B) D6X11 POP RIVET	8-94298-119-0	01	1	9804-0107	●	●
5	03.407 CLIP; AIR DUCT EXC. CHARGE AIR COOLER<6PL> 03.003 (B) D6X11 POP RIVET	8-94298-119-0	01	1	0108-	●
5	03.407 CLIP; AIR DUCT 03.003 (B) D6X11 POP RIVET	8-94298-119-0	01	1	0108-		●
5	03.407 CLIP; AIR DUCT (C) ID=50-69	8-94316-991-0	01	1	9804-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=68-85	8-94320-428-0	01	1	9804-0107	●	●
5	03.407 CLIP; AIR DUCT EXC. CHARGE AIR COOLER<6PL> (D) ID=68-85	8-94320-428-0	01	1	0108-	●
5	03.407 CLIP; AIR DUCT (D) ID=68-85	8-94320-428-0	01	1	0108-		●
26	03.417 DUCT; AIR INT (C)	8-97161-656-0	01	1	9804-0107	●
26	03.417 DUCT; AIR INT EXC. CHARGE AIR COOLER<6PL> (C)	8-97161-656-0	01	1	0108-	●
26	03.417 DUCT; AIR INT CHARGE AIR COOLER<6PL> (D)	8-97307-211-0	01	1	0108-	●
26	03.417 DUCT; AIR INT (A)	8-94382-047-2	01	1	9804-0107	●	●
26	03.417 DUCT; AIR INT EXC. CHARGE AIR COOLER<6PL> (A)	8-94382-047-2	01	1	0108-	●
26	03.417 DUCT; AIR INT (A)	8-94382-047-2	01	1	0108-		●
26	03.417 DUCT; AIR INT (B)	8-97128-956-2	01	1	9804-0107	●	●
26	03.417 DUCT; AIR INT EXC. CHARGE AIR COOLER<6PL> (B)	8-97128-956-2	01	1	0108-	●
26	03.417 DUCT; AIR INT (B)	8-97128-956-2	01	1	0108-		●
26	03.417 DUCT; AIR INT (C)	8-97082-061-1	01	1	9804-		●
62	03.417 BOLT; AIR INT DUCT 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-	●
62	03.417 BOLT; AIR INT DUCT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-0107	●	●
62	03.417 BOLT; AIR INT DUCT EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0108-	●
62	03.417 BOLT; AIR INT DUCT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0108-		●
62	03.417 BOLT; AIR INT DUCT 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9804-		●
146	03.417 CLIP; HOSE,ACL CHARGE AIR COOLER<6PL> 03.407 ID=68-85	8-94320-428-0	01	1	0108-	●
155	03.417 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-	●	●
174	03.682 SENSOR; AIR FLOW CONT CHARGE AIR COOLER<6PL>	8-97253-456-0	01	1	0108-	●
209	03.405 BRACKET; ACL	8-97131-733-0	01	1	9804-0107	●
209	03.405 BRACKET; ACL EXC. CHARGE AIR COOLER<6PL>	8-97131-733-0	01	1	0108-	●
209	03.405 BRACKET; ACL CHARGE AIR COOLER<6PL>	8-97304-278-1	01	1	0108-	●
209	03.405 BRACKET; ACL	8-97086-960-1	01	1	9804-		●
242	03.417 BRACKET; AIR DUCT CHARGE AIR COOLER<6PL>	8-97253-461-0	01	1	0108-	●
242	03.417 BRACKET; AIR DUCT	8-94387-686-1	01	1	9804-0107	●	●
242	03.417 BRACKET; AIR DUCT EXC. CHARGE AIR COOLER<6PL>	8-94387-686-1	01	1	0108-	●
242	03.417 BRACKET; AIR DUCT	8-94387-686-1	01	1	0108-		●
297	03.417 BOLT; DUCT CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0108-	●
331	03.417 CLIP; CONN HOSE,AIR FLOW SENSOR CHARGE AIR COOLER<6PL> 03.407 ID=77-95	1-09707-114-0	02	1	0108-	●
495	03.417 DUCT; INTAKE,TURBO CHARGE AIR COOLER<6PL>	8-97312-681-0	01	1	0108-	●
