Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#44612) — 263 parça

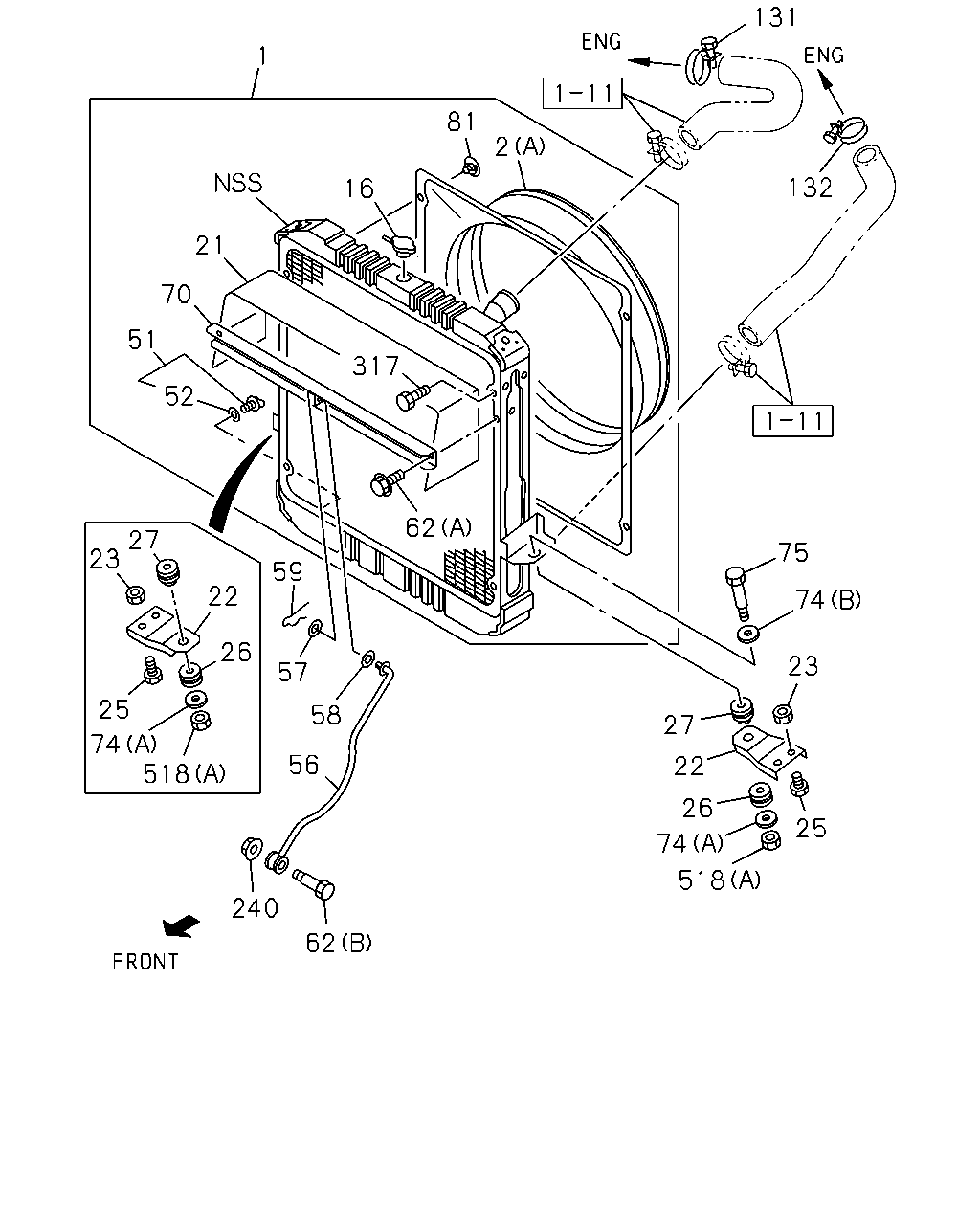

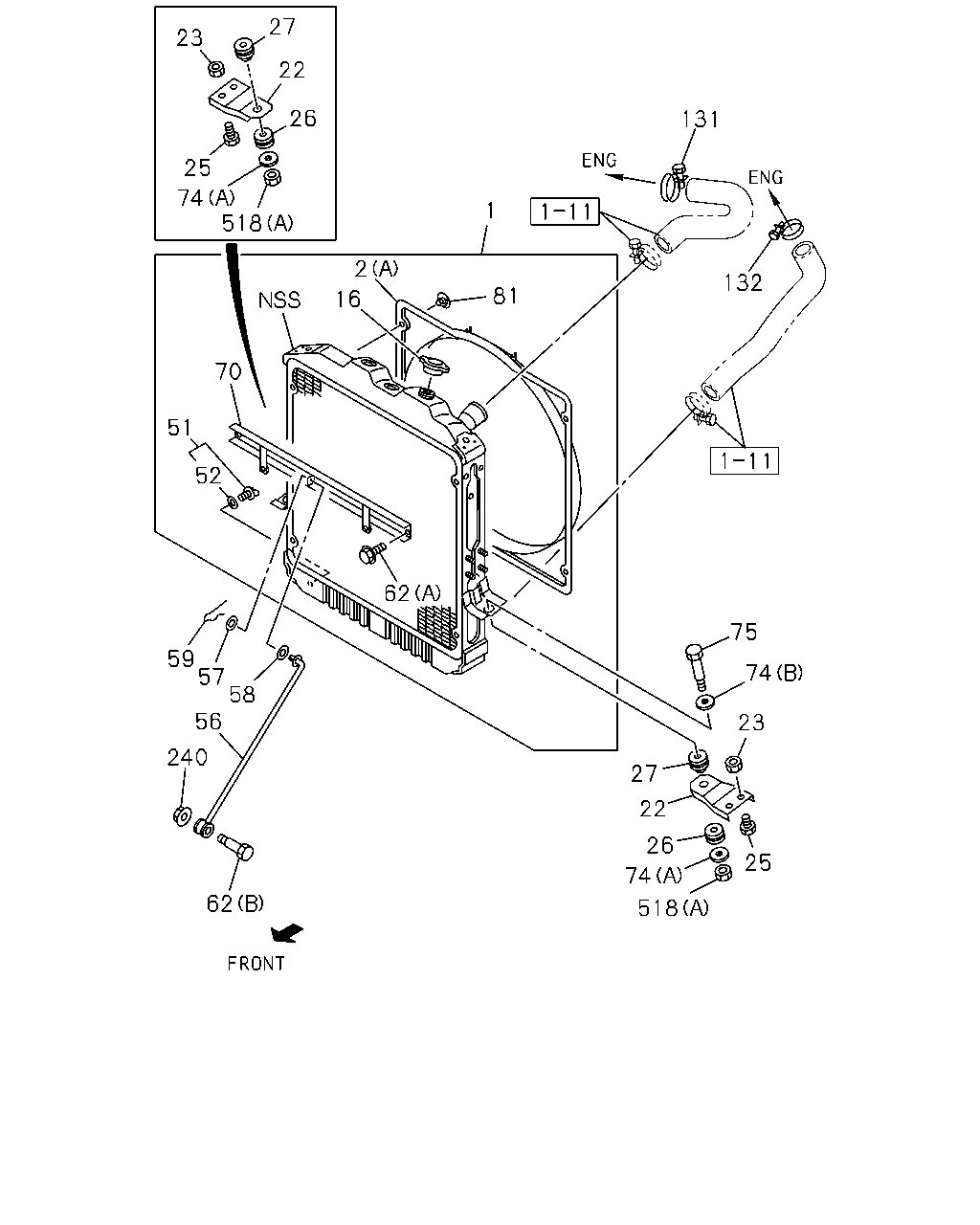

131 1 81 2 132 16 21 70 51 317 52 62 27 23 75 59 22 74 26 23 57 25 58 27 74 518 56 22 26 25 74 518 240 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97146-211-1	01	1	0303-0511	●	●
1	RADIATOR ASM 4HF1 ENG(RLS)	8-97146-211-1	01	1	0512-	●	●
1	RADIATOR ASM 4HE1 ENG(RLY)	8-97182-423-0	01	1	0303-0511			●
1	RADIATOR ASM 4HK1-TCS ENG(RJS)	8-97377-241-0	01	1	0512-			●	●
2	GUIDE; FAN 4HK1-TCS ENG(RJS) (B)	8-97350-995-0	01	1	0512-			●	●
2	GUIDE; FAN 4HF1 ENG(RLS) M/T MYY5T(RSM) (A)	8-97066-016-0	01	1	0303-0511	●	●
2	GUIDE; FAN 4HF1 ENG(RLS) (A)	8-97066-016-0	01	1	0512-	●	●
2	GUIDE; FAN 4HE1 ENG(RLY) (A)	8-97066-018-0	01	1	0303-0511			●
2	GUIDE; FAN 4HK1-TCS ENG(RJS) (A)	8-97333-268-0	01	1	0512-			●	●
16	CAP; RAD 4HK1-TCS ENG(RJS) SOU	8-97239-187-0	01	1	0512-			●	●
16	CAP; RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97177-872-0	01	1	0303-0511	●	●
16	CAP; RAD 4HE1 ENG(RLY)	8-97177-872-0	01	1	0303-0511			●
16	CAP; RAD 4HF1 ENG(RLS)	8-97177-872-0	01	1	0512-	●	●
21	SEAL; RAD 4HE1 ENG(RLY)	8-97161-476-0	01	1	0303-0511			●
21	SEAL; RAD 4HK1-TCS ENG(RJS)	8-97332-382-0	01	1	0512-			●	●
22	BRACKET; RAD MTG 4HK1-TCS ENG(RJS)	8-97333-281-0	01	1	0512-			●	●
22	BRACKET; RAD MTG 4HF1 ENG(RLS)	8-97096-452-0	02	1	0303-	●	●
22	BRACKET; RAD MTG 4HE1 ENG(RLY)	8-97074-093-0	02	1	0303-0511			●
22	BRACKET; RAD MTG 4HK1-TCS ENG(RJS)	8-97333-280-0	01	1	0512-			●	●
23	NUT; RAD MTG M10 FLANGE	5-09440-006-0	04	1	0303-0511	●	●	●
23	NUT; RAD MTG 4HF1 ENG(RLS) M10 FLANGE	5-09440-006-0	04	1	0512-	●	●
25	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X12 FLANGE	0-28080-812-0	08	1	0512-			●	●
25	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0303-0511	●	●	●
25	BOLT; BRKT 4HF1 ENG(RLS) M10X30 FLANGE	0-28681-030-0	04	1	0512-0512	●	●
25	BOLT; BRKT 4HF1 ENG(RLS) M10X30 FLANGE SOU	0-28651-030-0	04	1	0601-	●	●
26	BUFFER; RAD,LWR	8-94249-347-0	02	1	0303-0511	●	●	●
26	BUFFER; RAD,LWR	8-94249-347-0	02	1	0512-	●	●	●	●
27	BUFFER; RAD,UPR	8-94249-346-0	02	1	0303-0511	●	●	●
27	BUFFER; RAD,UPR	8-94249-346-0	02	1	0512-	●	●	●	●
51	PLUG; DRAIN 4HK1-TCS ENG(RJS) SOU	8-97171-437-0	01	1	0512-			●	●
51	PLUG; DRAIN 4HF1 ENG(RLS) M/T MYY5T(RSM) W/GASKET SOU	8-94321-236-0	01	1	0303-0511	●	●
51	PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET SOU	8-94321-236-0	01	1	0303-0511			●
51	PLUG; DRAIN 4HF1 ENG(RLS) W/GASKET SOU	8-94321-236-0	01	1	0512-	●	●
52	GASKET; DRAIN PLUG 4HF1 ENG(RLS) M/T MYY5T(RSM) ID=10 SOU	9-09720-557-0	01	1	0303-0511	●	●
52	GASKET; DRAIN PLUG 4HE1 ENG(RLY) ID=10 SOU	9-09720-557-0	01	1	0303-0511			●
52	GASKET; DRAIN PLUG 4HF1 ENG(RLS) ID=10 SOU	9-09720-557-0	01	1	0512-	●	●
56	STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	0303-	●	●
56	STAY; RAD 4HE1 ENG(RLY)	8-97032-802-2	01	1	0303-0511			●
56	STAY; RAD 4HK1-TCS ENG(RJS)	8-97032-802-2	01	1	0512-			●	●
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0303-0511	●	●	●
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0512-0605	●	●	●	●
57	WASHER; PL,STAY ID=10.5 SOU	0-91610-510-0	01	1	0606-	●	●	●	●
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0303-0511	●	●	●
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0512-	●	●	●	●
59	PIN; SNAP,STAY L=27.7	8-94202-777-0	01	1	0303-0511	●	●	●
59	PIN; SNAP,STAY L=27.7	8-94202-777-0	01	1	0512-0610	●	●	●	●
59	PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●	●
62	BOLT; STAY 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) M8X12 FLANGE	0-28080-812-0	02	1	0303-0511	●	●
62	BOLT; STAY 4HE1 ENG(RLY) (A) M8X12 FLANGE	0-28080-812-0	02	1	0303-0511			●
62	BOLT; STAY 4HF1 ENG(RLS) (A) M8X12 FLANGE	0-28080-812-0	02	1	0512-	●	●
62	BOLT; STAY 4HK1-TCS ENG(RJS) (A) M8X12 FLANGE	0-28080-812-0	02	1	0512-			●	●
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0303-0511	●	●	●
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0512-	●	●	●	●
70	STAY; RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97047-899-0	01	1	0303-0511	●	●
70	STAY; RAD 4HF1 ENG(RLS)	8-97047-899-0	01	1	0512-	●	●
70	STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0303-0511			●
70	STAY; RAD 4HK1-TCS ENG(RJS)	8-97333-269-0	01	1	0512-			●	●
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36 SOU	8-94221-082-0	02	1	0303-0511	●	●	●
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36 SOU	8-94221-082-0	02	1	0512-0610	●	●	●	●
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-	●	●	●	●
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	01	1	0303-0511	●	●	●
74	WASHER; PL,CUSHION RUBBER 4HF1 ENG(RLS) (B) ID=10.5 OD=26	9-09160-710-0	01	1	0512-	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M8X63 SOU	8-94249-446-0	01	1	0303-0511	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG 4HF1 ENG(RLS) M8X63 SOU	8-94249-446-0	01	1	0512-	●	●
81	SCREW; FAN GUIDE,RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97088-810-0	04	1	0303-0511	●	●
81	SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY)	8-97088-810-0	04	1	0303-0511			●
81	SCREW; FAN GUIDE,RAD 4HF1 ENG(RLS)	8-97088-810-0	04	1	0512-	●	●
131	CLIP; ENG SIDE TOP 4HF1 ENG(RLS) ID=40	8-97245-216-0	01	1	0303-0511	●	●
131	CLIP; ENG SIDE TOP 4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0303-0511			●
131	CLIP; ENG SIDE TOP 4HF1 ENG(RLS) ID=40	8-97245-216-0	01	1	0512-	●	●
131	CLIP; ENG SIDE TOP 4HK1-TCS ENG(RJS) ID=40	8-97245-216-0	01	1	0512-			●	●
132	CLIP; HOSE,ENG SIDE BOTTOM 4HF1 ENG(RLS) ID=50	8-97245-217-0	01	1	0303-0511	●	●
132	CLIP; HOSE,ENG SIDE BOTTOM 4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0303-0511			●
132	CLIP; HOSE,ENG SIDE BOTTOM 4HF1 ENG(RLS) ID=50	8-97245-217-0	01	1	0512-	●	●
132	CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCS ENG(RJS) ID=50	8-97245-217-0	01	1	0512-			●	●
240	NUT; STAY M8 FLANGE SOU	8-94178-701-0	01	1	0303-0511	●	●	●
240	NUT; STAY M8 FLANGE SOU	8-94178-701-0	01	1	0512-	●	●	●	●
317	BOLT; SEAL 4HE1 ENG(RLY) M6X12 FLANGE	0-28080-612-0	02	1	0303-0511			●
518	NUT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602			●	●
518	NUT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91180-108-0	02	1	0603-0610			●	●
518	NUT (B) M8 FLANGE SOU	0-91180-108-0	02	1	0611-	●	●	●	●
518	NUT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91180-108-0	02	1	0611-			●	●
518	NUT (A) M8 FLANGE SOU	5-09440-005-0	02	1	0303-0511	●	●	●
518	NUT (A) M8 FLANGE SOU	5-09440-005-0	02	1	0512-0610	●	●	●	●

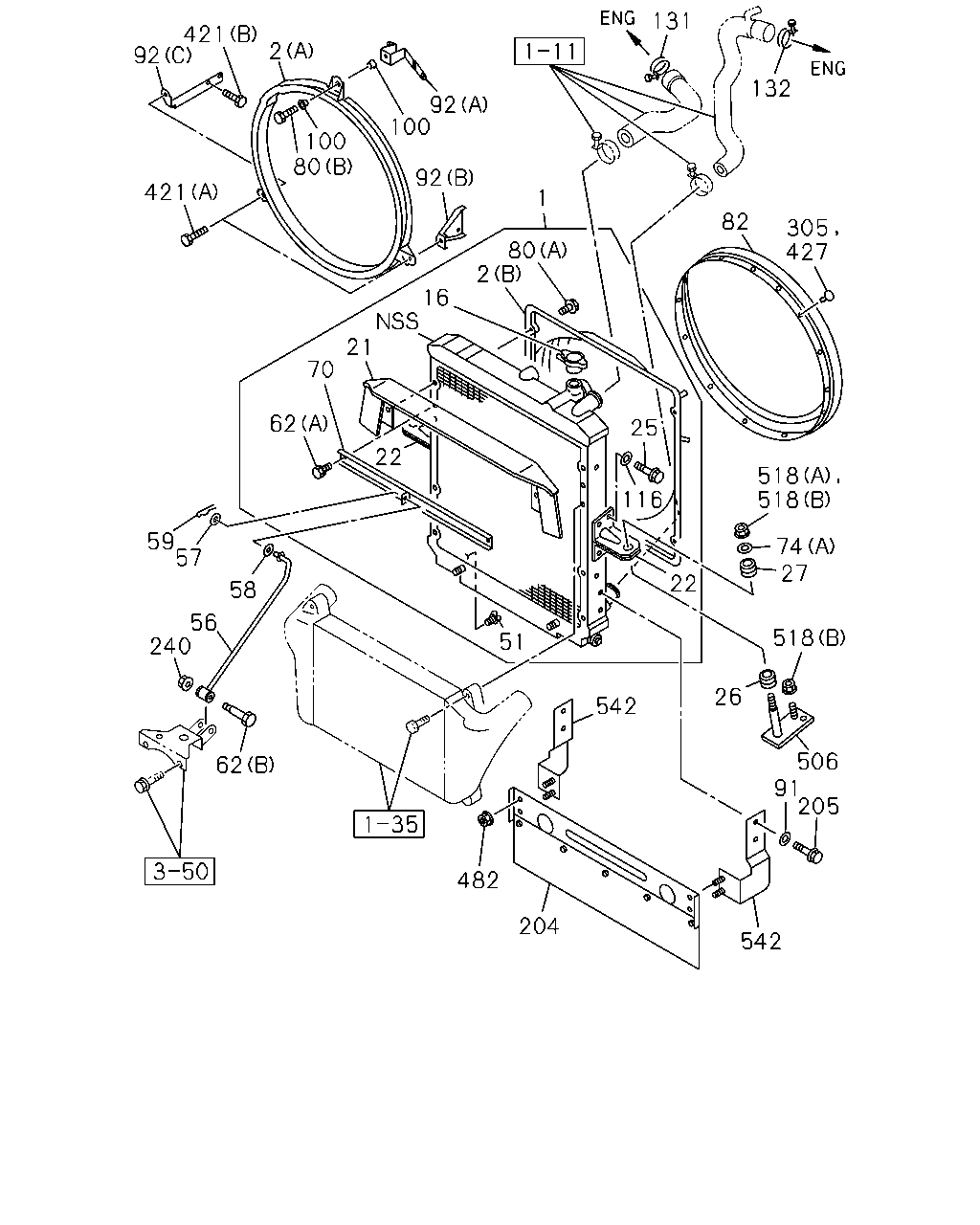

131 421 92 2 132 92 100 100 80 92 421 1 82 305 427 80 2 16 21 70 62 25 22 518 518 116 59 57 74 27 22 58 56 240 518 51 26 542 506 91 205 62 482 204 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97146-211-1	01	1	0303-0511	●	●
1	RADIATOR ASM 4HF1 ENG(RLS)	8-97146-211-1	01	1	0512-	●	●
1	RADIATOR ASM 4HE1 ENG(RLY)	8-97182-423-0	01	1	0303-0511			●
1	RADIATOR ASM 4HK1-TCS ENG(RJS)	8-97377-241-0	01	1	0512-			●	●
2	GUIDE; FAN 4HK1-TCS ENG(RJS) (B)	8-97350-995-0	01	1	0512-			●	●
2	GUIDE; FAN 4HF1 ENG(RLS) M/T MYY5T(RSM) (A)	8-97066-016-0	01	1	0303-0511	●	●
2	GUIDE; FAN 4HF1 ENG(RLS) (A)	8-97066-016-0	01	1	0512-	●	●
2	GUIDE; FAN 4HE1 ENG(RLY) (A)	8-97066-018-0	01	1	0303-0511			●
2	GUIDE; FAN 4HK1-TCS ENG(RJS) (A)	8-97333-268-0	01	1	0512-			●	●
16	CAP; RAD 4HK1-TCS ENG(RJS) SOU	8-97239-187-0	01	1	0512-			●	●
16	CAP; RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97177-872-0	01	1	0303-0511	●	●
16	CAP; RAD 4HE1 ENG(RLY)	8-97177-872-0	01	1	0303-0511			●
16	CAP; RAD 4HF1 ENG(RLS)	8-97177-872-0	01	1	0512-	●	●
21	SEAL; RAD 4HE1 ENG(RLY)	8-97161-476-0	01	1	0303-0511			●
21	SEAL; RAD 4HK1-TCS ENG(RJS)	8-97332-382-0	01	1	0512-			●	●
22	BRACKET; RAD MTG 4HK1-TCS ENG(RJS)	8-97333-281-0	01	1	0512-			●	●
22	BRACKET; RAD MTG 4HF1 ENG(RLS)	8-97096-452-0	02	1	0303-	●	●
22	BRACKET; RAD MTG 4HE1 ENG(RLY)	8-97074-093-0	02	1	0303-0511			●
22	BRACKET; RAD MTG 4HK1-TCS ENG(RJS)	8-97333-280-0	01	1	0512-			●	●
25	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X12 FLANGE	0-28080-812-0	08	1	0512-			●	●
25	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0303-0511	●	●	●
25	BOLT; BRKT 4HF1 ENG(RLS) M10X30 FLANGE	0-28681-030-0	04	1	0512-0512	●	●
25	BOLT; BRKT 4HF1 ENG(RLS) M10X30 FLANGE SOU	0-28651-030-0	04	1	0601-	●	●
26	BUFFER; RAD,LWR	8-94249-347-0	02	1	0303-0511	●	●	●
26	BUFFER; RAD,LWR	8-94249-347-0	02	1	0512-	●	●	●	●
27	BUFFER; RAD,UPR	8-94249-346-0	02	1	0303-0511	●	●	●
27	BUFFER; RAD,UPR	8-94249-346-0	02	1	0512-	●	●	●	●
51	PLUG; DRAIN 4HK1-TCS ENG(RJS) SOU	8-97171-437-0	01	1	0512-			●	●
51	PLUG; DRAIN 4HF1 ENG(RLS) M/T MYY5T(RSM) W/GASKET SOU	8-94321-236-0	01	1	0303-0511	●	●
51	PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET SOU	8-94321-236-0	01	1	0303-0511			●
51	PLUG; DRAIN 4HF1 ENG(RLS) W/GASKET SOU	8-94321-236-0	01	1	0512-	●	●
56	STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	0303-	●	●
56	STAY; RAD 4HE1 ENG(RLY)	8-97032-802-2	01	1	0303-0511			●
56	STAY; RAD 4HK1-TCS ENG(RJS)	8-97032-802-2	01	1	0512-			●	●
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0303-0511	●	●	●
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0512-0605	●	●	●	●
57	WASHER; PL,STAY ID=10.5 SOU	0-91610-510-0	01	1	0606-	●	●	●	●
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0303-0511	●	●	●
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0512-	●	●	●	●
59	PIN; SNAP,STAY L=27.7	8-94202-777-0	01	1	0303-0511	●	●	●
59	PIN; SNAP,STAY L=27.7	8-94202-777-0	01	1	0512-0610	●	●	●	●
59	PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●	●
62	BOLT; STAY 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) M8X12 FLANGE	0-28080-812-0	02	1	0303-0511	●	●
62	BOLT; STAY 4HE1 ENG(RLY) (A) M8X12 FLANGE	0-28080-812-0	02	1	0303-0511			●
62	BOLT; STAY 4HF1 ENG(RLS) (A) M8X12 FLANGE	0-28080-812-0	02	1	0512-	●	●
62	BOLT; STAY 4HK1-TCS ENG(RJS) (A) M8X12 FLANGE	0-28080-812-0	02	1	0512-			●	●
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0303-0511	●	●	●
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0512-	●	●	●	●
70	STAY; RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97047-899-0	01	1	0303-0511	●	●
70	STAY; RAD 4HF1 ENG(RLS)	8-97047-899-0	01	1	0512-	●	●
70	STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0303-0511			●
70	STAY; RAD 4HK1-TCS ENG(RJS)	8-97333-269-0	01	1	0512-			●	●
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36 SOU	8-94221-082-0	02	1	0303-0511	●	●	●
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36 SOU	8-94221-082-0	02	1	0512-0610	●	●	●	●
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-	●	●	●	●
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	01	1	0303-0511	●	●	●
74	WASHER; PL,CUSHION RUBBER 4HF1 ENG(RLS) (B) ID=10.5 OD=26	9-09160-710-0	01	1	0512-	●	●
80	BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) (A) M6X12 FLANGE	0-28080-612-0	04	1	0512-			●	●
80	BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0512-0512			●	●
80	BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0806			●	●
80	BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	03	1	0807-			●	●
82	COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-97332-330-0	01	1	0512-			●	●
91	WASHER; PL 4HK1-TCS ENG(RJS) ID=6.4 OD=18	9-09160-706-0	04	1	0512-0605			●	●
91	WASHER; PL 4HK1-TCS ENG(RJS) ID=6.4 OD=18 SOU	0-91610-706-0	04	1	0606-			●	●
92	BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97350-996-0	01	1	0512-			●	●
92	BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (C)	8-97350-997-0	01	1	0512-			●	●
92	BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (B)	8-97350-998-0	01	1	0512-			●	●
100	RUBBER; MTG 4HK1-TCS ENG(RJS)	1-09337-027-0	06	1	0512-			●	●
116	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) ID=8.4	9-09160-508-0	08	1	0512-			●	●
131	CLIP; ENG SIDE TOP 4HF1 ENG(RLS) ID=40	8-97245-216-0	01	1	0303-0511	●	●
131	CLIP; ENG SIDE TOP 4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0303-0511			●
131	CLIP; ENG SIDE TOP 4HF1 ENG(RLS) ID=40	8-97245-216-0	01	1	0512-	●	●
131	CLIP; ENG SIDE TOP 4HK1-TCS ENG(RJS) ID=40	8-97245-216-0	01	1	0512-			●	●
132	CLIP; HOSE,ENG SIDE BOTTOM 4HF1 ENG(RLS) ID=50	8-97245-217-0	01	1	0303-0511	●	●
132	CLIP; HOSE,ENG SIDE BOTTOM 4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0303-0511			●
132	CLIP; HOSE,ENG SIDE BOTTOM 4HF1 ENG(RLS) ID=50	8-97245-217-0	01	1	0512-	●	●
132	CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCS ENG(RJS) ID=50	8-97245-217-0	01	1	0512-			●	●
204	GUIDE ASM; AIR 4HK1-TCS ENG(RJS)	8-97332-962-1	01	1	0512-			●	●
205	BOLT; AIR GUIDE 4HK1-TCS ENG(RJS) M6X10 FLANGE	0-28080-610-0	04	1	0512-0512			●	●
205	BOLT; AIR GUIDE 4HK1-TCS ENG(RJS) M6X10 FLANGE	0-28050-610-0	04	1	0601-			●	●
240	NUT; STAY M8 FLANGE SOU	8-94178-701-0	01	1	0303-0511	●	●	●
240	NUT; STAY M8 FLANGE SOU	8-94178-701-0	01	1	0512-	●	●	●	●
305	CLIP; FAN COVER TO FAN GUIDE 4HK1-TCS ENG(RJS)	1-09470-009-0	12	1	0512-			●	●
421	BOLT; BRKT FAN GUIDE 4HK1-TCS ENG(RJS) (A) M10X18 FLANGE	0-28181-018-0	02	1	0512-			●	●
421	BOLT; BRKT FAN GUIDE 4HK1-TCS ENG(RJS) (B) M10X20 FLANGE	0-28181-020-0	02	1	0512-0512			●	●
421	BOLT; BRKT FAN GUIDE 4HK1-TCS ENG(RJS) (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-			●	●
427	CLIP; FAN GUIDE 4HK1-TCS ENG(RJS)	1-09470-009-0	01	1	0512-			●	●
482	NUT; AIR GUIDE 4HK1-TCS ENG(RJS) M6 FLANGE	0-91150-106-0	04	1	0512-0602			●	●
482	NUT; AIR GUIDE 4HK1-TCS ENG(RJS) M6 FLANGE SOU	0-91180-106-0	04	1	0603-			●	●
506	PLATE; RAD 4HK1-TCS ENG(RJS)	8-97330-527-1	02	1	0512-			●	●
518	NUT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602			●	●
518	NUT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91180-108-0	02	1	0603-0610			●	●
518	NUT (B) M8 FLANGE SOU	0-91180-108-0	02	1	0611-	●	●	●	●
518	NUT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91180-108-0	02	1	0611-			●	●
518	NUT (A) M8 FLANGE SOU	5-09440-005-0	02	1	0303-0511	●	●	●
518	NUT (A) M8 FLANGE SOU	5-09440-005-0	02	1	0512-0610	●	●	●	●
542	BRACKET; AIR GUIDE 4HK1-TCS ENG(RJS)	8-97332-963-0	01	1	0512-			●	●
542	BRACKET; AIR GUIDE 4HK1-TCS ENG(RJS)	8-97332-964-0	01	1	0512-			●	●

27 23 22 26 131 25 74 518 1 2 132 81 16 70 51 52 62 75 59 57 58 56 74 23 240 27 22 26 25 74 62 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97146-211-1	01	1	0303-0511	●	●
1	RADIATOR ASM 4HF1 ENG(RLS)	8-97146-211-1	01	1	0512-	●	●
1	RADIATOR ASM 4HE1 ENG(RLY)	8-97182-423-0	01	1	0303-0511			●
1	RADIATOR ASM 4HK1-TCS ENG(RJS)	8-97377-241-0	01	1	0512-			●	●
2	GUIDE; FAN 4HK1-TCS ENG(RJS) (B)	8-97350-995-0	01	1	0512-			●	●
2	GUIDE; FAN 4HF1 ENG(RLS) M/T MYY5T(RSM) (A)	8-97066-016-0	01	1	0303-0511	●	●
2	GUIDE; FAN 4HF1 ENG(RLS) (A)	8-97066-016-0	01	1	0512-	●	●
2	GUIDE; FAN 4HE1 ENG(RLY) (A)	8-97066-018-0	01	1	0303-0511			●
2	GUIDE; FAN 4HK1-TCS ENG(RJS) (A)	8-97333-268-0	01	1	0512-			●	●
16	CAP; RAD 4HK1-TCS ENG(RJS) SOU	8-97239-187-0	01	1	0512-			●	●
16	CAP; RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97177-872-0	01	1	0303-0511	●	●
16	CAP; RAD 4HE1 ENG(RLY)	8-97177-872-0	01	1	0303-0511			●
16	CAP; RAD 4HF1 ENG(RLS)	8-97177-872-0	01	1	0512-	●	●
22	BRACKET; RAD MTG 4HK1-TCS ENG(RJS)	8-97333-281-0	01	1	0512-			●	●
22	BRACKET; RAD MTG 4HF1 ENG(RLS)	8-97096-452-0	02	1	0303-	●	●
22	BRACKET; RAD MTG 4HE1 ENG(RLY)	8-97074-093-0	02	1	0303-0511			●
22	BRACKET; RAD MTG 4HK1-TCS ENG(RJS)	8-97333-280-0	01	1	0512-			●	●
23	NUT; RAD MTG M10 FLANGE	5-09440-006-0	04	1	0303-0511	●	●	●
23	NUT; RAD MTG 4HF1 ENG(RLS) M10 FLANGE	5-09440-006-0	04	1	0512-	●	●
25	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X12 FLANGE	0-28080-812-0	08	1	0512-			●	●
25	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0303-0511	●	●	●
25	BOLT; BRKT 4HF1 ENG(RLS) M10X30 FLANGE	0-28681-030-0	04	1	0512-0512	●	●
25	BOLT; BRKT 4HF1 ENG(RLS) M10X30 FLANGE SOU	0-28651-030-0	04	1	0601-	●	●
26	BUFFER; RAD,LWR	8-94249-347-0	02	1	0303-0511	●	●	●
26	BUFFER; RAD,LWR	8-94249-347-0	02	1	0512-	●	●	●	●
27	BUFFER; RAD,UPR	8-94249-346-0	02	1	0303-0511	●	●	●
27	BUFFER; RAD,UPR	8-94249-346-0	02	1	0512-	●	●	●	●
51	PLUG; DRAIN 4HK1-TCS ENG(RJS) SOU	8-97171-437-0	01	1	0512-			●	●
51	PLUG; DRAIN 4HF1 ENG(RLS) M/T MYY5T(RSM) W/GASKET SOU	8-94321-236-0	01	1	0303-0511	●	●
51	PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET SOU	8-94321-236-0	01	1	0303-0511			●
51	PLUG; DRAIN 4HF1 ENG(RLS) W/GASKET SOU	8-94321-236-0	01	1	0512-	●	●
52	GASKET; DRAIN PLUG 4HF1 ENG(RLS) M/T MYY5T(RSM) ID=10 SOU	9-09720-557-0	01	1	0303-0511	●	●
52	GASKET; DRAIN PLUG 4HE1 ENG(RLY) ID=10 SOU	9-09720-557-0	01	1	0303-0511			●
52	GASKET; DRAIN PLUG 4HF1 ENG(RLS) ID=10 SOU	9-09720-557-0	01	1	0512-	●	●
56	STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	0303-	●	●
56	STAY; RAD 4HE1 ENG(RLY)	8-97032-802-2	01	1	0303-0511			●
56	STAY; RAD 4HK1-TCS ENG(RJS)	8-97032-802-2	01	1	0512-			●	●
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0303-0511	●	●	●
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0512-0605	●	●	●	●
57	WASHER; PL,STAY ID=10.5 SOU	0-91610-510-0	01	1	0606-	●	●	●	●
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0303-0511	●	●	●
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0512-	●	●	●	●
59	PIN; SNAP,STAY L=27.7	8-94202-777-0	01	1	0303-0511	●	●	●
59	PIN; SNAP,STAY L=27.7	8-94202-777-0	01	1	0512-0610	●	●	●	●
59	PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●	●
62	BOLT; STAY 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) M8X12 FLANGE	0-28080-812-0	02	1	0303-0511	●	●
62	BOLT; STAY 4HE1 ENG(RLY) (A) M8X12 FLANGE	0-28080-812-0	02	1	0303-0511			●
62	BOLT; STAY 4HF1 ENG(RLS) (A) M8X12 FLANGE	0-28080-812-0	02	1	0512-	●	●
62	BOLT; STAY 4HK1-TCS ENG(RJS) (A) M8X12 FLANGE	0-28080-812-0	02	1	0512-			●	●
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0303-0511	●	●	●
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0512-	●	●	●	●
70	STAY; RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97047-899-0	01	1	0303-0511	●	●
70	STAY; RAD 4HF1 ENG(RLS)	8-97047-899-0	01	1	0512-	●	●
70	STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0303-0511			●
70	STAY; RAD 4HK1-TCS ENG(RJS)	8-97333-269-0	01	1	0512-			●	●
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36 SOU	8-94221-082-0	02	1	0303-0511	●	●	●
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36 SOU	8-94221-082-0	02	1	0512-0610	●	●	●	●
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-	●	●	●	●
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	01	1	0303-0511	●	●	●
74	WASHER; PL,CUSHION RUBBER 4HF1 ENG(RLS) (B) ID=10.5 OD=26	9-09160-710-0	01	1	0512-	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M8X63 SOU	8-94249-446-0	01	1	0303-0511	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG 4HF1 ENG(RLS) M8X63 SOU	8-94249-446-0	01	1	0512-	●	●
81	SCREW; FAN GUIDE,RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97088-810-0	04	1	0303-0511	●	●
81	SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY)	8-97088-810-0	04	1	0303-0511			●
81	SCREW; FAN GUIDE,RAD 4HF1 ENG(RLS)	8-97088-810-0	04	1	0512-	●	●
131	CLIP; ENG SIDE TOP 4HF1 ENG(RLS) ID=40	8-97245-216-0	01	1	0303-0511	●	●
131	CLIP; ENG SIDE TOP 4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0303-0511			●
131	CLIP; ENG SIDE TOP 4HF1 ENG(RLS) ID=40	8-97245-216-0	01	1	0512-	●	●
131	CLIP; ENG SIDE TOP 4HK1-TCS ENG(RJS) ID=40	8-97245-216-0	01	1	0512-			●	●
132	CLIP; HOSE,ENG SIDE BOTTOM 4HF1 ENG(RLS) ID=50	8-97245-217-0	01	1	0303-0511	●	●
132	CLIP; HOSE,ENG SIDE BOTTOM 4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0303-0511			●
132	CLIP; HOSE,ENG SIDE BOTTOM 4HF1 ENG(RLS) ID=50	8-97245-217-0	01	1	0512-	●	●
132	CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCS ENG(RJS) ID=50	8-97245-217-0	01	1	0512-			●	●
240	NUT; STAY M8 FLANGE SOU	8-94178-701-0	01	1	0303-0511	●	●	●
240	NUT; STAY M8 FLANGE SOU	8-94178-701-0	01	1	0512-	●	●	●	●
518	NUT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602			●	●
518	NUT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91180-108-0	02	1	0603-0610			●	●
518	NUT (B) M8 FLANGE SOU	0-91180-108-0	02	1	0611-	●	●	●	●
518	NUT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91180-108-0	02	1	0611-			●	●
518	NUT (A) M8 FLANGE SOU	5-09440-005-0	02	1	0303-0511	●	●	●
518	NUT (A) M8 FLANGE SOU	5-09440-005-0	02	1	0512-0610	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
