1-01 — ACCELERATOR PEDAL AND CONTROL (#44611) — 163 parça

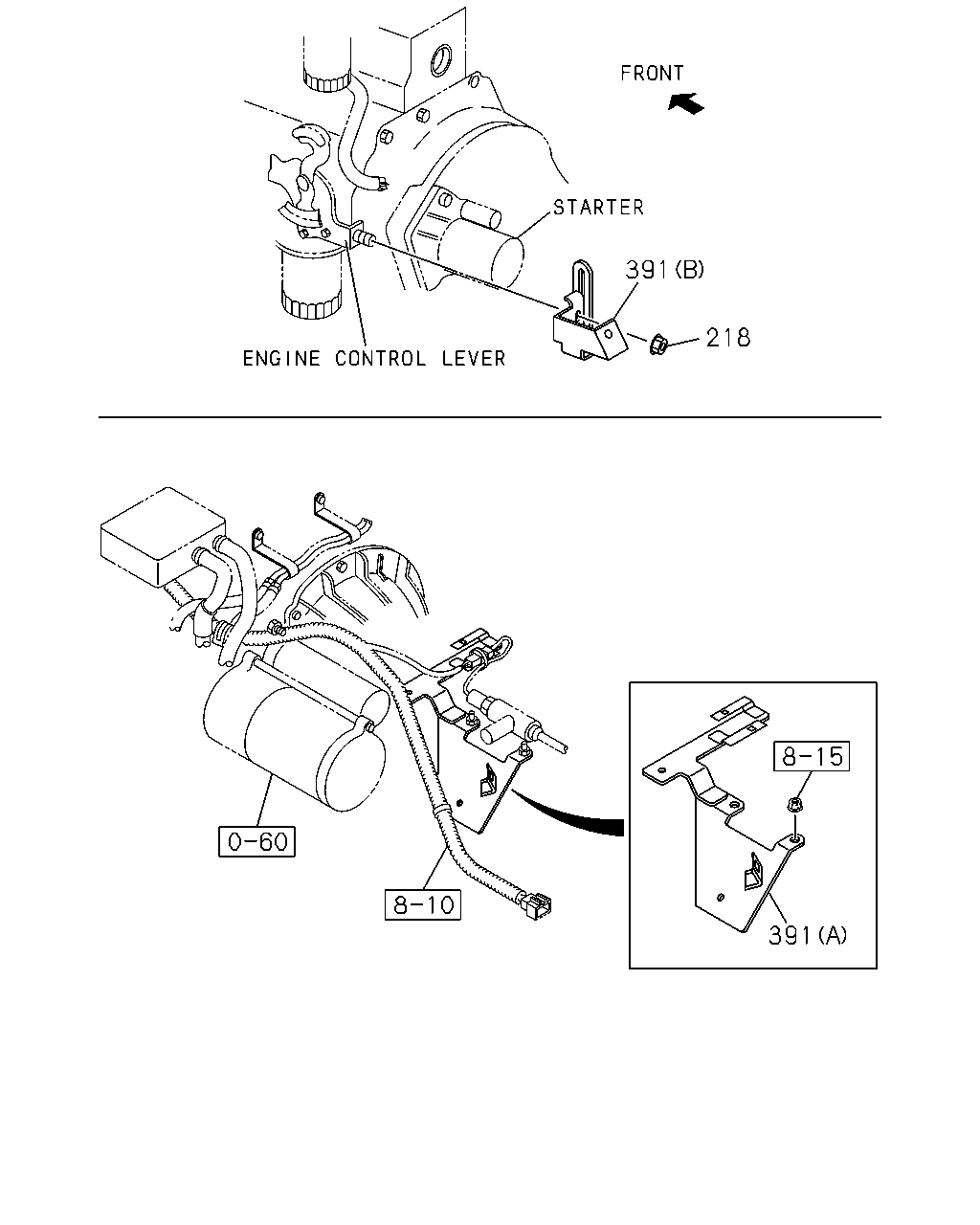

391 218 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
218	NUT; BRKT 4HF1 ENG(RLS) M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511	●	●
218	NUT; BRKT 4HE1 ENG(RLY) M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511			●
218	NUT; BRKT 4HF1 ENG(RLS) M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602	●	●
218	NUT; BRKT 4HF1 ENG(RLS) M8 FLANGE SOU	0-91180-108-0	01	1	0603-	●	●
391	BRACKET; ENG CONT 4HF1 ENG(RLS) (B)	8-97172-882-0	01	1	0303-0511	●	●
391	BRACKET; ENG CONT 4HE1 ENG(RLY) (B)	8-97172-882-0	01	1	0303-0511			●
391	BRACKET; ENG CONT 4HF1 ENG(RLS) (B)	8-97172-882-0	01	1	0512-	●	●
391	BRACKET; ENG CONT 4HF1 ENG(RLS) (A)	8-97357-141-0	01	1	0303-0511	●	●
391	BRACKET; ENG CONT 4HE1 ENG(RLY) (A)	8-97357-141-0	01	1	0303-0511			●
391	BRACKET; ENG CONT 4HF1 ENG(RLS) (A)	8-97357-141-0	01	1	0512-	●	●
391	BRACKET; ENG CONT 4HK1-TCS ENG(RJS) (A)	8-97357-141-0	01	1	0512-			●	●

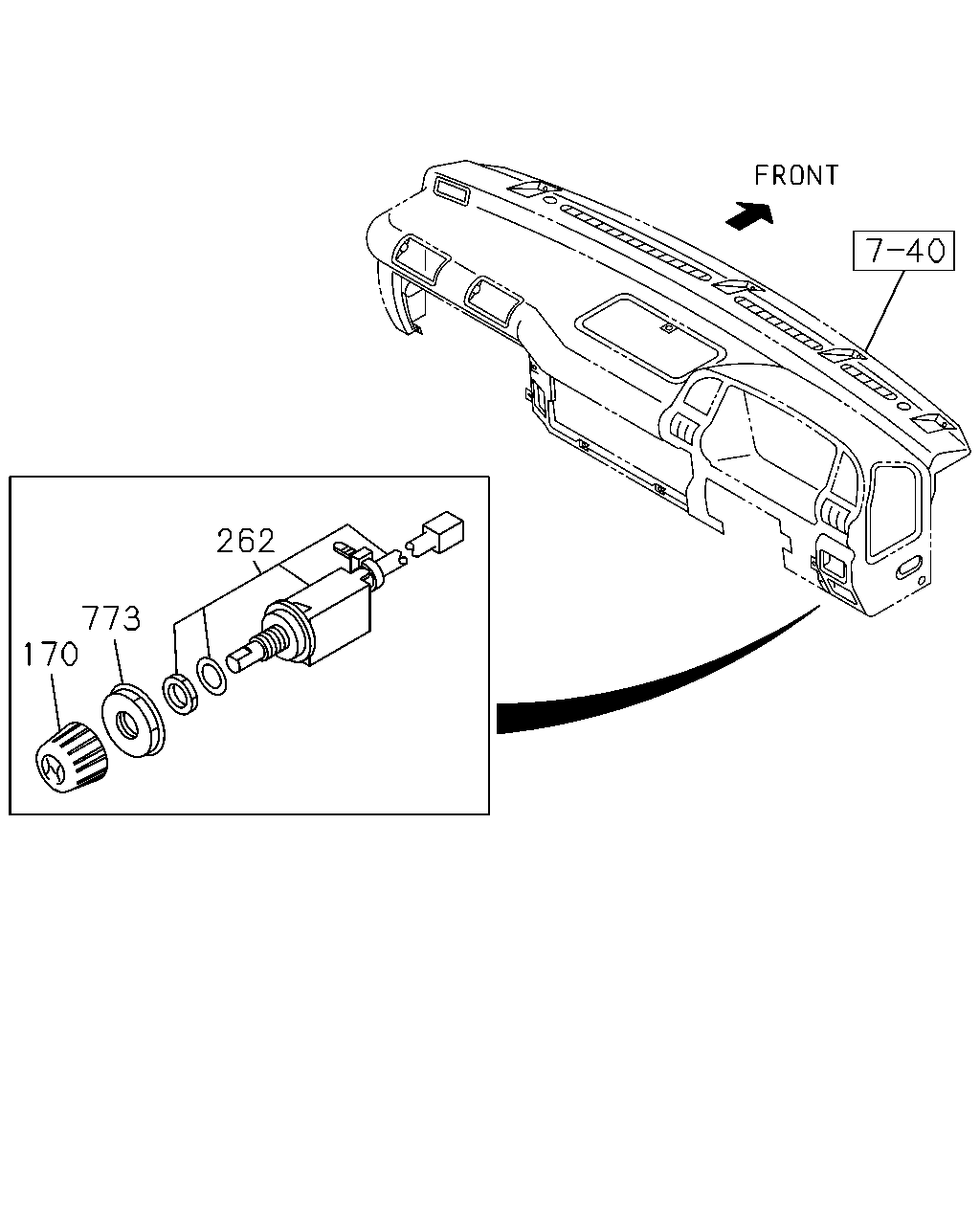

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
170	KNOB 4HK1-TCS ENG(RJS)	8-97310-165-0	01	1	0512-	●	●
262	SWITCH; ACCEL,IDLE 4HK1-TCS ENG(RJS)	8-97215-119-1	01	1	0512-	●	●
773	HOLDER; ACCEL PEDAL 4HK1-TCS ENG(RJS)	8-97352-127-0	01	1	0512-	●	●

389 316 389 60 54 395 389 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	0303-0511	●	●
54	CABLE; ENG CONT 4HE1 ENG(RLY) (B) L=293	8-97115-730-0	01	1	0303-0511			●
54	CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	0512-	●	●
54	CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2913	8-97167-698-2	01	1	0303-0511	●	●
54	CABLE; ENG CONT 4HE1 ENG(RLY) (A) L=2913	8-97167-698-2	01	1	0303-0511			●
54	CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2913	8-97167-698-2	01	1	0512-	●	●
60	BOLT; CABLE 4HF1 ENG(RLS) (A) M8X20 FLANGE	0-28680-820-0	02	1	0303-0511	●	●
60	BOLT; CABLE 4HE1 ENG(RLY) (A) M8X20 FLANGE	0-28680-820-0	02	1	0303-0511			●
60	BOLT; CABLE 4HF1 ENG(RLS) (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512	●	●
60	BOLT; CABLE 4HF1 ENG(RLS) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
60	BOLT; CABLE 4HF1 ENG(RLS) (B) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511	●	●
60	BOLT; CABLE 4HE1 ENG(RLY) (B) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511			●
60	BOLT; CABLE 4HF1 ENG(RLS) (B) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●	●
60	BOLT; CABLE 4HF1 ENG(RLS) (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-	●	●
316	CLIP; LAMP BRKT ID=9	5-09707-027-0	01	1	0303-0511	●	●	●
316	CLIP; LAMP BRKT 4HF1 ENG(RLS) ID=9	5-09707-027-0	01	1	0512-	●	●
389	NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) (A) M6 FLANGE	0-91150-106-0	01	1	0303-0511	●	●
389	NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) (A) M6 FLANGE	0-91150-106-0	01	1	0303-0511			●
389	NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) (A) M6 FLANGE	0-91150-106-0	01	1	0512-0602	●	●
389	NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) (A) M6 FLANGE SOU	0-91180-106-0	01	1	0603-	●	●
389	NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) (B) M8 W/LK WASHER	8-94327-073-0	01	1	0303-0511	●	●
389	NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) (B) M8 W/LK WASHER	8-94327-073-0	01	1	0303-0511			●
389	NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) (B) M8 W/LK WASHER	8-94327-073-0	01	1	0512-0805	●	●
389	NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) (B) M8 FLANGE	8-97581-234-0	01	1	0806-	●	●
389	NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) (B) M8 W/LK WASHER	8-94327-073-0	02	1	0303-0511	●	●
389	NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) (B) M8 W/LK WASHER	8-94327-073-0	02	1	0303-0511			●
389	NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) (B) M8 W/LK WASHER	8-94327-073-0	02	1	0512-0805	●	●
389	NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) (B) M8 FLANGE	8-97581-234-0	02	1	0806-	●	●
395	CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) L=250 SOU	5-09707-030-1	01	1	0303-0511	●	●
395	CLIP; BAND,ACCEL CONT CABLE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) L=250 SOU	5-09707-030-1	01	1	0303-0511			●
395	CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) L=250 SOU	5-09707-030-1	01	1	0512-	●	●

54 99 54 100 101 108 729 101 104 99 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	0303-0511	●	●
54	CABLE; ENG CONT 4HE1 ENG(RLY) (B) L=293	8-97115-730-0	01	1	0303-0511			●
54	CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	0512-	●	●
54	CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2913	8-97167-698-2	01	1	0303-0511	●	●
54	CABLE; ENG CONT 4HE1 ENG(RLY) (A) L=2913	8-97167-698-2	01	1	0303-0511			●
54	CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2913	8-97167-698-2	01	1	0512-	●	●
99	BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS)	8-97118-729-0	01	1	0303-0511	●	●
99	BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY)	8-97118-729-0	01	1	0303-0511			●
99	BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS)	8-97118-729-0	01	1	0512-	●	●
100	SHAFT ASM; ENG CONT 4HF1 ENG(RLS)	8-97118-737-0	01	1	0303-0511	●	●
100	SHAFT ASM; ENG CONT 4HE1 ENG(RLY)	8-97118-737-0	01	1	0303-0511			●
100	SHAFT ASM; ENG CONT 4HF1 ENG(RLS)	8-97118-737-0	01	1	0512-	●	●
101	WASHER; ENG CONT 4HF1 ENG(RLS)	8-94142-117-0	02	1	0303-0511	●	●
101	WASHER; ENG CONT 4HE1 ENG(RLY)	8-94142-117-0	02	1	0303-0511			●
101	WASHER; ENG CONT 4HF1 ENG(RLS)	8-94142-117-0	02	1	0512-	●	●
104	NUT; ENG CONT 4HF1 ENG(RLS) M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511	●	●
104	NUT; ENG CONT 4HE1 ENG(RLY) M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511			●
104	NUT; ENG CONT 4HF1 ENG(RLS) M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602	●	●
104	NUT; ENG CONT 4HF1 ENG(RLS) M8 FLANGE SOU	0-91180-108-0	01	1	0603-	●	●
108	BUSHING; ENG CONT 4HF1 ENG(RLS)	8-97120-004-0	01	1	0303-0511	●	●
108	BUSHING; ENG CONT 4HE1 ENG(RLY)	8-97120-004-0	01	1	0303-0511			●
108	BUSHING; ENG CONT 4HF1 ENG(RLS)	8-97120-004-0	01	1	0512-	●	●
110	BOLT; BRKT TO HANGER 4HF1 ENG(RLS) M8X16 FLANGE	0-28080-816-0	03	1	0303-0511	●	●
110	BOLT; BRKT TO HANGER 4HE1 ENG(RLY) M8X16 FLANGE	0-28080-816-0	03	1	0303-0511			●
110	BOLT; BRKT TO HANGER 4HF1 ENG(RLS) M8X16 FLANGE	0-28080-816-0	03	1	0512-0512	●	●
110	BOLT; BRKT TO HANGER 4HF1 ENG(RLS) M8X16 FLANGE SOU	0-28050-816-0	03	1	0601-	●	●
729	COLLAR; JOINT 4HF1 ENG(RLS)	8-97118-760-0	01	1	0303-0511	●	●
729	COLLAR; JOINT 4HE1 ENG(RLY)	8-97118-760-0	01	1	0303-0511			●
729	COLLAR; JOINT 4HF1 ENG(RLS)	8-97118-760-0	01	1	0512-	●	●

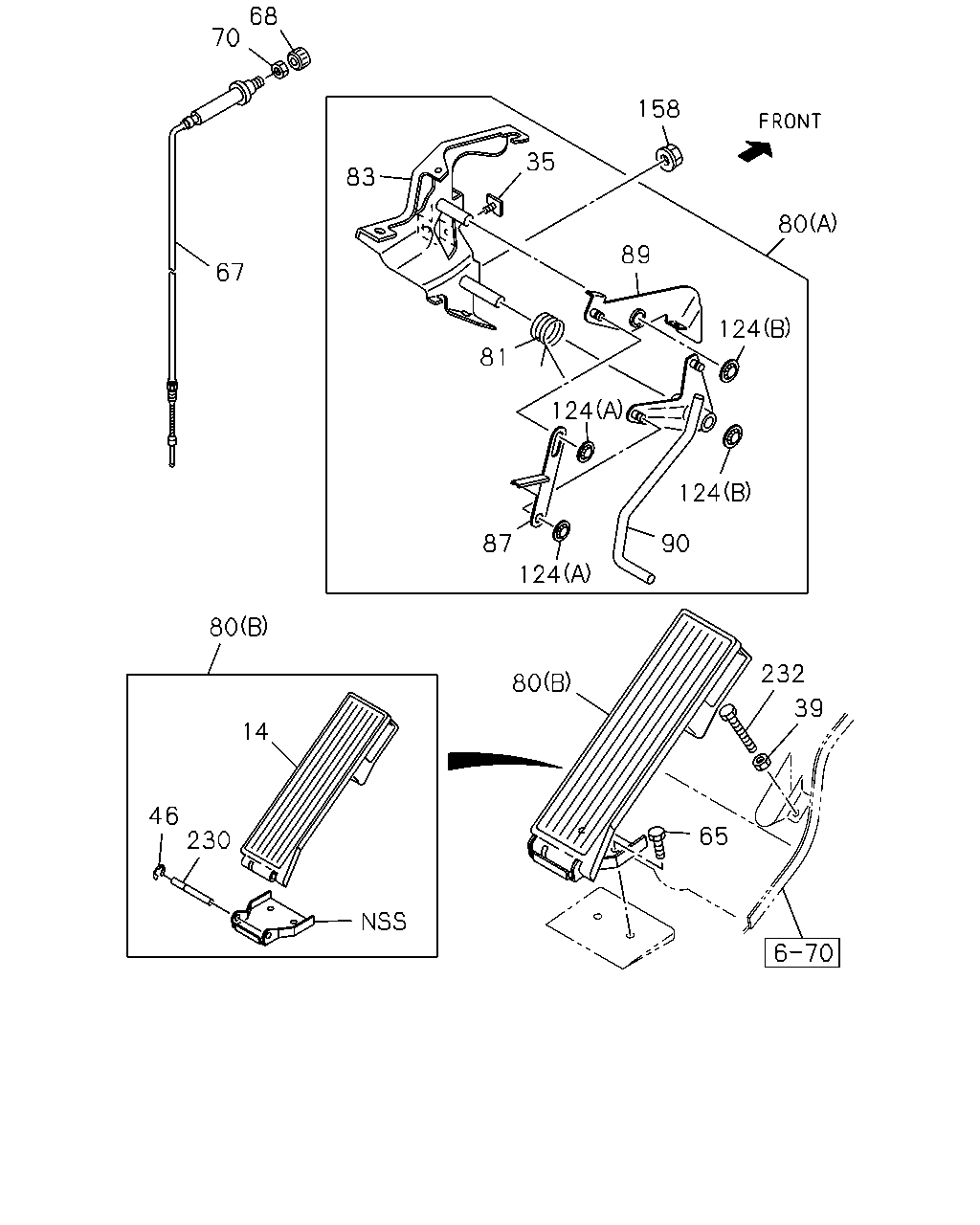

68 70 158 35 83 80 89 67 124 81 124 124 87 90 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	PAD; PEDAL,ACCEL SOU	8-97853-062-2	01	1	0303-0511	●	●	●
14	PAD; PEDAL,ACCEL SOU	8-97853-062-2	01	1	0512-	●	●	●	●
35	STOPPER; ACCEL PEDAL 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97302-305-0	01	1	0303-0511	●	●
35	STOPPER; ACCEL PEDAL 4HE1 ENG(RLY) M/T MZZ6U(RSF) SOU	8-97302-305-0	01	1	0303-0511			●
35	STOPPER; ACCEL PEDAL 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97302-305-0	01	1	0512-	●	●
39	NUT; ACCEL PEDAL STOPPER M8	9-09110-408-0	01	1	0303-0511	●	●	●
39	NUT; ACCEL PEDAL STOPPER M8	9-09110-408-0	01	1	0512-0512	●	●	●	●
39	NUT; ACCEL PEDAL STOPPER M8 SOU	0-91110-508-0	01	1	0601-	●	●	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	0303-0511	●	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	0512-0604	●	●	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●	●
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0303-0511	●	●	●
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0512-	●	●	●	●
67	CABLE ASM; IDLE CONT 4HF1 ENG(RLS) L=439 SOU	8-97853-058-1	01	1	0303-0511	●	●
67	CABLE ASM; IDLE CONT 4HE1 ENG(RLY) L=439 SOU	8-97853-058-1	01	1	0303-0511			●
67	CABLE ASM; IDLE CONT 4HF1 ENG(RLS) L=439 SOU	8-97853-058-1	01	1	0512-	●	●
68	KNOB; IDLE CONT 4HF1 ENG(RLS) SOU	8-97853-765-1	01	1	0303-0511	●	●
68	KNOB; IDLE CONT 4HE1 ENG(RLY) SOU	8-97853-765-1	01	1	0303-0511			●
68	KNOB; IDLE CONT 4HF1 ENG(RLS) SOU	8-97853-765-1	01	1	0512-	●	●
70	NUT; CONT CABLE 4HF1 ENG(RLS) M18 SOU	8-97853-233-0	01	1	0303-0511	●	●
70	NUT; CONT CABLE 4HE1 ENG(RLY) M18 SOU	8-97853-233-0	01	1	0303-0511			●
70	NUT; CONT CABLE 4HF1 ENG(RLS) M18 SOU	8-97853-233-0	01	1	0512-	●	●
80	LINK ASM; ENG CONT 4HK1-TCS ENG(RJS) (C)	8-97997-556-6	01	1	0512-			●	●
80	LINK ASM; ENG CONT 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) SOU	8-97853-057-9	01	1	0303-0511	●	●
80	LINK ASM; ENG CONT 4HE1 ENG(RLY) M/T MZZ6U(RSF) (A) SOU	8-97853-057-9	01	1	0303-0511			●
80	LINK ASM; ENG CONT 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) SOU	8-97853-057-9	01	1	0512-	●	●
80	LINK ASM; ENG CONT (B) SOU	8-97853-061-2	01	1	0303-0511	●	●	●
80	LINK ASM; ENG CONT (B) SOU	8-97853-061-2	01	1	0512-	●	●	●	●
81	SPRING; RETURN,ENG CONT LEVER 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97853-205-1	01	1	0303-0511	●	●
81	SPRING; RETURN,ENG CONT LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF) SOU	8-97853-205-1	01	1	0303-0511			●
81	SPRING; RETURN,ENG CONT LEVER 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97853-205-1	01	1	0512-	●	●
83	BRACKET; CONT LINK 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97853-201-4	01	1	0303-0511	●	●
83	BRACKET; CONT LINK 4HE1 ENG(RLY) M/T MZZ6U(RSF) SOU	8-97853-201-4	01	1	0303-0511			●
83	BRACKET; CONT LINK 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97853-201-4	01	1	0512-	●	●
87	LINK; ENG CONT 4HK1-TCS ENG(RJS)	8-97581-415-5	01	1	0512-			●	●
87	LINK; ENG CONT 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97853-204-1	01	1	0303-0511	●	●
87	LINK; ENG CONT 4HE1 ENG(RLY) M/T MZZ6U(RSF) SOU	8-97853-204-1	01	1	0303-0511			●
87	LINK; ENG CONT 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97853-204-1	01	1	0512-	●	●
89	LEVER; RELAY 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97868-042-0	01	1	0303-0511	●	●
89	LEVER; RELAY 4HE1 ENG(RLY) M/T MZZ6U(RSF) SOU	8-97868-042-0	01	1	0303-0511			●
89	LEVER; RELAY 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97868-042-0	01	1	0512-	●	●
90	LEVER; RELAY,ENG CONT 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97868-039-0	01	1	0303-0511	●	●
90	LEVER; RELAY,ENG CONT 4HE1 ENG(RLY) M/T MZZ6U(RSF) SOU	8-97868-039-0	01	1	0303-0511			●
90	LEVER; RELAY,ENG CONT 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97868-039-0	01	1	0512-	●	●
124	NUT; LEVER 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) ID=4.9 PUSH NUT SOU	8-94279-042-0	02	1	0303-0511	●	●
124	NUT; LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF) (A) ID=4.9 PUSH NUT SOU	8-94279-042-0	02	1	0303-0511			●
124	NUT; LEVER 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) ID=4.9 PUSH NUT SOU	8-94279-042-0	02	1	0512-	●	●
124	NUT; LEVER 4HF1 ENG(RLS) M/T MYY5T(RSM) (B) ID=9.9 PUSH NUT SOU	8-97012-098-0	02	1	0303-0511	●	●
124	NUT; LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B) ID=9.9 PUSH NUT SOU	8-97012-098-0	02	1	0303-0511			●
124	NUT; LEVER 4HF1 ENG(RLS) M/T MYY5T(RSM) (B) ID=9.9 PUSH NUT SOU	8-97012-098-0	02	1	0512-	●	●
158	NUT; BRKT M8 FLANGE SOU	8-94279-060-0	02	1	0303-0511	●	●	●
158	NUT; BRKT M8 FLANGE SOU	8-94279-060-0	02	1	0512-	●	●	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT SOU	8-97853-064-0	01	1	0303-0511	●	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT SOU	8-97853-064-0	01	1	0512-	●	●	●	●
232	BOLT; STOPPER,ACCEL PEDAL M8X65	0-20800-865-0	01	1	0303-0404	●	●	●
232	BOLT; STOPPER,ACCEL PEDAL 4HF1 ENG(RLS) M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0511	●	●
232	BOLT; STOPPER,ACCEL PEDAL 4HE1 ENG(RLY) M/T MZZ6U(RSF) M8X45	8-97378-461-0	01	1	0405-0511			●
232	BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0512-	●	●	●	●

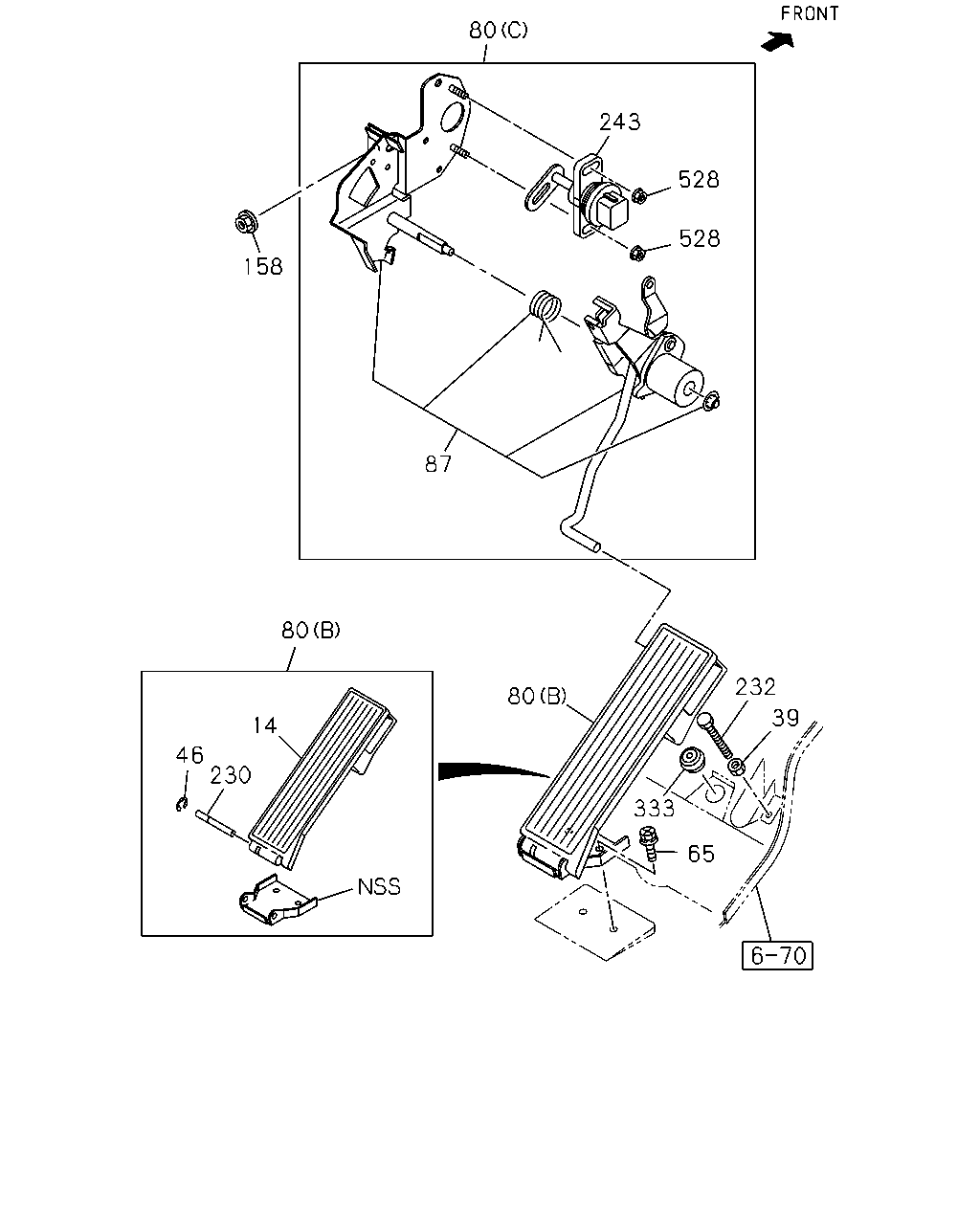

80 243 528 528 158 87 80 232 80 39 14 46 230 333 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	PAD; PEDAL,ACCEL SOU	8-97853-062-2	01	1	0303-0511	●	●	●
14	PAD; PEDAL,ACCEL SOU	8-97853-062-2	01	1	0512-	●	●	●	●
39	NUT; ACCEL PEDAL STOPPER M8	9-09110-408-0	01	1	0303-0511	●	●	●
39	NUT; ACCEL PEDAL STOPPER M8	9-09110-408-0	01	1	0512-0512	●	●	●	●
39	NUT; ACCEL PEDAL STOPPER M8 SOU	0-91110-508-0	01	1	0601-	●	●	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	0303-0511	●	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	0512-0604	●	●	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●	●
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0303-0511	●	●	●
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0512-	●	●	●	●
80	LINK ASM; ENG CONT 4HK1-TCS ENG(RJS) (C)	8-97997-556-6	01	1	0512-			●	●
80	LINK ASM; ENG CONT 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) SOU	8-97853-057-9	01	1	0303-0511	●	●
80	LINK ASM; ENG CONT 4HE1 ENG(RLY) M/T MZZ6U(RSF) (A) SOU	8-97853-057-9	01	1	0303-0511			●
80	LINK ASM; ENG CONT 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) SOU	8-97853-057-9	01	1	0512-	●	●
80	LINK ASM; ENG CONT (B) SOU	8-97853-061-2	01	1	0303-0511	●	●	●
80	LINK ASM; ENG CONT (B) SOU	8-97853-061-2	01	1	0512-	●	●	●	●
87	LINK; ENG CONT 4HK1-TCS ENG(RJS)	8-97581-415-5	01	1	0512-			●	●
87	LINK; ENG CONT 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97853-204-1	01	1	0303-0511	●	●
87	LINK; ENG CONT 4HE1 ENG(RLY) M/T MZZ6U(RSF) SOU	8-97853-204-1	01	1	0303-0511			●
87	LINK; ENG CONT 4HF1 ENG(RLS) M/T MYY5T(RSM) SOU	8-97853-204-1	01	1	0512-	●	●
158	NUT; BRKT M8 FLANGE SOU	8-94279-060-0	02	1	0303-0511	●	●	●
158	NUT; BRKT M8 FLANGE SOU	8-94279-060-0	02	1	0512-	●	●	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT SOU	8-97853-064-0	01	1	0303-0511	●	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT SOU	8-97853-064-0	01	1	0512-	●	●	●	●
232	BOLT; STOPPER,ACCEL PEDAL M8X65	0-20800-865-0	01	1	0303-0404	●	●	●
232	BOLT; STOPPER,ACCEL PEDAL 4HF1 ENG(RLS) M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0511	●	●
232	BOLT; STOPPER,ACCEL PEDAL 4HE1 ENG(RLY) M/T MZZ6U(RSF) M8X45	8-97378-461-0	01	1	0405-0511			●
232	BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0512-	●	●	●	●
243	SENSOR; ACCEL 4HK1-TCS ENG(RJS)	8-97602-416-0	01	1	0512-			●	●
333	GROMMET; HOLE,CABLE 4HK1-TCS ENG(RJS) OD=24.5 T=7.5	8-97224-683-0	01	1	0512-			●	●
528	NUT; ACCEL SENSOR 4HK1-TCS ENG(RJS) M5	8-94169-022-0	02	1	0512-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
