Isuzu WW
▶
TRUCKS
▶
NPR
▶
50954 - NPR/NQR(SOUTHAFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-86 - MISCELLANEOUS PARTS; INJECTION PUMP
▶

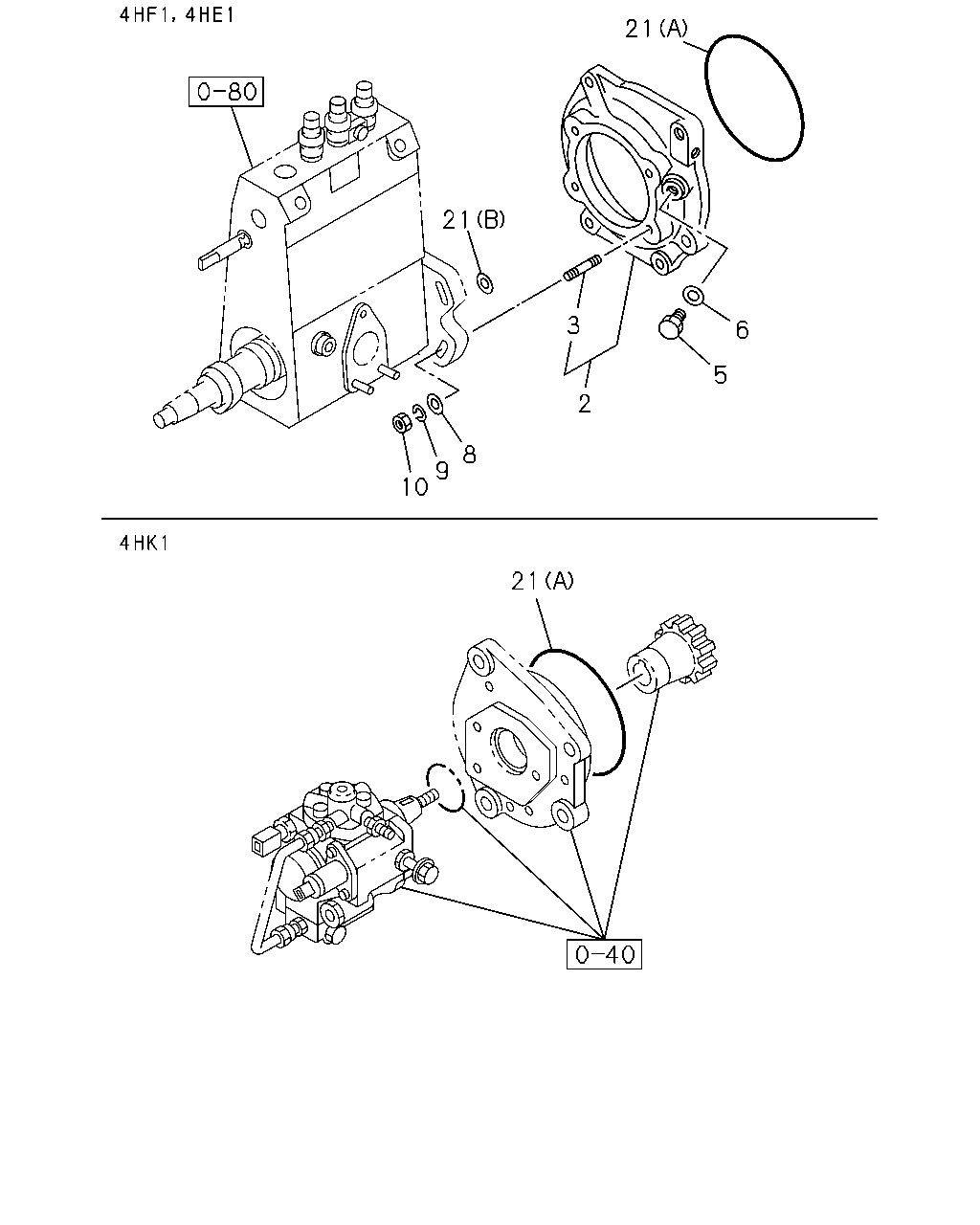

0-86 — MISCELLANEOUS PARTS; INJECTION PUMP
(#44610) — 17 parça
Tümü
A - 4HF1 ENG
B - 4HE1 ENG
C - 4HK1-TCS ENG
21
21
3
6
5
2
8
9
10
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
BRACKET; HSG & TIMER,INJ PUMP
8-97121-616-0
01
1
0303-
●
2
BRACKET; HSG & TIMER,INJ PUMP
8-97125-957-0
01
1
0303-0511
●
3
STUD; HSG BRKT,INJ PUMP
M10X30 L=45
9-04101-030-0
04
1
0303-0511
●
●
3
STUD; HSG BRKT,INJ PUMP
M10X30 L=45
9-04101-030-0
04
1
0512-
●
5
PLUG; HSG BRKT,INJ PUMP
8-97026-919-0
01
1
0303-0511
●
●
5
PLUG; HSG BRKT,INJ PUMP
8-97026-919-0
01
1
0512-
●
6
GASKET; PLUG,INJ PUMP BRKT
1-15729-787-0
01
1
0303-0511
●
●
6
GASKET; PLUG,INJ PUMP BRKT
1-15729-787-0
01
1
0512-
●
8
WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5
9-09164-510-0
04
1
0303-0511
●
●
8
WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5
9-09164-510-0
04
1
0512-
●
9
WASHER; LK,HSG BRKT,INJ PUMP
ID=10.2
9-09150-610-0
04
1
0303-0511
●
10
NUT; HSG BRKT,INJ PUMP
5-15639-002-0
04
1
0303-0511
●
●
10
NUT; HSG BRKT,INJ PUMP
5-15639-002-0
04
1
0512-
●
21
GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97039-200-1
01
1
0303-0511
●
●
21
GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97039-200-1
01
1
0512-
●
●
21
GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=23.0
9-09572-014-0
04
1
0303-0511
●
●
21
GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=23.0
9-09572-014-0
04
1
0512-
●
