0-81 — GOVERNOR; INJECTION PUMP (#44605) — 166 parça

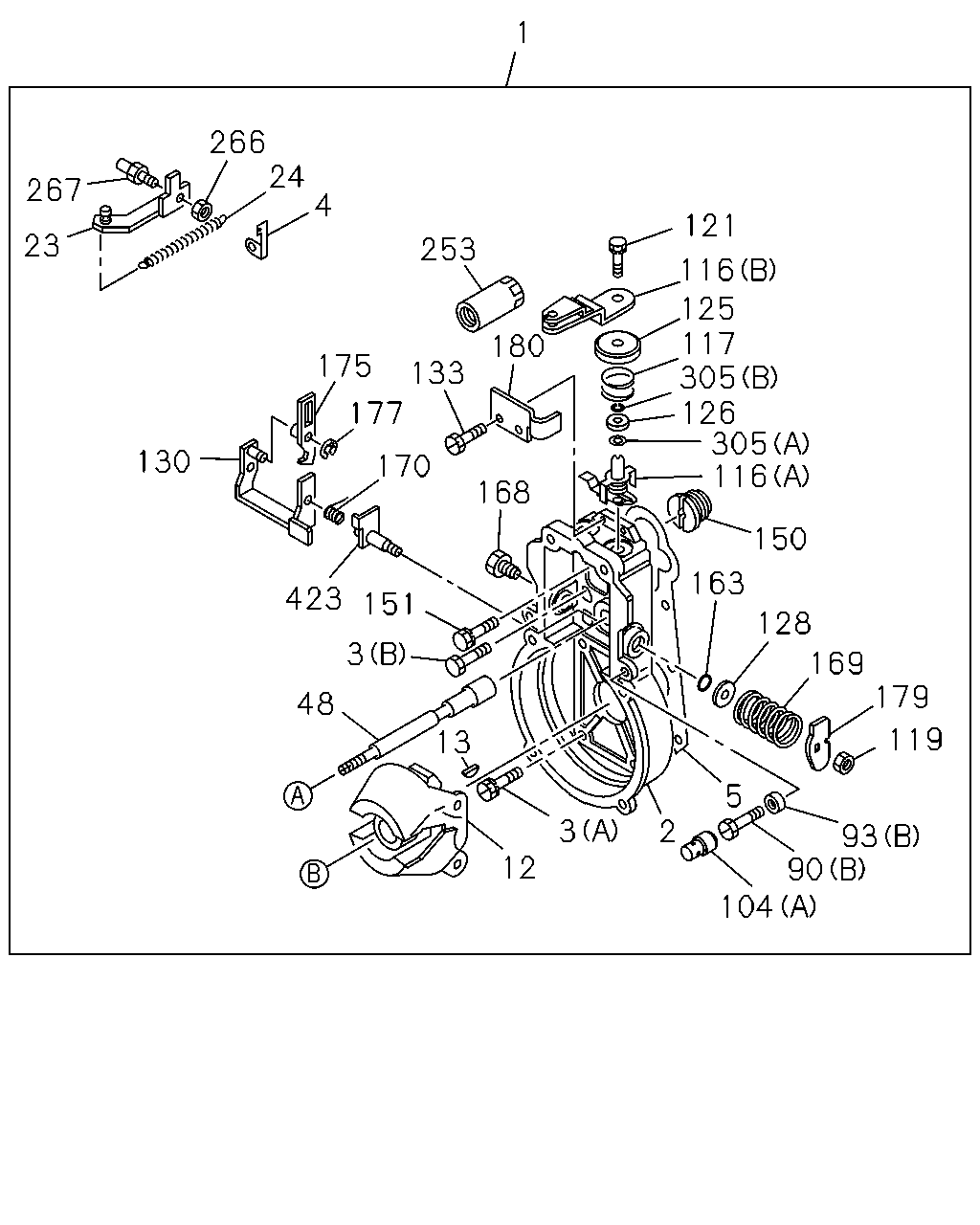

çizim 11678
1 266 24 4 267 121 23 253 116 125 117 305 126 305 116 180 175 133 177 130 170 168 150 163 423 151 128 3 169 179 48 119 13 5 3 2 93 90 104 12
BalonParca AdiParca NoAdetTipApplied Date
1 GOVERNOR ASM; INJ PUMP
ASM PART: A = 8-97203-383-0 		8-97224-003-0 01 1 -
1 GOVERNOR ASM; INJ PUMP
ASM PART: B = 8-97212-104-0 		8-97224-580-0 01 1 -
2 HOUSING; GOV,INJ PUMP
ASM PART: A = 8-97203-383-0 		1-15721-209-0 01 1 -
2 HOUSING; GOV,INJ PUMP
ASM PART: B = 8-97212-104-0 		1-15721-265-0 01 1 -
3 BOLT; GOV HSG,INJ PUMP
(A), M6X15 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15729-027-0 05 1 -
3 BOLT; GOV HSG,INJ PUMP
(B), M6X16 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15729-071-0 01 1 -
4 PLATE; START SPRING,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15779-591-0 01 1 -
5 GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 8-97203-383-0 		1-15779-093-0 01 1 -
5 GASKET; GOV TO INJ PUMP HSG
ASM PART: B = 8-97212-104-0 		1-15779-106-0 01 1 -
12 FLYWEIGHT ASM; GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15722-017-0 01 1 -
13 KEY; FLYWEIGHT,GOV
16MM ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-19619-049-0 01 1 -
23 LINK; LEVER TO CONT RACK,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15725-928-0 01 1 -
24 SPRING; START,GOV,INJ PUMP
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15723-035-0 01 1 -
48 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94171-146-1 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), M8X62 ASM PART: A = 8-97203-383-0 		1-15729-642-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), M8X65 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-761-0 02 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X33 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-799-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X34 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-800-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X35 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-801-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X36 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-802-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X37 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-803-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X31 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-842-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X32 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-843-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-643-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-807-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97026-924-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(A) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97085-021-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97085-022-0 01 1 -
116 LEVER; ENG STOP,GOV
(A) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97121-631-0 01 1 -
116 LEVER; ENG STOP,GOV
(B) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97121-632-0 01 1 -
117 SPRING; STOP LEVER,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94336-925-0 01 1 -
119 NUT; ENG STOP LEVER,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-236-0 01 1 -
121 BOLT; ENG STOP LEVER,GOV
M6X12 W/LK WASHER ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-01910-612-0 01 1 -
125 CAP; STOP LEVER SPRING,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94171-168-0 01 1 -
126 GASKET; STOP LEVER,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-853-0 01 1 -
128 SHIM; CONT SHAFT,GOV
T=0.60 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-897-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
T=0.80 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-898-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
T=0.90 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-899-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
T=0.50 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-556-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
T=0.30 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-557-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
T=0.40 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-558-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
T=0.25 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-559-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
T=0.35 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-560-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
T=0.20 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-88410-421-0 AR 1 -
130 LEVER; CONT,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15725-496-0 01 1 -
133 BOLT; BRKT FIX,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-834-0 02 1 -
150 ADAPTER; GOV HSG,INJ PUMP
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81315-065-0 01 1 -
151 BOLT; ADAPTER,GOV HSG,INJ PUMP
M8X18 W/LK WASHER ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-01900-818-0 01 1 -
163 GASKET; CONT SHAFT,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15629-859-0 01 1 -
168 PLUG; CONT SHAFT,GOV HSG
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-796-0 01 1 -
169 SPRING; LEVER SET,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15723-032-0 01 1 -
170 SPRING; LEVER TO LEVER,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15723-033-0 01 1 -
175 LEVER; GOV,INJ PUMP
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97176-488-0 01 1 -
177 RING; SNAP,GOV LEVER,INJ PUMP
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-445-0 01 1 -
179 LEVER; SPD ADJ,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94171-132-0 01 1 -
180 PLATE; GOV COVER
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97121-643-0 01 1 -
253 LIMITTER; GOV CONT
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94167-792-0 01 1 -
266 NUT; PIN TO LINK,CONT RACK,GOV
M5 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-99110-405-0 01 1 -
267 BOLT; CONN,CONT RACK,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-858-0 01 1 -
305 SHIM; STOP LEVER,GOV
(B), T=0.20 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97089-308-0 AR 1 -
305 SHIM; STOP LEVER,GOV
(B), T=0.30 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97089-309-0 AR 1 -
305 SHIM; STOP LEVER,GOV
(B), T=0.40 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97089-310-0 AR 1 -
305 SHIM; STOP LEVER,GOV
(B), T=0.60 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97089-311-0 AR 1 -
305 SHIM; STOP LEVER,GOV
(B), T=0.80 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97089-312-0 AR 1 -
305 SHIM; STOP LEVER,GOV
(A), T=1.00 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-553-0 01 1 -
423 SHAFT; CONT,GOV HSG,INJ PUMP
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-820-0 01 1 -

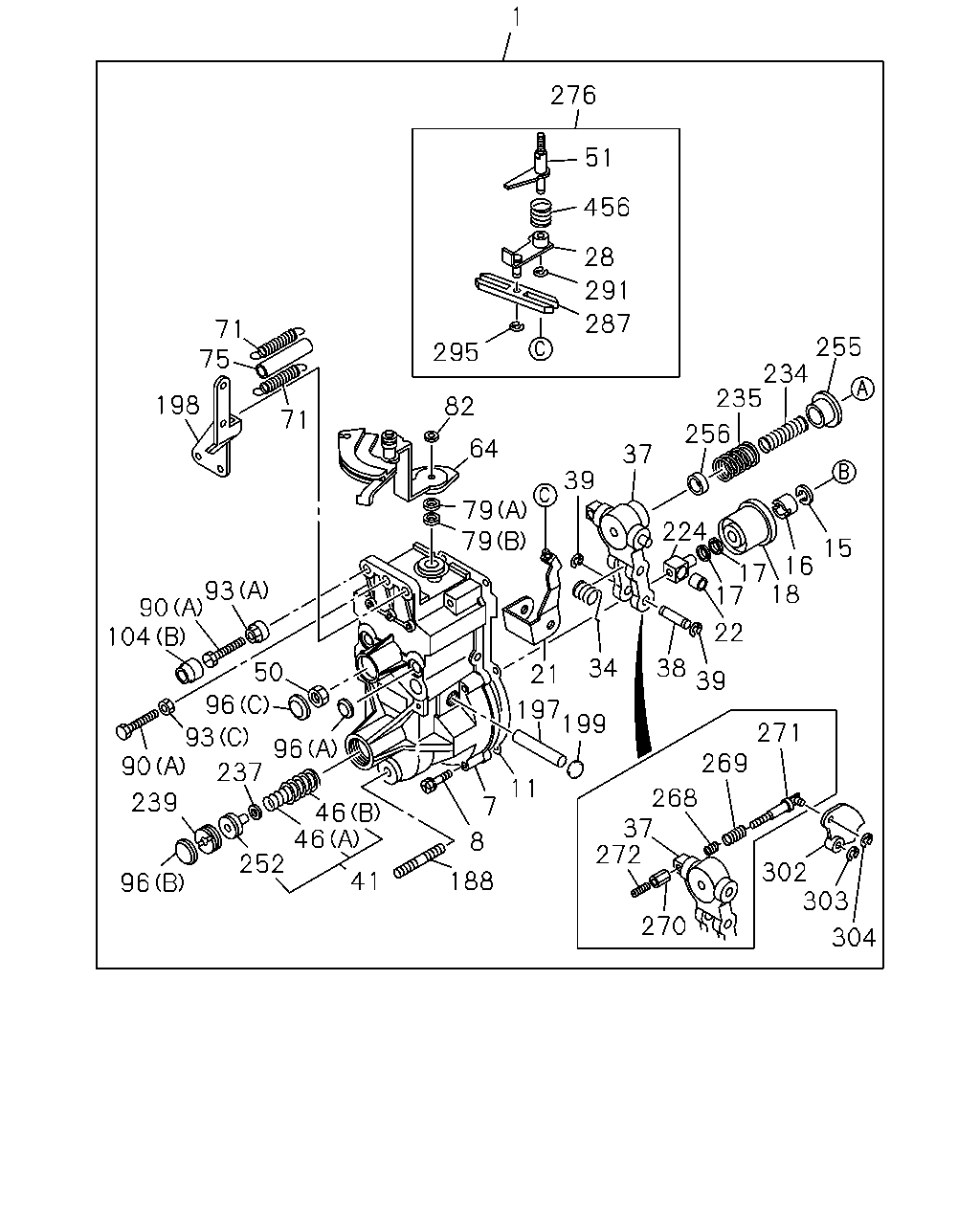

çizim 12998
1 276 51 456 28 291 287 71 75 255 234 235 295 198 82 71 256 64 37 39 79 79 224 15 16 17 17 18 93 90 104 22 21 34 38 39 50 96 197 199 271 269 93 96 90 237 11 268 37 272 239 7 46 46 252 8 302 303 41 188 96 270 304
BalonParca AdiParca NoAdetTipApplied Date
1 GOVERNOR ASM; INJ PUMP
ASM PART: A = 8-97203-383-0 		8-97224-003-0 01 1 -
1 GOVERNOR ASM; INJ PUMP
ASM PART: B = 8-97212-104-0 		8-97224-580-0 01 1 -
7 COVER; GOV HSG,INJ PUMP
ASM PART: B = 8-97212-104-0 		8-97142-962-0 01 1 -
7 COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-97203-383-0 		8-97142-963-0 01 1 -
8 BOLT; GOV COVER,INJ PUMP
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15729-033-0 07 1 -
11 GASKET; COVER TO HSG,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15779-107-0 01 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15729-034-0 01 1 -
16 NUT; FLYWEIGHT FIX,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-086-0 01 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=2.00 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-891-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=3.00 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-892-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=4.00 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-893-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.50 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15729-286-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.50 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15729-287-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.20 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-088-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.30 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-551-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.40 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-552-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.00 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-553-0 AR 1 -
18 SLEEVE; GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15729-372-0 01 1 -
21 LEVER ASM; GUIDE,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94339-977-0 01 1 -
22 COLLAR; LEVER,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94368-298-1 01 1 -
28 LEVER; SUPPORTING,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94171-152-0 01 1 -
34 SPRING; SPD CONT LEVER,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94171-140-1 01 1 -
37 LEVER ASM; TENSION,GOV
ASM PART: A = 8-97203-383-0 		8-94339-976-0 01 1 -
37 LEVER ASM; TENSION,GOV
ASM PART: B = 8-97212-104-0 		8-97214-455-0 01 1 -
38 PIN; TENSION LEVER,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-370-0 01 1 -
39 RING; SNAP,LEVER PIN,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-88410-201-0 02 1 -
41 SPRING CAPSULE; IDLE CONT,GOV
ASM PART: A = 8-97203-383-0 		8-97026-922-0 01 1 -
41 SPRING CAPSULE; IDLE CONT,GOV
ASM PART: B = 8-97212-104-0 		8-97085-009-0 01 1 -
46 SPRING; GOV,INJ PUMP
(A) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97115-982-0 01 1 -
46 SPRING; GOV,INJ PUMP
(B) ASM PART: B = 8-97212-104-0 		8-97115-983-0 01 1 -
46 SPRING; GOV,INJ PUMP
(B) ASM PART: A = 8-97203-383-0 		8-97115-984-0 01 1 -
50 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94171-147-0 01 1 -
51 SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94325-501-0 01 1 -
64 LEVER; LOAD CONT,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97026-934-1 01 1 -
71 SPRING; CONT LEVER,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97026-929-0 02 1 -
75 TUBE; RETURN SPRING,STOPPER LEVER,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-963-0 02 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.95 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-076-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.20 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-077-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.25 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-078-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.30 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-079-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.35 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-080-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.40 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-081-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.50 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-082-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.70 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-617-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.90 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-618-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.80 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-619-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.60 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-896-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97066-844-0 01 1 -
82 NUT; CONT LEVER FIX,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-236-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), M8X62 ASM PART: A = 8-97203-383-0 		1-15729-642-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), M8X65 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-761-0 02 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X33 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-799-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X34 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-800-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X35 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-801-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X36 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-802-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X37 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-803-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X31 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-842-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), M6X32 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-843-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-643-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-807-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97026-924-0 01 1 -
96 PLUG; LEVER SHAFT,GOV
(A) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15729-076-0 01 1 -
96 PLUG; LEVER SHAFT,GOV
(B) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94171-145-0 01 1 -
96 PLUG; LEVER SHAFT,GOV
(C) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94171-148-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(A) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97085-021-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B) ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97085-022-0 01 1 -
188 STUD; COVER
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-790-0 01 1 -
197 SHAFT; LEVER,GOV COVER
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15725-008-0 01 1 -
198 BRACKET; COVER
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-97085-014-0 01 1 -
199 PLUG; LEVER SHAFT,GOV COVER
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15729-076-0 02 1 -
224 SHIFTER; TENSION LEVER,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94171-142-0 01 1 -
234 SPRING; INNER,GOV,INJ PUMP
ASM PART: A = 8-97203-383-0 		8-94368-299-1 01 1 -
234 SPRING; INNER,GOV,INJ PUMP
ASM PART: B = 8-97212-104-0 		8-97100-572-0 01 1 -
235 SPRING; OUTER,GOV,INJ PUMP
ASM PART: A = 8-97203-383-0 		1-15723-094-0 01 1 -
235 SPRING; OUTER,GOV,INJ PUMP
ASM PART: B = 8-97212-104-0 		8-97100-570-0 01 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.30 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-966-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.50 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-967-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.80 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15729-968-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.10 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94472-268-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.20 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94472-269-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.25 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94472-270-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.00 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94472-271-0 AR 1 -
239 SCREW; GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94171-144-0 01 1 -
252 SCREW; GUIDE
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15779-003-1 01 1 -
255 SEAT; GOV SPRING,INJ PUMP
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94171-173-0 01 1 -
256 SEAT; GOV SPRING
ASM PART: B = 8-97212-104-0 		1-15779-214-0 01 1 -
268 SPRING; ROD INNER,TORQUE CAM,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15723-056-0 01 1 -
269 SPRING; ROD OUTER,TORQUE CAM,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15723-070-1 01 1 -
270 NUT; TORQUE ROD LK,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15729-051-0 01 1 -
271 ROD; TORQUE CAM,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15725-009-1 01 1 -
272 SCREW; ADJ,TORQUE CAM ROD,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94171-138-0 01 1 -
276 LEVER ASM; LOAD CONT,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94325-500-0 01 1 -
287 LEVER; GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		1-15725-542-0 01 1 -
291 RING; SNAP,CONT SHAFT,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-445-0 01 1 -
295 RING; SNAP
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-81325-445-0 01 1 -
302 PLATE; CAM,GOV
ASM PART: A = 8-97203-383-0 		8-97176-489-0 01 1 -
302 PLATE; CAM,GOV
ASM PART: B = 8-97212-104-0 		8-97224-582-0 01 1 -
303 RING; SNAP,CAM PLATE,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		5-15729-023-0 01 1 -
304 RING; SNAP,LINK TO CAM PLATE,GOV
ID=4 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		9-09185-404-0 01 1 -
456 SPRING; LEVER,GOV
ASM PART: A = 8-97203-383-0, B = 8-97212-104-0 		8-94413-728-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
