Sayfa 0-80 - Isuzu EPC

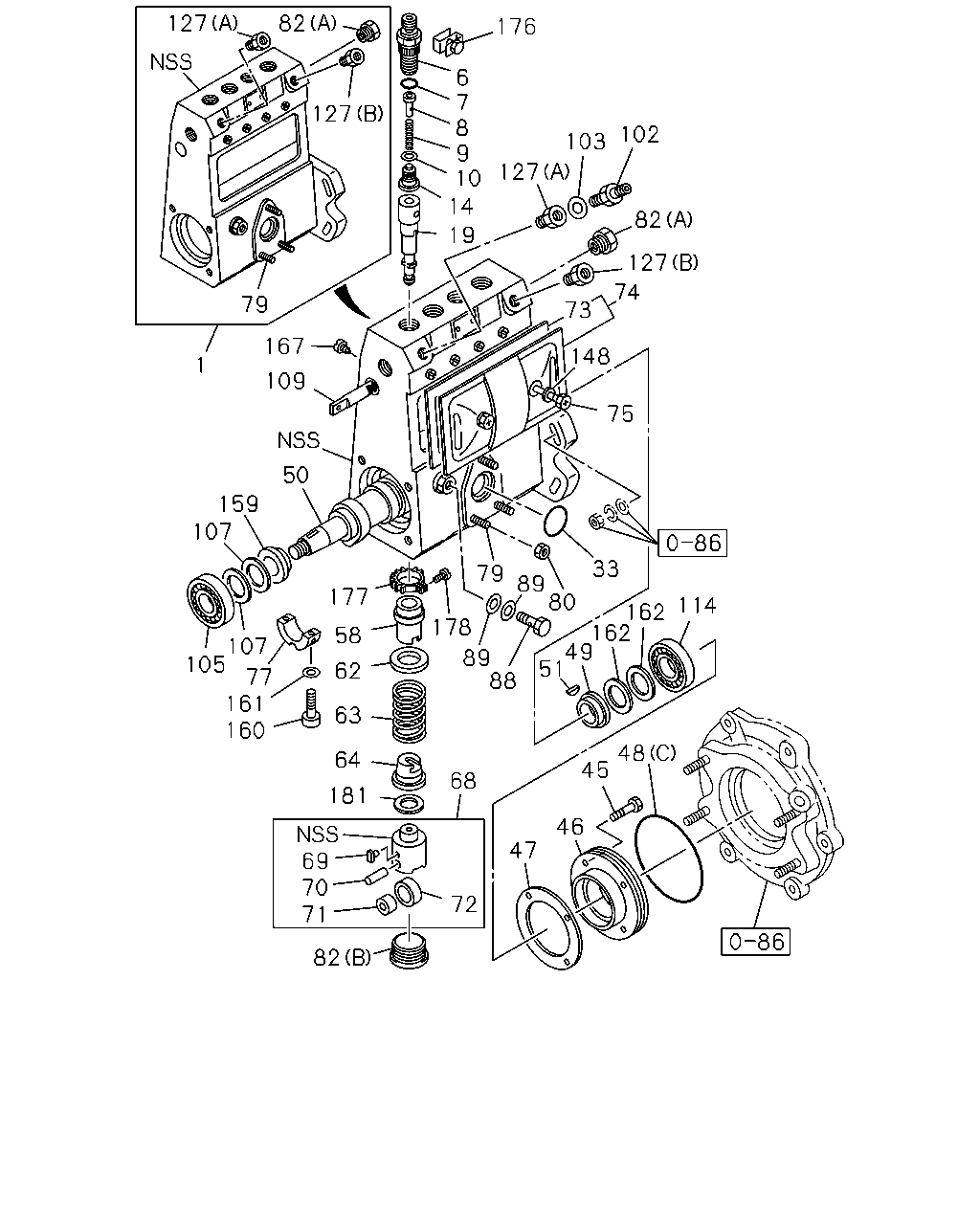

0-80 — INJECTION PUMP (#44604) — 314 parça

127 82 176 6 7 8 9 10 127 102 103 127 14 82 19 127 74 79 73 167 148 1 109 75 50 159 107 33 79 89 80 177 114 162 162 49 51 178 58 107 105 89 88 62 77 161 160 63 48 45 64 68 181 46 69 70 71 47 72 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-97203-383-0	8-97137-799-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 8-97212-104-0	8-97166-105-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-383-0	5-15644-017-0	04	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97212-104-0	8-97084-986-0	04	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-97203-383-0	1-09623-052-0	04	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 8-97212-104-0	9-81235-046-0	04	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-383-0	8-97083-335-0	04	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97212-104-0	8-97084-987-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-97203-383-0	1-15643-003-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 8-97212-104-0	1-15643-010-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-383-0	1-15649-001-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97212-104-0	9-81245-018-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97203-383-0	8-94362-694-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-97212-104-0	8-97084-985-0	04	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 8-97203-383-0	8-97083-334-0	04	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 8-97212-104-0	8-97094-093-0	04	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	1-15629-058-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 8-97203-383-0	1-15619-282-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 8-97212-104-0	8-97085-000-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 8-97203-383-0	1-15629-047-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 8-97212-104-0	8-97084-999-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG ASM PART: A = 8-97203-383-0	8-97083-337-0	01	1	-
48	GASKET; FRT COVER TO HSG (A) ASM PART: B = 8-97212-104-0	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG (C) ASM PART: A = 8-97203-383-0	8-97026-918-0	01	1	-
48	GASKET; FRT COVER TO HSG (B) ASM PART: B = 8-97212-104-0	8-97085-113-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: A = 8-97203-383-0	1-15629-004-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: B = 8-97212-104-0	8-97084-990-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 8-97203-383-0	8-97026-916-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 8-97212-104-0	8-97084-988-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97212-104-0	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97203-383-0	8-94239-370-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 8-97203-383-0	9-81225-058-0	04	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 8-97212-104-0	9-81231-523-0	04	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-97212-104-0	1-15639-022-0	04	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97203-383-0	9-81235-015-0	04	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 8-97212-104-0	1-15634-007-0	04	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-97203-383-0	8-94387-977-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 8-97212-104-0	1-15639-023-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-97203-383-0	9-81235-021-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 8-97203-383-0	5-15622-009-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: B = 8-97212-104-0	8-97214-450-0	04	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 8-97212-104-0	1-15629-018-0	04	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-97203-383-0	5-15619-041-0	04	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97203-383-0	5-15622-006-0	04	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-97212-104-0	9-81215-185-0	04	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-97212-104-0	1-15619-162-0	04	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97203-383-0	1-15629-001-0	04	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-97203-383-0	1-15622-003-0	04	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 8-97212-104-0	1-15629-010-0	04	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	8-94386-596-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	8-94171-109-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 8-97212-104-0	1-15619-264-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-97203-383-0	1-15629-014-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 8-97203-383-0	1-15619-073-0	01	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: B = 8-97212-104-0	1-15619-160-0	04	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 8-97203-383-0	5-15619-136-0	04	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97203-383-0	1-13260-001-1	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97212-104-0	1-15619-290-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2, SOU ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	1-09630-085-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: B = 8-97212-104-0	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: B = 8-97212-104-0	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: A = 8-97203-383-0	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 8-97203-383-0	9-00090-677-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: B = 8-97212-104-0	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: B = 8-97212-104-0	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: B = 8-97212-104-0	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.40 ASM PART: A = 8-97203-383-0	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: A = 8-97203-383-0	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: A = 8-97203-383-0	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: A = 8-97203-383-0	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: A = 8-97203-383-0	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: A = 8-97203-383-0	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: A = 8-97203-383-0	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: A = 8-97203-383-0	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: A = 8-97203-383-0	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.40 ASM PART: A = 8-97203-383-0	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: A = 8-97203-383-0	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: B = 8-97212-104-0	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: B = 8-97212-104-0	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: B = 8-97212-104-0	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: B = 8-97212-104-0	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: B = 8-97212-104-0	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: B = 8-97212-104-0	9-81225-054-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 8-97203-383-0	5-15637-002-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 8-97212-104-0	8-97214-451-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 8-97203-383-0	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 8-97203-383-0	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 8-97212-104-0	8-97084-989-0	01	1	-
127	ADAPTER; FUEL PIPE (A) ASM PART: A = 8-97203-383-0	1-15619-035-0	01	1	-
127	ADAPTER; FUEL PIPE (C) ASM PART: B = 8-97212-104-0	1-15619-190-0	01	1	-
127	ADAPTER; FUEL PIPE (B) ASM PART: A = 8-97203-383-0	1-15629-057-0	01	1	-
148	GASKET; COVER FIX BOLT ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81215-144-0	02	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: B = 8-97212-104-0	1-15629-004-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 8-97203-383-0	9-81225-047-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: B = 8-97212-104-0	1-15629-017-0	04	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 8-97203-383-0	9-88410-066-0	04	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81225-043-0	04	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 8-97203-383-0	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 8-97203-383-0	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: A = 8-97203-383-0	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: B = 8-97212-104-0	8-97084-991-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: B = 8-97212-104-0	8-97084-992-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: B = 8-97212-104-0	8-97084-993-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: B = 8-97212-104-0	8-97084-994-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: B = 8-97212-104-0	8-97084-995-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: B = 8-97212-104-0	8-97084-996-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: B = 8-97212-104-0	8-97084-997-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: B = 8-97212-104-0	8-97084-998-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: B = 8-97212-104-0	8-97121-620-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 8-97203-383-0	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 8-97203-383-0	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 8-97203-383-0	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 8-97203-383-0	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 8-97203-383-0	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 8-97203-383-0	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 8-97203-383-0	5-15625-001-0	02	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: B = 8-97212-104-0	8-97202-329-0	02	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81225-057-0	04	1	-
178	SCREW; PINION,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81235-003-0	04	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81235-045-0	AR	1	-

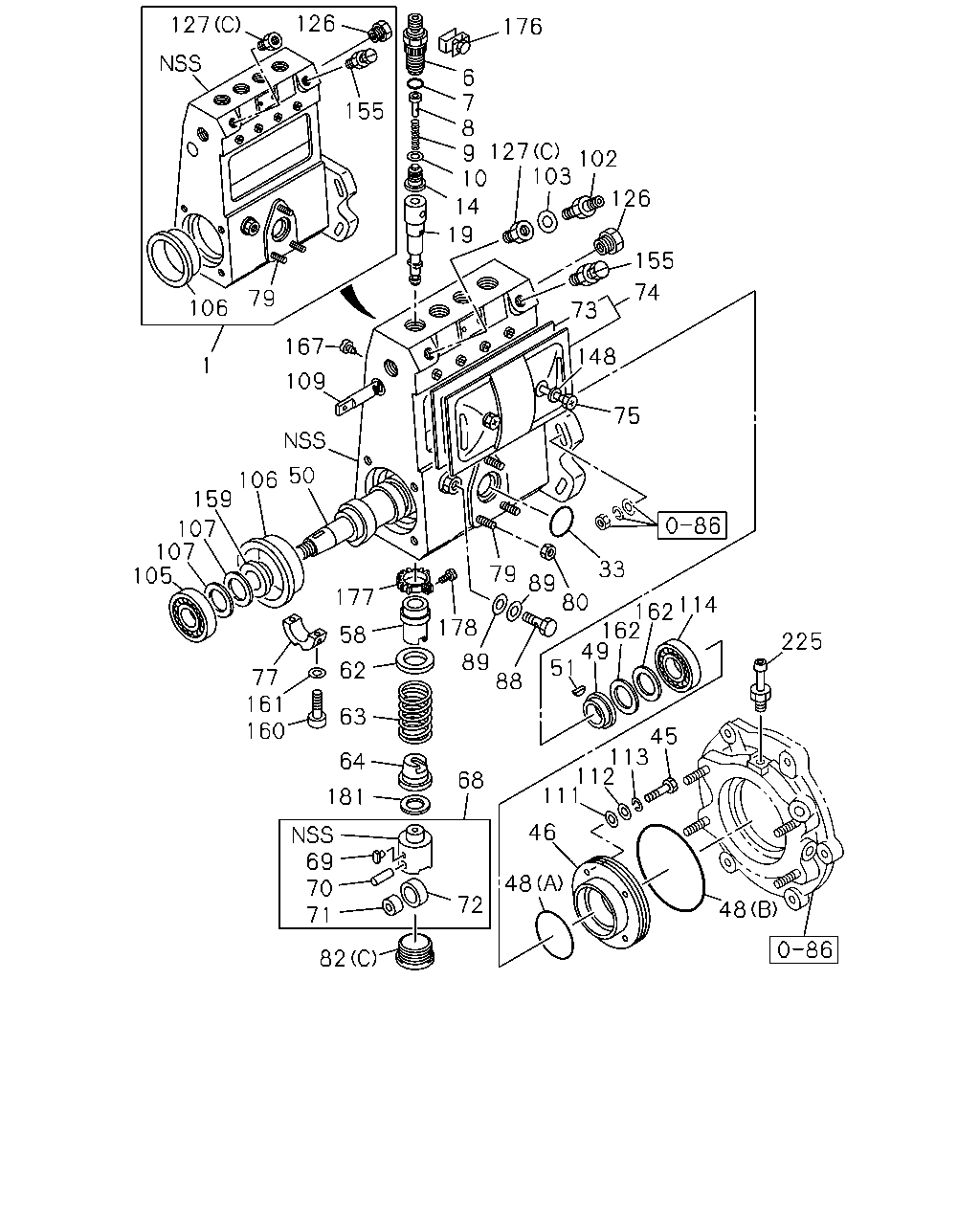

126 127 176 6 7 8 9 127 102 10 103 155 126 14 19 155 74 79 106 73 167 148 1 109 75 50 106 159 107 107 105 33 79 89 80 177 114 162 162 49 51 178 58 225 89 88 62 77 161 160 63 45 113 112 111 64 68 181 46 69 70 71 48 72 48 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-97203-383-0	8-97137-799-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 8-97212-104-0	8-97166-105-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-383-0	5-15644-017-0	04	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97212-104-0	8-97084-986-0	04	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-97203-383-0	1-09623-052-0	04	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 8-97212-104-0	9-81235-046-0	04	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-383-0	8-97083-335-0	04	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97212-104-0	8-97084-987-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-97203-383-0	1-15643-003-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 8-97212-104-0	1-15643-010-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-383-0	1-15649-001-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97212-104-0	9-81245-018-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97203-383-0	8-94362-694-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-97212-104-0	8-97084-985-0	04	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 8-97203-383-0	8-97083-334-0	04	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 8-97212-104-0	8-97094-093-0	04	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	1-15629-058-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 8-97203-383-0	1-15619-282-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 8-97212-104-0	8-97085-000-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 8-97203-383-0	1-15629-047-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 8-97212-104-0	8-97084-999-0	01	1	-
48	GASKET; FRT COVER TO HSG (A) ASM PART: B = 8-97212-104-0	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG (C) ASM PART: A = 8-97203-383-0	8-97026-918-0	01	1	-
48	GASKET; FRT COVER TO HSG (B) ASM PART: B = 8-97212-104-0	8-97085-113-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: A = 8-97203-383-0	1-15629-004-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: B = 8-97212-104-0	8-97084-990-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 8-97203-383-0	8-97026-916-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 8-97212-104-0	8-97084-988-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97212-104-0	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97203-383-0	8-94239-370-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 8-97203-383-0	9-81225-058-0	04	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 8-97212-104-0	9-81231-523-0	04	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-97212-104-0	1-15639-022-0	04	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97203-383-0	9-81235-015-0	04	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 8-97212-104-0	1-15634-007-0	04	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-97203-383-0	8-94387-977-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 8-97212-104-0	1-15639-023-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-97203-383-0	9-81235-021-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 8-97203-383-0	5-15622-009-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: B = 8-97212-104-0	8-97214-450-0	04	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 8-97212-104-0	1-15629-018-0	04	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-97203-383-0	5-15619-041-0	04	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97203-383-0	5-15622-006-0	04	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-97212-104-0	9-81215-185-0	04	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-97212-104-0	1-15619-162-0	04	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97203-383-0	1-15629-001-0	04	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-97203-383-0	1-15622-003-0	04	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 8-97212-104-0	1-15629-010-0	04	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	8-94386-596-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	8-94171-109-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 8-97212-104-0	1-15619-264-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-97203-383-0	1-15629-014-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 8-97203-383-0	1-15619-073-0	01	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: B = 8-97212-104-0	1-15619-160-0	04	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 8-97203-383-0	5-15619-136-0	04	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97203-383-0	1-13260-001-1	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97212-104-0	1-15619-290-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2, SOU ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	1-09630-085-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: B = 8-97212-104-0	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: B = 8-97212-104-0	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: A = 8-97203-383-0	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 8-97203-383-0	9-00090-677-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: B = 8-97212-104-0	1-15619-159-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: B = 8-97212-104-0	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: B = 8-97212-104-0	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: B = 8-97212-104-0	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.40 ASM PART: A = 8-97203-383-0	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: A = 8-97203-383-0	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: A = 8-97203-383-0	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: A = 8-97203-383-0	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: A = 8-97203-383-0	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: A = 8-97203-383-0	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: A = 8-97203-383-0	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: A = 8-97203-383-0	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: A = 8-97203-383-0	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.40 ASM PART: A = 8-97203-383-0	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: A = 8-97203-383-0	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: B = 8-97212-104-0	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: B = 8-97212-104-0	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: B = 8-97212-104-0	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: B = 8-97212-104-0	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: B = 8-97212-104-0	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: B = 8-97212-104-0	9-81225-054-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 8-97203-383-0	5-15637-002-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 8-97212-104-0	8-97214-451-0	01	1	-
111	GASKET; FRT COVER FIX ASM PART: B = 8-97212-104-0	1-15629-024-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: B = 8-97212-104-0	8-97085-001-0	04	1	-
113	WASHER; LK,FRT COVER TO HSG ASM PART: B = 8-97212-104-0	8-94128-928-0	04	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 8-97203-383-0	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 8-97203-383-0	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 8-97212-104-0	8-97084-989-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: B = 8-97212-104-0	9-81235-017-0	01	1	-
127	ADAPTER; FUEL PIPE (A) ASM PART: A = 8-97203-383-0	1-15619-035-0	01	1	-
127	ADAPTER; FUEL PIPE (C) ASM PART: B = 8-97212-104-0	1-15619-190-0	01	1	-
127	ADAPTER; FUEL PIPE (B) ASM PART: A = 8-97203-383-0	1-15629-057-0	01	1	-
148	GASKET; COVER FIX BOLT ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81215-144-0	02	1	-
155	BOLT; AIR BLEED,INJ PUMP ASM PART: B = 8-97212-104-0	1-15619-191-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: B = 8-97212-104-0	1-15629-004-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 8-97203-383-0	9-81225-047-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: B = 8-97212-104-0	1-15629-017-0	04	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 8-97203-383-0	9-88410-066-0	04	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81225-043-0	04	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 8-97203-383-0	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 8-97203-383-0	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: A = 8-97203-383-0	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: B = 8-97212-104-0	8-97084-991-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: B = 8-97212-104-0	8-97084-992-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: B = 8-97212-104-0	8-97084-993-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: B = 8-97212-104-0	8-97084-994-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: B = 8-97212-104-0	8-97084-995-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: B = 8-97212-104-0	8-97084-996-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: B = 8-97212-104-0	8-97084-997-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: B = 8-97212-104-0	8-97084-998-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: B = 8-97212-104-0	8-97121-620-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 8-97203-383-0	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 8-97203-383-0	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 8-97203-383-0	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 8-97203-383-0	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 8-97203-383-0	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 8-97203-383-0	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 8-97203-383-0	5-15625-001-0	02	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: B = 8-97212-104-0	8-97202-329-0	02	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81225-057-0	04	1	-
178	SCREW; PINION,INJ PUMP ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81235-003-0	04	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 8-97203-383-0, B = 8-97212-104-0	9-81235-045-0	AR	1	-
225	JOINT; HOSE,FRT COVER ASM PART: B = 8-97212-104-0	8-97094-095-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
