Sayfa 0-65 - Isuzu EPC

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: B = 8-97323-935-3	8-97030-403-0	01	1	-0405
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-97172-211-2	8-97179-778-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: B = 8-97323-935-3	8-97377-690-0	01	1	0406-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: B = 8-97323-935-3	8-97030-403-0	01	1	-0405
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-97172-211-2	8-97179-778-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: B = 8-97323-935-3	8-97377-690-0	01	1	0406-

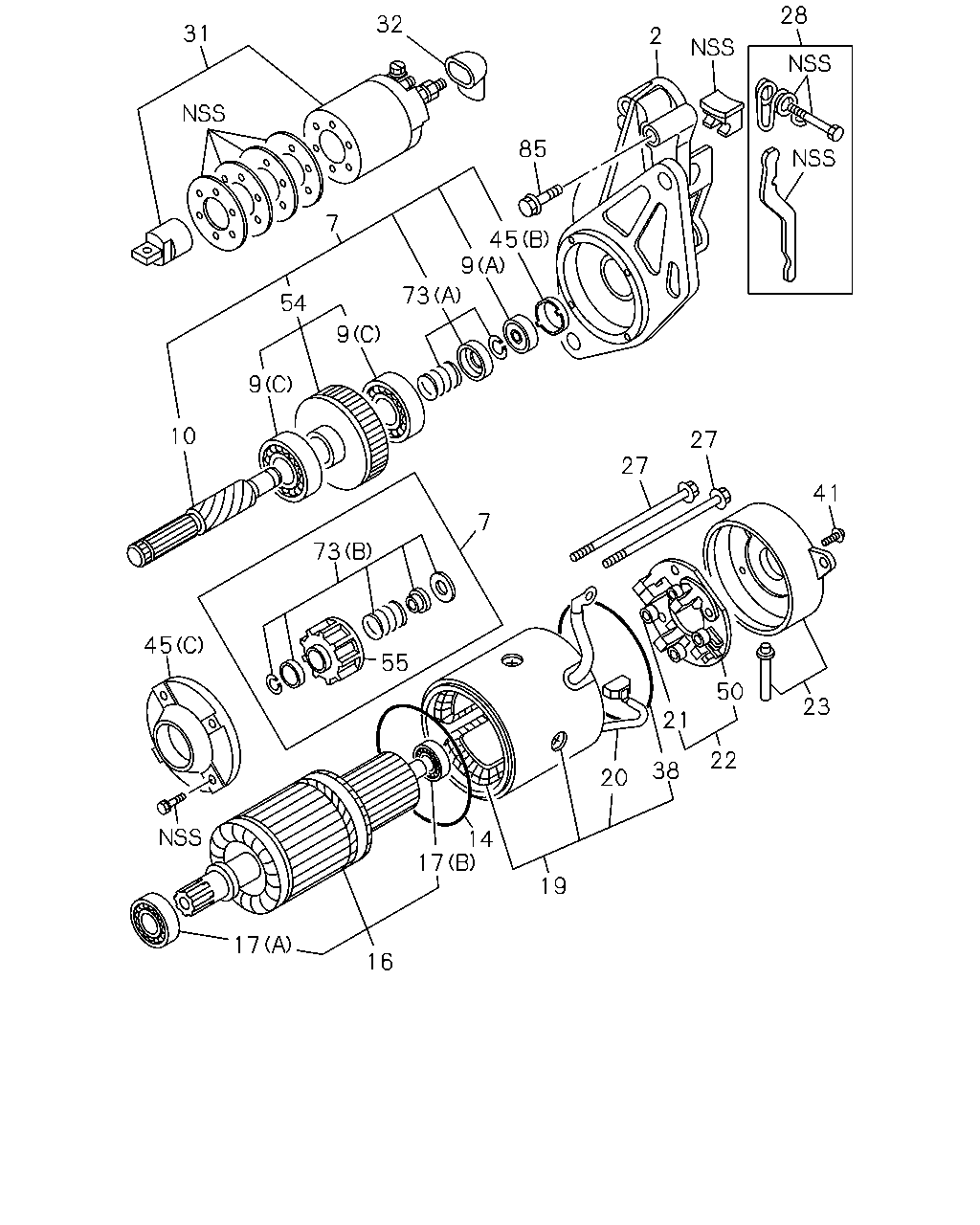

28 32 31 2 85 7 45 9 73 54 9 9 10 27 27 41 7 73 45 55 50 23 21 22 38 20 14 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: B = 8-97323-935-3	8-97030-400-0	01	1	-0309
2	CASE; PINION,STARTER ASM PART: A = 8-97172-211-2	8-97227-902-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97323-935-3	8-97329-348-0	01	1	0310-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97172-211-2	8-97179-770-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-97323-935-3	8-97230-564-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: B = 8-97323-935-3	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: A = 8-97172-211-2	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: A = 8-97172-211-2	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-97025-676-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 8-97323-935-3	8-97030-395-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 8-97172-211-2	8-97179-772-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: B = 8-97323-935-3	8-97377-691-0	01	1	0406-
16	ARMATURE; STARTER ASM PART: A = 8-97172-211-2	8-97192-299-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97323-935-3	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-97030-387-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: A = 8-97172-211-2	8-97192-301-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: B = 8-97323-935-3	8-97230-558-0	01	1	-0405
19	COIL; FIELD,STARTER ASM PART: B = 8-97323-935-3	8-97377-688-0	01	1	0406-
20	BRUSH; (+),STARTER ASM PART: A = 8-97172-211-2	8-94152-970-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: B = 8-97323-935-3	8-97230-560-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-94152-972-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97172-211-2	8-97025-670-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97323-935-3	8-97230-562-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97172-211-2	8-97227-901-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-97323-935-3	8-97230-561-0	01	1	-0405
23	COVER; RR COVER STARTER ASM PART: B = 8-97323-935-3	8-97377-689-0	01	1	0406-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-97323-935-3	8-97030-402-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97172-211-2	8-97179-776-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97172-211-2	8-97161-789-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97323-935-3	8-97217-569-0	01	1	-
32	COVER; RUBBER,STARTER HITACHI ASM PART: A = 8-97172-211-2	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: B = 8-97323-935-3	8-97217-570-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: A = 8-97172-211-2	8-97115-763-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: B = 8-97323-935-3	8-97230-559-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-97117-107-0	02	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-94435-567-0	01	1	-
45	RETAINER; BEARING,STARTER (C) ASM PART: B = 8-97323-935-3	8-97030-401-0	01	1	-
45	RETAINER; BEARING,STARTER (A) ASM PART: A = 8-97172-211-2	8-97179-774-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: A = 8-97172-211-2	8-94152-973-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: B = 8-97323-935-3	8-97230-563-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97323-935-3	8-97115-816-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97172-211-2	8-97179-771-0	01	1	-
55	PINION; CLU,STARTER ASM PART: B = 8-97323-935-3	8-97230-569-0	01	1	-
73	STOPPER SET; PINION (A) ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-97030-396-0	01	1	-
73	STOPPER SET; PINION (B) ASM PART: B = 8-97323-935-3	8-97030-398-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-94408-500-0	02	1	-

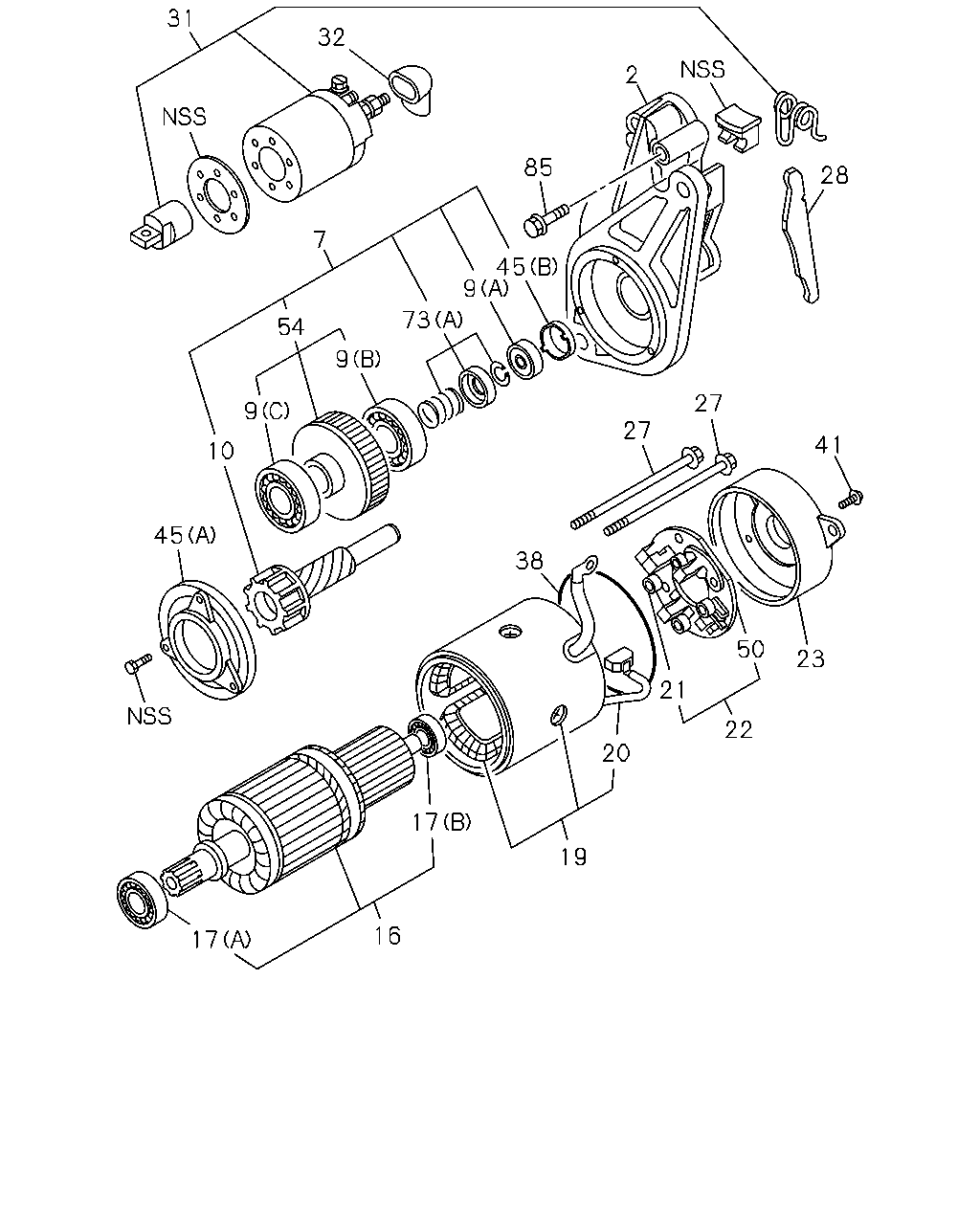

31 32 2 85 28 7 45 9 73 54 9 27 9 27 41 10 45 38 50 23 21 22 20 17 19 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: B = 8-97323-935-3	8-97030-400-0	01	1	-0309
2	CASE; PINION,STARTER ASM PART: A = 8-97172-211-2	8-97227-902-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97323-935-3	8-97329-348-0	01	1	0310-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97172-211-2	8-97179-770-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-97323-935-3	8-97230-564-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: B = 8-97323-935-3	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: A = 8-97172-211-2	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: A = 8-97172-211-2	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-97025-676-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 8-97323-935-3	8-97030-395-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 8-97172-211-2	8-97179-772-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97172-211-2	8-97192-299-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97323-935-3	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-97030-387-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: A = 8-97172-211-2	8-97192-301-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: B = 8-97323-935-3	8-97230-558-0	01	1	-0405
19	COIL; FIELD,STARTER ASM PART: B = 8-97323-935-3	8-97377-688-0	01	1	0406-
20	BRUSH; (+),STARTER ASM PART: A = 8-97172-211-2	8-94152-970-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: B = 8-97323-935-3	8-97230-560-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-94152-972-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97172-211-2	8-97025-670-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97323-935-3	8-97230-562-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97172-211-2	8-97227-901-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-97323-935-3	8-97230-561-0	01	1	-0405
23	COVER; RR COVER STARTER ASM PART: B = 8-97323-935-3	8-97377-689-0	01	1	0406-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-97323-935-3	8-97030-402-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97172-211-2	8-97179-776-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97172-211-2	8-97161-789-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97323-935-3	8-97217-569-0	01	1	-
32	COVER; RUBBER,STARTER HITACHI ASM PART: A = 8-97172-211-2	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: B = 8-97323-935-3	8-97217-570-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: A = 8-97172-211-2	8-97115-763-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: B = 8-97323-935-3	8-97230-559-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-97117-107-0	02	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-94435-567-0	01	1	-
45	RETAINER; BEARING,STARTER (C) ASM PART: B = 8-97323-935-3	8-97030-401-0	01	1	-
45	RETAINER; BEARING,STARTER (A) ASM PART: A = 8-97172-211-2	8-97179-774-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: A = 8-97172-211-2	8-94152-973-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: B = 8-97323-935-3	8-97230-563-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97323-935-3	8-97115-816-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97172-211-2	8-97179-771-0	01	1	-
73	STOPPER SET; PINION (A) ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-97030-396-0	01	1	-
73	STOPPER SET; PINION (B) ASM PART: B = 8-97323-935-3	8-97030-398-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-97172-211-2, B = 8-97323-935-3	8-94408-500-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
