0-61 — BATTERY AND BATTERY CABLE (#44601) — 103 parça

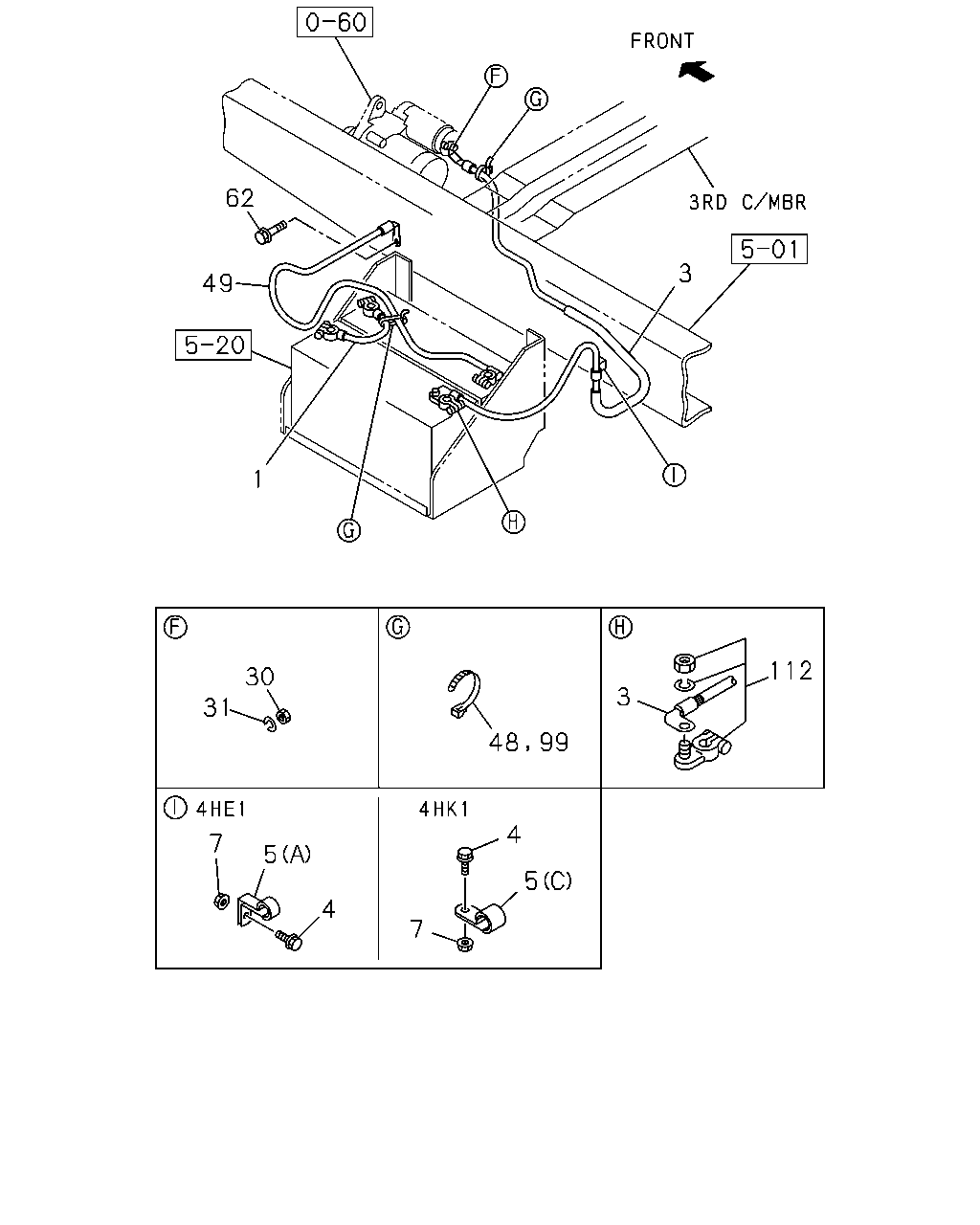

62 3 49 1 112 30 3 31 4 7 5 5 4 7 48 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY L=280	8-97230-719-1	01	1	0303-0511	●	●
1	CABLE; BATTERY L=280	8-97230-719-2	01	1	0512-	●		●
3	HARNESS; CABLE,BATTERY TO STARTER	8-97377-770-0	01	1	0512-	●
3	HARNESS; CABLE,BATTERY TO STARTER	8-97357-101-0	01	1	0303-0303	●
3	HARNESS; CABLE,BATTERY TO STARTER EXC. BATTERY 115E41R<6XD>	8-97357-101-0	01	1	0303-0303		●
3	HARNESS; CABLE,BATTERY TO STARTER	8-97352-486-1	01	1	0303-0511	●
3	HARNESS; CABLE,BATTERY TO STARTER EXC. BATTERY 115E41R<6XD>	8-97352-486-1	01	1	0303-0511		●
3	HARNESS; CABLE,BATTERY TO STARTER EXC. BATTERY 115E41R<6XD>	8-97377-772-1	01	1	0512-			●
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 115E41R<6XD>	8-97352-504-1	01	1	0303-0511		●
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 115E41R<6XD>	8-98019-816-0	01	1	0512-			●
4	BOLT; BATTERY CABLE M6X25 FLANGE	0-28680-625-0	01	1	0303-0511	●
4	BOLT; BATTERY CABLE EXC. BATTERY 115E41R<6XD> M6X25 FLANGE	0-28680-625-0	01	1	0303-0511		●
4	BOLT; BATTERY CABLE BATTERY 115E41R<6XD> M8X25 FLANGE	0-28680-825-0	01	1	0303-0511		●
4	BOLT; BATTERY CABLE BATTERY 115E41R<6XD> M8X25 FLANGE	0-28680-825-0	01	1	0512-0512			●
4	BOLT; BATTERY CABLE BATTERY 115E41R<6XD> M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-			●
5	CLIP; BATTERY CABLE TO BODY (B) ID=13 H=15 L=25	1-09700-888-0	01	1	0303-0511	●
5	CLIP; BATTERY CABLE TO BODY EXC. BATTERY 115E41R<6XD> (B) ID=13 H=15 L=25	1-09700-888-0	01	1	0303-0511		●
5	CLIP; BATTERY CABLE TO BODY BATTERY 115E41R<6XD> (C) ID=13 L=16	9-09525-222-0	01	1	0512-0606			●
5	CLIP; BATTERY CABLE TO BODY BATTERY 115E41R<6XD> (C) ID=13 L=16	0-95235-222-0	01	1	0607-			●
5	CLIP; BATTERY CABLE TO BODY BATTERY 115E41R<6XD> (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0303-0511		●
7	NUT; (+) CABLE M6 FLANGE	0-91150-106-0	01	1	0303-0511	●
7	NUT; (+) CABLE EXC. BATTERY 115E41R<6XD> M6 FLANGE	0-91150-106-0	01	1	0303-0511		●
7	NUT; (+) CABLE BATTERY 115E41R<6XD> M8 FLANGE SOU	0-91150-108-0	01	1	0304-0511		●
7	NUT; (+) CABLE BATTERY 115E41R<6XD> M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602			●
7	NUT; (+) CABLE BATTERY 115E41R<6XD> M8 FLANGE SOU	0-91180-108-0	01	1	0603-			●
30	NUT; CABLE,STARTER TO BATTERY M8	9-09110-408-0	01	1	0303-0511	●	●
30	NUT; CABLE,STARTER TO BATTERY M8	9-09110-408-0	01	1	0512-0512	●		●
30	NUT; CABLE,STARTER TO BATTERY M8 SOU	0-91110-508-0	01	1	0601-	●		●
31	WASHER; LK,CABLE,STARTER TO BATTERY ID=8.2	9-09150-508-0	01	1	0303-0511	●	●
31	WASHER; LK,CABLE,STARTER TO BATTERY ID=8.2	9-09150-508-0	01	1	0512-0603	●		●
31	WASHER; LK,CABLE,STARTER TO BATTERY ID=8.2 SOU	0-91510-508-0	01	1	0604-	●		●
48	CLIP; CABLE M/T MYY5T(RSM) L=140 SOU	5-09707-031-1	01	1	0303-0303	●
48	CLIP; CABLE M/T MZZ6U(RSF) L=140 SOU	5-09707-031-1	01	1	0303-0303		●
48	CLIP; CABLE M/T MYY5T(RSM) L=140 SOU	5-09707-031-1	01	1	0304-0511	●
48	CLIP; CABLE M/T MZZ6U(RSF) L=140 SOU	5-09707-031-1	01	1	0304-0511		●
48	CLIP; CABLE L=140 SOU	5-09707-031-1	01	1	0304-0511		●
48	CLIP; CABLE L=140 SOU	5-09707-031-1	01	1	0512-	●		●
48	CLIP; CABLE L=140 SOU	5-09707-031-1	01	1	0512-	●
49	CABLE; BATTERY TO S/MBR,RH L=200	8-97231-243-1	01	1	0303-0511	●
49	CABLE; BATTERY TO S/MBR,RH EXC. BATTERY 115E41R<6XD> L=200	8-97231-243-1	01	1	0303-0511		●
49	CABLE; BATTERY TO S/MBR,RH EXC. BATTERY 115E41R<6XD> L=300	8-97230-536-1	01	1	0512-	●		●
49	CABLE; BATTERY TO S/MBR,RH BATTERY 115E41R<6XD> L=770	8-97350-717-1	01	1	0303-0511		●
49	CABLE; BATTERY TO S/MBR,RH BATTERY 115E41R<6XD> L=770	8-97350-717-1	01	1	0512-			●
62	BOLT; EARTH CABLE FIX M8X30 W/LK&PL WASHER	8-97087-204-0	01	1	0303-	●
62	BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0303-0511		●
62	BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0512-			●
99	CLIP; BATTERY CABLE L=140 SOU	5-09707-031-1	01	1	0303-0511		●
99	CLIP; BATTERY CABLE BATTERY 115E41R<6XD> L=140 SOU	5-09707-031-1	01	1	0512-			●
112	TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0303-0511	●	●
112	TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0512-	●		●

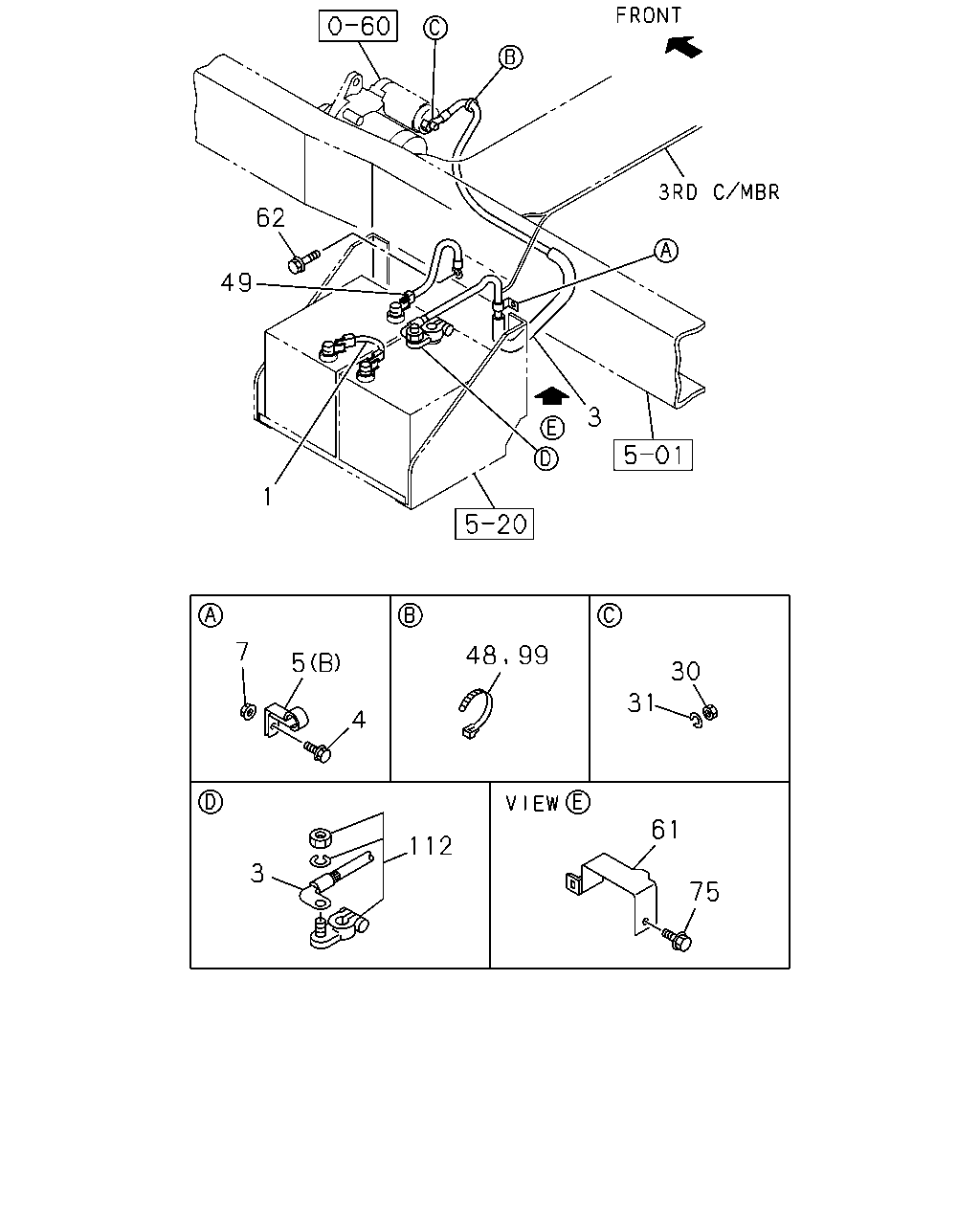

62 49 3 1 7 5 30 31 4 61 112 3 75 48 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY L=280	8-97230-719-1	01	1	0303-0511	●	●
1	CABLE; BATTERY L=280	8-97230-719-2	01	1	0512-	●		●
3	HARNESS; CABLE,BATTERY TO STARTER	8-97377-770-0	01	1	0512-	●
3	HARNESS; CABLE,BATTERY TO STARTER	8-97357-101-0	01	1	0303-0303	●
3	HARNESS; CABLE,BATTERY TO STARTER EXC. BATTERY 115E41R<6XD>	8-97357-101-0	01	1	0303-0303		●
3	HARNESS; CABLE,BATTERY TO STARTER	8-97352-486-1	01	1	0303-0511	●
3	HARNESS; CABLE,BATTERY TO STARTER EXC. BATTERY 115E41R<6XD>	8-97352-486-1	01	1	0303-0511		●
3	HARNESS; CABLE,BATTERY TO STARTER EXC. BATTERY 115E41R<6XD>	8-97377-772-1	01	1	0512-			●
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 115E41R<6XD>	8-97352-504-1	01	1	0303-0511		●
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 115E41R<6XD>	8-98019-816-0	01	1	0512-			●
4	BOLT; BATTERY CABLE M6X25 FLANGE	0-28680-625-0	01	1	0303-0511	●
4	BOLT; BATTERY CABLE EXC. BATTERY 115E41R<6XD> M6X25 FLANGE	0-28680-625-0	01	1	0303-0511		●
4	BOLT; BATTERY CABLE BATTERY 115E41R<6XD> M8X25 FLANGE	0-28680-825-0	01	1	0303-0511		●
4	BOLT; BATTERY CABLE BATTERY 115E41R<6XD> M8X25 FLANGE	0-28680-825-0	01	1	0512-0512			●
4	BOLT; BATTERY CABLE BATTERY 115E41R<6XD> M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-			●
5	CLIP; BATTERY CABLE TO BODY (B) ID=13 H=15 L=25	1-09700-888-0	01	1	0303-0511	●
5	CLIP; BATTERY CABLE TO BODY EXC. BATTERY 115E41R<6XD> (B) ID=13 H=15 L=25	1-09700-888-0	01	1	0303-0511		●
5	CLIP; BATTERY CABLE TO BODY BATTERY 115E41R<6XD> (C) ID=13 L=16	9-09525-222-0	01	1	0512-0606			●
5	CLIP; BATTERY CABLE TO BODY BATTERY 115E41R<6XD> (C) ID=13 L=16	0-95235-222-0	01	1	0607-			●
5	CLIP; BATTERY CABLE TO BODY BATTERY 115E41R<6XD> (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0303-0511		●
7	NUT; (+) CABLE M6 FLANGE	0-91150-106-0	01	1	0303-0511	●
7	NUT; (+) CABLE EXC. BATTERY 115E41R<6XD> M6 FLANGE	0-91150-106-0	01	1	0303-0511		●
7	NUT; (+) CABLE BATTERY 115E41R<6XD> M8 FLANGE SOU	0-91150-108-0	01	1	0304-0511		●
7	NUT; (+) CABLE BATTERY 115E41R<6XD> M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602			●
7	NUT; (+) CABLE BATTERY 115E41R<6XD> M8 FLANGE SOU	0-91180-108-0	01	1	0603-			●
30	NUT; CABLE,STARTER TO BATTERY M8	9-09110-408-0	01	1	0303-0511	●	●
30	NUT; CABLE,STARTER TO BATTERY M8	9-09110-408-0	01	1	0512-0512	●		●
30	NUT; CABLE,STARTER TO BATTERY M8 SOU	0-91110-508-0	01	1	0601-	●		●
31	WASHER; LK,CABLE,STARTER TO BATTERY ID=8.2	9-09150-508-0	01	1	0303-0511	●	●
31	WASHER; LK,CABLE,STARTER TO BATTERY ID=8.2	9-09150-508-0	01	1	0512-0603	●		●
31	WASHER; LK,CABLE,STARTER TO BATTERY ID=8.2 SOU	0-91510-508-0	01	1	0604-	●		●
48	CLIP; CABLE M/T MYY5T(RSM) L=140 SOU	5-09707-031-1	01	1	0303-0303	●
48	CLIP; CABLE M/T MZZ6U(RSF) L=140 SOU	5-09707-031-1	01	1	0303-0303		●
48	CLIP; CABLE M/T MYY5T(RSM) L=140 SOU	5-09707-031-1	01	1	0304-0511	●
48	CLIP; CABLE M/T MZZ6U(RSF) L=140 SOU	5-09707-031-1	01	1	0304-0511		●
48	CLIP; CABLE L=140 SOU	5-09707-031-1	01	1	0304-0511		●
48	CLIP; CABLE L=140 SOU	5-09707-031-1	01	1	0512-	●		●
48	CLIP; CABLE L=140 SOU	5-09707-031-1	01	1	0512-	●
49	CABLE; BATTERY TO S/MBR,RH L=200	8-97231-243-1	01	1	0303-0511	●
49	CABLE; BATTERY TO S/MBR,RH EXC. BATTERY 115E41R<6XD> L=200	8-97231-243-1	01	1	0303-0511		●
49	CABLE; BATTERY TO S/MBR,RH EXC. BATTERY 115E41R<6XD> L=300	8-97230-536-1	01	1	0512-	●		●
49	CABLE; BATTERY TO S/MBR,RH BATTERY 115E41R<6XD> L=770	8-97350-717-1	01	1	0303-0511		●
49	CABLE; BATTERY TO S/MBR,RH BATTERY 115E41R<6XD> L=770	8-97350-717-1	01	1	0512-			●
61	BRACKET; BATTERY CABLE EXC. BATTERY 115E41R<6XD>	8-97369-198-1	01	1	0512-	●		●
62	BOLT; EARTH CABLE FIX M8X30 W/LK&PL WASHER	8-97087-204-0	01	1	0303-	●
62	BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0303-0511		●
62	BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0512-			●
75	BOLT; BRKT EXC. BATTERY 115E41R<6XD> M6X25 FLANGE	0-28680-625-0	01	1	0512-0512	●		●
75	BOLT; BRKT EXC. BATTERY 115E41R<6XD> M6X25 FLANGE SOU	0-28650-625-0	01	1	0601-	●		●
99	CLIP; BATTERY CABLE L=140 SOU	5-09707-031-1	01	1	0303-0511		●
99	CLIP; BATTERY CABLE BATTERY 115E41R<6XD> L=140 SOU	5-09707-031-1	01	1	0512-			●
112	TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0303-0511	●	●
112	TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0512-	●		●
