0-60 — ENGINE ELECTRICAL CONTROL PARTS (#44600) — 119 parça

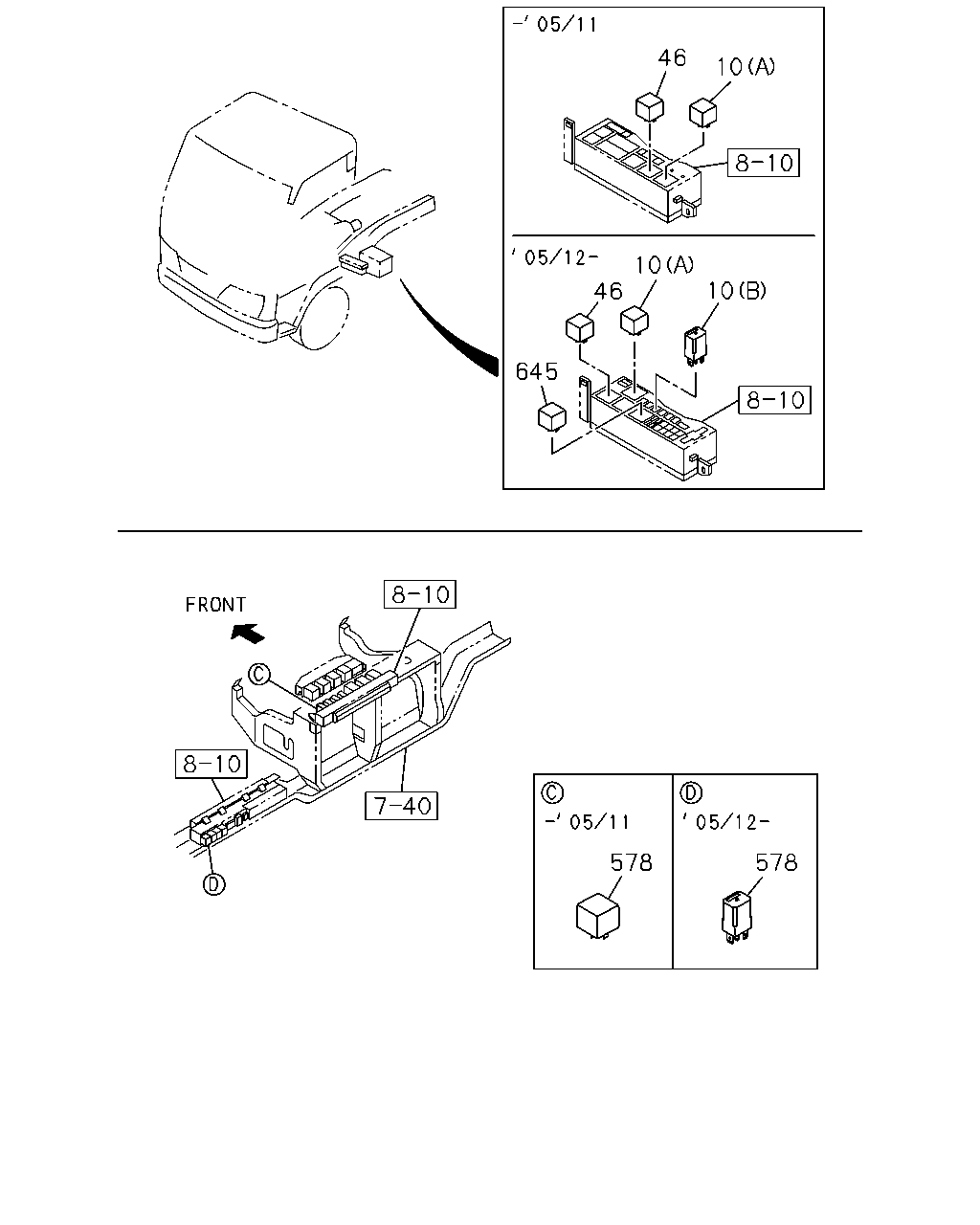

çizim 12928
46 10 10 10 46 645 578 578
BalonParca AdiParca NoAdetTipApplied Date A B C
10 RELAY; STARTER
(B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0512- ●
10 RELAY; STARTER
(A) 24V 50A 		8-97264-947-0 01 1 0303-0511 ● ●
10 RELAY; STARTER
(A) 24V 50A 		8-97264-947-0 01 1 0512- ● ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0303-0511 ● ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0512- ● ●
578 RELAY; CHARGE WARNING
SOU 		8-97063-440-2 01 1 0303-0511 ● ●
578 RELAY; CHARGE WARNING
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0512- ● ●
645 RELAY; ENG CONT
24V 30A JIDECO 		8-97238-540-0 01 1 0512- ●
çizim 53491
613 606 748 154 782 796 611 820
BalonParca AdiParca NoAdetTipApplied Date A B C
154 NUT; BRKT FIX
M6 W/DISHED WASHER SOU 		8-94423-325-0 04 1 0512-0611 ●
154 NUT; BRKT FIX
M6 W/DISHED WASHER SOU 		8-98029-921-0 04 1 0612- ●
606 BRACKET; CONT UNIT 8-97369-871-1 01 1 0512- ●
611 BRACKET; SENSOR 8-97368-621-0 01 1 0512- ●
613 CONTROL UNIT; ENG 8-98000-594-5 01 1 0512- ●
748 BOLT; CONT UNIT
M6X10 		9-03800-610-0 03 1 0512-0604 ●
748 BOLT; CONT UNIT
M6X10 		0-35050-610-0 03 1 0605- ●
782 BOLT; SENSOR
M6X12 FLANGE 		0-28080-612-0 01 1 0512-0512 ●
782 BOLT; SENSOR
M6X12 FLANGE 		0-28050-612-0 01 1 0601- ●
796 SENSOR; MAP 8-09373-269-1 01 1 0512- ●
820 SENSOR; INTAKE AIR TEMP 8-12146-830-0 01 1 0512- ●

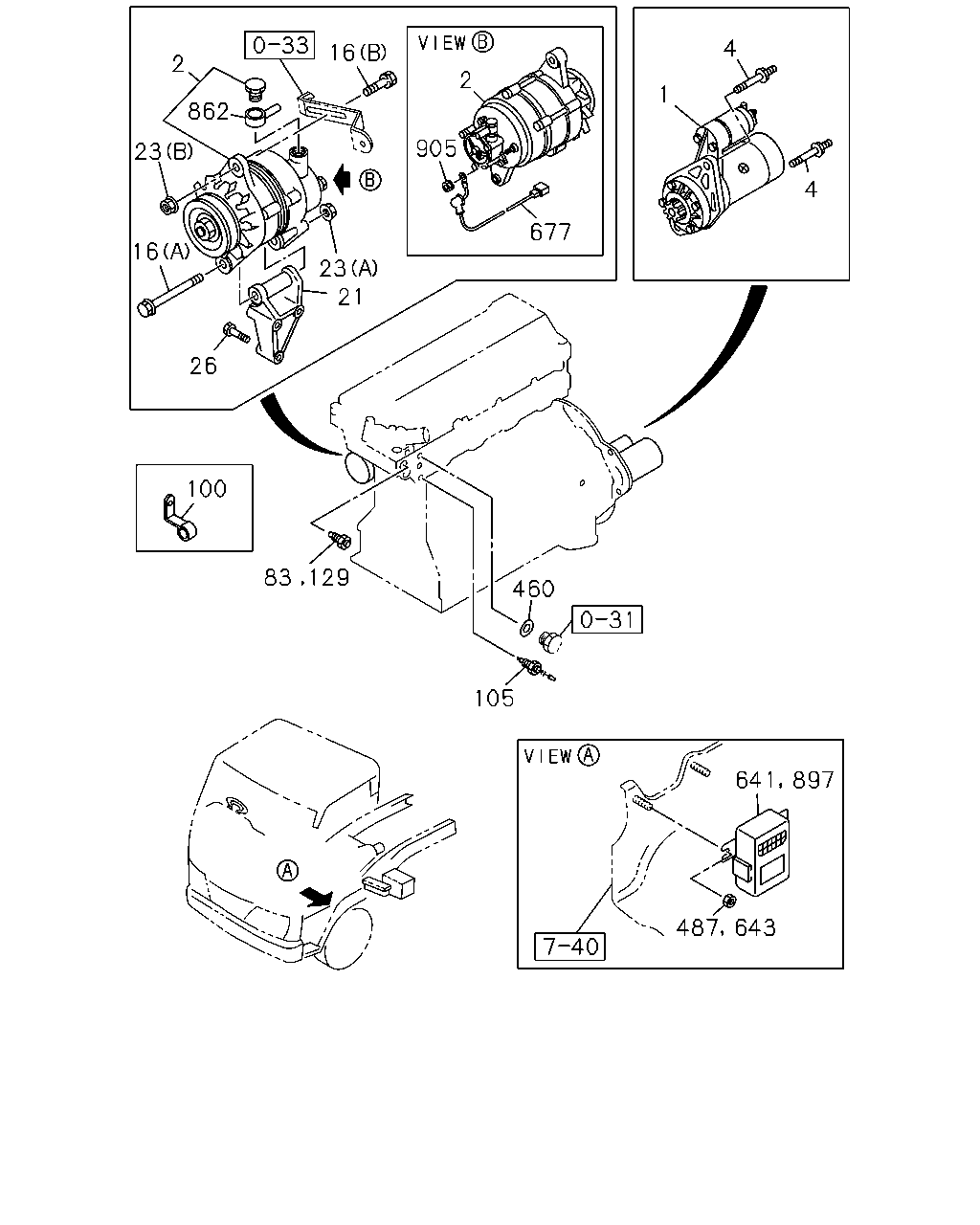

çizim 54698
4 16 2 2 1 862 905 23 4 677 16 23 21 26 100 460 105 487 643 83 129 641 897
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0303-0511 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0303-0511 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-3 01 1 0512- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-3 01 1 0512- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0303- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) IDENTIFICATION LABEL FOR KD<6UT> 24V 60A 		8-97300-353-0 01 1 0306-0308 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97186-551-1 01 1 0306-0308 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 24V 50A 		8-97170-163-2 01 1 0306-0308 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97300-353-0 01 1 0303-0304 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0305-0305 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 60A HITACHI 		8-97351-573-0 01 1 0306-0308 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0309-0511 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0512- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97186-551-1 01 1 0303-0304 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0511 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0511 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0512- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A 		8-97170-163-2 01 1 0303-0304 ●
4 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0303-0511 ● ●
4 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0512- ● ●
16 BOLT; GEN
(B) M8X40 W/WASHER 		8-97011-792-4 01 1 0303-0511 ● ●
16 BOLT; GEN
(B) M8X40 W/WASHER 		8-97011-792-4 01 1 0512- ● ●
16 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0303-0511 ● ●
16 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0512- ● ●
21 BRACKET; GEN 8-97075-884-2 01 1 0303-0511 ● ●
21 BRACKET; GEN 8-97075-884-2 01 1 0512- ● ●
23 NUT; GEN
(B) M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ● ●
23 NUT; GEN
(B) M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ●
23 NUT; GEN
(B) M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
23 NUT; GEN
(A) M10 FLANGE 		0-91150-210-0 01 1 0303-0511 ● ●
23 NUT; GEN
(A) M10 FLANGE 		0-91150-210-0 01 1 0512-0602 ● ●
23 NUT; GEN
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 0603- ● ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0303-0511 ● ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0512-0512 ● ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0303-0511 ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0512-0512 ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601- ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0303-0511 ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0512- ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0303-0511 ● ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0512- ●
100 CLIP; HARNESS
ID=11 L=20 		9-09525-035-0 01 1 0512-0606 ●
100 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 01 1 0607- ●
105 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0303-0511 ● ●
105 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0512- ●
129 SENSOR; GLOW PLUG,THERMO
UNISIA JECS 		8-97167-008-0 01 1 0512- ●
129 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0512- ●
460 GASKET; PLUG
ID=16.2 		1-09630-086-0 01 1 0303-0511 ●
460 GASKET; PLUG
ID=16.2 		1-09630-086-0 01 1 0512- ●
487 NUT
M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
487 NUT
M6 FLANGE SOU 		0-91180-106-0 02 1 0603- ●
641 TIMER; QOS 8-97361-318-0 01 1 0303-0511 ● ●
641 TIMER; QOS 8-97361-318-0 01 1 0512- ●
643 NUT; TIMER,QOS
M6 FLANGE 		0-91150-106-0 02 1 0303-0511 ● ●
643 NUT; TIMER,QOS
M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
643 NUT; TIMER,QOS
M6 FLANGE SOU 		0-91180-106-0 02 1 0603- ●
677 HARNESS; GEN 8-97367-772-0 01 1 0305-0305 ●
677 HARNESS; GEN
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97367-772-0 01 1 0306-0308 ●
677 HARNESS; GEN 8-97367-772-0 01 1 0309-0511 ●
677 HARNESS; GEN 8-97367-772-0 01 1 0512- ●
862 CONNECTOR; GEN 8-97351-627-0 01 1 0512- ●
862 CONNECTOR; GEN 8-97351-626-0 01 1 0305-0305 ● ●
862 CONNECTOR; GEN
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97351-626-0 01 1 0306-0308 ● ●
862 CONNECTOR; GEN 8-97351-626-0 01 1 0309-0511 ● ●
862 CONNECTOR; GEN 8-97351-626-0 01 1 0512- ●
897 DRM 8-98013-144-6 01 1 0512- ●
905 NUT; HARNESS
M6 W/LK WASHER 		8-94424-179-0 01 1 0305-0305 ●
905 NUT; HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT> M6 W/LK WASHER 		8-94424-179-0 01 1 0306-0308 ●
905 NUT; HARNESS
M6 W/LK WASHER 		8-94424-179-0 01 1 0309-0511 ●
905 NUT; HARNESS
M6 W/LK WASHER 		8-94424-179-0 01 1 0512- ●

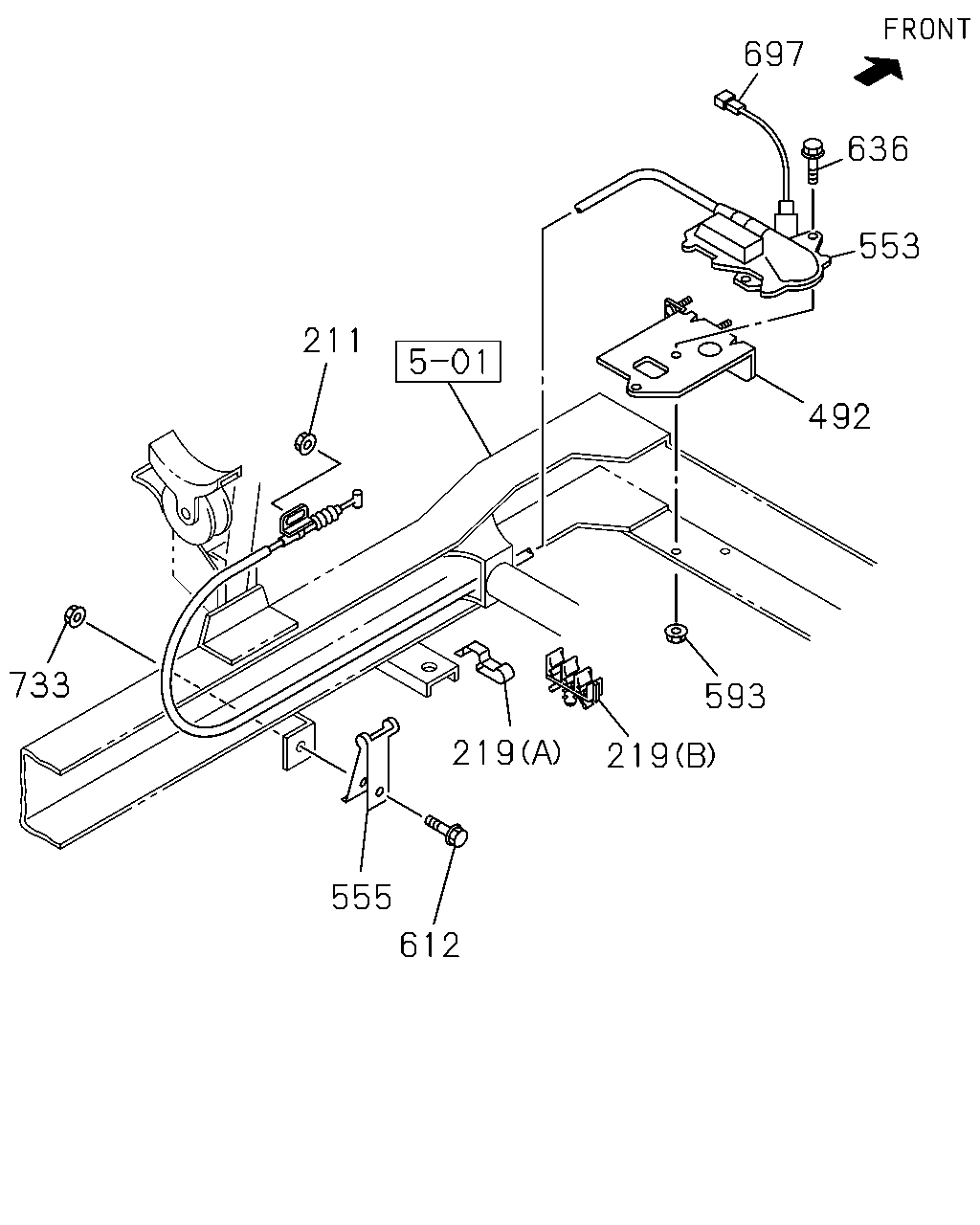

çizim 54861
697 636 553 211 492 733 593 219 219 555 612
BalonParca AdiParca NoAdetTipApplied Date A B C
211 NUT; CABLE FIX
M6 FLANGE 		0-91150-106-0 01 1 0303-0511 ● ●
211 NUT; CABLE FIX
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
211 NUT; CABLE FIX
M6 FLANGE SOU 		0-91180-106-0 01 1 0603- ●
219 CLIP; ENG STOP CABLE
(A) T=4.5 & 9 SOU 		5-09709-023-0 01 1 0303-0511 ● ●
219 CLIP; ENG STOP CABLE
(A) T=4.5 & 9 SOU 		5-09709-023-0 01 1 0512- ●
219 CLIP; ENG STOP CABLE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0303-0511 ● ●
219 CLIP; ENG STOP CABLE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0512- ●
492 BRACKET; ENG STOPPER 8-97127-037-0 01 1 0303-0511 ● ●
492 BRACKET; ENG STOPPER 8-97127-037-0 01 1 0512- ●
553 MOTOR ASM; ENG STOP 8-97255-069-0 01 1 0303-0511 ● ●
553 MOTOR ASM; ENG STOP 8-97255-069-0 01 1 0512- ●
555 BRACKET; ENG STOP 8-97119-039-2 01 1 0303-0511 ● ●
555 BRACKET; ENG STOP 8-97119-039-2 01 1 0512- ●
593 NUT; BRKT
M10 FLANGE SOU 		0-91150-110-0 02 1 0303-0511 ● ●
593 NUT; BRKT
M10 FLANGE SOU 		0-91150-110-0 02 1 0512-0602 ●
593 NUT; BRKT
M10 FLANGE SOU 		0-91180-110-0 02 1 0603- ●
612 BOLT; BRKT
M8X20 		1-09981-468-0 01 1 0303-0511 ● ●
612 BOLT; BRKT
M8X20 		1-09981-468-0 01 1 0512- ●
636 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0303-0511 ● ●
636 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
636 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 0601- ●
697 HARNESS; CABLE 8-97126-038-0 01 1 0303-0511 ● ●
697 HARNESS; CABLE 8-97126-038-0 01 1 0512- ●
733 NUT; BRKT
M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ● ●
733 NUT; BRKT
M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ●
733 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ●
