Sayfa 3-77 - Isuzu EPC

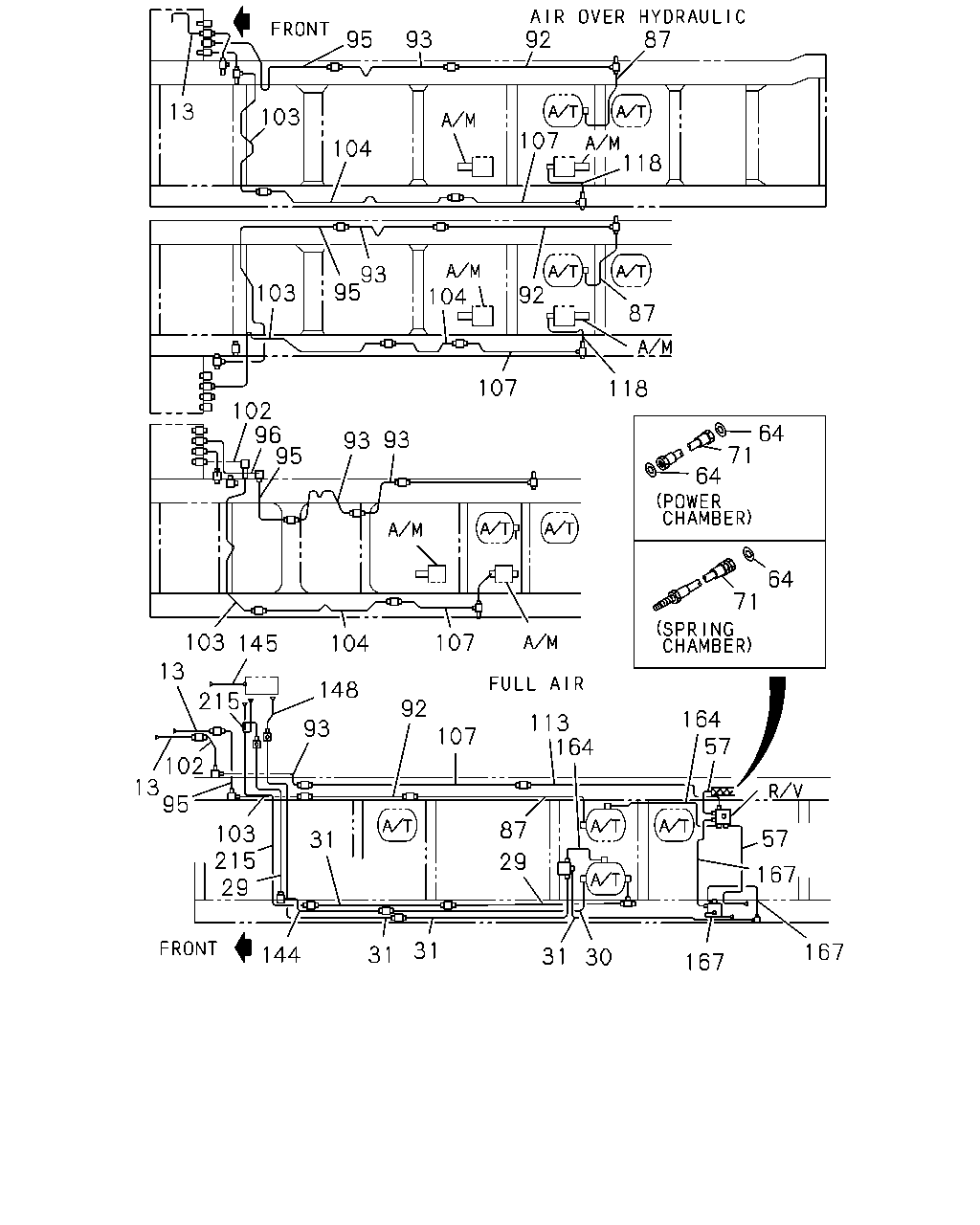

3-77 — BRAKE PIPING; AIR,REAR (#4460) — 400 parça

92 87 95 93 13 107 118 103 104 104 93 95 103 92 87 107 118 102 96 95 64 71 64 93 93 64 71 103 107 145 104 13 148 215 92 164 57 113 164 93 107 102 13 95 87 103 215 29 57 31 29 167 31 167 31 144 31 30 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; AIR,BRK VLV TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=190 SERVICED BY L=350	1-47437-961-0	01	1	9101-9212	●
13	PIPE; AIR,BRK VLV TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=190 SERVICED BY L=200	1-47426-401-0	01	1	9301-9504	●	●
13	PIPE; AIR,BRK VLV TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=609 SERVICED BY L=660	1-47437-978-0	01	1	9101-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=609 SERVICED BY L=660	1-49111-438-0	01	1	9301-9504	●	●
13	PIPE; AIR,BRK VLV TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=200 SERVICED BY L=300	1-49111-433-0	01	1	9101-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=200 SERVICED BY L=300	1-49111-433-0	01	1	9301-9504	●	●
13	PIPE; AIR,BRK VLV TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=603 SERVICED BY L=660	1-47437-964-0	01	1	9101-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=603 SERVICED BY L=660	1-47426-409-0	01	1	9301-9504	●	●
13	PIPE; AIR,BRK VLV TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=303 SERVICED BY L=550	1-47437-976-0	01	1	9101-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=303 SERVICED BY L=550	1-49111-436-0	01	1	9301-9504	●	●
13	PIPE; AIR,BRK VLV TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=419 SERVICED BY L=550	1-47437-976-0	01	1	9101-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=419 SERVICED BY L=500	1-49111-435-0	01	1	9301-9504	●	●
13	PIPE; AIR,BRK VLV TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=201	1-47491-663-0	01	1	9101-9212		●
13	PIPE; AIR,BRK VLV TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=201 SERVICED BY L=300	1-47426-402-0	01	1	9301-9504		●
29	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1730 SERVICED BY L=1900	1-47437-971-0	01	1	9101-9212	●
29	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1730 SERVICED BY L=1900	1-47426-421-0	01	1	9301-9504	●	●
29	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2072 SERVICED BY L=2250	1-47437-987-0	01	1	9101-9212	●
29	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2072 SERVICED BY L=2250	1-49111-451-0	01	1	9301-9504	●	●
29	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2122 SERVICED BY L=2500	1-47434-479-0	01	1	9101-9212		●
29	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2122 SERVICED BY L=2500	1-47426-423-0	01	1	9301-9504		●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2520 SERVICED BY L=2600	1-47437-973-0	01	1	9101-9212	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2520 SERVICED BY L=2600	1-47426-424-0	01	1	9301-9504	●
30	PIPE; AIR,AIR TANK TO JOINT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1806 SERVICED BY L=2100	1-47437-972-0	01	1	9101-9212		●
30	PIPE; AIR,AIR TANK TO JOINT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1806 SERVICED BY L=2100	1-47426-422-0	01	1	9301-9504		●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2900 SERVICED BY L=3000	1-47437-960-0	01	1	9101-9212	●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2900 SERVICED BY L=3000	1-47426-397-0	01	1	9301-9504	●	●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2414 SERVICED BY L=2600	1-47437-973-0	01	1	9101-9212	●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2412 SERVICED BY L=2600	1-47426-424-0	01	1	9301-9504	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2004	1-47482-832-0	01	1	9101-9212	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2004 SERVICED BY L=2150	1-47426-394-0	01	1	9301-9504	●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1563	1-47483-810-0	01	1	9101-9212	●	●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1563 SERVICED BY L=1600	1-49111-448-0	01	1	9301-9504	●	●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2221 SERVICED BY L=2400	1-47437-959-0	01	1	9101-9212		●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2221 SERVICED BY L=2400	1-47426-395-0	01	1	9301-9504		●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1276	1-47491-702-0	01	1	9101-9212		●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1276 SERVICED BY L=1400	1-47426-389-0	01	1	9301-9504		●
57	PIPE; AIR,RELAY VLV TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=951 SERVICED BY L=1000	1-47434-476-0	01	1	9101-9212	●	●
57	PIPE; AIR,RELAY VLV TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=951 SERVICED BY L=1000	1-47426-414-0	01	1	9301-9504	●	●
57	PIPE; AIR,RELAY VLV TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=382 SERVICED BY L=400	1-47434-471-0	01	1	9101-9212	●	●
57	PIPE; AIR,RELAY VLV TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=382 SERVICED BY L=400	1-47426-404-0	01	1	9301-9504	●	●
64	GASKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	9101-9504	●	●
64	GASKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17.5	9-09572-515-0	04	1	9101-0203	●	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	04	1	0204-0505	●	●
71	HOSE; FLEX,RWD RR BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=640	0-07475-670-1	01	1	9101-9504	●	●
71	HOSE; FLEX,RWD RR BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580	0-07909-580-0	01	1	9101-9504	●	●
71	HOSE; FLEX,RWD RR BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=640	0-07475-640-1	01	1	9101-9504	●	●
71	HOSE; FLEX,RWD RR BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=630	0-07909-630-0	01	1	9101-9504	●	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1255 SERVICED BY L=1400	1-47437-969-0	01	1	9101-9212	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1255 SERVICED BY L=1400	1-47426-418-0	01	1	9301-9504	●
87	PIPE; AIR,AIR TANK TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=677 SERVICED BY L=730	1-47437-979-0	01	1	9101-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=677 SERVICED BY L=730	1-49111-440-0	01	1	9301-9504	●	●
87	PIPE; AIR,AIR TANK TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=678 SERVICED BY L=730	1-47437-979-0	01	1	9101-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=678 SERVICED BY L=730	1-49111-440-0	01	1	9301-9504	●	●
87	PIPE; AIR,AIR TANK TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1806 SERVICED BY L=2100	1-47437-972-0	01	1	9101-9101		●
87	PIPE; AIR,AIR TANK TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1801 SERVICED BY L=2100	1-47437-972-0	01	1	9102-9212		●
87	PIPE; AIR,AIR TANK TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1801 SERVICED BY L=2100	1-47426-422-0	01	1	9301-9504		●
92	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2712 SERVICED BY L=2900	1-47437-974-0	01	1	9101-9212	●
92	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2172 SERVICED BY L=2900	1-47426-425-0	01	1	9301-9504	●	●
92	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1594 SERVICED BY L=1600	1-47437-985-0	01	1	9101-9212	●	●
92	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1594 SERVICED BY L=1600	1-49111-448-0	01	1	9301-9504	●	●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2132 SERVICED BY L=2250	1-47437-987-0	01	1	9101-9212	●	●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2132 SERVICED BY L=2250	1-49111-451-0	01	1	9301-9504	●	●
92	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1462 SERVICED BY L=1550	1-47437-970-0	01	1	9101-9212		●
92	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1462 SERVICED BY L=1550	1-47426-419-0	01	1	9301-9504		●
93	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=840 SERVICED BY L=900	1-47437-966-0	01	1	9101-9212	●
93	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=840 SERVICED BY L=900	1-47426-413-0	01	1	9301-9504	●	●
93	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1308 SERVICED BY L=1450	1-47437-984-0	01	1	9101-9212	●
93	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1308 SERVICED BY L=1450	1-49111-447-0	01	1	9301-9504	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=628 SERVICED BY L=660	1-47437-978-0	01	1	9101-9212	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=628 SERVICED BY L=660	1-49111-438-0	01	1	9301-9504	●
93	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1656 SERVICED BY L=1800	1-47434-487-0	01	1	9101-9212	●	●
93	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1656 SERVICED BY L=1800	1-49111-449-0	01	1	9301-9504	●	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1128 SERVICED BY L=1200	1-47437-983-0	01	1	9101-9212	●	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1128 SERVICED BY L=1200	1-49111-445-0	01	1	9301-9504	●	●
93	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1948 SERVICED BY L=2100	1-47437-972-0	01	1	9101-9212		●
93	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1948 SERVICED BY L=2100	1-47426-422-0	01	1	9301-9504		●
95	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1487 SERVICED BY L=2250	1-47437-987-0	01	1	9101-9212	●
95	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1487 SERVICED BY L=2250	1-49111-451-0	01	1	9301-9504	●
95	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=775 SERVICED BY L=800	1-47434-475-0	01	1	9101-9212	●
95	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=775 SERVICED BY L=800	1-47426-412-0	01	1	9301-9504	●	●
95	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=517 SERVICED BY L=550	1-47437-976-0	01	1	9101-9212	●
95	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=517 SERVICED BY L=550	1-49111-436-0	01	1	9301-9504	●
95	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2238 SERVICED BY L=2250	1-47437-987-0	01	1	9101-9212		●
95	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2238 SERVICED BY L=2250	1-49111-451-0	01	1	9301-9504		●
95	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=551	1-47491-662-0	01	1	9101-9212		●
95	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=551 SERVICED BY L=600	1-47426-408-0	01	1	9301-9504		●
95	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2504 SERVICED BY L=2800	1-47437-988-0	01	1	9101-9212		●
95	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2504 SERVICED BY L=2800	1-49111-453-0	01	1	9301-9504		●
96	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=790 SERVICED BY L=800	1-47437-980-0	01	1	9101-9212	●
96	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=790 SERVICED BY L=800	1-49111-441-0	01	1	9301-9504	●
96	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=410	1-47484-532-0	01	1	9101-9212		●
96	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=410 SERVICED BY L=500	1-49111-435-0	01	1	9301-9504		●
96	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=488	1-47481-128-0	01	1	9101-9212		●
96	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=488 SERVICED BY L=550	1-49111-436-0	01	1	9301-9504		●
102	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=547	1-47483-588-0	01	1	9101-9212	●
102	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=547 SERVICED BY L=550	1-49111-436-0	01	1	9301-9504	●
102	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=897 SERVICED BY L=900	1-47437-966-0	01	1	9101-9212	●
102	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=897 SERVICED BY L=900	1-47426-413-0	01	1	9301-9504	●	●
102	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=648 SERVICED BY L=660	1-47437-978-0	01	1	9101-9212	●
102	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=648 SERVICED BY L=660	1-49111-438-0	01	1	9301-9504	●
102	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=480	1-47491-664-1	01	1	9101-9212		●
102	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=480 SERVICED BY L=500	1-47426-406-0	01	1	9301-9504		●
102	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=385	1-47481-129-0	01	1	9101-9212		●
102	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=385 SERVICED BY L=400	1-49111-434-0	01	1	9301-9504		●
103	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1295 SERVICED BY L=1300	1-47434-486-0	01	1	9101-9212	●
103	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1295 SERVICED BY L=1300	1-49111-446-0	01	1	9301-9504	●
103	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=943 SERVICED BY L=1000	1-47434-476-0	01	1	9101-9212	●
103	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=943 SERVICED BY L=1000	1-47426-414-0	01	1	9301-9504	●	●
103	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1026 SERVICED BY L=1100	1-47437-982-0	01	1	9101-9212	●
103	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1026 SERVICED BY L=1100	1-49111-444-0	01	1	9301-9504	●
103	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2211 SERVICED BY L=2250	1-47437-987-0	01	1	9101-9212		●
103	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2211 SERVICED BY L=2250	1-49111-451-0	01	1	9301-9504		●
103	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2008 SERVICED BY L=2100	1-47437-972-0	01	1	9101-9212		●
103	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2008 SERVICED BY L=2100	1-47426-422-0	01	1	9301-9504		●
104	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2065 SERVICED BY L=2250	1-47437-987-0	01	1	9101-9212	●
104	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2065 SERVICED BY L=2250	1-49111-451-0	01	1	9301-9504	●
104	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2213 SERVICED BY L=2250	1-47437-987-0	01	1	9101-9212	●
104	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2213 SERVICED BY L=2250	1-49111-451-0	01	1	9301-9504	●
104	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=793 SERVICED BY L=800	1-47437-980-0	01	1	9101-9212		●
104	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=793 SERVICED BY L=800	1-49111-441-0	01	1	9301-9504		●
104	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2510 SERVICED BY L=2800	1-47437-988-0	01	1	9101-9212		●
104	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2510 SERVICED BY L=2800	1-49111-453-0	01	1	9301-9504		●
107	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2864 SERVICED BY L=2900	1-47437-974-0	01	1	9101-9212	●
107	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2864 SERVICED BY L=2900	1-47426-425-0	01	1	9301-9504	●	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=872 SERVICED BY L=900	1-47437-981-0	01	1	9101-9212	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=872 SERVICED BY L=900	1-49111-442-0	01	1	9301-9504	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1372 SERVICED BY L=1450	1-47437-984-0	01	1	9101-9212	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1372 SERVICED BY L=1450	1-49111-447-0	01	1	9301-9504	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1955 SERVICED BY L=2000	1-47437-986-0	01	1	9101-9212	●	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1955 SERVICED BY L=2000	1-49111-450-0	01	1	9301-9504	●	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2655 SERVICED BY L=2800	1-47437-988-0	01	1	9101-9212	●	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2655 SERVICED BY L=2800	1-49111-453-0	01	1	9301-9504	●	●
107	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1850 SERVICED BY L=2100	1-47437-972-0	01	1	9101-9212		●
107	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1850 SERVICED BY L=2100	1-47426-422-0	01	1	9301-9504		●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1287 SERVICED BY L=1300	1-47434-486-0	01	1	9101-9212		●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1287 SERVICED BY L=1300	1-49111-446-0	01	1	9301-9504		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2389 SERVICED BY L=2600	1-47437-973-0	01	1	9101-9212	●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2389 SERVICED BY L=2600	1-47426-424-0	01	1	9301-9504	●
113	PIPE; AIR,UNION TO RELAY VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2663 SERVICED BY L=2900	1-47437-974-0	01	1	9101-9212		●
113	PIPE; AIR,UNION TO RELAY VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2663 SERVICED BY L=2900	1-47426-425-0	01	1	9301-9504		●
118	PIPE; AIR,UNION TO AIR MASTER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=750	1-47483-592-0	01	1	9101-9212	●	●
118	PIPE; AIR,UNION TO AIR MASTER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=750 SERVICED BY L=800	1-49111-441-0	01	1	9301-9504	●	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=377	1-47481-126-0	01	1	9101-9212	●	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=377 SERVICED BY L=400	1-49111-434-0	01	1	9301-9504	●	●
144	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=828 SERVICED BY L=900	1-47437-966-0	01	1	9101-9212	●
144	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=828 SERVICED BY L=900	1-47426-413-0	01	1	9301-9504	●	●
145	PIPE; AIR,SUPPLY VLV TO SPR BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=416 SERVICED BY L=450	1-47437-962-0	01	1	9101-9212	●
145	PIPE; AIR,SUPPLY VLV TO SPR BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=416 SERVICED BY L=450	1-47426-405-0	01	1	9301-9504	●	●
148	PIPE; AIR,SPR BRK TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=189	1-47449-800-0	01	1	9101-9212	●
148	PIPE; AIR,SPR BRK TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=189	1-47496-698-0	01	1	9301-9504	●	●
148	PIPE; AIR,SPR BRK TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=201	1-47448-891-0	01	1	9101-9212		●
148	PIPE; AIR,SPR BRK TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=201	1-47496-697-0	01	1	9301-9504		●
164	PIPE; AIR,AIR TANK TO RELAY VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=704 SERVICED BY L=1000	1-47434-491-0	01	1	9101-9504	●	●
164	PIPE; AIR,AIR TANK TO RELAY VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1386 SERVICED BY L=1500	1-47434-492-0	01	1	9101-9504	●	●
167	PIPE; AIR,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=741 SERVICED BY L=800	1-47437-980-0	01	1	9101-9212	●	●
167	PIPE; AIR,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=741 SERVICED BY L=800	1-49111-441-0	01	1	9301-9504	●	●
167	PIPE; AIR,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=449 SERVICED BY L=500	1-47434-472-0	01	1	9101-9212	●	●
167	PIPE; AIR,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=449 SERVICED BY L=500	1-47426-406-0	01	1	9301-9504	●	●
167	PIPE; AIR,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=553 SERVICED BY L=600	1-47434-473-0	01	1	9101-9212	●	●
167	PIPE; AIR,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=553 SERVICED BY L=600	1-47426-408-0	01	1	9301-9504	●	●
215	PIPE; AIR,UNION TO SUPPLY VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=604 SERVICED BY L=660	1-47437-964-0	01	1	9101-9212	●
215	PIPE; AIR,UNION TO SUPPLY VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=604 SERVICED BY L=660	1-47426-409-0	01	1	9301-9504	●	●
215	PIPE; AIR,UNION TO SUPPLY VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1342 SERVICED BY L=1400	1-47437-969-0	01	1	9101-9212	●
215	PIPE; AIR,UNION TO SUPPLY VLV BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1342 SERVICED BY L=1400	1-47426-418-0	01	1	9301-9504	●	●

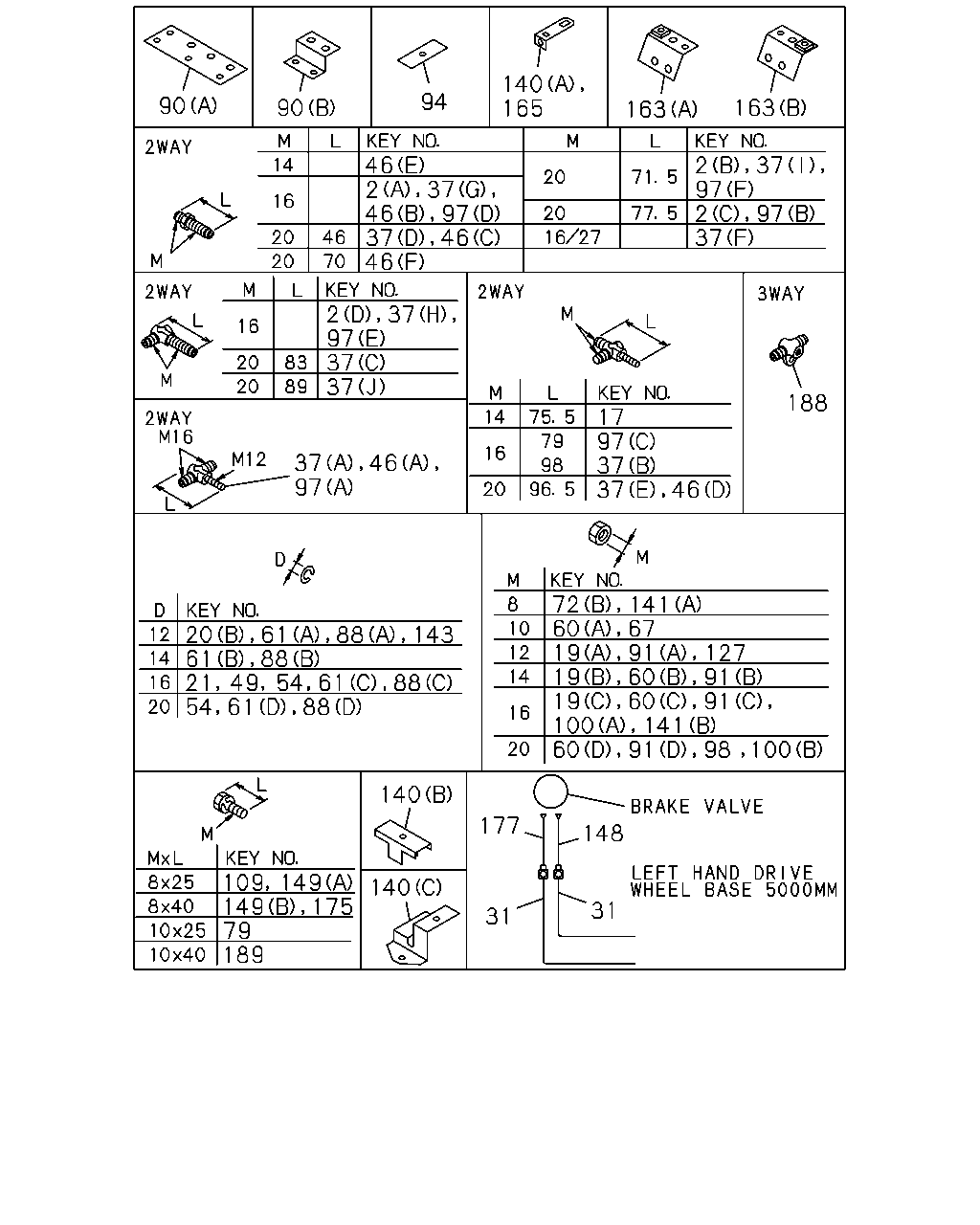

140 165 94 90 163 90 163 46 46 97 37 97 37 37 17 97 37 188 46 37 97 72 141 127 100 141 143 100 140 148 177 149 175 79 189 140 31 31 2 37 97 2 2 37 97 46 37 46 37 46 20 61 88 61 88 21 49 54 61 88 54 61 88 98 91 91 91 67 19 19 60 60 60 91 109 149 2 37 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) STRAIGHT M20 L=77.5	9-09223-212-1	01	1	9101-9504	●	●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ELBOW M16 ELBOW	9-09235-110-1	01	1	9101-9504	●	●
2	UNION; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) STRAIGHT M20 L=71.5	9-09233-112-1	01	1	9101-9504	●	●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> (A) STRAIGHT M16 L=70 STRAIGHT	9-09233-210-1	01	1	9111-9504		●
17	UNION; AIR PIPE M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0412-	●	●
17	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14 2WAY	1-09654-034-2	01	1	9101-9504	●	●
19	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12	9-99111-412-0	01	1	9101-9504	●
19	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12	9-99110-412-0	01	1	9101-9110	●	●
19	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12	9-99110-412-0	02	1	9111-9307	●	●
19	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12	9-99110-512-0	02	1	9308-9504	●	●
19	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14	9-99111-414-0	01	1	9101-9504	●	●
19	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-416-0	01	1	9101-9110	●	●
19	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-416-0	01	1	9101-9110	●
19	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-416-0	01	1	9111-9504	●	●
20	WASHER; LK,PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=12.2	9-09150-512-0	01	1	9101-9312	●	●
20	WASHER; LK,PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	9-09150-516-0	02	1	9505-0203	●	●
20	WASHER; LK,PIPE UNION (A) ID=16.2	9-09150-516-0	02	1	0204-0603	●	●
20	WASHER; LK,PIPE UNION (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●
21	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	02	1	9101-9312	●	●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2900 SERVICED BY L=3000	1-47437-960-0	01	1	9101-9212	●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2900 SERVICED BY L=3000	1-47426-397-0	01	1	9301-9504	●	●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2414 SERVICED BY L=2600	1-47437-973-0	01	1	9101-9212	●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2412 SERVICED BY L=2600	1-47426-424-0	01	1	9301-9504	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2004	1-47482-832-0	01	1	9101-9212	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2004 SERVICED BY L=2150	1-47426-394-0	01	1	9301-9504	●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1563	1-47483-810-0	01	1	9101-9212	●	●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1563 SERVICED BY L=1600	1-49111-448-0	01	1	9301-9504	●	●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2221 SERVICED BY L=2400	1-47437-959-0	01	1	9101-9212		●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2221 SERVICED BY L=2400	1-47426-395-0	01	1	9301-9504		●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1276	1-47491-702-0	01	1	9101-9212		●
31	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1276 SERVICED BY L=1400	1-47426-389-0	01	1	9301-9504		●
37	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ELBOW M16X2 2WAY ELBOW	1-09654-148-1	02	1	9101-9504	●
37	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (H) ELBOW M12 & M16X2 3WAY	1-09656-411-1	01	1	9111-9504	●
37	UNION; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) ELBOW M20 L=83	9-09225-012-1	02	1	9101-9504	●
37	UNION; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) L=46 M20 STRAIGHT	9-09233-012-1	01	1	9101-9504	●
37	UNION; AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=96.5 M20 2WAY	1-09654-143-1	02	1	9101-9305	●	●
37	UNION; AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=96.5 M20 2WAY	1-09654-218-1	02	1	9306-9504	●	●
37	UNION; AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) L=96.5 M20 2WAY	1-09654-143-1	01	1	9101-9305	●	●
37	UNION; AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) L=96.5 M20 2WAY	1-09654-218-1	01	1	9306-9504	●	●
37	UNION; AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) L=46 M20 STRAIGHT	9-09233-012-1	02	1	9101-9504	●	●
37	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ELBOW M12 & M16X2 3WAY	1-09656-411-0	01	1	9101-9110	●	●
37	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) STRAIGHT M16 & M27 STRAIGHT	1-09654-016-1	02	1	9111-9504	●	●
37	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) STRAIGHT M16 L=42	9-09233-010-1	01	1	9101-9504	●	●
37	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) STRAIGHT M16 L=70 STRAIGHT	9-09233-210-0	01	1	9101-9110	●	●
37	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) STRAIGHT M16 L=70 STRAIGHT	9-09233-210-1	01	1	9111-9504	●
37	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> (G) STRAIGHT M16 L=70 STRAIGHT	9-09233-210-1	01	1	9111-9504		●
37	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) ELBOW M16 ELBOW	9-09235-110-0	01	1	9101-9110	●	●
37	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) ELBOW M16 ELBOW	9-09235-110-1	01	1	9111-9504	●	●
37	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> (H) ELBOW M16 ELBOW	9-09235-110-1	01	1	9111-9504		●
37	UNION; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (I) STRAIGHT M20 L=71.5	9-09233-112-1	02	1	9101-9504	●	●
37	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) STRAIGHT M16 L=42	9-09233-010-1	02	1	9101-9504		●
37	UNION; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (J) M20 ELBOW	9-09235-112-1	01	1	9101-9504		●
46	NIPPLE; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ELBOW M16X2 2WAY ELBOW	1-09654-148-1	01	1	9101-9504	●
46	NIPPLE; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) STRAIGHT M16 L=70 STRAIGHT	9-09233-210-1	01	1	9101-9504	●
46	NIPPLE; AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=46 M20 STRAIGHT	9-09233-012-1	02	1	9101-9504	●	●
46	NIPPLE; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=96.5 M20 2WAY	1-09654-143-1	01	1	9101-9305	●	●
46	NIPPLE; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=96.5 M20 2WAY	1-09654-218-1	01	1	9306-9504	●	●
46	NIPPLE; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) STRAIGHT M14 STRAIGHT	9-09223-008-1	01	1	9101-9504	●	●
46	NIPPLE; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) STRAIGHT M16 L=42	9-09233-010-1	01	1	9101-9504		●
49	WASHER; LK,PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	02	1	9111-9312	●	●
54	WASHER; LK,UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=20.2	9-09150-520-0	01	1	9101-9504	●	●
54	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	01	1	9101-9312	●	●
60	NUT; NIPPLE,AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10	9-09110-410-0	02	1	9101-9504	●	●
60	NUT; NIPPLE,AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-416-0	01	1	9101-9110	●	●
60	NUT; NIPPLE,AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-416-0	03	1	9111-9504	●	●
60	NUT; NIPPLE,AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-416-0	02	1	9505-0203	●	●
60	NUT; NIPPLE,AIR PIPE (C) M16	9-99111-416-0	02	1	0204-0512	●	●
60	NUT; NIPPLE,AIR PIPE (C) M16	0-91111-516-0	02	1	0601-	●	●
60	NUT; NIPPLE,AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M14	9-99111-414-0	01	1	9101-9504		●
60	NUT; NIPPLE,AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) M20	9-99111-420-0	01	1	9101-9504		●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2	9-09150-512-0	01	1	9101-9110	●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2	9-09150-512-0	01	1	9111-9312	●	●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2	9-09150-512-0	01	1	9111-9312	●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16.2	9-09150-516-0	01	1	9101-9110	●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16.2	9-09150-516-0	01	1	9111-9312	●	●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16.2	9-09150-516-0	01	1	9111-9312	●
61	WASHER; LK,NIPPLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20.2	9-09150-520-0	01	1	9101-9504	●	●
61	WASHER; LK,NIPPLE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) ID=20.2	9-09150-520-0	01	1	9101-9504		●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14.2	9-09150-514-0	01	1	9101-9312	●	●
61	WASHER; LK,NIPPLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=14.2	9-09150-514-0	01	1	9101-9312		●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16.2	9-09150-516-0	02	1	9101-9110	●	●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16.2	9-09150-516-0	02	1	9511-0203	●	●
61	WASHER; LK,NIPPLE (C) ID=16.2	9-09150-516-0	02	1	0204-0603	●	●
61	WASHER; LK,NIPPLE (C) ID=16.2	0-91510-516-0	02	1	0604-	●	●
67	NUT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-410-0	04	1	9101-9307	●	●
67	NUT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	04	1	9308-9504	●	●
72	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8	9-09110-508-0	01	1	9101-9504	●
72	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10	9-09110-510-0	04	1	9505-9606	●	●
72	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 FLANGE	0-91150-210-0	04	1	9607-0203	●	●
72	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	04	1	0204-0602	●	●
72	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
79	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 W/LK WASHER	9-01901-025-0	04	1	9101-9204	●	●
79	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 W/LK WASHER	0-50041-025-0	04	1	9205-9504	●	●
88	WASHER; LK,PIPE UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=14.2	9-09150-514-0	01	1	9101-9312	●
88	WASHER; LK,PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2	9-09150-512-0	01	1	9101-9312	●
88	WASHER; LK,PIPE UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) ID=20.2	9-09150-520-0	01	1	9101-9504	●
88	WASHER; LK,PIPE UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14.2	9-09150-514-0	02	1	9101-9312	●	●
88	WASHER; LK,PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2	9-09150-512-0	02	1	9101-9312	●	●
88	WASHER; LK,PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16.2	9-09150-516-0	02	1	9101-9312	●	●
88	WASHER; LK,PIPE UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) ID=20.2	9-09150-520-0	02	1	9101-9504	●	●
90	BRACKET; PIPE UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-47475-756-0	01	1	9101-9504	●
90	BRACKET; PIPE UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-47475-755-0	01	1	9101-9504		●
91	NUT; PIPE UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M14	9-99111-414-0	01	1	9101-9504	●
91	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12	9-99110-412-0	01	1	9101-9307	●
91	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12	9-99110-512-0	01	1	9308-9504	●	●
91	NUT; PIPE UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) M20	9-99111-420-0	01	1	9101-9504	●
91	NUT; PIPE UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M14	9-99111-414-0	02	1	9101-9504	●	●
91	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12	9-99110-512-0	02	1	9101-9504	●	●
91	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-416-0	02	1	9101-9504	●	●
91	NUT; PIPE UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) M20	9-99111-420-0	02	1	9101-9504	●	●
94	BRACKET; AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47475-299-2	02	1	9101-9504		●
97	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ELBOW L=79 M16X2 2WAY ELBOW	1-09654-148-1	01	1	9101-9504	●
97	UNION; AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) STRAIGHT M20 L=77.5	9-09223-212-1	01	1	9101-9504	●	●
97	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ELBOW L=79 M16 2WAY	1-09650-182-0	01	1	9101-9202	●	●
97	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ELBOW L=79 M16 2WAY	1-09650-182-0	01	1	9101-9202	●
97	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ELBOW L=79 M16 2WAY	1-09650-182-1	01	1	9203-9504	●	●
97	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) STRAIGHT M16 L=42	9-09233-010-1	01	1	9101-9504	●	●
97	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M16 ELBOW	9-09235-110-1	01	1	9203-9504	●	●
97	UNION; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (F) ELBOW M20 L=71.5	9-09233-112-1	01	1	9101-9504	●	●
98	NUT; PIPE UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20	9-99111-420-0	01	1	9101-9504	●	●
100	NUT; UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M20	9-99111-420-0	01	1	9101-9504	●	●
100	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	9-99111-416-0	01	1	9101-9504	●	●
109	BOLT; PIPE BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●
109	BOLT; PIPE BRKT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●
109	BOLT; PIPE BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9504	●	●
109	BOLT; PIPE BRKT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9504	●
109	BOLT; PIPE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204		●
109	BOLT; PIPE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9504		●
127	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99111-412-0	01	1	9101-9504	●
140	BRACKET; AIR PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-668-0	06	1	9101-9504	●
140	BRACKET; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47475-427-1	01	1	9101-9504		●
140	BRACKET; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8 W/NUT	1-47475-439-2	02	1	9101-9504		●
141	NUT; PIPE BRKT WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8	9-09110-408-0	06	1	9101-9504	●
141	NUT; PIPE BRKT (A) M8	9-09110-408-0	01	1	9101-9504	●	●
141	NUT; PIPE BRKT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M8	9-09110-408-0	01	1	9101-9504	●
141	NUT; PIPE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16	9-99111-416-0	02	1	9101-9504	●	●
141	NUT; PIPE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8	9-09110-408-0	03	1	9101-9110		●
141	NUT; PIPE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8	9-09110-408-0	05	1	9111-9504		●
143	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	01	1	9101-9312	●
148	PIPE; AIR,SPR BRK TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=189	1-47449-800-0	01	1	9101-9212	●
148	PIPE; AIR,SPR BRK TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=189	1-47496-698-0	01	1	9301-9504	●	●
148	PIPE; AIR,SPR BRK TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=201	1-47448-891-0	01	1	9101-9212		●
148	PIPE; AIR,SPR BRK TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=201	1-47496-697-0	01	1	9301-9504		●
149	BOLT; PIPE BRKT WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER	9-01900-825-0	06	1	9101-9204	●
149	BOLT; PIPE BRKT WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER	0-50040-825-0	06	1	9205-9504	●
149	BOLT; PIPE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●
149	BOLT; PIPE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9504	●	●
149	BOLT; PIPE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204		●
149	BOLT; PIPE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9504		●
149	BOLT; PIPE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X40 W/LK WASHER	9-01900-840-0	01	1	9101-9204		●
149	BOLT; PIPE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	9205-9504		●
163	BRACKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-732-1	01	1	9101-9504	●	●
163	BRACKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47475-733-1	01	1	9101-9504	●	●
165	BRACKET; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-668-0	01	1	9101-9504	●	●
175	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40 W/LK WASHER	9-01900-840-0	01	1	9101-9204	●
175	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40 W/LK WASHER	0-50040-840-0	01	1	9205-9504	●	●
177	PIPE; AIR,UNION TO SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=212	1-47448-890-0	01	1	9101-9212		●
177	PIPE; AIR,UNION TO SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=212 SERVICED BY L=300	1-47426-402-0	01	1	9301-9504		●
188	NIPPLE; 3 WAY,AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 3-WAY	9-09903-668-3	01	1	9101-9504	●	●
189	BOLT; NIPPLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X40	9-01901-040-0	01	1	9101-9204	●	●
189	BOLT; NIPPLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-9504	●	●

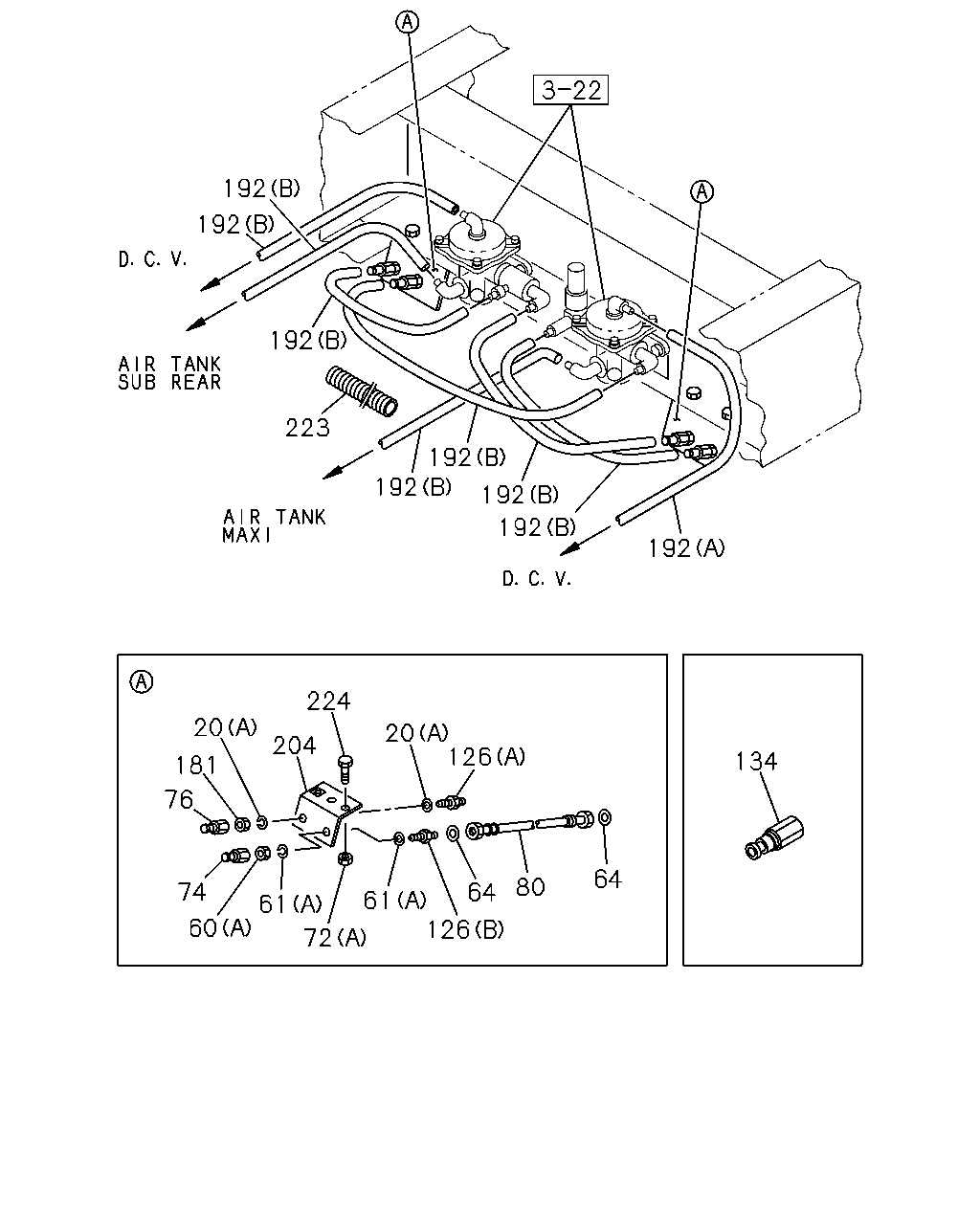

192 192 192 223 192 192 192 192 192 224 20 204 20 126 134 181 76 64 80 74 61 60 72 64 61 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	WASHER; LK,PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=12.2	9-09150-512-0	01	1	9101-9312	●	●
20	WASHER; LK,PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	9-09150-516-0	02	1	9505-0203	●	●
20	WASHER; LK,PIPE UNION (A) ID=16.2	9-09150-516-0	02	1	0204-0603	●	●
20	WASHER; LK,PIPE UNION (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●
60	NUT; NIPPLE,AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10	9-09110-410-0	02	1	9101-9504	●	●
60	NUT; NIPPLE,AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-416-0	01	1	9101-9110	●	●
60	NUT; NIPPLE,AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-416-0	03	1	9111-9504	●	●
60	NUT; NIPPLE,AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	9-99111-416-0	02	1	9505-0203	●	●
60	NUT; NIPPLE,AIR PIPE (C) M16	9-99111-416-0	02	1	0204-0512	●	●
60	NUT; NIPPLE,AIR PIPE (C) M16	0-91111-516-0	02	1	0601-	●	●
60	NUT; NIPPLE,AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M14	9-99111-414-0	01	1	9101-9504		●
60	NUT; NIPPLE,AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) M20	9-99111-420-0	01	1	9101-9504		●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2	9-09150-512-0	01	1	9101-9110	●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2	9-09150-512-0	01	1	9111-9312	●	●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2	9-09150-512-0	01	1	9111-9312	●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16.2	9-09150-516-0	01	1	9101-9110	●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16.2	9-09150-516-0	01	1	9111-9312	●	●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16.2	9-09150-516-0	01	1	9111-9312	●
61	WASHER; LK,NIPPLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20.2	9-09150-520-0	01	1	9101-9504	●	●
61	WASHER; LK,NIPPLE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) ID=20.2	9-09150-520-0	01	1	9101-9504		●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14.2	9-09150-514-0	01	1	9101-9312	●	●
61	WASHER; LK,NIPPLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=14.2	9-09150-514-0	01	1	9101-9312		●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16.2	9-09150-516-0	02	1	9101-9110	●	●
61	WASHER; LK,NIPPLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16.2	9-09150-516-0	02	1	9511-0203	●	●
61	WASHER; LK,NIPPLE (C) ID=16.2	9-09150-516-0	02	1	0204-0603	●	●
61	WASHER; LK,NIPPLE (C) ID=16.2	0-91510-516-0	02	1	0604-	●	●
64	GASKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	9101-9504	●	●
64	GASKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17.5	9-09572-515-0	04	1	9101-0203	●	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	04	1	0204-0505	●	●
72	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8	9-09110-508-0	01	1	9101-9504	●
72	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10	9-09110-510-0	04	1	9505-9606	●	●
72	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 FLANGE	0-91150-210-0	04	1	9607-0203	●	●
72	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	04	1	0204-0602	●	●
72	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
74	ADAPTER; UNION TO NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	1-09660-666-1	02	1	9505-9506	●	●
74	ADAPTER; UNION TO NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9507-0203	●	●
74	ADAPTER; UNION TO NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0204-	●	●
76	ADAPTER; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	1-09660-666-1	02	1	9505-9506	●	●
76	ADAPTER; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9507-0203	●	●
76	ADAPTER; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0204-	●	●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M27 & M27 L=580	0-07909-580-0	01	1	9505-0203	●	●
80	HOSE; FLEX,POWER CHAMBER L=580	0-07909-580-0	01	1	0204-0411	●	●
80	HOSE; FLEX,POWER CHAMBER L=660	1-09363-921-0	02	1	0412-	●	●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M27 & M27 L=630	0-07909-630-0	01	1	9505-0203	●	●
80	HOSE; FLEX,POWER CHAMBER L=630	0-07909-630-0	01	1	0204-0411	●	●
126	UNION; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 & M20 STRAIGHT	1-09650-338-2	02	1	9505-0203	●	●
126	UNION; NYLON TUBE (A) M16 & M20 STRAIGHT	1-09650-338-2	02	1	0204-0411	●	●
126	UNION; NYLON TUBE (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0412-	●	●
126	UNION; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 & M27 STRAIGHT	1-09654-016-2	02	1	9505-0203	●	●
126	UNION; NYLON TUBE (B) M16 & M27 STRAIGHT	1-09654-016-2	02	1	0204-0411	●	●
134	CONNECTOR BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20	1-09660-667-1	01	1	9505-9506	●	●
134	CONNECTOR BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9507-0203	●	●
181	NUT; TUBE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9505-0203	●	●
181	NUT; TUBE UNION M16	9-99111-416-0	02	1	0204-0512	●	●
181	NUT; TUBE UNION M16	0-91111-516-0	02	1	0601-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9505-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9505-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0902-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9706-	●	●
204	BRACKET; TUBE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-732-2	01	1	9505-0109	●	●
204	BRACKET; TUBE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47479-301-0	01	1	0110-0201	●	●
204	BRACKET; TUBE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47479-377-0	01	1	0202-0203	●	●
204	BRACKET; TUBE UNION	1-47479-377-1	01	1	0204-	●	●
204	BRACKET; TUBE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-733-2	01	1	9505-0109	●	●
204	BRACKET; TUBE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47479-302-0	01	1	0110-0201	●	●
204	BRACKET; TUBE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47479-378-0	01	1	0202-0203	●	●
204	BRACKET; TUBE UNION	1-47479-378-1	01	1	0204-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0902-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0104-0203	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9706-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9706-	●	●
224	BOLT; TUBE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28081-025-0	04	1	9505-9606	●	●
224	BOLT; TUBE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	04	1	9607-0203	●	●
224	BOLT; TUBE UNION M10X30 FLANGE	0-28681-030-0	04	1	0204-0512	●	●
224	BOLT; TUBE UNION M10X30 FLANGE	0-28651-030-0	04	1	0601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
