Isuzu WW
▶
TRUCKS
▶
NPR
▶
50954 - NPR/NQR(SOUTHAFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#44599) — 56 parça
Tümü
A - 4HE1 ENG
B - 4HK1-TCS ENG
C - 4HF1 ENG
◀
[057A] 4HK1(NO.2) (8 parça)
[057A] 4HF1,4HE1 (10 parça)
[057A] 4HK1(NO.1) (38 parça)
▶

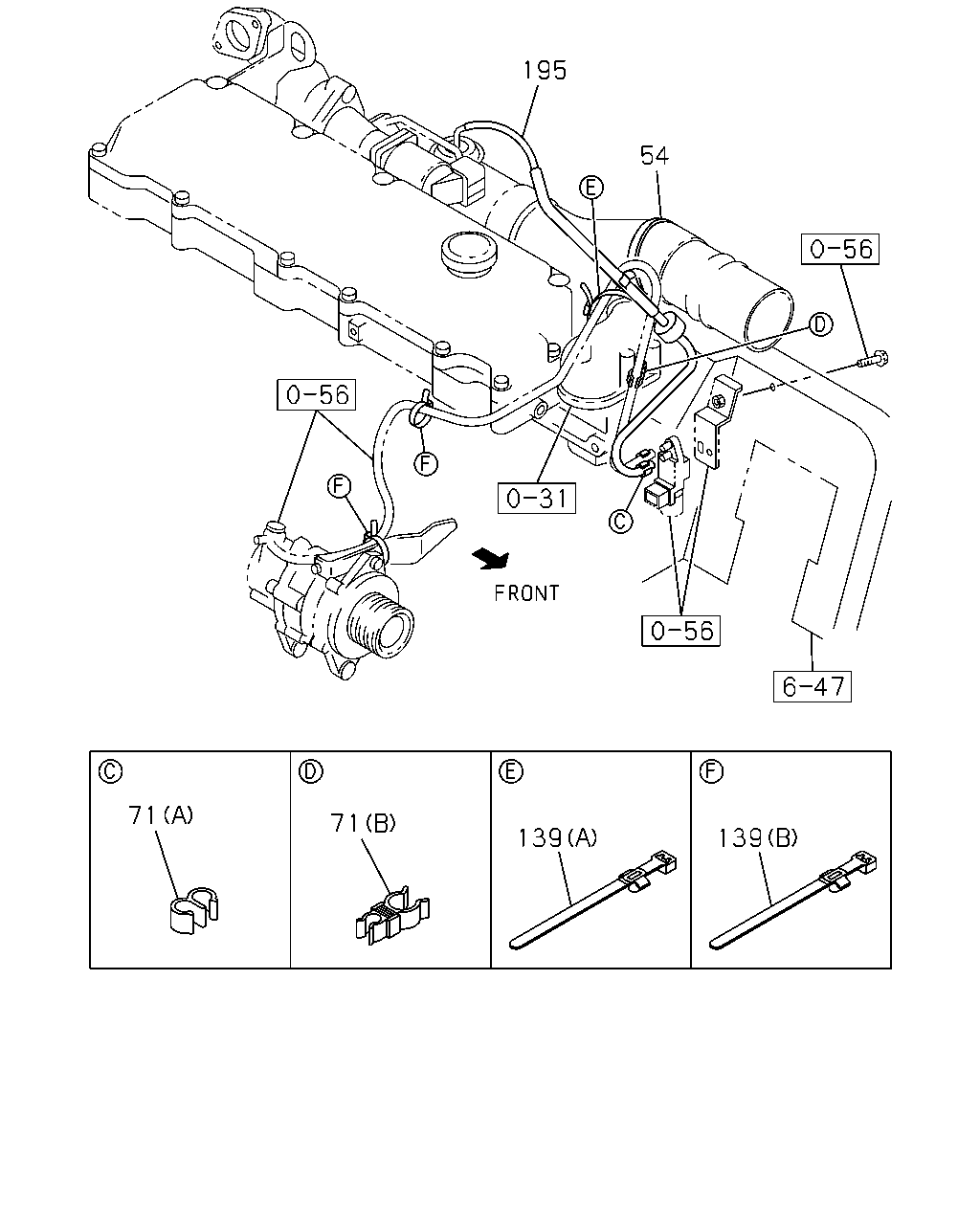

195
54
71
71
139
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
54
CLIP; 3 HOSE
8-94360-297-0
01
1
0303-0511
●
54
CLIP; 3 HOSE
L=350
8-97373-487-0
01
1
0512-
●
71
CLIP; RUBBER HOSE
(A) ID=7.2
8-94163-380-0
01
1
0512-
●
71
CLIP; RUBBER HOSE
(B) ID=13.2 & 7.5
8-94315-426-0
01
1
0512-
●
139
CLIP; HARNESS
(B) L=140 SOU
5-09707-031-1
01
1
0512-
●
139
CLIP; HARNESS
(B) L=140 SOU
5-09707-031-1
01
1
0512-
●
139
CLIP; HARNESS
(A) L=250 SOU
5-09707-030-1
01
1
0512-
●
195
HOSE; VAC
8-97373-527-0
01
1
0512-
●

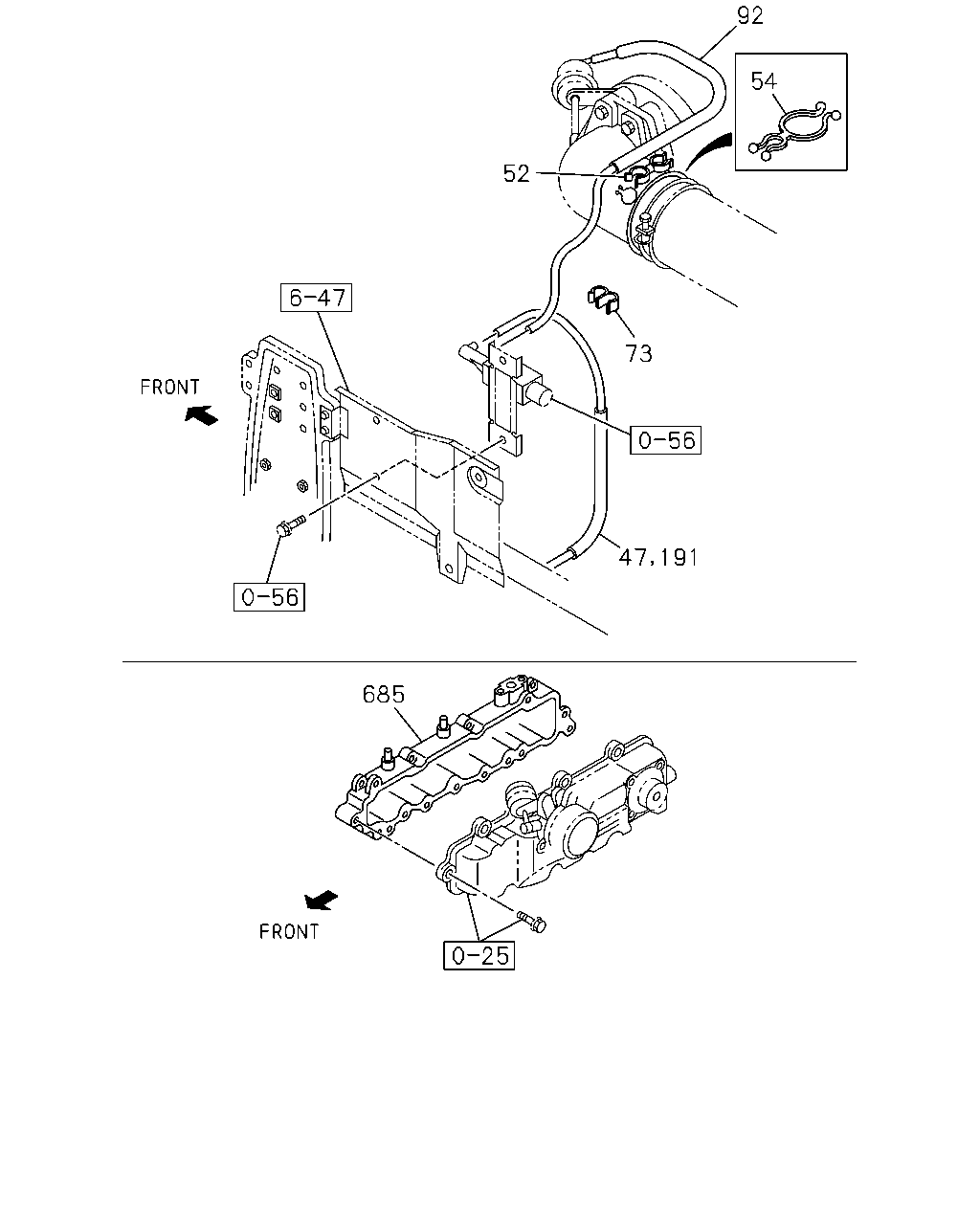

92
54
52
73
685
47
191
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
47
HOSE; VAC,VSV
L=310
8-97037-962-2
01
1
0303-
●
52
CLIP; VSV HOSE
8-97019-084-0
01
1
0303-
●
54
CLIP; 3 HOSE
8-94360-297-0
01
1
0303-0511
●
54
CLIP; 3 HOSE
L=350
8-97373-487-0
01
1
0512-
●
73
CLIP; VAC HOSE
ID=6.8X2
8-94126-636-0
01
1
0303-
●
73
CLIP; VAC HOSE
ID=6.8X2
8-94126-636-0
02
1
0303-0511
●
92
HOSE; VAC,THROTTLE BODY
8-97106-645-3
01
1
0303-
●
92
HOSE; VAC,THROTTLE BODY
L=415
8-97083-184-1
01
1
0303-0511
●
191
HOSE; RUBBER,3 WAY TO PIPE
L=310
8-97037-962-2
01
1
0303-0511
●
685
CASE; INLET,EGR
8-97146-873-1
01
1
0303-
●

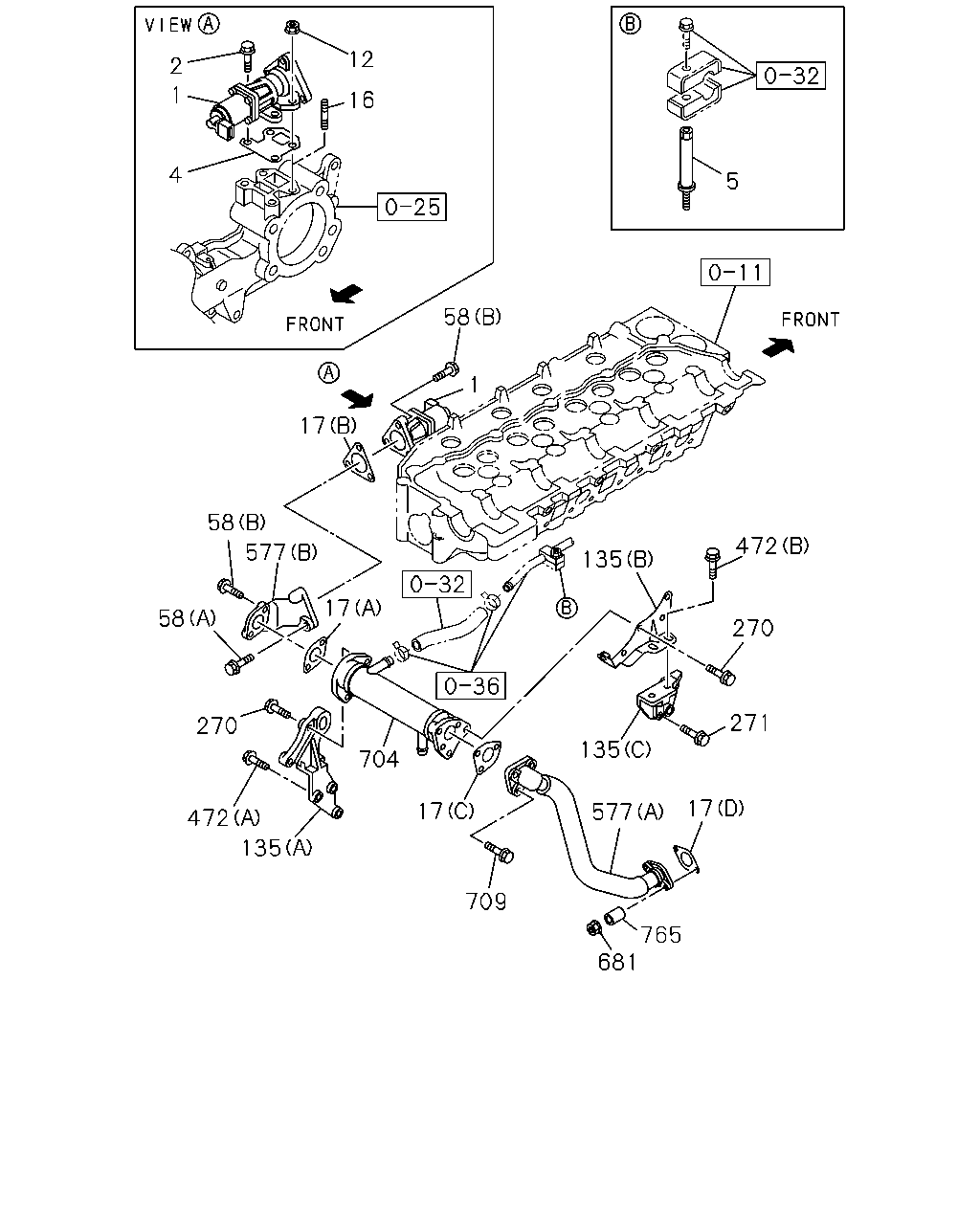

12
2
1
16
4
5
58
1
17
58
472
577
135
17
58
270
271
270
135
704
17
17
577
472
135
709
765
681
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
VALVE; EGR
8-97379-625-5
01
1
0512-
●
2
BOLT; EGR VLV
M8X25 FLANGE
0-28680-825-0
01
1
0512-0512
●
2
BOLT; EGR VLV
M8X25 FLANGE SOU
0-28650-825-0
01
1
0601-
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97306-040-0
01
1
0512-
●
5
ADAPTER ASM
8-97377-804-0
01
1
0512-
●
12
NUT; EGR VLV
M8 FLANGE SOU
0-91150-108-0
02
1
0512-0602
●
12
NUT; EGR VLV
M8 FLANGE SOU
0-91180-108-0
02
1
0603-
●
16
STUD; EGR VLV
M8X20 L=32
9-04110-820-0
02
1
0512-0604
●
16
STUD; EGR VLV
M8X20 L=32
0-41010-820-0
02
1
0605-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97213-386-0
01
1
0512-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97367-062-0
01
1
0512-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
8-97367-918-0
01
1
0512-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D)
8-97375-980-1
01
1
0512-
●
58
BOLT; PIPE
(A) M8X45 FLANGE
0-28080-845-0
02
1
0512-0512
●
58
BOLT; PIPE
(A) M8X45 FLANGE SOU
0-28050-845-0
02
1
0601-
●
58
BOLT; PIPE
(B) M8X25 FLANGE
0-28680-825-0
03
1
0512-0512
●
58
BOLT; PIPE
(B) M8X25 FLANGE SOU
0-28650-825-0
03
1
0601-
●
135
BRACKET; EGR
(A)
8-97310-498-2
01
1
0512-
●
135
BRACKET; EGR
(C)
8-97375-952-0
01
1
0512-
●
135
BRACKET; EGR
(B)
8-97376-723-0
01
1
0512-
●
270
BOLT
M8X25 FLANGE
0-28680-825-0
04
1
0512-0512
●
270
BOLT
M8X25 FLANGE SOU
0-28650-825-0
04
1
0601-
●
271
BOLT; BRKT
M12X45 FLANGE
0-28181-245-0
01
1
0512-0512
●
271
BOLT; BRKT
M12X45 FLANGE
0-28151-245-0
01
1
0601-
●
271
BOLT; BRKT
M8X25 FLANGE
0-28690-825-0
01
1
0512-0512
●
271
BOLT; BRKT
M8X25 FLANGE
0-28660-825-0
01
1
0601-
●
472
BOLT; BRKT
(A) M12X30 FLANGE
0-28181-230-0
03
1
0512-0512
●
472
BOLT; BRKT
(A) M12X30 FLANGE
0-28151-230-0
03
1
0601-
●
472
BOLT; BRKT
(B) M8X25 FLANGE
0-28680-825-0
02
1
0512-0512
●
472
BOLT; BRKT
(B) M8X25 FLANGE SOU
0-28650-825-0
02
1
0601-
●
577
PIPE; AIR,EGR
(A)
8-98032-795-0
01
1
0512-
●
577
PIPE; AIR,EGR
(A)
8-97310-501-3
01
1
0512-0601
●
577
PIPE; AIR,EGR
(B)
8-97329-211-2
01
1
0512-
●
681
NUT; EGR PIPE
M8 FLANGE
0-91150-208-0
02
1
0512-0602
●
681
NUT; EGR PIPE
M8 FLANGE
0-91180-208-0
02
1
0603-
●
704
COOLER ASM; EGR
8-97310-496-1
01
1
0512-
●
709
BOLT; EGR COOLER
M8X23 FLANGE
8-97378-077-0
03
1
0512-
●
765
SPACER; EGR PIPE
8-94225-562-0
02
1
0512-
●
