◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#44597) — 71 parça
çizim 51543
89 86 89 340 202 202 202 65 202 202 65 202 83 83 202 65 27 202 65 27
BalonParca AdiParca NoAdetTipApplied Date A B C
27 BOLT; OIL PIPE FIX
(C) M8X12 FLANGE 		0-28080-812-0 02 1 0512-0512 ●
27 BOLT; OIL PIPE FIX
(C) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
27 BOLT; OIL PIPE FIX
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0303-0511 ● ●
27 BOLT; OIL PIPE FIX
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512 ● ●
27 BOLT; OIL PIPE FIX
(A) M8X16 FLANGE SOU 		0-28050-816-0 01 1 0601- ● ●
27 BOLT; OIL PIPE FIX
(B) M8X35 FLANGE 		0-28080-835-0 01 1 0303-0511 ●
27 BOLT; OIL PIPE FIX
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ●
27 BOLT; OIL PIPE FIX
(A) M8X16 FLANGE SOU 		0-28050-816-0 02 1 0601- ●
65 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0303-0511 ● ●
65 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0512-0805 ● ●
65 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		8-97372-239-0 01 1 0806- ● ●
65 BOLT; JOINT,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 0303-0511 ● ●
65 BOLT; JOINT,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 0512- ● ●
83 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-97228-670-0 01 1 0303-0306 ●
83 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-97228-671-0 01 1 0303-0306 ●
83 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-97228-671-0 01 1 0307-0511 ● ●
83 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-97228-671-0 01 1 0512- ● ●
86 PIPE; OIL,VAC PUMP RETURN 8-94455-311-1 01 1 0303-0511 ● ●
86 PIPE; OIL,VAC PUMP RETURN 8-94455-311-1 01 1 0512- ● ●
89 CLIP; VAC HOSE
ID=17.1 SOU 		8-94122-679-0 01 1 0303-0511 ● ●
89 CLIP; VAC HOSE
ID=17.1 SOU 		8-94122-679-0 01 1 0303-0511 ● ●
89 CLIP; VAC HOSE
ID=17.1 SOU 		8-94122-679-0 01 1 0512- ● ●
89 CLIP; VAC HOSE
ID=17.1 SOU 		8-94122-679-0 01 1 0512- ● ●
202 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0303-0511 ● ●
202 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0512- ● ●
202 GASKET; OIL PIPE
(B) ID=14.2 OD=19.2 SOU 		1-09630-085-0 02 1 0303-0511 ● ●
202 GASKET; OIL PIPE
(B) ID=14.2 OD=19.2 SOU 		1-09630-085-0 02 1 0512- ● ●
340 HOSE; VAC PUMP,RETURN 8-94339-073-3 01 1 0303-0511 ● ●
340 HOSE; VAC PUMP,RETURN 8-94339-073-3 01 1 0512- ● ●

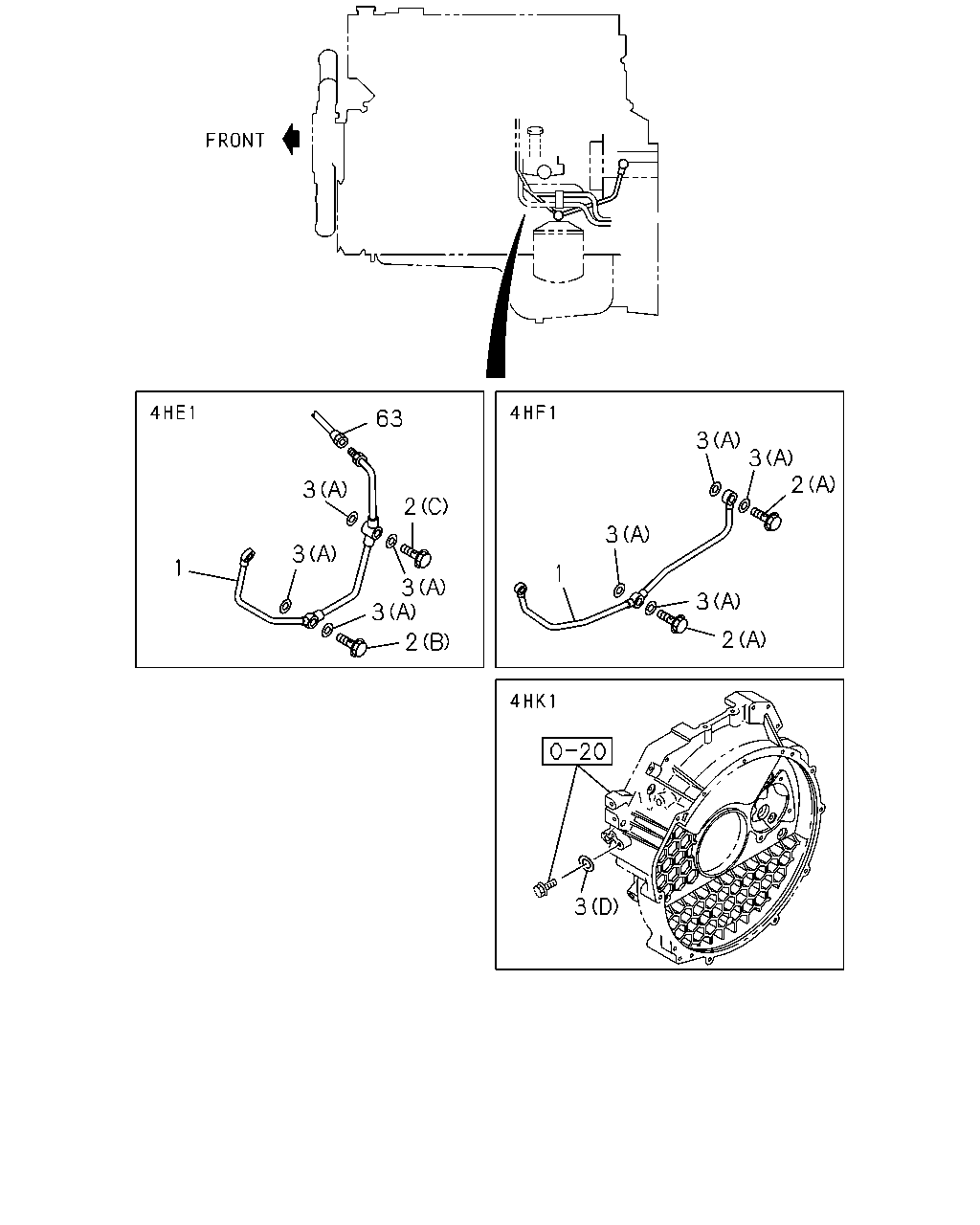

çizim 55707
63 3 3 2 3 2 3 3 1 1 3 3 3 2 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 0303- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-97074-790-2 01 1 0303-0511 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0303-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(C) M10X36 		1-09675-183-0 01 1 0303-0511 ●
2 BOLT; EYE,OIL PIPE
(B) M10X24 		9-09906-205-1 01 1 0303-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		9-09571-412-0 02 1 0512- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0303-0511 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0512- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0303-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0512- ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97229-042-0 01 1 0303-0511 ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97385-207-0 01 1 0512- ●

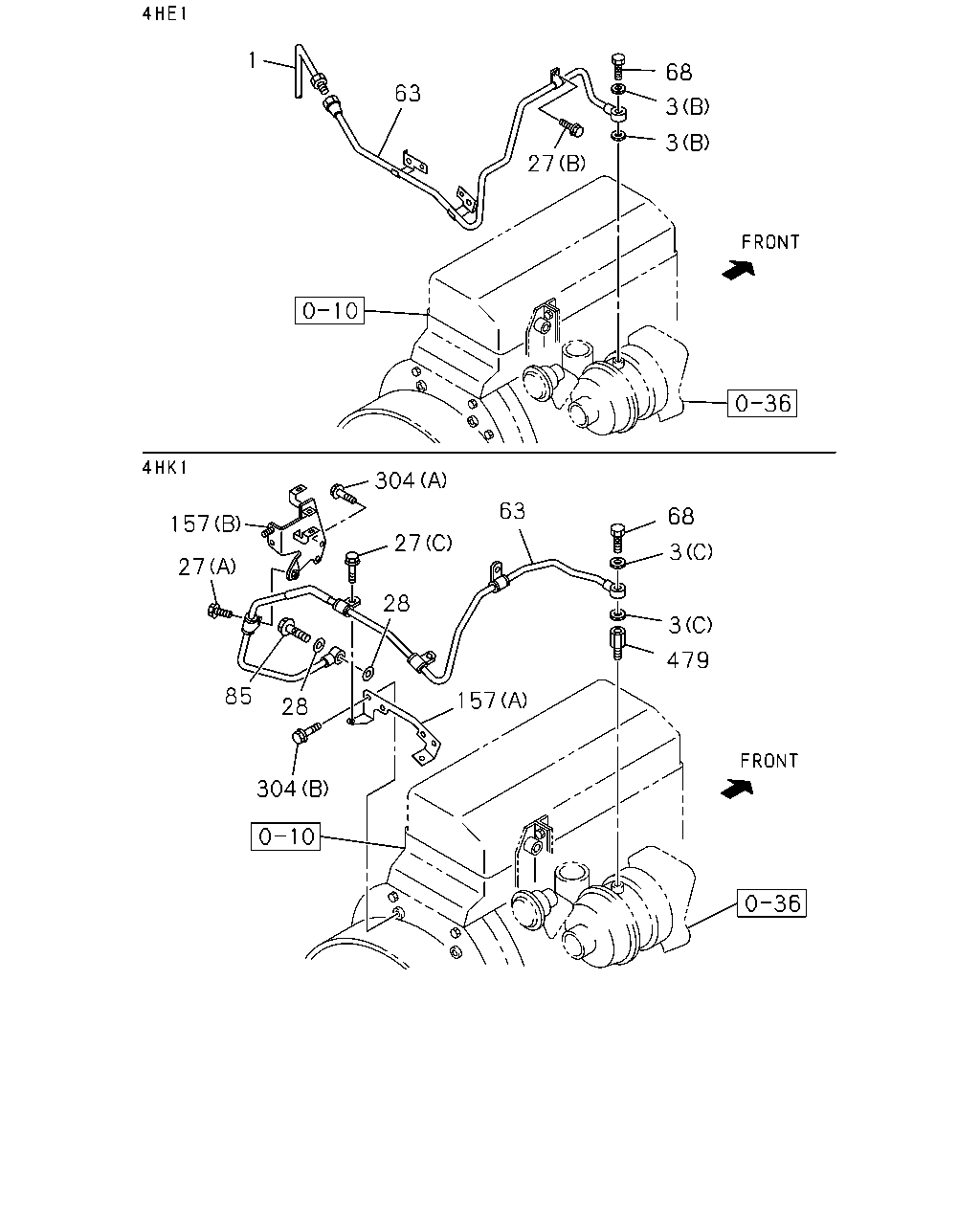

çizim 56758
1 68 63 3 3 27 304 63 68 157 27 3 27 28 3 479 85 157 28 304
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 0303- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-97074-790-2 01 1 0303-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		9-09571-412-0 02 1 0512- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0303-0511 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0512- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0303-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0512- ●
27 BOLT; OIL PIPE FIX
(C) M8X12 FLANGE 		0-28080-812-0 02 1 0512-0512 ●
27 BOLT; OIL PIPE FIX
(C) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
27 BOLT; OIL PIPE FIX
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0303-0511 ● ●
27 BOLT; OIL PIPE FIX
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512 ● ●
27 BOLT; OIL PIPE FIX
(A) M8X16 FLANGE SOU 		0-28050-816-0 01 1 0601- ● ●
27 BOLT; OIL PIPE FIX
(B) M8X35 FLANGE 		0-28080-835-0 01 1 0303-0511 ●
27 BOLT; OIL PIPE FIX
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ●
27 BOLT; OIL PIPE FIX
(A) M8X16 FLANGE SOU 		0-28050-816-0 02 1 0601- ●
28 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 02 1 0512- ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97229-042-0 01 1 0303-0511 ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97385-207-0 01 1 0512- ●
68 BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE
M10X26 		8-97081-817-0 01 1 0303-0511 ●
68 BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE
M12X28 FLANGE 		8-97166-518-1 01 1 0512- ●
85 BOLT; EYE,OIL PIPE FIX
M10X28 FLANGE 		8-97149-995-0 01 1 0512-0710 ●
85 BOLT; EYE,OIL PIPE FIX
M10X28 		8-98037-823-0 01 1 0711- ●
157 BRACKET; OIL PIPE
(B) 		8-97354-805-1 01 1 0512- ●
157 BRACKET; OIL PIPE
(A) 		8-97376-118-0 01 1 0512- ●
304 BOLT; BRKT,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ●
304 BOLT; BRKT,OIL PIPE
(A) M8X16 FLANGE SOU 		0-28050-816-0 02 1 0601- ●
304 BOLT; BRKT,OIL PIPE
(B) M10X16 FLANGE 		0-28181-016-0 02 1 0512-0512 ●
304 BOLT; BRKT,OIL PIPE
(B) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
479 ADAPTER 8-94436-891-0 01 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
