Isuzu WW
▶
TRUCKS
▶
NPR
▶
50954 - NPR/NQR(SOUTHAFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

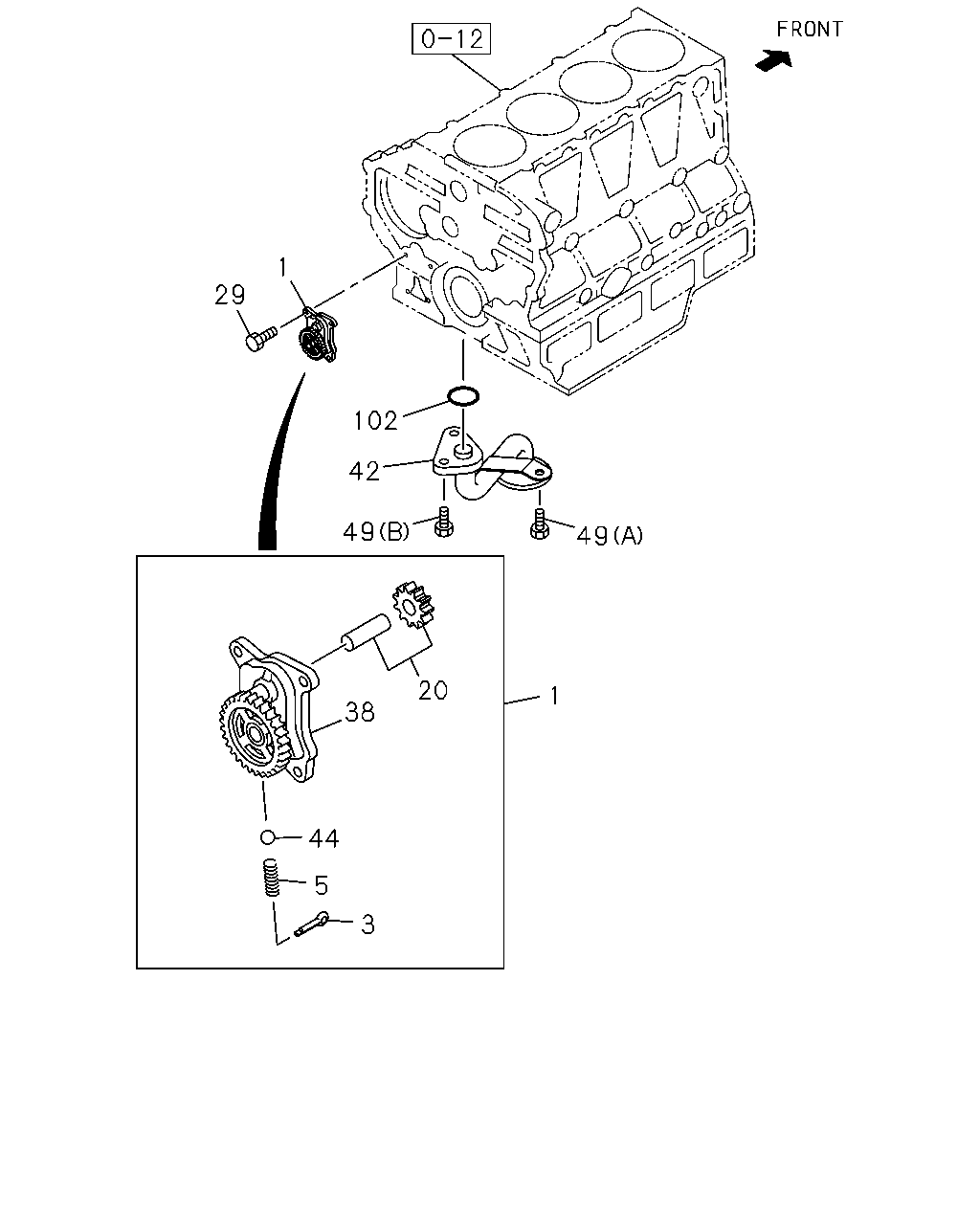

0-51 — OIL PUMP AND OIL STRAINER
(#44596) — 33 parça
Tümü
A - 4HF1 ENG
B - 4HE1 ENG
C - 4HK1-TCS ENG
1
29
102
42
49
49
20
1
38
44
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PUMP ASM; OIL
8-97147-338-4
01
1
0303-
●
1
PUMP ASM; OIL
8-97075-283-2
01
1
0303-0511
●
1
PUMP ASM; OIL
8-97075-283-4
01
1
0512-
●
3
PIN; SPLIT
OD=3.7 L=30
9-08114-030-0
01
1
0303-0511
●
●
3
PIN; SPLIT
OD=3.7 L=30
9-08114-030-0
01
1
0512-0606
●
●
3
PIN; SPLIT
OD=3.7 L=30 SOU
0-81124-030-0
01
1
0607-
●
●
5
SPRING; COIL
5-09580-098-0
01
1
0303-0511
●
●
5
SPRING; COIL
5-09580-098-0
01
1
0512-
●
●
20
GEAR; DRIVE,OIL PUMP
Z=9
8-97078-736-0
01
1
0303-0511
●
●
20
GEAR; DRIVE,OIL PUMP
Z=9
8-97078-736-0
01
1
0512-
●
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28090-825-0
02
1
0303-0511
●
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28090-825-0
02
1
0512-0512
●
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28060-825-0
02
1
0601-
●
●
29
BOLT; OIL PUMP
M8X30 FLANGE
0-28090-830-0
02
1
0303-0511
●
●
29
BOLT; OIL PUMP
M8X30 FLANGE
0-28090-830-0
02
1
0512-0512
●
●
29
BOLT; OIL PUMP
M8X30 FLANGE
0-28060-830-0
02
1
0601-
●
●
38
CASE; OIL STRAINER
8-97147-505-3
01
1
0303-
●
38
CASE; OIL STRAINER
8-97133-330-1
01
1
0303-0511
●
38
CASE; OIL STRAINER
8-97133-330-1
01
1
0512-
●
42
STRAINER; OIL,OIL PUMP
8-97373-119-0
01
1
0512-
●
42
STRAINER; OIL,OIL PUMP
8-97230-894-0
01
1
0303-0511
●
●
42
STRAINER; OIL,OIL PUMP
8-97230-894-0
01
1
0512-
●
44
BALL; RELIEF VLV
5-09843-003-0
01
1
0303-0511
●
●
44
BALL; RELIEF VLV
5-09843-003-0
01
1
0512-
●
●
49
BOLT; STRAINER,OIL PUMP
(A) M10X80
8-97071-956-0
01
1
0303-0511
●
●
49
BOLT; STRAINER,OIL PUMP
(A) M10X80
8-97071-956-0
01
1
0512-
●
●
49
BOLT; STRAINER,OIL PUMP
(B) M8X14
8-97073-782-0
01
1
0303-0311
●
●
49
BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE
0-28090-816-0
01
1
0312-0503
●
●
49
BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE
0-28090-816-0
02
1
0504-0511
●
●
49
BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE
0-28090-816-0
02
1
0512-0512
●
●
49
BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE
0-28060-816-0
02
1
0601-
●
●
102
GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
0303-0511
●
●
102
GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
0512-
●
●
