0-42 — FUEL PUMP AND PIPE (#44594) — 48 parça

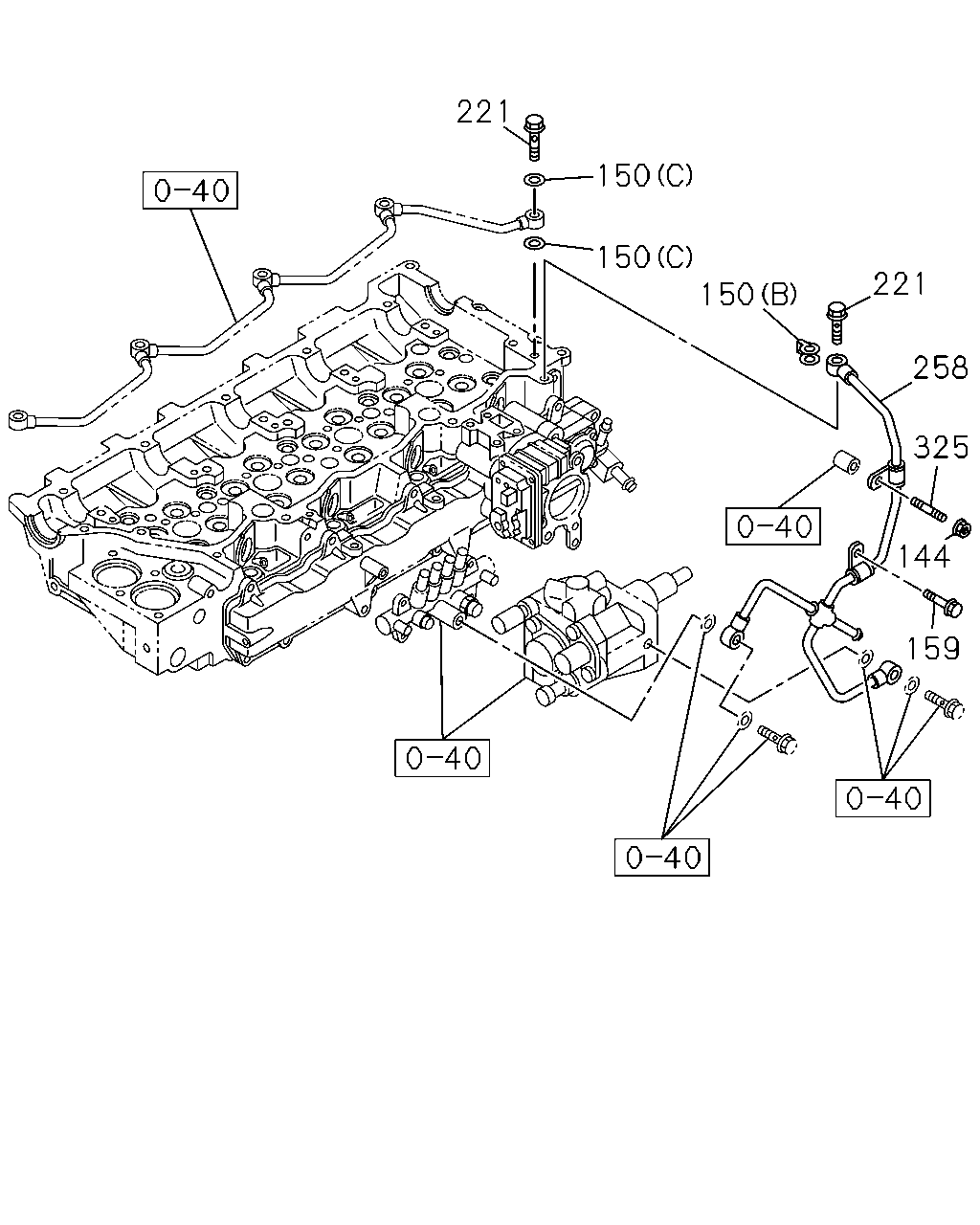

221 150 150 150 221 258 325 144 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0512-0602	●
144	NUT; CLIP M6 FLANGE SOU	0-91180-106-0	01	1	0603-	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	0512-	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.6	8-97240-975-0	01	1	0512-	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=23.0	9-09572-014-0	02	1	0303-0511		●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=23.0	9-09572-014-0	02	1	0512-		●
159	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	0512-0512	●
159	BOLT; CLIP M6X12 FLANGE	0-28050-612-0	01	1	0601-	●
221	BOLT; FUEL PIPE M10X21 FLANGE	8-94396-711-0	02	1	0512-	●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0303-0511		●	●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0512-0512		●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28650-640-0	01	1	0601-		●
258	PIPE ASM; FUEL,LEAK OFF	8-97372-231-0	01	1	0512-	●
325	STUD; CLIP M6X40 L=50	9-04110-640-0	01	1	0512-0604	●
325	STUD; CLIP M6X40 L=50	0-41010-640-0	01	1	0605-	●

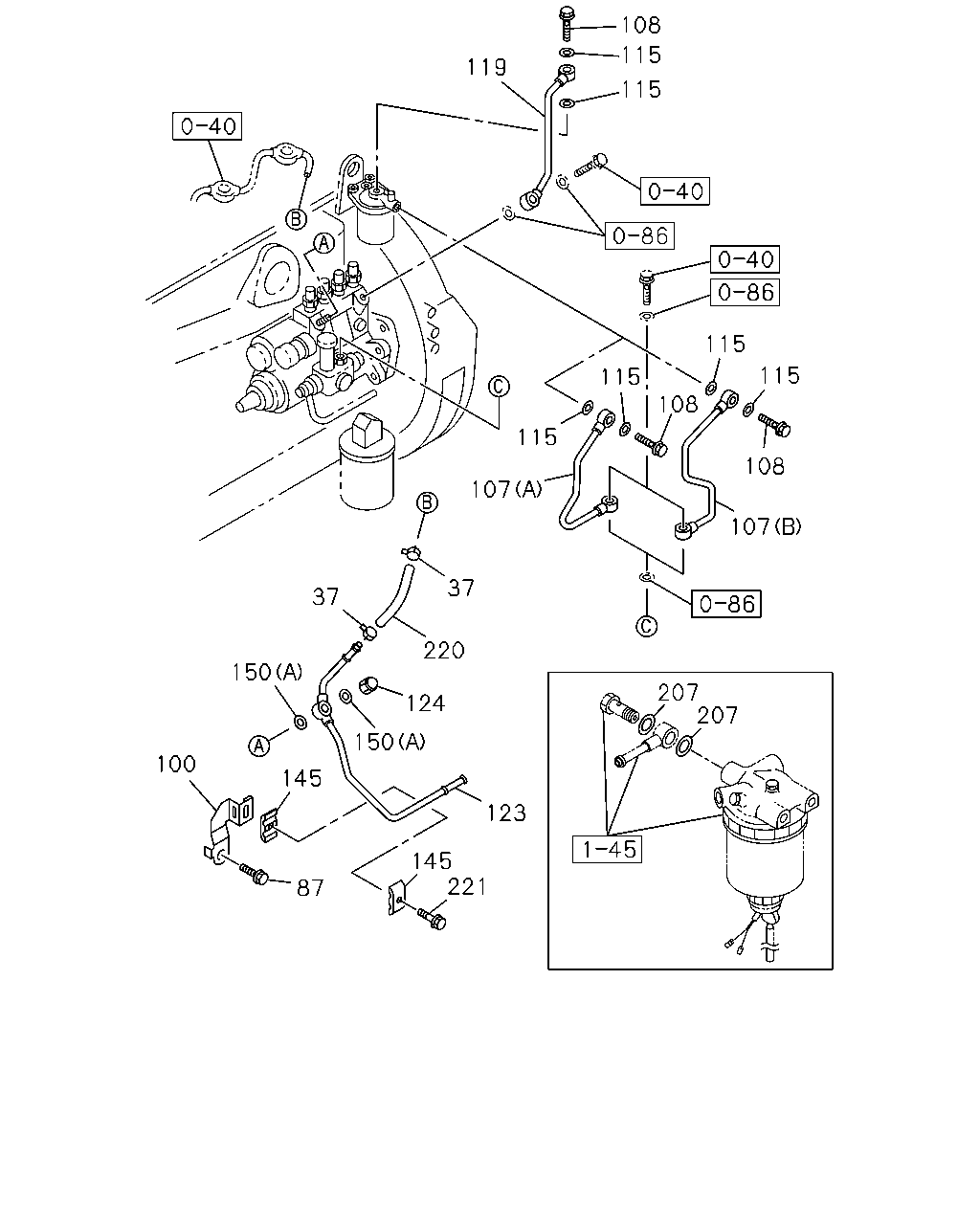

108 115 119 115 115 115 115 108 115 108 107 107 37 37 220 150 207 207 124 150 100 145 123 145 221 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	CLIP; FUEL HOSE ID=12	8-94238-610-0	02	1	0303-0511		●	●
37	CLIP; FUEL HOSE ID=12	8-94238-610-0	02	1	0512-		●
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE	0-28080-812-0	01	1	0303-0511		●	●
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE	0-28080-812-0	01	1	0512-0512		●
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
100	CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	0303-0511		●	●
100	CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	0512-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER (A)	8-97088-046-3	01	1	0303-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER (B)	8-97147-786-0	01	1	0303-0511			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0303-0511		●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0512-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	0303-0511		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	0512-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97088-047-0	01	1	0303-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97078-801-1	01	1	0303-0511			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	0303-0511		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	0512-		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0303-0511		●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0512-		●
145	CLIP; FUEL PIPE ID=6.1 & 9.6	8-97016-323-0	02	1	0303-0511		●	●
145	CLIP; FUEL PIPE ID=6.1 & 9.6	8-97016-323-1	02	1	0512-		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	0512-	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.6	8-97240-975-0	01	1	0512-	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=23.0	9-09572-014-0	02	1	0303-0511		●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=23.0	9-09572-014-0	02	1	0512-		●
207	GASKET; EYE BOLT ID=14.2 OD=23.0	9-09572-014-0	04	1	0303-0511		●	●
207	GASKET; EYE BOLT ID=14.2 OD=23.0	9-09572-014-0	04	1	0512-		●
220	HOSE; FUEL L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0303-		●
220	HOSE; FUEL L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511			●
221	BOLT; FUEL PIPE M10X21 FLANGE	8-94396-711-0	02	1	0512-	●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0303-0511		●	●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0512-0512		●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28650-640-0	01	1	0601-		●
