Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#44592) — 264 parça

31 31 32 32 34 34 58 58 140 140 44 44 43 43 146 46 47 45 33 138 140 43 272 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ	8-97119-812-0	04	1	0303-	●
31	NOZZLE ASM; INJ	8-97115-503-2	04	1	0303-0511		●
31	NOZZLE ASM; INJ	8-97602-485-4	04	1	0512-			●
32	HOLDER ASM; NOZZLE	8-97352-048-0	04	1	0303-0511		●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	0303-	●
33	NOZZLE; INJ	8-97119-810-0	04	1	0303-	●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	04	1	0303-0511		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0303-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0303-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0303-0511		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (C)	8-97349-452-0	04	1	0303-0511		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B)	8-97361-697-0	04	1	0303-0511		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	8-94329-555-0	04	1	0303-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0303-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	0303-0511		●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	0303-0511		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0303-	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	8-97223-340-0	04	1	0303-0511		●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0303-0511	●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0512-	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.10	8-97116-029-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.20	8-97116-032-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.30	8-97116-033-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.40	8-97116-034-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.50	8-97116-035-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.51	8-97116-036-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.52	8-97116-037-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.53	8-97116-038-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.54	8-97116-039-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.55	8-97116-040-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.56	8-97116-041-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.57	8-97116-042-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.58	8-97116-043-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.59	8-97116-044-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.10	8-97027-432-0	AR	1	0303-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.20	8-97027-433-0	AR	1	0303-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.30	8-97027-434-0	AR	1	0303-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	8-97027-435-0	AR	1	0303-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	8-97027-436-0	AR	1	0303-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	8-97027-437-0	AR	1	0303-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	8-97027-438-0	AR	1	0303-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	8-97027-439-0	AR	1	0303-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	8-97027-440-0	AR	1	0303-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.20	1-15349-004-0	04	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	1-15349-042-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	1-15349-043-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	1-15349-044-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	1-15349-045-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	1-15349-046-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	1-15349-047-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.60	1-15349-048-0	AR	1	0303-0511		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.70	1-15349-049-0	AR	1	0303-0511		●
146	SPACER; NOZZLE	8-94344-439-0	04	1	0303-	●
272	NOZZLE KIT; INJ	8-97371-583-0	04	1	0303-0511		●

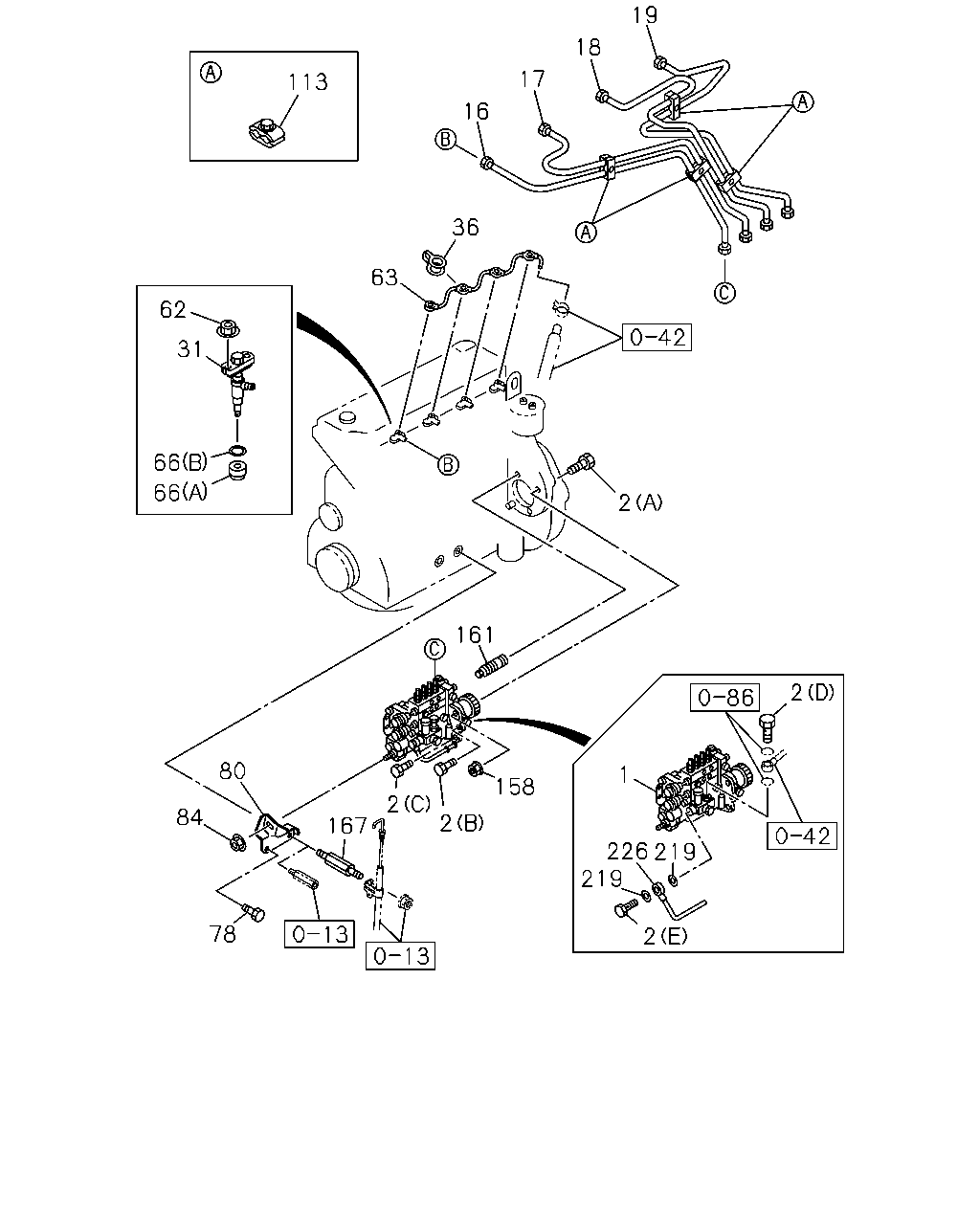

19 18 17 113 16 36 63 62 31 66 66 2 161 2 80 1 158 2 2 84 167 78 2 226 219 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97203-383-0	01	1	0303-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-104-0	01	1	0303-0511		●
1	PUMP ASM; INJ	8-97306-044-9	01	1	0512-			●
2	BOLT; INJ PUMP (F) M10X50 FLANGE	0-28181-050-0	01	1	0512-0512			●
2	BOLT; INJ PUMP (F) M10X50 FLANGE	0-28151-050-0	01	1	0601-			●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28181-070-0	01	1	0303-0511	●	●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28181-070-0	01	1	0512-0512	●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0303-0511	●	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0512-0512	●		●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-	●		●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0303-0511	●	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0512-0512	●		●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-	●		●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	0303-0511	●	●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	0512-	●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	0303-0511	●	●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	0512-	●
16	PIPE; INJ NO.1	8-97123-374-0	01	1	0303-	●
16	PIPE; INJ NO.1	8-97065-932-3	01	1	0303-0511		●
16	PIPE; INJ NO.1	8-97371-831-1	01	1	0512-			●
17	PIPE; INJ NO.2	8-97123-375-0	01	1	0303-	●
17	PIPE; INJ NO.2	8-97065-933-3	01	1	0303-0511		●
17	PIPE; INJ NO.2	8-97373-417-1	01	1	0512-			●
18	PIPE; INJ NO.3	8-97123-376-0	01	1	0303-	●
18	PIPE; INJ NO.3	8-97065-934-3	01	1	0303-0511		●
18	PIPE; INJ NO.3	8-97371-833-1	01	1	0512-			●
19	PIPE; INJ NO.4	8-97123-377-1	01	1	0303-	●
19	PIPE; INJ NO.4	8-97065-935-3	01	1	0303-0511		●
19	PIPE; INJ NO.4	8-97371-834-1	01	1	0512-			●
31	NOZZLE ASM; INJ	8-97119-812-0	04	1	0303-	●
31	NOZZLE ASM; INJ	8-97115-503-2	04	1	0303-0511		●
31	NOZZLE ASM; INJ	8-97602-485-4	04	1	0512-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-97600-925-0	04	1	0512-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0303-0511	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0512-	●
62	NUT; NOZZLE HOLDER M8 FLANGE SOU	0-91150-108-0	08	1	0303-0511	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE SOU	0-91150-108-0	08	1	0512-0602	●
62	NUT; NOZZLE HOLDER M8 FLANGE SOU	0-91180-108-0	08	1	0603-	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0512-			●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0303-0511	●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0512-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-97601-447-2	04	1	0512-			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0303-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0303-0511	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0512-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-332-0	04	1	0303-0511		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=23.3	8-94173-412-0	04	1	0512-			●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	0303-0512	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28751-020-0	02	1	0601-	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	01	1	0303-0511		●
80	BRACKET; PUMP	8-97601-699-0	01	1	0512-			●
80	BRACKET; PUMP	8-97136-677-0	01	1	0303-0511	●	●
80	BRACKET; PUMP	8-97136-677-0	01	1	0512-	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	0303-0511	●	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	0512-0602	●
84	NUT; BRKT TO BRKT M10 FLANGE SOU	0-91180-210-0	01	1	0603-	●
113	CLIP; INJ PIPE	8-97213-050-0	04	1	0303-	●
113	CLIP; INJ PIPE	8-97213-050-0	05	1	0303-0511		●
158	NUT; INJ PUMP M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511	●	●
158	NUT; INJ PUMP M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●		●
158	NUT; INJ PUMP M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●		●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0303-0511	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0512-	●		●
167	SPACER; GUIDE TUBE	8-97065-515-2	01	1	0303-0511		●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	1-09623-300-0	01	1	0512-0603			●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0604-			●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	0303-0511	●	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	0512-	●
226	PIPE; FUEL	8-97320-019-0	01	1	0512-0808			●
226	PIPE; FUEL	8-98126-433-0	01	1	0809-			●
226	PIPE; FUEL	8-97203-567-0	01	1	0303-0511	●	●
226	PIPE; FUEL	8-97203-567-0	01	1	0512-	●

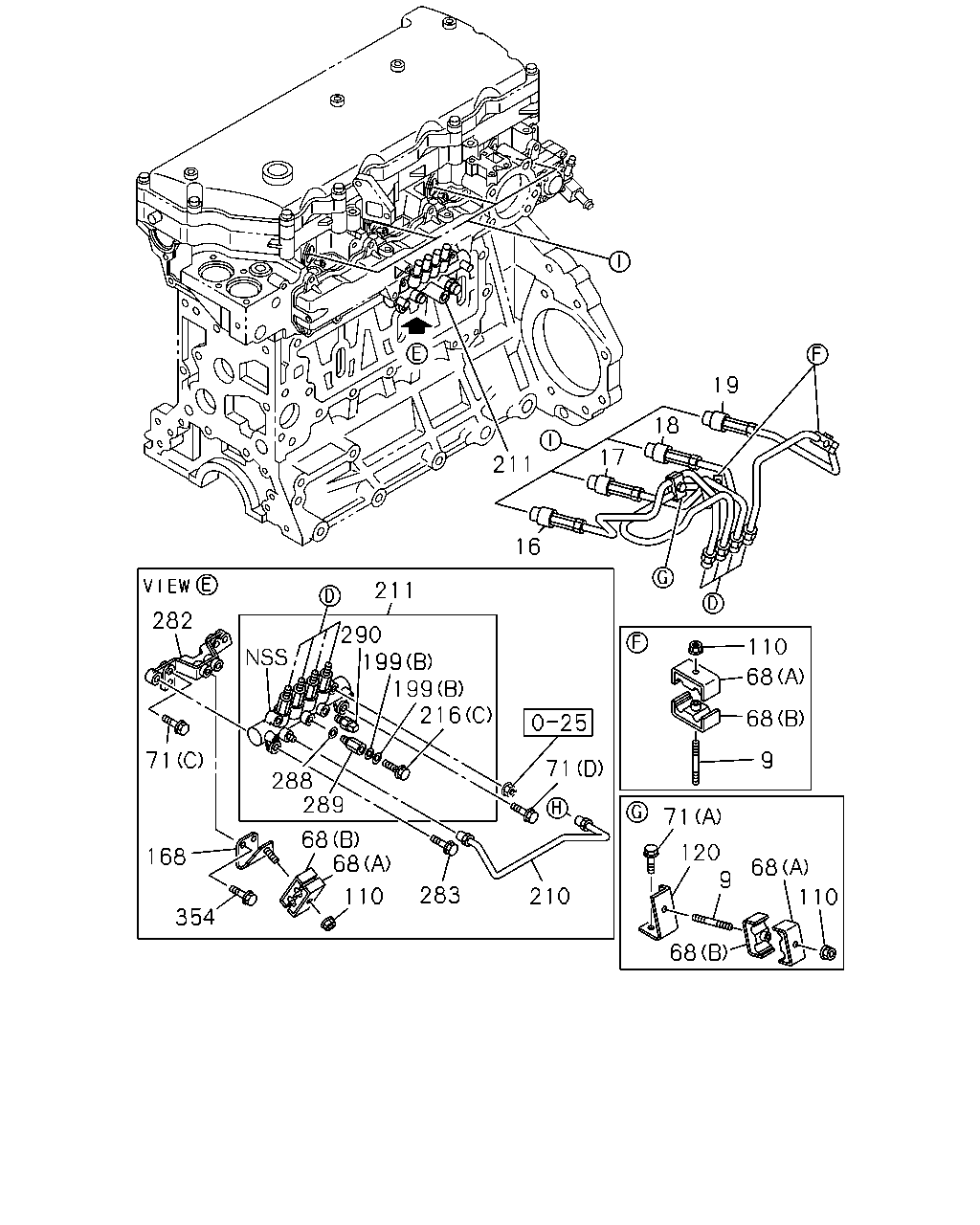

19 18 211 17 16 211 282 290 199 199 216 110 68 68 71 9 71 288 289 71 68 68 120 9 168 68 283 110 210 110 354 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	STUD; CLIP M6X30 L=38	9-04110-630-0	03	1	0512-0604			●
9	STUD; CLIP M6X30 L=38	0-41010-630-0	03	1	0605-			●
16	PIPE; INJ NO.1	8-97123-374-0	01	1	0303-	●
16	PIPE; INJ NO.1	8-97065-932-3	01	1	0303-0511		●
16	PIPE; INJ NO.1	8-97371-831-1	01	1	0512-			●
17	PIPE; INJ NO.2	8-97123-375-0	01	1	0303-	●
17	PIPE; INJ NO.2	8-97065-933-3	01	1	0303-0511		●
17	PIPE; INJ NO.2	8-97373-417-1	01	1	0512-			●
18	PIPE; INJ NO.3	8-97123-376-0	01	1	0303-	●
18	PIPE; INJ NO.3	8-97065-934-3	01	1	0303-0511		●
18	PIPE; INJ NO.3	8-97371-833-1	01	1	0512-			●
19	PIPE; INJ NO.4	8-97123-377-1	01	1	0303-	●
19	PIPE; INJ NO.4	8-97065-935-3	01	1	0303-0511		●
19	PIPE; INJ NO.4	8-97371-834-1	01	1	0512-			●
68	CLIP; INJ PIPE (A)	8-97330-118-1	04	1	0512-			●
68	CLIP; INJ PIPE (B)	8-97330-119-1	04	1	0512-			●
71	BOLT; BRKT (B) M6X10 FLANGE	0-28080-610-0	02	1	0512-0512			●
71	BOLT; BRKT (B) M6X10 FLANGE	0-28050-610-0	02	1	0601-			●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512			●
71	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	0601-			●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28080-840-0	01	1	0512-0512			●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28050-840-0	01	1	0601-			●
71	BOLT; BRKT (D) M8X50 FLANGE	0-28080-850-0	01	1	0512-0512			●
71	BOLT; BRKT (D) M8X50 FLANGE	0-28050-850-0	01	1	0601-			●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	0512-0602			●
110	NUT; CLIP M6 FLANGE SOU	0-91180-106-0	04	1	0603-			●
120	BRACKET; INJ PIPE	8-97306-084-2	01	1	0512-			●
168	BRACKET; FUEL PIPE	8-97324-195-0	01	1	0512-			●
199	GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0512-			●
199	GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0512-			●
210	PIPE; INJ,C/R	8-97312-509-3	01	1	0512-			●
211	RAIL ASM; COMMON	8-97306-063-2	01	1	0512-			●
216	BOLT; EYE (A)	5-15759-003-0	01	1	0512-			●
216	BOLT; EYE (B)	8-97351-388-0	01	1	0512-			●
216	BOLT; EYE (C)	8-97602-173-0	01	1	0512-			●
282	BRACKET; COMMON RAIL	8-97324-194-0	01	1	0512-			●
283	BOLT; COMMON RAIL M8X25 FLANGE	0-28080-825-0	01	1	0512-0512			●
283	BOLT; COMMON RAIL M8X25 FLANGE SOU	0-28050-825-0	01	1	0601-			●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0512-			●
289	LIMITER; FUEL PRESS	8-97318-691-0	01	1	0512-			●
290	SENSOR; PRESS	8-97318-684-0	01	1	0512-			●
354	BOLT; FUEL PIPE M8X16 FLANGE	0-28080-816-0	02	1	0512-0512			●
354	BOLT; FUEL PIPE M8X16 FLANGE SOU	0-28050-816-0	02	1	0601-			●

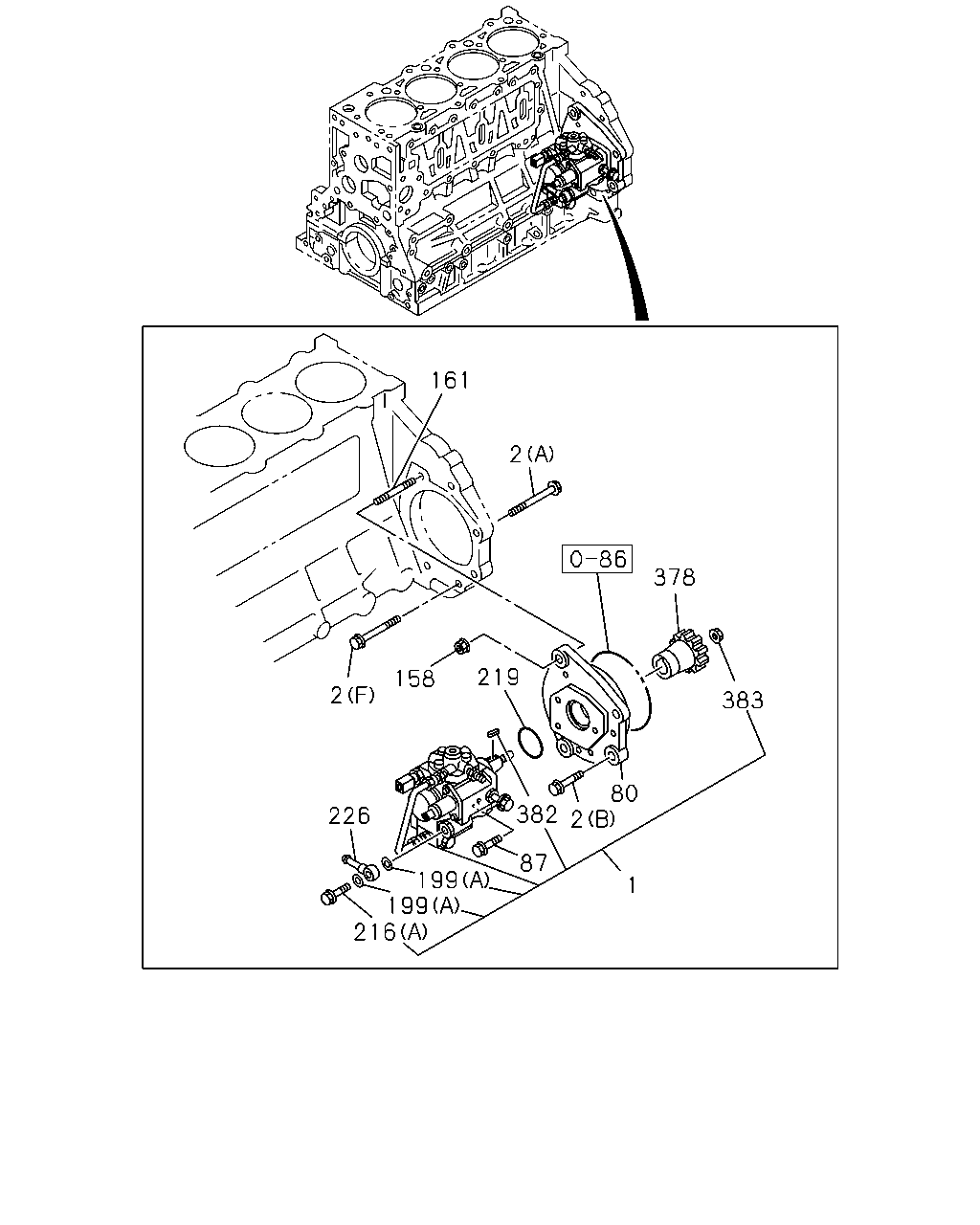

161 2 378 219 158 2 383 80 2 382 226 87 199 199 216 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97203-383-0	01	1	0303-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-104-0	01	1	0303-0511		●
1	PUMP ASM; INJ	8-97306-044-9	01	1	0512-			●
2	BOLT; INJ PUMP (F) M10X50 FLANGE	0-28181-050-0	01	1	0512-0512			●
2	BOLT; INJ PUMP (F) M10X50 FLANGE	0-28151-050-0	01	1	0601-			●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28181-070-0	01	1	0303-0511	●	●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28181-070-0	01	1	0512-0512	●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0303-0511	●	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0512-0512	●		●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-	●		●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0303-0511	●	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0512-0512	●		●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-	●		●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	0303-0511	●	●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	0512-	●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	0303-0511	●	●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	0512-	●
80	BRACKET; PUMP	8-97601-699-0	01	1	0512-			●
80	BRACKET; PUMP	8-97136-677-0	01	1	0303-0511	●	●
80	BRACKET; PUMP	8-97136-677-0	01	1	0512-	●
87	BOLT; PUMP M8X30 FLANGE	0-28680-830-0	03	1	0512-0512			●
87	BOLT; PUMP M8X30 FLANGE	0-28650-830-0	03	1	0601-			●
158	NUT; INJ PUMP M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511	●	●
158	NUT; INJ PUMP M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●		●
158	NUT; INJ PUMP M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●		●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0303-0511	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0512-	●		●
199	GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0512-			●
199	GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0512-			●
216	BOLT; EYE (A)	5-15759-003-0	01	1	0512-			●
216	BOLT; EYE (B)	8-97351-388-0	01	1	0512-			●
216	BOLT; EYE (C)	8-97602-173-0	01	1	0512-			●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	1-09623-300-0	01	1	0512-0603			●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0604-			●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	0303-0511	●	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	0512-	●
226	PIPE; FUEL	8-97320-019-0	01	1	0512-0808			●
226	PIPE; FUEL	8-98126-433-0	01	1	0809-			●
226	PIPE; FUEL	8-97203-567-0	01	1	0303-0511	●	●
226	PIPE; FUEL	8-97203-567-0	01	1	0512-	●
378	GEAR; PUMP Z=35	8-97601-698-1	01	1	0512-			●
382	KEY; DRIVE SHAFT	8-97375-384-0	01	1	0512-			●
383	NUT; DRIVE SHAFT	8-97141-469-0	01	1	0512-			●

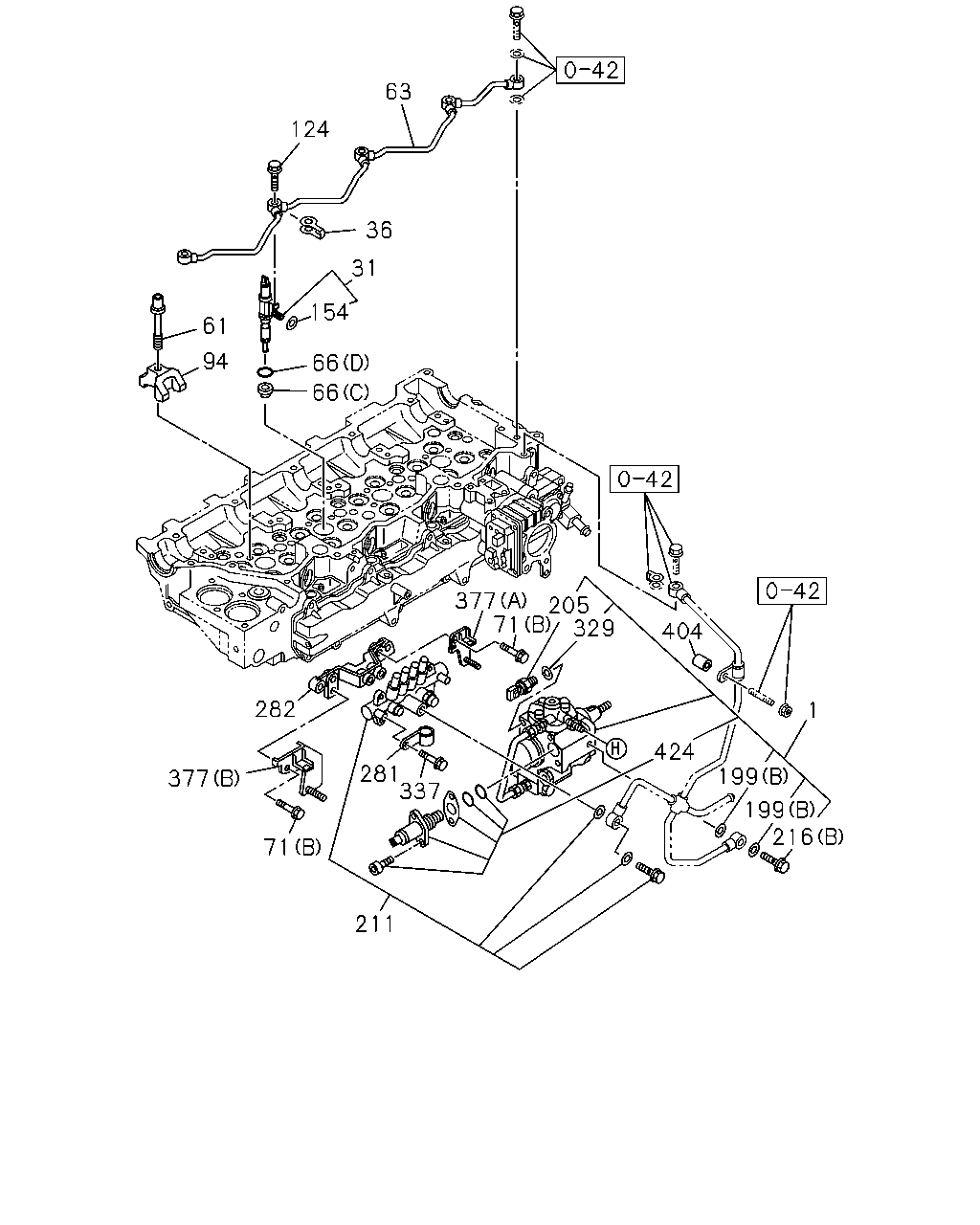

63 124 36 31 154 61 94 66 66 377 205 71 329 404 282 1 424 281 337 199 377 199 216 71 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97203-383-0	01	1	0303-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-104-0	01	1	0303-0511		●
1	PUMP ASM; INJ	8-97306-044-9	01	1	0512-			●
31	NOZZLE ASM; INJ	8-97119-812-0	04	1	0303-	●
31	NOZZLE ASM; INJ	8-97115-503-2	04	1	0303-0511		●
31	NOZZLE ASM; INJ	8-97602-485-4	04	1	0512-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-97600-925-0	04	1	0512-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0303-0511	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0512-	●
61	BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	0512-			●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0512-			●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0303-0511	●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0512-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-97601-447-2	04	1	0512-			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0303-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0303-0511	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0512-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-332-0	04	1	0303-0511		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=23.3	8-94173-412-0	04	1	0512-			●
71	BOLT; BRKT (B) M6X10 FLANGE	0-28080-610-0	02	1	0512-0512			●
71	BOLT; BRKT (B) M6X10 FLANGE	0-28050-610-0	02	1	0601-			●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512			●
71	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	0601-			●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28080-840-0	01	1	0512-0512			●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28050-840-0	01	1	0601-			●
71	BOLT; BRKT (D) M8X50 FLANGE	0-28080-850-0	01	1	0512-0512			●
71	BOLT; BRKT (D) M8X50 FLANGE	0-28050-850-0	01	1	0601-			●
94	BRACKET; INJ NOZZLE	8-97306-074-1	04	1	0512-0606			●
94	BRACKET; INJ NOZZLE	8-98028-999-0	04	1	0607-			●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	04	1	0512-			●
154	GASKET; CONNECTOR ID=11.0	9-09561-111-0	04	1	0512-			●
199	GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0512-			●
199	GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0512-			●
205	SENSOR; FUEL TEMP	8-97216-283-0	01	1	0512-0605			●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	0606-			●
211	RAIL ASM; COMMON	8-97306-063-2	01	1	0512-			●
216	BOLT; EYE (A)	5-15759-003-0	01	1	0512-			●
216	BOLT; EYE (B)	8-97351-388-0	01	1	0512-			●
216	BOLT; EYE (C)	8-97602-173-0	01	1	0512-			●
281	CLIP ID=16 H=24 L=20	9-09527-015-0	01	1	0512-0606			●
281	CLIP ID=16 H=24 L=20	0-95207-315-0	01	1	0607-			●
282	BRACKET; COMMON RAIL	8-97324-194-0	01	1	0512-			●
329	GASKET; SENSOR,FUEL TEMP	9-09566-110-0	01	1	0512-			●
337	BOLT; CLIP M6X10 FLANGE	0-28080-610-0	01	1	0512-0512			●
337	BOLT; CLIP M6X10 FLANGE	0-28050-610-0	01	1	0601-			●
377	BRACKET; HARNESS (A)	8-97374-283-1	01	1	0512-			●
377	BRACKET; HARNESS (B)	8-98001-141-0	01	1	0512-			●
404	SPACER; FUEL LEAK OFF	1-33659-186-1	01	1	0512-			●
424	OVERHAUL KIT; SUPPLY PUMP	8-98043-687-0	01	1	0512-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
