Sayfa 0-36 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶

0-36 — TURBOCHARGER SYSTEM (#44590) — 179 parça

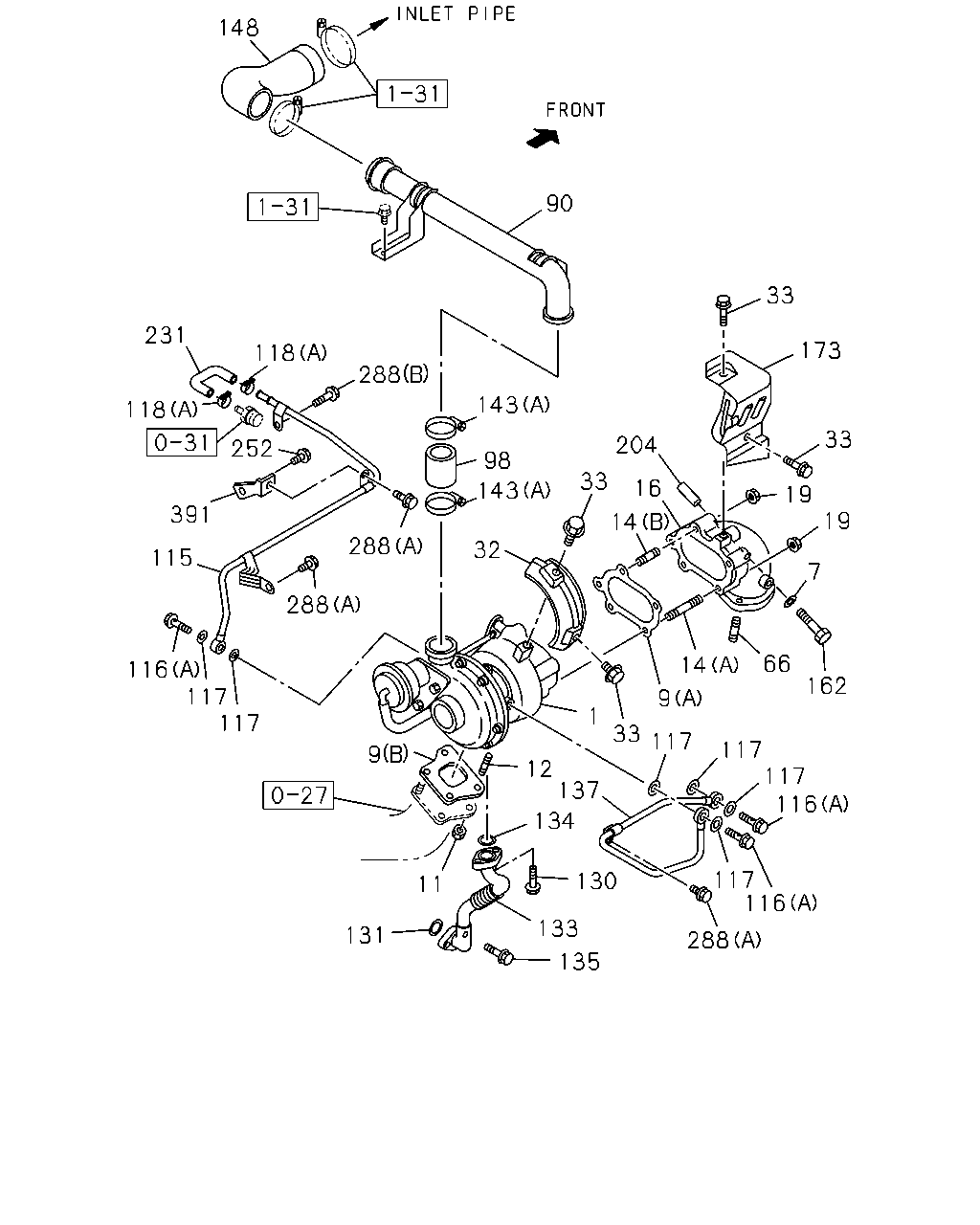

148 90 33 231 173 118 288 143 118 252 33 204 98 33 16 143 19 391 19 14 288 32 115 7 288 66 14 116 117 117 162 9 1 33 117 117 117 116 9 12 137 134 117 116 130 11 133 131 288 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97103-857-0	01	1	0303-0511	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-1	01	1	0512-		●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0303-0511	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0512-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0303-0511	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0512-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97063-602-0	01	1	0303-0307	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97326-466-0	01	1	0308-0312	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0401-0511	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0512-		●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0303-0511	●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0512-		●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0303-0511	●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0512-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0303-0511	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0512-		●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0303-0511	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0512-		●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	0710-		●
16	ADAPTER; EXH PIPE	8-97039-749-1	01	1	0303-0511	●
16	ADAPTER; EXH PIPE	8-97039-749-1	01	1	0512-0709		●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	0303-0511	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	0512-		●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0303-0511	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0512-		●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	06	1	0303-0511	●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	06	1	0512-		●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0303-0511	●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0512-0604		●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-		●
90	PIPE; INL,TURBOCHARGER TO MANIF	8-97173-981-0	01	1	0303-0511	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-97041-096-0	01	1	0303-0511	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-97380-256-2	01	1	0512-0608		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-98053-759-0	01	1	0609-		●
115	PIPE; WATER,TURBOCHARGER OUT	8-97229-038-0	01	1	0303-0511	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97372-533-0	01	1	0512-		●
116	BOLT; WATER PIPE (B) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512		●
116	BOLT; WATER PIPE (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	0601-		●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0303-0511	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0512-		●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	06	1	0303-0511	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	04	1	0512-		●
118	CLIP; WATER HOSE (B) ID=20	1-09707-084-1	04	1	0512-		●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0303-0511	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0512-		●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50040-620-0	02	1	0303-0511	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50040-620-0	02	1	0512-0512		●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-		●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0303-0511	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0512-		●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97039-763-1	01	1	0303-0511	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0512-		●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0303-0511	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0512-		●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28080-820-0	02	1	0303-0511	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28080-820-0	02	1	0512-0512		●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
137	PIPE; WATER,TURBOCHARGER IN	8-97229-034-0	01	1	0303-0511	●
137	PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0512-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=77-95 SOU	1-09707-198-0	01	1	0512-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85 SOU	1-09707-202-0	04	1	0512-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=58-76 SOU	1-09707-203-0	01	1	0512-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	8-94316-991-0	02	1	0303-0307	●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-65 SOU	1-09707-204-0	02	1	0308-0511	●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-65 SOU	1-09707-204-0	02	1	0512-		●
148	HOSE; TURBOCHARGER,INL	8-97182-220-0	01	1	0303-0511	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0303-0511	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0512-		●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0303-0511	●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0512-		●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-		●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0303-0511	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0512-0709		●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0303-0511	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0512-		●
252	BOLT; BRKT M12X19	8-97079-809-0	01	1	0303-0511	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28080-812-0	03	1	0303-0511	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28080-812-0	04	1	0512-0512		●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-		●
288	BOLT; WATER PIPE CLIP (B) M10X16 FLANGE	0-28181-016-0	01	1	0303-0511	●
391	BRACKET; WATER PIPE	8-97068-554-0	01	1	0303-0511	●

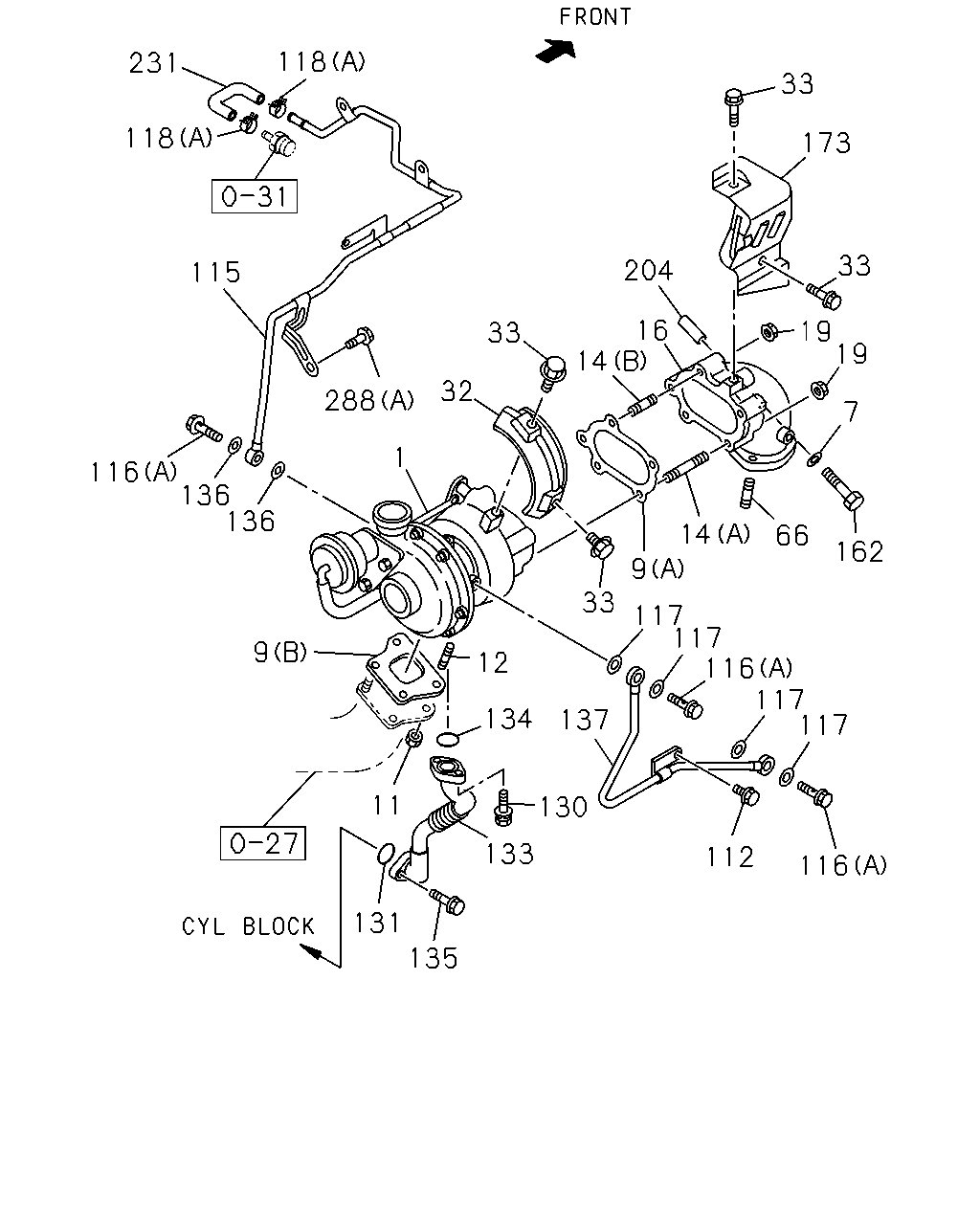

118 231 33 118 173 33 204 115 16 14 19 19 33 32 288 7 1 116 136 136 14 66 162 9 33 117 117 116 117 117 9 12 134 137 11 130 133 112 116 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97103-857-0	01	1	0303-0511	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-1	01	1	0512-		●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0303-0511	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0512-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0303-0511	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0512-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97063-602-0	01	1	0303-0307	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97326-466-0	01	1	0308-0312	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0401-0511	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0512-		●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0303-0511	●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0512-		●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0303-0511	●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0512-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0303-0511	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0512-		●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0303-0511	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0512-		●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	0710-		●
16	ADAPTER; EXH PIPE	8-97039-749-1	01	1	0303-0511	●
16	ADAPTER; EXH PIPE	8-97039-749-1	01	1	0512-0709		●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	0303-0511	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	0512-		●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0303-0511	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0512-		●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	06	1	0303-0511	●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	06	1	0512-		●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0303-0511	●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0512-0604		●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-		●
112	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	01	1	0512-0512		●
112	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
115	PIPE; WATER,TURBOCHARGER OUT	8-97229-038-0	01	1	0303-0511	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97372-533-0	01	1	0512-		●
116	BOLT; WATER PIPE (B) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512		●
116	BOLT; WATER PIPE (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	0601-		●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0303-0511	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0512-		●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	06	1	0303-0511	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	04	1	0512-		●
118	CLIP; WATER HOSE (B) ID=20	1-09707-084-1	04	1	0512-		●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0303-0511	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0512-		●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50040-620-0	02	1	0303-0511	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50040-620-0	02	1	0512-0512		●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-		●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0303-0511	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0512-		●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97039-763-1	01	1	0303-0511	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0512-		●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0303-0511	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0512-		●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28080-820-0	02	1	0303-0511	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28080-820-0	02	1	0512-0512		●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	0512-		●
137	PIPE; WATER,TURBOCHARGER IN	8-97229-034-0	01	1	0303-0511	●
137	PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0512-		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0303-0511	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0512-		●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0303-0511	●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0512-		●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-		●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0303-0511	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0512-0709		●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0303-0511	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0512-		●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28080-812-0	03	1	0303-0511	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28080-812-0	04	1	0512-0512		●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-		●
288	BOLT; WATER PIPE CLIP (B) M10X16 FLANGE	0-28181-016-0	01	1	0303-0511	●

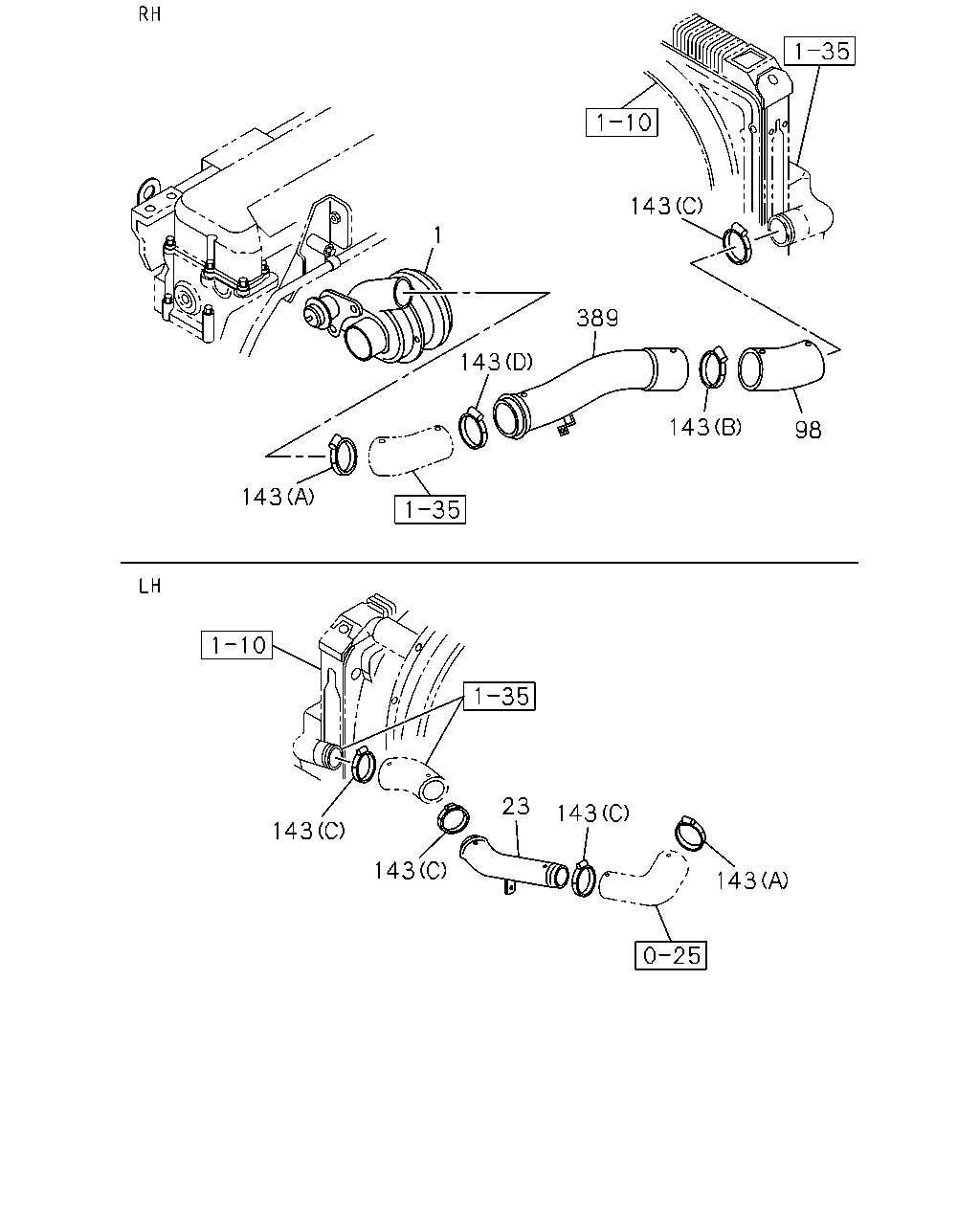

143 1 389 143 143 98 143 23 143 143 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97103-857-0	01	1	0303-0511	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-1	01	1	0512-		●
23	PIPE; INTAKE,TURBOCHARGER	8-98000-539-1	01	1	0512-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-97041-096-0	01	1	0303-0511	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-97380-256-2	01	1	0512-0608		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-98053-759-0	01	1	0609-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=77-95 SOU	1-09707-198-0	01	1	0512-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85 SOU	1-09707-202-0	04	1	0512-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=58-76 SOU	1-09707-203-0	01	1	0512-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	8-94316-991-0	02	1	0303-0307	●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-65 SOU	1-09707-204-0	02	1	0308-0511	●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-65 SOU	1-09707-204-0	02	1	0512-		●
389	PIPE; INL,TURBOCHARGER TO CAC	8-97371-959-0	01	1	0512-		●

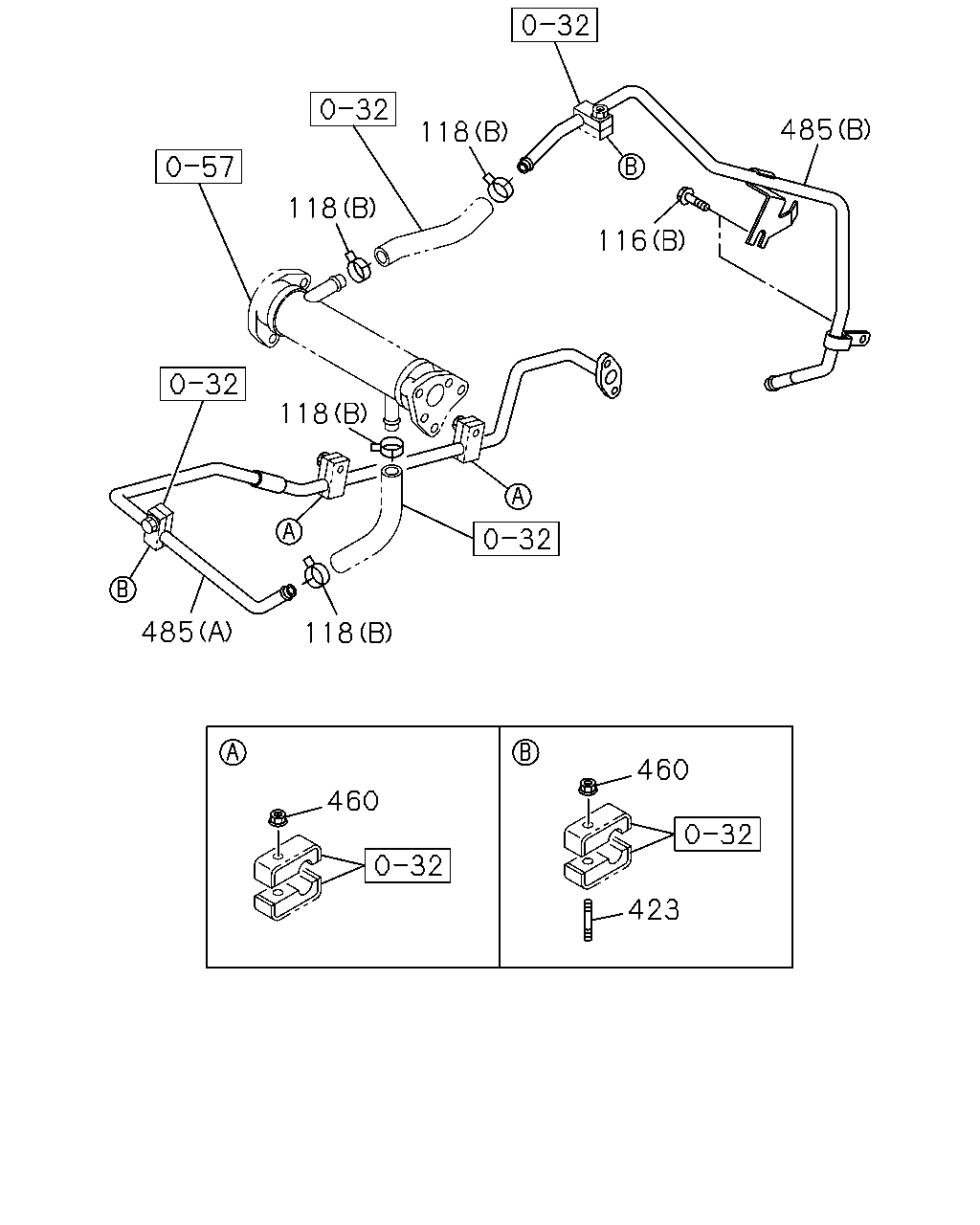

485 118 118 116 118 485 118 460 460 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	BOLT; WATER PIPE (B) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512		●
116	BOLT; WATER PIPE (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	0601-		●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0303-0511	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0512-		●
118	CLIP; WATER HOSE (B) ID=20	1-09707-084-1	04	1	0512-		●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0303-0511	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0512-		●
423	STUD; WATER PIPE M8X20 L=32	9-04110-820-0	01	1	0512-0604		●
423	STUD; WATER PIPE M8X20 L=32	0-41010-820-0	01	1	0605-		●
460	NUT; PIPE M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602		●
460	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	02	1	0603-		●
485	PIPE; WATER EGR BUS CHASSIS(NP*J) (B)	8-98025-624-0	01	1	0512-		●
485	PIPE; WATER EGR (A)	8-97375-669-0	01	1	0512-		●
485	PIPE; WATER EGR EXTEND LONG CHAS(NP**SN) (B)	8-98010-003-0	01	1	0512-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
