Isuzu WW
▶
TRUCKS
▶
NPR
▶
50954 - NPR/NQR(SOUTHAFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

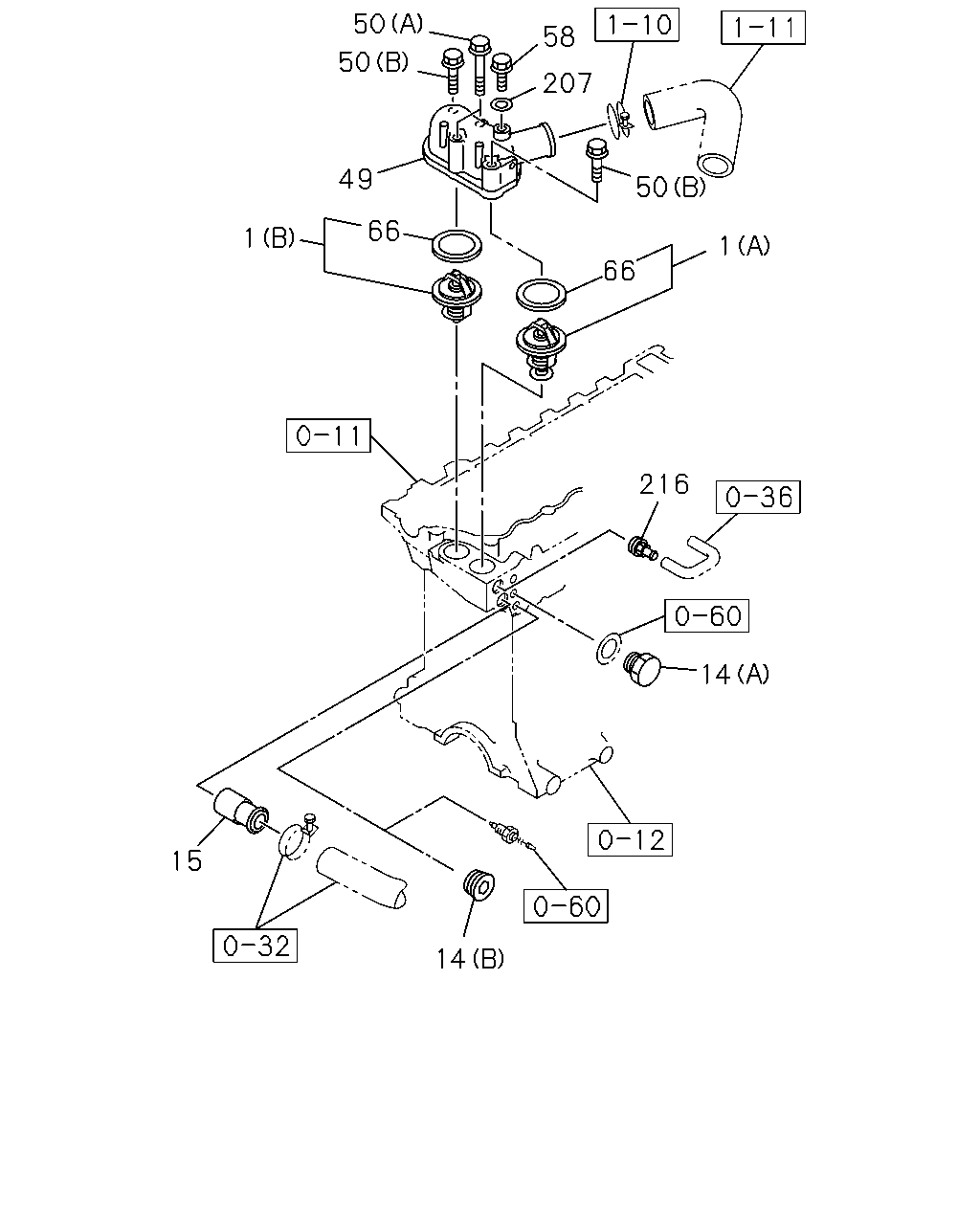

0-31 — THERMOSTAT AND HOUSING
(#44586) — 28 parça
Tümü
A - 4HF1 ENG
B - 4HE1 ENG
C - 4HK1-TCS ENG
50
58
50
207
49
50
66
1
1
66
216
14
15
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
THERMOSTAT
(A) 82?C
8-97300-789-2
01
1
0303-
●
1
THERMOSTAT
(B) 85?C
8-97300-787-2
01
1
0303-0511
●
●
1
THERMOSTAT
(B) 85?C
8-97300-787-2
01
1
0512-
●
●
1
THERMOSTAT
(A) 82?C
8-97300-790-1
01
1
0303-0511
●
1
THERMOSTAT
(A) 82?C
8-97300-790-2
01
1
0512-
●
14
PLUG; SW
(B) PT3/8
5-09605-005-0
01
1
0512-
●
14
PLUG; SW
(A) M16X8 PLUG
9-09661-005-0
01
1
0303-0511
●
14
PLUG; SW
(A) M16X8 PLUG
9-09661-005-0
01
1
0512-
●
15
PIPE; BYPASS
8-94342-574-0
01
1
0303-0511
●
●
15
PIPE; BYPASS
8-94342-574-0
01
1
0512-
●
●
49
PIPE; WATER OUTLET
8-97329-914-0
01
1
0512-
●
49
PIPE; WATER OUTLET
8-97200-620-0
01
1
0303-0407
●
●
49
PIPE; WATER OUTLET
8-97372-769-0
01
1
0408-0511
●
●
49
PIPE; WATER OUTLET
8-97372-769-0
01
1
0512-
●
50
BOLT; OUTLET PIPE
(B) M8X25 FLANGE
0-28680-825-0
02
1
0303-0511
●
●
50
BOLT; OUTLET PIPE
(B) M8X25 FLANGE
0-28680-825-0
02
1
0512-0512
●
●
50
BOLT; OUTLET PIPE
(B) M8X25 FLANGE SOU
0-28650-825-0
02
1
0601-
●
●
50
BOLT; OUTLET PIPE
(A) M8X65 FLANGE
1-09044-072-1
02
1
0303-0511
●
●
50
BOLT; OUTLET PIPE
(A) M8X65 FLANGE
1-09044-072-1
02
1
0512-
●
●
58
PLUG; WATER OUTLET PIPE
M8X16
8-97021-211-1
01
1
0303-0511
●
●
58
PLUG; WATER OUTLET PIPE
M8X16
8-97021-211-1
01
1
0512-
●
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97300-793-0
01
1
0303-0511
●
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97300-793-0
01
1
0303-0511
●
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97300-793-0
02
1
0512-
●
●
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2
1-09630-082-0
01
1
0303-0511
●
●
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2
1-09630-082-0
01
1
0512-
●
●
216
PIPE ASM; WATER,TURBOCHARGER RETURN
8-97358-699-0
01
1
0303-0511
●
216
PIPE ASM; WATER,TURBOCHARGER RETURN
8-97358-699-0
01
1
0512-
●
