◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶

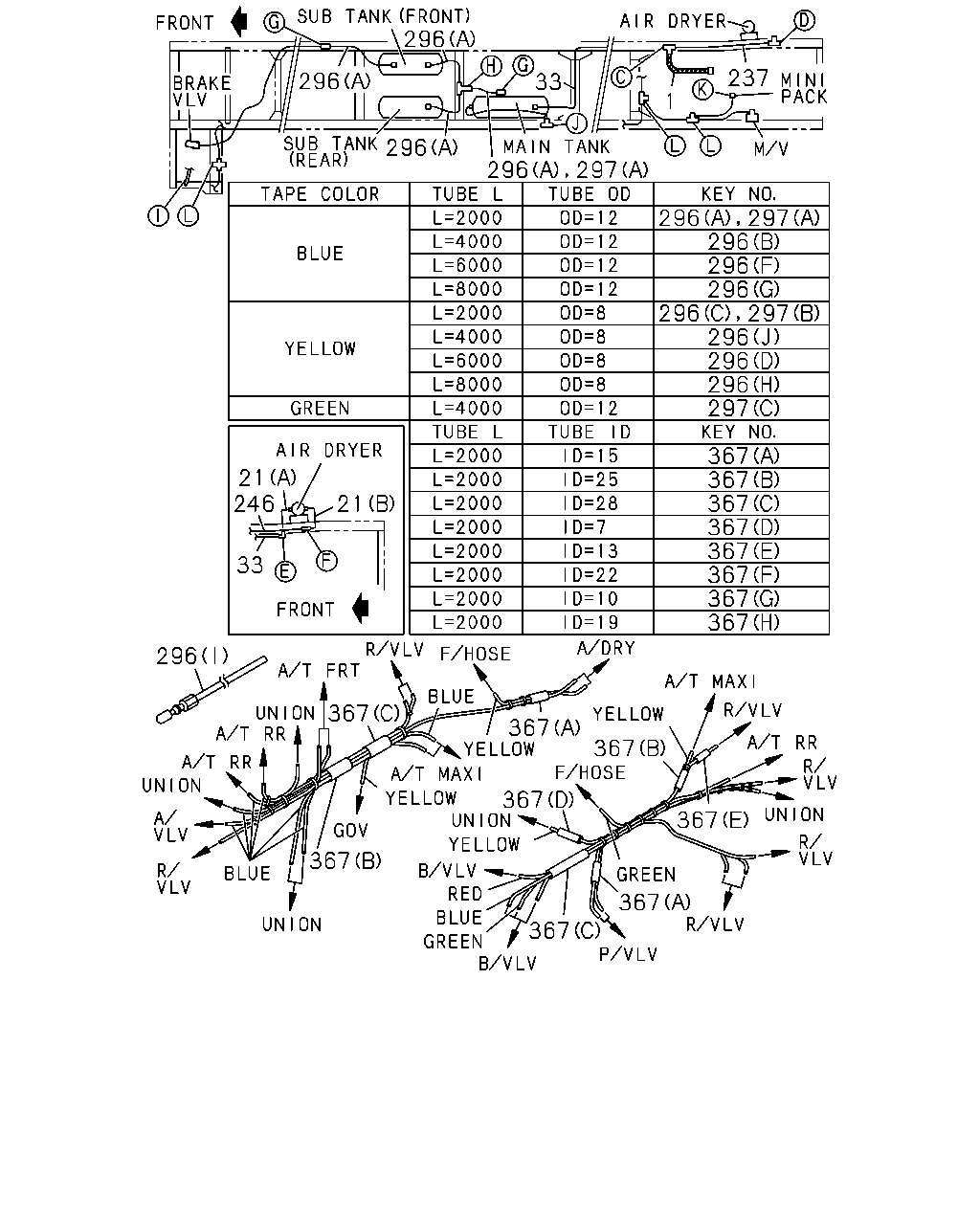

3-70 — BRAKE PIPING; AIR,AIR MASTER (#4458) — 2104 parça
çizim 4797
296 33 237 296 1 296 296 296 296 296 296 296 297 367 367 367 367 367 367 367 367 21 246 21 33 296 367 367 367 367 367 367 367 367 296 297 296 297 296 297
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FLYWHEEL HSG SAE #2<E4C> L=310 		0-07846-310-1 01 1 9101-9504 ● ●
1 HOSE; FLEX,AIR TANK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLYWHEEL HSG SAE #2<E4C> L=340 		0-07846-340-1 01 1 9101-9504 ● ●
1 HOSE; FLEX,AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=400 		0-07736-400-0 01 1 9101-9504 ● ●
1 HOSE; FLEX,AIR TANK
L=380 		0-07816-380-1 01 1 9505-9701 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=380 		0-07816-380-1 01 1 9702-0605 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=380 		0-57816-380-1 01 1 0606- ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TCC ENG(76L) L=610 		0-07816-610-1 01 1 9702-9709 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=610 		0-07816-610-1 01 1 9710-0605 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=610 		0-57816-610-1 01 1 0606- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (C) 		1-47489-493-0 01 1 9101-9101 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (C) 		1-47492-571-0 01 1 9102-9504 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> ISUZU M/T<X9A> (A) N TO DRYER L=305 		1-49116-043-0 01 1 9505-9701 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> (A) N TO DRYER L=305 		1-49116-043-0 01 1 9702- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> ISUZU M/T<X9A> (B) R TO UNION L=708 		1-49116-044-0 01 1 9505-9505 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> ISUZU M/T<X9A> (B) DRYER TO UNION L=642 		1-49116-159-0 01 1 9506-9701 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> (B) L=642 		1-49116-159-0 01 1 9702- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) L=1148 		1-49117-914-0 01 1 9702-9709 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) L=1148 		1-49117-914-0 01 1 9710- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) L=996 		1-49117-915-0 01 1 9702-9709 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) L=996 		1-49117-915-0 01 1 9710- ● ●

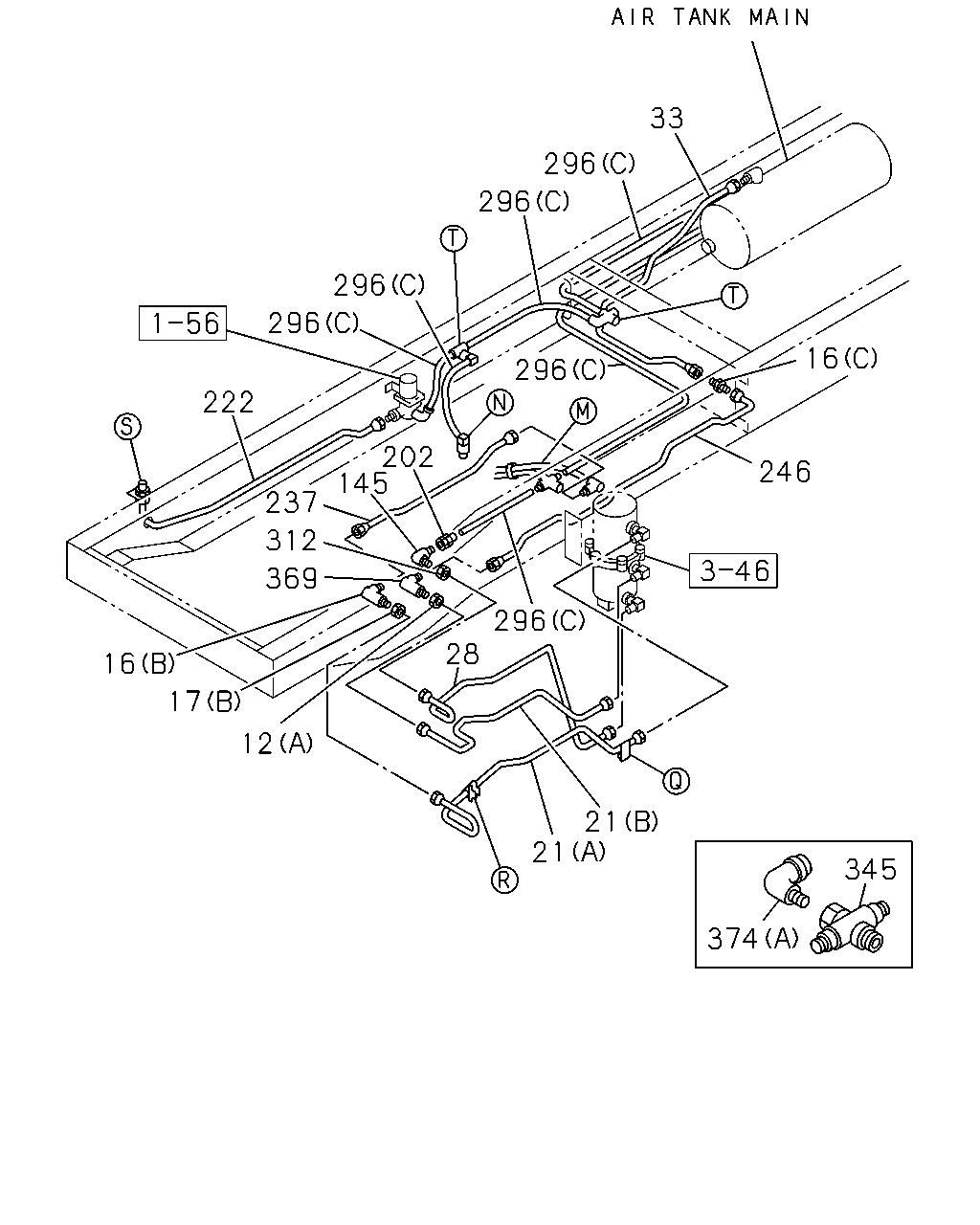

33 PIPE; AIR,UNION TO AIR TANK
BUS BODY MAKER FUJIJUKO<Y07> L=1399 		1-49117-288-0 01 1 9607-9705 ●
33 PIPE; AIR,UNION TO AIR TANK
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> L=1399 		1-49117-288-0 01 1 9706-0109 ●
33 PIPE; AIR,UNION TO AIR TANK
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-49123-324-0 01 1 0110-0203 ●
33 PIPE; AIR,UNION TO AIR TANK
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR DRYER<PS7> L=1244 SERVICED BY L=1250 		1-47437-994-0 01 1 9101-9504 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1114 SERVICED BY L=1150 		1-47437-992-0 01 1 9101-9504 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1932 SERVICED BY L=2000 		1-47437-986-0 01 1 9101-9212 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1932 SERVICED BY L=2000 		1-49111-450-0 01 1 9301-9504 ● ●
33 PIPE; AIR,UNION TO AIR TANK
L=1342 		1-49116-046-0 01 1 9505-9606 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. BUS BODY MAKER FUJIJUKO<Y07> L=1342 		1-49116-046-0 01 1 9607-9705 ●
33 PIPE; AIR,UNION TO AIR TANK
L=1342 		1-49116-046-0 01 1 9607-9705 ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> L=1342 		1-49116-046-0 01 1 9706-9708 ● ●
33 PIPE; AIR,UNION TO AIR TANK
ISUZU M/T<X9A> EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> L=1342 		1-49116-046-0 01 1 9709-9805 ● ●
33 PIPE; AIR,UNION TO AIR TANK
MT643 A/T ALLISON(PR7) EXC. AIR DRYER<PS7> L=1342 		1-49116-046-0 01 1 9709-9805 ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> L=1342 		1-49116-046-0 01 1 9806-0109 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> 		1-49123-323-0 01 1 0110-0203 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-49123-323-0 01 1 0204- ● ●
33 PIPE; AIR,UNION TO AIR TANK
CENTER SPLIT TYPE FRAME<TLW> EXC. BUS BODY MAKER FUJIJUKO<Y07> L=1392 		1-49118-306-0 01 1 9706-0203 ● ●
33 PIPE; AIR,UNION TO AIR TANK
CENTER SPLIT TYPE FRAME<TLW> L=1392 		1-49118-306-0 01 1 0204- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> ISUZU M/T<X9A> SERVICED BY L=2000 		1-47434-493-0 01 1 9101-9504 ●
237 PIPE; AIR,FLEX HOSE TO UNION
AIR DRYER<PS7> ISUZU M/T<X9A> L=772 		1-49116-042-0 01 1 9505-9701 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> L=772 		1-49116-042-0 01 1 9702- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. AIR DRYER<PS7> L=1939 		1-49116-041-0 01 1 9505-9603 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. AIR DRYER<PS7> L=1938 		1-49117-328-0 01 1 9604-9701 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> L=1938 		1-49117-328-0 01 1 9702-9705 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1938 		1-49117-328-0 01 1 9706-0207 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> 		1-49123-678-0 01 1 0208- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> SERVICED BY L=2000 		1-47434-493-0 01 1 9101-9504 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 		1-47434-493-0 01 1 9101-9504 ●
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> SERVICED BY L=1300 		1-47434-486-0 01 1 9101-9212 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> SERVICED BY L=1300 		1-49111-446-0 01 1 9301-9504 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1947 SERVICED BY L=2000 		1-47434-493-0 01 1 9101-9504 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=711 		1-49117-913-0 01 1 9702-9705 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=712 		1-49118-396-0 01 1 9706-9706 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=737 		1-49118-570-0 01 1 9707-9709 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> L=737 		1-49118-570-0 01 1 9710- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) CENTER SPLIT TYPE FRAME<TLW> EXC. AIR DRYER<PS7> L=904 		1-49118-305-0 01 1 9706- ● ●
246 PIPE; AIR,UNION TO UNION
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2210 SERVICED BY L=2500 		1-47434-479-0 01 1 9101-9212 ●
246 PIPE; AIR,UNION TO UNION
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2210 SERVICED BY L=2500 		1-47426-423-0 01 1 9301-9504 ●
246 PIPE; AIR,UNION TO UNION
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) L=2409 SERVICED BY L=2500 		1-47434-398-0 01 1 9101-9504 ●
246 PIPE; AIR,UNION TO UNION
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) L=2381 SERVICED BY L=2500 		1-47434-398-0 01 1 9101-9504 ●
246 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> ISUZU M/T<X9A> L=2535 		1-49116-045-0 01 1 9505-9603 ● ●
246 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> ISUZU M/T<X9A> L=2534 		1-49117-329-0 01 1 9604-9701 ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> L=2534 		1-49117-329-0 01 1 9702-9705 ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2534 		1-49117-329-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2534 		1-49117-329-0 01 1 9707-0109 ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2534 		1-49117-329-0 01 1 9707-0109 ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2235 		1-49123-319-0 01 1 0110-0203 ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2235 		1-49123-319-0 01 1 0110-0203 ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2235 		1-49123-319-0 01 1 0204- ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2235 		1-49123-319-0 01 1 0204- ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=2729 		1-49117-916-0 01 1 9702-9705 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2731 		1-49118-392-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2734 		1-49118-571-0 01 1 9707-9709 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2734 		1-49118-571-0 01 1 9710-0109 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2434 		1-49123-322-0 01 1 0110- ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1659 		1-49118-302-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1664 		1-49118-602-0 01 1 9707-9709 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1664 		1-49118-602-0 01 1 9710-9805 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> L=1664 		1-49118-602-0 01 1 9806- ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> L=1974 		1-49118-029-0 01 1 9703-9705 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) ISUZU M/T<X9A> EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1976 		1-49118-394-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) ISUZU M/T<X9A> EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1941 		1-49118-569-0 01 1 9707-9709 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1941 		1-49118-569-0 01 1 9710-9805 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> EXC. AIR DRYER<PS7> L=904 		1-49118-303-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1941 		1-49118-569-0 01 1 9806-0109 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1642 		1-49123-321-0 01 1 0110- ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> EXC. AIR DRYER<PS7> L=879 		1-49118-603-0 01 1 9707-9709 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> EXC. AIR DRYER<PS7> L=879 		1-49118-603-0 01 1 9710-9805 ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1501 		1-49118-304-0 01 1 9706-9805 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=879 		1-49118-603-0 01 1 9806- ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1501 		1-49118-304-0 01 1 9806- ● ●

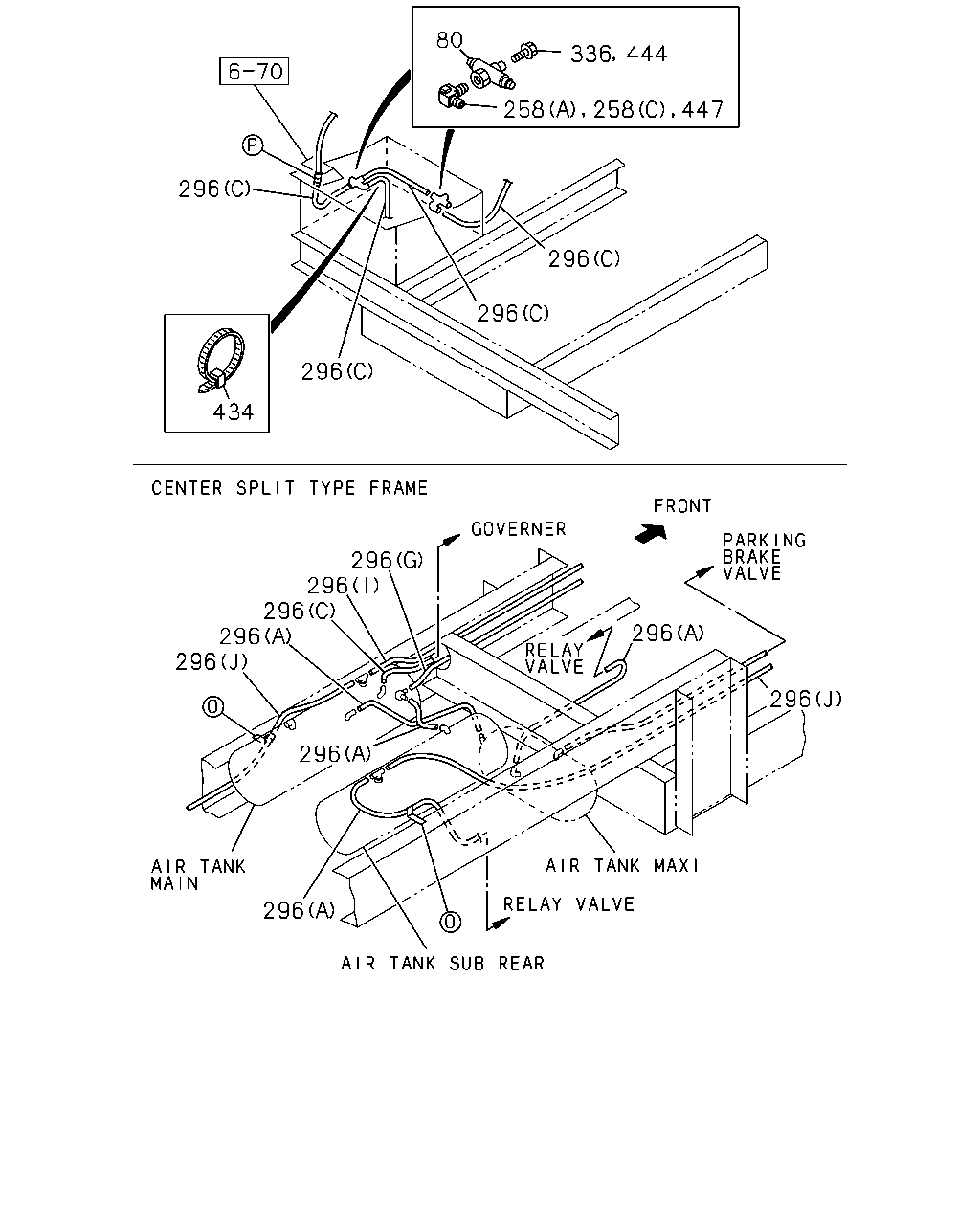

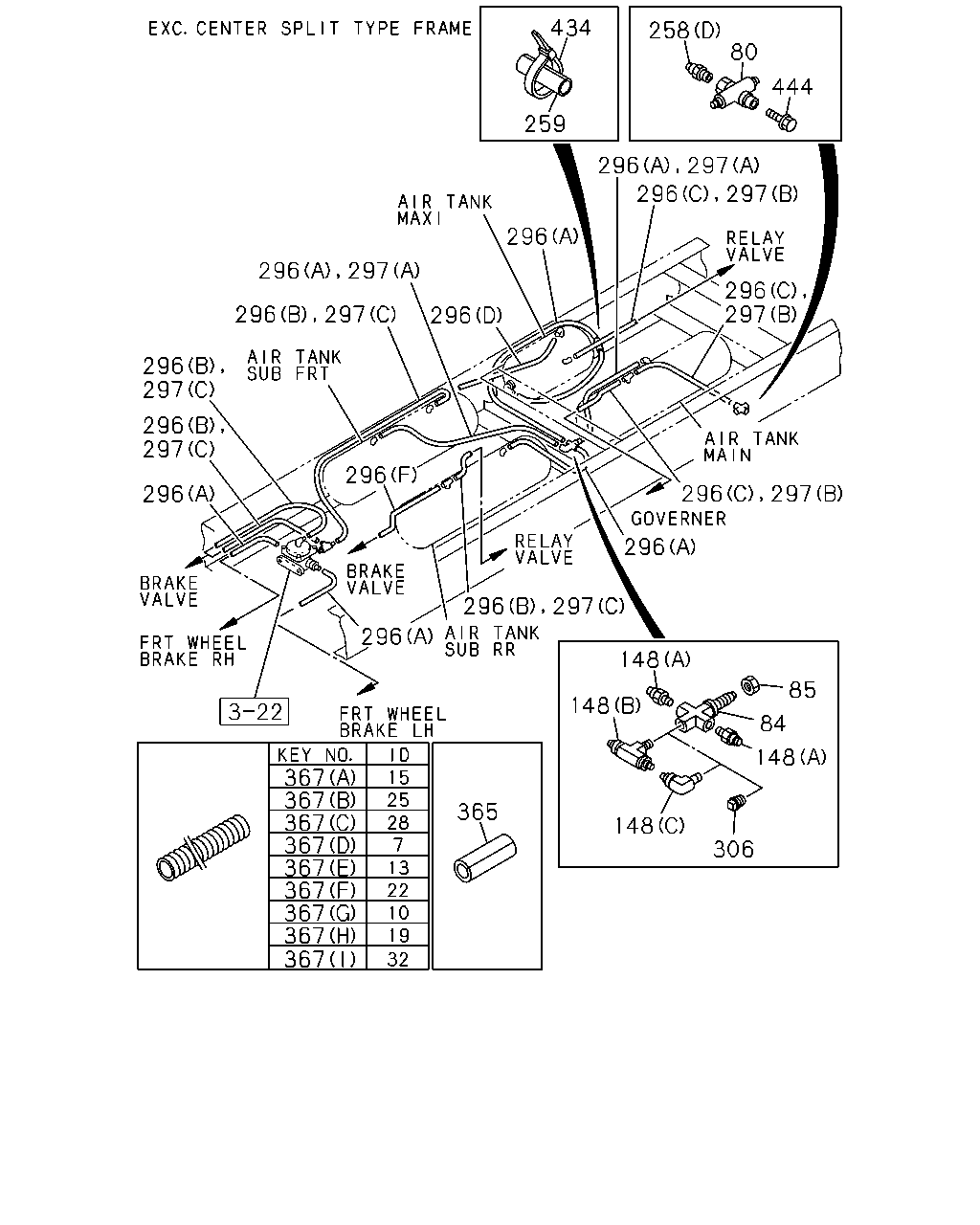

296 TUBE; NYLON
(I) SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 9505- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9505- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9505- ● ●
296 TUBE; NYLON
(F) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9505- ● ●
296 TUBE; NYLON
(G) SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9505- ● ●
296 TUBE; NYLON
(C) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9505- ● ●
296 TUBE; NYLON
(J) SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9505- ● ●
296 TUBE; NYLON
(D) SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9505- ● ●
296 TUBE; NYLON
(H) SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 9505- ● ●
296 TUBE; NYLON
(J) SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 9705- ● ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9505- ● ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9505-0203 ● ●
297 TUBE; NYLON
(C) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9510- ● ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0204- ● ●
367 TUBE; CORRUGATE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (G) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0204-0302 ● ●
367 TUBE; CORRUGATE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (G) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0303- ● ●
367 TUBE; CORRUGATE
WHEEL BASE 5000MM(50W) DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. BRAKE REGULATION HONG KONG<TCZ> (G) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0303- ● ●
367 TUBE; CORRUGATE
WHEEL BASE 5700MM(57W) DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. BRAKE REGULATION HONG KONG<TCZ>,CENTER SPLIT TYPE FRAME<TLW> (G) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0303- ● ●
367 TUBE; CORRUGATE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. BRAKE REGULATION HONG KONG<TCZ>,CENTER SPLIT TYPE FRAME<TLW> (E) SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 0303- ● ●
367 TUBE; CORRUGATE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. BRAKE REGULATION HONG KONG<TCZ>,CENTER SPLIT TYPE FRAME<TLW> (A) SERVICED BY L=2000 ID=15 		1-87411-025-0 01 1 0303- ● ●
367 TUBE; CORRUGATE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. BRAKE REGULATION HONG KONG<TCZ>,CENTER SPLIT TYPE FRAME<TLW> (F) SERVICED BY L=2000 ID=22 		1-87411-029-0 01 1 0303- ● ●
367 TUBE; CORRUGATE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. BRAKE REGULATION HONG KONG<TCZ>,CENTER SPLIT TYPE FRAME<TLW> (C) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 0303- ● ●
367 TUBE; CORRUGATE
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT<RR3> (I) SERVICED BY L=2000 ID=32 		1-87410-104-0 01 1 9901-0203 ●
367 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=7 		1-87410-085-0 AR 1 9508- ● ●
367 TUBE; CORRUGATE
(G) SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9508-0302 ● ●
367 TUBE; CORRUGATE
(C) SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9508-0302 ● ●
367 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9508- ● ●
367 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9508-0302 ● ●
367 TUBE; CORRUGATE
(F) SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 9509-0302 ● ●
367 TUBE; CORRUGATE
(E) SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9605-0302 ● ●
367 TUBE; CORRUGATE
(H) SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 9706- ● ●
çizim 4822
434 258 80 444 259 296 297 296 296 297 296 297 296 296 297 296 297 296 296 296 296 148 85 148 367 367 367 367 367 367 367 367 367 84 148 365 148 306 296 297 296 297 297 296 296 297
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 02 1 9505-9705 ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9706-9812 ● ●
80 UNION; 3 WAY
DUAL AIR GAUGE<UG2> DIN8 RC1/4 & M8 		1-09660-735-1 02 1 9901-0203 ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0204-0306 ● ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
EXC. CENTER SPLIT TYPE FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) RETARDER BRK<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) EXC. DUAL AIR GAUGE<UG2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
EXC. DUAL AIR GAUGE<UG2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
DUAL AIR GAUGE<UG2> AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ●
84 UNION; NYLON TUBE 1-09660-756-1 01 1 9505-9705 ● ●
84 UNION; NYLON TUBE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09660-756-1 01 1 9706-9812 ● ●
84 UNION; NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-09660-756-1 01 1 9706-9812 ● ●
84 UNION; NYLON TUBE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09660-756-1 01 1 9901-0203 ● ●
84 UNION; NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> 		1-09660-756-1 01 1 9901-0203 ● ●
84 UNION; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-09660-756-1 01 1 0204- ● ●
85 NUT; UNION
M22 		9-09110-422-0 01 1 9505-9603 ● ●
85 NUT; UNION
M22 		9-09111-422-0 01 1 9604-9705 ● ●
85 NUT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M22 		9-09111-422-0 01 1 9706-9812 ● ●
85 NUT; UNION
EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> M22 		9-09111-422-0 01 1 9901-0203 ●
85 NUT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M22 		9-09111-422-0 01 1 9901-0203 ●
85 NUT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M22 		9-09111-422-0 01 1 0204-0512 ● ●
85 NUT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M22 		0-91111-522-0 01 1 0601- ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9505-9705 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9505-9705 ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9706-9812 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>,CENTER SPLIT TYPE FRAME<TLW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9706-9812 ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9901-0203 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT<RR3>,DOOR CONTROL AIR W/SUB AIR TANK<SGW>,CENTER SPLIT TYPE FRAME<TLW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9901-0203 ● ●
148 CONNECTOR; UNION
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>,CENTER SPLIT TYPE FRAME<TLW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0204-0306 ● ●
148 CONNECTOR; UNION
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>,CENTER SPLIT TYPE FRAME<TLW> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0307- ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 9505-9705 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. CENTER SPLIT TYPE FRAME<TLW> (B) DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 9706-0203 ● ●
148 CONNECTOR; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. CENTER SPLIT TYPE FRAME<TLW> (B) DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 0204-0306 ● ●
148 CONNECTOR; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. CENTER SPLIT TYPE FRAME<TLW> (B) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 0307- ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9505-9705 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9706-9809 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9505-9705 ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9505-9705 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>,CENTER SPLIT TYPE FRAME<TLW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9706-9809 ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9706-9809 ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9810-9812 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9810-9812 ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9901-0203 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9901-0203 ● ●
148 CONNECTOR; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 0204-0306 ● ●
148 CONNECTOR; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
EXC. BUS BODY MAKER FUJIJUKO<Y07> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9607-9705 ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9607-9705 ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9706-9812 ● ●
258 CONNECTOR; NYLON TUBE
EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 9505-9812 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> EXC. DUAL AIR GAUGE<UG2> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 0204- ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2>,AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) EXC. AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2>,AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) EXC. AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9505-9709 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. AUSTRALIA EQUIPMENT<RR3> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9809-0203 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9809-0203 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) AUSTRALIA EQUIPMENT<RR3> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9809-0203 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ● ●

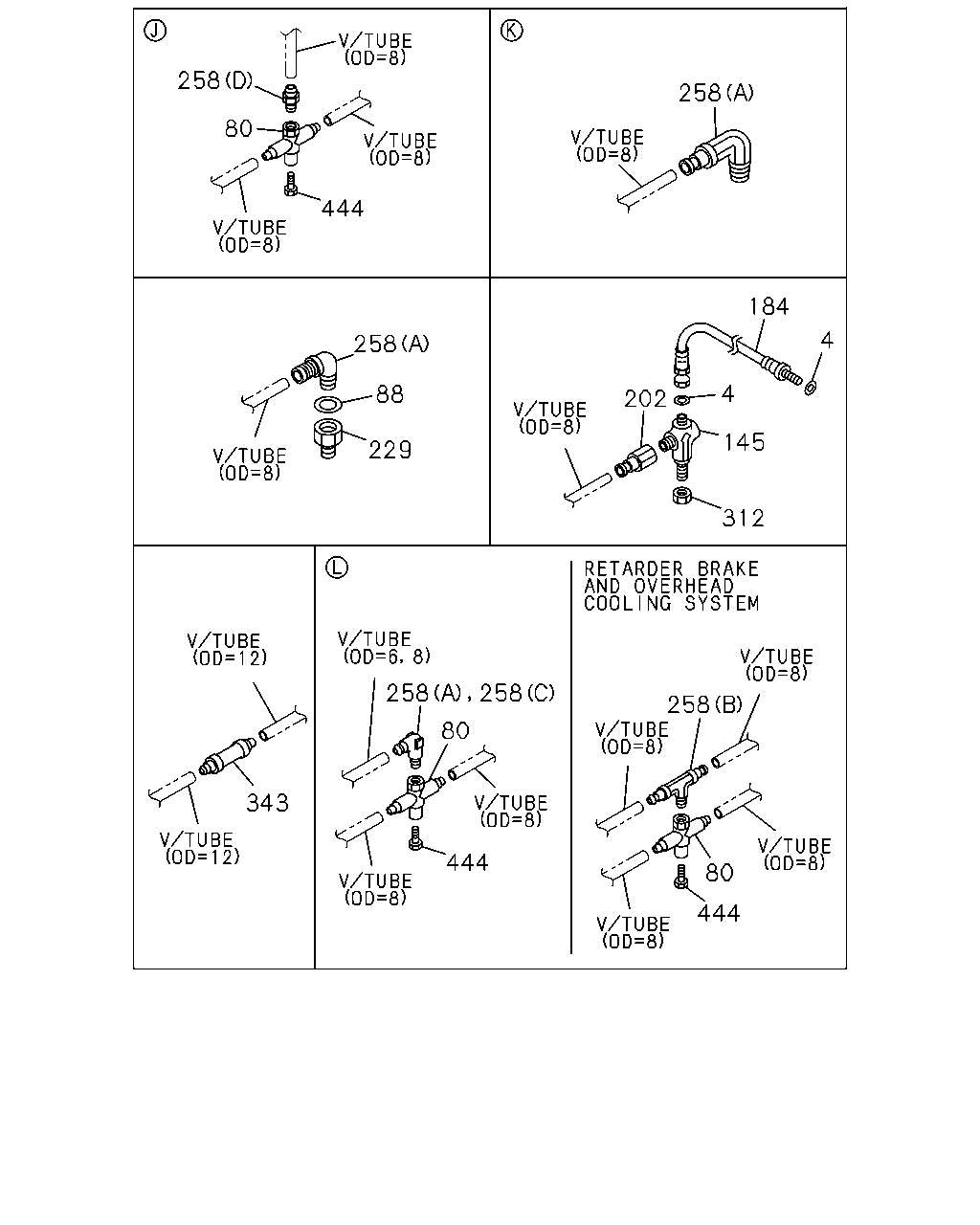

258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ●
259 SLEEVE; RUBBER,NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> ID=17 OD=21 L=40 		1-09337-012-0 03 1 9607-9812 ●
259 SLEEVE; RUBBER,NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=21 L=40 		1-09337-012-0 03 1 9901-0203 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> ID=17 OD=21 L=40 		1-09337-012-0 03 1 9901-0203 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=17 OD=21 L=40 		1-09337-012-0 03 1 0204- ● ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 9505-9603 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=21 L=40 		1-09337-012-0 01 1 9604-9811 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=21 L=40 		1-09337-012-0 04 1 9812-9812 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=17 OD=21 L=40 		1-09337-012-0 02 1 9505-0203 ● ●

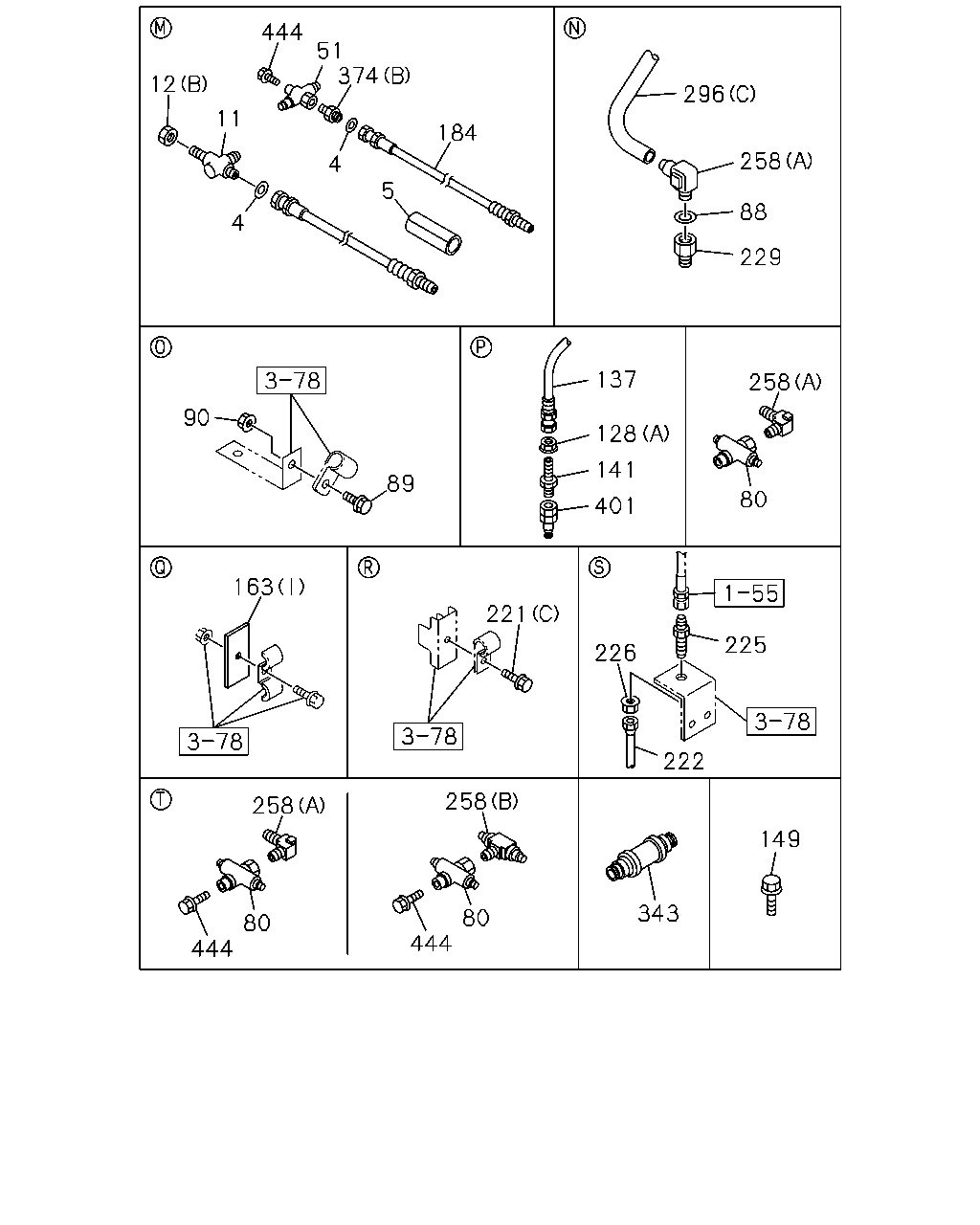

296 TUBE; NYLON
(I) SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 9505- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9505- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9505- ● ●
296 TUBE; NYLON
(F) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9505- ● ●
296 TUBE; NYLON
(G) SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9505- ● ●
296 TUBE; NYLON
(C) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9505- ● ●
296 TUBE; NYLON
(J) SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9505- ● ●
296 TUBE; NYLON
(D) SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9505- ● ●
296 TUBE; NYLON
(H) SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 9505- ● ●
296 TUBE; NYLON
(J) SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 9705- ● ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9505- ● ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9505-0203 ● ●
297 TUBE; NYLON
(C) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9510- ● ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0204- ● ●
306 PLUG; NYLON TUBE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> PT3/8 		9-09204-517-0 01 1 9505-0203 ● ●
365 SLEEVE; RUBBER,FLEX HOSE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ID=17 OD=21 L=40 		1-09337-012-0 01 1 9505-0203 ● ●
367 TUBE; CORRUGATE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (G) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0204-0302 ● ●
367 TUBE; CORRUGATE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (G) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0303- ● ●
367 TUBE; CORRUGATE
WHEEL BASE 5000MM(50W) DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. BRAKE REGULATION HONG KONG<TCZ> (G) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0303- ● ●
367 TUBE; CORRUGATE
WHEEL BASE 5700MM(57W) DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. BRAKE REGULATION HONG KONG<TCZ>,CENTER SPLIT TYPE FRAME<TLW> (G) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0303- ● ●
367 TUBE; CORRUGATE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. BRAKE REGULATION HONG KONG<TCZ>,CENTER SPLIT TYPE FRAME<TLW> (E) SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 0303- ● ●
367 TUBE; CORRUGATE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. BRAKE REGULATION HONG KONG<TCZ>,CENTER SPLIT TYPE FRAME<TLW> (A) SERVICED BY L=2000 ID=15 		1-87411-025-0 01 1 0303- ● ●
367 TUBE; CORRUGATE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. BRAKE REGULATION HONG KONG<TCZ>,CENTER SPLIT TYPE FRAME<TLW> (F) SERVICED BY L=2000 ID=22 		1-87411-029-0 01 1 0303- ● ●
367 TUBE; CORRUGATE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. BRAKE REGULATION HONG KONG<TCZ>,CENTER SPLIT TYPE FRAME<TLW> (C) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 0303- ● ●
367 TUBE; CORRUGATE
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT<RR3> (I) SERVICED BY L=2000 ID=32 		1-87410-104-0 01 1 9901-0203 ●
367 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=7 		1-87410-085-0 AR 1 9508- ● ●
367 TUBE; CORRUGATE
(G) SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9508-0302 ● ●
367 TUBE; CORRUGATE
(C) SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9508-0302 ● ●
367 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9508- ● ●
367 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9508-0302 ● ●
367 TUBE; CORRUGATE
(F) SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 9509-0302 ● ●
367 TUBE; CORRUGATE
(E) SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9605-0302 ● ●
367 TUBE; CORRUGATE
(H) SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 9706- ● ●

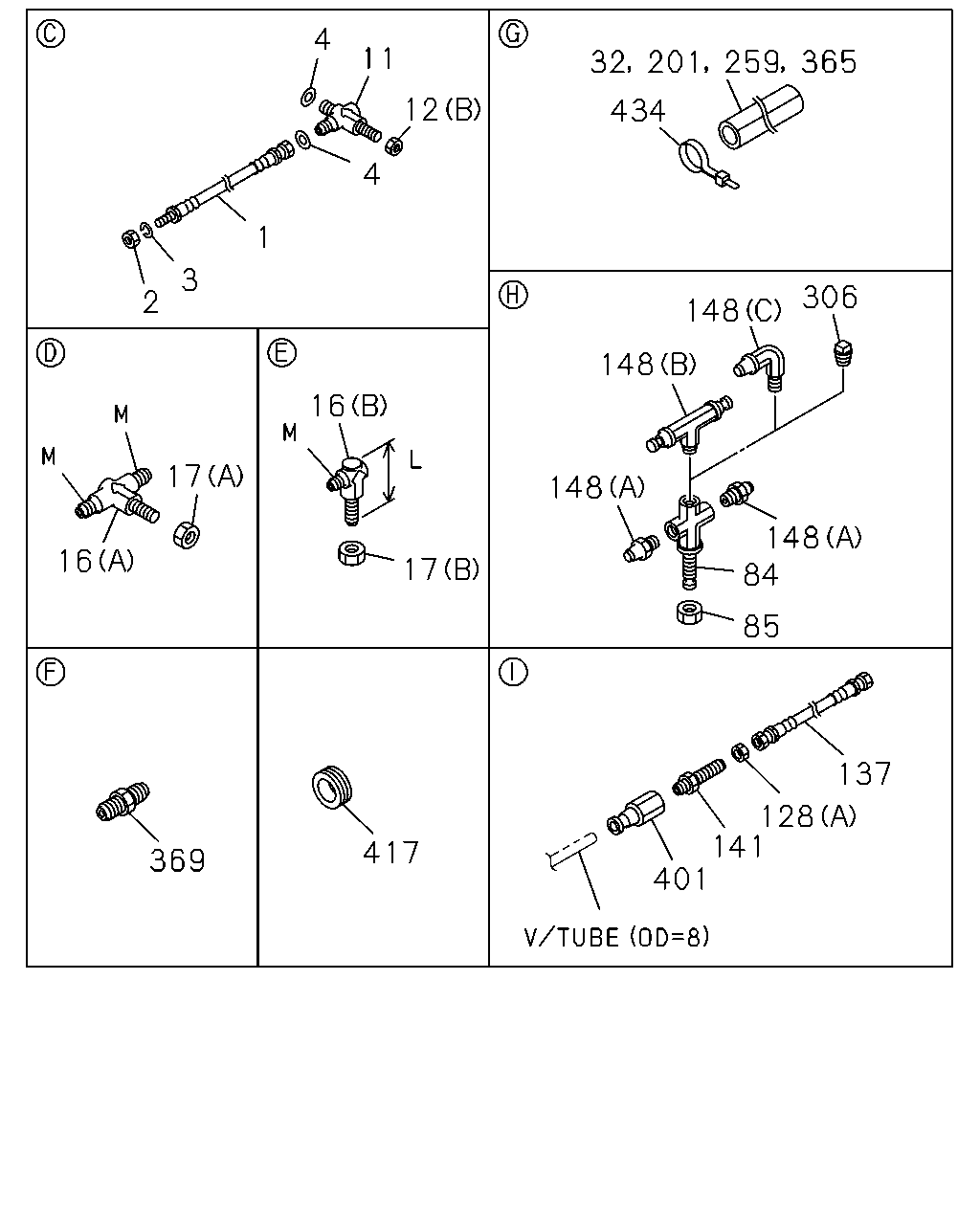

434 CLIP
L=250 		1-09707-126-0 02 1 9505-9812 ● ●
434 CLIP
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT<A56> L=250 		1-09707-126-0 02 1 9505-9812 ● ●
434 CLIP
L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
6HE1 TC ENG(57L) L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
EXC. AUSTRALIA EQUIPMENT<RR3> L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
RETARDER BRK<RE2> L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
DUAL AIR GAUGE<UG2> L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
L=250 		1-09707-126-0 02 1 0204- ● ●
434 CLIP
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT<A56> L=250 		1-09707-126-0 02 1 0204- ● ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9505-9506 ● ●
434 CLIP
RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9505-9506 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9505-9506 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9505-9506 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9507-9507 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9507-9507 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9508-9706 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9508-9706 ● ●
434 CLIP
RETARDER BRK<RE2> L=250 		1-09707-126-0 01 1 9508-9706 ● ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9508-9706 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9707-9708 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9707-9708 ● ●
434 CLIP
RETARDER BRK<RE2> L=250 		1-09707-126-0 01 1 9707-9708 ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9707-9708 ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9707-9708 ●
434 CLIP
ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9707-9708 ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9709-9806 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9709-9806 ● ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9709-9806 ● ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9709-9806 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
6HE1 TC ENG(57L) L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
MLD7Q M/T(X5K),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9810-9812 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9810-9812 ● ●
434 CLIP
6HE1 TC ENG(57L) L=250 		1-09707-126-0 01 1 9810-9812 ● ●
434 CLIP
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9810-9812 ● ●
434 CLIP
RETARDER BRK<RE2> L=250 		1-09707-126-0 01 1 9810-9812 ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9810-9812 ●
434 CLIP
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT<A56> L=250 		1-09707-126-0 02 1 9901-0203 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
6HE1 TC ENG(57L) L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> L=250 		1-09707-126-0 03 1 9505-9506 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 9505-9705 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
DUAL AIR GAUGE<UG2> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
DUAL AIR GAUGE<UG2> M8X16 FLANGE 		0-28080-816-0 02 1 9901-0203 ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HE1 TCC ENG(76L) M8X20 FLANGE 		0-28680-820-0 01 1 9702-9705 ● ●
444 BOLT; UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> M8X20 FLANGE 		0-28680-820-0 01 1 9706-9709 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M8X20 FLANGE 		0-28680-820-0 01 1 9710-0512 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●

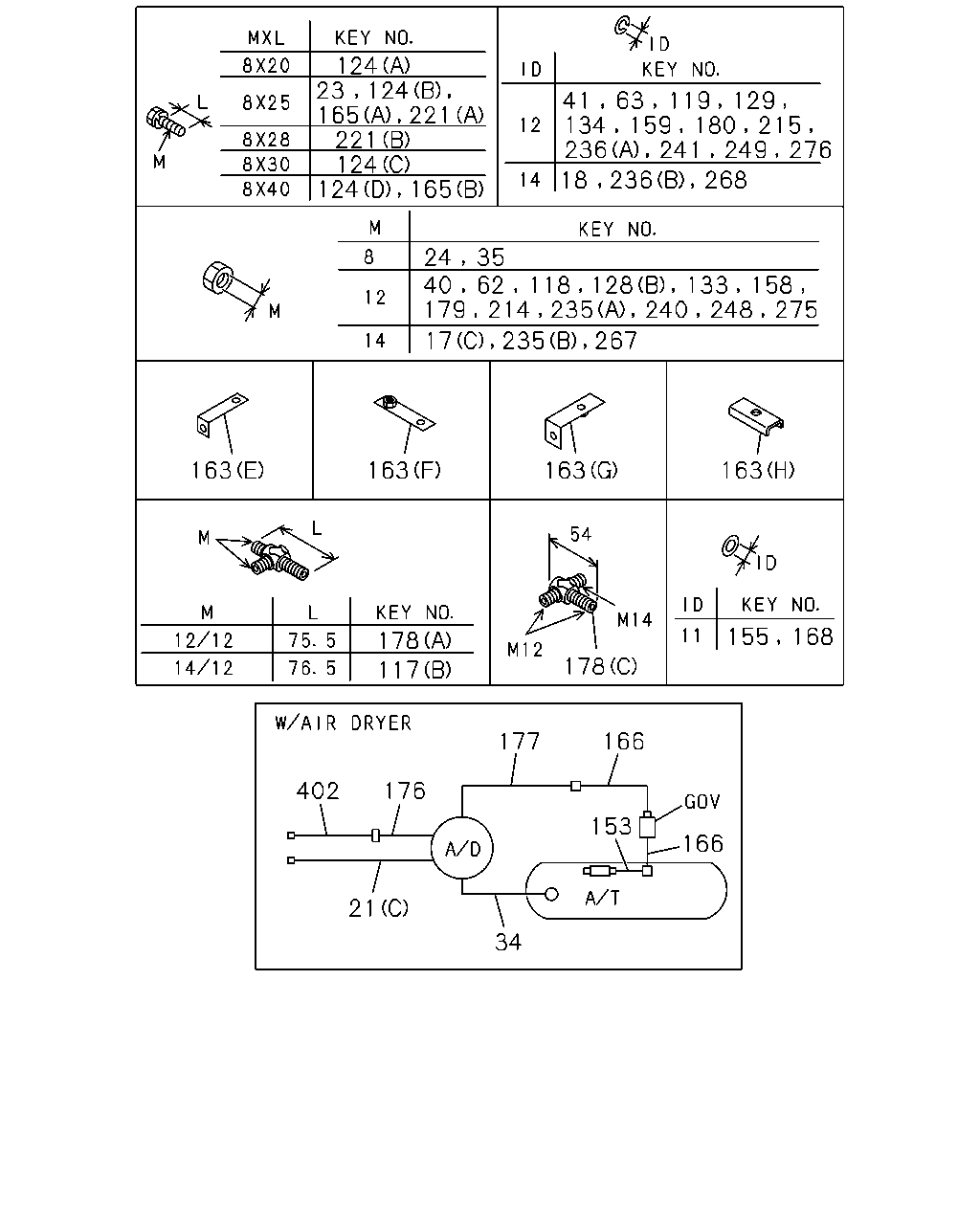

çizim 4914
124 221 124 124 165 63 119 129 159 241 41 134 236 18 163 163 163 163 155 168 178 178 117 177 166 402 176 153 166 21 34 23 124 155 221 236 268 180 215 249 276 40 62 24 35 118 128 133 158 275 248 240 267 235 214 235 17 179
BalonParca AdiParca NoAdetTipApplied Date A B
17 NUT; UNION
AIR DRYER<PS7> ISUZU M/T<X9A> (B) M22 		9-09111-422-0 01 1 9505-9805 ● ●
17 NUT; UNION
AIR DRYER<PS7> (B) M22 		9-09111-422-0 01 1 9806-0512 ● ●
17 NUT; UNION
AIR DRYER<PS7> (B) M22 		0-91111-522-0 01 1 0601- ● ●
17 NUT; UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M14 		9-99111-414-0 01 1 9101-9504 ● ●
17 NUT; UNION
(A) M14 		9-99111-414-0 01 1 9505-9705 ● ●
17 NUT; UNION
6HH1 STD ENG(65L) EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M14 		9-99111-414-0 01 1 9706-0512 ● ●
17 NUT; UNION
6HH1 STD ENG(65L) EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M14 		0-91111-514-0 01 1 0601- ● ●
18 WASHER; LK,UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=14.2 		9-09150-514-0 01 1 9101-9312 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (C) 		1-47489-493-0 01 1 9101-9101 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (C) 		1-47492-571-0 01 1 9102-9504 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> ISUZU M/T<X9A> (A) N TO DRYER L=305 		1-49116-043-0 01 1 9505-9701 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> (A) N TO DRYER L=305 		1-49116-043-0 01 1 9702- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> ISUZU M/T<X9A> (B) R TO UNION L=708 		1-49116-044-0 01 1 9505-9505 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> ISUZU M/T<X9A> (B) DRYER TO UNION L=642 		1-49116-159-0 01 1 9506-9701 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> (B) L=642 		1-49116-159-0 01 1 9702- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) L=1148 		1-49117-914-0 01 1 9702-9709 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) L=1148 		1-49117-914-0 01 1 9710- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) L=996 		1-49117-915-0 01 1 9702-9709 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) L=996 		1-49117-915-0 01 1 9710- ● ●
23 BOLT; BRKT,AIR PIPE
AIR DRYER<PS7> M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9105 ● ●
23 BOLT; BRKT,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9105 ● ●
23 BOLT; BRKT,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9106-9204 ● ●
23 BOLT; BRKT,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9504 ● ●
23 BOLT; BRKT,AIR PIPE
AIR DRYER<PS7> M8X25 W/LK WASHER 		9-01900-825-0 03 1 9106-9204 ● ●
23 BOLT; BRKT,AIR PIPE
AIR DRYER<PS7> M8X25 W/LK WASHER 		0-50040-825-0 03 1 9205-9504 ● ●
24 NUT; BRKT,AIR PIPE
AIR DRYER<PS7> M8 		9-09110-408-0 02 1 9101-9504 ● ●
24 NUT; BRKT,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 		9-09110-408-0 02 1 9101-9504 ● ●
34 PIPE; AIR
AIR DRYER<PS7> L=1754 		1-47489-492-0 01 1 9101-9101 ● ●
34 PIPE; AIR
AIR DRYER<PS7> L=1750 		1-47492-572-0 01 1 9102-9504 ● ●
35 NUT; BRKT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 		9-09110-408-0 02 1 9101-9504 ●
35 NUT; BRKT
AIR DRYER<PS7> M8 		9-09110-408-0 03 1 9101-9504 ● ●
40 NUT; PIPE UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-99111-412-0 01 1 9101-9504 ● ●
41 WASHER; LK,PIPE UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9101-9312 ● ●
62 NUT; JOINT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-99111-412-0 01 1 9101-9504 ●
63 WASHER; LK,JOINT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9101-9312 ●
117 UNION; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (A) M12 		1-09656-310-0 01 1 9101-9102 ●
117 UNION; AIR PIPE
EXC. AIR DRYER<PS7> (A) M12 		1-09656-310-0 01 1 9101-9102 ●
117 UNION; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 		1-09656-310-1 01 1 9103-9504 ●
117 UNION; AIR PIPE
(A) M12 		1-09656-310-1 01 1 9103-9504 ●
117 UNION; AIR PIPE
AIR DRYER<PS7> EXC. CLU SYSTEM MINIPACK(B1Z),EXH BRK<NF8> (B) M12 & M14 2WAY 		1-09654-141-2 01 1 9101-9504 ● ●
118 NUT; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 9101-9504 ●
118 NUT; UNION
M12 		9-09840-280-0 01 1 9101-9504 ●
118 NUT; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-412-0 02 1 9101-9307 ● ●
118 NUT; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-99110-412-0 02 1 9101-9307 ●
118 NUT; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-412-0 01 1 9308-9504 ● ●
118 NUT; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-99110-412-0 01 1 9308-9504 ●
118 NUT; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-412-0 01 1 9101-9504 ● ●
118 NUT; UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-09840-280-0 02 1 9101-9504 ● ●
118 NUT; UNION
DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 02 1 9101-9504 ● ●
119 WASHER; LK,UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 03 1 9101-9312 ●
119 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 03 1 9101-9312 ●
119 WASHER; LK,UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 02 1 9101-9312 ● ●
119 WASHER; LK,UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=12.2 		9-09150-512-0 01 1 9101-9312 ● ●
124 BOLT; BRKT
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) M8X40 W/LK WASHER 		9-01900-840-0 01 1 9101-9204 ●
124 BOLT; BRKT
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) M8X40 W/LK WASHER 		0-50040-840-0 01 1 9205-9504 ●
124 BOLT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9101-9204 ●
124 BOLT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9504 ●
124 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M8X25 W/LK WASHER 		9-01900-825-0 03 1 9101-9204 ● ●
124 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M8X25 W/LK WASHER 		0-50040-825-0 03 1 9205-9504 ● ●
124 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9101-9204 ● ●
124 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205-9504 ● ●
124 BOLT; BRKT
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ●
124 BOLT; BRKT
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9504 ●
124 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ●
124 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9504 ●
128 NUT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> (A) M10 FLANGE 		0-91150-210-0 01 1 9901-0203 ●
128 NUT; PIPE UNION
(A) M10 FLANGE 		0-91150-210-0 01 1 9901-0203 ●
128 NUT; PIPE UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B) M12 		9-09840-280-0 01 1 9101-9504 ● ●
128 NUT; PIPE UNION
(A) M10 		9-09110-410-0 01 1 9505-9606 ● ●
128 NUT; PIPE UNION
(A) M10 FLANGE 		0-91150-210-0 01 1 9607-9812 ● ●
128 NUT; PIPE UNION
DUAL AIR GAUGE<UG2> (A) M10 FLANGE 		0-91150-210-0 02 1 9901-0203 ●
128 NUT; PIPE UNION
(A) M10 FLANGE 		0-91150-210-0 01 1 0204-0602 ● ●
128 NUT; PIPE UNION
(A) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
129 WASHER; LK,PIPE UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9101-9312 ● ●
133 NUT; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-09840-280-0 02 1 9101-9504 ● ●
133 NUT; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 5000MM(50W) M12 		9-09840-280-0 02 1 9101-9504 ●
133 NUT; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-09840-280-0 01 1 9101-9504 ● ●
134 WASHER; LK,UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=12.2 		9-09150-512-0 02 1 9101-9312 ● ●
134 WASHER; LK,UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 5000MM(50W) ID=12.2 		9-09150-512-0 02 1 9101-9312 ●
134 WASHER; LK,UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=12.2 		9-09150-512-0 01 1 9101-9504 ● ●
153 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=604 SERVICED BY L=660 		1-47437-954-0 01 1 9101-9212 ●
153 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=604 SERVICED BY L=660 		1-47426-381-0 01 1 9301-9504 ● ●
153 PIPE; AIR,AIR TANK TO UNION
AIR DRYER<PS7> L=1236 		1-47489-494-0 01 1 9101-9105 ● ●
153 PIPE; AIR,AIR TANK TO UNION
AIR DRYER<PS7> L=1277 		1-47493-110-0 01 1 9106-9504 ● ●
153 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1325 SERVICED BY L=1400 		1-47434-411-0 01 1 9101-9212 ● ●
153 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1325 SERVICED BY L=1400 		1-47434-411-0 01 1 9101-9212 ●
153 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1325 SERVICED BY L=1400 		1-47426-389-0 01 1 9301-9504 ● ●
153 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1325 SERVICED BY L=1400 		1-47426-389-0 01 1 9301-9504 ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 01 1 9101-9504 ● ●
158 NUT; UNION,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-99110-412-0 01 1 9101-9504 ● ●
159 WASHER; LK,UNION,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9101-9312 ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) WO/NUT 		1-47475-299-2 02 1 9101-9101 ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) WO/NUT 		1-47475-299-2 02 1 9102-9105 ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (A) WO/NUT 		1-47475-299-2 02 1 9102-9105 ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (A) WO/NUT 		1-47475-299-2 02 1 9106-9504 ● ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) WO/NUT 		1-47475-299-2 02 1 9106-9504 ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47475-668-0 01 1 9101-9504 ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z),EXH BRK<NF8> (B) 		1-47475-668-0 02 1 9101-9504 ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (E) 		1-34656-009-0 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (C) 		1-47475-427-1 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-47475-427-1 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (F) 		1-47475-704-0 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (A) M8 W/NUT 		1-47475-729-0 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M8 W/NUT 		1-47475-729-0 01 1 9101-9504 ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (D) 		1-47475-981-0 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (G) L=60 		1-47475-455-0 01 1 9106-9504 ● ●
163 BRACKET; AIR PIPE
6HE1 TCC ENG(76L) AIR DRYER<PS7> (I) L=50 		1-47475-299-2 01 1 9707-9709 ● ●
163 BRACKET; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (I) L=50 		1-47475-299-2 01 1 9710- ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (H) 		1-09559-007-0 01 1 9102-9504 ●
165 BOLT; CLIP,OIL PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9101 ● ●
165 BOLT; CLIP,OIL PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9101 ●
165 BOLT; CLIP,OIL PIPE
AIR DRYER<PS7> (A) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9102-9204 ● ●
165 BOLT; CLIP,OIL PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9102-9204 ● ●
165 BOLT; CLIP,OIL PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9102-9204 ●
165 BOLT; CLIP,OIL PIPE
AIR DRYER<PS7> (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9504 ● ●
165 BOLT; CLIP,OIL PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9504 ● ●
165 BOLT; CLIP,OIL PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9504 ●
165 BOLT; CLIP,OIL PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M8X40 W/LK WASHER 		9-01900-840-0 03 1 9101-9204 ● ●
165 BOLT; CLIP,OIL PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M8X40 W/LK WASHER 		0-50040-840-0 03 1 9205-9504 ● ●
166 PIPE; AIR,UNION TO GOV
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1508 		1-47483-606-0 01 1 9101-9212 ●
166 PIPE; AIR,UNION TO GOV
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1508 		1-47496-723-0 01 1 9301-9504 ● ●
166 PIPE; AIR,UNION TO GOV
AIR DRYER<PS7> L=683 		1-47489-501-0 01 1 9101-9101 ● ●
166 PIPE; AIR,UNION TO GOV
AIR DRYER<PS7> L=653 		1-47492-569-0 01 1 9102-9212 ● ●
166 PIPE; AIR,UNION TO GOV
AIR DRYER<PS7> L=653 		1-47496-725-0 01 1 9301-9504 ● ●
166 PIPE; AIR,UNION TO GOV
AIR DRYER<PS7> L=463 		1-47489-503-0 01 1 9101-9212 ● ●
166 PIPE; AIR,UNION TO GOV
AIR DRYER<PS7> L=463 		1-47496-724-0 01 1 9301-9504 ● ●
166 PIPE; AIR,UNION TO GOV
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR DRYER<PS7> L=604 		1-47449-404-0 01 1 9101-9212 ● ●
166 PIPE; AIR,UNION TO GOV
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=604 		1-47449-404-0 01 1 9101-9212 ●
166 PIPE; AIR,UNION TO GOV
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR DRYER<PS7> L=604 		1-47496-722-0 01 1 9301-9504 ● ●
166 PIPE; AIR,UNION TO GOV
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=604 		1-47496-722-0 01 1 9301-9504 ●
166 PIPE; AIR,UNION TO GOV
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=228 		1-47443-137-0 01 1 9101-9212 ● ●
166 PIPE; AIR,UNION TO GOV
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=228 		1-47496-721-0 01 1 9301-9504 ● ●
168 GASKET; AIR PIPE,GOV
ID=11 OD=18 		9-09572-510-0 01 1 9101-9504 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> L=1320 SERVICED BY L=1370 		1-47426-354-0 01 1 9101-9101 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> L=1300 SERVICED BY L=1370 		1-47426-354-0 01 1 9102-9504 ● ●
177 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> L=1373 SERVICED BY L=1500 		1-47434-391-0 01 1 9101-9101 ● ●
177 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> L=1293 SERVICED BY L=1370 		1-47434-390-0 01 1 9102-9504 ● ●
178 UNION; AIR PIPE
AIR DRYER<PS7> (A) 		1-09654-059-2 01 1 9101-9504 ● ●
178 UNION; AIR PIPE
AIR DRYER<PS7> (B) M12 3WAY 		1-09654-137-2 01 1 9101-9504 ● ●
178 UNION; AIR PIPE
AIR DRYER<PS7> (C) 		1-09654-170-1 01 1 9101-9504 ● ●
178 UNION; AIR PIPE
AIR DRYER<PS7> (D) M12 		1-09656-310-1 01 1 9101-9504 ● ●
179 NUT; UNION
AIR DRYER<PS7> M12 		9-09840-280-0 02 1 9101-9101 ● ●
179 NUT; UNION
AIR DRYER<PS7> M12 		9-09840-280-0 03 1 9102-9504 ● ●
179 NUT; UNION
AIR DRYER<PS7> M12 		9-99111-412-0 01 1 9101-9504 ● ●
180 WASHER; LK,UNION
AIR DRYER<PS7> ID=12.2 		9-09150-512-0 03 1 9101-9101 ● ●
180 WASHER; LK,UNION
AIR DRYER<PS7> ID=12.2 		9-09150-512-0 04 1 9102-9312 ● ●
214 NUT; UNION,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) M12 		9-99111-412-0 01 1 9101-9504 ●
214 NUT; UNION,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z) M12 		9-99111-412-0 01 1 9101-9504 ●
214 NUT; UNION,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) EXC. CLU SYSTEM MINIPACK(B1Z),EXH BRK<NF8> M12 		9-99111-412-0 01 1 9101-9504 ●
214 NUT; UNION,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. EXH BRK<NF8> M12 		9-99111-412-0 01 1 9101-9504 ●
214 NUT; UNION,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> M12 		9-09840-280-0 01 1 9101-9504 ●
215 WASHER; LK,UNION,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) EXC. CLU SYSTEM MINIPACK(B1Z),EXH BRK<NF8> ID=12.2 		9-09150-512-0 01 1 9101-9504 ●
215 WASHER; LK,UNION,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) ID=12.2 		9-09150-512-0 02 1 9101-9504 ●
215 WASHER; LK,UNION,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z) ID=12.2 		9-09150-512-0 02 1 9101-9504 ●
221 BOLT; BRKT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ●
221 BOLT; BRKT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9504 ● ●
221 BOLT; BRKT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z),EXH BRK<NF8> (B) M8X28 W/LK WASHER 		9-01900-828-0 01 1 9101-9204 ●
221 BOLT; BRKT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z),EXH BRK<NF8> (B) M8X28 W/LK WASHER 		0-50040-828-0 01 1 9205-9504 ●
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X25 W/LK WASHER 		9-01900-825-0 03 1 9101-9204 ● ●
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X25 W/LK WASHER 		0-50040-825-0 03 1 9205-9504 ● ●
221 BOLT; BRKT
6HE1 TCC ENG(76L) AIR DRYER<PS7> (C) M8X40 FLANGE 		0-28680-840-0 01 1 9703-9709 ● ●
221 BOLT; BRKT
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (C) M8X40 FLANGE 		0-28680-840-0 01 1 9710-0512 ● ●
221 BOLT; BRKT
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (C) M8X40 FLANGE 		0-28650-840-0 01 1 0601- ● ●
235 NUT; PIPE UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CLU SYSTEM MINIPACK(B1Z) (A) M12 		9-09840-280-0 01 1 9101-9504 ● ●
235 NUT; PIPE UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (A) M12 		9-09840-280-0 01 1 9101-9504 ● ●
235 NUT; PIPE UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> (A) M12 		9-09840-280-0 01 1 9101-9504 ●
235 NUT; PIPE UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. EXH BRK<NF8> (A) M12 		9-99110-412-0 01 1 9101-9504 ● ●
235 NUT; PIPE UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M14 		9-99111-414-0 01 1 9101-9504 ● ●
235 NUT; PIPE UNION
6BD1 STD ENG(L21),6BG1 STD ENG(16L) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CLU SYSTEM MINIPACK(B1Z) (A) M12 		9-99111-412-0 01 1 9101-9110 ● ●
235 NUT; PIPE UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M12 		9-99111-412-0 01 1 9101-9110 ● ●
235 NUT; PIPE UNION
AIR DRYER<PS7> (A) M12 		9-99111-412-0 01 1 9101-9110 ● ●
235 NUT; PIPE UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 		9-99111-412-0 01 1 9111-9504 ●
235 NUT; PIPE UNION
(A) M12 		9-99111-412-0 01 1 9111-9504 ●
235 NUT; PIPE UNION
6BD1 STD ENG(L21),6BG1 STD ENG(16L) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CLU SYSTEM MINIPACK(B1Z) (A) M12 		9-99111-412-0 01 1 9111-9504 ● ●
235 NUT; PIPE UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M12 		9-99111-412-0 01 1 9111-9504 ● ●
235 NUT; PIPE UNION
AIR DRYER<PS7> (A) M12 		9-99111-412-0 01 1 9111-9504 ● ●
236 WASHER; LK,UNION,PIPE
AIR DRYER<PS7> (A) ID=12.2 		9-09150-512-0 01 1 9101-9312 ● ●
236 WASHER; LK,UNION,PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=12.2 		9-09150-512-0 01 1 9101-9312 ● ●
236 WASHER; LK,UNION,PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=12.2 		9-09150-512-0 02 1 9101-9504 ● ●
236 WASHER; LK,UNION,PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2 		9-09150-512-0 02 1 9101-9504 ●
236 WASHER; LK,UNION,PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=14.2 		9-09150-514-0 01 1 9101-9312 ● ●
240 NUT; UNION,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 9101-9504 ● ●
240 NUT; UNION,AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 9101-9504 ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 9101-9504 ●
241 WASHER; LK,UNION,AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9101-9312 ● ●
241 WASHER; LK,UNION,AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 9101-9312 ●
241 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 9101-9312 ●
248 NUT; PIPE UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-99111-412-0 01 1 9101-9504 ●
248 NUT; PIPE UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) M12 		9-99111-412-0 01 1 9101-9504 ●
249 WASHER; LK,PIPE UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9101-9312 ●
249 WASHER; LK,PIPE UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) ID=12.2 		9-09150-512-0 01 1 9101-9312 ●
267 NUT; UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14 		9-99111-414-0 01 1 9101-9504 ● ●
268 WASHER; LK,UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=14.2 		9-09150-514-0 01 1 9101-9312 ● ●
275 NUT; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) M12 		9-09840-280-0 01 1 9101-9504 ● ●
276 WASHER; LK UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) ID=12.2 		9-09150-512-0 01 1 9101-9504 ● ●
402 PIPE; AIR,GOV TO COMP
AIR DRYER<PS7> L=409 		1-47489-502-0 01 1 9101-9212 ● ●
402 PIPE; AIR,GOV TO COMP
AIR DRYER<PS7> L=409 		1-47496-731-0 01 1 9301-9504 ● ●
çizim 5578
98 163 98 163 98 123 163 98 163 98 98 127 131 247 234 16 16 100 131 178 213 213 234 234 39 3 213 234 156 234 247 266 11 127 131 239 100 234 234 117 178 61 156 239 239 131 100 234 247 239 156 234 213 131 131 131 239 213
BalonParca AdiParca NoAdetTipApplied Date A B
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=14.2 		9-09150-514-0 01 1 9505-9506 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=20.2 		9-09150-520-0 01 1 9101-9504 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=14.2 		9-09150-514-0 01 1 9101-9312 ● ●
11 UNION; AIR PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M20 & M22 L=60 (2-WAY) 		1-09654-203-1 01 1 9101-9504 ● ●
11 UNION; AIR PIPE
M20 & M22 L=60 (2-WAY) 		1-09654-203-1 01 1 9505- ● ●
16 UNION; AIR PIPE
(A) M22 2WAY 		1-09654-212-1 01 1 9505-9701 ● ●
16 UNION; AIR PIPE
6HH1 STD ENG(65L) (A) M22 2WAY 		1-09654-212-1 01 1 9702-9705 ● ●
16 UNION; AIR PIPE
6HH1 STD ENG(65L) EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M22 2WAY 		1-09654-212-1 01 1 9706- ● ●
16 UNION; AIR PIPE
AIR DRYER<PS7> ISUZU M/T<X9A> (B) M22 		9-09235-215-1 01 1 9505-9805 ● ●
16 UNION; AIR PIPE
AIR DRYER<PS7> (B) M22 		9-09235-215-1 01 1 9806-0607 ● ●
16 UNION; AIR PIPE
AIR DRYER<PS7> (B) M22X2 ELBOW 		0-92135-215-0 01 1 0608- ● ●
16 UNION; AIR PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) M22 		9-09233-015-1 01 1 9101-9504 ● ●
16 UNION; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) M20 STRAIGHT 		9-09233-012-1 01 1 9101-9504 ● ●
16 UNION; AIR PIPE
6HE1 TCC ENG(76L) (C) M22 		9-09233-015-1 01 1 9702-9705 ● ●
16 UNION; AIR PIPE
6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9706-9708 ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9706-9708 ● ●
16 UNION; AIR PIPE
6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9709-9709 ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9709-9709 ● ●
16 UNION; AIR PIPE
6HH1 STD ENG(65L) MT643 A/T ALLISON(PR7) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9709-9709 ●
16 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9710-9805 ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9710-9805 ● ●
16 UNION; AIR PIPE
6HH1 STD ENG(65L) MT643 A/T ALLISON(PR7) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9710-9805 ●
16 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9806-0607 ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9806-0607 ● ●
16 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 L=51 		0-92123-015-0 01 1 0608- ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 L=51 		0-92123-015-0 01 1 0608- ● ●
39 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16X2 2WAY ELBOW 		1-09654-148-1 01 1 9101-9504 ●
39 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		9-09238-310-1 01 1 9101-9504 ●
61 JOINT; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-09228-210-1 01 1 9101-9504 ●
98 BRACKET; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) 		1-47475-427-1 01 1 9101-9504 ●
98 BRACKET; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) 		1-47475-427-1 01 1 9101-9504 ●
98 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-47475-668-0 01 1 9101-9504 ●
98 BRACKET; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) 		1-47475-668-0 01 1 9101-9504 ●
98 BRACKET; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-47475-668-0 04 1 9101-9504 ●
98 BRACKET; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) 		1-47465-866-1 01 1 9101-9504 ● ●
98 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		1-47465-866-1 01 1 9101-9504 ●
98 BRACKET; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (F) M8 W/NUT 		1-47475-439-2 01 1 9101-9504 ● ●
98 BRACKET; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) WO/NUT 		1-47475-299-2 01 1 9101-9504 ● ●
98 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (A) WO/NUT 		1-47475-299-2 01 1 9101-9504 ● ●
98 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 W/NUT 		1-47475-729-0 01 1 9101-9504 ●
98 BRACKET; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (F) M8 W/NUT 		1-47475-439-2 03 1 9101-9504 ●
98 BRACKET; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-47475-704-0 01 1 9101-9504 ●
100 CONNECTOR; AIR PIPE
AIR HORN(WB8) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 9101-9504 ● ●
100 CONNECTOR; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M12 L=62.5 		9-09223-206-1 01 1 9101-9504 ● ●
100 CONNECTOR; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 L=62.5 		9-09223-206-1 01 1 9101-9504 ●
100 CONNECTOR; AIR PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9101-9504 ● ●
100 CONNECTOR; AIR PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) (C) PT1/4 & M12 ELBOW 		1-09650-117-1 02 1 9101-9302 ● ●
100 CONNECTOR; AIR PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9303-9504 ● ●
117 UNION; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (A) M12 		1-09656-310-0 01 1 9101-9102 ●
117 UNION; AIR PIPE
EXC. AIR DRYER<PS7> (A) M12 		1-09656-310-0 01 1 9101-9102 ●
117 UNION; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 		1-09656-310-1 01 1 9103-9504 ●
117 UNION; AIR PIPE
(A) M12 		1-09656-310-1 01 1 9103-9504 ●
117 UNION; AIR PIPE
AIR DRYER<PS7> EXC. CLU SYSTEM MINIPACK(B1Z),EXH BRK<NF8> (B) M12 & M14 2WAY 		1-09654-141-2 01 1 9101-9504 ● ●
123 BRACKET; UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-47475-427-1 01 1 9101-9504 ● ●
127 UNION; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		9-09223-006-1 01 1 9101-9504 ●
127 UNION; AIR PIPE
(A) 		9-09223-006-1 01 1 9101-9504 ●
127 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B) M10 & M12 ELBOW 		1-09654-111-1 01 1 9101-9504 ● ●
131 UNION; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR HORN(WB8) (C) M12 3WAY 		1-09654-137-2 01 1 9101-9504 ● ●
131 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12 3WAY 		1-09654-137-2 01 1 9101-9504 ●
131 UNION; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) (D) 		9-09228-206-1 01 1 9101-9504 ● ●
131 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) (D) 		9-09228-206-1 01 1 9101-9504 ●
131 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (G) M10 & M12 ELBOW 		1-09654-111-1 01 1 9101-9504 ● ●
131 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (F) M12 L=69 		9-09225-106-1 01 1 9101-9504 ● ●
131 UNION; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (F) M12 L=69 		9-09225-106-1 01 1 9101-9504 ● ●
131 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M12 L=69 		9-09225-106-1 01 1 9101-9504 ●
131 UNION; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M12 L=56.5 		9-09223-106-1 02 1 9101-9504 ● ●
131 UNION; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,AIR HORN(WB8) (E) M12 L=63 		9-09225-006-1 01 1 9101-9504 ● ●
131 UNION; AIR PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M12 L=40 		9-09223-006-1 01 1 9101-9504 ●
156 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14 2WAY 		1-09654-034-2 01 1 9101-9504 ●
156 UNION; AIR PIPE
AIR DRYER<PS7> (B) M12 L=40 		9-09223-006-1 01 1 9101-9504 ● ●
156 UNION; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M14 STRAIGHT 		9-09223-008-1 01 1 9101-9504 ● ●
156 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M14 STRAIGHT 		9-09223-008-1 01 1 9101-9504 ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) WO/NUT 		1-47475-299-2 02 1 9101-9101 ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) WO/NUT 		1-47475-299-2 02 1 9102-9105 ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (A) WO/NUT 		1-47475-299-2 02 1 9102-9105 ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (A) WO/NUT 		1-47475-299-2 02 1 9106-9504 ● ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) WO/NUT 		1-47475-299-2 02 1 9106-9504 ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47475-668-0 01 1 9101-9504 ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z),EXH BRK<NF8> (B) 		1-47475-668-0 02 1 9101-9504 ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (E) 		1-34656-009-0 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (C) 		1-47475-427-1 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-47475-427-1 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (F) 		1-47475-704-0 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (A) M8 W/NUT 		1-47475-729-0 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M8 W/NUT 		1-47475-729-0 01 1 9101-9504 ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (D) 		1-47475-981-0 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (G) L=60 		1-47475-455-0 01 1 9106-9504 ● ●
163 BRACKET; AIR PIPE
6HE1 TCC ENG(76L) AIR DRYER<PS7> (I) L=50 		1-47475-299-2 01 1 9707-9709 ● ●
163 BRACKET; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (I) L=50 		1-47475-299-2 01 1 9710- ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (H) 		1-09559-007-0 01 1 9102-9504 ●
178 UNION; AIR PIPE
AIR DRYER<PS7> (A) 		1-09654-059-2 01 1 9101-9504 ● ●
178 UNION; AIR PIPE
AIR DRYER<PS7> (B) M12 3WAY 		1-09654-137-2 01 1 9101-9504 ● ●
178 UNION; AIR PIPE
AIR DRYER<PS7> (C) 		1-09654-170-1 01 1 9101-9504 ● ●
178 UNION; AIR PIPE
AIR DRYER<PS7> (D) M12 		1-09656-310-1 01 1 9101-9504 ● ●
213 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) AIR HORN(WB8) (A) 		9-09228-206-1 01 1 9101-9504 ●
213 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> AIR HORN(WB8) EXC. CLU SYSTEM MINIPACK(B1Z) (A) 		9-09228-206-1 01 1 9101-9504 ●
213 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. AIR HORN(WB8) (B) 		1-09654-059-2 01 1 9101-9504 ●
213 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z),AIR HORN(WB8) (B) 		1-09654-059-2 01 1 9101-9504 ●
213 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) EXC. CLU SYSTEM MINIPACK(B1Z),EXH BRK<NF8> (B) 		1-09654-059-2 01 1 9101-9504 ●
213 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. EXH BRK<NF8> (C) M12 3WAY 		1-09654-137-2 01 1 9101-9504 ●
213 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z) (D) M12 L=69 		9-09225-106-1 01 1 9101-9504 ●
213 UNION; AIR PIPE
CLU SYSTEM MINIPACK(B1Z) EXH BRK<NF8> (E) M12 L=69 		9-09228-506-1 01 1 9101-9504 ●
234 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14 L=41 		9-09223-008-1 01 1 9101-9504 ●
234 UNION; AIR PIPE
AIR HORN(WB8) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M12 3WAY 		9-09228-706-1 01 1 9101-9504 ● ●
234 UNION; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) (C) M12 L=62.5 		9-09223-206-1 01 1 9101-9504 ● ●
234 UNION; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,EXH BRK<NF8> (D) M14 L=59.5 		9-09223-108-1 01 1 9101-9504 ● ●
234 UNION; AIR PIPE
CLU SYSTEM MINIPACK(B1Z) AIR DRYER<PS7> EXC. EXH BRK<NF8> (E) M14 2WAY 		1-09654-089-0 01 1 9101-9110 ● ●
234 UNION; AIR PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EXH BRK<NF8>,AIR DRYER<PS7> (E) M14 2WAY 		1-09654-089-0 01 1 9101-9110 ● ●
234 UNION; AIR PIPE
CLU SYSTEM MINIPACK(B1Z) EXH BRK<NF8> AIR DRYER<PS7> (F) M12 & M14X2 3WAY 		1-09656-425-1 01 1 9101-9504 ● ●
234 UNION; AIR PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (F) M12 & M14X2 3WAY 		1-09656-425-1 01 1 9101-9504 ● ●
234 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> (F) M12 & M14X2 3WAY 		1-09656-425-1 01 1 9101-9504 ●
234 UNION; AIR PIPE
EXH BRK<NF8> AIR DRYER<PS7> EXC. CLU SYSTEM MINIPACK(B1Z) (G) M14 & M12 ELBOW 		1-09654-105-1 01 1 9101-9504 ● ●
234 UNION; AIR PIPE
6BD1 STD ENG(L21),6BG1 STD ENG(16L) AIR DRYER<PS7> (G) M14 & M12 ELBOW 		1-09654-105-1 01 1 9101-9504 ● ●
234 UNION; AIR PIPE
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (H) M14 		9-09228-708-1 01 1 9101-9504 ● ●
234 UNION; AIR PIPE
6BD1 STD ENG(L21),6BG1 STD ENG(16L) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),AIR DRYER<PS7> (E) M14 2WAY 		1-09654-089-0 03 1 9101-9110 ● ●
234 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z) (E) M14 2WAY 		1-09654-089-0 03 1 9101-9110 ●
234 UNION; AIR PIPE
CLU SYSTEM MINIPACK(B1Z) AIR DRYER<PS7> EXC. EXH BRK<NF8> (E) M14 2WAY 		1-09654-089-2 01 1 9111-9504 ● ●
234 UNION; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. EXH BRK<NF8>,AIR DRYER<PS7> (E) M14 2WAY 		1-09654-089-2 01 1 9111-9504 ● ●
234 UNION; AIR PIPE
6BD1 STD ENG(L21),6BG1 STD ENG(16L) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),AIR DRYER<PS7> (E) M14 2WAY 		1-09654-089-0 01 1 9111-9504 ● ●
234 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z) (E) M14 2WAY 		1-09654-089-0 01 1 9111-9504 ●
234 UNION; AIR PIPE
6BD1 STD ENG(L21),6BG1 STD ENG(16L) CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (I) M12 & M14X2 3WAY 		1-09656-309-1 01 1 9101-9307 ● ●
234 UNION; AIR PIPE
6BD1 TC ENG(L29) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (I) M12 & M14X2 3WAY 		1-09656-309-1 01 1 9101-9307 ● ●
234 UNION; AIR PIPE
CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (I) M12 & M14X2 3WAY 		1-09656-309-1 01 1 9308-9504 ● ●
239 UNION; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10 & M12 ELBOW 		1-09654-111-1 01 1 9101-9504 ●
239 UNION; AIR PIPE
(A) M10 & M12 ELBOW 		1-09654-111-1 01 1 9101-9504 ●
239 UNION; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M12 L=56.5 		9-09223-106-1 01 1 9101-9504 ●
239 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (C) M12 L=62.5 		9-09223-206-1 01 1 9101-9504 ● ●
239 UNION; AIR PIPE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M12 L=62.5 		9-09223-206-1 01 1 9101-9504 ● ●
239 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12 L=62.5 		9-09223-206-1 01 1 9101-9504 ●
239 UNION; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) M12 L=40 		9-09223-006-1 01 1 9101-9504 ● ●
239 UNION; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) M12 L=63 		9-09225-006-1 01 1 9101-9504 ●
247 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 2WAY 		1-09650-182-1 01 1 9101-9504 ●
247 UNION; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) (B) M12 L=62.5 		9-09223-206-1 01 1 9101-9504 ●
247 UNION; AIR PIPE
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) (C) M12 L=40 		9-09223-006-1 01 1 9101-9504 ●
266 UNION; AIR PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-09650-252-1 01 1 9101-9504 ● ●
çizim 5579
130 223 126 153 130 164 217 137 250 130 130 144 144 130 242 166 170 137 250 238 126 164 37 287 242 217 53 36 212 238 223 246 33 45 170 60 237 357 166 153 45 130 144 130 126 250 274 272 272 237 33 3 2 3 2 184 4 4 1 186 185 4 1 7 6 8 184 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FLYWHEEL HSG SAE #2<E4C> L=310 		0-07846-310-1 01 1 9101-9504 ● ●
1 HOSE; FLEX,AIR TANK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLYWHEEL HSG SAE #2<E4C> L=340 		0-07846-340-1 01 1 9101-9504 ● ●
1 HOSE; FLEX,AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=400 		0-07736-400-0 01 1 9101-9504 ● ●
1 HOSE; FLEX,AIR TANK
L=380 		0-07816-380-1 01 1 9505-9701 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=380 		0-07816-380-1 01 1 9702-0605 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=380 		0-57816-380-1 01 1 0606- ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TCC ENG(76L) L=610 		0-07816-610-1 01 1 9702-9709 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=610 		0-07816-610-1 01 1 9710-0605 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=610 		0-57816-610-1 01 1 0606- ● ●
2 NUT; FLEX HOSE,AIR TANK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14 		9-99111-414-0 01 1 9101-9504 ● ●
2 NUT; FLEX HOSE,AIR TANK
M14 		9-99111-414-0 01 1 9505-9506 ● ●
2 NUT; FLEX HOSE,AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M20 		9-99111-420-0 01 1 9101-9504 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=14.2 		9-09150-514-0 01 1 9505-9506 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=20.2 		9-09150-520-0 01 1 9101-9504 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=14.2 		9-09150-514-0 01 1 9101-9312 ● ●
4 GASKET; FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=11 OD=18 		9-09572-510-0 04 1 9101-9504 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 9505-9506 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 03 1 9507-9507 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9508- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-47475-333-0 01 1 9101-9504 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9101-9504 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 		9-09110-408-0 02 1 9101-9504 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BUS BODY MAKER FUJIJUKO<Y07> L=1399 		1-49117-288-0 01 1 9607-9705 ●
33 PIPE; AIR,UNION TO AIR TANK
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> L=1399 		1-49117-288-0 01 1 9706-0109 ●
33 PIPE; AIR,UNION TO AIR TANK
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-49123-324-0 01 1 0110-0203 ●
33 PIPE; AIR,UNION TO AIR TANK
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR DRYER<PS7> L=1244 SERVICED BY L=1250 		1-47437-994-0 01 1 9101-9504 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1114 SERVICED BY L=1150 		1-47437-992-0 01 1 9101-9504 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1932 SERVICED BY L=2000 		1-47437-986-0 01 1 9101-9212 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1932 SERVICED BY L=2000 		1-49111-450-0 01 1 9301-9504 ● ●
33 PIPE; AIR,UNION TO AIR TANK
L=1342 		1-49116-046-0 01 1 9505-9606 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. BUS BODY MAKER FUJIJUKO<Y07> L=1342 		1-49116-046-0 01 1 9607-9705 ●
33 PIPE; AIR,UNION TO AIR TANK
L=1342 		1-49116-046-0 01 1 9607-9705 ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> L=1342 		1-49116-046-0 01 1 9706-9708 ● ●
33 PIPE; AIR,UNION TO AIR TANK
ISUZU M/T<X9A> EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> L=1342 		1-49116-046-0 01 1 9709-9805 ● ●
33 PIPE; AIR,UNION TO AIR TANK
MT643 A/T ALLISON(PR7) EXC. AIR DRYER<PS7> L=1342 		1-49116-046-0 01 1 9709-9805 ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> L=1342 		1-49116-046-0 01 1 9806-0109 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> 		1-49123-323-0 01 1 0110-0203 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-49123-323-0 01 1 0204- ● ●
33 PIPE; AIR,UNION TO AIR TANK
CENTER SPLIT TYPE FRAME<TLW> EXC. BUS BODY MAKER FUJIJUKO<Y07> L=1392 		1-49118-306-0 01 1 9706-0203 ● ●
33 PIPE; AIR,UNION TO AIR TANK
CENTER SPLIT TYPE FRAME<TLW> L=1392 		1-49118-306-0 01 1 0204- ● ●
36 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1001 SERVICED BY L=1100 		1-47437-967-0 01 1 9101-9212 ● ●
36 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1002 SERVICED BY L=1100 		1-47426-415-0 01 1 9301-9504 ● ●
37 PIPE; AIR,AIR TANK TO AIR TANK
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1069 		1-47484-495-0 01 1 9101-9212 ● ●
37 PIPE; AIR,AIR TANK TO AIR TANK
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1069 SERVICED BY L=1100 		1-49111-444-0 01 1 9301-9504 ● ●
37 PIPE; AIR,AIR TANK TO AIR TANK
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=532 		1-47484-497-0 01 1 9101-9212 ● ●
37 PIPE; AIR,AIR TANK TO AIR TANK
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=532 SERVICED BY L=550 		1-49111-436-0 01 1 9301-9504 ● ●
37 PIPE; AIR,AIR TANK TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=753 		1-47488-400-0 01 1 9101-9212 ● ●
37 PIPE; AIR,AIR TANK TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=753 SERVICED BY L=800 		1-47426-412-0 01 1 9301-9504 ● ●
37 PIPE; AIR,AIR TANK TO AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1105 		1-47446-231-0 01 1 9101-9504 ● ●
37 PIPE; AIR,AIR TANK TO AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=591 		1-47446-232-0 01 1 9101-9504 ● ●
37 PIPE; AIR,AIR TANK TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1026 SERVICED BY L=1100 		1-47426-415-0 01 1 9101-9101 ●
37 PIPE; AIR,AIR TANK TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=963 		1-47492-232-0 01 1 9101-9212 ●
37 PIPE; AIR,AIR TANK TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=962 SERVICED BY L=1000 		1-47426-414-0 01 1 9301-9504 ●
45 PIPE; AIR,UNION TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=538 SERVICED BY L=550 		1-47437-976-0 01 1 9101-9212 ●
45 PIPE; AIR,UNION TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=538 SERVICED BY L=550 		1-49111-436-0 01 1 9301-9504 ● ●
45 PIPE; AIR,UNION TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=524 SERVICED BY L=550 		1-47437-963-0 01 1 9101-9212 ● ●
45 PIPE; AIR,UNION TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=524 SERVICED BY L=550 		1-47426-407-0 01 1 9301-9504 ● ●
45 PIPE; AIR,UNION TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2100 SERVICED BY L=2500 		1-47434-479-0 01 1 9101-9212 ●
45 PIPE; AIR,UNION TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2100 SERVICED BY L=2500 		1-47426-423-0 01 1 9301-9504 ●
53 PIPE; AIR,AIR TANK TO VALVE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=288 		1-47482-821-0 01 1 9101-9212 ● ●
53 PIPE; AIR,AIR TANK TO VALVE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=288 SERVICED BY L=350 		1-47426-403-0 01 1 9301-9504 ● ●
60 PIPE; AIR,P/VALVE TO JOINT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=559 		1-47482-822-0 01 1 9101-9212 ● ●
60 PIPE; AIR,P/VALVE TO JOINT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=559 SERVICED BY L=600 		1-47426-408-0 01 1 9301-9504 ● ●
126 PIPE; AIR,UNION TO UNION
WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1421 SERVICED BY L=1500 		1-47434-391-0 01 1 9101-9504 ●
126 PIPE; AIR,UNION TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> L=336 SERVICED BY L=350 		9-47415-348-0 01 1 9101-9504 ● ●
126 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2327 SERVICED BY L=2350 		1-47434-397-0 01 1 9101-9504 ● ●
126 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2327 SERVICED BY L=2350 		1-47434-397-0 01 1 9101-9504 ●
126 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1921 SERVICED BY L=2000 		1-47434-395-0 01 1 9101-9504 ● ●
126 PIPE; AIR,UNION TO UNION
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=3027 SERVICED BY L=3200 		1-47434-401-0 01 1 9101-9504 ● ●
130 PIPE; AIR,UNION TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1274 SERVICED BY L=1370 		1-47434-390-0 01 1 9101-9504 ●
130 PIPE; AIR,UNION TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=432 SERVICED BY L=460 		9-47415-349-0 01 1 9101-9504 ●
130 PIPE; AIR,UNION TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=935 SERVICED BY L=1000 		1-47434-386-0 01 1 9101-9504 ●
130 PIPE; AIR,UNION TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=343 SERVICED BY L=350 		9-47415-348-0 01 1 9101-9504 ●
130 PIPE; AIR,UNION TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1499 SERVICED BY L=1500 		1-47434-391-0 01 1 9101-9504 ● ●
130 PIPE; AIR,UNION TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1499 SERVICED BY L=1500 		1-47434-391-0 01 1 9101-9504 ●
130 PIPE; AIR,UNION TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> L=272 SERVICED BY L=350 		9-47415-348-0 01 1 9101-9504 ● ●
130 PIPE; AIR,UNION TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> L=539 SERVICED BY L=550 		9-47415-351-0 01 1 9101-9504 ● ●
130 PIPE; AIR,UNION TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=810 SERVICED BY L=900 		1-47434-385-0 01 1 9101-9504 ● ●
130 PIPE; AIR,UNION TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=597 SERVICED BY L=600 		9-47415-352-0 01 1 9101-9504 ● ●
130 PIPE; AIR,UNION TO UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1499 SERVICED BY L=1500 		1-47434-391-0 01 1 9101-9504 ●
130 PIPE; AIR,UNION TO UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=539 SERVICED BY L=550 		9-47415-351-0 01 1 9101-9504 ●
130 PIPE; AIR,UNION TO UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=597 SERVICED BY L=600 		9-47415-352-0 01 1 9101-9504 ●
130 PIPE; AIR,UNION TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1274 SERVICED BY L=1370 		1-47434-390-0 01 1 9101-9504 ●
130 PIPE; AIR,UNION TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=517 SERVICED BY L=550 		9-47415-351-0 01 1 9101-9504 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=440 L=440 		0-07210-440-0 01 1 9101-9504 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=440 L=440 		0-07210-440-0 01 1 9101-9504 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 01 1 9505-9812 ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 02 1 9901-0203 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 01 1 0204-0605 ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-57210-810-0 01 1 0606- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9901-0203 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 01 1 9901-0203 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> L=440 		1-09363-400-0 02 1 9101-9504 ● ●
144 PIPE; AIR,UNION TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=594 SERVICED BY L=600 		9-47415-352-0 01 1 9101-9504 ● ●
144 PIPE; AIR,UNION TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=594 SERVICED BY L=600 		9-47415-352-0 01 1 9101-9504 ●
153 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=604 SERVICED BY L=660 		1-47437-954-0 01 1 9101-9212 ●
153 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=604 SERVICED BY L=660 		1-47426-381-0 01 1 9301-9504 ● ●
153 PIPE; AIR,AIR TANK TO UNION
AIR DRYER<PS7> L=1236 		1-47489-494-0 01 1 9101-9105 ● ●
153 PIPE; AIR,AIR TANK TO UNION
AIR DRYER<PS7> L=1277 		1-47493-110-0 01 1 9106-9504 ● ●
153 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1325 SERVICED BY L=1400 		1-47434-411-0 01 1 9101-9212 ● ●
153 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1325 SERVICED BY L=1400 		1-47434-411-0 01 1 9101-9212 ●
153 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1325 SERVICED BY L=1400 		1-47426-389-0 01 1 9301-9504 ● ●
153 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1325 SERVICED BY L=1400 		1-47426-389-0 01 1 9301-9504 ●
164 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> L=1146 SERVICED BY L=1200 		1-47434-388-0 01 1 9101-9101 ● ●
164 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> L=1176 SERVICED BY L=1200 		1-47434-388-0 01 1 9102-9105 ● ●
164 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> L=1116 SERVICED BY L=1200 		1-47434-388-0 01 1 9106-9504 ● ●
164 PIPE; AIR,UNION TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=946 SERVICED BY L=1000 		1-47437-956-0 01 1 9101-9212 ● ●
164 PIPE; AIR,UNION TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=946 SERVICED BY L=1000 		1-47437-956-0 01 1 9101-9212 ●
164 PIPE; AIR,UNION TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR DRYER<PS7> L=484 SERVICED BY L=500 		9-47415-380-0 01 1 9101-9212 ● ●
164 PIPE; AIR,UNION TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=484 SERVICED BY L=500 		9-47415-380-0 01 1 9101-9212 ●
164 PIPE; AIR,UNION TO UNION
CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR DRYER<PS7> L=484 SERVICED BY L=500 		1-47426-376-0 01 1 9301-9504 ● ●
164 PIPE; AIR,UNION TO UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. AIR DRYER<PS7> L=484 SERVICED BY L=500 		1-47426-376-0 01 1 9301-9504 ● ●
164 PIPE; AIR,UNION TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=842 SERVICED BY L=900 		1-47426-384-0 01 1 9301-9504 ● ●
164 PIPE; AIR,UNION TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=842 SERVICED BY L=900 		1-47426-384-0 01 1 9301-9504 ●
164 PIPE; AIR,UNION TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=724 SERVICED BY L=800 		1-47434-406-0 01 1 9101-9212 ● ●
164 PIPE; AIR,UNION TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=724 SERVICED BY L=800 		1-47426-383-0 01 1 9301-9504 ● ●
164 PIPE; AIR,UNION TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2376 SERVICED BY L=2400 		1-47437-959-0 01 1 9101-9212 ● ●
164 PIPE; AIR,UNION TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2376 SERVICED BY L=2400 		1-47426-395-0 01 1 9301-9504 ● ●
166 PIPE; AIR,UNION TO GOV
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1508 		1-47483-606-0 01 1 9101-9212 ●
166 PIPE; AIR,UNION TO GOV
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1508 		1-47496-723-0 01 1 9301-9504 ● ●
166 PIPE; AIR,UNION TO GOV
AIR DRYER<PS7> L=683 		1-47489-501-0 01 1 9101-9101 ● ●
166 PIPE; AIR,UNION TO GOV
AIR DRYER<PS7> L=653 		1-47492-569-0 01 1 9102-9212 ● ●
166 PIPE; AIR,UNION TO GOV
AIR DRYER<PS7> L=653 		1-47496-725-0 01 1 9301-9504 ● ●
166 PIPE; AIR,UNION TO GOV
AIR DRYER<PS7> L=463 		1-47489-503-0 01 1 9101-9212 ● ●
166 PIPE; AIR,UNION TO GOV
AIR DRYER<PS7> L=463 		1-47496-724-0 01 1 9301-9504 ● ●
166 PIPE; AIR,UNION TO GOV
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR DRYER<PS7> L=604 		1-47449-404-0 01 1 9101-9212 ● ●
166 PIPE; AIR,UNION TO GOV
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=604 		1-47449-404-0 01 1 9101-9212 ●
166 PIPE; AIR,UNION TO GOV
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR DRYER<PS7> L=604 		1-47496-722-0 01 1 9301-9504 ● ●
166 PIPE; AIR,UNION TO GOV
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=604 		1-47496-722-0 01 1 9301-9504 ●
166 PIPE; AIR,UNION TO GOV
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=228 		1-47443-137-0 01 1 9101-9212 ● ●
166 PIPE; AIR,UNION TO GOV
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=228 		1-47496-721-0 01 1 9301-9504 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> L=400 		1-47449-723-0 01 1 9101-9212 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> L=400 		1-47496-728-0 01 1 9301-9504 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> L=510 		1-47483-635-0 01 1 9101-9101 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> L=510 		1-47483-635-0 01 1 9101-9101 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. AIR DRYER<PS7> L=510 		1-47483-635-0 01 1 9102-9212 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> L=510 		1-47483-635-0 01 1 9102-9212 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. AIR DRYER<PS7> L=510 		1-47496-730-0 01 1 9301-9504 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> L=510 		1-47496-730-0 01 1 9301-9504 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1067 		1-47445-216-0 01 1 9101-9212 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1067 		1-47496-727-0 01 1 9301-9504 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
MT643 A/T ALLISON(PR7) L=422 		1-47482-838-0 01 1 9101-9212 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
MT643 A/T ALLISON(PR7) L=422 		1-47496-729-0 01 1 9301-9504 ● ●
184 HOSE; FLEX,AIR GOV
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=380 		0-07494-380-1 01 1 9101-9504 ● ●
184 HOSE; FLEX,AIR GOV
L=300 		0-07120-300-0 01 1 9505-9701 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=300 		0-07120-300-0 01 1 9702-0605 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=300 		0-57120-300-0 01 1 0606- ● ●
184 HOSE; FLEX,AIR GOV
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=370 		0-07432-370-0 01 1 9101-9504 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=500 		0-07120-500-0 01 1 9702-9705 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TCC ENG(76L) L=500 		0-07120-500-0 01 1 9706-9709 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=500 		0-07120-500-0 01 1 9710- ● ●
185 NUT; FLEX HOSE,AIR GOV
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14 		9-99111-414-0 01 1 9101-9504 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=14.2 		9-09150-514-0 01 1 9101-9312 ● ●
212 PIPE; AIR,UNION TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z),EXH BRK<NF8> L=932 SERVICED BY L=1000 		1-47434-386-0 01 1 9101-9504 ●
217 PIPE; VAC,UNION TO MAG VLV
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=516 SERVICED BY L=550 		9-47415-351-0 01 1 9101-9504 ●
217 PIPE; VAC,UNION TO MAG VLV
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> L=343 SERVICED BY L=350 		9-47415-348-0 01 1 9101-9504 ● ●
217 PIPE; VAC,UNION TO MAG VLV
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=626 SERVICED BY L=660 		1-47437-954-0 01 1 9101-9212 ● ●
217 PIPE; VAC,UNION TO MAG VLV
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=626 SERVICED BY L=660 		1-47426-381-0 01 1 9301-9504 ● ●
217 PIPE; VAC,UNION TO MAG VLV
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=298 SERVICED BY L=350 		9-47415-377-0 01 1 9101-9212 ● ●
217 PIPE; VAC,UNION TO MAG VLV
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=298 SERVICED BY L=350 		1-47426-373-0 01 1 9301-9504 ● ●
223 PIPE; AIR,MAG VLV TO CONT CYL
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> ISUZU M/T<X9A> L=471 SERVICED BY L=500 		9-47415-350-0 01 1 9101-9504 ●
223 PIPE; AIR,MAG VLV TO CONT CYL
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> L=581 SERVICED BY L=600 		9-47415-352-0 01 1 9101-9504 ● ●
223 PIPE; AIR,MAG VLV TO CONT CYL
MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> L=581 SERVICED BY L=600 		9-47415-352-0 01 1 9101-9504 ● ●
223 PIPE; AIR,MAG VLV TO CONT CYL
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> ISUZU M/T<X9A> L=581 SERVICED BY L=600 		9-47415-352-0 01 1 9101-9504 ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> ISUZU M/T<X9A> SERVICED BY L=2000 		1-47434-493-0 01 1 9101-9504 ●
237 PIPE; AIR,FLEX HOSE TO UNION
AIR DRYER<PS7> ISUZU M/T<X9A> L=772 		1-49116-042-0 01 1 9505-9701 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> L=772 		1-49116-042-0 01 1 9702- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. AIR DRYER<PS7> L=1939 		1-49116-041-0 01 1 9505-9603 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. AIR DRYER<PS7> L=1938 		1-49117-328-0 01 1 9604-9701 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> L=1938 		1-49117-328-0 01 1 9702-9705 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1938 		1-49117-328-0 01 1 9706-0207 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> 		1-49123-678-0 01 1 0208- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> SERVICED BY L=2000 		1-47434-493-0 01 1 9101-9504 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 		1-47434-493-0 01 1 9101-9504 ●
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> SERVICED BY L=1300 		1-47434-486-0 01 1 9101-9212 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> SERVICED BY L=1300 		1-49111-446-0 01 1 9301-9504 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1947 SERVICED BY L=2000 		1-47434-493-0 01 1 9101-9504 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=711 		1-49117-913-0 01 1 9702-9705 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=712 		1-49118-396-0 01 1 9706-9706 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=737 		1-49118-570-0 01 1 9707-9709 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> L=737 		1-49118-570-0 01 1 9710- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) CENTER SPLIT TYPE FRAME<TLW> EXC. AIR DRYER<PS7> L=904 		1-49118-305-0 01 1 9706- ● ●
238 PIPE; AIR,UNION TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> L=740 SERVICED BY L=800 		1-47434-384-0 01 1 9101-9504 ● ●
238 PIPE; AIR,UNION TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1328 SERVICED BY L=1370 		1-47434-390-0 01 1 9101-9504 ● ●
242 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=521 		1-47483-595-0 01 1 9101-9212 ● ●
242 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=522 		1-47496-711-0 01 1 9301-9504 ● ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=501 SERVICED BY L=550 		1-47437-953-0 01 1 9101-9212 ● ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=501 SERVICED BY L=550 		1-47426-377-0 01 1 9301-9504 ● ●
242 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=529 		1-47491-652-0 01 1 9101-9212 ●
242 PIPE; AIR,AIR TANK TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=529 SERVICED BY L=522 		1-47496-711-0 01 1 9301-9504 ●
246 PIPE; AIR,UNION TO UNION
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2210 SERVICED BY L=2500 		1-47434-479-0 01 1 9101-9212 ●
246 PIPE; AIR,UNION TO UNION
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2210 SERVICED BY L=2500 		1-47426-423-0 01 1 9301-9504 ●
246 PIPE; AIR,UNION TO UNION
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) L=2409 SERVICED BY L=2500 		1-47434-398-0 01 1 9101-9504 ●
246 PIPE; AIR,UNION TO UNION
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) L=2381 SERVICED BY L=2500 		1-47434-398-0 01 1 9101-9504 ●
246 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> ISUZU M/T<X9A> L=2535 		1-49116-045-0 01 1 9505-9603 ● ●
246 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> ISUZU M/T<X9A> L=2534 		1-49117-329-0 01 1 9604-9701 ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> L=2534 		1-49117-329-0 01 1 9702-9705 ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2534 		1-49117-329-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2534 		1-49117-329-0 01 1 9707-0109 ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2534 		1-49117-329-0 01 1 9707-0109 ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2235 		1-49123-319-0 01 1 0110-0203 ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2235 		1-49123-319-0 01 1 0110-0203 ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2235 		1-49123-319-0 01 1 0204- ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2235 		1-49123-319-0 01 1 0204- ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=2729 		1-49117-916-0 01 1 9702-9705 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2731 		1-49118-392-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2734 		1-49118-571-0 01 1 9707-9709 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2734 		1-49118-571-0 01 1 9710-0109 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2434 		1-49123-322-0 01 1 0110- ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1659 		1-49118-302-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1664 		1-49118-602-0 01 1 9707-9709 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1664 		1-49118-602-0 01 1 9710-9805 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> L=1664 		1-49118-602-0 01 1 9806- ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> L=1974 		1-49118-029-0 01 1 9703-9705 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) ISUZU M/T<X9A> EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1976 		1-49118-394-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) ISUZU M/T<X9A> EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1941 		1-49118-569-0 01 1 9707-9709 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1941 		1-49118-569-0 01 1 9710-9805 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> EXC. AIR DRYER<PS7> L=904 		1-49118-303-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1941 		1-49118-569-0 01 1 9806-0109 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1642 		1-49123-321-0 01 1 0110- ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> EXC. AIR DRYER<PS7> L=879 		1-49118-603-0 01 1 9707-9709 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> EXC. AIR DRYER<PS7> L=879 		1-49118-603-0 01 1 9710-9805 ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1501 		1-49118-304-0 01 1 9706-9805 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=879 		1-49118-603-0 01 1 9806- ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1501 		1-49118-304-0 01 1 9806- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=657 SERVICED BY L=700 		1-47434-466-0 01 1 9101-9504 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=657 SERVICED BY L=700 		1-47434-466-0 01 1 9101-9504 ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=582 SERVICED BY L=650 		9-47415-353-0 01 1 9101-9504 ● ●
272 PIPE; AIR,MAG VLV TO UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) L=435 		1-47486-275-0 01 1 9101-9504 ●
272 PIPE; AIR,MAG VLV TO UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) L=443 SERVICED BY L=460 		9-47415-349-0 01 1 9101-9504 ●
272 PIPE; AIR,MAG VLV TO UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) L=975 SERVICED BY L=1000 		1-47434-386-0 01 1 9101-9504 ●
272 PIPE; AIR,MAG VLV TO UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) L=435 		1-47486-274-0 01 1 9101-9504 ●
274 PIPE; AIR UNION TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) L=375 		1-47483-603-0 01 1 9101-9504 ● ●
287 PIPE; AIR,MAG VLV
AIR HORN(WB8) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=360 		1-47486-276-0 01 1 9101-9504 ● ●
357 PIPE; AIR,UNION TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1401 SERVICED BY L=1400 		1-47434-411-0 01 1 9101-9212 ●
357 PIPE; AIR,UNION TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1401 SERVICED BY L=1400 		1-47426-389-0 01 1 9301-9504 ● ●
357 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> L=839 SERVICED BY L=900 		1-47434-385-0 01 1 9101-9101 ● ●
357 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> L=806 SERVICED BY L=900 		1-47434-385-0 01 1 9102-9105 ● ●
357 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> L=833 SERVICED BY L=900 		1-47434-385-0 01 1 9106-9504 ● ●
357 PIPE; AIR,UNION TO UNION
AIR HORN(WB8) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=483 SERVICED BY L=500 		9-47415-350-0 01 1 9101-9504 ● ●
çizim 5580
444 51 374 12 296 11 184 258 4 5 88 4 229 137 258 90 128 141 89 80 401 163 221 225 226 222 258 258 149 343 80 80 444 444
BalonParca AdiParca NoAdetTipApplied Date A B
4 GASKET; FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=11 OD=18 		9-09572-510-0 04 1 9101-9504 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 9505-9506 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 03 1 9507-9507 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9508- ● ●
5 SLEEVE; FLEX HOSE
6HE1 TCC ENG(76L) ID=23 OD=27 L=40 		1-09337-015-0 01 1 9705-9709 ● ●
5 SLEEVE; FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ID=23 OD=27 L=40 		1-09337-015-0 01 1 9710- ● ●
11 UNION; AIR PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M20 & M22 L=60 (2-WAY) 		1-09654-203-1 01 1 9101-9504 ● ●
11 UNION; AIR PIPE
M20 & M22 L=60 (2-WAY) 		1-09654-203-1 01 1 9505- ● ●
12 NUT; UNION
(B) 2-WAY M14 		9-99111-414-0 01 1 9505-0512 ● ●
12 NUT; UNION
(B) 2-WAY M14 		0-91111-514-0 01 1 0601- ● ●
12 NUT; UNION
6HE1 TCC ENG(76L) (A) M22 		9-09111-422-0 01 1 9702-9705 ● ●
12 NUT; UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) M22 		9-09111-422-0 01 1 9706-9709 ● ●
12 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) M22 		9-09111-422-0 01 1 9710-0512 ● ●
12 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) M22 		0-91111-522-0 01 1 0601- ● ●
51 UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9703-9709 ● ●
51 UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9710- ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 02 1 9505-9705 ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9706-9812 ● ●
80 UNION; 3 WAY
DUAL AIR GAUGE<UG2> DIN8 RC1/4 & M8 		1-09660-735-1 02 1 9901-0203 ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0204-0306 ● ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
EXC. CENTER SPLIT TYPE FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) RETARDER BRK<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) EXC. DUAL AIR GAUGE<UG2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
EXC. DUAL AIR GAUGE<UG2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
DUAL AIR GAUGE<UG2> AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ●
88 GASKET; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) ID=14.2 OD=23.0 		9-09572-014-0 01 1 9505- ● ●
89 BOLT; TUBE CLIP
CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 02 1 9710-0512 ● ●
89 BOLT; TUBE CLIP
CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
90 NUT; TUBE CLIP
CENTER SPLIT TYPE FRAME<TLW> M8 FLANGE 		0-91150-108-0 02 1 9710-0602 ● ●
90 NUT; TUBE CLIP
CENTER SPLIT TYPE FRAME<TLW> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
128 NUT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> (A) M10 FLANGE 		0-91150-210-0 01 1 9901-0203 ●
128 NUT; PIPE UNION
(A) M10 FLANGE 		0-91150-210-0 01 1 9901-0203 ●
128 NUT; PIPE UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B) M12 		9-09840-280-0 01 1 9101-9504 ● ●
128 NUT; PIPE UNION
(A) M10 		9-09110-410-0 01 1 9505-9606 ● ●
128 NUT; PIPE UNION
(A) M10 FLANGE 		0-91150-210-0 01 1 9607-9812 ● ●
128 NUT; PIPE UNION
DUAL AIR GAUGE<UG2> (A) M10 FLANGE 		0-91150-210-0 02 1 9901-0203 ●
128 NUT; PIPE UNION
(A) M10 FLANGE 		0-91150-210-0 01 1 0204-0602 ● ●
128 NUT; PIPE UNION
(A) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=440 L=440 		0-07210-440-0 01 1 9101-9504 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=440 L=440 		0-07210-440-0 01 1 9101-9504 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 01 1 9505-9812 ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 02 1 9901-0203 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 01 1 0204-0605 ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-57210-810-0 01 1 0606- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9901-0203 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 01 1 9901-0203 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> L=440 		1-09363-400-0 02 1 9101-9504 ● ●
141 UNION; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> STRAIGHT M10 & M12 M10 & M12 STRAIGHT 		1-09650-270-1 01 1 9901-0203 ●
141 UNION; FLEX HOSE
STRAIGHT M10 & M12 M10 & M12 STRAIGHT 		1-09650-270-1 01 1 9901-0203 ●
141 UNION; FLEX HOSE
STRAIGHT M10 & M12 M10 & M12 STRAIGHT 		1-09650-270-1 01 1 9505-9812 ● ●
141 UNION; FLEX HOSE
DUAL AIR GAUGE<UG2> STRAIGHT M10 & M12 M10 & M12 STRAIGHT 		1-09650-270-1 02 1 9901-0203 ●
141 UNION; FLEX HOSE
STRAIGHT M10 & M12 M10 & M12 STRAIGHT 		1-09650-270-1 01 1 0204- ● ●
149 BOLT; TUBE CLIP
CLU SYSTEM MINIPACK(B1Z) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512 ● ●
149 BOLT; TUBE CLIP
CLU SYSTEM MINIPACK(B1Z) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) WO/NUT 		1-47475-299-2 02 1 9101-9101 ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) WO/NUT 		1-47475-299-2 02 1 9102-9105 ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (A) WO/NUT 		1-47475-299-2 02 1 9102-9105 ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (A) WO/NUT 		1-47475-299-2 02 1 9106-9504 ● ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) WO/NUT 		1-47475-299-2 02 1 9106-9504 ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47475-668-0 01 1 9101-9504 ●
163 BRACKET; AIR PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z),EXH BRK<NF8> (B) 		1-47475-668-0 02 1 9101-9504 ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (E) 		1-34656-009-0 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (C) 		1-47475-427-1 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-47475-427-1 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (F) 		1-47475-704-0 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (A) M8 W/NUT 		1-47475-729-0 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M8 W/NUT 		1-47475-729-0 01 1 9101-9504 ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (D) 		1-47475-981-0 01 1 9101-9504 ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (G) L=60 		1-47475-455-0 01 1 9106-9504 ● ●
163 BRACKET; AIR PIPE
6HE1 TCC ENG(76L) AIR DRYER<PS7> (I) L=50 		1-47475-299-2 01 1 9707-9709 ● ●
163 BRACKET; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (I) L=50 		1-47475-299-2 01 1 9710- ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (H) 		1-09559-007-0 01 1 9102-9504 ●
184 HOSE; FLEX,AIR GOV
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=380 		0-07494-380-1 01 1 9101-9504 ● ●
184 HOSE; FLEX,AIR GOV
L=300 		0-07120-300-0 01 1 9505-9701 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=300 		0-07120-300-0 01 1 9702-0605 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=300 		0-57120-300-0 01 1 0606- ● ●
184 HOSE; FLEX,AIR GOV
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=370 		0-07432-370-0 01 1 9101-9504 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=500 		0-07120-500-0 01 1 9702-9705 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TCC ENG(76L) L=500 		0-07120-500-0 01 1 9706-9709 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=500 		0-07120-500-0 01 1 9710- ● ●
221 BOLT; BRKT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ●
221 BOLT; BRKT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9504 ● ●
221 BOLT; BRKT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z),EXH BRK<NF8> (B) M8X28 W/LK WASHER 		9-01900-828-0 01 1 9101-9204 ●
221 BOLT; BRKT
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z),EXH BRK<NF8> (B) M8X28 W/LK WASHER 		0-50040-828-0 01 1 9205-9504 ●
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X25 W/LK WASHER 		9-01900-825-0 03 1 9101-9204 ● ●
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X25 W/LK WASHER 		0-50040-825-0 03 1 9205-9504 ● ●
221 BOLT; BRKT
6HE1 TCC ENG(76L) AIR DRYER<PS7> (C) M8X40 FLANGE 		0-28680-840-0 01 1 9703-9709 ● ●
221 BOLT; BRKT
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (C) M8X40 FLANGE 		0-28680-840-0 01 1 9710-0512 ● ●
221 BOLT; BRKT
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (C) M8X40 FLANGE 		0-28650-840-0 01 1 0601- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCC ENG(76L) L=1167 SERVICED BY L=1200 		1-47428-816-0 01 1 9702-9705 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCC ENG(76L) L=1157 SERVICED BY L=1200 		1-47426-352-0 01 1 9706-9709 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1157 SERVICED BY L=1200 		1-47426-352-0 01 1 9710- ● ●
225 UNION; AIR PIPE
6HE1 TCC ENG(76L) 		1-09654-185-1 01 1 9702-9705 ● ●
225 UNION; AIR PIPE
6HE1 TCC ENG(76L) M12 2WAY 		1-09654-257-1 01 1 9706-9709 ● ●
225 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M12 2WAY 		1-09654-257-1 01 1 9710-9903 ● ●
225 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M12 L=66.5 		9-09223-306-1 01 1 9904-0607 ● ●
225 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M12 L=66.5 		0-92113-306-0 01 1 0608- ● ●
226 NUT; UNION
6HE1 TCC ENG(76L) M12 FLANGE 		0-91150-212-0 01 1 9702-9709 ● ●
226 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M12 FLANGE 		0-91150-212-0 01 1 9710-9808 ● ●
226 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M12 		9-09840-280-0 01 1 9809- ● ●
229 ADAPTER; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) M14 & PT1/4 		9-48319-149-0 01 1 9505-0206 ● ●
229 ADAPTER; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0207- ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
EXC. BUS BODY MAKER FUJIJUKO<Y07> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9607-9705 ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9607-9705 ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9706-9812 ● ●
258 CONNECTOR; NYLON TUBE
EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 9505-9812 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> EXC. DUAL AIR GAUGE<UG2> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 0204- ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2>,AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) EXC. AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2>,AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) EXC. AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9505-9709 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. AUSTRALIA EQUIPMENT<RR3> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9809-0203 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9809-0203 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) AUSTRALIA EQUIPMENT<RR3> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9809-0203 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ●
296 TUBE; NYLON
(I) SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 9505- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9505- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9505- ● ●
296 TUBE; NYLON
(F) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9505- ● ●
296 TUBE; NYLON
(G) SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9505- ● ●
296 TUBE; NYLON
(C) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9505- ● ●
296 TUBE; NYLON
(J) SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9505- ● ●
296 TUBE; NYLON
(D) SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9505- ● ●
296 TUBE; NYLON
(H) SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 9505- ● ●
296 TUBE; NYLON
(J) SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 9705- ● ●
343 UNION; NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> BUS BODY MAKER FUJIJUKO<Y07> EXC. OVERHEAD COOLING SYSTEM<YS9> 		1-09660-799-0 01 1 9510-0203 ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 02 1 9901-0203 ●
374 CONNECTOR
6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) M20 & PT1/4 		9-09902-386-0 01 1 9703-9709 ● ●
374 CONNECTOR
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) M20 & PT1/4 		9-09902-386-0 01 1 9710- ● ●
401 CONNECTOR; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9901-0203 ●
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9901-0203 ●
401 CONNECTOR; FLEX HOSE
M12 ADAPTOR 		1-09660-662-1 01 1 9505-9506 ● ●
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9507-9812 ● ●
401 CONNECTOR; FLEX HOSE
DUAL AIR GAUGE<UG2> DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9901-0203 ●
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0204- ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 9505-9705 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
DUAL AIR GAUGE<UG2> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
DUAL AIR GAUGE<UG2> M8X16 FLANGE 		0-28080-816-0 02 1 9901-0203 ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HE1 TCC ENG(76L) M8X20 FLANGE 		0-28680-820-0 01 1 9702-9705 ● ●
444 BOLT; UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> M8X20 FLANGE 		0-28680-820-0 01 1 9706-9709 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M8X20 FLANGE 		0-28680-820-0 01 1 9710-0512 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
çizim 36908
80 336 444 258 296 296 296 296 434 296 296 296 296 296 296 296 296 296 258 447
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 02 1 9505-9705 ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9706-9812 ● ●
80 UNION; 3 WAY
DUAL AIR GAUGE<UG2> DIN8 RC1/4 & M8 		1-09660-735-1 02 1 9901-0203 ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0204-0306 ● ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
EXC. CENTER SPLIT TYPE FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) RETARDER BRK<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) EXC. DUAL AIR GAUGE<UG2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
EXC. DUAL AIR GAUGE<UG2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
DUAL AIR GAUGE<UG2> AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
EXC. BUS BODY MAKER FUJIJUKO<Y07> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9607-9705 ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9607-9705 ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9706-9812 ● ●
258 CONNECTOR; NYLON TUBE
EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 9505-9812 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> EXC. DUAL AIR GAUGE<UG2> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 0204- ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2>,AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) EXC. AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2>,AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) EXC. AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9505-9709 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. AUSTRALIA EQUIPMENT<RR3> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9809-0203 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9809-0203 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) AUSTRALIA EQUIPMENT<RR3> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9809-0203 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ●
296 TUBE; NYLON
(I) SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 9505- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9505- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9505- ● ●
296 TUBE; NYLON
(F) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9505- ● ●
296 TUBE; NYLON
(G) SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9505- ● ●
296 TUBE; NYLON
(C) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9505- ● ●
296 TUBE; NYLON
(J) SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9505- ● ●
296 TUBE; NYLON
(D) SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9505- ● ●
296 TUBE; NYLON
(H) SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 9505- ● ●
296 TUBE; NYLON
(J) SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 9705- ● ●
336 BOLT; PIPE UNION
DUAL AIR GAUGE<UG2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
434 CLIP
L=250 		1-09707-126-0 02 1 9505-9812 ● ●
434 CLIP
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT<A56> L=250 		1-09707-126-0 02 1 9505-9812 ● ●
434 CLIP
L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
6HE1 TC ENG(57L) L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
EXC. AUSTRALIA EQUIPMENT<RR3> L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
RETARDER BRK<RE2> L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
DUAL AIR GAUGE<UG2> L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
L=250 		1-09707-126-0 02 1 0204- ● ●
434 CLIP
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT<A56> L=250 		1-09707-126-0 02 1 0204- ● ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9505-9506 ● ●
434 CLIP
RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9505-9506 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9505-9506 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9505-9506 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9507-9507 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9507-9507 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9508-9706 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9508-9706 ● ●
434 CLIP
RETARDER BRK<RE2> L=250 		1-09707-126-0 01 1 9508-9706 ● ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9508-9706 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9707-9708 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9707-9708 ● ●
434 CLIP
RETARDER BRK<RE2> L=250 		1-09707-126-0 01 1 9707-9708 ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9707-9708 ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9707-9708 ●
434 CLIP
ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9707-9708 ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9709-9806 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9709-9806 ● ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9709-9806 ● ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9709-9806 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
6HE1 TC ENG(57L) L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
MLD7Q M/T(X5K),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9810-9812 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9810-9812 ● ●
434 CLIP
6HE1 TC ENG(57L) L=250 		1-09707-126-0 01 1 9810-9812 ● ●
434 CLIP
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9810-9812 ● ●
434 CLIP
RETARDER BRK<RE2> L=250 		1-09707-126-0 01 1 9810-9812 ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9810-9812 ●
434 CLIP
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT<A56> L=250 		1-09707-126-0 02 1 9901-0203 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
6HE1 TC ENG(57L) L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> L=250 		1-09707-126-0 03 1 9505-9506 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 9505-9705 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
DUAL AIR GAUGE<UG2> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
DUAL AIR GAUGE<UG2> M8X16 FLANGE 		0-28080-816-0 02 1 9901-0203 ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HE1 TCC ENG(76L) M8X20 FLANGE 		0-28680-820-0 01 1 9702-9705 ● ●
444 BOLT; UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> M8X20 FLANGE 		0-28680-820-0 01 1 9706-9709 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M8X20 FLANGE 		0-28680-820-0 01 1 9710-0512 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
447 PLUG; UNION
DUAL AIR GAUGE<UG2> PT1/4 		9-99204-513-0 01 1 9901-0203 ●
447 PLUG; UNION
DUAL AIR GAUGE<UG2> AIR HORN(WB8) PT1/4 		9-99204-513-0 01 1 9901-0203 ●
çizim 37037
33 296 296 296 296 16 296 222 202 145 246 237 312 369 296 28 16 17 12 21 21 345 374
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
(B) 2-WAY M14 		9-99111-414-0 01 1 9505-0512 ● ●
12 NUT; UNION
(B) 2-WAY M14 		0-91111-514-0 01 1 0601- ● ●
12 NUT; UNION
6HE1 TCC ENG(76L) (A) M22 		9-09111-422-0 01 1 9702-9705 ● ●
12 NUT; UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) M22 		9-09111-422-0 01 1 9706-9709 ● ●
12 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) M22 		9-09111-422-0 01 1 9710-0512 ● ●
12 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) M22 		0-91111-522-0 01 1 0601- ● ●
16 UNION; AIR PIPE
(A) M22 2WAY 		1-09654-212-1 01 1 9505-9701 ● ●
16 UNION; AIR PIPE
6HH1 STD ENG(65L) (A) M22 2WAY 		1-09654-212-1 01 1 9702-9705 ● ●
16 UNION; AIR PIPE
6HH1 STD ENG(65L) EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M22 2WAY 		1-09654-212-1 01 1 9706- ● ●
16 UNION; AIR PIPE
AIR DRYER<PS7> ISUZU M/T<X9A> (B) M22 		9-09235-215-1 01 1 9505-9805 ● ●
16 UNION; AIR PIPE
AIR DRYER<PS7> (B) M22 		9-09235-215-1 01 1 9806-0607 ● ●
16 UNION; AIR PIPE
AIR DRYER<PS7> (B) M22X2 ELBOW 		0-92135-215-0 01 1 0608- ● ●
16 UNION; AIR PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) M22 		9-09233-015-1 01 1 9101-9504 ● ●
16 UNION; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) M20 STRAIGHT 		9-09233-012-1 01 1 9101-9504 ● ●
16 UNION; AIR PIPE
6HE1 TCC ENG(76L) (C) M22 		9-09233-015-1 01 1 9702-9705 ● ●
16 UNION; AIR PIPE
6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9706-9708 ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9706-9708 ● ●
16 UNION; AIR PIPE
6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9709-9709 ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9709-9709 ● ●
16 UNION; AIR PIPE
6HH1 STD ENG(65L) MT643 A/T ALLISON(PR7) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9709-9709 ●
16 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9710-9805 ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9710-9805 ● ●
16 UNION; AIR PIPE
6HH1 STD ENG(65L) MT643 A/T ALLISON(PR7) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9710-9805 ●
16 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9806-0607 ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9806-0607 ● ●
16 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 L=51 		0-92123-015-0 01 1 0608- ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 L=51 		0-92123-015-0 01 1 0608- ● ●
17 NUT; UNION
AIR DRYER<PS7> ISUZU M/T<X9A> (B) M22 		9-09111-422-0 01 1 9505-9805 ● ●
17 NUT; UNION
AIR DRYER<PS7> (B) M22 		9-09111-422-0 01 1 9806-0512 ● ●
17 NUT; UNION
AIR DRYER<PS7> (B) M22 		0-91111-522-0 01 1 0601- ● ●
17 NUT; UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M14 		9-99111-414-0 01 1 9101-9504 ● ●
17 NUT; UNION
(A) M14 		9-99111-414-0 01 1 9505-9705 ● ●
17 NUT; UNION
6HH1 STD ENG(65L) EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M14 		9-99111-414-0 01 1 9706-0512 ● ●
17 NUT; UNION
6HH1 STD ENG(65L) EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M14 		0-91111-514-0 01 1 0601- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (C) 		1-47489-493-0 01 1 9101-9101 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (C) 		1-47492-571-0 01 1 9102-9504 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> ISUZU M/T<X9A> (A) N TO DRYER L=305 		1-49116-043-0 01 1 9505-9701 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> (A) N TO DRYER L=305 		1-49116-043-0 01 1 9702- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> ISUZU M/T<X9A> (B) R TO UNION L=708 		1-49116-044-0 01 1 9505-9505 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> ISUZU M/T<X9A> (B) DRYER TO UNION L=642 		1-49116-159-0 01 1 9506-9701 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> (B) L=642 		1-49116-159-0 01 1 9702- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) L=1148 		1-49117-914-0 01 1 9702-9709 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) L=1148 		1-49117-914-0 01 1 9710- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) L=996 		1-49117-915-0 01 1 9702-9709 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) L=996 		1-49117-915-0 01 1 9710- ● ●
28 PIPE; AIR,AIR DRYER
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=1130 SERVICED BY L=1200 		1-47428-816-0 01 1 9702-9706 ● ●
28 PIPE; AIR,AIR DRYER
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=1125 SERVICED BY L=1250 		1-47426-353-0 01 1 9707-9709 ● ●
28 PIPE; AIR,AIR DRYER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> L=1125 SERVICED BY L=1250 		1-47426-353-0 01 1 9710- ● ●
33 PIPE; AIR,UNION TO AIR TANK
BUS BODY MAKER FUJIJUKO<Y07> L=1399 		1-49117-288-0 01 1 9607-9705 ●
33 PIPE; AIR,UNION TO AIR TANK
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> L=1399 		1-49117-288-0 01 1 9706-0109 ●
33 PIPE; AIR,UNION TO AIR TANK
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-49123-324-0 01 1 0110-0203 ●
33 PIPE; AIR,UNION TO AIR TANK
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR DRYER<PS7> L=1244 SERVICED BY L=1250 		1-47437-994-0 01 1 9101-9504 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1114 SERVICED BY L=1150 		1-47437-992-0 01 1 9101-9504 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1932 SERVICED BY L=2000 		1-47437-986-0 01 1 9101-9212 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1932 SERVICED BY L=2000 		1-49111-450-0 01 1 9301-9504 ● ●
33 PIPE; AIR,UNION TO AIR TANK
L=1342 		1-49116-046-0 01 1 9505-9606 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. BUS BODY MAKER FUJIJUKO<Y07> L=1342 		1-49116-046-0 01 1 9607-9705 ●
33 PIPE; AIR,UNION TO AIR TANK
L=1342 		1-49116-046-0 01 1 9607-9705 ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> L=1342 		1-49116-046-0 01 1 9706-9708 ● ●
33 PIPE; AIR,UNION TO AIR TANK
ISUZU M/T<X9A> EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> L=1342 		1-49116-046-0 01 1 9709-9805 ● ●
33 PIPE; AIR,UNION TO AIR TANK
MT643 A/T ALLISON(PR7) EXC. AIR DRYER<PS7> L=1342 		1-49116-046-0 01 1 9709-9805 ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> L=1342 		1-49116-046-0 01 1 9806-0109 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> 		1-49123-323-0 01 1 0110-0203 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-49123-323-0 01 1 0204- ● ●
33 PIPE; AIR,UNION TO AIR TANK
CENTER SPLIT TYPE FRAME<TLW> EXC. BUS BODY MAKER FUJIJUKO<Y07> L=1392 		1-49118-306-0 01 1 9706-0203 ● ●
33 PIPE; AIR,UNION TO AIR TANK
CENTER SPLIT TYPE FRAME<TLW> L=1392 		1-49118-306-0 01 1 0204- ● ●
145 UNION; NYLON TUBE
2-WAY M14 & M14 		1-09650-252-1 01 1 9505-9701 ● ●
145 UNION; NYLON TUBE
6HH1 STD ENG(65L) 2-WAY M14 & M14 		1-09650-252-1 01 1 9702-9702 ● ●
145 UNION; NYLON TUBE
6HH1 STD ENG(65L) 2-WAY M14 & M14 		1-09650-252-1 01 1 9703-9709 ● ●
145 UNION; NYLON TUBE
6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> 2-WAY M14 & M14 		1-09650-252-1 01 1 9703-9709 ● ●
145 UNION; NYLON TUBE
6HH1 STD ENG(65L) 2-WAY M14 & M14 		1-09650-252-1 01 1 9710- ● ●
145 UNION; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> 2-WAY M14 & M14 		1-09650-252-1 01 1 9710- ● ●
145 UNION; NYLON TUBE
6HE1 TCC ENG(76L) AIR DRYER<PS7> M12 ELBOW 		9-09225-206-1 01 1 9702-9709 ● ●
145 UNION; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M12 ELBOW 		9-09225-206-1 01 1 9710-0607 ● ●
145 UNION; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M12 ELBOW 		0-92125-206-0 01 1 0608- ● ●
202 ADAPTER
M14 		1-09660-663-1 01 1 9505-9506 ● ●
202 ADAPTER
DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9507-9701 ● ●
202 ADAPTER
6HH1 STD ENG(65L) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9702-9702 ● ●
202 ADAPTER
6HH1 STD ENG(65L) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9703-9709 ● ●
202 ADAPTER
6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9703-9709 ● ●
202 ADAPTER
6HH1 STD ENG(65L) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9710- ● ●
202 ADAPTER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9710- ● ●
202 ADAPTER
6HE1 TCC ENG(76L) AIR DRYER<PS7> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9706-9709 ● ●
202 ADAPTER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9710- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCC ENG(76L) L=1167 SERVICED BY L=1200 		1-47428-816-0 01 1 9702-9705 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCC ENG(76L) L=1157 SERVICED BY L=1200 		1-47426-352-0 01 1 9706-9709 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1157 SERVICED BY L=1200 		1-47426-352-0 01 1 9710- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> ISUZU M/T<X9A> SERVICED BY L=2000 		1-47434-493-0 01 1 9101-9504 ●
237 PIPE; AIR,FLEX HOSE TO UNION
AIR DRYER<PS7> ISUZU M/T<X9A> L=772 		1-49116-042-0 01 1 9505-9701 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> L=772 		1-49116-042-0 01 1 9702- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. AIR DRYER<PS7> L=1939 		1-49116-041-0 01 1 9505-9603 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. AIR DRYER<PS7> L=1938 		1-49117-328-0 01 1 9604-9701 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> L=1938 		1-49117-328-0 01 1 9702-9705 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1938 		1-49117-328-0 01 1 9706-0207 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> 		1-49123-678-0 01 1 0208- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> SERVICED BY L=2000 		1-47434-493-0 01 1 9101-9504 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 		1-47434-493-0 01 1 9101-9504 ●
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> SERVICED BY L=1300 		1-47434-486-0 01 1 9101-9212 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> SERVICED BY L=1300 		1-49111-446-0 01 1 9301-9504 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1947 SERVICED BY L=2000 		1-47434-493-0 01 1 9101-9504 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=711 		1-49117-913-0 01 1 9702-9705 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=712 		1-49118-396-0 01 1 9706-9706 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=737 		1-49118-570-0 01 1 9707-9709 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> L=737 		1-49118-570-0 01 1 9710- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1 STD ENG(65L) CENTER SPLIT TYPE FRAME<TLW> EXC. AIR DRYER<PS7> L=904 		1-49118-305-0 01 1 9706- ● ●
246 PIPE; AIR,UNION TO UNION
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2210 SERVICED BY L=2500 		1-47434-479-0 01 1 9101-9212 ●
246 PIPE; AIR,UNION TO UNION
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2210 SERVICED BY L=2500 		1-47426-423-0 01 1 9301-9504 ●
246 PIPE; AIR,UNION TO UNION
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) L=2409 SERVICED BY L=2500 		1-47434-398-0 01 1 9101-9504 ●
246 PIPE; AIR,UNION TO UNION
WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN(WB8) L=2381 SERVICED BY L=2500 		1-47434-398-0 01 1 9101-9504 ●
246 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> ISUZU M/T<X9A> L=2535 		1-49116-045-0 01 1 9505-9603 ● ●
246 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> ISUZU M/T<X9A> L=2534 		1-49117-329-0 01 1 9604-9701 ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> L=2534 		1-49117-329-0 01 1 9702-9705 ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2534 		1-49117-329-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2534 		1-49117-329-0 01 1 9707-0109 ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2534 		1-49117-329-0 01 1 9707-0109 ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2235 		1-49123-319-0 01 1 0110-0203 ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2235 		1-49123-319-0 01 1 0110-0203 ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2235 		1-49123-319-0 01 1 0204- ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2235 		1-49123-319-0 01 1 0204- ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=2729 		1-49117-916-0 01 1 9702-9705 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2731 		1-49118-392-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2734 		1-49118-571-0 01 1 9707-9709 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2734 		1-49118-571-0 01 1 9710-0109 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=2434 		1-49123-322-0 01 1 0110- ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1659 		1-49118-302-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1664 		1-49118-602-0 01 1 9707-9709 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1664 		1-49118-602-0 01 1 9710-9805 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> L=1664 		1-49118-602-0 01 1 9806- ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> L=1974 		1-49118-029-0 01 1 9703-9705 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) ISUZU M/T<X9A> EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1976 		1-49118-394-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) ISUZU M/T<X9A> EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1941 		1-49118-569-0 01 1 9707-9709 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1941 		1-49118-569-0 01 1 9710-9805 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> EXC. AIR DRYER<PS7> L=904 		1-49118-303-0 01 1 9706-9706 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1941 		1-49118-569-0 01 1 9806-0109 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7>,CENTER SPLIT TYPE FRAME<TLW> L=1642 		1-49123-321-0 01 1 0110- ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TCC ENG(76L) CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> EXC. AIR DRYER<PS7> L=879 		1-49118-603-0 01 1 9707-9709 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> EXC. AIR DRYER<PS7> L=879 		1-49118-603-0 01 1 9710-9805 ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1501 		1-49118-304-0 01 1 9706-9805 ● ●
246 PIPE; AIR,UNION TO UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> EXC. CENTER SPLIT TYPE FRAME<TLW> L=879 		1-49118-603-0 01 1 9806- ● ●
246 PIPE; AIR,UNION TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> CENTER SPLIT TYPE FRAME<TLW> ISUZU M/T<X9A> L=1501 		1-49118-304-0 01 1 9806- ● ●
296 TUBE; NYLON
(I) SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 9505- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9505- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9505- ● ●
296 TUBE; NYLON
(F) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9505- ● ●
296 TUBE; NYLON
(G) SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9505- ● ●
296 TUBE; NYLON
(C) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9505- ● ●
296 TUBE; NYLON
(J) SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9505- ● ●
296 TUBE; NYLON
(D) SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9505- ● ●
296 TUBE; NYLON
(H) SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 9505- ● ●
296 TUBE; NYLON
(J) SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 9705- ● ●
312 NUT; UNION
M14 		9-99111-414-0 01 1 9505-9701 ● ●
312 NUT; UNION
6HH1 STD ENG(65L) M14 		9-99111-414-0 01 1 9702-9702 ● ●
312 NUT; UNION
6HH1 STD ENG(65L) M14 		9-99111-414-0 01 1 9703-9709 ● ●
312 NUT; UNION
6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> M14 		9-99111-414-0 01 1 9703-9709 ● ●
312 NUT; UNION
6HH1 STD ENG(65L) M14 		9-99111-414-0 01 1 9710-0512 ● ●
312 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> M14 		9-99111-414-0 01 1 9710-0512 ● ●
312 NUT; UNION
6HH1 STD ENG(65L) M14 		0-91111-514-0 01 1 0601- ● ●
312 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> M14 		0-91111-514-0 01 1 0601- ● ●
312 NUT; UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> M12 		9-99111-412-0 01 1 9702-9709 ● ●
312 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M12 		9-99111-412-0 01 1 9710-9808 ● ●
312 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M12 		9-09840-280-0 01 1 9809- ● ●
345 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> DIN12 RC3/8 & M8 3WAY 		1-09660-758-1 02 1 9901-0203 ●
369 UNION; AIR PIPE
AIR DRYER<PS7> ISUZU M/T<X9A> L=51 FLARE M22 		9-09233-015-1 01 1 9505-9701 ● ●
369 UNION; AIR PIPE
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> M22 		9-09233-015-1 01 1 9702-0607 ● ●
369 UNION; AIR PIPE
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> M22 L=51 		0-92123-015-0 01 1 0608- ● ●
369 UNION; AIR PIPE
6HE1 TCC ENG(76L) M22 		9-09235-215-1 01 1 9702-9705 ● ●
369 UNION; AIR PIPE
6HE1 TCC ENG(76L) AIR DRYER<PS7> M22 		9-09235-215-1 01 1 9706-9709 ● ●
369 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M22 		9-09235-215-1 01 1 9710-0607 ● ●
369 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M22X2 ELBOW 		0-92135-215-0 01 1 0608- ● ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 02 1 9901-0203 ●
374 CONNECTOR
6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) M20 & PT1/4 		9-09902-386-0 01 1 9703-9709 ● ●
374 CONNECTOR
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) M20 & PT1/4 		9-09902-386-0 01 1 9710- ● ●
çizim 37551
4 11 32 201 259 365 12 434 4 1 3 306 2 148 148 16 17 148 148 84 16 17 85 137 128 141 401 417 369 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FLYWHEEL HSG SAE #2<E4C> L=310 		0-07846-310-1 01 1 9101-9504 ● ●
1 HOSE; FLEX,AIR TANK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLYWHEEL HSG SAE #2<E4C> L=340 		0-07846-340-1 01 1 9101-9504 ● ●
1 HOSE; FLEX,AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=400 		0-07736-400-0 01 1 9101-9504 ● ●
1 HOSE; FLEX,AIR TANK
L=380 		0-07816-380-1 01 1 9505-9701 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=380 		0-07816-380-1 01 1 9702-0605 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=380 		0-57816-380-1 01 1 0606- ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TCC ENG(76L) L=610 		0-07816-610-1 01 1 9702-9709 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=610 		0-07816-610-1 01 1 9710-0605 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=610 		0-57816-610-1 01 1 0606- ● ●
2 NUT; FLEX HOSE,AIR TANK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14 		9-99111-414-0 01 1 9101-9504 ● ●
2 NUT; FLEX HOSE,AIR TANK
M14 		9-99111-414-0 01 1 9505-9506 ● ●
2 NUT; FLEX HOSE,AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M20 		9-99111-420-0 01 1 9101-9504 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=14.2 		9-09150-514-0 01 1 9505-9506 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=20.2 		9-09150-520-0 01 1 9101-9504 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=14.2 		9-09150-514-0 01 1 9101-9312 ● ●
4 GASKET; FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=11 OD=18 		9-09572-510-0 04 1 9101-9504 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 9505-9506 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 03 1 9507-9507 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9508- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 		9-09110-408-0 02 1 9101-9504 ● ●
11 UNION; AIR PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M20 & M22 L=60 (2-WAY) 		1-09654-203-1 01 1 9101-9504 ● ●
11 UNION; AIR PIPE
M20 & M22 L=60 (2-WAY) 		1-09654-203-1 01 1 9505- ● ●
12 NUT; UNION
(B) 2-WAY M14 		9-99111-414-0 01 1 9505-0512 ● ●
12 NUT; UNION
(B) 2-WAY M14 		0-91111-514-0 01 1 0601- ● ●
12 NUT; UNION
6HE1 TCC ENG(76L) (A) M22 		9-09111-422-0 01 1 9702-9705 ● ●
12 NUT; UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) M22 		9-09111-422-0 01 1 9706-9709 ● ●
12 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) M22 		9-09111-422-0 01 1 9710-0512 ● ●
12 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) M22 		0-91111-522-0 01 1 0601- ● ●
16 UNION; AIR PIPE
(A) M22 2WAY 		1-09654-212-1 01 1 9505-9701 ● ●
16 UNION; AIR PIPE
6HH1 STD ENG(65L) (A) M22 2WAY 		1-09654-212-1 01 1 9702-9705 ● ●
16 UNION; AIR PIPE
6HH1 STD ENG(65L) EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M22 2WAY 		1-09654-212-1 01 1 9706- ● ●
16 UNION; AIR PIPE
AIR DRYER<PS7> ISUZU M/T<X9A> (B) M22 		9-09235-215-1 01 1 9505-9805 ● ●
16 UNION; AIR PIPE
AIR DRYER<PS7> (B) M22 		9-09235-215-1 01 1 9806-0607 ● ●
16 UNION; AIR PIPE
AIR DRYER<PS7> (B) M22X2 ELBOW 		0-92135-215-0 01 1 0608- ● ●
16 UNION; AIR PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) M22 		9-09233-015-1 01 1 9101-9504 ● ●
16 UNION; AIR PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) M20 STRAIGHT 		9-09233-012-1 01 1 9101-9504 ● ●
16 UNION; AIR PIPE
6HE1 TCC ENG(76L) (C) M22 		9-09233-015-1 01 1 9702-9705 ● ●
16 UNION; AIR PIPE
6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9706-9708 ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9706-9708 ● ●
16 UNION; AIR PIPE
6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9709-9709 ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9709-9709 ● ●
16 UNION; AIR PIPE
6HH1 STD ENG(65L) MT643 A/T ALLISON(PR7) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9709-9709 ●
16 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9710-9805 ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9710-9805 ● ●
16 UNION; AIR PIPE
6HH1 STD ENG(65L) MT643 A/T ALLISON(PR7) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9710-9805 ●
16 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9806-0607 ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9806-0607 ● ●
16 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) M22 L=51 		0-92123-015-0 01 1 0608- ● ●
16 UNION; AIR PIPE
CENTER SPLIT TYPE FRAME<TLW> (C) M22 L=51 		0-92123-015-0 01 1 0608- ● ●
17 NUT; UNION
AIR DRYER<PS7> ISUZU M/T<X9A> (B) M22 		9-09111-422-0 01 1 9505-9805 ● ●
17 NUT; UNION
AIR DRYER<PS7> (B) M22 		9-09111-422-0 01 1 9806-0512 ● ●
17 NUT; UNION
AIR DRYER<PS7> (B) M22 		0-91111-522-0 01 1 0601- ● ●
17 NUT; UNION
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M14 		9-99111-414-0 01 1 9101-9504 ● ●
17 NUT; UNION
(A) M14 		9-99111-414-0 01 1 9505-9705 ● ●
17 NUT; UNION
6HH1 STD ENG(65L) EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M14 		9-99111-414-0 01 1 9706-0512 ● ●
17 NUT; UNION
6HH1 STD ENG(65L) EXC. CENTER SPLIT TYPE FRAME<TLW> (A) M14 		0-91111-514-0 01 1 0601- ● ●
32 SLEEVE; RUBBER,AIR PIPE
ID=17 OD=21 L=40 		1-09337-012-0 02 1 9505-9507 ● ●
32 SLEEVE; RUBBER,AIR PIPE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0107- ● ●
84 UNION; NYLON TUBE 1-09660-756-1 01 1 9505-9705 ● ●
84 UNION; NYLON TUBE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09660-756-1 01 1 9706-9812 ● ●
84 UNION; NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-09660-756-1 01 1 9706-9812 ● ●
84 UNION; NYLON TUBE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09660-756-1 01 1 9901-0203 ● ●
84 UNION; NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> 		1-09660-756-1 01 1 9901-0203 ● ●
84 UNION; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-09660-756-1 01 1 0204- ● ●
85 NUT; UNION
M22 		9-09110-422-0 01 1 9505-9603 ● ●
85 NUT; UNION
M22 		9-09111-422-0 01 1 9604-9705 ● ●
85 NUT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M22 		9-09111-422-0 01 1 9706-9812 ● ●
85 NUT; UNION
EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> M22 		9-09111-422-0 01 1 9901-0203 ●
85 NUT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M22 		9-09111-422-0 01 1 9901-0203 ●
85 NUT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M22 		9-09111-422-0 01 1 0204-0512 ● ●
85 NUT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M22 		0-91111-522-0 01 1 0601- ● ●
128 NUT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> (A) M10 FLANGE 		0-91150-210-0 01 1 9901-0203 ●
128 NUT; PIPE UNION
(A) M10 FLANGE 		0-91150-210-0 01 1 9901-0203 ●
128 NUT; PIPE UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B) M12 		9-09840-280-0 01 1 9101-9504 ● ●
128 NUT; PIPE UNION
(A) M10 		9-09110-410-0 01 1 9505-9606 ● ●
128 NUT; PIPE UNION
(A) M10 FLANGE 		0-91150-210-0 01 1 9607-9812 ● ●
128 NUT; PIPE UNION
DUAL AIR GAUGE<UG2> (A) M10 FLANGE 		0-91150-210-0 02 1 9901-0203 ●
128 NUT; PIPE UNION
(A) M10 FLANGE 		0-91150-210-0 01 1 0204-0602 ● ●
128 NUT; PIPE UNION
(A) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=440 L=440 		0-07210-440-0 01 1 9101-9504 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=440 L=440 		0-07210-440-0 01 1 9101-9504 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 01 1 9505-9812 ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 02 1 9901-0203 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 01 1 0204-0605 ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-57210-810-0 01 1 0606- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9901-0203 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 01 1 9901-0203 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> L=440 		1-09363-400-0 02 1 9101-9504 ● ●
141 UNION; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> STRAIGHT M10 & M12 M10 & M12 STRAIGHT 		1-09650-270-1 01 1 9901-0203 ●
141 UNION; FLEX HOSE
STRAIGHT M10 & M12 M10 & M12 STRAIGHT 		1-09650-270-1 01 1 9901-0203 ●
141 UNION; FLEX HOSE
STRAIGHT M10 & M12 M10 & M12 STRAIGHT 		1-09650-270-1 01 1 9505-9812 ● ●
141 UNION; FLEX HOSE
DUAL AIR GAUGE<UG2> STRAIGHT M10 & M12 M10 & M12 STRAIGHT 		1-09650-270-1 02 1 9901-0203 ●
141 UNION; FLEX HOSE
STRAIGHT M10 & M12 M10 & M12 STRAIGHT 		1-09650-270-1 01 1 0204- ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9505-9705 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9505-9705 ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9706-9812 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>,CENTER SPLIT TYPE FRAME<TLW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9706-9812 ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9901-0203 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT<RR3>,DOOR CONTROL AIR W/SUB AIR TANK<SGW>,CENTER SPLIT TYPE FRAME<TLW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9901-0203 ● ●
148 CONNECTOR; UNION
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>,CENTER SPLIT TYPE FRAME<TLW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0204-0306 ● ●
148 CONNECTOR; UNION
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>,CENTER SPLIT TYPE FRAME<TLW> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0307- ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 9505-9705 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. CENTER SPLIT TYPE FRAME<TLW> (B) DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 9706-0203 ● ●
148 CONNECTOR; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. CENTER SPLIT TYPE FRAME<TLW> (B) DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 0204-0306 ● ●
148 CONNECTOR; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. CENTER SPLIT TYPE FRAME<TLW> (B) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 0307- ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9505-9705 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9706-9809 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9505-9705 ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9505-9705 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>,CENTER SPLIT TYPE FRAME<TLW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9706-9809 ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9706-9809 ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9810-9812 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9810-9812 ● ●
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9901-0203 ● ●
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9901-0203 ● ●
148 CONNECTOR; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=37 STRAIGHT DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 0204-0306 ● ●
148 CONNECTOR; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0307- ● ●
201 SLEEVE; RUBBER,NYLON TUBE
DUAL AIR GAUGE<UG2> ID=17 OD=21 L=40 		1-09337-012-0 01 1 9901-0203 ●
201 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9505-9506 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> ID=17 OD=21 L=40 		1-09337-012-0 03 1 9607-9812 ●
259 SLEEVE; RUBBER,NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=21 L=40 		1-09337-012-0 03 1 9901-0203 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> ID=17 OD=21 L=40 		1-09337-012-0 03 1 9901-0203 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=17 OD=21 L=40 		1-09337-012-0 03 1 0204- ● ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 9505-9603 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=21 L=40 		1-09337-012-0 01 1 9604-9811 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=21 L=40 		1-09337-012-0 04 1 9812-9812 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=17 OD=21 L=40 		1-09337-012-0 02 1 9505-0203 ● ●
306 PLUG; NYLON TUBE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> PT3/8 		9-09204-517-0 01 1 9505-0203 ● ●
365 SLEEVE; RUBBER,FLEX HOSE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ID=17 OD=21 L=40 		1-09337-012-0 01 1 9505-0203 ● ●
369 UNION; AIR PIPE
AIR DRYER<PS7> ISUZU M/T<X9A> L=51 FLARE M22 		9-09233-015-1 01 1 9505-9701 ● ●
369 UNION; AIR PIPE
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> M22 		9-09233-015-1 01 1 9702-0607 ● ●
369 UNION; AIR PIPE
6HH1 STD ENG(65L) AIR DRYER<PS7> ISUZU M/T<X9A> M22 L=51 		0-92123-015-0 01 1 0608- ● ●
369 UNION; AIR PIPE
6HE1 TCC ENG(76L) M22 		9-09235-215-1 01 1 9702-9705 ● ●
369 UNION; AIR PIPE
6HE1 TCC ENG(76L) AIR DRYER<PS7> M22 		9-09235-215-1 01 1 9706-9709 ● ●
369 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M22 		9-09235-215-1 01 1 9710-0607 ● ●
369 UNION; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M22X2 ELBOW 		0-92135-215-0 01 1 0608- ● ●
401 CONNECTOR; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9901-0203 ●
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9901-0203 ●
401 CONNECTOR; FLEX HOSE
M12 ADAPTOR 		1-09660-662-1 01 1 9505-9506 ● ●
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9507-9812 ● ●
401 CONNECTOR; FLEX HOSE
DUAL AIR GAUGE<UG2> DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9901-0203 ●
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0204- ● ●
417 GROMMET; NYLON TUBE
ID=28 OD=35 T=12 		9-09956-725-0 01 1 9505-9507 ● ●
417 GROMMET; NYLON TUBE
AIR DRYER<PS7> ID=28 OD=35 T=12 		9-09956-725-0 01 1 9505-9507 ● ●
434 CLIP
L=250 		1-09707-126-0 02 1 9505-9812 ● ●
434 CLIP
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT<A56> L=250 		1-09707-126-0 02 1 9505-9812 ● ●
434 CLIP
L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
6HE1 TC ENG(57L) L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9901-0203 ● ●
434 CLIP
EXC. AUSTRALIA EQUIPMENT<RR3> L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
RETARDER BRK<RE2> L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
DUAL AIR GAUGE<UG2> L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9901-0203 ●
434 CLIP
L=250 		1-09707-126-0 02 1 0204- ● ●
434 CLIP
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT<A56> L=250 		1-09707-126-0 02 1 0204- ● ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9505-9506 ● ●
434 CLIP
RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9505-9506 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9505-9506 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9505-9506 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9507-9507 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9507-9507 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9508-9706 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9508-9706 ● ●
434 CLIP
RETARDER BRK<RE2> L=250 		1-09707-126-0 01 1 9508-9706 ● ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9508-9706 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9707-9708 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9707-9708 ● ●
434 CLIP
RETARDER BRK<RE2> L=250 		1-09707-126-0 01 1 9707-9708 ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9707-9708 ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9707-9708 ●
434 CLIP
ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9707-9708 ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9709-9806 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9709-9806 ● ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9709-9806 ● ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9709-9806 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
6HE1 TC ENG(57L) L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
MLD7Q M/T(X5K),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9807-9809 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9810-9812 ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9810-9812 ● ●
434 CLIP
6HE1 TC ENG(57L) L=250 		1-09707-126-0 01 1 9810-9812 ● ●
434 CLIP
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 9810-9812 ● ●
434 CLIP
RETARDER BRK<RE2> L=250 		1-09707-126-0 01 1 9810-9812 ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 9810-9812 ●
434 CLIP
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT<A56> L=250 		1-09707-126-0 02 1 9901-0203 ● ●
434 CLIP
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
6HE1 TC ENG(57L) L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
RETARDER BRK<RE2> ISUZU M/T<X9A> L=250 		1-09707-126-0 01 1 0204- ● ●
434 CLIP
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> L=250 		1-09707-126-0 03 1 9505-9506 ● ●
çizim 37924
258 258 80 444 184 4 258 4 88 202 145 229 312 258 258 80 8 343 444 80 444 258
BalonParca AdiParca NoAdetTipApplied Date A B
4 GASKET; FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=11 OD=18 		9-09572-510-0 04 1 9101-9504 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 9505-9506 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 03 1 9507-9507 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9508- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 		9-09110-408-0 02 1 9101-9504 ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307- ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 02 1 9505-9705 ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9706-9812 ● ●
80 UNION; 3 WAY
DUAL AIR GAUGE<UG2> DIN8 RC1/4 & M8 		1-09660-735-1 02 1 9901-0203 ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0204-0306 ● ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
EXC. CENTER SPLIT TYPE FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) RETARDER BRK<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307- ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) EXC. DUAL AIR GAUGE<UG2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
EXC. DUAL AIR GAUGE<UG2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ● ●
80 UNION; 3 WAY
DUAL AIR GAUGE<UG2> AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-0203 ●
88 GASKET; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) ID=14.2 OD=23.0 		9-09572-014-0 01 1 9505- ● ●
145 UNION; NYLON TUBE
2-WAY M14 & M14 		1-09650-252-1 01 1 9505-9701 ● ●
145 UNION; NYLON TUBE
6HH1 STD ENG(65L) 2-WAY M14 & M14 		1-09650-252-1 01 1 9702-9702 ● ●
145 UNION; NYLON TUBE
6HH1 STD ENG(65L) 2-WAY M14 & M14 		1-09650-252-1 01 1 9703-9709 ● ●
145 UNION; NYLON TUBE
6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> 2-WAY M14 & M14 		1-09650-252-1 01 1 9703-9709 ● ●
145 UNION; NYLON TUBE
6HH1 STD ENG(65L) 2-WAY M14 & M14 		1-09650-252-1 01 1 9710- ● ●
145 UNION; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> 2-WAY M14 & M14 		1-09650-252-1 01 1 9710- ● ●
145 UNION; NYLON TUBE
6HE1 TCC ENG(76L) AIR DRYER<PS7> M12 ELBOW 		9-09225-206-1 01 1 9702-9709 ● ●
145 UNION; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M12 ELBOW 		9-09225-206-1 01 1 9710-0607 ● ●
145 UNION; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M12 ELBOW 		0-92125-206-0 01 1 0608- ● ●
184 HOSE; FLEX,AIR GOV
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=380 		0-07494-380-1 01 1 9101-9504 ● ●
184 HOSE; FLEX,AIR GOV
L=300 		0-07120-300-0 01 1 9505-9701 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=300 		0-07120-300-0 01 1 9702-0605 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=300 		0-57120-300-0 01 1 0606- ● ●
184 HOSE; FLEX,AIR GOV
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=370 		0-07432-370-0 01 1 9101-9504 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TCC ENG(76L) AIR DRYER<PS7> L=500 		0-07120-500-0 01 1 9702-9705 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TCC ENG(76L) L=500 		0-07120-500-0 01 1 9706-9709 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=500 		0-07120-500-0 01 1 9710- ● ●
202 ADAPTER
M14 		1-09660-663-1 01 1 9505-9506 ● ●
202 ADAPTER
DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9507-9701 ● ●
202 ADAPTER
6HH1 STD ENG(65L) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9702-9702 ● ●
202 ADAPTER
6HH1 STD ENG(65L) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9703-9709 ● ●
202 ADAPTER
6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9703-9709 ● ●
202 ADAPTER
6HH1 STD ENG(65L) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9710- ● ●
202 ADAPTER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9710- ● ●
202 ADAPTER
6HE1 TCC ENG(76L) AIR DRYER<PS7> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9706-9709 ● ●
202 ADAPTER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9710- ● ●
229 ADAPTER; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) M14 & PT1/4 		9-48319-149-0 01 1 9505-0206 ● ●
229 ADAPTER; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0207- ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
EXC. BUS BODY MAKER FUJIJUKO<Y07> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9607-9705 ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9607-9705 ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9706-9812 ● ●
258 CONNECTOR; NYLON TUBE
EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW>,BUS BODY MAKER FUJIJUKO<Y07> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 9505-9812 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> EXC. DUAL AIR GAUGE<UG2> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) R1/4 ELBOW DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 0204- ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2>,AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) EXC. AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9812 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2>,AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) EXC. AUSTRALIA EQUIPMENT<RR3> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. AUSTRALIA EQUIPMENT<RR3>,CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9901-0203 ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9505-9709 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. AUSTRALIA EQUIPMENT<RR3> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9809-0203 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9809-0203 ● ●
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) AUSTRALIA EQUIPMENT<RR3> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9809-0203 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) RETARDER BRK<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9505-9606 ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9607-9705 ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ● ●
258 CONNECTOR; NYLON TUBE
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ● ●
258 CONNECTOR; NYLON TUBE
RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9709 ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ● ●
258 CONNECTOR; NYLON TUBE
BUS BODY MAKER FUJIJUKO<Y07> EXC. CENTER SPLIT TYPE FRAME<TLW> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9808 ●
312 NUT; UNION
M14 		9-99111-414-0 01 1 9505-9701 ● ●
312 NUT; UNION
6HH1 STD ENG(65L) M14 		9-99111-414-0 01 1 9702-9702 ● ●
312 NUT; UNION
6HH1 STD ENG(65L) M14 		9-99111-414-0 01 1 9703-9709 ● ●
312 NUT; UNION
6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> M14 		9-99111-414-0 01 1 9703-9709 ● ●
312 NUT; UNION
6HH1 STD ENG(65L) M14 		9-99111-414-0 01 1 9710-0512 ● ●
312 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> M14 		9-99111-414-0 01 1 9710-0512 ● ●
312 NUT; UNION
6HH1 STD ENG(65L) M14 		0-91111-514-0 01 1 0601- ● ●
312 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. AIR DRYER<PS7> M14 		0-91111-514-0 01 1 0601- ● ●
312 NUT; UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> M12 		9-99111-412-0 01 1 9702-9709 ● ●
312 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M12 		9-99111-412-0 01 1 9710-9808 ● ●
312 NUT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M12 		9-09840-280-0 01 1 9809- ● ●
343 UNION; NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> BUS BODY MAKER FUJIJUKO<Y07> EXC. OVERHEAD COOLING SYSTEM<YS9> 		1-09660-799-0 01 1 9510-0203 ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 9505-9705 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
DUAL AIR GAUGE<UG2> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0203 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9505-9705 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9706-9706 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
ISUZU M/T<X9A> OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9707-9708 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9709-9709 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9808 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9809-9809 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HE1 TC ENG(57L) EXC. AUSTRALIA EQUIPMENT<RR3> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9812 ●
444 BOLT; UNION
DUAL AIR GAUGE<UG2> M8X16 FLANGE 		0-28080-816-0 02 1 9901-0203 ●
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
444 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
EXC. CENTER SPLIT TYPE FRAME<TLW> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) OVERHEAD COOLING SYSTEM<YS9> EXC. RETARDER BRK<RE2> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
444 BOLT; UNION
6HE1 TCC ENG(76L) M8X20 FLANGE 		0-28680-820-0 01 1 9702-9705 ● ●
444 BOLT; UNION
6HE1 TCC ENG(76L) AIR DRYER<PS7> M8X20 FLANGE 		0-28680-820-0 01 1 9706-9709 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M8X20 FLANGE 		0-28680-820-0 01 1 9710-0512 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
