Sayfa 0-65 - Isuzu EPC

0-65 — STARTER (#44576) — 177 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97030-403-0	01	1	-

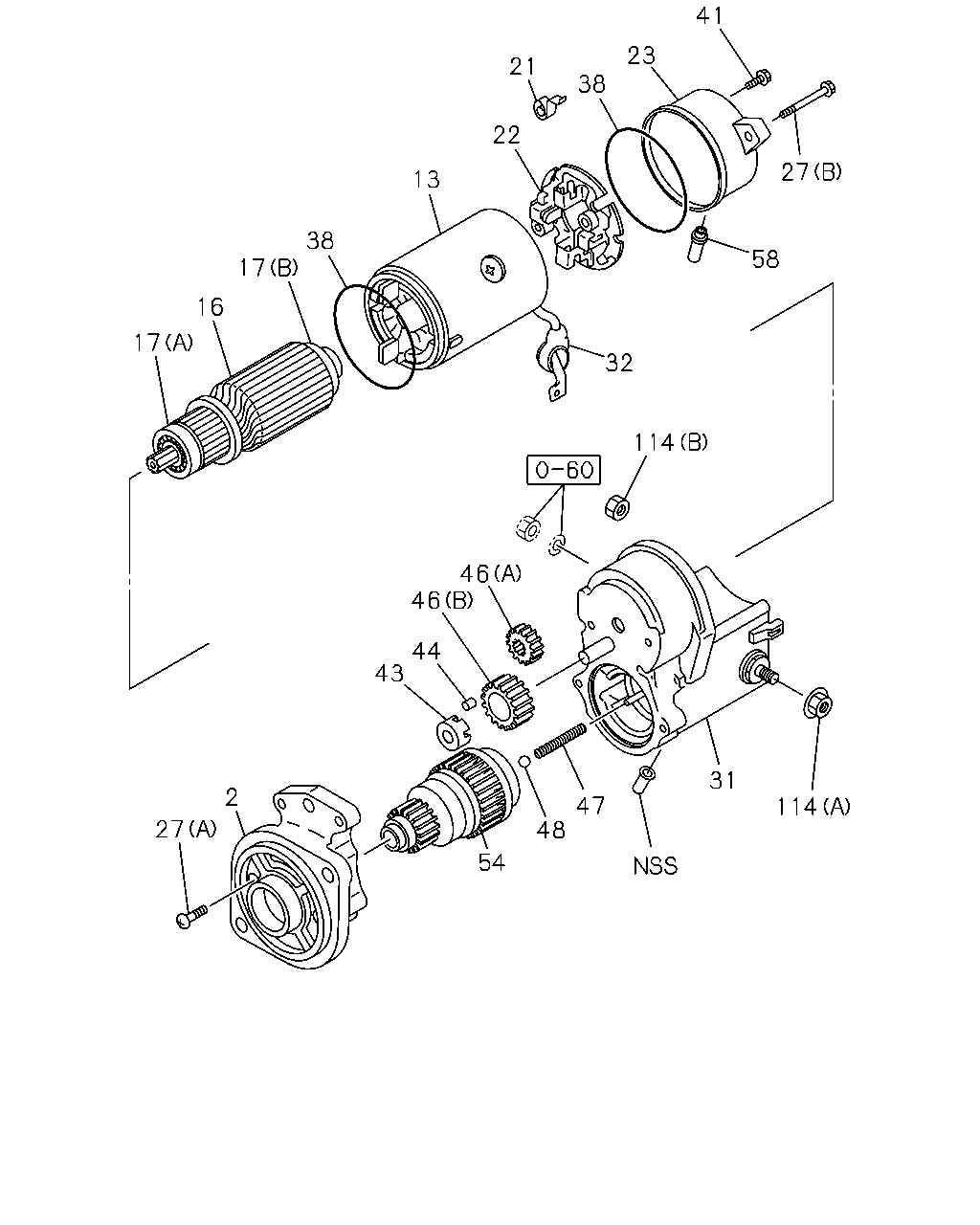

41 23 21 38 22 27 13 38 17 58 16 17 32 114 46 46 44 43 31 2 47 48 114 27 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-435-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97030-400-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97142-908-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-425-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97135-497-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97216-186-1, 97216186	8-97025-667-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-193-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-557-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (E) ASM PART: C = 8-97216-186-1, 97216186	5-81129-113-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (E) ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-97120-356-2, 97120356	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (D) ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97030-387-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-97042-997-2, 97042997	8-97083-195-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-97120-356-2, 97120356	8-97112-954-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-97216-186-1, 97216186	5-81117-012-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-94152-972-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97112-880-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-430-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97216-186-1, 97216186	8-97078-463-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-562-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97112-875-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97216-186-1, 97216186	8-97217-568-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-561-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (D) ASM PART: A = 8-97042-997-2, 97042997	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (E) ASM PART: A = 8-97042-997-2, 97042997	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: C = 8-97216-186-1, 97216186	8-97030-404-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97192-423-0	02	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-196-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97217-569-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: B = 8-97120-356-2, 97120356	5-81119-029-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97217-570-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER 02.049 ASM PART: B = 8-97120-356-2, 97120356	8-94170-214-0	02	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-559-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97117-107-0	02	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97142-903-0	02	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81129-100-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: B = 8-97120-356-2, 97120356	8-94377-246-0	01	1	-
44	02.086 ROLLER; PINION STARTER ASM PART: A = 8-97042-997-2, 97042997, B = 8-97120-356-2, 97120356	5-81129-099-0	05	1	-
46	02.086 GEAR; CLU STARTER (D) ASM PART: A = 8-97042-997-2, 97042997	5-81123-010-0	01	1	-
46	02.086 GEAR; CLU STARTER (C) ASM PART: A = 8-97042-997-2, 97042997	8-94167-427-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: B = 8-97120-356-2, 97120356	8-97078-649-0	01	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: B = 8-97120-356-2, 97120356	8-97142-904-0	01	1	-
47	02.086 SPRING; PINION STARTER 02.108 ASM PART: A = 8-97042-997-2, 97042997	5-81129-096-0	01	1	-
47	02.086 SPRING; PINION STARTER ASM PART: B = 8-97120-356-2, 97120356	8-94377-245-0	01	1	-
48	02.108 BALL; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997, B = 8-97120-356-2, 97120356	5-81129-092-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81124-003-1	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER ASM PART: A = 8-97042-997-2, 97042997	1-81129-677-0	02	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER 02.067 ASM PART: B = 8-97120-356-2, 97120356	8-97041-421-0	01	1	-
114	02.055 NUT; TERMINAL 02.042, (C) ASM PART: A = 8-97042-997-2, 97042997	5-09400-042-0	01	1	-
114	02.055 NUT; TERMINAL 02.102, (A) ASM PART: B = 8-97120-356-2, 97120356	8-94109-763-0	01	1	-
114	02.055 NUT; TERMINAL (B) ASM PART: B = 8-97120-356-2, 97120356	8-94377-238-0	01	1	-
114	02.055 NUT; TERMINAL 00.002, (D) ASM PART: A = 8-97042-997-2, 97042997	9-09110-508-0	01	1	-

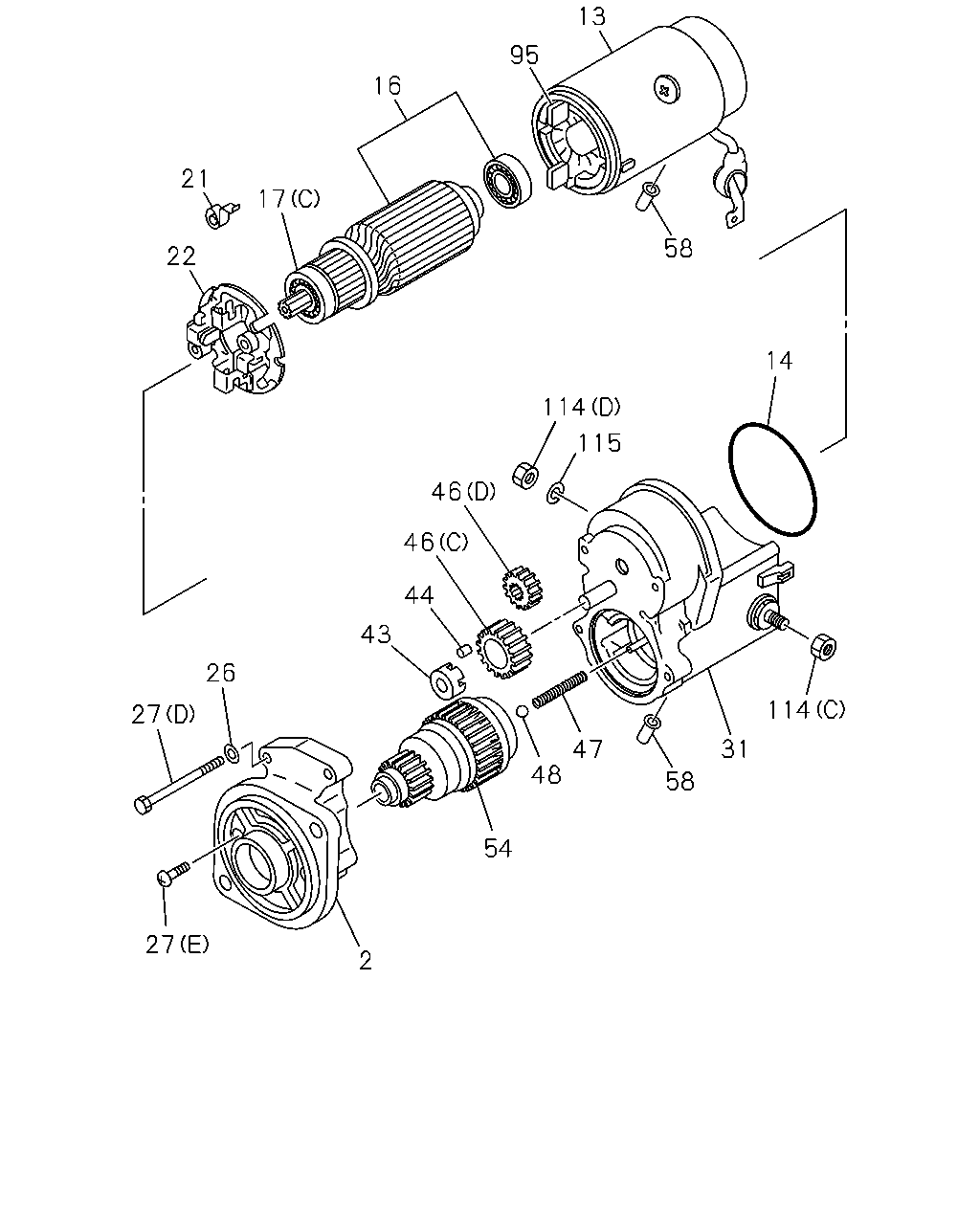

13 95 16 21 17 58 22 14 114 115 46 46 44 43 26 114 27 31 47 48 58 54 27 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-435-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97030-400-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97142-908-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-425-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97135-497-0	01	1	-
14	02.087 GASKET; YOKE,STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-428-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97216-186-1, 97216186	8-97025-667-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-193-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-557-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (E) ASM PART: C = 8-97216-186-1, 97216186	5-81129-113-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (E) ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-97120-356-2, 97120356	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (D) ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97030-387-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-97042-997-2, 97042997	8-97083-195-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-97120-356-2, 97120356	8-97112-954-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-97216-186-1, 97216186	5-81117-012-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-94152-972-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97112-880-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-430-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97216-186-1, 97216186	8-97078-463-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-562-0	01	1	-
26	02.077 SEAL; THROUGH BOLT STARTER 02.085 ASM PART: A = 8-97042-997-2, 97042997	5-81129-211-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (D) ASM PART: A = 8-97042-997-2, 97042997	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (E) ASM PART: A = 8-97042-997-2, 97042997	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: C = 8-97216-186-1, 97216186	8-97030-404-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97192-423-0	02	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-196-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97217-569-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81129-100-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: B = 8-97120-356-2, 97120356	8-94377-246-0	01	1	-
44	02.086 ROLLER; PINION STARTER ASM PART: A = 8-97042-997-2, 97042997, B = 8-97120-356-2, 97120356	5-81129-099-0	05	1	-
46	02.086 GEAR; CLU STARTER (D) ASM PART: A = 8-97042-997-2, 97042997	5-81123-010-0	01	1	-
46	02.086 GEAR; CLU STARTER (C) ASM PART: A = 8-97042-997-2, 97042997	8-94167-427-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: B = 8-97120-356-2, 97120356	8-97078-649-0	01	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: B = 8-97120-356-2, 97120356	8-97142-904-0	01	1	-
47	02.086 SPRING; PINION STARTER 02.108 ASM PART: A = 8-97042-997-2, 97042997	5-81129-096-0	01	1	-
47	02.086 SPRING; PINION STARTER ASM PART: B = 8-97120-356-2, 97120356	8-94377-245-0	01	1	-
48	02.108 BALL; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997, B = 8-97120-356-2, 97120356	5-81129-092-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81124-003-1	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER ASM PART: A = 8-97042-997-2, 97042997	1-81129-677-0	02	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER 02.067 ASM PART: B = 8-97120-356-2, 97120356	8-97041-421-0	01	1	-
95	02.051 BRUSH ASM; STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-194-0	01	1	-
114	02.055 NUT; TERMINAL 02.042, (C) ASM PART: A = 8-97042-997-2, 97042997	5-09400-042-0	01	1	-
114	02.055 NUT; TERMINAL 02.102, (A) ASM PART: B = 8-97120-356-2, 97120356	8-94109-763-0	01	1	-
114	02.055 NUT; TERMINAL (B) ASM PART: B = 8-97120-356-2, 97120356	8-94377-238-0	01	1	-
114	02.055 NUT; TERMINAL 00.002, (D) ASM PART: A = 8-97042-997-2, 97042997	9-09110-508-0	01	1	-
115	02.063 WASHER; TERMINAL 00.002, ID=8.2 ASM PART: A = 8-97042-997-2, 97042997	9-09150-508-0	01	1	-

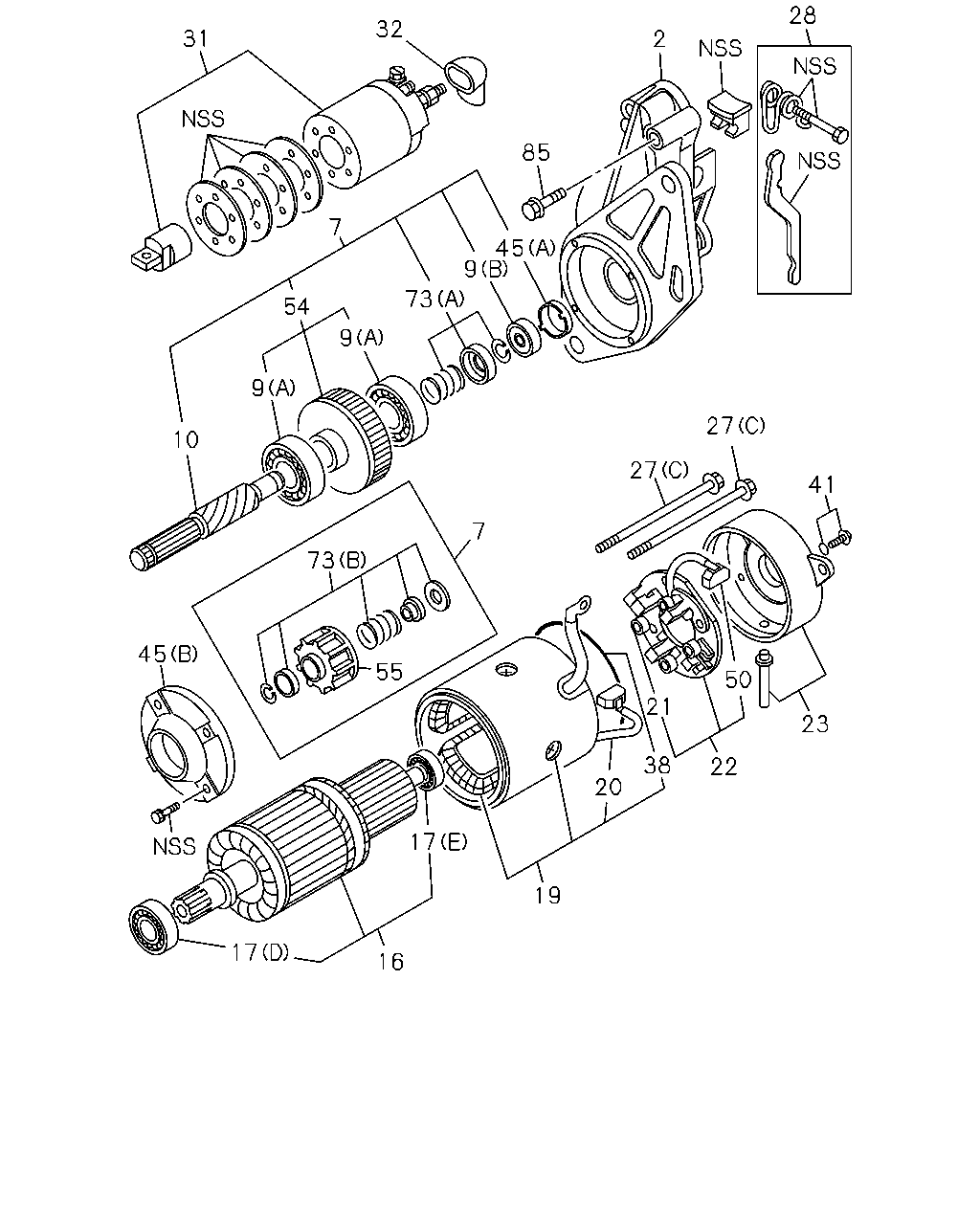

28 32 31 2 85 7 45 9 73 54 9 9 27 10 27 41 7 73 45 55 50 21 23 38 22 20 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-435-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97030-400-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97142-908-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-564-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97216-186-1, 97216186	8-97232-475-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97025-673-0	02	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97025-676-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97030-395-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97216-186-1, 97216186	8-97025-667-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-193-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-557-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (E) ASM PART: C = 8-97216-186-1, 97216186	5-81129-113-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (E) ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-97120-356-2, 97120356	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (D) ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97030-387-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-97042-997-2, 97042997	8-97083-195-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-97120-356-2, 97120356	8-97112-954-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: C = 8-97216-186-1, 97216186	8-97217-567-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-558-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: C = 8-97216-186-1, 97216186	8-97078-462-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-560-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-97216-186-1, 97216186	5-81117-012-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-94152-972-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97112-880-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-430-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97216-186-1, 97216186	8-97078-463-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-562-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97112-875-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97216-186-1, 97216186	8-97217-568-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-561-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (D) ASM PART: A = 8-97042-997-2, 97042997	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (E) ASM PART: A = 8-97042-997-2, 97042997	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: C = 8-97216-186-1, 97216186	8-97030-404-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97192-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97030-402-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-196-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97217-569-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: B = 8-97120-356-2, 97120356	5-81119-029-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97217-570-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER 02.049 ASM PART: B = 8-97120-356-2, 97120356	8-94170-214-0	02	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-559-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97117-107-0	02	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97142-903-0	02	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-94435-567-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97030-401-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: C = 8-97216-186-1, 97216186	8-97078-464-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-563-0	02	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81124-003-1	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
55	02.086 PINION; CLU,STARTER ASM PART: D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97230-569-0	01	1	-
55	02.086 PINION; CLU,STARTER ASM PART: C = 8-97216-186-1, 97216186	8-97232-458-0	01	1	-
73	02.063 STOPPER SET; PINION (A) ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97030-396-0	01	1	-
73	02.063 STOPPER SET; PINION (B) ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-97030-398-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: C = 8-97216-186-1, 97216186, D = 8-97226-787-1, 97226787, E = 8-97323-935-0, 97323935	8-94408-500-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
