0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#44575) — 463 parça

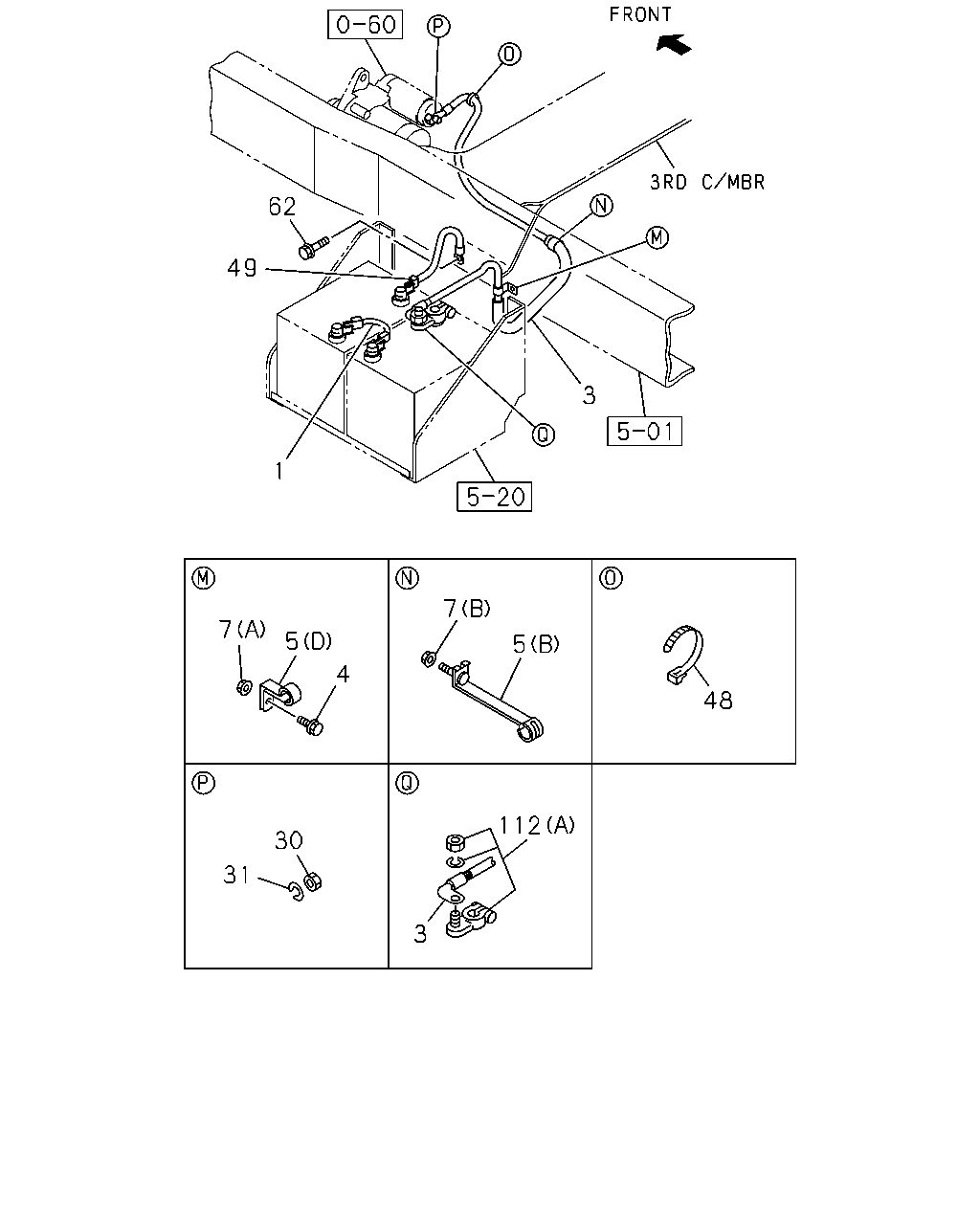

çizim 46046
62 49 3 1 7 7 5 5 4 48 112 30 31 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9812-9905 ●
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9906-0105 ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0106- ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=180 		1-82650-265-0 01 1 9812-0105 ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0106- ●
1 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> 02.342 L=200 		8-94171-823-2 01 1 9812- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97068-729-1 01 1 9812-9903 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97214-185-0 01 1 9904-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97261-196-0 01 1 0106- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 9906-0112 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) NQR SGL CAB&SUPER LONG(NPC6SS) NPR DBL CAB&MIDDLE(NPC6WF) NQR DBL CAB&SUPER LONG(NPC6WS) BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0201-0207 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MBP6R(RNW) BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> L=1000 		8-97181-963-2 01 1 9812- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97218-575-0 01 1 9812-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9812- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6F(RSR) BATTERY 115E41R<6XD> 		8-97352-504-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97215-916-0 01 1 9812-9905 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 9906-0207 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MXA5R(RMT),M/T MBP6R(RNW) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MZZ6F(RSR) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 		8-97352-486-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) 		8-97213-972-0 01 1 9904-9905 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97213-972-0 01 1 9906-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 		8-97352-505-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97226-677-0 01 1 9906-0004 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97226-677-0 01 1 0005-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97258-086-0 01 1 0005-0007 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97287-047-0 01 1 0008-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97306-210-0 01 1 0106-0207 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) M/T MXA5R(RMT),M/T MBP6R(RNW) EXC. BATTERY 115E41R<6XD> 		8-97306-210-0 01 1 0208- ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 9906- ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9812-9905 ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9906- ●
4 02.559 BOLT; BATTERY CABLE
NQR DBL CAB&SUPER LONG(NP**WS) BATTERY 115E41R<6XD> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (C) ID=14-12 		8-94379-592-0 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (C) ID=14-12 		8-94379-592-0 01 1 9906-0004 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.342 (C) ID=14-12 		8-94379-592-0 01 1 0005-0105 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR DBL CAB&SUPER LONG(NP**WS) BATTERY 115E41R<6XD> 01.166 (F) ID=13 L=50 		1-09700-027-1 01 1 0106- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9906-0004 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=13 L=90 		8-97015-782-1 01 1 0005-0105 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) M/T MXA5R(RMT),M/T MBP6R(RNW) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 0106-0207 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 0106-0207 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 0208- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 0208- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (A) 		8-94165-399-0 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.483 (A) ID=13 H=18 L=20 		1-09700-813-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (E) ID=16 		8-97040-812-0 01 1 9812- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB&MIDDLE(NP**WF) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 0106-0207 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) M/T MXA5R(RMT),M/T MBP6R(RNW) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 0208- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB&SHORT(NPC6SC) NPR/NQR SGL CAB&MIDDLE(NPC6SF) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) (B) ID=13 L=90 		8-97015-782-1 03 1 9904-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 9906-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 01 1 0208- ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9906-0004 ● ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9906-0004 ●
7 02.343 NUT; (+) CABLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0005-0105 ● ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0005-0105 ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0106- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9906- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 00.002 (C) M8 		9-09110-508-0 01 1 9812- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106-0207 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0208- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0208- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9904-9905 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) NQR SGL CAB&SUPER LONG(NPC6SS) BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9906- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9906- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9812-9905 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9906-0105 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0106- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9812-9905 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9906-0105 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0106- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-0 01 1 9812-9902 ●
48 02.343 CLIP; CABLE
VOLTAGE 24V<7AE> 03.162 L=140 		5-09707-031-0 01 1 9812-9902 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 9903-9908 ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 9909-0105 ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0106- ●
48 02.343 CLIP; CABLE
02.559 L=250 		5-09707-030-1 01 1 0106- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 9812-9905 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 9906-0105 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0106- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=400 		9-82933-248-0 01 1 9812-9905 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97231-489-0 01 1 9906- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 9812- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9812-9905 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9906-0105 ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0106- ● ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 9812-9905 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 9906-0105 ● ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 0106-0207 ●
112 02.343 TERMINAL; BATTERY
M/T MZZ6F(RSR) (A) <+> 		8-94361-935-0 01 1 0208- ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 0208- ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 9812-9905 ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 9906-0105 ● ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 0106- ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (A) <+> 		1-82695-003-0 01 1 9812- ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <-> 		1-82695-004-0 01 1 9812- ●

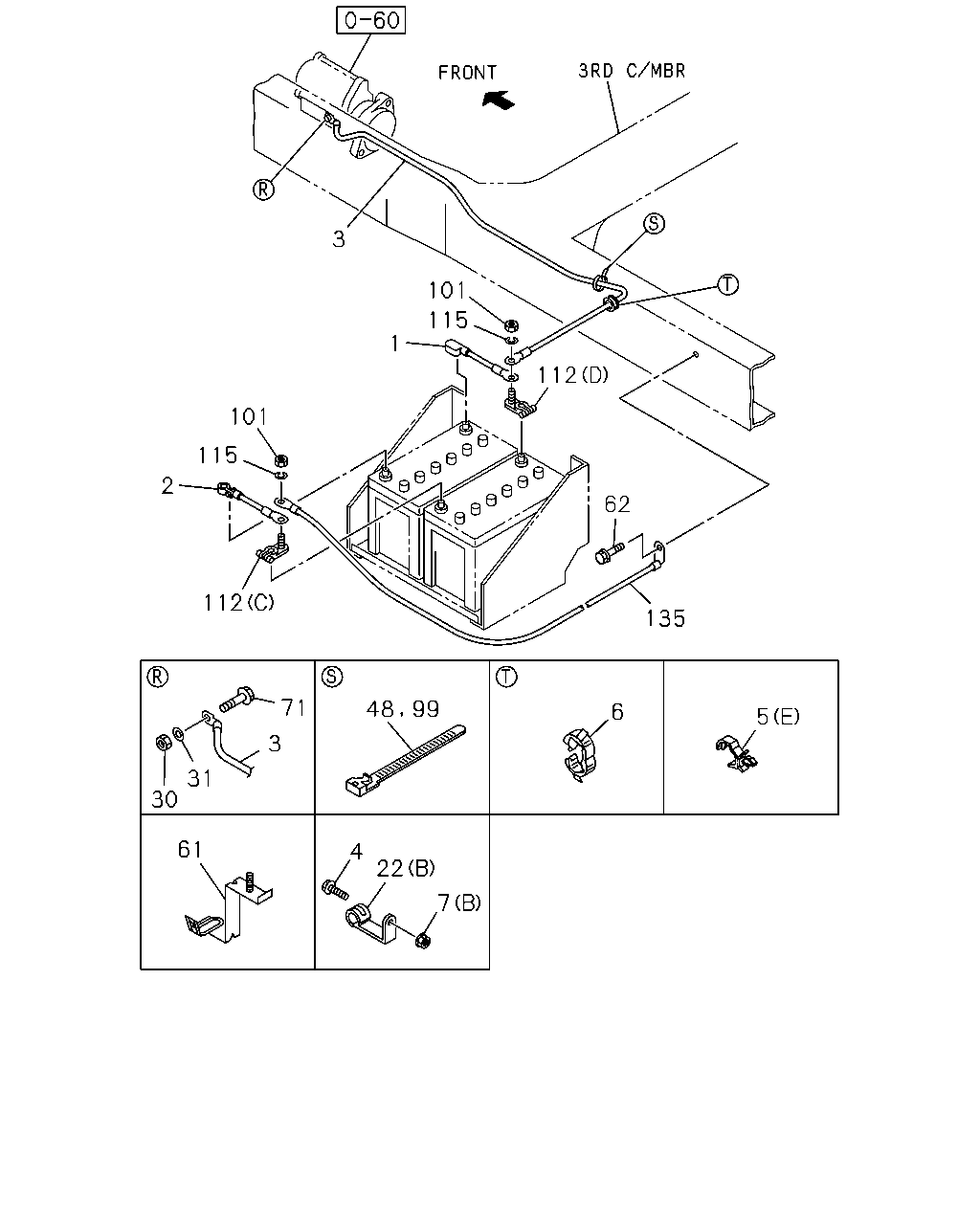

çizim 48128
3 101 115 1 112 101 115 2 62 112 135 71 6 5 3 31 30 61 4 22 7 48 99
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9812-9905 ●
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9906-0105 ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0106- ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=180 		1-82650-265-0 01 1 9812-0105 ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0106- ●
1 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> 02.342 L=200 		8-94171-823-2 01 1 9812- ●
2 02.341 CABLE; BATTERY
L=180 		8-97034-115-1 01 1 9812-9905 ●
2 02.341 CABLE; BATTERY
L=180 		8-97034-115-1 01 1 9906-0105 ● ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0106- ●
2 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> L=200 		8-94171-824-2 01 1 9812- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97068-729-1 01 1 9812-9903 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97214-185-0 01 1 9904-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97261-196-0 01 1 0106- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 9906-0112 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) NQR SGL CAB&SUPER LONG(NPC6SS) NPR DBL CAB&MIDDLE(NPC6WF) NQR DBL CAB&SUPER LONG(NPC6WS) BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0201-0207 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MBP6R(RNW) BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> L=1000 		8-97181-963-2 01 1 9812- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97218-575-0 01 1 9812-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9812- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6F(RSR) BATTERY 115E41R<6XD> 		8-97352-504-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97215-916-0 01 1 9812-9905 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 9906-0207 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MXA5R(RMT),M/T MBP6R(RNW) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MZZ6F(RSR) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 		8-97352-486-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) 		8-97213-972-0 01 1 9904-9905 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97213-972-0 01 1 9906-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 		8-97352-505-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97226-677-0 01 1 9906-0004 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97226-677-0 01 1 0005-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97258-086-0 01 1 0005-0007 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97287-047-0 01 1 0008-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97306-210-0 01 1 0106-0207 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) M/T MXA5R(RMT),M/T MBP6R(RNW) EXC. BATTERY 115E41R<6XD> 		8-97306-210-0 01 1 0208- ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 9906- ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9812-9905 ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9906- ●
4 02.559 BOLT; BATTERY CABLE
NQR DBL CAB&SUPER LONG(NP**WS) BATTERY 115E41R<6XD> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (C) ID=14-12 		8-94379-592-0 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (C) ID=14-12 		8-94379-592-0 01 1 9906-0004 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.342 (C) ID=14-12 		8-94379-592-0 01 1 0005-0105 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR DBL CAB&SUPER LONG(NP**WS) BATTERY 115E41R<6XD> 01.166 (F) ID=13 L=50 		1-09700-027-1 01 1 0106- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9906-0004 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=13 L=90 		8-97015-782-1 01 1 0005-0105 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) M/T MXA5R(RMT),M/T MBP6R(RNW) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 0106-0207 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 0106-0207 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 0208- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 0208- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (A) 		8-94165-399-0 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.483 (A) ID=13 H=18 L=20 		1-09700-813-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (E) ID=16 		8-97040-812-0 01 1 9812- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB&MIDDLE(NP**WF) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 0106-0207 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) M/T MXA5R(RMT),M/T MBP6R(RNW) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 0208- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB&SHORT(NPC6SC) NPR/NQR SGL CAB&MIDDLE(NPC6SF) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) (B) ID=13 L=90 		8-97015-782-1 03 1 9904-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 9906-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 01 1 0208- ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9812-9905 ●
6 02.343 GROMMET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> ID=17 		8-94128-319-2 01 1 9812-9905 ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9906-0105 ● ●
6 02.343 GROMMET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> ID=17 		8-94128-319-2 01 1 9906-0105 ●
6 02.343 GROMMET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> ID=17 		8-94128-319-2 01 1 0106- ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0106- ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9906-0004 ● ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9906-0004 ●
7 02.343 NUT; (+) CABLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0005-0105 ● ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0005-0105 ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0106- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9906- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 00.002 (C) M8 		9-09110-508-0 01 1 9812- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106-0207 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0208- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0208- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9904-9905 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) NQR SGL CAB&SUPER LONG(NPC6SS) BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9906- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9906- ●
22 02.343 CLIP; BATTERY CABLE
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> (B) ID=14 H=50 L=20 		1-09700-843-0 01 1 9812-0105 ●
22 02.343 CLIP; BATTERY CABLE
NPR DBL CAB&MIDDLE(NP**WF) BATTERY 115E41R<6XD> 03.162 (A) L=140 		5-09707-031-1 01 1 9906-0105 ●
22 02.343 CLIP; BATTERY CABLE
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.162 (A) L=140 		5-09707-031-1 01 1 0106- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9812-9905 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9906-0105 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0106- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9812-9905 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9906-0105 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0106- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-0 01 1 9812-9902 ●
48 02.343 CLIP; CABLE
VOLTAGE 24V<7AE> 03.162 L=140 		5-09707-031-0 01 1 9812-9902 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 9903-9908 ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 9909-0105 ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0106- ●
48 02.343 CLIP; CABLE
02.559 L=250 		5-09707-030-1 01 1 0106- ●
61 02.333 BRACKET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> 		8-97202-141-1 01 1 9812- ●
61 02.333 BRACKET; BATTERY CABLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97258-006-0 01 1 0005-0007 ●
61 02.333 BRACKET; BATTERY CABLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97260-485-0 01 1 0008-0105 ●
61 02.333 BRACKET; BATTERY CABLE 8-97312-657-0 01 1 0106- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9812-9905 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9906-0105 ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0106- ● ●
71 02.343 BOLT; BATTERY CABLE
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9812-0105 ●
99 02.343 CLIP; BATTERY CABLE
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 03.162 L=140 		5-09707-031-1 02 1 9903-0105 ●
99 02.343 CLIP; BATTERY CABLE
BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 0106- ●
99 02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) NQR SGL CAB&SUPER LONG(NPC6SS) BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 9906-0105 ●
101 02.343 NUT; BATTERY CABLE CLIP
EXC. VOLTAGE 24V<7AE> 09.011 M10 		9-09110-410-0 02 1 9812- ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 9812-9905 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 9906-0105 ● ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 0106-0207 ●
112 02.343 TERMINAL; BATTERY
M/T MZZ6F(RSR) (A) <+> 		8-94361-935-0 01 1 0208- ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 0208- ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 9812-9905 ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 9906-0105 ● ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 0106- ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (A) <+> 		1-82695-003-0 01 1 9812- ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <-> 		1-82695-004-0 01 1 9812- ●
115 02.343 WASHER; LK,CABLE,BATTERY
EXC. VOLTAGE 24V<7AE> 00.002 ID=10.2 		9-09150-510-0 02 1 9812- ●
135 02.343 CABLE; ENG TO BATTERY
CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> L=780 		8-97181-964-1 01 1 9812- ●
135 02.343 CABLE; ENG TO BATTERY
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> L=1650 		8-97218-577-0 01 1 9812-0105 ●

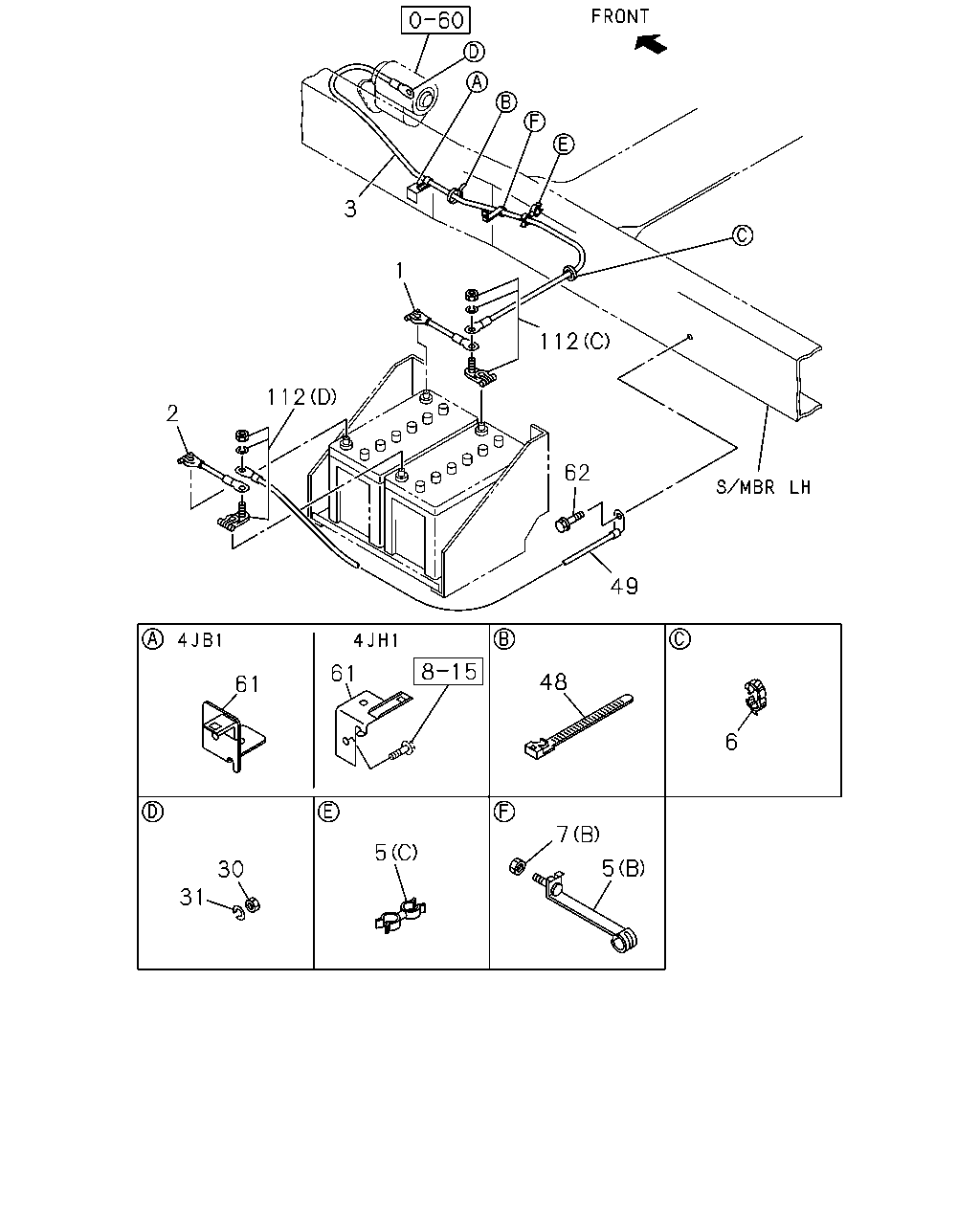

çizim 50900
3 1 112 112 2 62 49 61 48 61 6 7 5 5 30 31
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9812-9905 ●
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9906-0105 ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0106- ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=180 		1-82650-265-0 01 1 9812-0105 ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0106- ●
1 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> 02.342 L=200 		8-94171-823-2 01 1 9812- ●
2 02.341 CABLE; BATTERY
L=180 		8-97034-115-1 01 1 9812-9905 ●
2 02.341 CABLE; BATTERY
L=180 		8-97034-115-1 01 1 9906-0105 ● ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0106- ●
2 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> L=200 		8-94171-824-2 01 1 9812- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97068-729-1 01 1 9812-9903 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97214-185-0 01 1 9904-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97261-196-0 01 1 0106- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 9906-0112 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) NQR SGL CAB&SUPER LONG(NPC6SS) NPR DBL CAB&MIDDLE(NPC6WF) NQR DBL CAB&SUPER LONG(NPC6WS) BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0201-0207 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MBP6R(RNW) BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> L=1000 		8-97181-963-2 01 1 9812- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97218-575-0 01 1 9812-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9812- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6F(RSR) BATTERY 115E41R<6XD> 		8-97352-504-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97215-916-0 01 1 9812-9905 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 9906-0207 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MXA5R(RMT),M/T MBP6R(RNW) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MZZ6F(RSR) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 		8-97352-486-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) 		8-97213-972-0 01 1 9904-9905 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97213-972-0 01 1 9906-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 		8-97352-505-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97226-677-0 01 1 9906-0004 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97226-677-0 01 1 0005-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97258-086-0 01 1 0005-0007 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97287-047-0 01 1 0008-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97306-210-0 01 1 0106-0207 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) M/T MXA5R(RMT),M/T MBP6R(RNW) EXC. BATTERY 115E41R<6XD> 		8-97306-210-0 01 1 0208- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (C) ID=14-12 		8-94379-592-0 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (C) ID=14-12 		8-94379-592-0 01 1 9906-0004 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.342 (C) ID=14-12 		8-94379-592-0 01 1 0005-0105 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR DBL CAB&SUPER LONG(NP**WS) BATTERY 115E41R<6XD> 01.166 (F) ID=13 L=50 		1-09700-027-1 01 1 0106- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9906-0004 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=13 L=90 		8-97015-782-1 01 1 0005-0105 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) M/T MXA5R(RMT),M/T MBP6R(RNW) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 0106-0207 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 0106-0207 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 0208- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 0208- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (A) 		8-94165-399-0 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.483 (A) ID=13 H=18 L=20 		1-09700-813-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (E) ID=16 		8-97040-812-0 01 1 9812- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB&MIDDLE(NP**WF) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 0106-0207 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) M/T MXA5R(RMT),M/T MBP6R(RNW) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 0208- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB&SHORT(NPC6SC) NPR/NQR SGL CAB&MIDDLE(NPC6SF) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) (B) ID=13 L=90 		8-97015-782-1 03 1 9904-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 9906-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 01 1 0208- ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9812-9905 ●
6 02.343 GROMMET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> ID=17 		8-94128-319-2 01 1 9812-9905 ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9906-0105 ● ●
6 02.343 GROMMET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> ID=17 		8-94128-319-2 01 1 9906-0105 ●
6 02.343 GROMMET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> ID=17 		8-94128-319-2 01 1 0106- ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0106- ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9906-0004 ● ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9906-0004 ●
7 02.343 NUT; (+) CABLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0005-0105 ● ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0005-0105 ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0106- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9906- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 00.002 (C) M8 		9-09110-508-0 01 1 9812- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106-0207 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0208- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0208- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9904-9905 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) NQR SGL CAB&SUPER LONG(NPC6SS) BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9906- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9906- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9812-9905 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9906-0105 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0106- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9812-9905 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9906-0105 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0106- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-0 01 1 9812-9902 ●
48 02.343 CLIP; CABLE
VOLTAGE 24V<7AE> 03.162 L=140 		5-09707-031-0 01 1 9812-9902 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 9903-9908 ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 9909-0105 ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0106- ●
48 02.343 CLIP; CABLE
02.559 L=250 		5-09707-030-1 01 1 0106- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 9812-9905 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 9906-0105 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0106- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=400 		9-82933-248-0 01 1 9812-9905 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97231-489-0 01 1 9906- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 9812- ●
61 02.333 BRACKET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> 		8-97202-141-1 01 1 9812- ●
61 02.333 BRACKET; BATTERY CABLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97258-006-0 01 1 0005-0007 ●
61 02.333 BRACKET; BATTERY CABLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97260-485-0 01 1 0008-0105 ●
61 02.333 BRACKET; BATTERY CABLE 8-97312-657-0 01 1 0106- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9812-9905 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9906-0105 ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0106- ● ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 9812-9905 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 9906-0105 ● ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 0106-0207 ●
112 02.343 TERMINAL; BATTERY
M/T MZZ6F(RSR) (A) <+> 		8-94361-935-0 01 1 0208- ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 0208- ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 9812-9905 ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 9906-0105 ● ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 0106- ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (A) <+> 		1-82695-003-0 01 1 9812- ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <-> 		1-82695-004-0 01 1 9812- ●

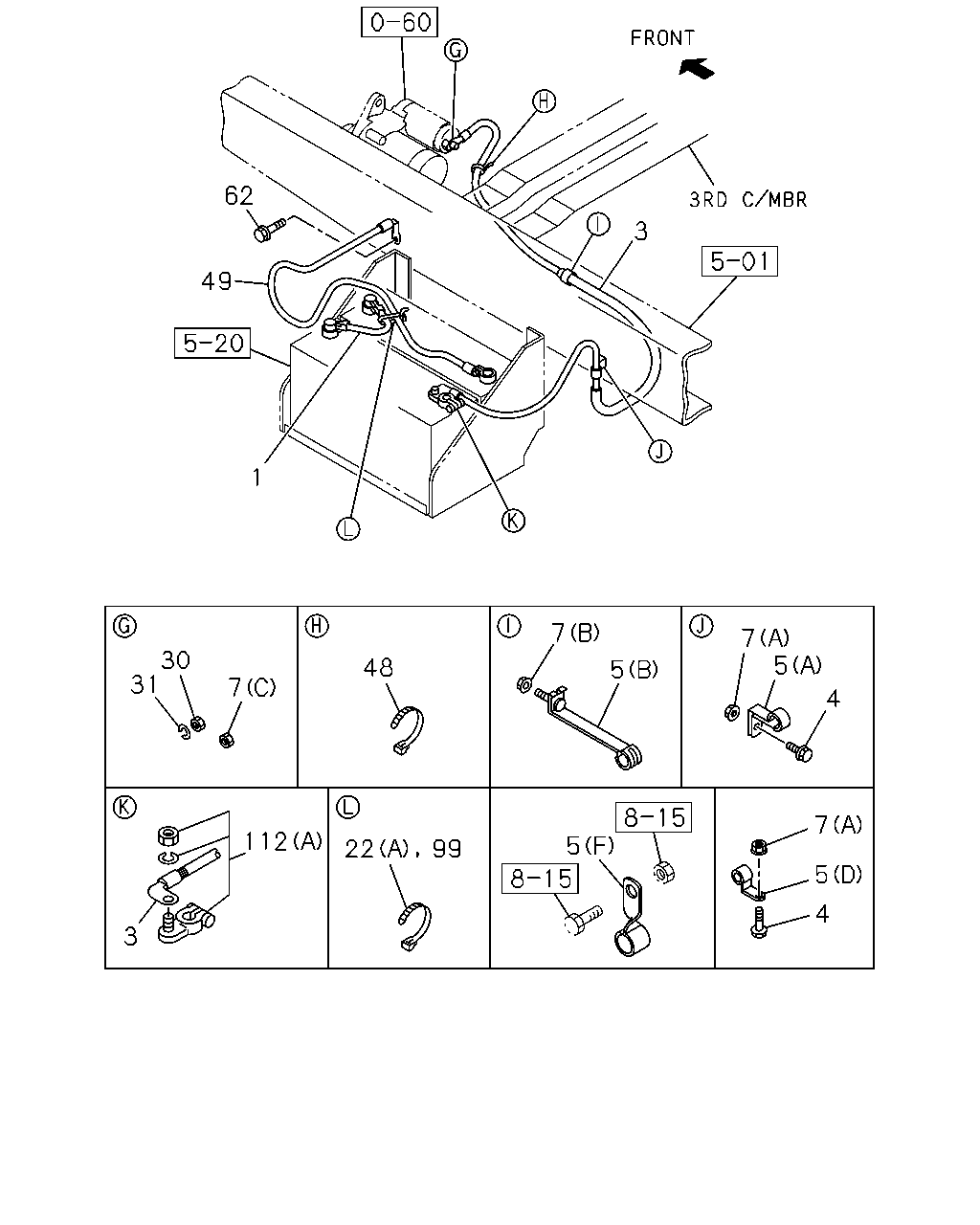

çizim 51119
62 3 49 1 7 7 5 30 31 48 5 7 4 5 7 112 99 22 5 4 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9812-9905 ●
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9906-0105 ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0106- ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=180 		1-82650-265-0 01 1 9812-0105 ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0106- ●
1 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> 02.342 L=200 		8-94171-823-2 01 1 9812- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97068-729-1 01 1 9812-9903 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97214-185-0 01 1 9904-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97261-196-0 01 1 0106- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 9906-0112 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) NQR SGL CAB&SUPER LONG(NPC6SS) NPR DBL CAB&MIDDLE(NPC6WF) NQR DBL CAB&SUPER LONG(NPC6WS) BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0201-0207 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MBP6R(RNW) BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> L=1000 		8-97181-963-2 01 1 9812- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97218-575-0 01 1 9812-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9812- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6F(RSR) BATTERY 115E41R<6XD> 		8-97352-504-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97215-916-0 01 1 9812-9905 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 9906-0207 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MXA5R(RMT),M/T MBP6R(RNW) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MZZ6F(RSR) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 		8-97352-486-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) 		8-97213-972-0 01 1 9904-9905 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97213-972-0 01 1 9906-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 		8-97352-505-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97226-677-0 01 1 9906-0004 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97226-677-0 01 1 0005-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97258-086-0 01 1 0005-0007 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97287-047-0 01 1 0008-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97306-210-0 01 1 0106-0207 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) M/T MXA5R(RMT),M/T MBP6R(RNW) EXC. BATTERY 115E41R<6XD> 		8-97306-210-0 01 1 0208- ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 9906- ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9812-9905 ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9906- ●
4 02.559 BOLT; BATTERY CABLE
NQR DBL CAB&SUPER LONG(NP**WS) BATTERY 115E41R<6XD> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (C) ID=14-12 		8-94379-592-0 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (C) ID=14-12 		8-94379-592-0 01 1 9906-0004 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.342 (C) ID=14-12 		8-94379-592-0 01 1 0005-0105 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR DBL CAB&SUPER LONG(NP**WS) BATTERY 115E41R<6XD> 01.166 (F) ID=13 L=50 		1-09700-027-1 01 1 0106- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9906-0004 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=13 L=90 		8-97015-782-1 01 1 0005-0105 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) M/T MXA5R(RMT),M/T MBP6R(RNW) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 0106-0207 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 0106-0207 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 0208- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 0208- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (A) 		8-94165-399-0 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.483 (A) ID=13 H=18 L=20 		1-09700-813-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (E) ID=16 		8-97040-812-0 01 1 9812- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB&MIDDLE(NP**WF) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 0106-0207 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) M/T MXA5R(RMT),M/T MBP6R(RNW) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 0208- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 9812-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB&SHORT(NPC6SC) NPR/NQR SGL CAB&MIDDLE(NPC6SF) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) (B) ID=13 L=90 		8-97015-782-1 03 1 9904-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 9906-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 01 1 0208- ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9906-0004 ● ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9906-0004 ●
7 02.343 NUT; (+) CABLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0005-0105 ● ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0005-0105 ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0106- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9906- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 00.002 (C) M8 		9-09110-508-0 01 1 9812- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9812-9905 ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106-0207 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0208- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0208- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9904-9905 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) NQR SGL CAB&SUPER LONG(NPC6SS) BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9906- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9906- ●
22 02.343 CLIP; BATTERY CABLE
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> (B) ID=14 H=50 L=20 		1-09700-843-0 01 1 9812-0105 ●
22 02.343 CLIP; BATTERY CABLE
NPR DBL CAB&MIDDLE(NP**WF) BATTERY 115E41R<6XD> 03.162 (A) L=140 		5-09707-031-1 01 1 9906-0105 ●
22 02.343 CLIP; BATTERY CABLE
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.162 (A) L=140 		5-09707-031-1 01 1 0106- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9812-9905 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9906-0105 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0106- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9812-9905 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9906-0105 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0106- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-0 01 1 9812-9902 ●
48 02.343 CLIP; CABLE
VOLTAGE 24V<7AE> 03.162 L=140 		5-09707-031-0 01 1 9812-9902 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 9903-9908 ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 9909-0105 ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0106- ●
48 02.343 CLIP; CABLE
02.559 L=250 		5-09707-030-1 01 1 0106- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 9812-9905 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 9906-0105 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0106- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=400 		9-82933-248-0 01 1 9812-9905 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97231-489-0 01 1 9906- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 9812- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9812-9905 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9906-0105 ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0106- ● ●
99 02.343 CLIP; BATTERY CABLE
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 03.162 L=140 		5-09707-031-1 02 1 9903-0105 ●
99 02.343 CLIP; BATTERY CABLE
BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 0106- ●
99 02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) NQR SGL CAB&SUPER LONG(NPC6SS) BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 9906-0105 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 9812-9905 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 9906-0105 ● ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 0106-0207 ●
112 02.343 TERMINAL; BATTERY
M/T MZZ6F(RSR) (A) <+> 		8-94361-935-0 01 1 0208- ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 0208- ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 9812-9905 ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 9906-0105 ● ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 0106- ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (A) <+> 		1-82695-003-0 01 1 9812- ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <-> 		1-82695-004-0 01 1 9812- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
