Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#44573) — 266 parça

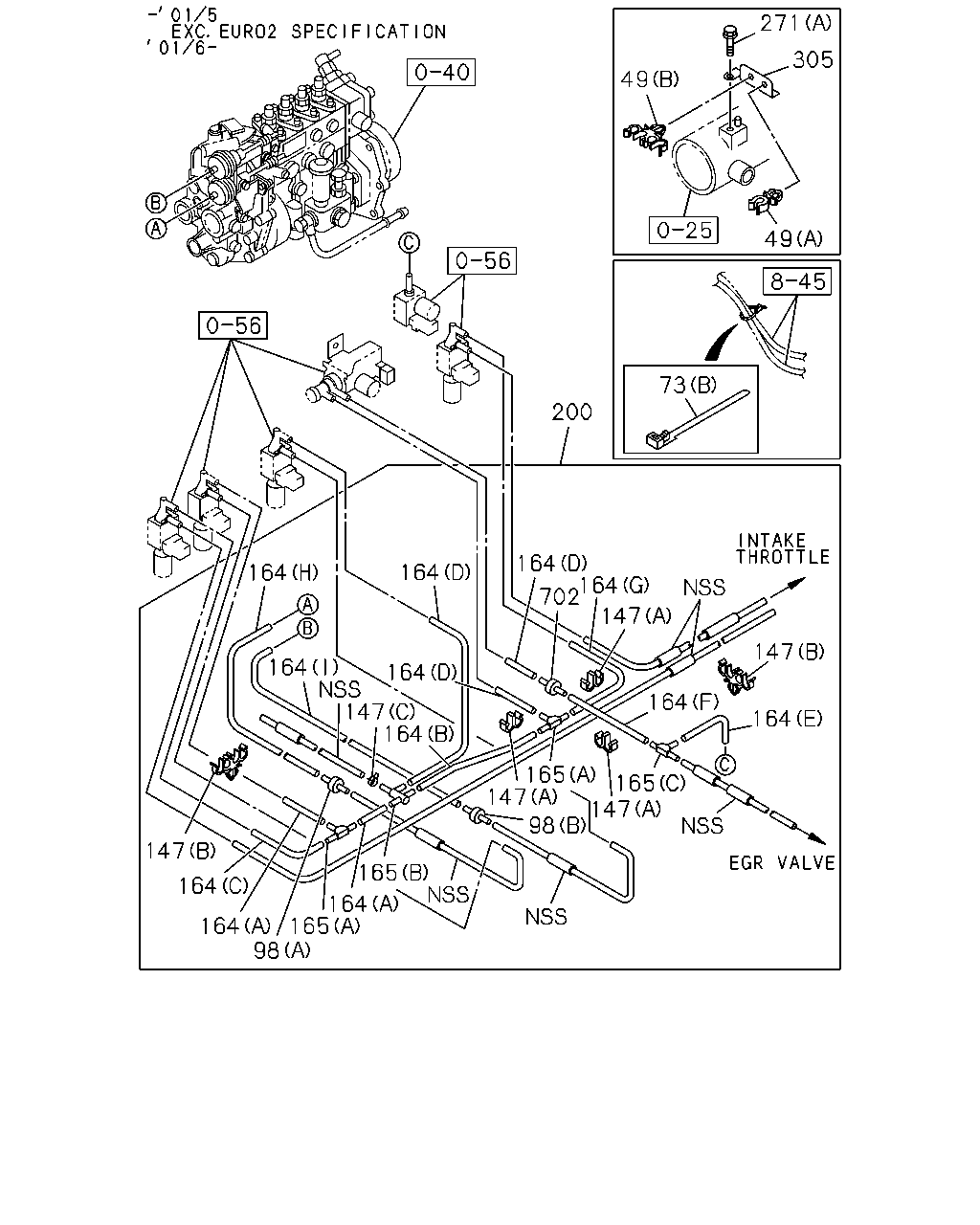

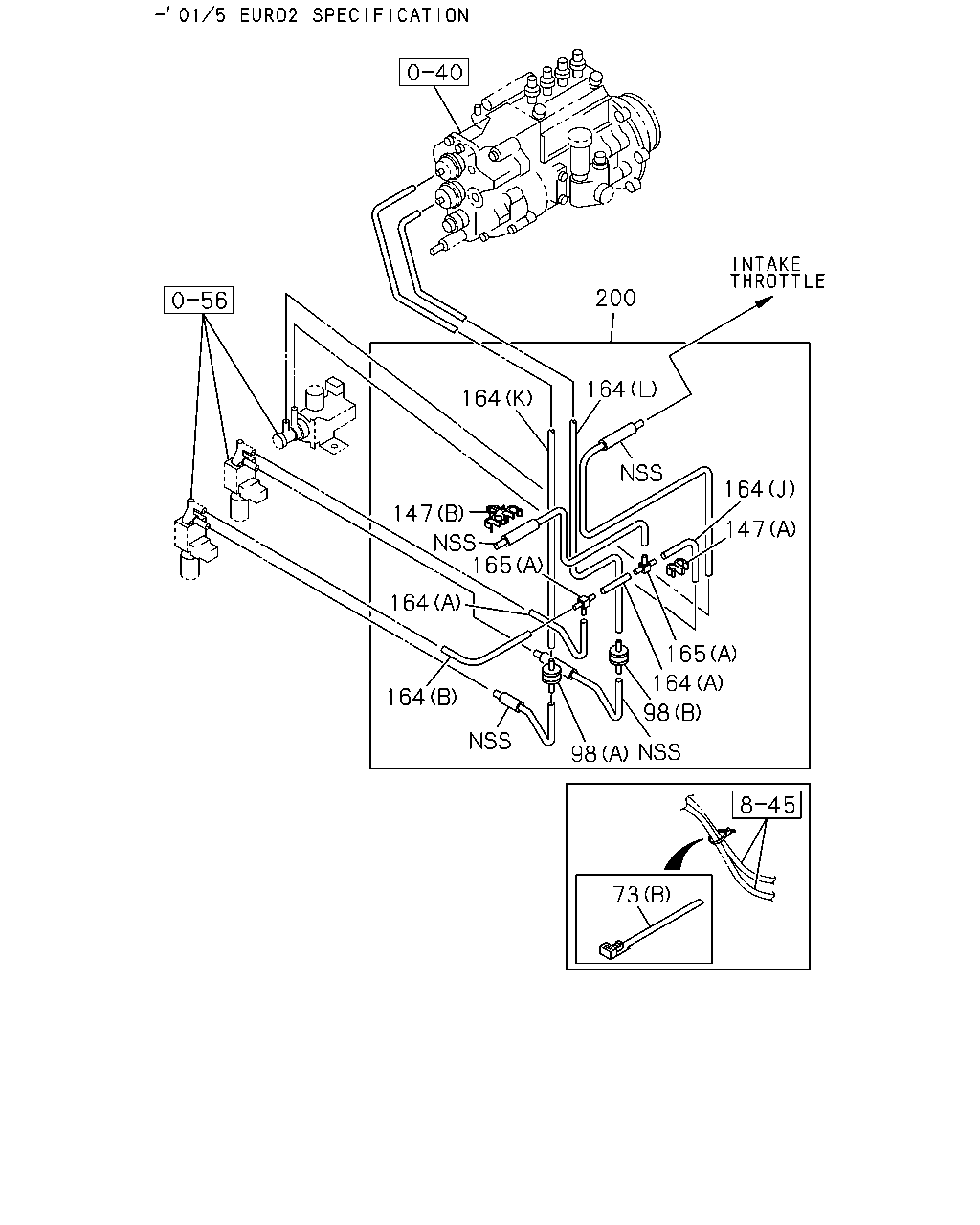

200 164 164 164 147 147 165 164 165 164 164 98 98 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9812-	●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9812-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	9812-0101	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	02	1	0102-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0102-	●
73	03.680 CLIP; VAC HOSE 01.540 (C) ID=30	8-94315-423-0	03	1	9906-0105		●
73	03.680 CLIP; VAC HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	9906-0105		●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9909-0105		●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> (A)	8-94110-978-0	01	1	9812-	●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> 03.415 (B) PINK	8-94145-108-0	01	1	9812-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> (C) ID=7	8-94208-596-0	01	1	0108-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9812-0105	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0106-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	01	1	9812-0105	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> (B) 4XID=6.7	8-94315-422-0	02	1	0106-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9812-0105	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	02	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	9812-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (B) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	9812-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (J) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (K) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (L) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0106-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	0106-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	0106-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0106-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	0106-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	0106-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	0106-	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> (A) 3WAY	8-94208-695-0	02	1	9812-	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.670 (B) 4WAY	8-94100-256-0	01	1	9812-0105	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> 03.670 (B) 4WAY	8-94100-256-0	01	1	0106-	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.145 (C) 3WAY	8-94237-690-0	01	1	9812-0105	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> 03.145 (C) 3WAY	8-94237-690-0	01	1	0106-	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97182-890-4	01	1	9812-0105	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97182-709-5	01	1	9812-0105	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL>	8-97182-709-6	01	1	0106-	●

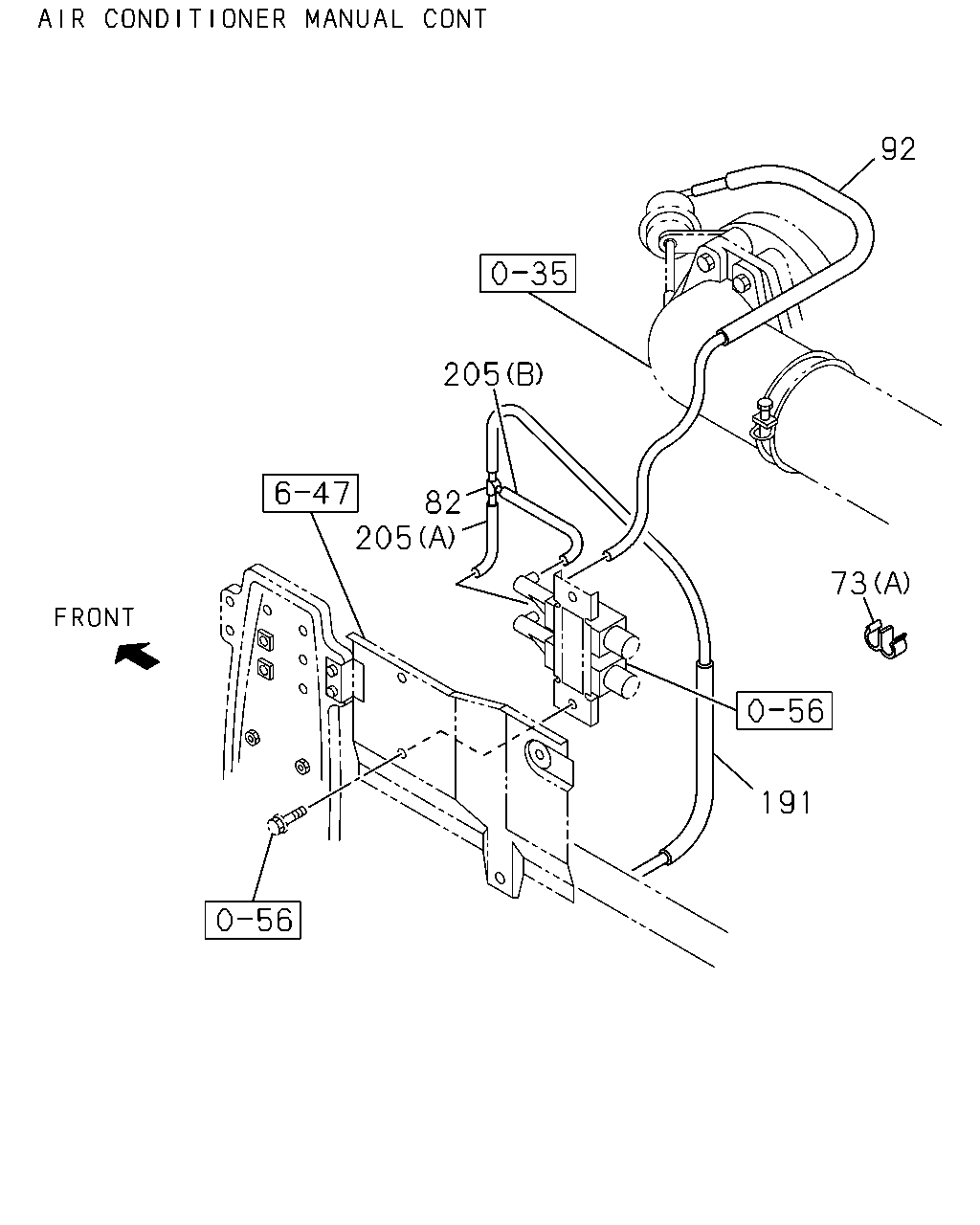

92 205 82 205 73 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9812-	●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9812-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	9812-0101	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	02	1	0102-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0102-	●
73	03.680 CLIP; VAC HOSE 01.540 (C) ID=30	8-94315-423-0	03	1	9906-0105		●
73	03.680 CLIP; VAC HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	9906-0105		●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9909-0105		●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 3WAY	8-94208-695-0	01	1	9812-	●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. CHARGE AIR COOLER<6PL> L=415	8-97083-184-1	01	1	9812-	●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-2	01	1	9812-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	9812-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	9812-	●

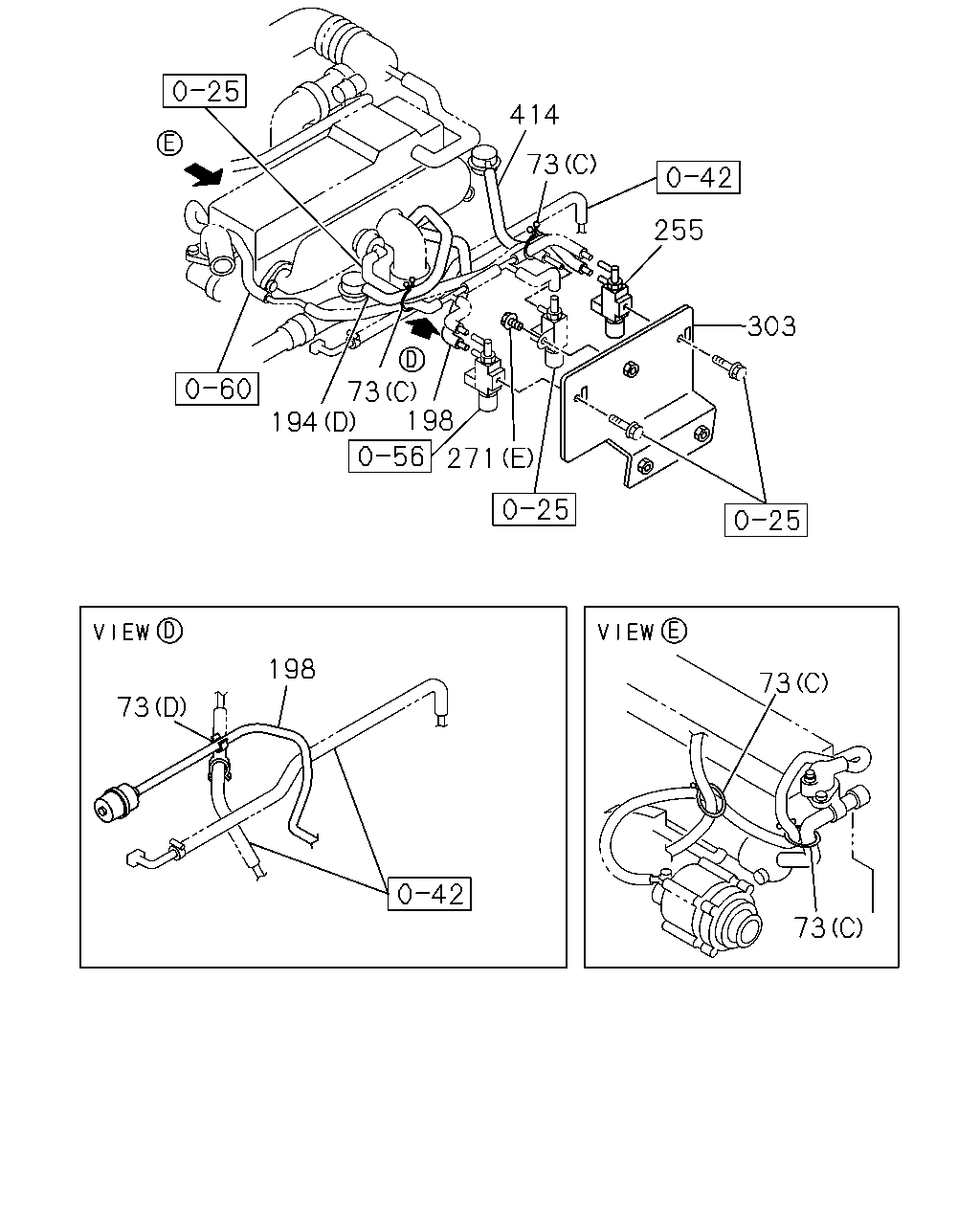

414 73 255 303 73 194 198 271 198 73 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9812-	●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9812-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	9812-0101	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	02	1	0102-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0102-	●
73	03.680 CLIP; VAC HOSE 01.540 (C) ID=30	8-94315-423-0	03	1	9906-0105		●
73	03.680 CLIP; VAC HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	9906-0105		●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9909-0105		●
194	03.675 HOSE; VAC (D)	8-97208-495-0	01	1	9906-0105		●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0106-			●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0106-			●
194	03.675 HOSE; VAC (B)	8-97257-313-1	01	1	0106-			●
198	03.675 HOSE; VAC,VSV L=300 SERVICED BY L=3000	0-04930-300-0	01	1	9906-0105		●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	9906-0105		●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0106-			●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> 00.002 (C) M8X25 FLANGE	0-28690-825-0	02	1	0106-	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.500 (D) M6X10 FLANGE	0-28080-610-0	01	1	9812-0105	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> 02.500 (D) M6X10 FLANGE	0-28080-610-0	01	1	0106-	●
271	03.675 BOLT; BRKT TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.664 (E) M8X20 FLANGE	0-28680-820-0	02	1	9906-		●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0106-			●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0106-			●
303	03.671 BRACKET; VAC SW	8-97205-844-1	01	1	9906-0105		●
303	03.671 BRACKET; VAC SW	8-97240-701-1	01	1	0106-0211			●
303	03.671 BRACKET; VAC SW	8-97361-242-0	01	1	0212-			●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV	8-97224-049-0	01	1	9906-0006		●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV	8-97259-489-0	01	1	0007-0105		●

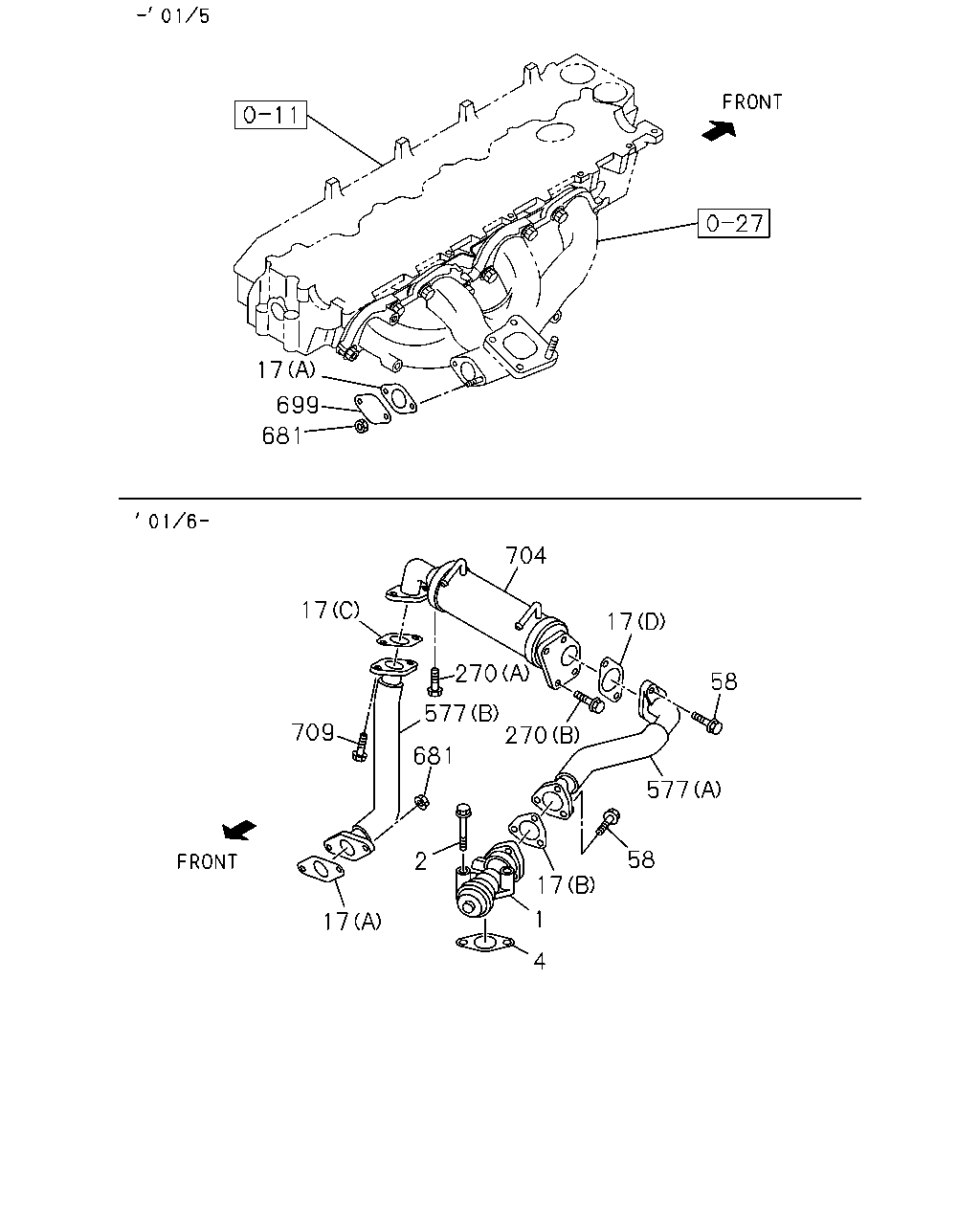

17 699 681 704 17 17 270 58 577 270 709 681 577 58 2 17 1 17 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL>	8-97135-088-4	01	1	0106-	●
1	03.670 VALVE; EGR	8-97208-656-2	01	1	9906-0105		●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0106-			●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0106-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.417	8-97190-508-0	01	1	0106-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0106-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A)	8-94340-670-0	01	1	9812-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (D)	8-97189-853-1	01	1	0106-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (C)	8-97213-386-0	01	1	0106-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97192-765-0	03	1	9906-0105		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (B)	8-97166-993-0	01	1	0106-	●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0106-	●
270	03.680 BOLT CHARGE AIR COOLER<6PL> 01.062 (A) M10X12 FLANGE	0-28181-012-0	01	1	0106-	●
270	03.680 BOLT CHARGE AIR COOLER<6PL> 07.633 (B) M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0106-	●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> (A)	8-97241-002-2	01	1	0106-	●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> (B)	8-97241-004-1	01	1	0106-	●
681	03.671 NUT; EGR PIPE CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97061-401-1	02	1	9812-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	9906-0105		●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0106-			●
699	03.680 PLATE; BOSS,EXH MANIFOLD CHARGE AIR COOLER<6PL>	8-97136-006-0	01	1	9812-0105	●
704	03.337 COOLER ASM; EGR CHARGE AIR COOLER<6PL>	8-97241-003-0	01	1	0106-0109	●
704	03.337 COOLER ASM; EGR CHARGE AIR COOLER<6PL>	8-97325-128-0	01	1	0110-	●
704	03.337 COOLER ASM; EGR	8-97239-982-3	01	1	0106-			●
709	03.670 BOLT; EGR COOLER CHARGE AIR COOLER<6PL> M8X23 FLANGE	8-94103-629-2	02	1	0106-	●

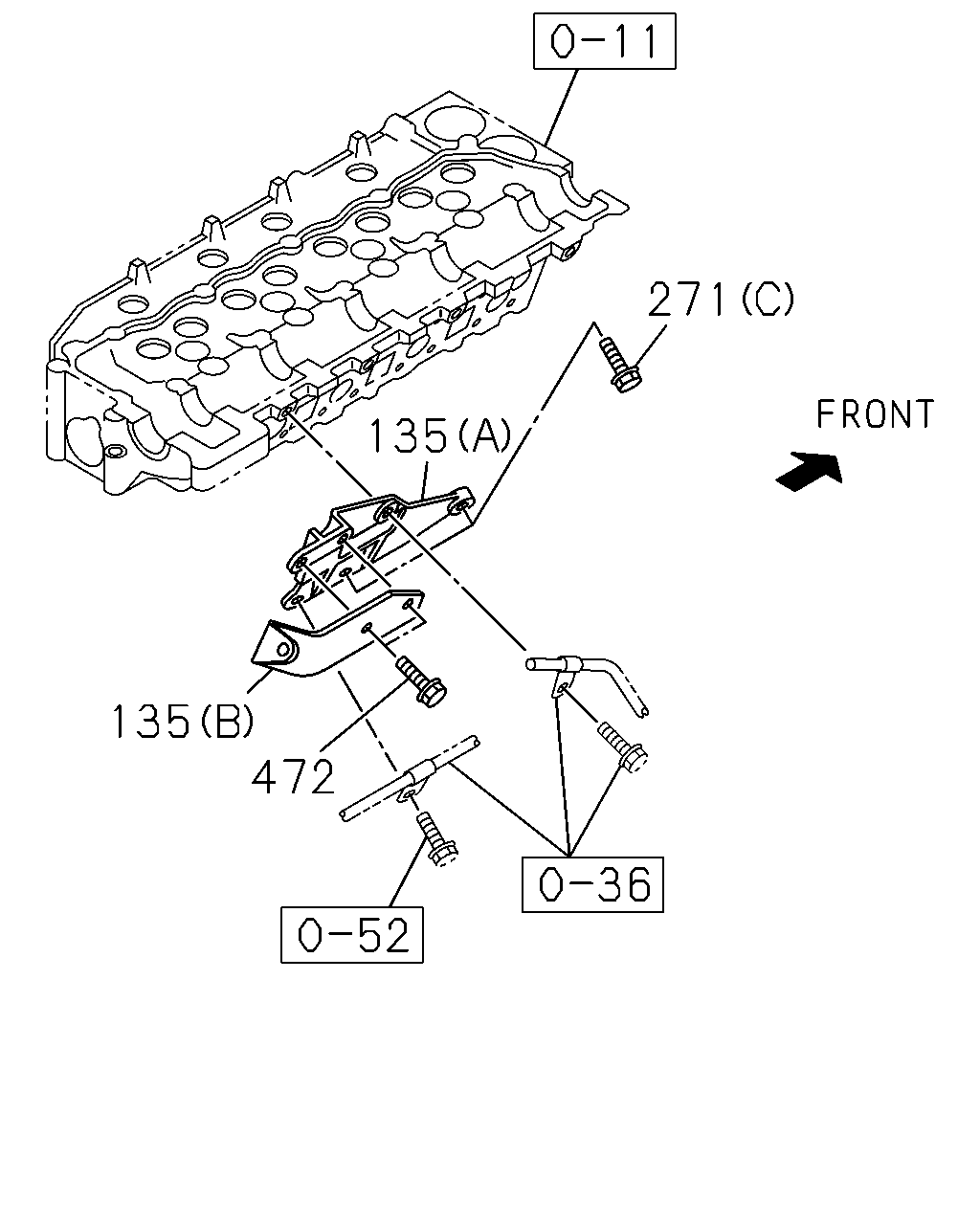

271 135 135 472

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
135	03.680 BRACKET; EGR CHARGE AIR COOLER<6PL> (A)	8-97302-225-0	01	1	0106-	●
135	03.680 BRACKET; EGR CHARGE AIR COOLER<6PL> (B)	8-97302-226-0	01	1	0106-	●
135	03.680 BRACKET; EGR (C)	8-97247-717-2	01	1	0106-			●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> 00.002 (C) M8X25 FLANGE	0-28690-825-0	02	1	0106-	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.500 (D) M6X10 FLANGE	0-28080-610-0	01	1	9812-0105	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> 02.500 (D) M6X10 FLANGE	0-28080-610-0	01	1	0106-	●
271	03.675 BOLT; BRKT TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.664 (E) M8X20 FLANGE	0-28680-820-0	02	1	9906-		●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0106-			●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0106-			●
472	03.671 BOLT; BRKT CHARGE AIR COOLER<6PL> 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0106-	●

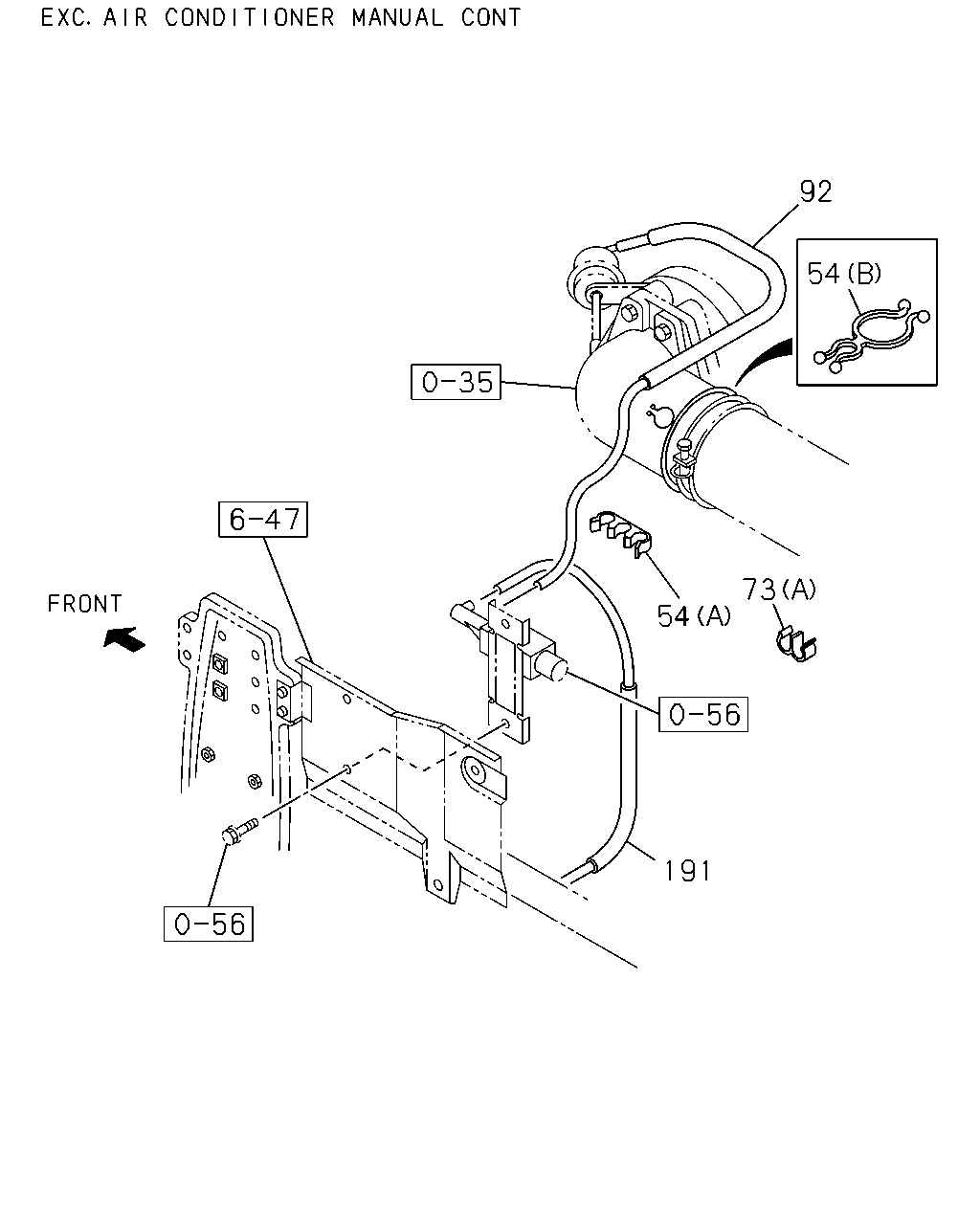

92 54 73 54 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.680 CLIP; 3 HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	9812-	●
54	03.680 CLIP; 3 HOSE EXC. CHARGE AIR COOLER<6PL> 03.407 (B)	8-94360-297-0	01	1	9812-	●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9812-	●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9812-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	9812-0101	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	02	1	0102-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0102-	●
73	03.680 CLIP; VAC HOSE 01.540 (C) ID=30	8-94315-423-0	03	1	9906-0105		●
73	03.680 CLIP; VAC HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	9906-0105		●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9909-0105		●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. CHARGE AIR COOLER<6PL> L=415	8-97083-184-1	01	1	9812-	●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-2	01	1	9812-	●

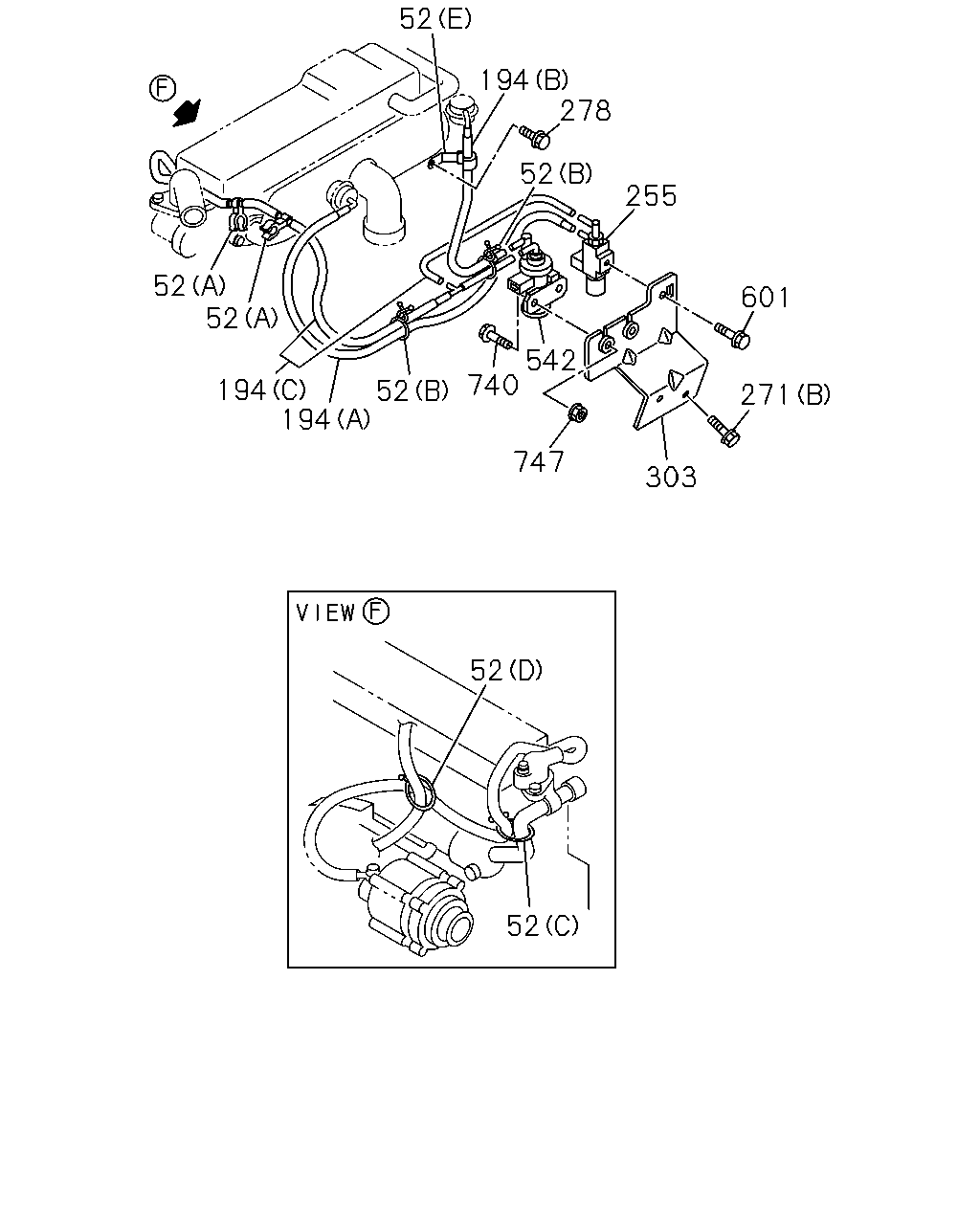

52 194 278 52 255 52 52 601 542 740 194 194 52 271 747 303 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0106-			●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0106-			●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0106-			●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0106-			●
52	03.680 CLIP; VSV HOSE (E)	9-09916-775-0	01	1	0106-			●
194	03.675 HOSE; VAC (D)	8-97208-495-0	01	1	9906-0105		●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0106-			●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0106-			●
194	03.675 HOSE; VAC (B)	8-97257-313-1	01	1	0106-			●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	9906-0105		●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0106-			●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> 00.002 (C) M8X25 FLANGE	0-28690-825-0	02	1	0106-	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.500 (D) M6X10 FLANGE	0-28080-610-0	01	1	9812-0105	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> 02.500 (D) M6X10 FLANGE	0-28080-610-0	01	1	0106-	●
271	03.675 BOLT; BRKT TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.664 (E) M8X20 FLANGE	0-28680-820-0	02	1	9906-		●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0106-			●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0106-			●
278	03.680 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-			●
303	03.671 BRACKET; VAC SW	8-97205-844-1	01	1	9906-0105		●
303	03.671 BRACKET; VAC SW	8-97240-701-1	01	1	0106-0211			●
303	03.671 BRACKET; VAC SW	8-97361-242-0	01	1	0212-			●
542	03.670 VALVE; VAC REGULATING	8-97240-699-0	01	1	0106-			●
601	03.417 SCREW; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0106-			●
740	03.680 BOLT; VAC REG VALVE 09.190 M6X30 FLANGE	0-28680-630-0	02	1	0106-0211			●
740	03.680 BOLT; VAC REG VALVE 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0212-			●
747	03.671 NUT; VAC REG VALVE 04.594 M6 FLANGE	0-91150-106-0	02	1	0106-0211			●

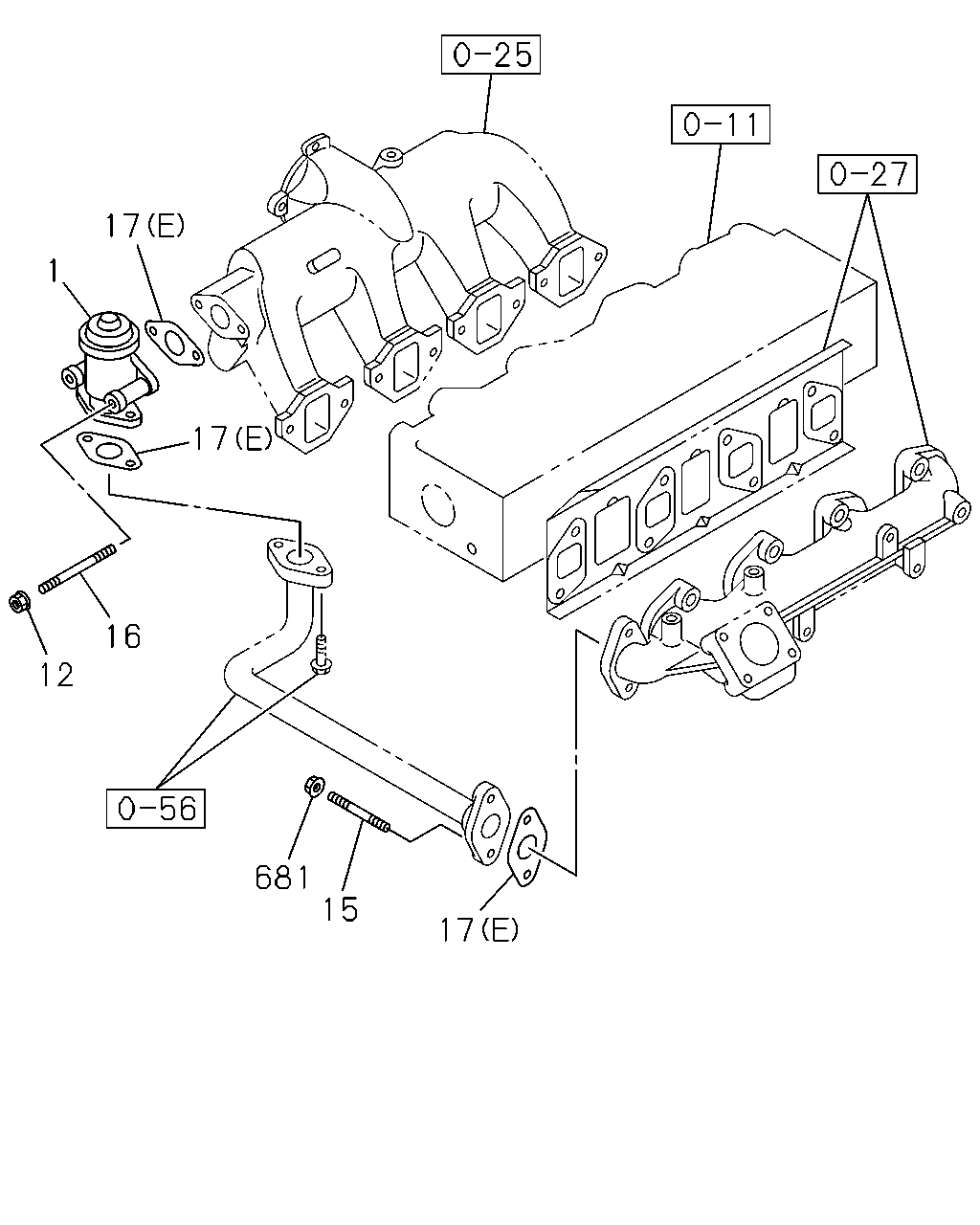

17 1 17 16 12 681 15 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL>	8-97135-088-4	01	1	0106-	●
1	03.670 VALVE; EGR	8-97208-656-2	01	1	9906-0105		●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0106-			●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	9906-0105		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0106-			●
15	03.670 STUD; EGR PIPE M8X25 L=36	8-94156-470-2	02	1	9906-0105		●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97104-508-1	04	1	0106-			●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	9906-0105		●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	0106-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A)	8-94340-670-0	01	1	9812-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (D)	8-97189-853-1	01	1	0106-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (C)	8-97213-386-0	01	1	0106-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97192-765-0	03	1	9906-0105		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (B)	8-97166-993-0	01	1	0106-	●
681	03.671 NUT; EGR PIPE CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97061-401-1	02	1	9812-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	9906-0105		●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0106-			●

4 1 16 12 4 719 15 705 681 4 4 15 271 704 681 135 271 631 663 746 663 746 663 663 663 663 719 704 97 663 663 97

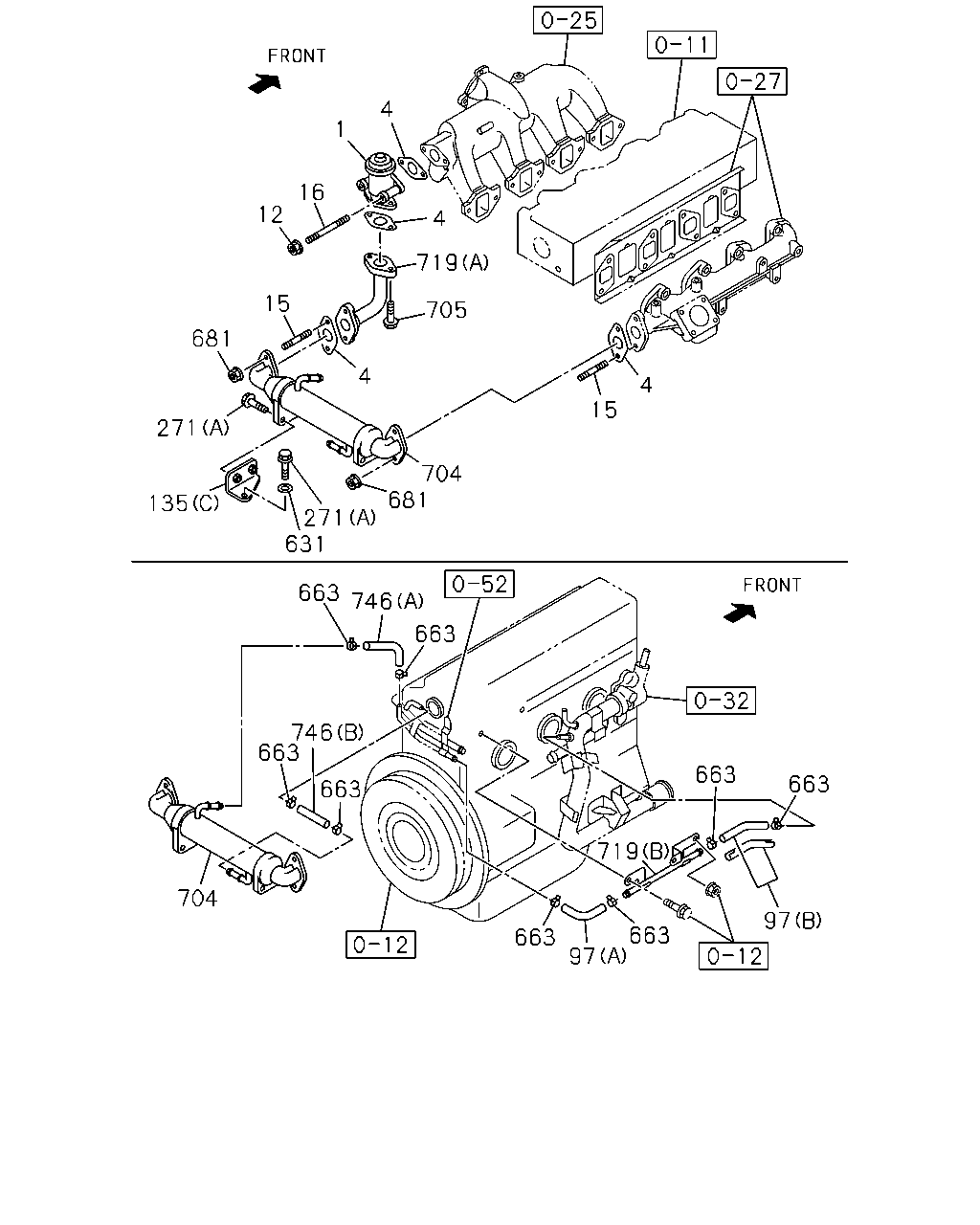

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL>	8-97135-088-4	01	1	0106-	●
1	03.670 VALVE; EGR	8-97208-656-2	01	1	9906-0105		●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0106-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.417	8-97190-508-0	01	1	0106-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0106-			●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	9906-0105		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0106-			●
15	03.670 STUD; EGR PIPE M8X25 L=36	8-94156-470-2	02	1	9906-0105		●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97104-508-1	04	1	0106-			●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	9906-0105		●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	0106-			●
97	03.675 HOSE; RUBBER (A)	8-97240-636-0	01	1	0106-			●
97	03.675 HOSE; RUBBER (B)	8-97312-730-0	01	1	0106-			●
135	03.680 BRACKET; EGR CHARGE AIR COOLER<6PL> (A)	8-97302-225-0	01	1	0106-	●
135	03.680 BRACKET; EGR CHARGE AIR COOLER<6PL> (B)	8-97302-226-0	01	1	0106-	●
135	03.680 BRACKET; EGR (C)	8-97247-717-2	01	1	0106-			●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> 00.002 (C) M8X25 FLANGE	0-28690-825-0	02	1	0106-	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.500 (D) M6X10 FLANGE	0-28080-610-0	01	1	9812-0105	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> 02.500 (D) M6X10 FLANGE	0-28080-610-0	01	1	0106-	●
271	03.675 BOLT; BRKT TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.664 (E) M8X20 FLANGE	0-28680-820-0	02	1	9906-		●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0106-			●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0106-			●
631	03.417 WASHER; PL,BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	0106-			●
663	03.417 CLIP; HOSE 01.153 ID=12.8	8-94367-943-0	08	1	0106-			●
681	03.671 NUT; EGR PIPE CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97061-401-1	02	1	9812-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	9906-0105		●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0106-			●
704	03.337 COOLER ASM; EGR CHARGE AIR COOLER<6PL>	8-97241-003-0	01	1	0106-0109	●
704	03.337 COOLER ASM; EGR CHARGE AIR COOLER<6PL>	8-97325-128-0	01	1	0110-	●
704	03.337 COOLER ASM; EGR	8-97239-982-3	01	1	0106-			●
705	03.675 BOLT; EGR VLV TO EGR PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-			●
719	03.675 PIPE; EGR (B)	8-97240-635-2	01	1	0106-			●
719	03.675 PIPE; EGR (A)	8-97245-757-2	01	1	0106-			●
746	03.675 HOSE; WATER,EGR COOLER 03.342 (B) L=90 SERVICED BY L=3000	0-03259-300-0	01	1	0106-0204			●
746	03.675 HOSE; WATER,EGR COOLER 01.097 (B) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0205-			●
746	03.675 HOSE; WATER,EGR COOLER (A)	8-97313-126-1	01	1	0106-			●

271 305 49 49 73 200 164 164 702 164 164 147 147 164 147 164 164 164 164 165 147 165 147 98 147 165 164 164 164 165 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162 (A)	8-94253-984-0	01	1	9812-0105	●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> 03.162 (A)	8-94253-984-0	01	1	0106-	●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	01	1	9812-0105	●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> (B) 4XID=6.7	8-94315-422-0	01	1	0106-	●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9812-	●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9812-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	9812-0101	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	02	1	0102-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0102-	●
73	03.680 CLIP; VAC HOSE 01.540 (C) ID=30	8-94315-423-0	03	1	9906-0105		●
73	03.680 CLIP; VAC HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	9906-0105		●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9909-0105		●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> (A)	8-94110-978-0	01	1	9812-	●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> 03.415 (B) PINK	8-94145-108-0	01	1	9812-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> (C) ID=7	8-94208-596-0	01	1	0108-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9812-0105	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0106-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	01	1	9812-0105	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> (B) 4XID=6.7	8-94315-422-0	02	1	0106-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9812-0105	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	02	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	9812-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (B) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	9812-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (J) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (K) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (L) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0106-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	0106-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	0106-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0106-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	0106-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	0106-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	9812-0105	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	0106-	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> (A) 3WAY	8-94208-695-0	02	1	9812-	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.670 (B) 4WAY	8-94100-256-0	01	1	9812-0105	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> 03.670 (B) 4WAY	8-94100-256-0	01	1	0106-	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.145 (C) 3WAY	8-94237-690-0	01	1	9812-0105	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> 03.145 (C) 3WAY	8-94237-690-0	01	1	0106-	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97182-890-4	01	1	9812-0105	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97182-709-5	01	1	9812-0105	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL>	8-97182-709-6	01	1	0106-	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> 00.002 (C) M8X25 FLANGE	0-28690-825-0	02	1	0106-	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.500 (D) M6X10 FLANGE	0-28080-610-0	01	1	9812-0105	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> 02.500 (D) M6X10 FLANGE	0-28080-610-0	01	1	0106-	●
271	03.675 BOLT; BRKT TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.664 (E) M8X20 FLANGE	0-28680-820-0	02	1	9906-		●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0106-			●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0106-			●
305	03.675 BRACKET; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97182-758-0	01	1	9812-0105	●
305	03.675 BRACKET; RUBBER HOSE CHARGE AIR COOLER<6PL>	8-97182-758-0	01	1	0106-	●
702	03.670 VALVE; DERIVERY CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97145-713-0	01	1	9812-0105	●
702	03.670 VALVE; DERIVERY CHARGE AIR COOLER<6PL>	8-97145-713-0	01	1	0106-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
