Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#44571) — 198 parça

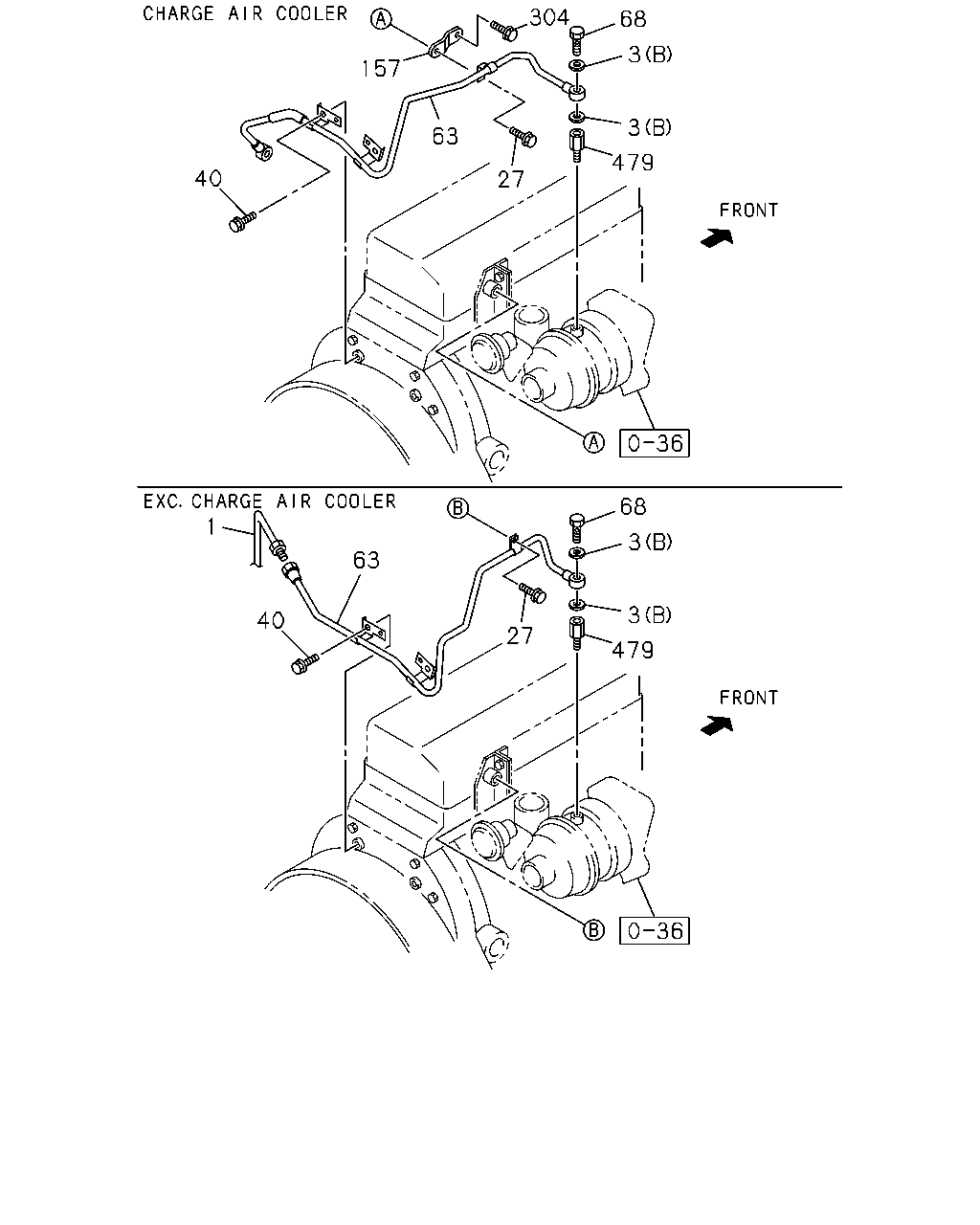

63 3 2 3 1 3 3 2 63 3 3 3 1 3 3 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.519 PIPE; OIL,INJ PUMP TO C/BL CHARGE AIR COOLER<6PL>	8-97148-923-3	01	1	9812-0104	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL CHARGE AIR COOLER<6PL>	8-97314-008-0	01	1	0105-	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL EXC. CHARGE AIR COOLER<6PL>	8-97074-790-2	01	1	9812-	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	9812-	●
2	01.531 BOLT; EYE,OIL PIPE CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE	8-97182-847-0	01	1	9812-	●
2	01.531 BOLT; EYE,OIL PIPE EXC. CHARGE AIR COOLER<6PL> (A) M10X36	1-09675-183-0	01	1	9812-	●
2	01.531 BOLT; EYE,OIL PIPE 03.358 (C) M10X23 FLANGE	8-94332-831-1	01	1	9906-0105		●
2	01.531 BOLT; EYE,OIL PIPE (D) M10X27	8-94443-535-0	01	1	0106-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	9812-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2	9-09571-412-0	02	1	9812-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	06	1	9812-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	9906-0105		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	0106-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL>	8-97214-394-0	01	1	9812-0105	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL>	8-97260-199-1	01	1	0106-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97182-990-0	01	1	9812-9907	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97229-042-0	01	1	9908-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	9906-0105		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97239-974-4	01	1	0106-			●

89 86 89 340 202 202 202 65 202 202 202 65 83 83 202 65 27 202 65 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0109	●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0110-	●
27	01.531 BOLT; OIL PIPE FIX 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0110-	●
27	01.531 BOLT; OIL PIPE FIX EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE	0-28080-835-0	01	1	9812-	●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	9812-	●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	9812-	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97029-287-1	01	1	9812-0109	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0110-	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	9812-	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9812-	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9812-	●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9812-	●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9812-	●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	9812-	●

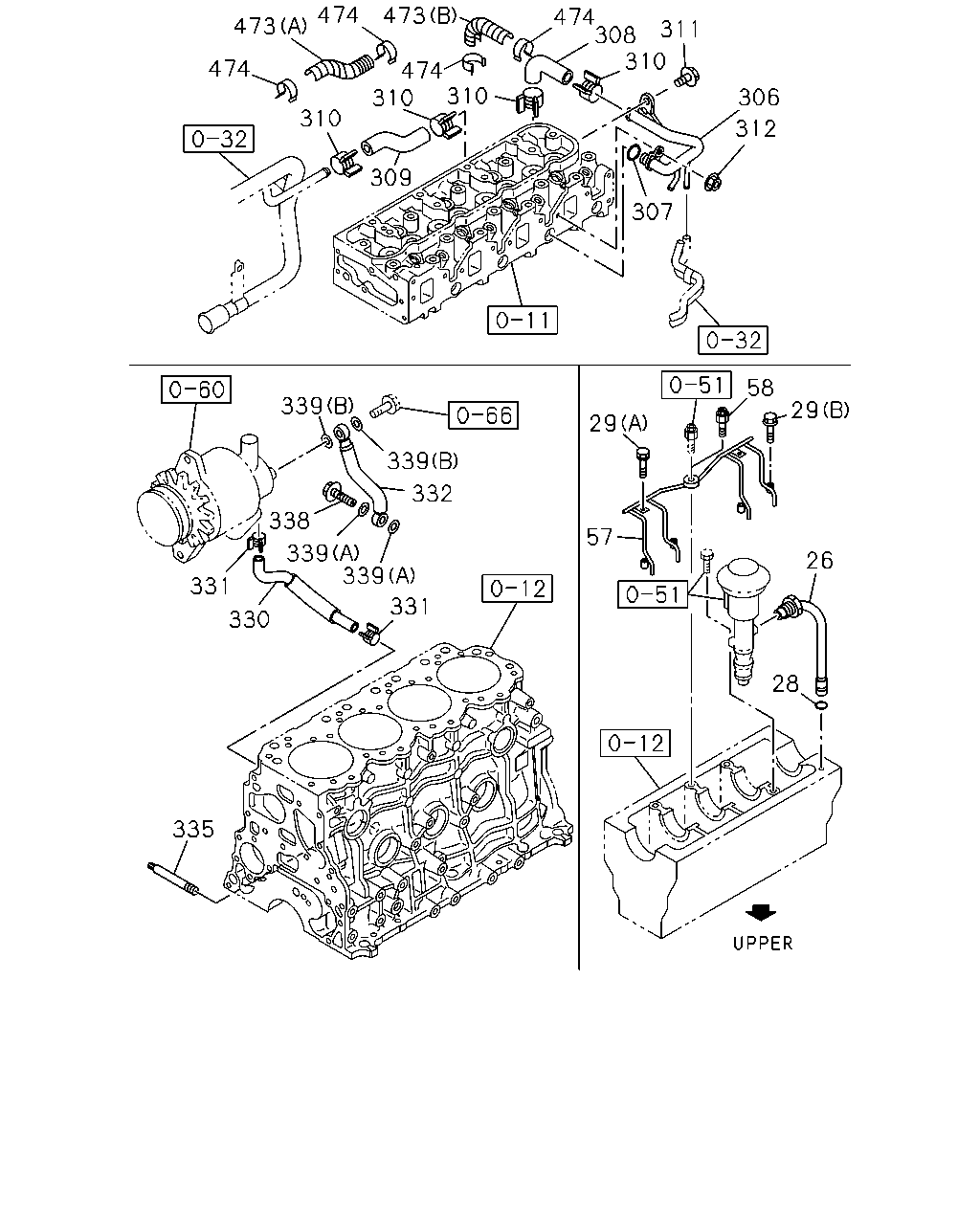

474 473 474 308 310 473 311 474 474 306 310 312 309 307 58 339 29 29 339 332 338 57 339 339 26 331 331 330 28 335 310 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97080-301-0	01	1	9812-0105	●		●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97080-301-2	01	1	0106-		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	9812-0105	●		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	0106-		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9812-0105	●		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0106-		●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9812-9905			●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9906-0105	●		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0106-		●
57	01.519 PIPE; OIL,OIL JET	8-97043-741-1	01	1	9812-0105			●
57	01.519 PIPE; OIL,OIL JET	8-94469-709-2	01	1	9906-0105	●
57	01.519 PIPE; OIL,OIL JET	8-97116-971-1	01	1	0106-		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9906-0104	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-0	01	1	0105-0105	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-0	01	1	0106-		●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97176-316-0	01	1	9812-0105			●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97225-604-0	01	1	9906-0105	●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97239-979-2	01	1	0106-		●
307	01.531 GASKET; WATER PIPE	8-97124-640-0	01	1	9812-0105	●		●
307	01.531 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	0106-		●
308	01.540 HOSE; OIL COOLER FEED	8-97078-193-3	01	1	9812-0105			●
308	01.540 HOSE; OIL COOLER FEED	8-94174-464-0	01	1	9906-0105	●
308	01.540 HOSE; OIL COOLER FEED	8-97300-062-0	01	1	0106-		●
309	01.540 HOSE; OIL COOLER RETURN	8-97147-960-0	01	1	9812-0105			●
309	01.540 HOSE; OIL COOLER RETURN	8-97224-318-0	01	1	9906-0105	●
309	01.540 HOSE; OIL COOLER RETURN	8-97300-063-0	01	1	0106-		●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	9812-0105	●		●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	0106-		●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9812-0105	●		●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	0106-		●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	9812-0105	●		●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	0106-		●
330	03.278 HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	9812-0105	●		●
330	03.278 HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	0106-		●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9812-0105	●		●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0106-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	9812-0105	●		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	0106-		●
335	01.531 STOPPER; OIL PIPE	8-97203-568-0	01	1	9812-0105	●		●
335	01.531 STOPPER; OIL PIPE	8-97203-568-0	01	1	0106-		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	9812-0105	●		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	0106-		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9812-0105	●		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0106-		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9812-0105	●		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0106-		●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	01	1	9812-0105			●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	01	1	0106-		●
473	01.540 INSULATOR; HOSE (B)	8-97101-333-1	01	1	9812-0105			●
473	01.540 INSULATOR; HOSE (B)	8-97101-333-1	01	1	0106-		●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	02	1	9906-0105	●
473	01.540 INSULATOR; HOSE (C)	8-97305-283-1	01	1	0106-		●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	9812-0105	●		●
474	01.540 CLIP; INSULATOR	8-97101-337-0	06	1	0106-		●

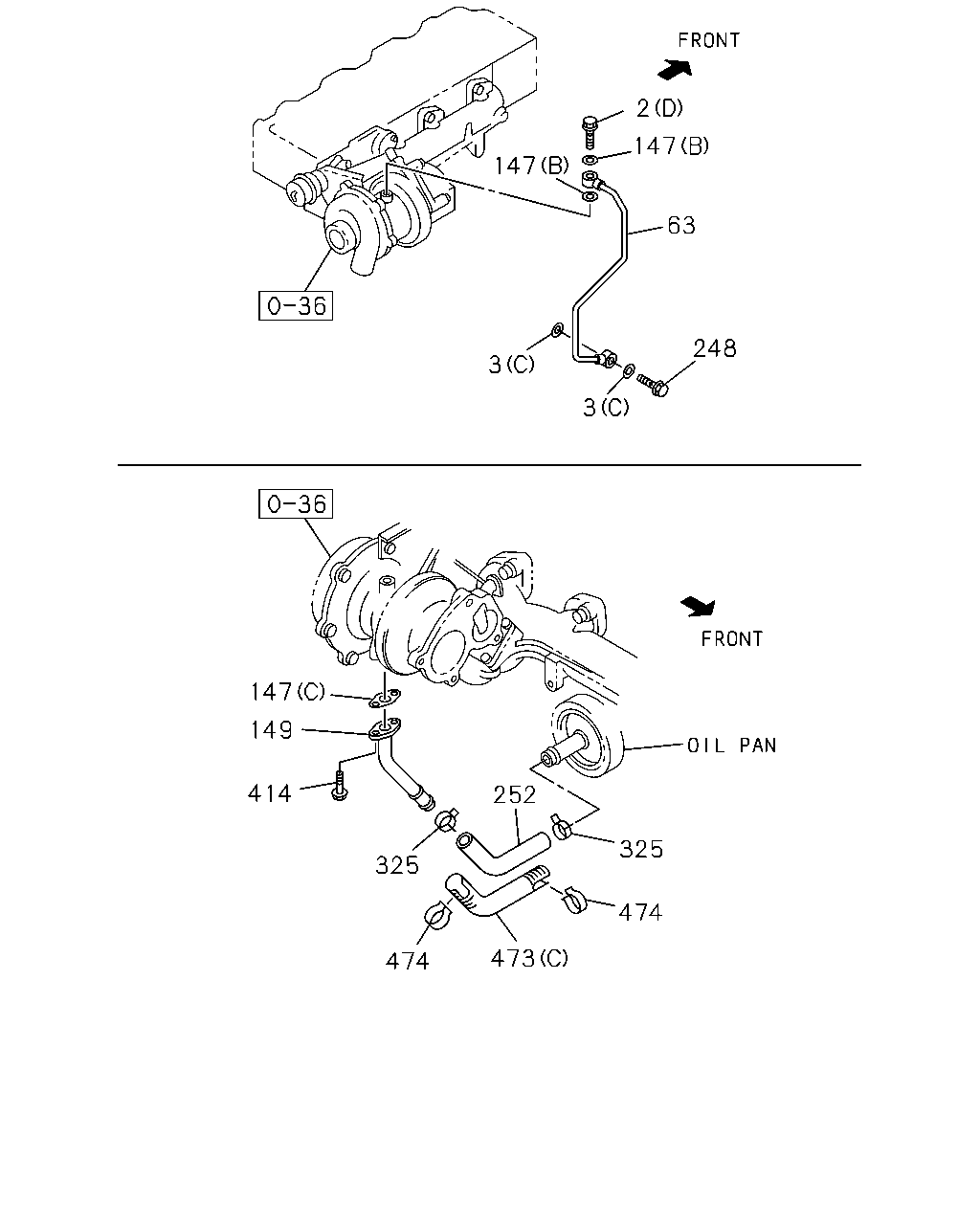

2 147 147 63 248 3 3 147 149 414 252 325 325 474 473 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	9812-	●
2	01.531 BOLT; EYE,OIL PIPE CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE	8-97182-847-0	01	1	9812-	●
2	01.531 BOLT; EYE,OIL PIPE EXC. CHARGE AIR COOLER<6PL> (A) M10X36	1-09675-183-0	01	1	9812-	●
2	01.531 BOLT; EYE,OIL PIPE 03.358 (C) M10X23 FLANGE	8-94332-831-1	01	1	9906-0105		●
2	01.531 BOLT; EYE,OIL PIPE (D) M10X27	8-94443-535-0	01	1	0106-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	9812-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2	9-09571-412-0	02	1	9812-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	06	1	9812-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	9906-0105		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	0106-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL>	8-97214-394-0	01	1	9812-0105	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL>	8-97260-199-1	01	1	0106-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97182-990-0	01	1	9812-9907	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97229-042-0	01	1	9908-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	9906-0105		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97239-974-4	01	1	0106-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-0	01	1	9906-0105		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14	8-97041-638-0	01	1	0106-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9906-0105		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0106-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	9906-0105		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97258-833-0	01	1	0106-			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.162 M14X27 FLANGE	1-09675-086-0	01	1	9906-0105		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.162 M14X27 FLANGE	1-09675-086-0	01	1	0106-			●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-97176-141-0	01	1	9906-0105		●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-97258-872-1	01	1	0106-			●
325	01.519 CLIP; RUBBER HOSE,OIL RETURN 01.166 ID=20.8	8-94125-862-1	02	1	9906-0105		●
325	01.519 CLIP; RUBBER HOSE,OIL RETURN 01.166 ID=20.8	8-94125-862-1	02	1	0106-			●
414	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9906-0105		●
414	01.531 BOLT; OIL PIPE 00.738 M6X16 FLANGE	0-28080-616-0	02	1	0106-			●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	01	1	9812-0105				●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	01	1	0106-			●
473	01.540 INSULATOR; HOSE (B)	8-97101-333-1	01	1	9812-0105				●
473	01.540 INSULATOR; HOSE (B)	8-97101-333-1	01	1	0106-			●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	02	1	9906-0105		●
473	01.540 INSULATOR; HOSE (C)	8-97305-283-1	01	1	0106-			●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	9812-0105		●		●
474	01.540 CLIP; INSULATOR	8-97101-337-0	06	1	0106-			●

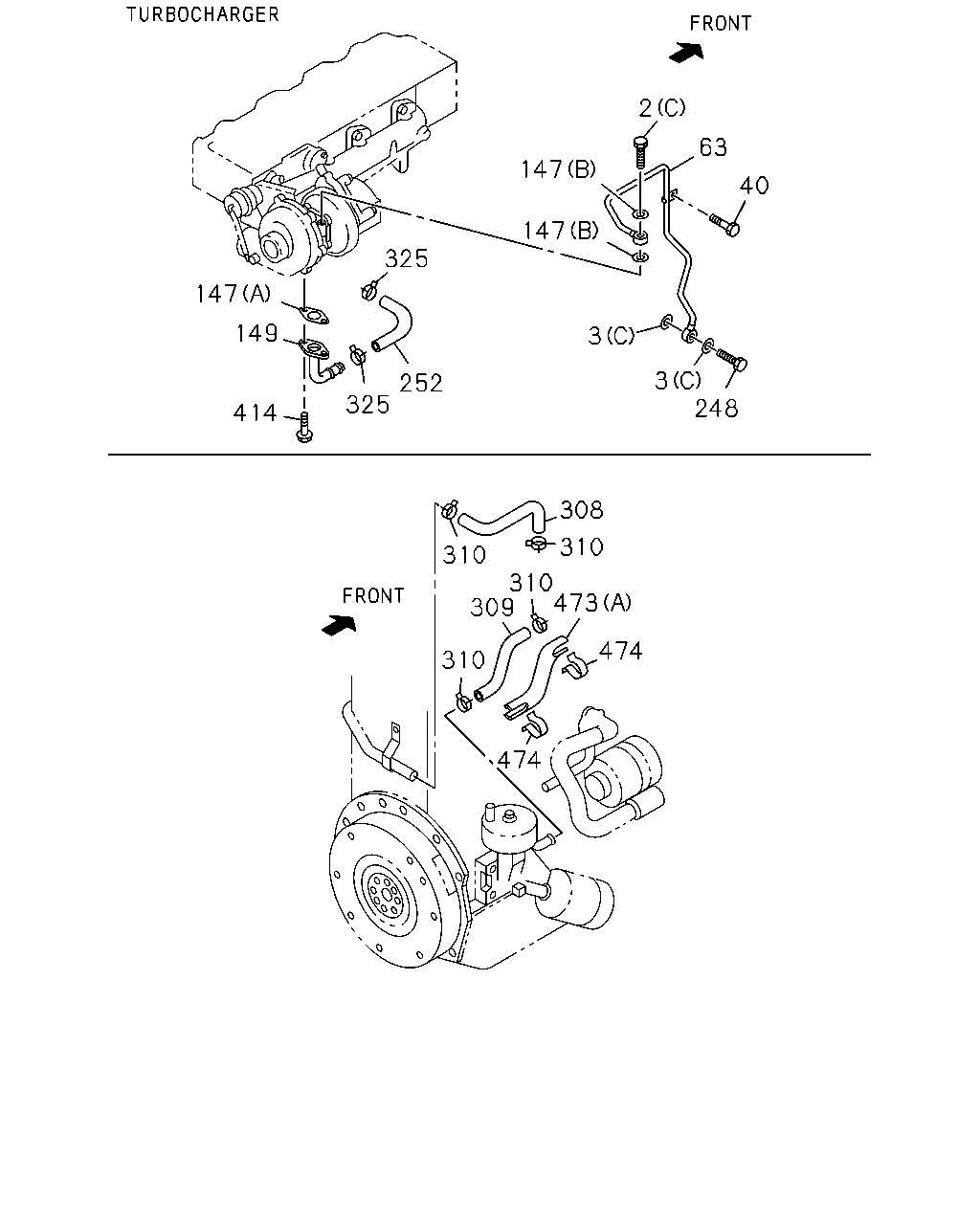

2 63 147 40 147 325 147 149 3 3 248 252 325 414 308 310 310 310 309 473 474 310 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	9812-	●
2	01.531 BOLT; EYE,OIL PIPE CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE	8-97182-847-0	01	1	9812-	●
2	01.531 BOLT; EYE,OIL PIPE EXC. CHARGE AIR COOLER<6PL> (A) M10X36	1-09675-183-0	01	1	9812-	●
2	01.531 BOLT; EYE,OIL PIPE 03.358 (C) M10X23 FLANGE	8-94332-831-1	01	1	9906-0105		●
2	01.531 BOLT; EYE,OIL PIPE (D) M10X27	8-94443-535-0	01	1	0106-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	9812-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2	9-09571-412-0	02	1	9812-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	06	1	9812-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	9906-0105		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	0106-			●
40	01.531 BOLT; OIL PIPE CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE	0-28181-016-0	02	1	9812-	●
40	01.531 BOLT; OIL PIPE 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9906-0105		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL>	8-97214-394-0	01	1	9812-0105	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL>	8-97260-199-1	01	1	0106-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97182-990-0	01	1	9812-9907	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97229-042-0	01	1	9908-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	9906-0105		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97239-974-4	01	1	0106-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-0	01	1	9906-0105		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14	8-97041-638-0	01	1	0106-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9906-0105		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0106-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	9906-0105		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97258-833-0	01	1	0106-			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.162 M14X27 FLANGE	1-09675-086-0	01	1	9906-0105		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.162 M14X27 FLANGE	1-09675-086-0	01	1	0106-			●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-97176-141-0	01	1	9906-0105		●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-97258-872-1	01	1	0106-			●
308	01.540 HOSE; OIL COOLER FEED	8-97078-193-3	01	1	9812-0105				●
308	01.540 HOSE; OIL COOLER FEED	8-94174-464-0	01	1	9906-0105		●
308	01.540 HOSE; OIL COOLER FEED	8-97300-062-0	01	1	0106-			●
309	01.540 HOSE; OIL COOLER RETURN	8-97147-960-0	01	1	9812-0105				●
309	01.540 HOSE; OIL COOLER RETURN	8-97224-318-0	01	1	9906-0105		●
309	01.540 HOSE; OIL COOLER RETURN	8-97300-063-0	01	1	0106-			●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	9812-0105		●		●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	0106-			●
325	01.519 CLIP; RUBBER HOSE,OIL RETURN 01.166 ID=20.8	8-94125-862-1	02	1	9906-0105		●
325	01.519 CLIP; RUBBER HOSE,OIL RETURN 01.166 ID=20.8	8-94125-862-1	02	1	0106-			●
414	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9906-0105		●
414	01.531 BOLT; OIL PIPE 00.738 M6X16 FLANGE	0-28080-616-0	02	1	0106-			●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	01	1	9812-0105				●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	01	1	0106-			●
473	01.540 INSULATOR; HOSE (B)	8-97101-333-1	01	1	9812-0105				●
473	01.540 INSULATOR; HOSE (B)	8-97101-333-1	01	1	0106-			●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	02	1	9906-0105		●
473	01.540 INSULATOR; HOSE (C)	8-97305-283-1	01	1	0106-			●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	9812-0105		●		●
474	01.540 CLIP; INSULATOR	8-97101-337-0	06	1	0106-			●

304 68 3 157 3 63 479 40 27 1 68 3 63 3 40 27 479

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.519 PIPE; OIL,INJ PUMP TO C/BL CHARGE AIR COOLER<6PL>	8-97148-923-3	01	1	9812-0104	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL CHARGE AIR COOLER<6PL>	8-97314-008-0	01	1	0105-	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL EXC. CHARGE AIR COOLER<6PL>	8-97074-790-2	01	1	9812-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	9812-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2	9-09571-412-0	02	1	9812-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	06	1	9812-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	9906-0105		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	0106-			●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0109	●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0110-	●
27	01.531 BOLT; OIL PIPE FIX 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0110-	●
27	01.531 BOLT; OIL PIPE FIX EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE	0-28080-835-0	01	1	9812-	●
40	01.531 BOLT; OIL PIPE CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE	0-28181-016-0	02	1	9812-	●
40	01.531 BOLT; OIL PIPE 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9906-0105		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL>	8-97214-394-0	01	1	9812-0105	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL>	8-97260-199-1	01	1	0106-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97182-990-0	01	1	9812-9907	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97229-042-0	01	1	9908-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	9906-0105		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97239-974-4	01	1	0106-			●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER CHARGE AIR COOLER<6PL> M12X28 FLANGE	8-97166-518-0	01	1	9812-	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL> M10X26	8-97081-817-0	01	1	9812-	●
157	01.519 BRACKET; OIL PIPE CHARGE AIR COOLER<6PL>	8-97181-586-0	01	1	9812-0105	●
304	01.540 BOLT; BRKT,OIL PIPE CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0105	●
479	01.531 ADAPTER CHARGE AIR COOLER<6PL> 01.800	8-94436-891-0	01	1	9812-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
