Sayfa 3-58 - Isuzu EPC

3-58 — FIXING PARTS; OIL PIPING (#4457) — 184 parça

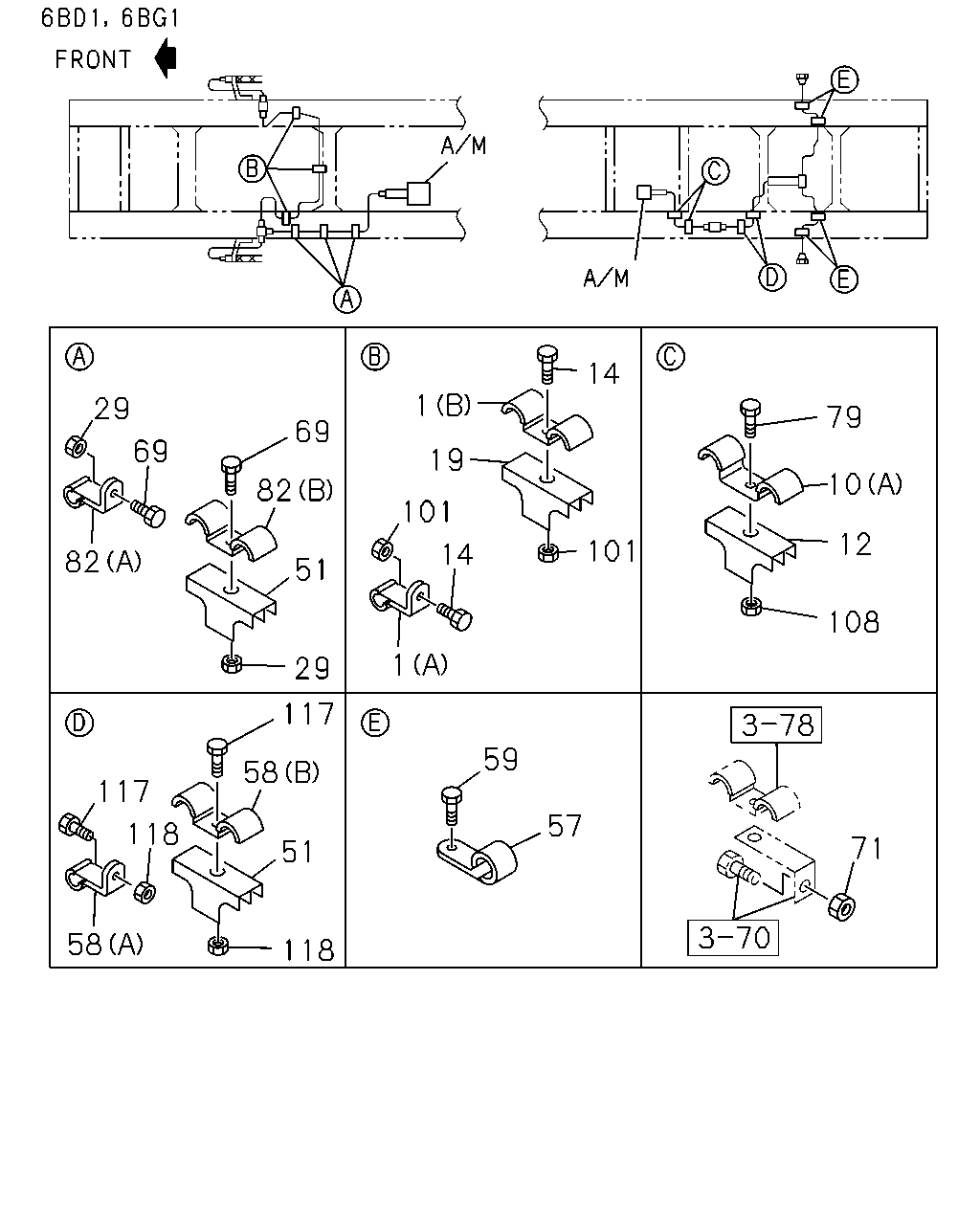

14 1 29 79 69 69 19 10 82 101 12 101 14 82 51 108 1 29 117 59 58 117 57 118 71 51 58 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; OIL PIPE TO BODY BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=6 H=20 L=20	1-09700-603-0	04	1	9101-9504	●	●
1	CLIP; OIL PIPE TO BODY BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9505-0203	●	●
1	CLIP; OIL PIPE TO BODY EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=13 & 7 L=16 & 14	1-09700-665-0	02	1	9101-9504	●	●
10	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9101-9504	●	●
10	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9505-0203	●	●
12	BRACKET; OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47475-427-1	02	1	9101-9504	●	●
14	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9505-9606	●	●
14	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	01	1	9607-0203	●	●
14	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●	●
14	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9504	●	●
14	BOLT; CLIP,OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	9-01900-840-0	02	1	9101-9204	●	●
14	BOLT; CLIP,OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9504	●	●
19	BRACKET; OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47475-427-1	02	1	9101-9504	●	●
29	NUT; CLIP WHEEL BASE 5000MM(50W) M8	9-09110-408-0	03	1	9101-9504	●	●
29	NUT; CLIP WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	03	1	9101-9504	●
29	NUT; CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9505-9603	●	●
29	NUT; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9505-9603	●	●
29	NUT; CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9604-9606	●	●
29	NUT; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9604-9606	●	●
29	NUT; CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-0203	●	●
29	NUT; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-0203	●	●
29	NUT; CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	04	1	9101-9504	●	●
29	NUT; CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	03	1	9505-9606	●	●
29	NUT; CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9607-0203	●	●
51	BRACKET; OIL PIPE WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47475-427-1	02	1	9101-9504	●
51	BRACKET; OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47475-427-1	01	1	9101-9504	●	●
51	BRACKET; OIL PIPE WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47475-427-1	03	1	9101-9504	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	04	1	9101-9711	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ> ID=7 L=20	9-09524-635-0	04	1	9712-9805	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=7 L=20	9-09524-635-0	04	1	9712-9805	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	9712-9805		●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ> ID=7 L=20	9-09524-635-0	04	1	9806-9810	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=7 L=20	9-09524-635-0	04	1	9806-9810	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	9811-0202	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> EXC. AUTO ADJUSTER BRAKE<BCU> ID=7 L=20	9-09524-635-0	04	1	0203-0203	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ>,BRK LINING D2161 NON ASBESTOS<BFG>,SUSPENSION HEAVY DUTY VAR2(F41) ID=7 L=20	9-09524-635-0	04	1	0203-0203	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM HEAVY DUTY<J55> ID=7 L=20	9-09524-635-0	04	1	0204-0606	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM HEAVY DUTY<J55> ID=7 L=20	0-95234-635-0	04	1	0607-	●	●
58	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9101-9504	●	●
58	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9101-9504	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	9-01900-812-0	04	1	9101-9204	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	04	1	9205-9606	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 FLANGE	0-28080-812-0	04	1	9607-9711	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ> M8X12 W/LK WASHER	0-50040-812-0	04	1	9712-9805	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X12 W/LK WASHER	0-50040-812-0	04	1	9712-9805	●
59	BOLT; BRK PIPE,RR AXLE M8X12 W/LK WASHER	0-50040-812-0	04	1	9712-9805		●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ> M8X12 W/LK WASHER	0-50040-812-0	04	1	9806-9810	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X12 W/LK WASHER	0-50040-812-0	04	1	9806-9810	●	●
59	BOLT; BRK PIPE,RR AXLE M8X12 W/LK WASHER	0-50040-812-0	04	1	9811-9911	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	04	1	9912-0202	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> EXC. AUTO ADJUSTER BRAKE<BCU> M8X10 FLANGE	0-28080-810-0	04	1	0203-0203	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ>,BRK LINING D2161 NON ASBESTOS<BFG>,SUSPENSION HEAVY DUTY VAR2(F41) M8X10 FLANGE	0-28080-810-0	04	1	0203-0203	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM HEAVY DUTY<J55> M8X10 FLANGE	0-28080-810-0	04	1	0204-0512	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM HEAVY DUTY<J55> M8X10 FLANGE	0-28050-810-0	04	1	0601-	●	●
69	BOLT; CLIP WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●
69	BOLT; CLIP WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9504	●
69	BOLT; CLIP WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	9-01900-840-0	02	1	9101-9204	●
69	BOLT; CLIP WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9504	●
69	BOLT; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204	●	●
69	BOLT; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9504	●	●
69	BOLT; CLIP WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	9-01900-840-0	03	1	9101-9204	●	●
69	BOLT; CLIP WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	0-50040-840-0	03	1	9205-9504	●	●
69	BOLT; CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●	●
69	BOLT; CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9504	●	●
69	BOLT; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	01	1	9505-0203	●	●
69	BOLT; CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	03	1	9505-0203	●	●
71	NUT; BRKT AIR DRYER<PS7> M8	9-09110-408-0	01	1	9106-9504	●	●
79	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9505-9606	●	●
79	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	01	1	9607-0203	●	●
79	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	05	1	9505-0203	●	●
79	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	9-01900-840-0	02	1	9101-9204	●	●
79	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9504	●	●
82	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9101-9504	●
82	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=7 & 7 L=15 & 15	1-09700-652-0	02	1	9101-9504	●
82	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=6 H=20 L=20	1-09700-603-0	03	1	9101-9504	●	●
82	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=7 & 7 L=15 & 15	1-09700-652-0	03	1	9101-9504	●	●
82	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=6 H=20 L=20	1-09700-603-0	04	1	9101-9504	●	●
101	NUT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	04	1	9101-9504	●	●
101	NUT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9505-9603	●	●
101	NUT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9604-9606	●	●
101	NUT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-0203	●	●
101	NUT; CLIP,OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	02	1	9101-9504	●	●
108	NUT; CLIP,AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	02	1	9101-9504	●	●
108	NUT; CLIP,AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	06	1	9505-9606	●	●
108	NUT; CLIP,AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	06	1	9607-0203	●	●
117	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	9-01900-820-0	01	1	9101-9204	●	●
117	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9504	●	●
117	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	9-01900-840-0	01	1	9101-9204	●	●
117	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	0-50040-840-0	01	1	9205-9504	●	●
118	NUT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9101-9504	●	●
118	NUT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	01	1	9101-9504	●	●

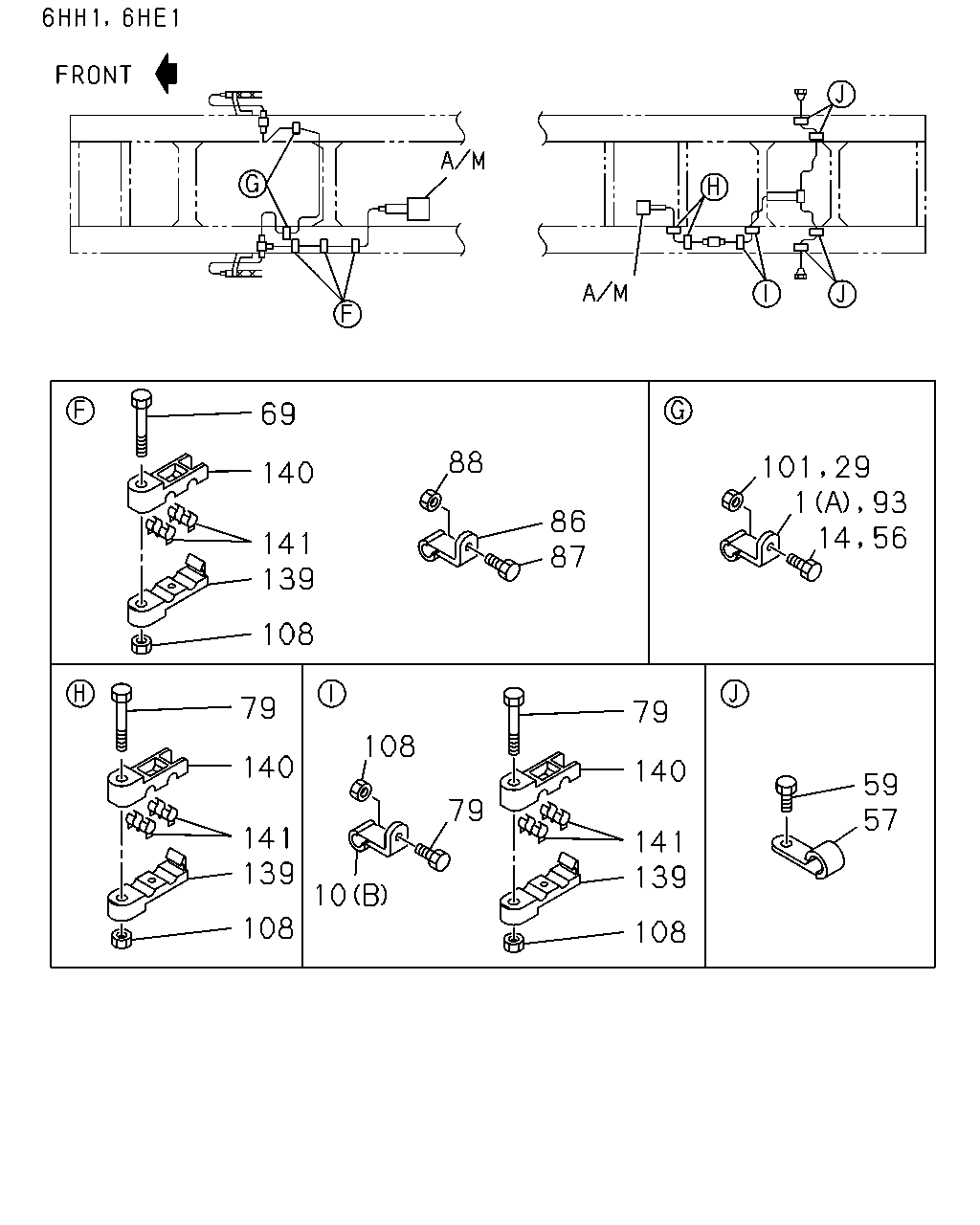

69 88 140 86 87 141 139 108 79 79 108 140 140 59 57 79 141 139 141 139 10 108 108 101 29 93 56 14 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; OIL PIPE TO BODY BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=6 H=20 L=20	1-09700-603-0	04	1	9101-9504	●	●
1	CLIP; OIL PIPE TO BODY BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9505-0203	●	●
1	CLIP; OIL PIPE TO BODY EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=13 & 7 L=16 & 14	1-09700-665-0	02	1	9101-9504	●	●
10	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9101-9504	●	●
10	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9505-0203	●	●
14	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9505-9606	●	●
14	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	01	1	9607-0203	●	●
14	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●	●
14	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9504	●	●
14	BOLT; CLIP,OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	9-01900-840-0	02	1	9101-9204	●	●
14	BOLT; CLIP,OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9504	●	●
29	NUT; CLIP WHEEL BASE 5000MM(50W) M8	9-09110-408-0	03	1	9101-9504	●	●
29	NUT; CLIP WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	03	1	9101-9504	●
29	NUT; CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9505-9603	●	●
29	NUT; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9505-9603	●	●
29	NUT; CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9604-9606	●	●
29	NUT; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9604-9606	●	●
29	NUT; CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-0203	●	●
29	NUT; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-0203	●	●
29	NUT; CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	04	1	9101-9504	●	●
29	NUT; CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	03	1	9505-9606	●	●
29	NUT; CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9607-0203	●	●
56	BOLT; CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9505-9606	●	●
56	BOLT; CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9607-0203	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	04	1	9101-9711	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ> ID=7 L=20	9-09524-635-0	04	1	9712-9805	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=7 L=20	9-09524-635-0	04	1	9712-9805	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	9712-9805		●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ> ID=7 L=20	9-09524-635-0	04	1	9806-9810	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=7 L=20	9-09524-635-0	04	1	9806-9810	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	9811-0202	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> EXC. AUTO ADJUSTER BRAKE<BCU> ID=7 L=20	9-09524-635-0	04	1	0203-0203	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ>,BRK LINING D2161 NON ASBESTOS<BFG>,SUSPENSION HEAVY DUTY VAR2(F41) ID=7 L=20	9-09524-635-0	04	1	0203-0203	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM HEAVY DUTY<J55> ID=7 L=20	9-09524-635-0	04	1	0204-0606	●	●
57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM HEAVY DUTY<J55> ID=7 L=20	0-95234-635-0	04	1	0607-	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	9-01900-812-0	04	1	9101-9204	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	04	1	9205-9606	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 FLANGE	0-28080-812-0	04	1	9607-9711	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ> M8X12 W/LK WASHER	0-50040-812-0	04	1	9712-9805	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X12 W/LK WASHER	0-50040-812-0	04	1	9712-9805	●
59	BOLT; BRK PIPE,RR AXLE M8X12 W/LK WASHER	0-50040-812-0	04	1	9712-9805		●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ> M8X12 W/LK WASHER	0-50040-812-0	04	1	9806-9810	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X12 W/LK WASHER	0-50040-812-0	04	1	9806-9810	●	●
59	BOLT; BRK PIPE,RR AXLE M8X12 W/LK WASHER	0-50040-812-0	04	1	9811-9911	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	04	1	9912-0202	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> EXC. AUTO ADJUSTER BRAKE<BCU> M8X10 FLANGE	0-28080-810-0	04	1	0203-0203	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ>,BRK LINING D2161 NON ASBESTOS<BFG>,SUSPENSION HEAVY DUTY VAR2(F41) M8X10 FLANGE	0-28080-810-0	04	1	0203-0203	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM HEAVY DUTY<J55> M8X10 FLANGE	0-28080-810-0	04	1	0204-0512	●	●
59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM HEAVY DUTY<J55> M8X10 FLANGE	0-28050-810-0	04	1	0601-	●	●
69	BOLT; CLIP WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●
69	BOLT; CLIP WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9504	●
69	BOLT; CLIP WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	9-01900-840-0	02	1	9101-9204	●
69	BOLT; CLIP WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9504	●
69	BOLT; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204	●	●
69	BOLT; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9504	●	●
69	BOLT; CLIP WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	9-01900-840-0	03	1	9101-9204	●	●
69	BOLT; CLIP WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	0-50040-840-0	03	1	9205-9504	●	●
69	BOLT; CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●	●
69	BOLT; CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9504	●	●
69	BOLT; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	01	1	9505-0203	●	●
69	BOLT; CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	03	1	9505-0203	●	●
79	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9505-9606	●	●
79	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	01	1	9607-0203	●	●
79	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	05	1	9505-0203	●	●
79	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	9-01900-840-0	02	1	9101-9204	●	●
79	BOLT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9504	●	●
86	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	01	1	9505-0203	●	●
87	BOLT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9505-9606	●	●
87	BOLT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	01	1	9607-0203	●	●
88	NUT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9505-9603	●	●
88	NUT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9604-9606	●	●
88	NUT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-0203	●	●
93	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	01	1	9505-0203	●	●
101	NUT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	04	1	9101-9504	●	●
101	NUT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9505-9603	●	●
101	NUT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9604-9606	●	●
101	NUT; CLIP,OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-0203	●	●
101	NUT; CLIP,OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	02	1	9101-9504	●	●
108	NUT; CLIP,AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	02	1	9101-9504	●	●
108	NUT; CLIP,AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	06	1	9505-9606	●	●
108	NUT; CLIP,AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	06	1	9607-0203	●	●
139	CLIP; UPR BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-241-0	05	1	9505-0203	●	●
139	CLIP; UPR WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-241-0	01	1	9505-0203	●	●
139	CLIP; UPR WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-241-0	03	1	9505-0203	●	●
140	CLIP; LWR BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-243-0	05	1	9505-0203	●	●
140	CLIP; LWR WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-243-0	01	1	9505-0203	●	●
140	CLIP; LWR WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-243-0	03	1	9505-0203	●	●
141	COLLAR BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6	1-47459-010-0	05	1	9505-0203	●	●
141	COLLAR BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8	1-47459-011-0	05	1	9505-0203	●	●
141	COLLAR WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6	1-47459-010-0	01	1	9505-0203	●	●
141	COLLAR WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8	1-47459-011-0	01	1	9505-0203	●	●
141	COLLAR WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6	1-47459-010-0	03	1	9505-0203	●	●
141	COLLAR WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8	1-47459-011-0	03	1	9505-0203	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
