1 |

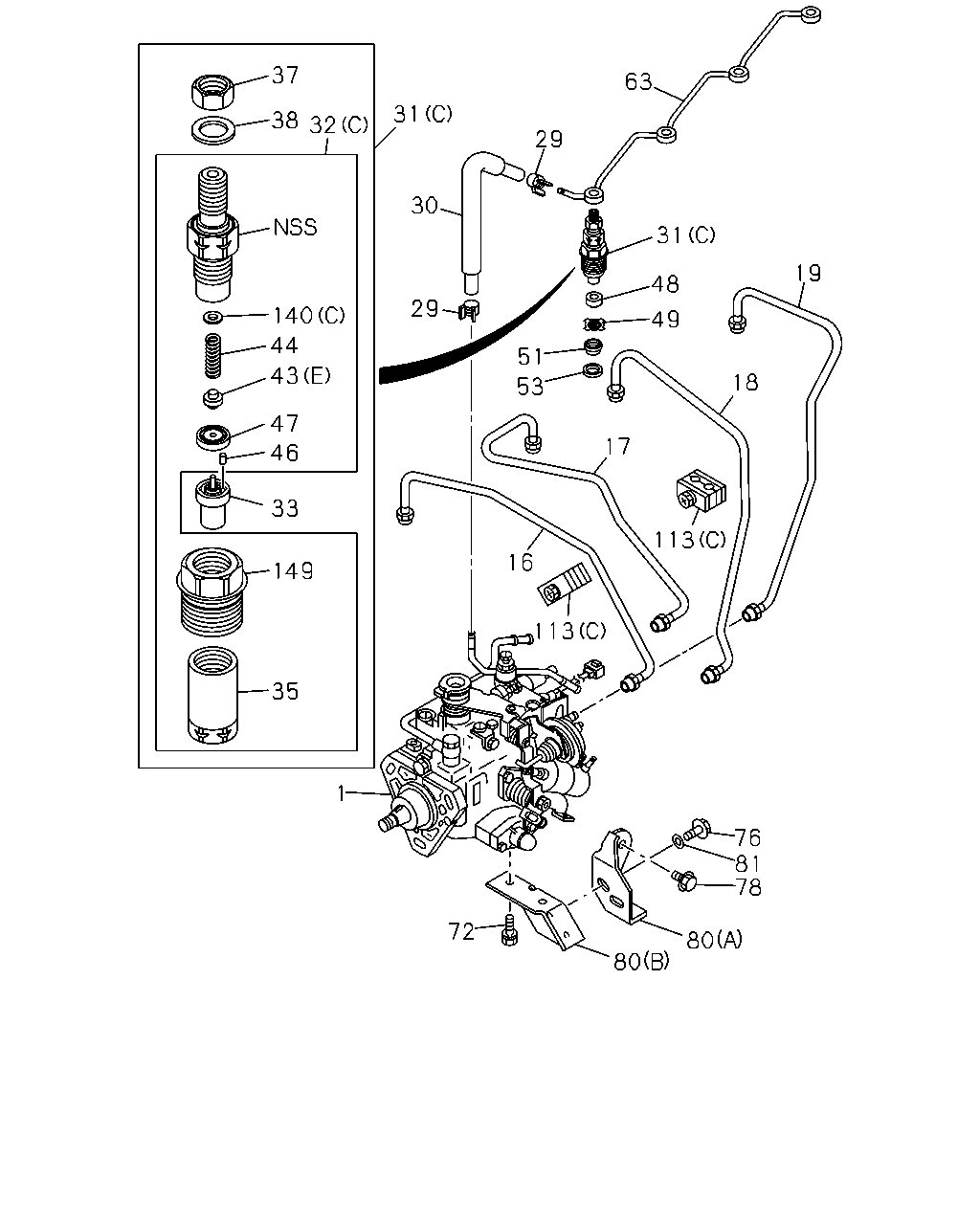

03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
|
8-97138-842-2 |
01 |
1 |
9812-0105 |
● |
|
|
|
| |
1 |

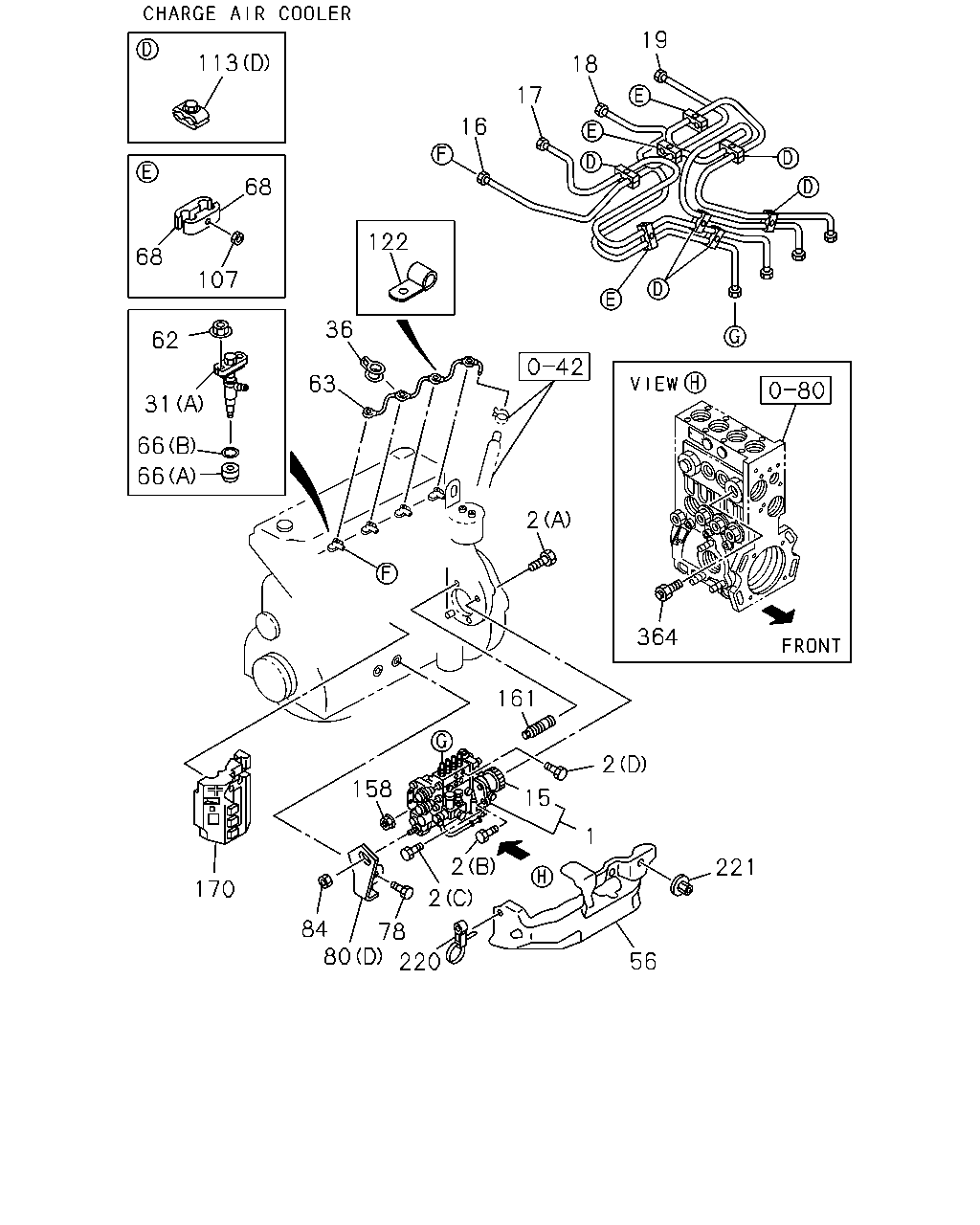

03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
CHARGE AIR COOLER<6PL>
|
8-97225-432-2 |
01 |
1 |
0106- |
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
CHARGE AIR COOLER<6PL>
ENGINE POWER N-SPEC(7QV)
|
8-97212-189-0 |
01 |
1 |
9812-0105 |
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
CHARGE AIR COOLER<6PL>
EXC. ENGINE POWER N-SPEC(7QV)
|
8-97212-185-0 |
01 |
1 |
9812-0105 |
|
● |
|
|
| |
1 |

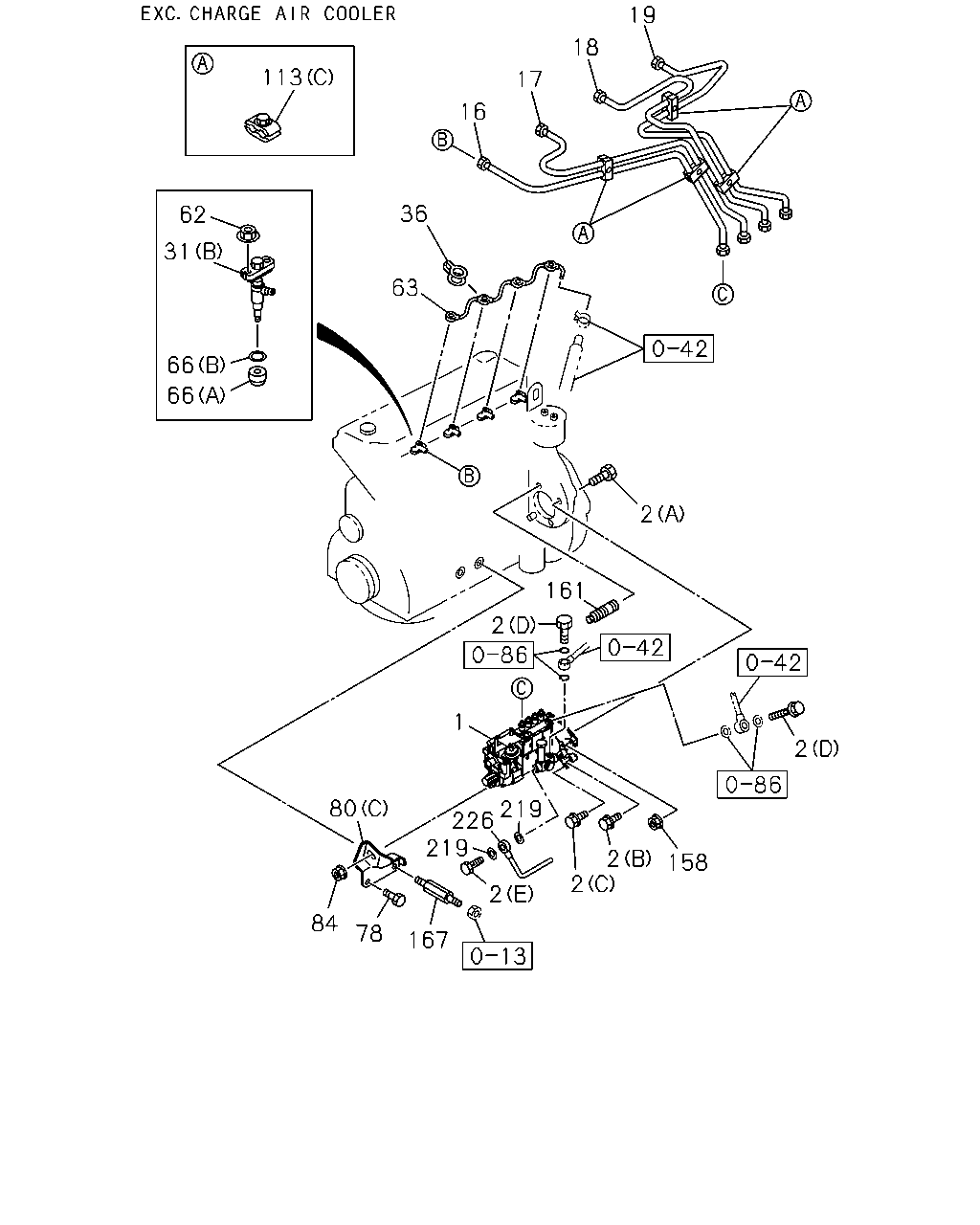

03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
EXC. CHARGE AIR COOLER<6PL>
|
8-97170-507-1 |
01 |
1 |
9812-9812 |
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
EXC. CHARGE AIR COOLER<6PL>
|
8-97212-104-0 |
01 |
1 |
9812- |
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
|
8-97204-201-7 |
01 |
1 |
9906-0105 |
|
|
● |
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
|
8-97252-341-3 |
01 |
1 |
0106- |
|
|
|
● |
| |
16 |
03.330 PIPE; INJ NO.1
|
8-97169-365-0 |
01 |
1 |
9812-0105 |
● |
|
|
|
| |
16 |
03.330 PIPE; INJ NO.1
CHARGE AIR COOLER<6PL>
|
8-97148-963-3 |
01 |
1 |
9812- |
|
● |
|
|
| |
16 |
03.330 PIPE; INJ NO.1
EXC. CHARGE AIR COOLER<6PL>
|
8-97065-932-3 |
01 |
1 |
9812- |
|
● |
|
|
| |
16 |
03.330 PIPE; INJ NO.1
|
8-97223-923-0 |
01 |
1 |
9906-0105 |
|
|
● |
|
| |
16 |
03.330 PIPE; INJ NO.1
|
8-97255-017-1 |
01 |
1 |
0106- |
|
|
|
● |
| |
17 |
03.330 PIPE; INJ NO.2
|
8-97169-366-0 |
01 |
1 |
9812-0105 |
● |
|
|
|
| |
17 |
03.330 PIPE; INJ NO.2
CHARGE AIR COOLER<6PL>
|
8-97148-964-2 |
01 |
1 |
9812- |
|
● |
|
|
| |
17 |
03.330 PIPE; INJ NO.2
EXC. CHARGE AIR COOLER<6PL>
|
8-97065-933-3 |
01 |
1 |
9812- |
|
● |
|
|
| |
17 |
03.330 PIPE; INJ NO.2
|
8-97223-924-0 |
01 |
1 |
9906-0105 |
|
|
● |
|
| |
17 |
03.330 PIPE; INJ NO.2
|
8-97255-018-1 |
01 |
1 |
0106- |
|
|
|
● |
| |
18 |
03.330 PIPE; INJ NO.3
|
8-97169-367-0 |
01 |
1 |
9812-0105 |
● |
|
|
|
| |
18 |
03.330 PIPE; INJ NO.3
CHARGE AIR COOLER<6PL>
|
8-97148-965-3 |
01 |
1 |
9812- |
|
● |
|
|
| |
18 |
03.330 PIPE; INJ NO.3
EXC. CHARGE AIR COOLER<6PL>
|
8-97065-934-3 |
01 |
1 |
9812- |
|
● |
|
|
| |
18 |
03.330 PIPE; INJ NO.3
|
8-97223-925-0 |
01 |
1 |
9906-0105 |
|
|
● |
|
| |
18 |
03.330 PIPE; INJ NO.3
|
8-97255-019-1 |
01 |
1 |
0106- |
|
|
|
● |
| |
19 |
03.330 PIPE; INJ NO.4
|
8-97169-368-0 |
01 |
1 |
9812-0105 |
● |
|
|
|
| |
19 |
03.330 PIPE; INJ NO.4
CHARGE AIR COOLER<6PL>
|
8-97148-966-2 |
01 |
1 |
9812- |
|
● |
|
|
| |
19 |
03.330 PIPE; INJ NO.4
EXC. CHARGE AIR COOLER<6PL>
|
8-97065-935-3 |
01 |
1 |
9812- |
|
● |
|
|
| |
19 |
03.330 PIPE; INJ NO.4
|
8-97223-926-0 |
01 |
1 |
9906-0105 |
|
|
● |
|
| |
19 |
03.330 PIPE; INJ NO.4
|
8-97255-020-1 |
01 |
1 |
0106- |
|
|
|
● |
| |
29 |
03.162 CLIP; HOSE
01.219
ID=12
|
8-94238-610-0 |
02 |
1 |
9812-9905 |
● |
|
|
|
| |
29 |
03.162 CLIP; HOSE
01.219
ID=12
|
8-94238-610-0 |
02 |
1 |
9906-0105 |
● |
|
● |
|
| |
29 |
03.162 CLIP; HOSE
01.219
ID=12
|
8-94238-610-0 |
02 |
1 |
0106-0301 |
|
|
|
● |
| |
29 |
03.162 CLIP; HOSE
03.163
ID=11
|
8-97173-219-0 |
02 |
1 |
0302- |
|
|
|
● |
| |
30 |
03.163 HOSE; RUBBER,FUEL LEAK
L=350
|
8-94339-948-2 |
01 |
1 |
9812-0105 |
● |
|
|
|
| |
30 |
03.163 HOSE; RUBBER,FUEL LEAK
L=320 W/INSULATOR
|
8-94427-501-2 |
01 |
1 |
9906-0105 |
|
|
● |
|
| |
30 |
03.163 HOSE; RUBBER,FUEL LEAK
L=320 W/INSULATOR
|
8-94427-501-2 |
01 |
1 |
0106-0301 |
|
|
|
● |
| |
30 |
03.163 HOSE; RUBBER,FUEL LEAK
L=320
|
8-97364-773-0 |
01 |
1 |
0302- |
|
|
|
● |
| |
31 |
03.332 NOZZLE ASM; INJ
(C)
|
8-97143-196-0 |
04 |
1 |
9812-0105 |
● |
|
|
|
| |

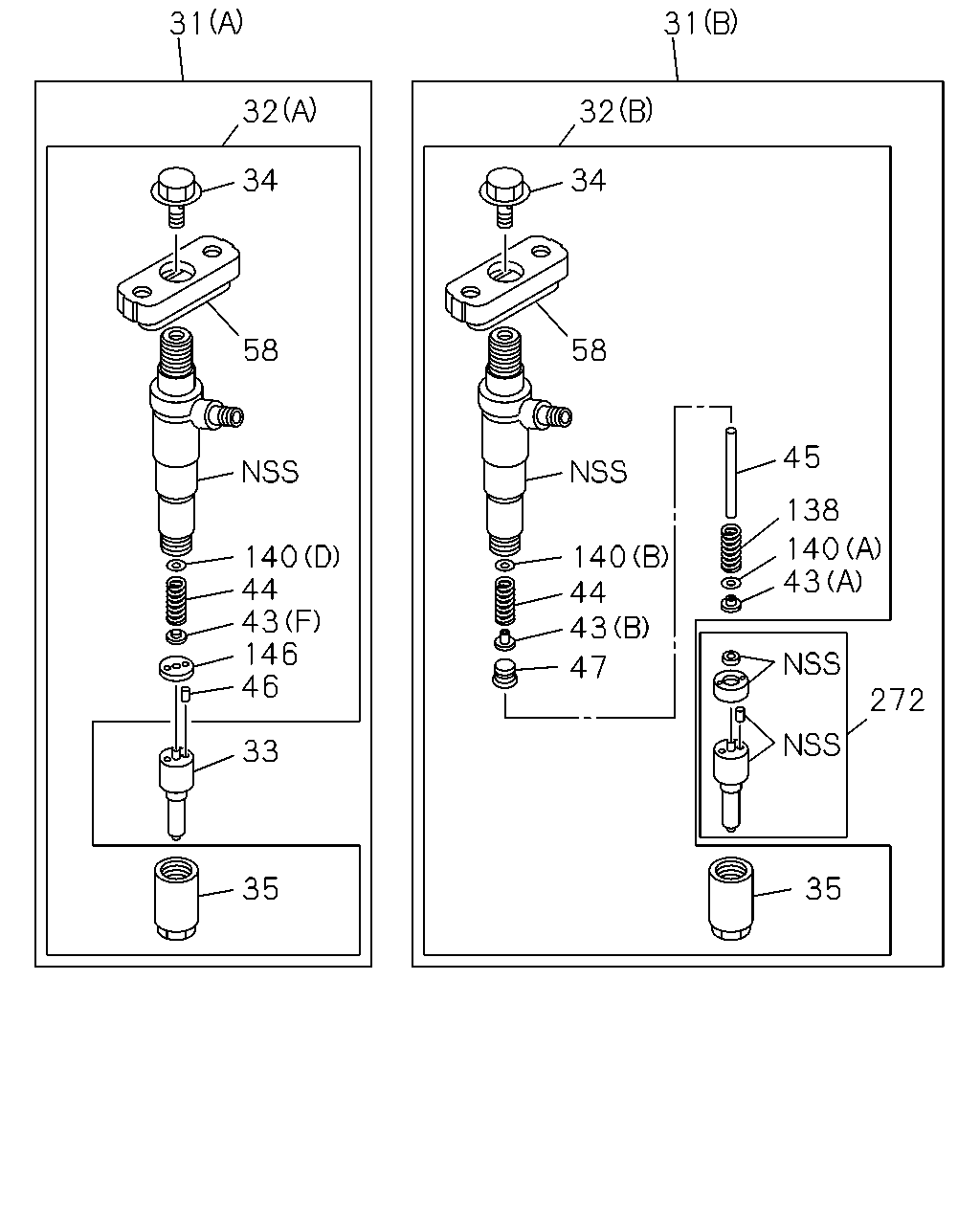

31 |
03.332 NOZZLE ASM; INJ
CHARGE AIR COOLER<6PL>
(A)
|
8-97148-960-1 |
04 |
1 |
9812-0105 |
|
● |
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
CHARGE AIR COOLER<6PL>
(A)
|
8-97241-005-1 |
04 |
1 |
0106- |
|
● |
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
EXC. CHARGE AIR COOLER<6PL>
(B)
|
8-97115-503-2 |
04 |
1 |
9812- |
|
● |
|
|
| |

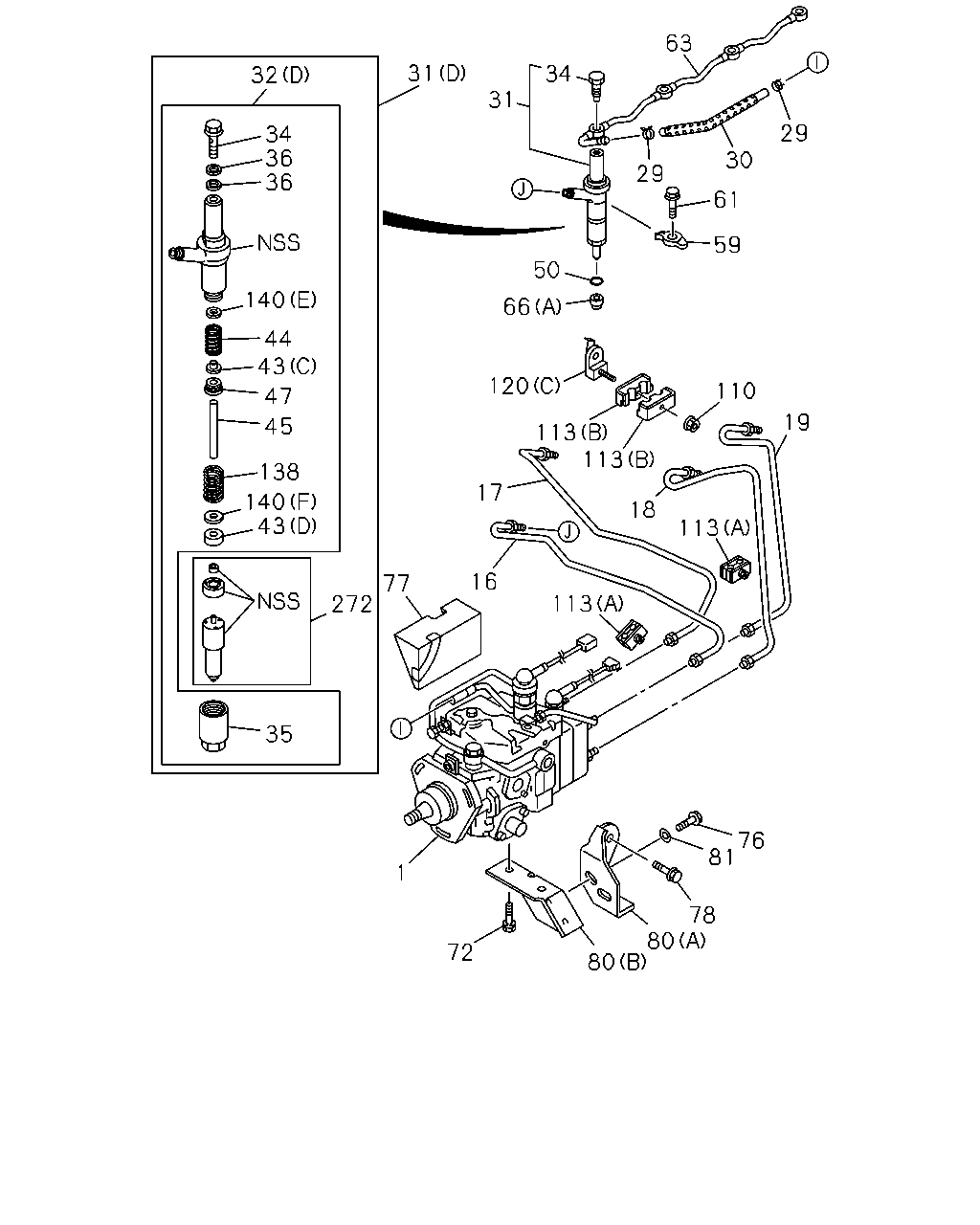

31 |
03.332 NOZZLE ASM; INJ
(D)
|
8-97192-333-1 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |

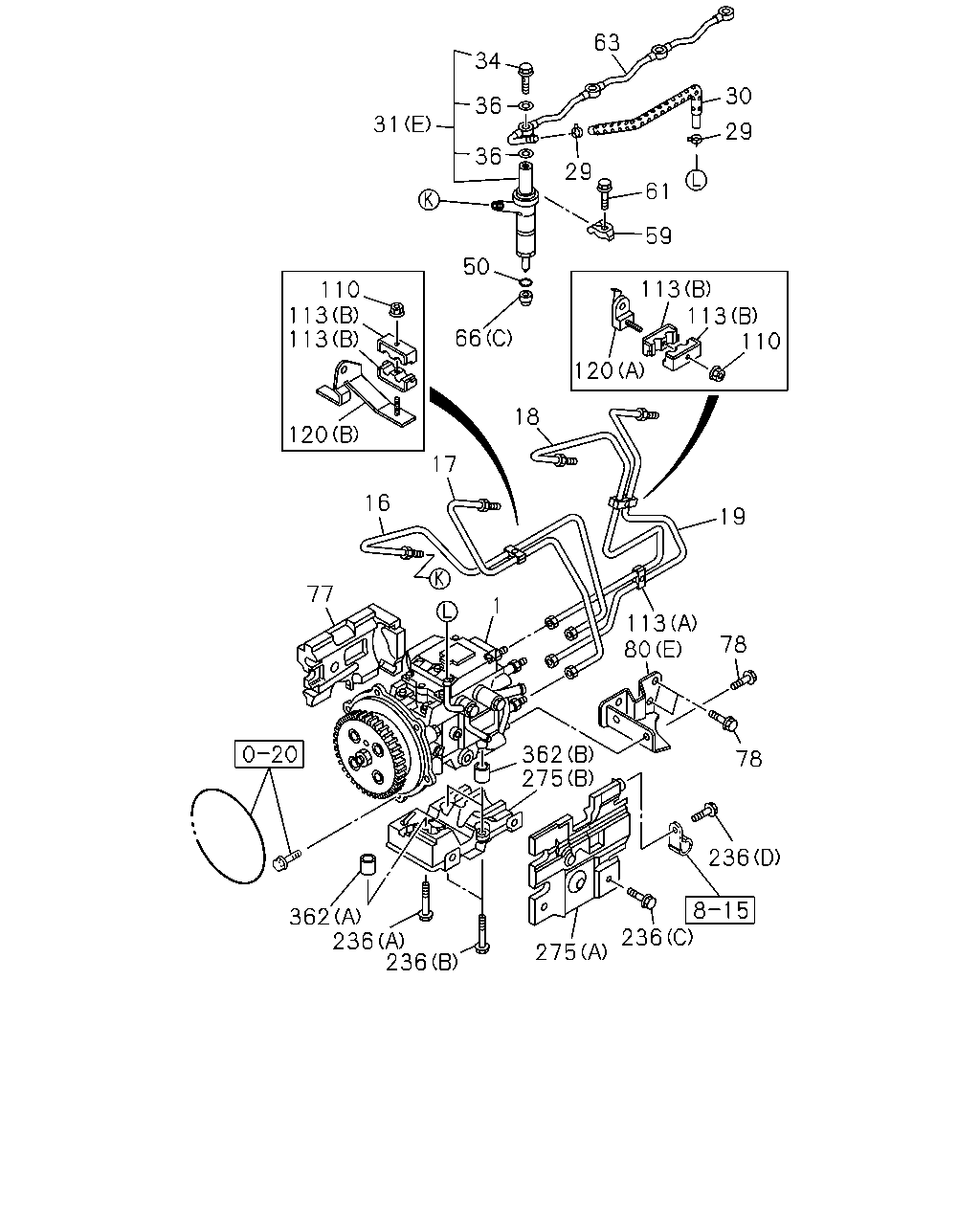

31 |
03.332 NOZZLE ASM; INJ
(E)
|
8-97254-594-0 |
04 |
1 |
0106-0206 |
|
|
|
● |
| |
31 |
03.332 NOZZLE ASM; INJ
(E)
|
8-97329-340-0 |
04 |
1 |
0207- |
|
|
|
● |
| |
32 |
03.332 HOLDER ASM; NOZZLE
(C)
|
8-94368-247-0 |
04 |
1 |
9812-0105 |
● |
|
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
CHARGE AIR COOLER<6PL>
(A)
|
8-94311-966-2 |
04 |
1 |
9812-0105 |
|
● |
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
CHARGE AIR COOLER<6PL>
(A)
|
8-97259-840-0 |
04 |
1 |
0106- |
|
● |
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
EXC. CHARGE AIR COOLER<6PL>
(B)
|
8-97078-783-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
(D)
|
8-97203-471-1 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
34 |
03.330 BOLT; EYE,NOZZLE HOLDER
|
1-15339-009-0 |
04 |
1 |
9812-0105 |
|
● |
|
|
| |
34 |
03.330 BOLT; EYE,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL>
|
1-15339-009-0 |
04 |
1 |
0106- |
|
● |
|
|
| |
34 |
03.330 BOLT; EYE,NOZZLE HOLDER
CHARGE AIR COOLER<6PL>
03.162
M8X18 EYE-BOLT
|
1-09675-037-1 |
04 |
1 |
0106- |
|
● |
|
|
| |
34 |
03.330 BOLT; EYE,NOZZLE HOLDER
03.306
|
8-94320-307-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
34 |
03.330 BOLT; EYE,NOZZLE HOLDER
03.306
|
8-94320-307-0 |
04 |
1 |
0106- |
|
|
|
● |
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
|
8-94482-217-0 |
04 |
1 |
9812-0105 |
● |
|
|
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
CHARGE AIR COOLER<6PL>
|
8-94174-184-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL>
|
1-15349-041-0 |
04 |
1 |
9812-9905 |
|
● |
|
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL>
|
1-15349-041-0 |
04 |
1 |
9906-0105 |
|
● |
|
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
|
1-15349-041-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL>
|
1-15349-041-0 |
04 |
1 |
0106- |
|
● |
|
|
| |
36 |
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD
)
ID=8.6
|
8-94395-214-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
36 |
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD
)
|
8-97084-347-0 |
08 |
1 |
9906-0105 |
|
|
● |
|
| |
36 |
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD
)
|
8-97084-347-0 |
08 |
1 |
0106- |
|
|
|
● |
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(E)
|
8-94128-963-0 |
04 |
1 |
9812-0105 |
● |
|
|
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(F)
|
8-94329-555-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
|
1-15341-090-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
|
1-15342-001-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(C)
|
8-97223-339-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.00
|
8-97223-343-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.02
|
8-97223-344-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.04
|
8-97223-345-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.06
|
8-97223-346-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.08
|
8-97223-347-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.10
|
8-97223-348-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.12
|
8-97223-349-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.14
|
8-97223-350-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.16
|
8-97223-351-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.18
|
8-97223-352-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.20
|
8-97223-353-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.22
|
8-97223-354-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.24
|
8-97223-355-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.26
|
8-97223-356-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.28
|
8-97223-357-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.30
|
8-97223-358-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.32
|
8-97223-359-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.34
|
8-97223-360-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.36
|
8-97223-361-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.38
|
8-97223-362-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.40
|
8-97223-363-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.42
|
8-97223-364-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.44
|
8-97223-365-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.46
|
8-97223-366-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.48
|
8-97223-367-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.50
|
8-97223-368-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.52
|
8-97223-369-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.54
|
8-97223-370-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.56
|
8-97223-371-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.58
|
8-97223-372-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.60
|
8-97223-373-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.62
|
8-97223-374-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.64
|
8-97223-375-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.66
|
8-97223-376-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.68
|
8-97223-377-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.70
|
8-97223-378-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.72
|
8-97223-379-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.74
|
8-97223-380-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.76
|
8-97223-381-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.78
|
8-97223-382-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.80
|
8-97223-383-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.82
|
8-97223-384-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.84
|
8-97223-385-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.86
|
8-97223-386-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.88
|
8-97223-387-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.90
|
8-97223-388-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.92
|
8-97223-389-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.94
|
8-97223-390-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.96
|
8-97223-391-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=2.98
|
8-97223-392-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(D)
T=3.00
|
8-97223-393-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
|
8-94128-964-0 |
04 |
1 |
9812-0105 |
● |
|
|
|
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
CHARGE AIR COOLER<6PL>
|
8-94174-141-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL>
|
1-15343-003-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
|
1-15343-003-0 |
04 |
1 |
9812- |
|
|
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL>
|
1-15341-008-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
|
8-97223-341-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
47 |
03.332 SPACER; NOZZLE SPRING,NOZZLE HOL
|
8-97062-045-0 |
04 |
1 |
9812-0105 |
● |
|
|
|
| |
47 |
03.332 SPACER; NOZZLE SPRING,NOZZLE HOL
EXC. CHARGE AIR COOLER<6PL>
|
1-15349-005-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
47 |
03.332 SPACER; NOZZLE SPRING,NOZZLE HOL
|
8-97223-340-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
50 |
03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD
)
|
8-94326-439-0 |
04 |
1 |
9906-0103 |
|
|
● |
|
| |
50 |
03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD
)
|
8-97287-402-1 |
04 |
1 |
0104-0105 |
|
|
● |
|
| |
50 |
03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD
)
|
8-97287-402-1 |
04 |
1 |
0106- |
|
|
|
● |
| |
59 |
03.332 CLAMP; NOZZLE HOLDER
|
8-94467-726-1 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
59 |
03.332 CLAMP; NOZZLE HOLDER
|
8-97259-884-0 |
04 |
1 |
0106- |
|
|
|
● |
| |
61 |
03.332 BOLT; CLAMP NOZZLE HOLDER
|
8-94468-020-1 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
61 |
03.332 BOLT; CLAMP NOZZLE HOLDER
|
8-94468-020-2 |
04 |
1 |
0106- |
|
|
|
● |
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
|
8-94368-249-2 |
01 |
1 |
9812-0105 |
● |
|
|
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
CHARGE AIR COOLER<6PL>
|
8-97148-969-2 |
01 |
1 |
9812- |
|
● |
|
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. CHARGE AIR COOLER<6PL>
|
8-97118-895-0 |
01 |
1 |
9812- |
|
● |
|
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
|
8-97231-578-0 |
01 |
1 |
9906-0105 |
|
|
● |
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
|
8-97288-702-0 |
01 |
1 |
0106- |
|
|
|
● |
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD
)
(B)
|
8-94326-439-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD
)
CHARGE AIR COOLER<6PL>
(A)
|
8-97171-922-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD
)
EXC. CHARGE AIR COOLER<6PL>
07.003
(A)
|
8-97171-332-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD
)
(C)
ID=7.2 OD=15.0 T=6.6
|
8-97171-331-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD
)
(C)
ID=7.2 OD=15.0 T=6.6
|
8-97171-331-0 |
04 |
1 |
0106- |
|
|
|
● |
| |
72 |
03.330 BOLT; BRKT TO INJ PUMP
01.516
M10X20 W/LK WASHER
|
0-50051-020-0 |
02 |
1 |
9812-0105 |
● |
|
● |
|
| |
76 |
03.330 BOLT; BRKT TO BRKT
01.073
M8X25 W/LK WASHER
|
0-50040-825-0 |
02 |
1 |
9812-0105 |
● |
|
● |
|
| |
77 |
03.340 RUBBER; SPACE,INJ PUMP
|
8-97226-808-0 |
01 |
1 |
9906-0105 |
|
|
● |
|
| |
77 |
03.340 RUBBER; SPACE,INJ PUMP
|
8-97256-838-1 |
01 |
1 |
0106- |
|
|
|
● |
| |
78 |
03.330 BOLT; BRKT TO C/BL
02.664
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9812-0105 |
● |
|
● |
|
| |
78 |
03.330 BOLT; BRKT TO C/BL
02.664
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0106- |
|
|
|
● |
| |
78 |
03.330 BOLT; BRKT TO C/BL
04.785
M10X20 FLANGE
|
0-28781-020-0 |
01 |
1 |
9812- |
|
● |
|
|
| |
80 |
03.306 BRACKET; PUMP
03.330
(A)
|
8-94133-761-1 |
01 |
1 |
9812-0105 |
● |
|
● |
|
| |
80 |
03.306 BRACKET; PUMP
(E)
|
8-97287-698-3 |
01 |
1 |
0106- |
|
|
|
● |
| |
80 |
03.306 BRACKET; PUMP
03.330
(B)
|
8-94133-762-2 |
01 |
1 |
9812-0105 |
● |
|
● |
|
| |
80 |
03.306 BRACKET; PUMP
CHARGE AIR COOLER<6PL>
(D)
|
8-97148-958-1 |
01 |
1 |
9812- |
|
● |
|
|
| |
80 |
03.306 BRACKET; PUMP
EXC. CHARGE AIR COOLER<6PL>
(C)
|
8-97136-677-0 |
01 |
1 |
9812- |
|
● |
|
|
| |
81 |
03.330 WASHER; PL,BRKT TO PUMP
07.633
ID=8.4 OD=22
|
9-09164-708-0 |
02 |
1 |
9812-0105 |
● |
|
● |
|
| |
110 |
03.330 NUT; CLIP
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9906-0105 |
|
|
● |
|
| |
110 |
03.330 NUT; CLIP
04.594
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
0106- |
|
|
|
● |
| |
113 |
03.162 CLIP; INJ PIPE
03.330
(C)
|
5-15419-013-1 |
02 |
1 |
9812-0105 |
● |
|
|
|
| |
113 |
03.162 CLIP; INJ PIPE
(D)
|
8-97213-050-0 |
05 |
1 |
9812- |
|
● |
|
|
| |
113 |
03.162 CLIP; INJ PIPE
(B)
|
1-09701-132-0 |
02 |
1 |
9906-0105 |
|
|
● |
|
| |
113 |
03.162 CLIP; INJ PIPE
(B)
|
1-09701-132-1 |
04 |
1 |
0106- |
|
|
|
● |
| |
113 |
03.162 CLIP; INJ PIPE
(A)
|
8-97224-041-0 |
02 |
1 |
9906-0105 |
|
|
● |
|
| |
113 |
03.162 CLIP; INJ PIPE
(A)
|
8-97224-041-1 |
01 |
1 |
0106- |
|
|
|
● |
| |
120 |
03.330 BRACKET; INJ PIPE
(C)
|
8-97224-300-0 |
01 |
1 |
9906-0012 |
|
|
● |
|
| |
120 |
03.330 BRACKET; INJ PIPE
(C)
|
8-97306-609-0 |
01 |
1 |
0101-0103 |
|
|
● |
|
| |
120 |
03.330 BRACKET; INJ PIPE
(C)
|
8-97224-300-0 |
01 |
1 |
0104-0105 |
|
|
● |
|
| |
120 |
03.330 BRACKET; INJ PIPE
(A)
|
8-97224-300-0 |
01 |
1 |
0106- |
|
|
|
● |
| |
120 |
03.330 BRACKET; INJ PIPE
(B)
|
8-97257-906-0 |
01 |
1 |
0106- |
|
|
|
● |
| |
138 |
03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL>
|
1-15343-004-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
138 |
03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER
|
8-94174-141-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.322
(C)
T=0.80
|
5-15339-010-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.53
|
8-97116-038-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.00
|
8-94176-886-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.54
|
8-97116-039-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.01
|
8-94176-887-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.55
|
8-97116-040-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.02
|
8-94176-888-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.57
|
8-97116-042-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.03
|
8-94176-889-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.59
|
8-97116-044-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.04
|
8-94176-890-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.05
|
8-94176-891-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.06
|
8-94176-892-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.07
|
8-94176-893-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.08
|
8-94176-894-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.09
|
8-94176-895-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.10
|
8-94176-896-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.11
|
8-94176-897-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.12
|
8-94176-898-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.13
|
8-94176-899-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.14
|
8-94176-900-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.16
|
8-94176-902-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.17
|
8-94176-903-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.18
|
8-94176-904-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.19
|
8-94176-905-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.20
|
8-94176-906-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.21
|
8-94176-907-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.22
|
8-94176-908-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.23
|
8-94176-909-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.24
|
8-94176-910-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.25
|
8-94176-911-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.26
|
8-94176-912-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.27
|
8-94176-913-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.28
|
8-94176-914-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.29
|
8-94176-915-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.30
|
8-94176-916-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.31
|
8-94176-917-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.32
|
8-94176-918-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.33
|
8-94176-919-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.34
|
8-94176-920-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.35
|
8-94176-921-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.36
|
8-94176-922-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.37
|
8-94176-923-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.38
|
8-94176-924-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.40
|
8-94176-925-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.41
|
8-94176-926-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.42
|
8-94176-927-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.43
|
8-94176-928-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.44
|
8-94176-929-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.45
|
8-94176-930-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.46
|
8-94176-931-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.47
|
8-94176-932-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.48
|
8-94176-933-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.49
|
8-94176-934-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.50
|
8-94176-935-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.51
|
8-94176-936-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.52
|
8-94176-937-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.53
|
8-94176-938-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.54
|
8-94176-939-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.55
|
8-94176-940-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.56
|
8-94176-941-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.57
|
8-94176-942-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.58
|
8-94176-943-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.59
|
8-94176-944-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.60
|
8-94176-945-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.61
|
8-94176-946-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.62
|
8-94176-947-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.63
|
8-94176-948-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.64
|
8-94176-949-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.65
|
8-94176-950-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.66
|
8-94176-951-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.67
|
8-94176-952-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.68
|
8-94176-953-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.69
|
8-94176-954-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.70
|
8-94176-955-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.71
|
8-94176-956-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.72
|
8-94176-957-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.73
|
8-94176-958-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.74
|
8-94176-959-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.75
|
8-94176-960-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
(C)
T=1.39
|
8-94178-796-0 |
AR |
1 |
9812-0105 |
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
(D)
T=0.10
|
8-97027-432-0 |
AR |
1 |
9812-0105 |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.10
|
8-97116-029-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
(D)
T=0.20
|
8-97027-433-0 |
AR |
1 |
9812-0105 |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.20
|
8-97116-032-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
(D)
T=0.30
|
8-97027-434-0 |
AR |
1 |
9812-0105 |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.30
|
8-97116-033-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
(D)
T=0.40
|
8-97027-435-0 |
AR |
1 |
9812-0105 |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.40
|
8-97116-034-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
(D)
T=0.50
|
8-97027-436-0 |
AR |
1 |
9812-0105 |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
(D)
T=0.52
|
8-97027-437-0 |
AR |
1 |
9812-0105 |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.52
|
8-97116-037-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
(D)
T=0.54
|
8-97027-438-0 |
AR |
1 |
9812-0105 |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.51
|
8-97116-036-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
(D)
T=0.56
|
8-97027-439-0 |
AR |
1 |
9812-0105 |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.56
|
8-97116-041-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
(D)
T=0.58
|
8-97027-440-0 |
AR |
1 |
9812-0105 |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.58
|
8-97116-043-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=1.20
|
1-15349-004-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.40
|
1-15349-042-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.50
|
1-15349-043-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.52
|
1-15349-044-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.54
|
1-15349-045-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.56
|
1-15349-046-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.58
|
1-15349-047-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.60
|
1-15349-048-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.70
|
1-15349-049-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.50
|
8-97027-442-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.52
|
8-97027-443-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.54
|
8-97027-444-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.56
|
8-97027-445-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.58
|
8-97027-446-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.60
|
8-97027-447-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.70
|
8-97027-448-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.40
|
8-97093-427-0 |
AR |
1 |
9812- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(E)
T=1.20
|
1-15349-004-0 |
AR |
1 |
9906-0105 |
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(E)
T=0.52
|
1-15349-044-0 |
AR |
1 |
9906-0105 |
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(E)
T=0.54
|
1-15349-045-0 |
AR |
1 |
9906-0105 |
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(E)
T=0.56
|
1-15349-046-0 |
AR |
1 |
9906-0105 |
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(E)
T=0.58
|
1-15349-047-0 |
AR |
1 |
9906-0105 |
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(E)
T=0.60
|
1-15349-048-0 |
AR |
1 |
9906-0105 |
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(F)
T=1.00
|
1-15349-139-0 |
AR |
1 |
9906-0105 |
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(F)
T=0.50
|
8-97116-035-0 |
AR |
1 |
9906-0105 |
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
(D)
T=0.50
|
8-97116-035-0 |
AR |
1 |
0106- |
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(F)
T=1.50
|
8-97202-697-0 |
AR |
1 |
9906-0105 |
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(F)
T=1.99
|
8-97223-342-0 |
AR |
1 |
9906-0105 |
|
|
● |
|
| |
272 |
03.332 NOZZLE KIT; INJ
EXC. CHARGE AIR COOLER<6PL>
|
8-97314-125-0 |
04 |
1 |
9812- |
|
● |
|
|
| |
272 |
03.332 NOZZLE KIT; INJ
|
8-97329-208-0 |
04 |
1 |
9906-0105 |
|
|
● |
|
