Sayfa 0-37 - Isuzu EPC

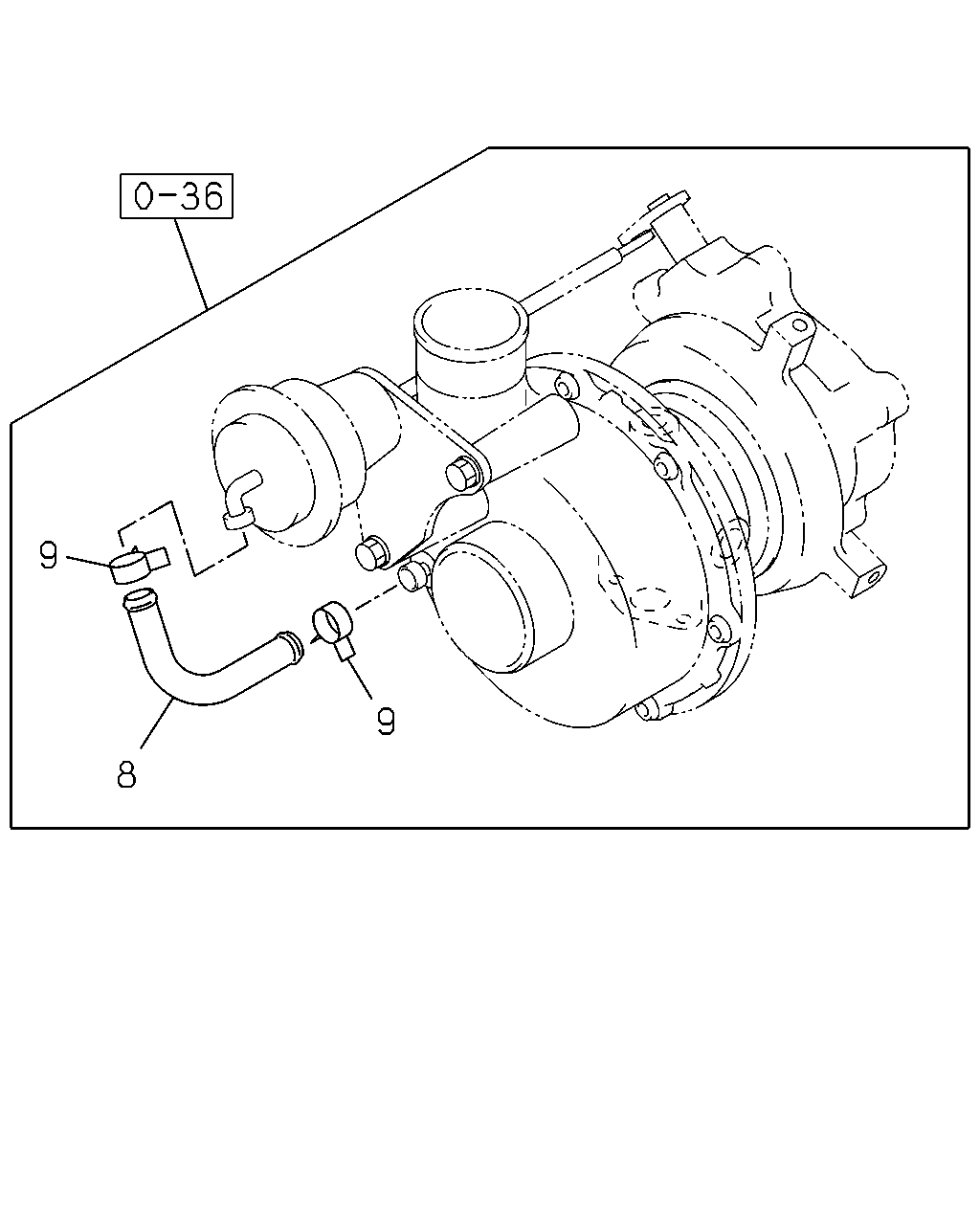

0-37 — TURBOCHARGER (#44565) — 8 parça

9 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: D = 8-97240-008-3, 97240008	8-97128-625-0	01	1	-
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: C = 8-97208-966-2, 97208966, E = 8-97258-811-0, 97258811	8-97215-553-0	01	1	-
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: B = 8-97192-331-2, 97192331	8-97216-220-0	01	1	-
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-97103-857-0, 97103857	8-97219-075-0	01	1	-
9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-97103-857-0, 97103857	5-09707-057-0	02	1	-
9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: B = 8-97192-331-2, 97192331, D = 8-97240-008-3, 97240008	8-94167-469-0	02	1	-
9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: C = 8-97208-966-2, 97208966	8-97182-742-0	02	1	-
9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: E = 8-97258-811-0, 97258811	8-97213-592-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
