Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#44564) — 382 parça

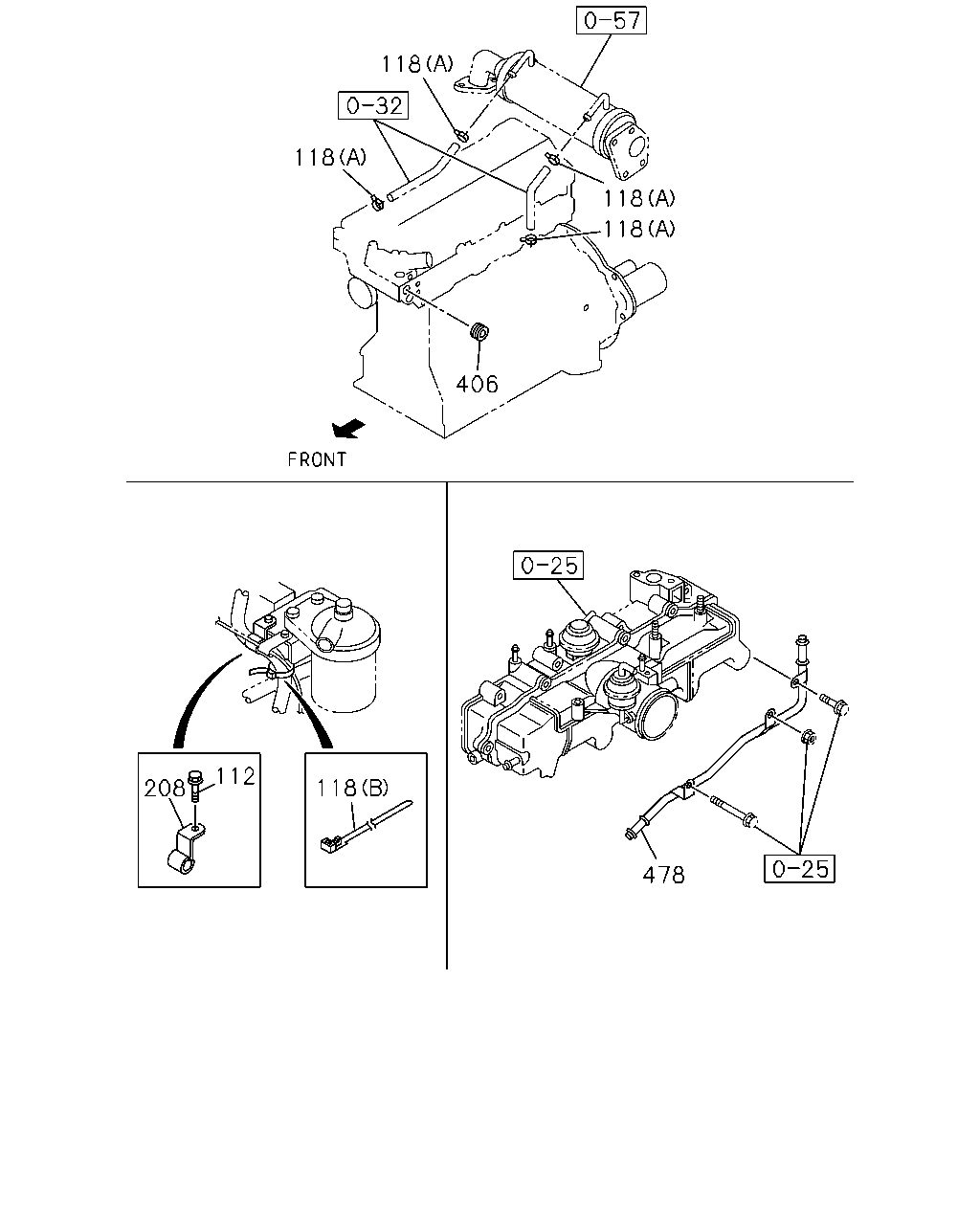

118 118 118 118 406 112 118 208 478

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
112	03.417 BOLT; CLIP CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-	●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	9812-0105	●
118	03.342 CLIP; WATER HOSE EXC. CHARGE AIR COOLER<6PL> 03.162 (C) ID=15.5	8-94221-519-0	02	1	0106-	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	0106-	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> 01.153 (A) ID=12.8	8-94367-943-0	06	1	0106-0301	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> 03.162 (A) ID=15.5	8-94221-519-0	06	1	0302-	●
208	03.417 CLIP; WATER HOSE FIX CHARGE AIR COOLER<6PL> 06.602 ID=15 H=24 L=20	1-09700-606-0	01	1	0106-	●
406	03.417 PLUG CHARGE AIR COOLER<6PL> M/T MXA5R(RMT),M/T MBP6R(RNW) 01.073 PT3/8	5-09605-005-0	01	1	0302-	●
406	03.417 PLUG CHARGE AIR COOLER<6PL> 01.252 PT3/4	9-09664-005-0	01	1	0106-0301	●
406	03.417 PLUG CHARGE AIR COOLER<6PL> M/T MZZ6F(RSR) 01.252 PT3/4	9-09664-005-0	01	1	0302-	●
478	01.097 PIPE; WATER SUCTION CHARGE AIR COOLER<6PL>	8-97240-999-1	01	1	0106-	●

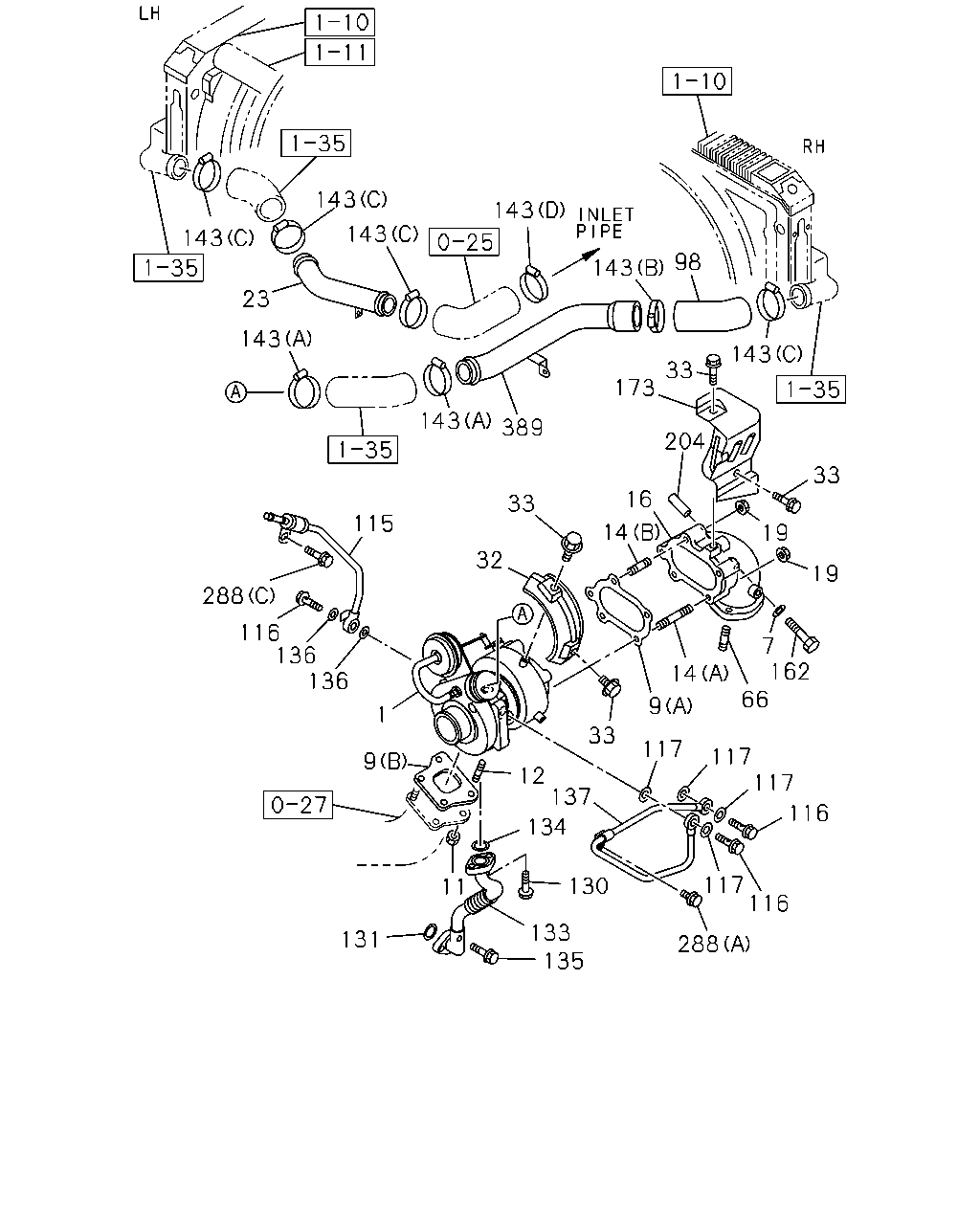

143 143 143 143 98 143 23 143 143 33 173 143 389 204 33 16 33 115 14 19 32 19 288 116 136 136 7 162 66 14 9 1 33 117 117 117 9 12 137 116 134 117 116 130 11 133 135 131 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-2	01	1	9812-0105	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97258-811-0	01	1	0106-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	9812-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97192-331-2	01	1	9906-0105		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0106-			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9812-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A)	8-97039-777-1	01	1	9812-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B)	8-97063-602-0	01	1	9812-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C)	8-97224-296-0	01	1	9906-0105		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D)	8-97179-646-0	01	1	0106-0111			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (D)	8-97263-123-0	01	1	0112-			●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9812-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	9906-0105		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0106-			●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	9812-	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	9906-0105		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0106-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	9812-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	9812-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	9906-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	0106-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X126 L=137	8-97200-763-0	02	1	9906-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0106-			●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	9812-	●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	9906-0105		●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0106-			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	9812-	●
23	03.417 PIPE; INTAKE,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97189-601-0	01	1	9812-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97190-590-1	01	1	9812-0205	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97064-417-1	01	1	9812-0205	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0206-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97258-821-0	01	1	0106-			●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> M6X28 W/LK&PL WASHER	8-97028-387-1	06	1	9812-0001	●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> M6X28 W/LK&PL WASHER	8-97028-387-1	05	1	0002-0205	●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	01	1	0002-0205	●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	9812-0205	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0206-	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	9812-	●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9906-0105		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0106-			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97189-628-0	01	1	9812-9812	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	9812-	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	9812-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97148-946-0	01	1	9812-9906	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97229-039-0	01	1	9907-0105	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97302-224-1	01	1	0106-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97066-699-1	01	1	9812-9909	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97229-038-0	01	1	9910-	●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	9812-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	9812-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9812-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). T=2.5	8-94472-584-1	02	1	0106-			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9812-	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=27.7	9-09565-228-0	01	1	9812-0211	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0212-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	9812-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	9812-	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	9812-	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9812-	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9812-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97181-850-0	01	1	9812-9906	●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97229-035-0	01	1	9907-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97189-625-0	01	1	9812-9907	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	9908-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=50-69	1-09707-135-0	02	1	9812-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	9812-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9812-9812	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	8-97222-448-0	04	1	9901-9902	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9903-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL> (C) ID=50-69	8-94316-991-0	02	1	9812-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR/NQR SGL CAB(NP*S) CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	9812-9908	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	9909-	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	9812-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL>	8-97190-569-0	01	1	9812-0001	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL>	8-97250-283-0	01	1	0002-0205	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97039-752-0	01	1	9812-0001	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97250-282-0	01	1	0002-0205	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0206-	●
204	03.342 COLLAR; PIPE ADAPTER	8-97040-893-0	01	1	9812-9812	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-0	01	1	9901-	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	9812-0105	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0106-	●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0106-	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9812-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97204-013-1	01	1	9812-	●

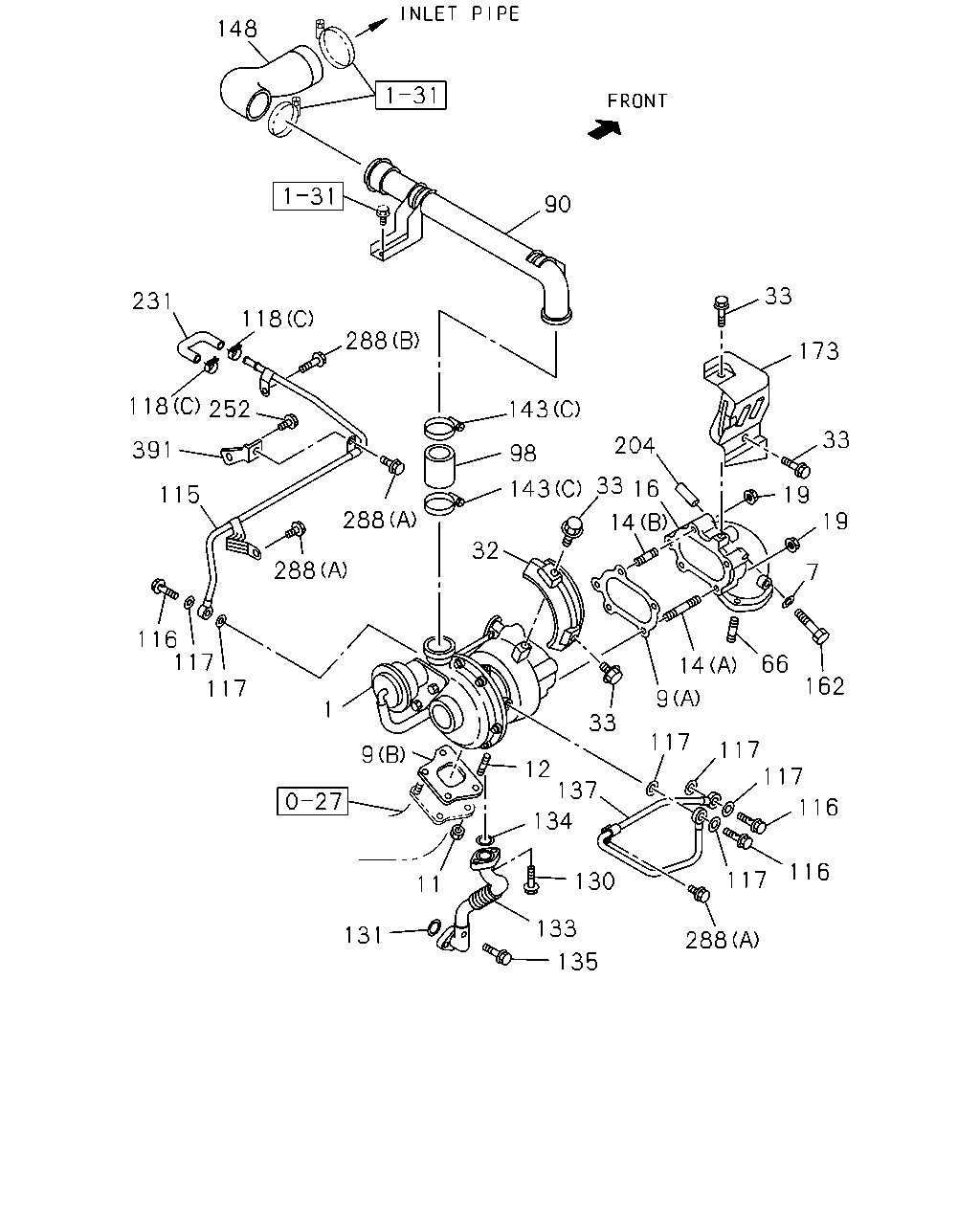

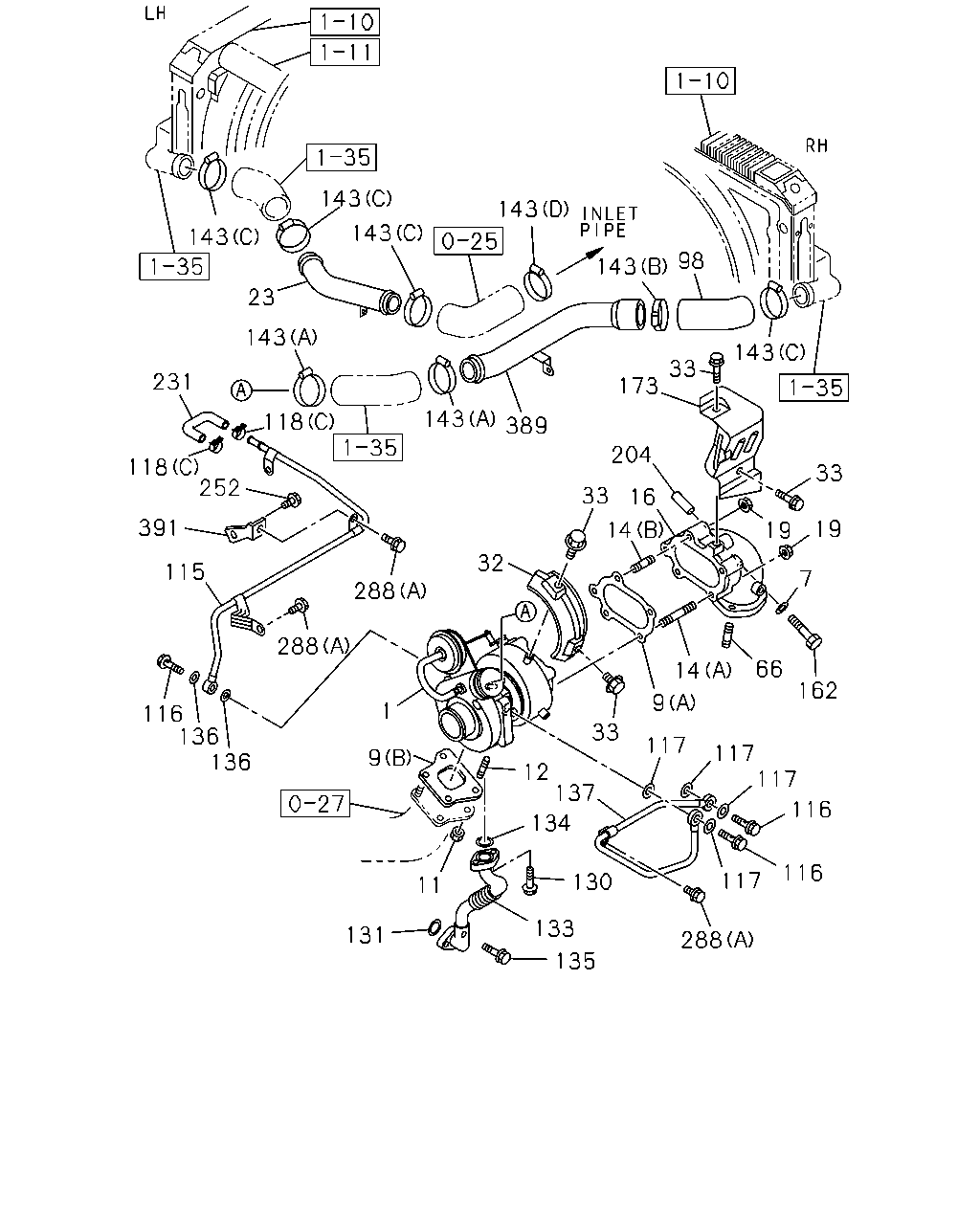

148 90 33 231 118 288 173 118 252 143 33 204 391 98 33 143 16 115 19 288 19 14 32 288 7 116 117 117 66 14 162 9 1 33 117 117 117 9 12 137 116 134 116 117 130 11 133 131 288 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-2	01	1	9812-0105	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97258-811-0	01	1	0106-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	9812-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97192-331-2	01	1	9906-0105		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0106-			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9812-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A)	8-97039-777-1	01	1	9812-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B)	8-97063-602-0	01	1	9812-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C)	8-97224-296-0	01	1	9906-0105		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D)	8-97179-646-0	01	1	0106-0111			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (D)	8-97263-123-0	01	1	0112-			●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9812-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	9906-0105		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0106-			●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	9812-	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	9906-0105		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0106-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	9812-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	9812-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	9906-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	0106-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X126 L=137	8-97200-763-0	02	1	9906-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0106-			●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	9812-	●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	9906-0105		●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0106-			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	9812-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97190-590-1	01	1	9812-0205	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97064-417-1	01	1	9812-0205	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0206-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97258-821-0	01	1	0106-			●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> M6X28 W/LK&PL WASHER	8-97028-387-1	06	1	9812-0001	●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> M6X28 W/LK&PL WASHER	8-97028-387-1	05	1	0002-0205	●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	01	1	0002-0205	●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	9812-0205	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0206-	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	9812-	●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9906-0105		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0106-			●
90	03.407 PIPE; INL,TURBOCHARGER TO MANIF EXC. CHARGE AIR COOLER<6PL>	8-97173-981-0	01	1	9812-	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97189-628-0	01	1	9812-9812	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	9812-	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	9812-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97148-946-0	01	1	9812-9906	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97229-039-0	01	1	9907-0105	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97302-224-1	01	1	0106-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97066-699-1	01	1	9812-9909	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97229-038-0	01	1	9910-	●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	9812-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	9812-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9812-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). T=2.5	8-94472-584-1	02	1	0106-			●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	9812-0105	●
118	03.342 CLIP; WATER HOSE EXC. CHARGE AIR COOLER<6PL> 03.162 (C) ID=15.5	8-94221-519-0	02	1	0106-	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	0106-	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> 01.153 (A) ID=12.8	8-94367-943-0	06	1	0106-0301	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> 03.162 (A) ID=15.5	8-94221-519-0	06	1	0302-	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9812-	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=27.7	9-09565-228-0	01	1	9812-0211	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0212-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	9812-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	9812-	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	9812-	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9812-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97181-850-0	01	1	9812-9906	●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97229-035-0	01	1	9907-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97189-625-0	01	1	9812-9907	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	9908-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=50-69	1-09707-135-0	02	1	9812-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	9812-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9812-9812	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	8-97222-448-0	04	1	9901-9902	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9903-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL> (C) ID=50-69	8-94316-991-0	02	1	9812-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR/NQR SGL CAB(NP*S) CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	9812-9908	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	9909-	●
148	03.417 HOSE; TURBOCHARGER,INL EXC. CHARGE AIR COOLER<6PL>	8-97182-220-0	01	1	9812-	●
148	03.417 HOSE; TURBOCHARGER,INL 03.342 L=180 SERVICED BY L=3000	0-03259-300-0	01	1	9906-0105		●
148	03.417 HOSE; TURBOCHARGER,INL 03.342 L=280 SERVICED BY L=3000	0-03259-300-0	01	1	0106-0204			●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0205-			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	9812-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL>	8-97190-569-0	01	1	9812-0001	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL>	8-97250-283-0	01	1	0002-0205	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97039-752-0	01	1	9812-0001	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97250-282-0	01	1	0002-0205	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0206-	●
204	03.342 COLLAR; PIPE ADAPTER	8-97040-893-0	01	1	9812-9812	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-0	01	1	9901-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	9812-0105	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97209-950-0	01	1	0106-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	9906-0105		●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	9812-0105	●
252	03.417 BOLT; BRKT EXC. CHARGE AIR COOLER<6PL> M12X19	8-97079-809-0	01	1	0106-	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	9812-0105	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0106-	●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0106-	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9812-	●
391	03.342 BRACKET; WATER PIPE	8-97068-554-0	01	1	9812-0105	●
391	03.342 BRACKET; WATER PIPE EXC. CHARGE AIR COOLER<6PL>	8-97068-554-0	01	1	0106-	●

143 143 143 143 98 143 23 143 143 33 231 173 143 118 389 204 118 252 33 33 16 391 19 14 19 32 115 7 288 288 66 14 162 9 1 116 136 136 33 117 117 117 9 12 137 116 134 116 117 130 11 133 131 288 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-2	01	1	9812-0105	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97258-811-0	01	1	0106-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	9812-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97192-331-2	01	1	9906-0105		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0106-			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9812-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A)	8-97039-777-1	01	1	9812-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B)	8-97063-602-0	01	1	9812-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C)	8-97224-296-0	01	1	9906-0105		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D)	8-97179-646-0	01	1	0106-0111			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (D)	8-97263-123-0	01	1	0112-			●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9812-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	9906-0105		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0106-			●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	9812-	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	9906-0105		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0106-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	9812-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	9812-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	9906-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	0106-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X126 L=137	8-97200-763-0	02	1	9906-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0106-			●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	9812-	●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	9906-0105		●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0106-			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	9812-	●
23	03.417 PIPE; INTAKE,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97189-601-0	01	1	9812-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97190-590-1	01	1	9812-0205	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97064-417-1	01	1	9812-0205	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0206-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97258-821-0	01	1	0106-			●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> M6X28 W/LK&PL WASHER	8-97028-387-1	06	1	9812-0001	●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> M6X28 W/LK&PL WASHER	8-97028-387-1	05	1	0002-0205	●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	01	1	0002-0205	●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	9812-0205	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0206-	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	9812-	●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9906-0105		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0106-			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97189-628-0	01	1	9812-9812	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	9812-	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	9812-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97148-946-0	01	1	9812-9906	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97229-039-0	01	1	9907-0105	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97302-224-1	01	1	0106-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97066-699-1	01	1	9812-9909	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97229-038-0	01	1	9910-	●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	9812-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	9812-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9812-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). T=2.5	8-94472-584-1	02	1	0106-			●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	9812-0105	●
118	03.342 CLIP; WATER HOSE EXC. CHARGE AIR COOLER<6PL> 03.162 (C) ID=15.5	8-94221-519-0	02	1	0106-	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	0106-	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> 01.153 (A) ID=12.8	8-94367-943-0	06	1	0106-0301	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> 03.162 (A) ID=15.5	8-94221-519-0	06	1	0302-	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9812-	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=27.7	9-09565-228-0	01	1	9812-0211	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0212-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	9812-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	9812-	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	9812-	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9812-	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9812-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97181-850-0	01	1	9812-9906	●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97229-035-0	01	1	9907-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97189-625-0	01	1	9812-9907	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	9908-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=50-69	1-09707-135-0	02	1	9812-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	9812-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9812-9812	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	8-97222-448-0	04	1	9901-9902	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9903-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL> (C) ID=50-69	8-94316-991-0	02	1	9812-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR/NQR SGL CAB(NP*S) CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	9812-9908	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	9909-	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	9812-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL>	8-97190-569-0	01	1	9812-0001	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL>	8-97250-283-0	01	1	0002-0205	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97039-752-0	01	1	9812-0001	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97250-282-0	01	1	0002-0205	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0206-	●
204	03.342 COLLAR; PIPE ADAPTER	8-97040-893-0	01	1	9812-9812	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-0	01	1	9901-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	9812-0105	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97209-950-0	01	1	0106-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	9906-0105		●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	9812-0105	●
252	03.417 BOLT; BRKT EXC. CHARGE AIR COOLER<6PL> M12X19	8-97079-809-0	01	1	0106-	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	9812-0105	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0106-	●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0106-	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9812-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97204-013-1	01	1	9812-	●
391	03.342 BRACKET; WATER PIPE	8-97068-554-0	01	1	9812-0105	●
391	03.342 BRACKET; WATER PIPE EXC. CHARGE AIR COOLER<6PL>	8-97068-554-0	01	1	0106-	●

231 148 11 2 12 423 1 14 9 16 14 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-2	01	1	9812-0105	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97258-811-0	01	1	0106-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	9812-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97192-331-2	01	1	9906-0105		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0106-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94481-980-0	01	1	9906-0105		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97288-577-0	01	1	0106-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A)	8-97039-777-1	01	1	9812-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B)	8-97063-602-0	01	1	9812-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C)	8-97224-296-0	01	1	9906-0105		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D)	8-97179-646-0	01	1	0106-0111			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (D)	8-97263-123-0	01	1	0112-			●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9812-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	9906-0105		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0106-			●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	9812-	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	9906-0105		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0106-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	9812-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	9812-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	9906-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	0106-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X126 L=137	8-97200-763-0	02	1	9906-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0106-			●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	9812-	●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	9906-0105		●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0106-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	9906-0105		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0106-			●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	9812-	●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9906-0105		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0106-			●
148	03.417 HOSE; TURBOCHARGER,INL EXC. CHARGE AIR COOLER<6PL>	8-97182-220-0	01	1	9812-	●
148	03.417 HOSE; TURBOCHARGER,INL 03.342 L=180 SERVICED BY L=3000	0-03259-300-0	01	1	9906-0105		●
148	03.417 HOSE; TURBOCHARGER,INL 03.342 L=280 SERVICED BY L=3000	0-03259-300-0	01	1	0106-0204			●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0205-			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	9812-0105	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97209-950-0	01	1	0106-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	9906-0105		●
423	03.373 STUD; WATER PIPE 03.162 M6X20 L=29	9-04110-620-0	01	1	9906-0105		●

148 117 120 138 2 11 117 120 12 101 119 101 32 14 9 16 1 14 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-2	01	1	9812-0105	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97258-811-0	01	1	0106-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	9812-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97192-331-2	01	1	9906-0105		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0106-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94481-980-0	01	1	9906-0105		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97288-577-0	01	1	0106-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A)	8-97039-777-1	01	1	9812-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B)	8-97063-602-0	01	1	9812-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C)	8-97224-296-0	01	1	9906-0105		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D)	8-97179-646-0	01	1	0106-0111			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (D)	8-97263-123-0	01	1	0112-			●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9812-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	9906-0105		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0106-			●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	9812-	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	9906-0105		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0106-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	9812-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	9812-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	9906-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	0106-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X126 L=137	8-97200-763-0	02	1	9906-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0106-			●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	9812-	●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	9906-0105		●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0106-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	9906-0105		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0106-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97190-590-1	01	1	9812-0205	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97064-417-1	01	1	9812-0205	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0206-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97258-821-0	01	1	0106-			●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	9812-	●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9906-0105		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0106-			●
101	03.602 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0106-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	9812-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9812-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). T=2.5	8-94472-584-1	02	1	0106-			●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0106-			●
120	01.097 ADAPTER; WATER	8-94472-583-0	02	1	0106-			●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0106-			●
148	03.417 HOSE; TURBOCHARGER,INL EXC. CHARGE AIR COOLER<6PL>	8-97182-220-0	01	1	9812-	●
148	03.417 HOSE; TURBOCHARGER,INL 03.342 L=180 SERVICED BY L=3000	0-03259-300-0	01	1	9906-0105		●
148	03.417 HOSE; TURBOCHARGER,INL 03.342 L=280 SERVICED BY L=3000	0-03259-300-0	01	1	0106-0204			●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0205-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
