0-31 — THERMOSTAT AND HOUSING (#44560) — 110 parça

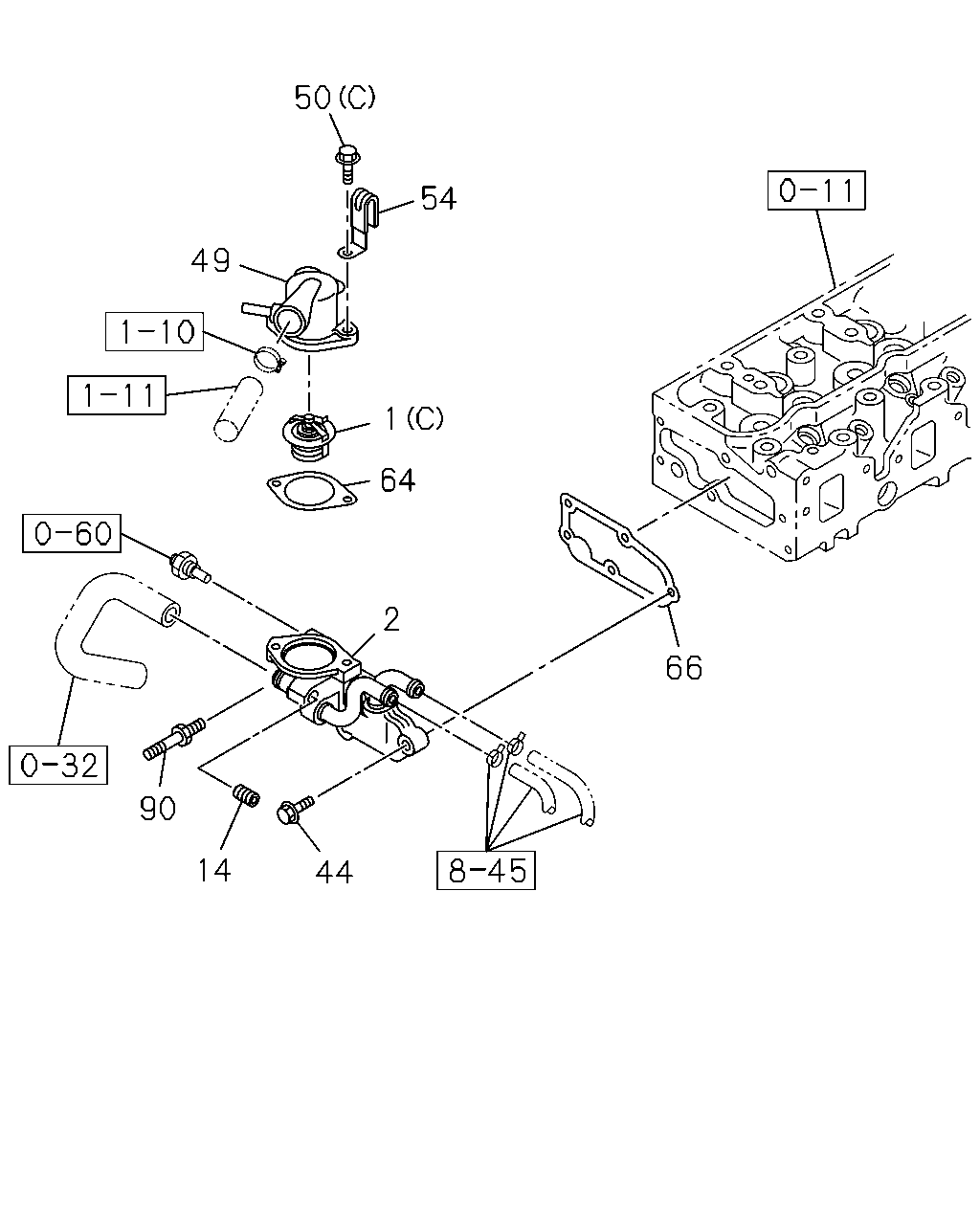

50 54 49 1 64 2 66 90 14 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97089-891-0	01	1	9812-0105	●	●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97089-891-0	01	1	0106-0301			●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97361-770-0	01	1	0302-			●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97167-495-0	01	1	9812-9907				●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97231-887-0	01	1	9908-0008				●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97263-194-0	01	1	0009-0010				●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-1	01	1	0011-				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97167-498-0	01	1	9812-9907				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97231-890-0	01	1	9908-9911				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97233-418-0	01	1	9912-0008				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97263-191-0	01	1	0009-0010				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-1	01	1	0011-				●
2	01.251 HOUSING; THERMOSTAT	8-97139-602-0	01	1	9812-0105	●
2	01.251 HOUSING; THERMOSTAT	8-97139-603-0	01	1	9906-0105		●
2	01.251 HOUSING; THERMOSTAT	8-97252-416-2	01	1	0106-			●
14	01.252 PLUG; SW 01.073 PT3/8	5-09605-005-0	02	1	9812-0105	●
14	01.252 PLUG; SW 04.520 M16X8 PLUG	9-09661-005-0	01	1	9812-				●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	05	1	9812-0105	●	●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	9906-0105		●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	05	1	0106-			●
49	01.153 PIPE; WATER OUTLET	8-94254-601-1	01	1	9812-0105	●
49	01.153 PIPE; WATER OUTLET	8-97200-620-0	01	1	9812-				●
49	01.153 PIPE; WATER OUTLET	8-97204-199-0	01	1	9906-0105		●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0106-			●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9812-0105	●	●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0106-			●
50	01.252 BOLT; OUTLET PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9812-				●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9812-				●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=13 H=50 L=27	8-94130-076-0	01	1	9812-0105	●	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=13 H=50 L=27	8-94130-076-0	01	1	0106-			●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.252	8-94365-674-1	01	1	9812-0105	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.252	8-94365-674-2	01	1	0106-			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94365-675-1	01	1	9812-9902	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97216-156-0	01	1	9903-0105	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97216-156-0	01	1	0106-			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97167-477-0	02	1	9812-9907				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97231-848-0	02	1	9908-0010				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97300-793-0	02	1	0011-				●
90	01.251 BOLT; BRKT	8-97038-624-0	03	1	9906-0105		●

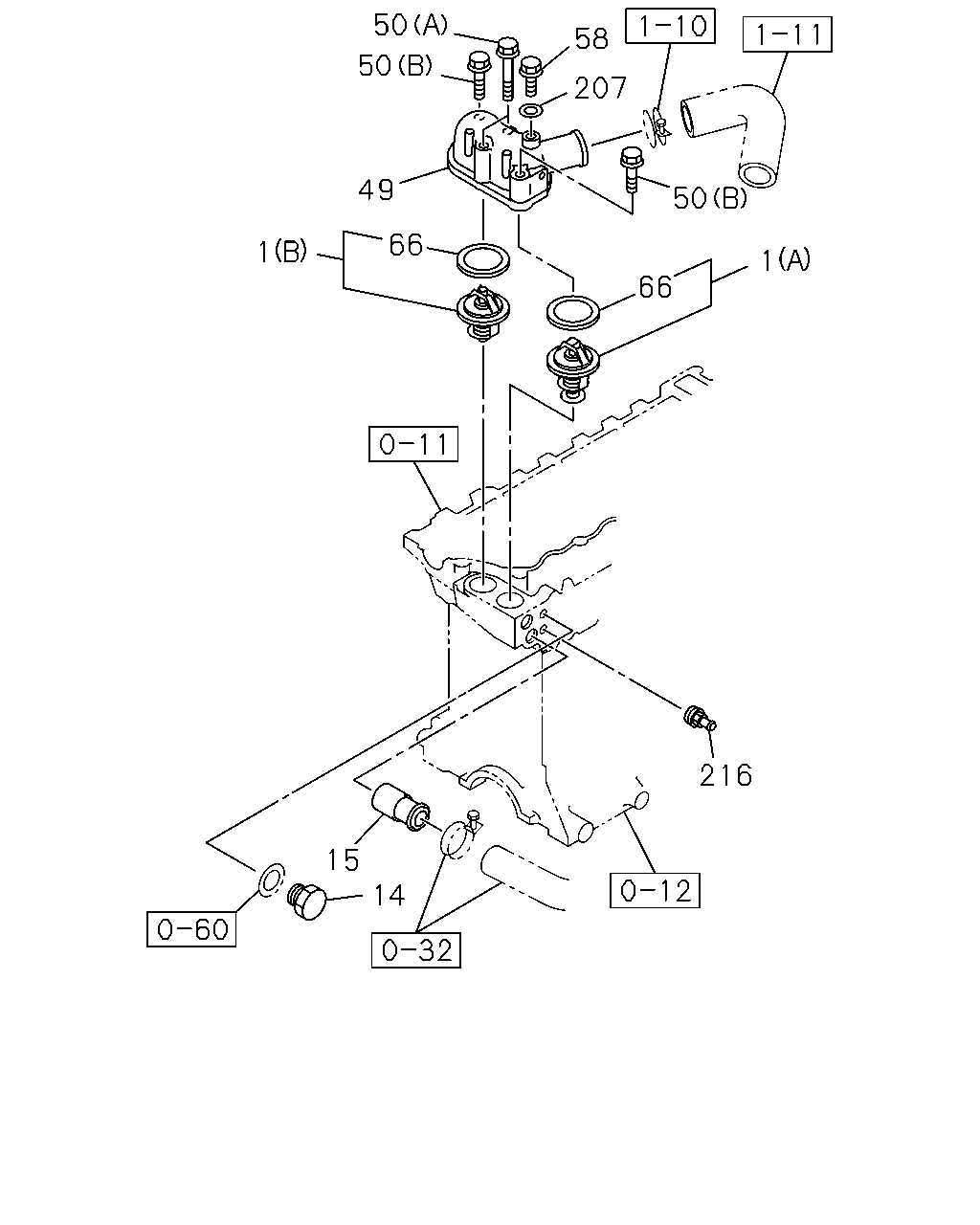

50 58 50 207 49 50 66 1 1 66 216 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97089-891-0	01	1	9812-0105	●	●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97089-891-0	01	1	0106-0301			●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97361-770-0	01	1	0302-			●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97167-495-0	01	1	9812-9907				●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97231-887-0	01	1	9908-0008				●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97263-194-0	01	1	0009-0010				●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-1	01	1	0011-				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97167-498-0	01	1	9812-9907				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97231-890-0	01	1	9908-9911				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97233-418-0	01	1	9912-0008				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97263-191-0	01	1	0009-0010				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-1	01	1	0011-				●
14	01.252 PLUG; SW 01.073 PT3/8	5-09605-005-0	02	1	9812-0105	●
14	01.252 PLUG; SW 04.520 M16X8 PLUG	9-09661-005-0	01	1	9812-				●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	9812-				●
49	01.153 PIPE; WATER OUTLET	8-94254-601-1	01	1	9812-0105	●
49	01.153 PIPE; WATER OUTLET	8-97200-620-0	01	1	9812-				●
49	01.153 PIPE; WATER OUTLET	8-97204-199-0	01	1	9906-0105		●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0106-			●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9812-0105	●	●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0106-			●
50	01.252 BOLT; OUTLET PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9812-				●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9812-				●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	9812-				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94365-675-1	01	1	9812-9902	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97216-156-0	01	1	9903-0105	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97216-156-0	01	1	0106-			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97167-477-0	02	1	9812-9907				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97231-848-0	02	1	9908-0010				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97300-793-0	02	1	0011-				●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	9812-				●
216	01.153 PIPE ASM; WATER,TURBOCHARGER RET	8-97041-589-3	01	1	9812-0105				●
216	01.153 PIPE ASM; WATER,TURBOCHARGER RET EXC. CHARGE AIR COOLER<6PL>	8-97041-589-3	01	1	0106-0212				●
216	01.153 PIPE ASM; WATER,TURBOCHARGER RET EXC. CHARGE AIR COOLER<6PL>	8-97358-699-0	01	1	0301-				●

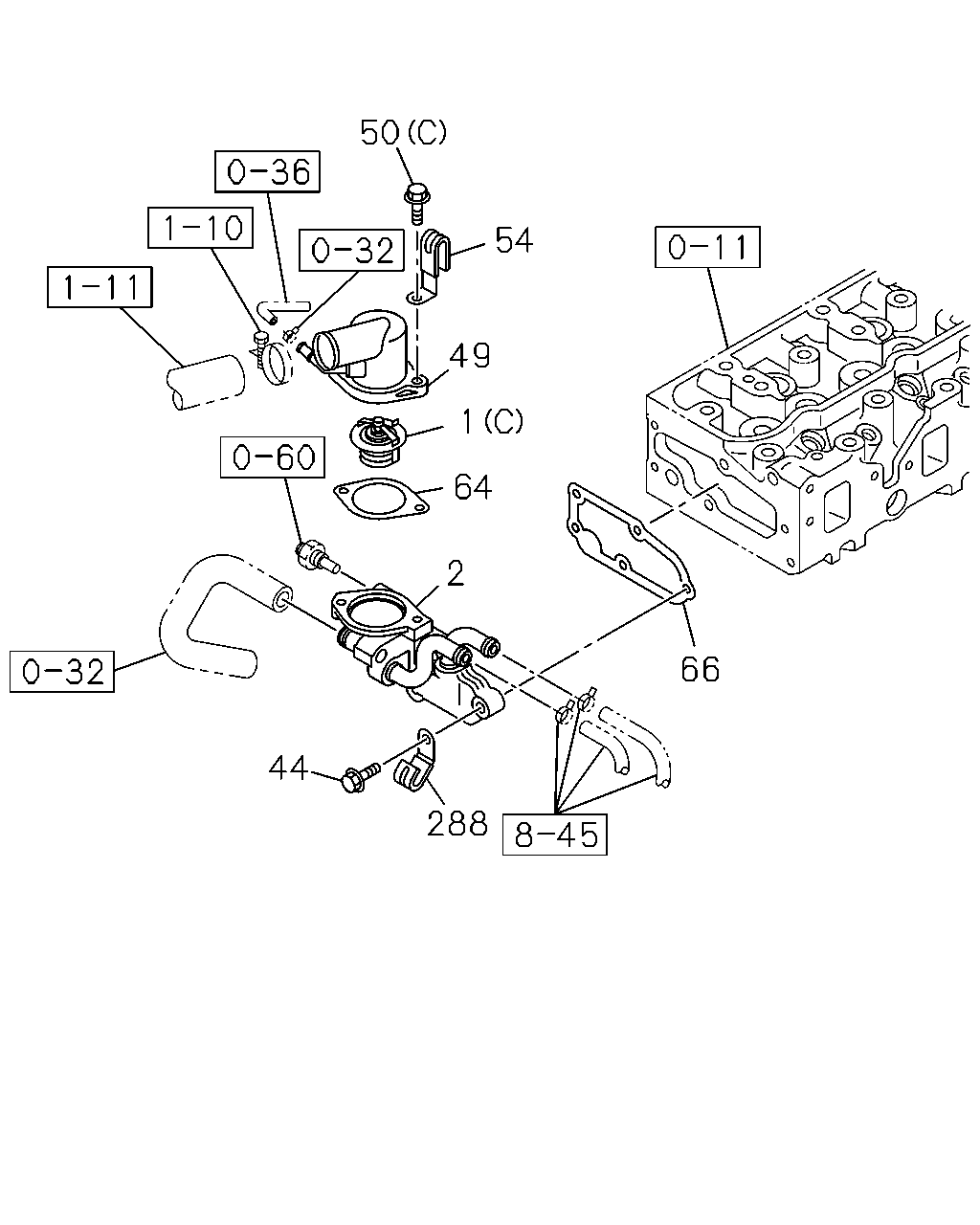

50 54 49 1 64 2 66 44 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97089-891-0	01	1	9812-0105	●	●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97089-891-0	01	1	0106-0301			●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97361-770-0	01	1	0302-			●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97167-495-0	01	1	9812-9907				●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97231-887-0	01	1	9908-0008				●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97263-194-0	01	1	0009-0010				●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-1	01	1	0011-				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97167-498-0	01	1	9812-9907				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97231-890-0	01	1	9908-9911				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97233-418-0	01	1	9912-0008				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97263-191-0	01	1	0009-0010				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-1	01	1	0011-				●
2	01.251 HOUSING; THERMOSTAT	8-97139-602-0	01	1	9812-0105	●
2	01.251 HOUSING; THERMOSTAT	8-97139-603-0	01	1	9906-0105		●
2	01.251 HOUSING; THERMOSTAT	8-97252-416-2	01	1	0106-			●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	05	1	9812-0105	●	●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	9906-0105		●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	05	1	0106-			●
49	01.153 PIPE; WATER OUTLET	8-94254-601-1	01	1	9812-0105	●
49	01.153 PIPE; WATER OUTLET	8-97200-620-0	01	1	9812-				●
49	01.153 PIPE; WATER OUTLET	8-97204-199-0	01	1	9906-0105		●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0106-			●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9812-0105	●	●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0106-			●
50	01.252 BOLT; OUTLET PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9812-				●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9812-				●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=13 H=50 L=27	8-94130-076-0	01	1	9812-0105	●	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=13 H=50 L=27	8-94130-076-0	01	1	0106-			●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.252	8-94365-674-1	01	1	9812-0105	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.252	8-94365-674-2	01	1	0106-			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94365-675-1	01	1	9812-9902	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97216-156-0	01	1	9903-0105	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97216-156-0	01	1	0106-			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97167-477-0	02	1	9812-9907				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97231-848-0	02	1	9908-0010				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97300-793-0	02	1	0011-				●
288	04.930 CLIP 02.559 ID=12	5-09700-331-0	01	1	0106-			●
