◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#44559) — 18 parça

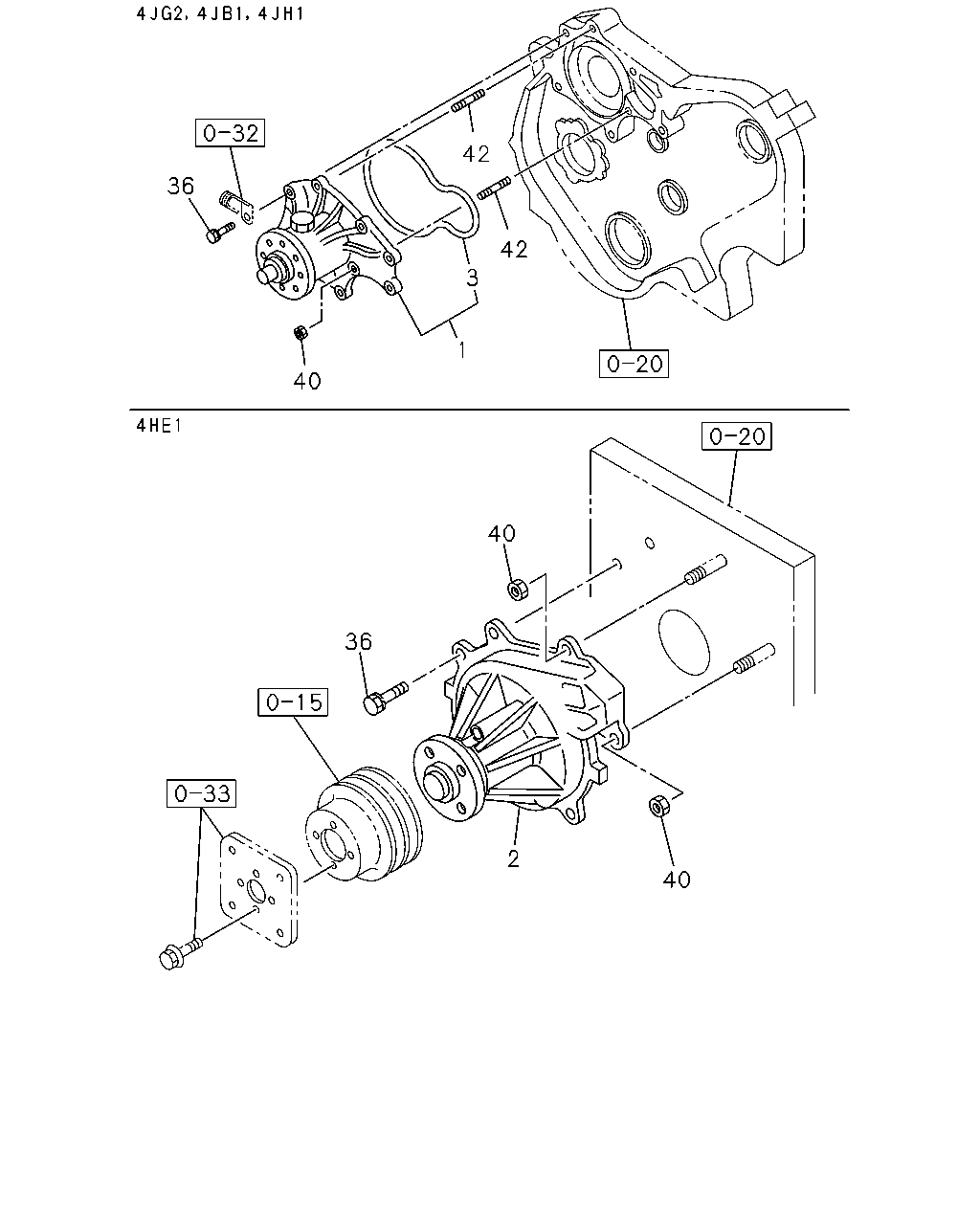

çizim 9134
42 36 42 3 1 40 40 36 2 40
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.069 PUMP ASM; WATER,W/GASKET 8-97123-330-2 01 1 9812-0105 ● ●
1 01.069 PUMP ASM; WATER,W/GASKET 8-97123-330-2 01 1 0106-0201 ●
1 01.069 PUMP ASM; WATER,W/GASKET 8-97105-012-3 01 1 0202- ●
2 01.069 PUMP ASM; WATER
CHARGE AIR COOLER<6PL> 		8-97149-237-0 01 1 9812-0104 ●
2 01.069 PUMP ASM; WATER
CHARGE AIR COOLER<6PL> 		8-97314-118-0 01 1 0105- ●
2 01.069 PUMP ASM; WATER
EXC. CHARGE AIR COOLER<6PL> 		8-97109-676-1 01 1 9812-0104 ●
2 01.069 PUMP ASM; WATER
EXC. CHARGE AIR COOLER<6PL> 10.690 		8-97313-904-0 01 1 0105-0202 ●
2 01.069 PUMP ASM; WATER
EXC. CHARGE AIR COOLER<6PL> 		8-97333-361-0 01 1 0203- ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94178-081-0 01 1 9812-0105 ● ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94178-081-0 01 1 0106- ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER 		5-09000-084-1 05 1 9812-0105 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER 		5-09000-084-1 05 1 0106- ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.704 M8X40 FLANGE 		0-28680-840-0 06 1 9812- ●
40 07.874 NUT; WATER PUMP
07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9905 ● ●
40 07.874 NUT; WATER PUMP
07.633 M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ● ● ●
40 07.874 NUT; WATER PUMP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ●
42 01.073 STUD; WATER PUMP
09.173 M8X22 L=34 		9-04110-822-0 02 1 9812-0105 ● ●
42 01.073 STUD; WATER PUMP
09.173 M8X22 L=34 		9-04110-822-0 02 1 0106- ●
