0-27 — EXHAUST MANIFOLD (#44557) — 142 parça

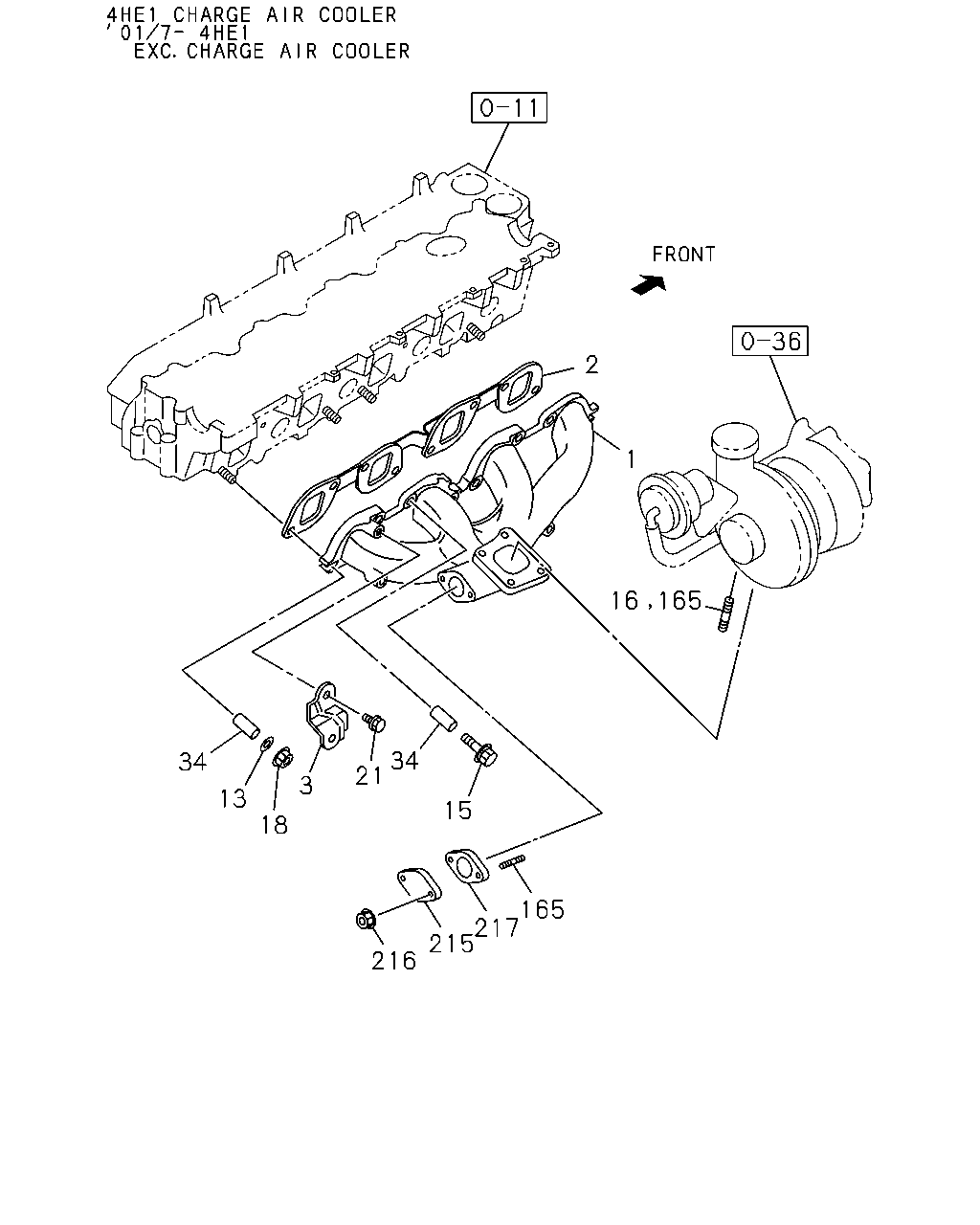

2 1 3 34 21 34 13 15 18 165 217 215 216 16 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9812-0105	●
1	03.601 MANIFOLD; EXHAUST CHARGE AIR COOLER<6PL>	8-97148-949-2	01	1	9812-		●
1	03.601 MANIFOLD; EXHAUST EXC. CHARGE AIR COOLER<6PL>	8-97094-879-1	01	1	9812-0106		●
1	03.601 MANIFOLD; EXHAUST EXC. CHARGE AIR COOLER<6PL>	8-97148-949-2	01	1	0107-		●
1	03.601 MANIFOLD; EXHAUST	8-97217-908-0	01	1	9906-0105			●
1	03.601 MANIFOLD; EXHAUST	8-97288-575-3	01	1	0106-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-1	01	1	9812-0105	●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97259-886-1	01	1	0106-0210				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0211-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97146-499-0	01	1	9812-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. CHARGE AIR COOLER<6PL>	8-97039-753-1	01	1	9812-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97214-580-0	01	1	9906-0105			●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97259-171-1	01	1	0106-				●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	9812-		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9812-0105	●		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0106-				●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	9812-		●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X45 L=60 PLATING	5-09302-008-1	04	1	9812-0105	●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	9812-0106		●
16	03.604 STUD; EXH PIPE TO MANIF EXC. CHARGE AIR COOLER<6PL> 08.981 M10X25 L=40	9-04731-025-0	04	1	0107-		●
16	03.604 STUD; EXH PIPE TO MANIF CHARGE AIR COOLER<6PL> 08.981 M10X25 L=40	9-04731-025-0	02	1	0107-		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9812-0105	●		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0106-				●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	9812-		●
21	03.604 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9812-		●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9906-0105			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-				●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97108-653-0	08	1	9812-0003		●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0004-		●
165	03.417 STUD; EGR PIPE CHARGE AIR COOLER<6PL> 03.342 M8X22 L=33	8-94257-319-0	02	1	9812-		●
165	03.417 STUD; EGR PIPE EXC. CHARGE AIR COOLER<6PL> 03.342 M8X22 L=33	8-94257-319-0	04	1	0107-		●
215	03.601 PLATE; BOSS,EXH MANIF EXC. CHARGE AIR COOLER<6PL> 03.680	8-97136-006-0	01	1	0107-		●
216	03.601 NUT; PLATE,BOSS EXC. CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97061-401-1	02	1	0107-		●
217	03.601 GASKET; EXH MANIF TO PLATE EXC. CHARGE AIR COOLER<6PL> 03.665	8-94340-670-0	01	1	0107-		●

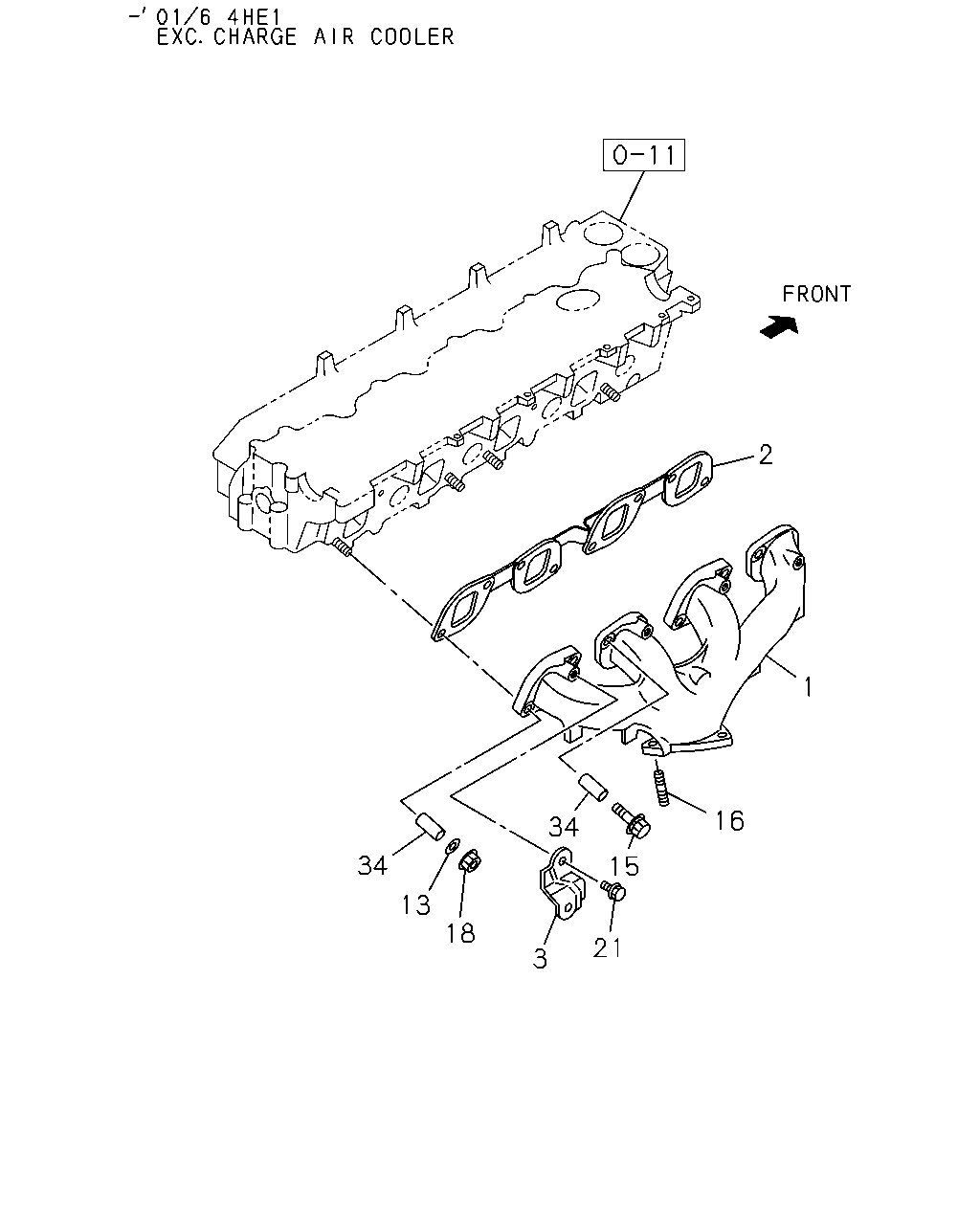

2 1 16 34 34 15 13 18 21 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9812-0105	●
1	03.601 MANIFOLD; EXHAUST CHARGE AIR COOLER<6PL>	8-97148-949-2	01	1	9812-		●
1	03.601 MANIFOLD; EXHAUST EXC. CHARGE AIR COOLER<6PL>	8-97094-879-1	01	1	9812-0106		●
1	03.601 MANIFOLD; EXHAUST EXC. CHARGE AIR COOLER<6PL>	8-97148-949-2	01	1	0107-		●
1	03.601 MANIFOLD; EXHAUST	8-97217-908-0	01	1	9906-0105			●
1	03.601 MANIFOLD; EXHAUST	8-97288-575-3	01	1	0106-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-1	01	1	9812-0105	●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97259-886-1	01	1	0106-0210				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0211-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97146-499-0	01	1	9812-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. CHARGE AIR COOLER<6PL>	8-97039-753-1	01	1	9812-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97214-580-0	01	1	9906-0105			●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97259-171-1	01	1	0106-				●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	9812-		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9812-0105	●		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0106-				●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	9812-		●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X45 L=60 PLATING	5-09302-008-1	04	1	9812-0105	●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	9812-0106		●
16	03.604 STUD; EXH PIPE TO MANIF EXC. CHARGE AIR COOLER<6PL> 08.981 M10X25 L=40	9-04731-025-0	04	1	0107-		●
16	03.604 STUD; EXH PIPE TO MANIF CHARGE AIR COOLER<6PL> 08.981 M10X25 L=40	9-04731-025-0	02	1	0107-		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9812-0105	●		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0106-				●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	9812-		●
21	03.604 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9812-		●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9906-0105			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-				●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97108-653-0	08	1	9812-0003		●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0004-		●

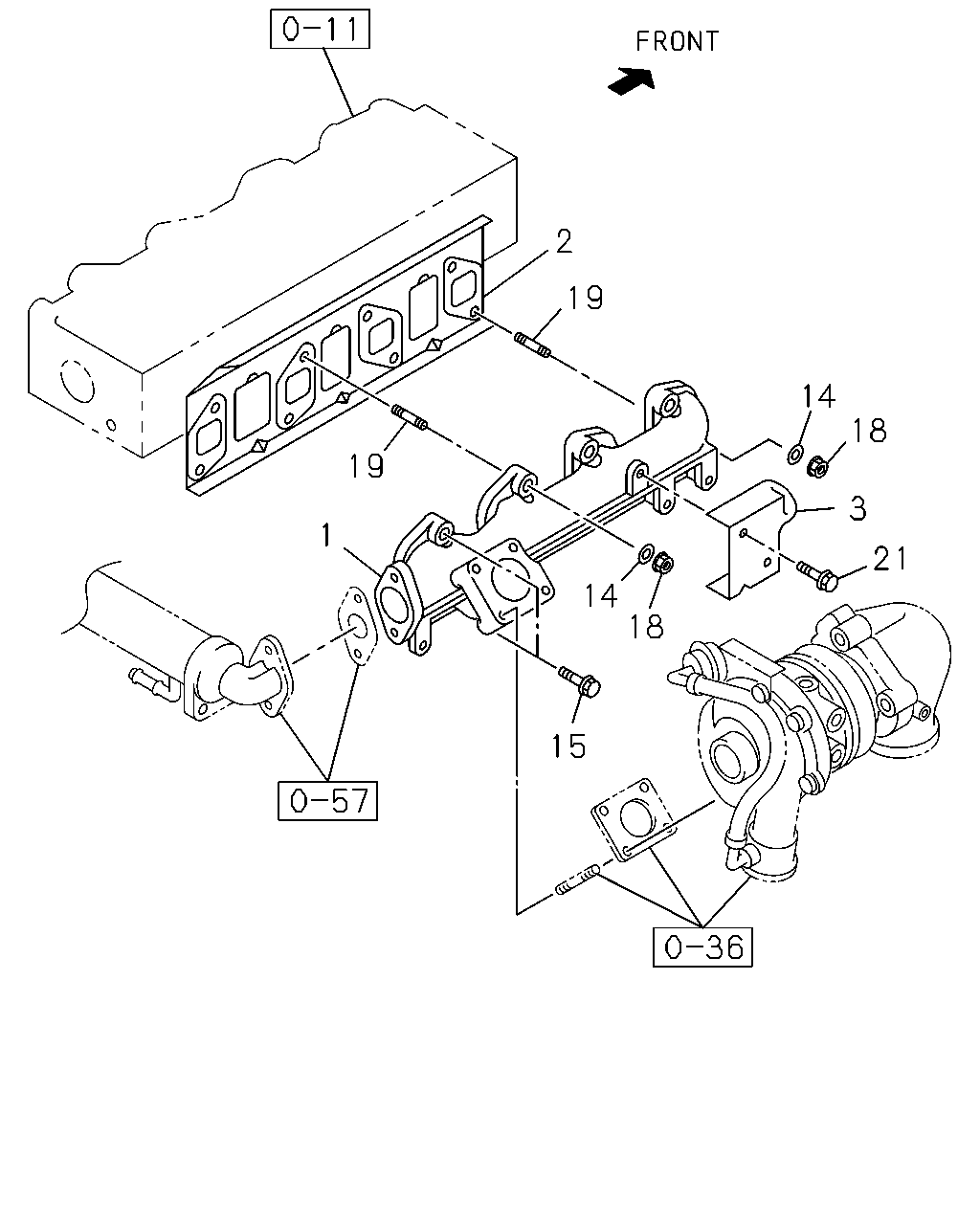

2 19 14 18 19 3 1 21 14 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9812-0105	●
1	03.601 MANIFOLD; EXHAUST CHARGE AIR COOLER<6PL>	8-97148-949-2	01	1	9812-		●
1	03.601 MANIFOLD; EXHAUST EXC. CHARGE AIR COOLER<6PL>	8-97094-879-1	01	1	9812-0106		●
1	03.601 MANIFOLD; EXHAUST EXC. CHARGE AIR COOLER<6PL>	8-97148-949-2	01	1	0107-		●
1	03.601 MANIFOLD; EXHAUST	8-97217-908-0	01	1	9906-0105			●
1	03.601 MANIFOLD; EXHAUST	8-97288-575-3	01	1	0106-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-1	01	1	9812-0105	●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97259-886-1	01	1	0106-0210				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0211-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97146-499-0	01	1	9812-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. CHARGE AIR COOLER<6PL>	8-97039-753-1	01	1	9812-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97214-580-0	01	1	9906-0105			●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97259-171-1	01	1	0106-				●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9812-0006	●		●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0007-0105	●		●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0106-				●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9812-0105	●		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0106-				●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	9812-		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9812-0105	●		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0106-				●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	9812-		●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9812-0105	●		●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	0106-				●
21	03.604 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9812-		●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9906-0105			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-				●

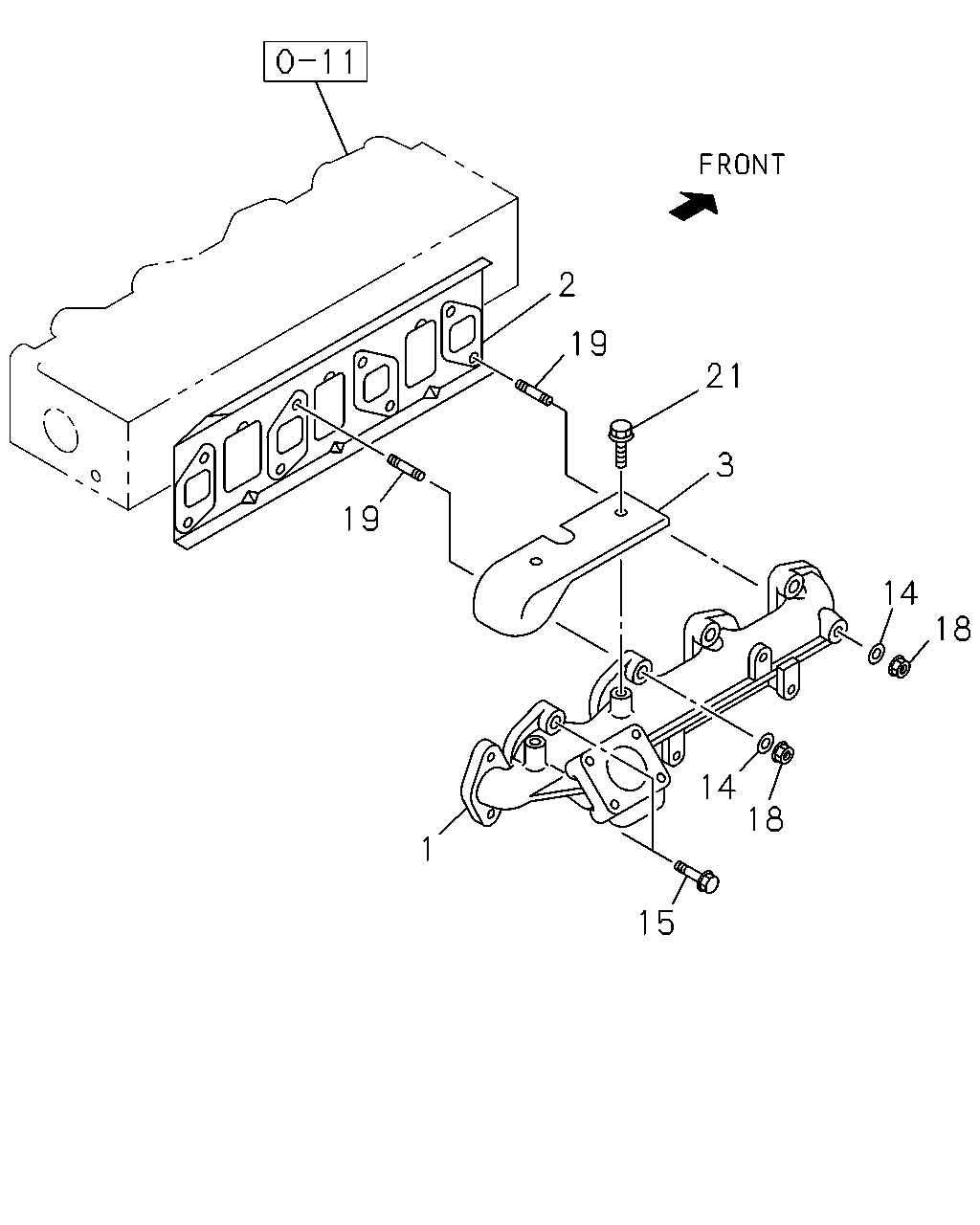

2 19 21 3 19 14 18 14 18 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9812-0105	●
1	03.601 MANIFOLD; EXHAUST CHARGE AIR COOLER<6PL>	8-97148-949-2	01	1	9812-		●
1	03.601 MANIFOLD; EXHAUST EXC. CHARGE AIR COOLER<6PL>	8-97094-879-1	01	1	9812-0106		●
1	03.601 MANIFOLD; EXHAUST EXC. CHARGE AIR COOLER<6PL>	8-97148-949-2	01	1	0107-		●
1	03.601 MANIFOLD; EXHAUST	8-97217-908-0	01	1	9906-0105			●
1	03.601 MANIFOLD; EXHAUST	8-97288-575-3	01	1	0106-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-1	01	1	9812-0105	●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97259-886-1	01	1	0106-0210				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0211-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97146-499-0	01	1	9812-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. CHARGE AIR COOLER<6PL>	8-97039-753-1	01	1	9812-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97214-580-0	01	1	9906-0105			●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97259-171-1	01	1	0106-				●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9812-0006	●		●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0007-0105	●		●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0106-				●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9812-0105	●		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0106-				●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	9812-		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9812-0105	●		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0106-				●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	9812-		●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9812-0105	●		●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	0106-				●
21	03.604 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9812-		●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9906-0105			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-				●

18 14 19 1 2 15 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9812-0105	●
1	03.601 MANIFOLD; EXHAUST CHARGE AIR COOLER<6PL>	8-97148-949-2	01	1	9812-		●
1	03.601 MANIFOLD; EXHAUST EXC. CHARGE AIR COOLER<6PL>	8-97094-879-1	01	1	9812-0106		●
1	03.601 MANIFOLD; EXHAUST EXC. CHARGE AIR COOLER<6PL>	8-97148-949-2	01	1	0107-		●
1	03.601 MANIFOLD; EXHAUST	8-97217-908-0	01	1	9906-0105			●
1	03.601 MANIFOLD; EXHAUST	8-97288-575-3	01	1	0106-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-1	01	1	9812-0105	●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97259-886-1	01	1	0106-0210				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0211-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97146-499-0	01	1	9812-		●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9812-0006	●		●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0007-0105	●		●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0106-				●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9812-0105	●		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0106-				●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	9812-		●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X45 L=60 PLATING	5-09302-008-1	04	1	9812-0105	●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	9812-0106		●
16	03.604 STUD; EXH PIPE TO MANIF EXC. CHARGE AIR COOLER<6PL> 08.981 M10X25 L=40	9-04731-025-0	04	1	0107-		●
16	03.604 STUD; EXH PIPE TO MANIF CHARGE AIR COOLER<6PL> 08.981 M10X25 L=40	9-04731-025-0	02	1	0107-		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9812-0105	●		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0106-				●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	9812-		●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9812-0105	●		●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	0106-				●
