Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#44554) — 217 parça

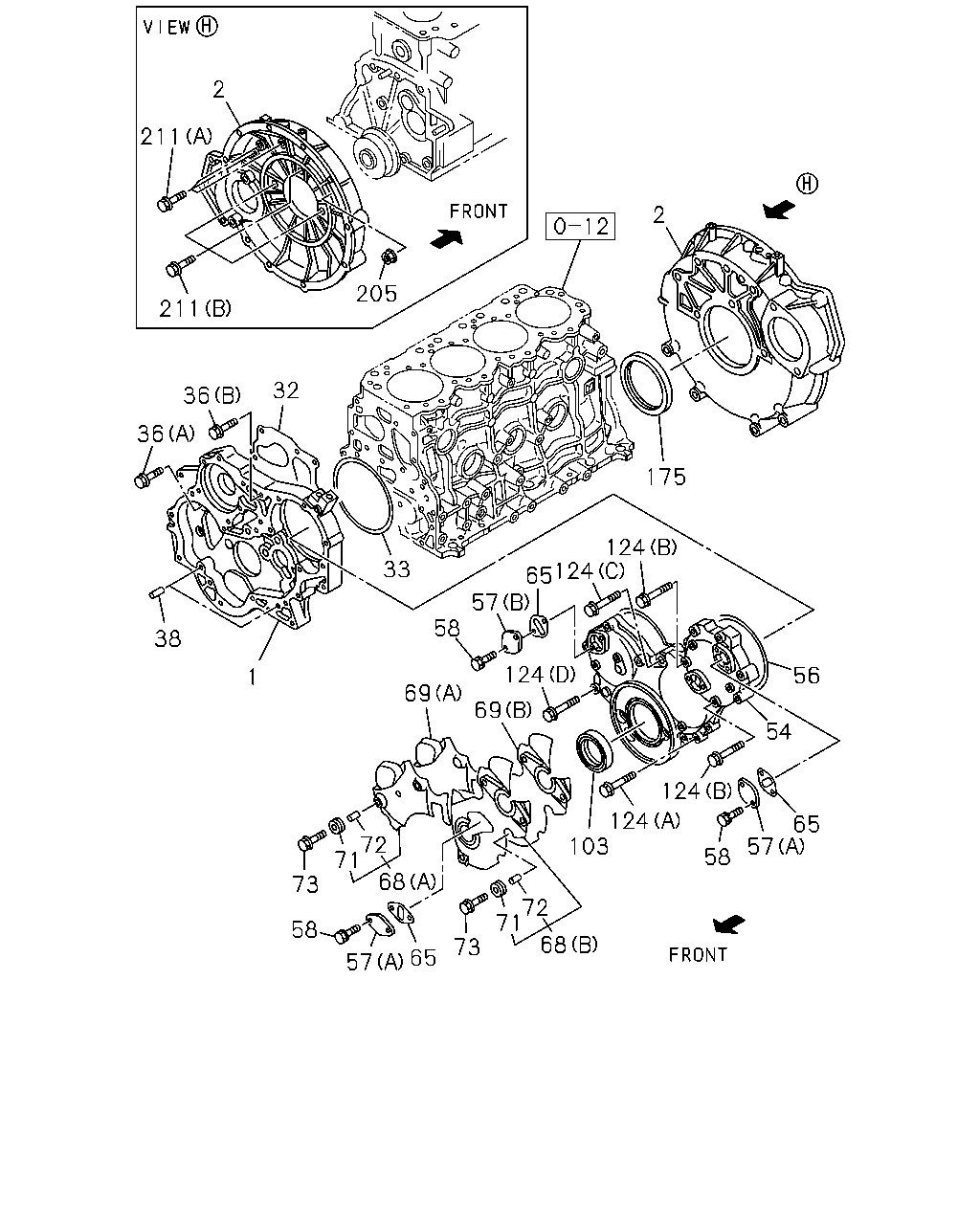

2 211 2 205 211 32 36 36 175 124 124 65 57 33 58 38 124 56 1 69 69 54 124 124 103 65 57 72 71 58 68 73 72 71 58 68 73 65 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR	8-97141-532-1	01	1	9812-0105	●
1	00.206 CASE; TIMING GEAR	8-97219-001-3	01	1	9906-0105		●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0106-			●
2	00.683 HOUSING; FLYWHEEL	8-97181-089-2	01	1	9812-9904				●
2	00.683 HOUSING; FLYWHEEL	8-97209-886-3	01	1	9905-				●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-0	01	1	0106-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9906-0105		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	0106-			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9906-0105		●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0106-			●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	9906-0105		●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0106-			●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9906-0105		●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0106-			●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9906-0105		●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	0106-0201			●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-			●
54	00.206 COVER; GEAR CASE	8-97219-278-0	01	1	9906-9912		●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0001-0105		●
54	00.206 COVER; GEAR CASE	8-97239-984-3	01	1	0106-			●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9906-9910		●
56	00.207 GASKET; GEAR CASE TO COVER	8-97238-631-0	01	1	9911-0105		●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0106-			●
57	00.206 COVER; TIMING CHECK HOLE (C)	5-11321-009-0	02	1	9906-0105		●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0106-			●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-97304-608-1	01	1	0106-			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9906-0105		●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0106-			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9906-0105		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0106-			●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-94155-721-1	01	1	9906-0105		●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97239-987-1	01	1	0106-0208			●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0209-			●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0106-			●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-94155-722-3	01	1	9906-0105		●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97239-992-0	01	1	0106-0211			●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97358-025-0	01	1	0212-			●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97255-035-1	01	1	0106-			●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9906-0105		●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0106-			●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9906-0105		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0106-			●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9906-0105		●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0106-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9812-0105	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9812-0205				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0206-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9906-0105		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	0106-0206			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-			●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0106-			●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 FLANGE	0-28080-870-0	06	1	0106-0201			●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0202-			●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0106-			●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0106-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9812-0105	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0106-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9812-0205				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0206-				●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0106-			●
211	00.669 BOLT; HSG (C) M10X40 FLANGE	0-28781-040-0	01	1	9812-				●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	9812-				●
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	9812-				●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0106-			●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0106-			●

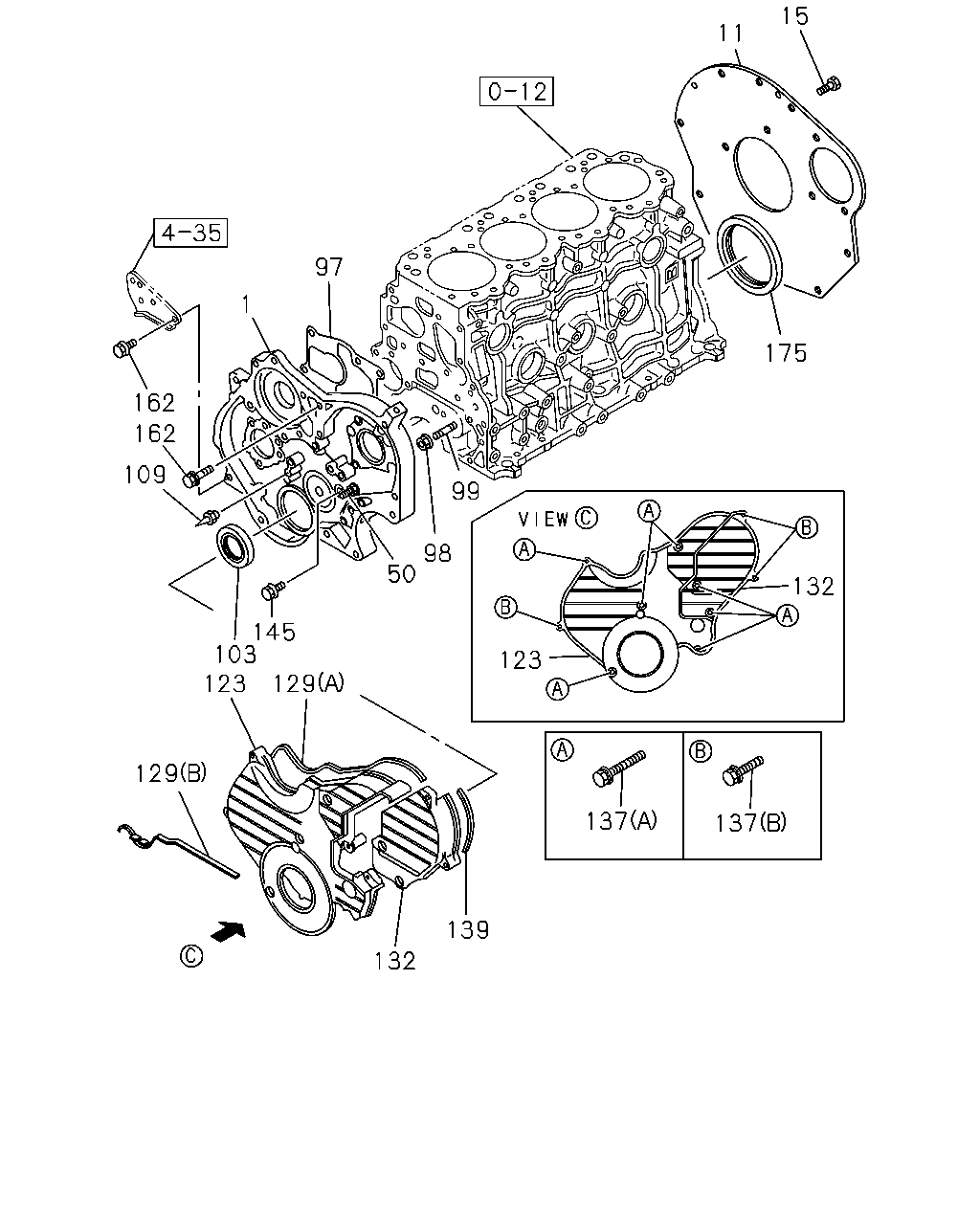

15 11 97 1 175 162 162 109 99 98 50 132 145 103 123 123 129 129 137 137 139 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR	8-97141-532-1	01	1	9812-0105	●
1	00.206 CASE; TIMING GEAR	8-97219-001-3	01	1	9906-0105		●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0106-			●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9812-9905	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9906-0105	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9812-9905	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9906-0105	●	●
50	00.206 STUD M8X42.5 L=69	8-97148-539-0	01	1	9812-0105	●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-429-0	01	1	9812-0105	●
98	00.206 NUT; STUD,INJ PUMP 03.340 M8	8-94224-829-0	02	1	9812-0105	●
99	00.206 STUD; INJ PUMP 00.004 M8X28 L=44	9-04020-828-0	02	1	9812-0105	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9812-0105	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9812-0205				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0206-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9906-0105		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	0106-0206			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-			●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	9812-0105	●
123	00.206 COVER; TIMING,LWR	8-97038-105-1	01	1	9812-0105	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-94464-695-1	01	1	9812-0105	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=366	8-94464-696-0	01	1	9812-0105	●
132	00.206 COVER; TIMING,UPR	8-97038-103-1	01	1	9812-0105	●
137	00.206 BOLT; FRT PLATE (A) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9812-0105	●
137	00.206 BOLT; FRT PLATE (B) M6X50 W/LK WASHER	8-94152-616-1	03	1	9812-0105	●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-94139-961-0	01	1	9812-0105	●
145	00.206 BOLT; TENSIONER GUIDE M8X20	8-94152-617-1	01	1	9812-0105	●
162	00.206 BOLT; FRT PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	03	1	9812-0105	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9812-0105	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0106-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9812-0205				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0206-				●

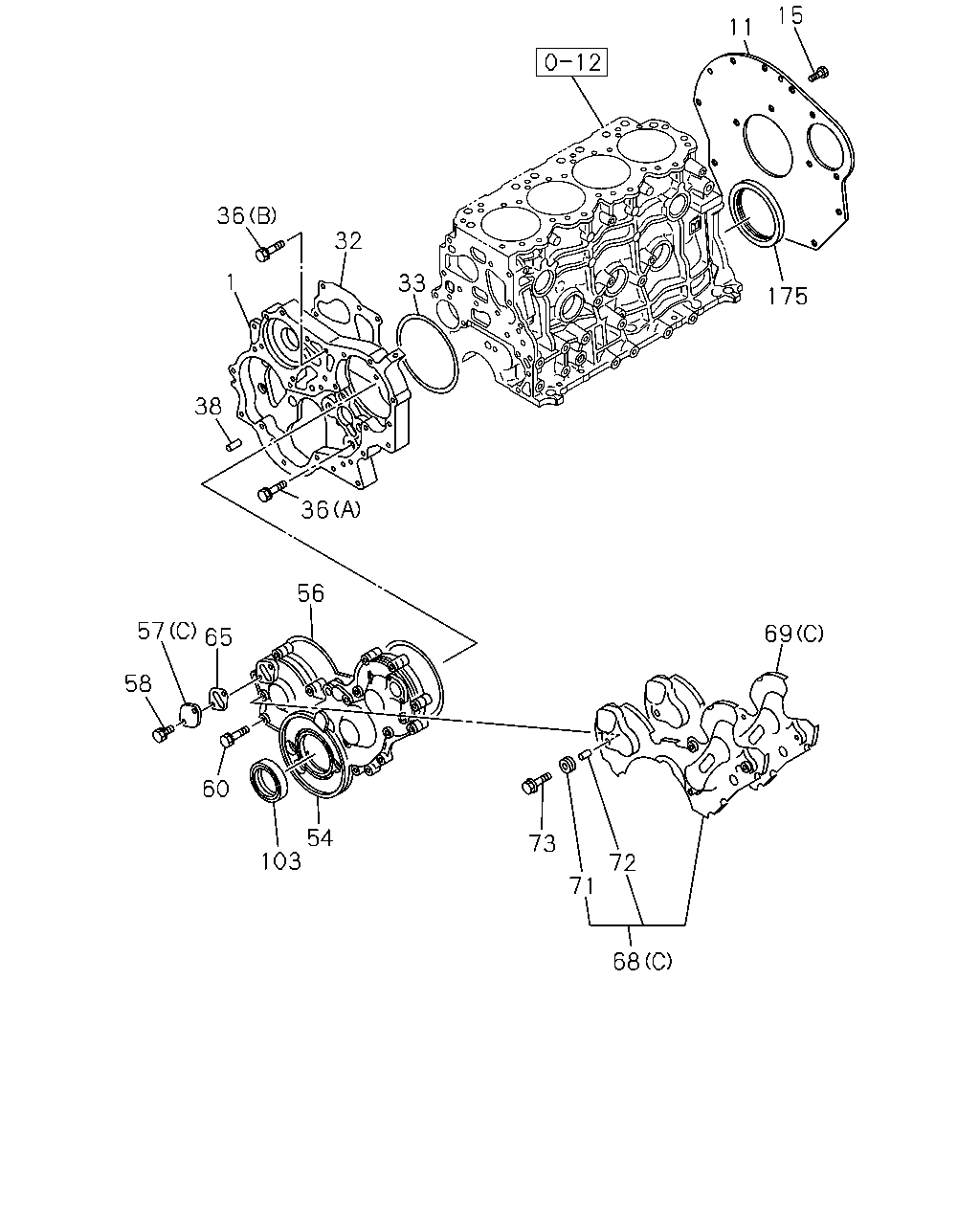

15 11 36 32 33 1 175 38 36 56 57 65 69 58 60 54 103 73 72 71 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR	8-97141-532-1	01	1	9812-0105	●
1	00.206 CASE; TIMING GEAR	8-97219-001-3	01	1	9906-0105		●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0106-			●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9812-9905	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9906-0105	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9812-9905	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9906-0105	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9906-0105		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	0106-			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9906-0105		●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0106-			●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	9906-0105		●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0106-			●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9906-0105		●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0106-			●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9906-0105		●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	0106-0201			●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-			●
54	00.206 COVER; GEAR CASE	8-97219-278-0	01	1	9906-9912		●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0001-0105		●
54	00.206 COVER; GEAR CASE	8-97239-984-3	01	1	0106-			●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9906-9910		●
56	00.207 GASKET; GEAR CASE TO COVER	8-97238-631-0	01	1	9911-0105		●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0106-			●
57	00.206 COVER; TIMING CHECK HOLE (C)	5-11321-009-0	02	1	9906-0105		●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0106-			●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-97304-608-1	01	1	0106-			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9906-0105		●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0106-			●
60	00.206 BOLT; COVER TO CASE 01.251 M8X60 FLANGE	0-28080-860-0	06	1	9906-0105		●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9906-9906		●
60	00.206 BOLT; COVER TO CASE 03.275 M8X30 FLANGE	0-28080-830-0	08	1	9907-0105		●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9906-9906		●
60	00.206 BOLT; COVER TO CASE 01.252 M8X58 FLANGE	8-94130-055-1	01	1	9907-0105		●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9906-0105		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9906-0105		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0106-			●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-94155-721-1	01	1	9906-0105		●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97239-987-1	01	1	0106-0208			●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0209-			●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0106-			●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-94155-722-3	01	1	9906-0105		●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97239-992-0	01	1	0106-0211			●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97358-025-0	01	1	0212-			●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97255-035-1	01	1	0106-			●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9906-0105		●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0106-			●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9906-0105		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0106-			●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9906-0105		●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0106-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9812-0105	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9812-0205				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0206-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9906-0105		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	0106-0206			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9812-0105	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0106-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9812-0205				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0206-				●

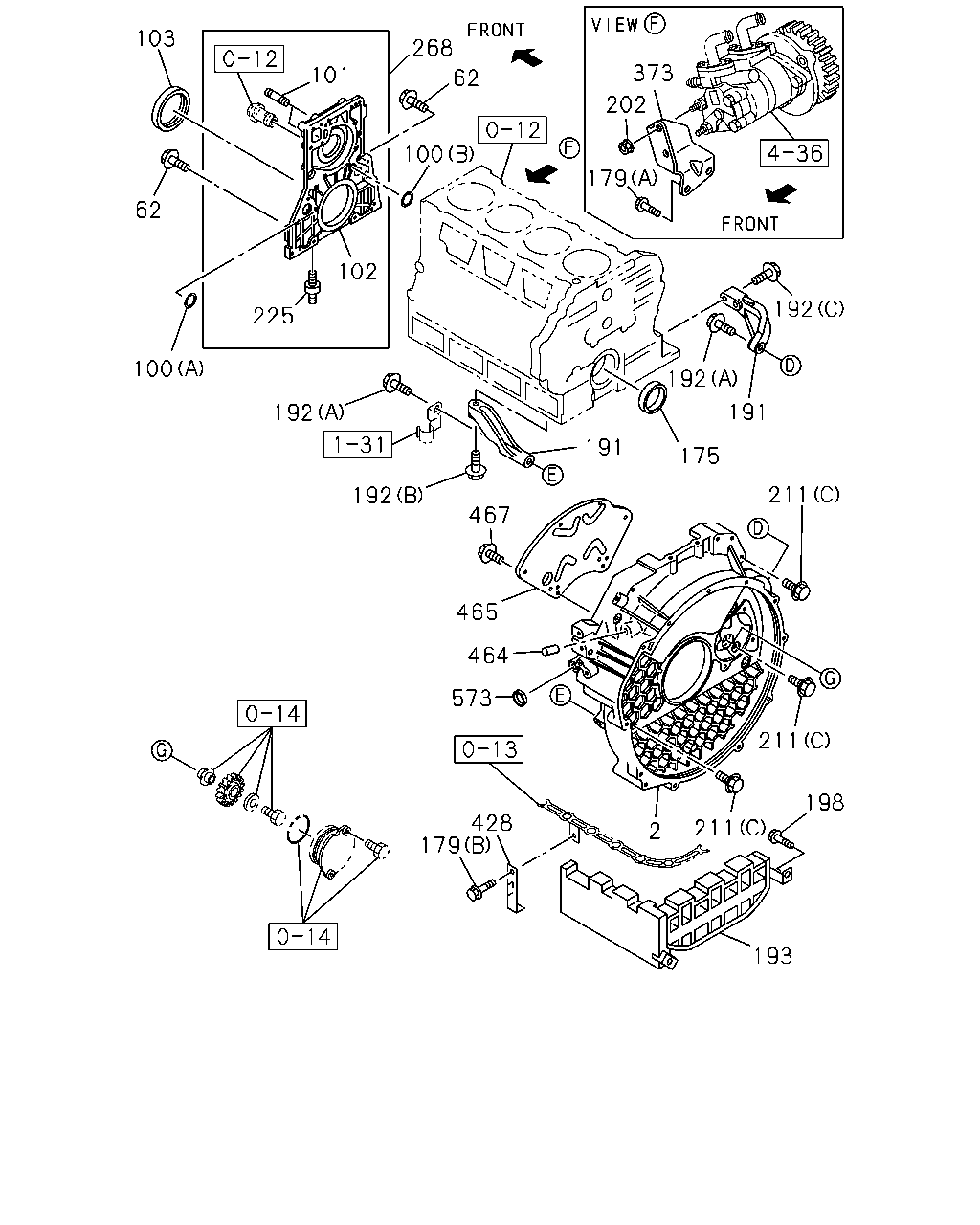

103 268 373 101 62 202 100 179 62 102 192 225 100 192 191 192 191 175 211 192 467 465 464 573 211 198 428 179 211 2 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.683 HOUSING; FLYWHEEL	8-97181-089-2	01	1	9812-9904				●
2	00.683 HOUSING; FLYWHEEL	8-97209-886-3	01	1	9905-				●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-0	01	1	0106-			●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	9812-				●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	9812-				●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	9812-				●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	9812-				●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	9812-				●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	9812-				●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	9812-				●
102	00.137 RETAINER; FRT CHARGE AIR COOLER<6PL>	8-97148-938-1	01	1	9812-				●
102	00.137 RETAINER; FRT EXC. CHARGE AIR COOLER<6PL>	8-97094-943-3	01	1	9812-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9812-0105	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9812-0205				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0206-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9906-0105		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	0106-0206			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9812-0105	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0106-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9812-0205				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0206-				●
179	00.206 BOLT; BRKT CHARGE AIR COOLER<6PL> 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0106-				●
179	00.206 BOLT; BRKT EXC. CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	9812-0003				●
179	00.206 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	9812-0003				●
179	00.206 BOLT; BRKT HEATER & DEFROSTER(C41) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0004-				●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	9812-				●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	9812-				●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	9812-				●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	9812-				●
192	00.206 BOLT; STAY TO HSG 04.510 (C) M10X40 FLANGE	0-28181-040-0	02	1	9812-				●
193	01.428 SPACER; STAY TO OIL,PAN CHARGE AIR COOLER<6PL>	8-97147-247-0	01	1	9812-0005				●
193	01.428 SPACER; STAY TO OIL,PAN CHARGE AIR COOLER<6PL>	8-97259-536-0	01	1	0006-0105				●
193	01.428 SPACER; STAY TO OIL,PAN CHARGE AIR COOLER<6PL>	8-97224-867-2	01	1	0106-				●
198	01.428 BOLT; STAY TO OIL PAN CHARGE AIR COOLER<6PL> 02.483 M12X20 FLANGE	0-28181-220-0	02	1	9812-				●
202	00.206 NUT; BRKT CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-0105				●
202	00.206 NUT; BRKT CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0112				●
202	00.206 NUT; BRKT CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0209				●
202	00.206 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0210-				●
202	00.206 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	02	1	9812-				●
211	00.669 BOLT; HSG (C) M10X40 FLANGE	0-28781-040-0	01	1	9812-				●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	9812-				●
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	9812-				●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0106-			●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0106-			●
225	01.428 STUD; OIL PAN CHARGE AIR COOLER<6PL> M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	9812-0005				●
225	01.428 STUD; OIL PAN CHARGE AIR COOLER<6PL> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0006-0006				●
225	01.428 STUD; OIL PAN CHARGE AIR COOLER<6PL> M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	03	1	0007-0012				●
225	01.428 STUD; OIL PAN CHARGE AIR COOLER<6PL> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0101-				●
268	00.206 COVER; FRT CHARGE AIR COOLER<6PL>	8-97174-416-1	01	1	9812-0005				●
268	00.206 COVER; FRT CHARGE AIR COOLER<6PL>	8-97287-187-0	01	1	0006-0012				●
268	00.206 COVER; FRT CHARGE AIR COOLER<6PL>	8-97258-865-0	01	1	0101-				●
268	00.206 COVER; FRT EXC. CHARGE AIR COOLER<6PL>	8-97113-768-1	01	1	9812-				●
373	00.206 BRACKET; PUMP HEATER & DEFROSTER(C41) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ>	8-97149-333-0	01	1	9812-				●
428	00.206 BRACKET; SPACER CHARGE AIR COOLER<6PL>	8-97215-647-0	01	1	0106-				●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	9812-				●
465	00.686 PLATE; FLYWHEEL HSG 00.669	8-94370-384-3	01	1	9812-9904				●
465	00.686 PLATE; FLYWHEEL HSG	8-97212-490-0	01	1	9905-				●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	9812-				●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	9905-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
