Sayfa 0-15 - Isuzu EPC

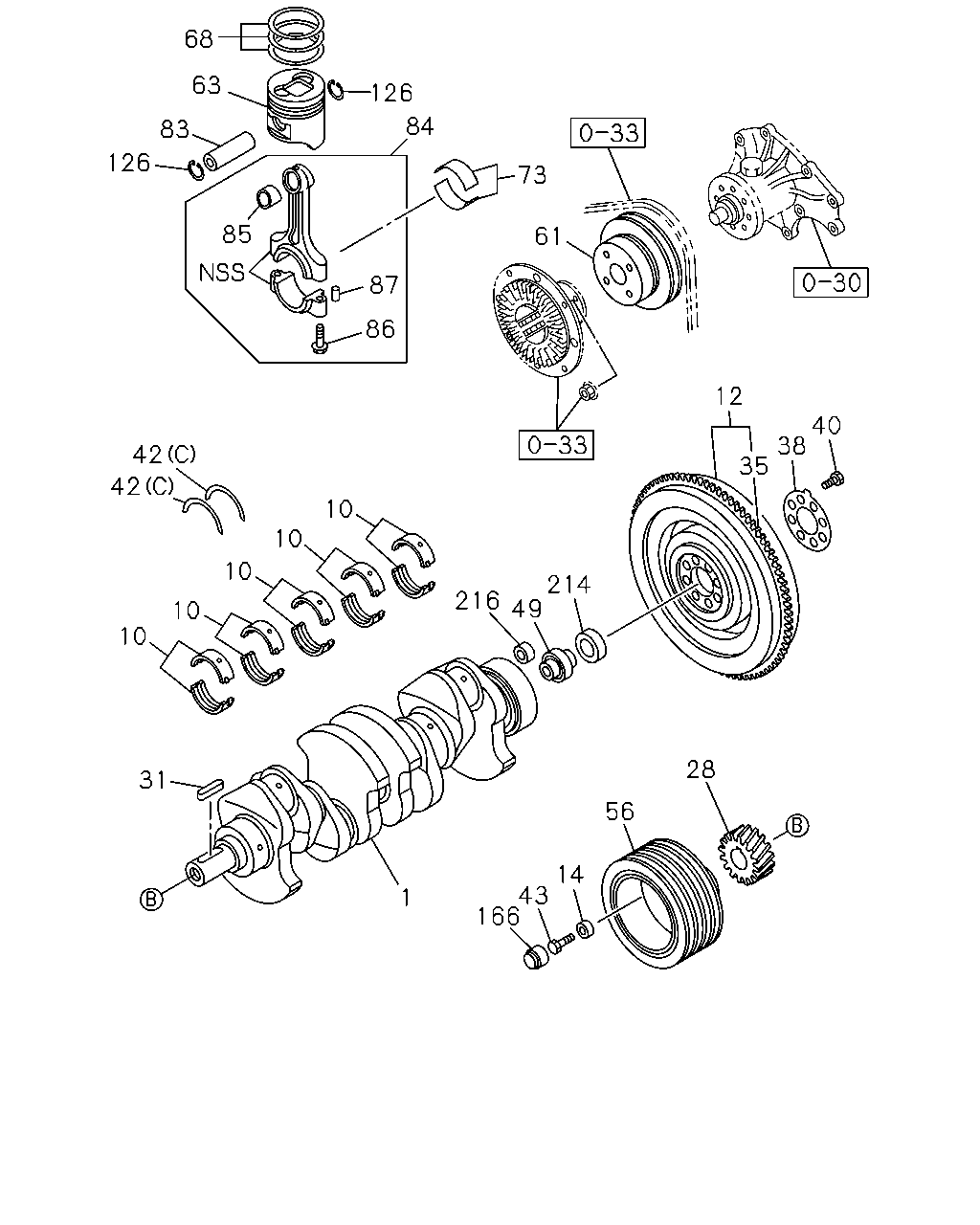

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#44553) — 345 parça

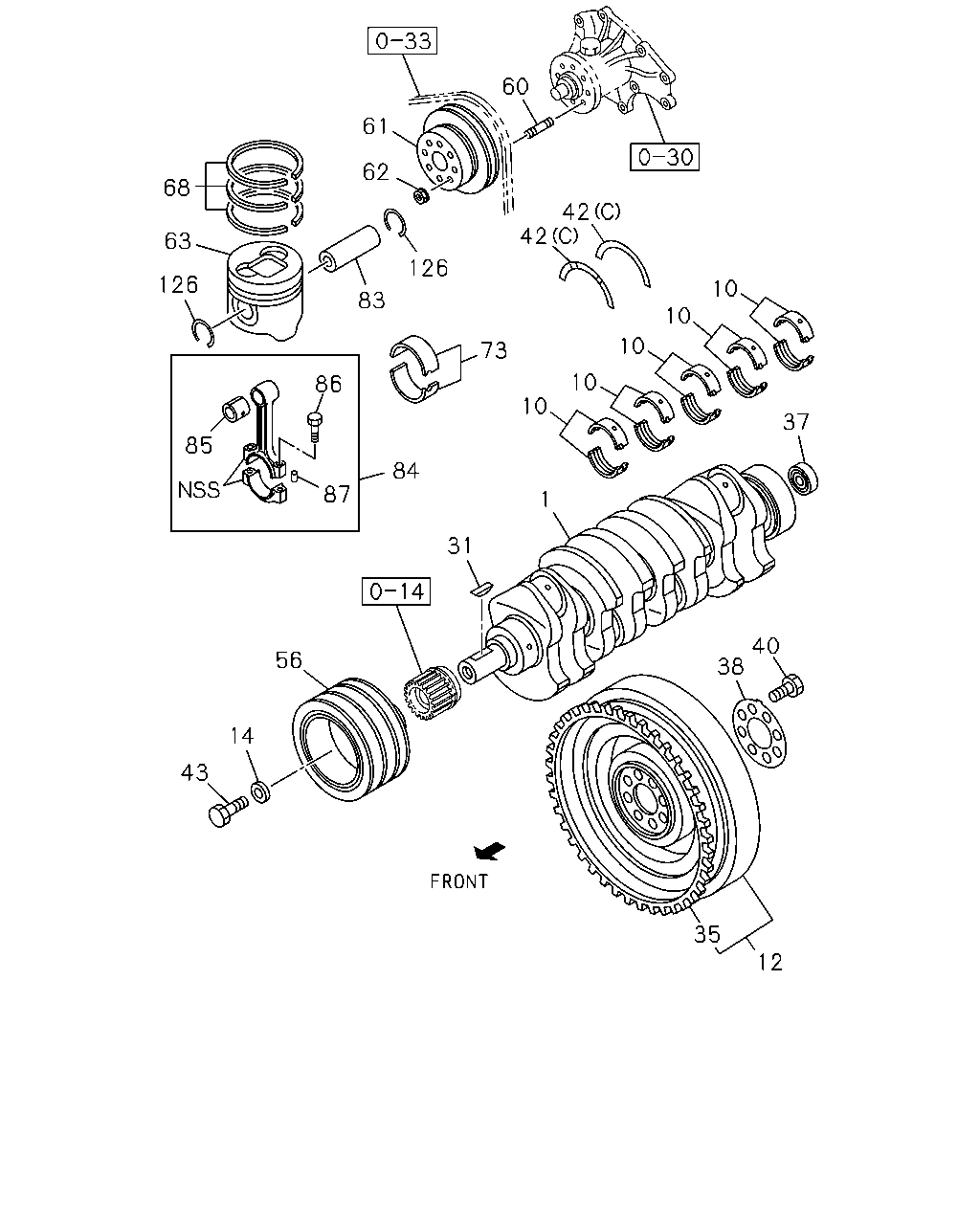

60 61 62 68 42 42 63 126 126 10 83 10 10 73 10 86 10 37 85 84 87 1 31 40 38 56 14 43 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9812-0008	●
1	00.646 CRANKSHAFT	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT	8-97165-483-0	01	1	9812-0212		●
1	00.646 CRANKSHAFT	8-97352-534-2	01	1	0301-		●
1	00.646 CRANKSHAFT	8-94453-525-2	01	1	9906-0008			●
1	00.646 CRANKSHAFT	8-97190-929-0	01	1	0009-0105			●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108				●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9812-0105	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9812-0105	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9812-0105	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9812-9904		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	9905-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9812-9904		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	9905-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9812-9904		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	9905-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-				●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9812-0105	●		●
12	00.666 FLYWHEEL	8-97239-929-1	01	1	0106-0202				●
12	00.666 FLYWHEEL	8-97333-110-0	01	1	0203-				●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97169-129-2	01	1	9812-9903		●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	9904-0105		●
12	00.666 FLYWHEEL EXC. CHARGE AIR COOLER<6PL>	8-97166-516-0	01	1	9812-0105		●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV)	8-97166-516-0	01	1	9812-0105		●
12	00.666 FLYWHEEL	8-97166-516-0	01	1	0106-		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9812-0105	●		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0106-				●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9812-0008	●		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105	●		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0106-				●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9812-0105	●		●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-				●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) Z=138	8-97169-134-0	01	1	9812-9903		●
35	00.673 GEAR; RING EXC. CHARGE AIR COOLER<6PL> Z=138	8-97046-366-0	01	1	9812-9903		●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) Z=138	8-97046-366-0	01	1	9812-9903		●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	9904-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9812-0105	●		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9812-0105	●		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-				●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	9812-0105		●
38	00.862 WASHER; FLYWHEEL EXC. CHARGE AIR COOLER<6PL> ID=55 OD=110	8-94397-496-1	01	1	9812-0105		●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) ID=55 OD=110	8-94397-496-1	01	1	9812-0105		●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0106-		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9812-0105	●		●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-				●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9812-		●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-94453-520-0	02	1	9812-0105	●		●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-94453-520-0	02	1	0106-				●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9812-		●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9812-		●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9812-0105	●		●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0106-				●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9812-0105	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9812-9812		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	9901-		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97254-844-0	01	1	0106-				●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97204-204-0	01	1	9906-0105			●
60	01.060 STUD; FAN FIX 01.073 M6X18 L=27	9-04110-618-0	04	1	9812-0105	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9812-9905	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9906-0105	●		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-				●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-2	01	1	9812-		●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97183-664-0	04	1	9812-9910		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97233-129-0	04	1	9911-0012		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97251-696-0	04	1	0101-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97183-665-0	04	1	9812-9910		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97233-130-0	04	1	9911-0012		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97251-697-0	04	1	0101-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX	8-97176-652-1	04	1	9812-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX	8-97176-653-1	04	1	9812-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	9906-0105			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	9906-0105			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9812-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97166-992-1	04	1	9812-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL>	8-97078-779-1	04	1	9812-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9906-0105			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9812-9905	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9906-0105	●		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-				●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	04	1	9812-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	04	1	9812-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9812-0105	●		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	9812-		●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9812-0105	●		●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206				●
84	00.603 ROD ASM; CONN	8-97352-890-0	04	1	0207-				●
84	00.603 ROD ASM; CONN	8-94399-661-2	04	1	9812-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9812-0105	●		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0206				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	9812-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9812-0105	●		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-				●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9812-		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9812-0105	●		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0106-				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9812-0105	●		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	9812-		●

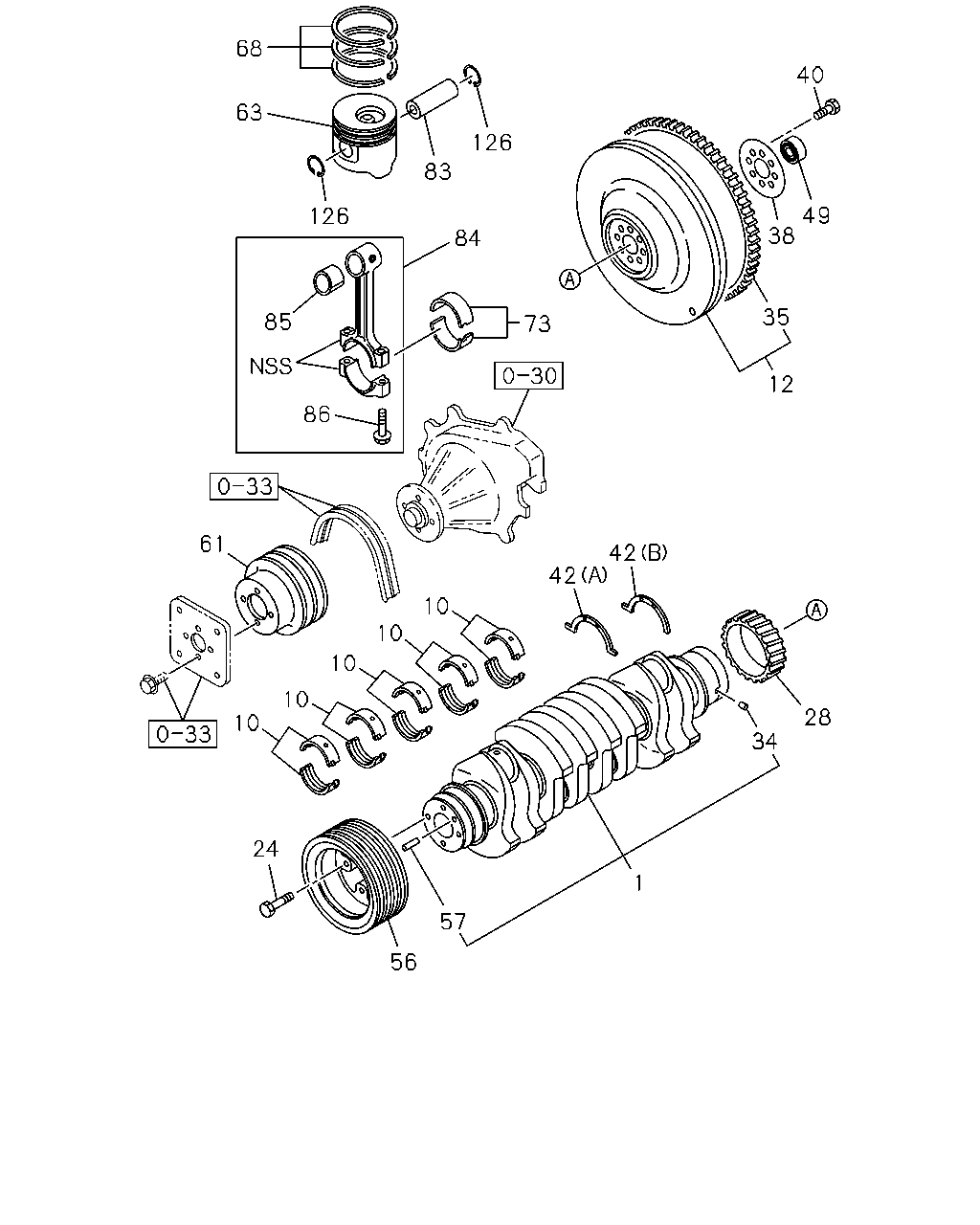

68 40 63 126 83 49 38 126 84 35 85 73 12 86 61 42 42 10 10 10 10 28 10 34 24 1 57 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9812-0008	●
1	00.646 CRANKSHAFT	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT	8-97165-483-0	01	1	9812-0212		●
1	00.646 CRANKSHAFT	8-97352-534-2	01	1	0301-		●
1	00.646 CRANKSHAFT	8-94453-525-2	01	1	9906-0008			●
1	00.646 CRANKSHAFT	8-97190-929-0	01	1	0009-0105			●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108				●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9812-0105	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9812-0105	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9812-0105	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9812-9904		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	9905-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9812-9904		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	9905-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9812-9904		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	9905-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-				●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9812-0105	●		●
12	00.666 FLYWHEEL	8-97239-929-1	01	1	0106-0202				●
12	00.666 FLYWHEEL	8-97333-110-0	01	1	0203-				●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97169-129-2	01	1	9812-9903		●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	9904-0105		●
12	00.666 FLYWHEEL EXC. CHARGE AIR COOLER<6PL>	8-97166-516-0	01	1	9812-0105		●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV)	8-97166-516-0	01	1	9812-0105		●
12	00.666 FLYWHEEL	8-97166-516-0	01	1	0106-		●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	9812-		●
28	00.728 GEAR; CR/SHF Z=42	8-97110-041-4	01	1	9812-9902		●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	9903-		●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-0	01	1	9906-0105			●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0106-				●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9812-		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9812-0105	●		●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-				●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) Z=138	8-97169-134-0	01	1	9812-9903		●
35	00.673 GEAR; RING EXC. CHARGE AIR COOLER<6PL> Z=138	8-97046-366-0	01	1	9812-9903		●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) Z=138	8-97046-366-0	01	1	9812-9903		●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	9904-		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9812-0105	●		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-				●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	9812-0105		●
38	00.862 WASHER; FLYWHEEL EXC. CHARGE AIR COOLER<6PL> ID=55 OD=110	8-94397-496-1	01	1	9812-0105		●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) ID=55 OD=110	8-94397-496-1	01	1	9812-0105		●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0106-		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9812-0105	●		●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-				●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9812-		●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-94453-520-0	02	1	9812-0105	●		●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-94453-520-0	02	1	0106-				●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9812-		●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9812-		●
49	00.669 BEARING; PILOT CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.649	8-97031-741-0	01	1	9812-0105		●
49	00.669 BEARING; PILOT 00.649	8-97031-741-0	01	1	0106-				●
49	00.669 BEARING; PILOT EXC. CHARGE AIR COOLER<6PL>	8-97166-589-0	01	1	9812-0105		●
49	00.669 BEARING; PILOT CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV)	8-97166-589-0	01	1	9812-0105		●
49	00.669 BEARING; PILOT	8-97166-589-0	01	1	0106-0111		●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	0112-		●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9812-0105	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9812-9812		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	9901-		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97254-844-0	01	1	0106-				●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97204-204-0	01	1	9906-0105			●
57	00.662 PIN; PULLEY 08.939 OD=8 L=16	9-08150-816-0	02	1	9812-0212		●
57	00.662 PIN; PULLEY 08.939 OD=8 L=20	9-08160-820-0	02	1	0301-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9812-9905	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9906-0105	●		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-				●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-2	01	1	9812-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97183-664-0	04	1	9812-9910		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97233-129-0	04	1	9911-0012		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97251-696-0	04	1	0101-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97183-665-0	04	1	9812-9910		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97233-130-0	04	1	9911-0012		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97251-697-0	04	1	0101-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX	8-97176-652-1	04	1	9812-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX	8-97176-653-1	04	1	9812-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	9906-0105			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	9906-0105			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9812-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97166-992-1	04	1	9812-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL>	8-97078-779-1	04	1	9812-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9906-0105			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9812-9905	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9906-0105	●		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-				●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	04	1	9812-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	04	1	9812-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9812-0105	●		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	9812-		●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9812-0105	●		●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206				●
84	00.603 ROD ASM; CONN	8-97352-890-0	04	1	0207-				●
84	00.603 ROD ASM; CONN	8-94399-661-2	04	1	9812-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9812-0105	●		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0206				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	9812-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9812-0105	●		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-				●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9812-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9812-0105	●		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	9812-		●

68 63 126 84 83 126 73 85 61 87 86 12 40 38 35 42 42 10 10 10 214 49 216 10 10 28 31 56 14 43 166 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9812-0008	●
1	00.646 CRANKSHAFT	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT	8-97165-483-0	01	1	9812-0212		●
1	00.646 CRANKSHAFT	8-97352-534-2	01	1	0301-		●
1	00.646 CRANKSHAFT	8-94453-525-2	01	1	9906-0008			●
1	00.646 CRANKSHAFT	8-97190-929-0	01	1	0009-0105			●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108				●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9812-0105	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9812-0105	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9812-0105	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9812-9904		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	9905-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9812-9904		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	9905-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9812-9904		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	9905-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-				●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9812-0105	●		●
12	00.666 FLYWHEEL	8-97239-929-1	01	1	0106-0202				●
12	00.666 FLYWHEEL	8-97333-110-0	01	1	0203-				●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97169-129-2	01	1	9812-9903		●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	9904-0105		●
12	00.666 FLYWHEEL EXC. CHARGE AIR COOLER<6PL>	8-97166-516-0	01	1	9812-0105		●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV)	8-97166-516-0	01	1	9812-0105		●
12	00.666 FLYWHEEL	8-97166-516-0	01	1	0106-		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9812-0105	●		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0106-				●
28	00.728 GEAR; CR/SHF Z=42	8-97110-041-4	01	1	9812-9902		●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	9903-		●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-0	01	1	9906-0105			●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0106-				●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9812-0008	●		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105	●		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0106-				●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9812-0105	●		●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-				●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) Z=138	8-97169-134-0	01	1	9812-9903		●
35	00.673 GEAR; RING EXC. CHARGE AIR COOLER<6PL> Z=138	8-97046-366-0	01	1	9812-9903		●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) Z=138	8-97046-366-0	01	1	9812-9903		●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	9904-		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9812-0105	●		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-				●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	9812-0105		●
38	00.862 WASHER; FLYWHEEL EXC. CHARGE AIR COOLER<6PL> ID=55 OD=110	8-94397-496-1	01	1	9812-0105		●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) ID=55 OD=110	8-94397-496-1	01	1	9812-0105		●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0106-		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9812-0105	●		●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-				●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9812-		●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-94453-520-0	02	1	9812-0105	●		●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-94453-520-0	02	1	0106-				●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9812-		●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9812-		●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9812-0105	●		●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0106-				●
49	00.669 BEARING; PILOT CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.649	8-97031-741-0	01	1	9812-0105		●
49	00.669 BEARING; PILOT 00.649	8-97031-741-0	01	1	0106-				●
49	00.669 BEARING; PILOT EXC. CHARGE AIR COOLER<6PL>	8-97166-589-0	01	1	9812-0105		●
49	00.669 BEARING; PILOT CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV)	8-97166-589-0	01	1	9812-0105		●
49	00.669 BEARING; PILOT	8-97166-589-0	01	1	0106-0111		●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	0112-		●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9812-0105	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9812-9812		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	9901-		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97254-844-0	01	1	0106-				●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97204-204-0	01	1	9906-0105			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9812-9905	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9906-0105	●		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-				●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-2	01	1	9812-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97183-664-0	04	1	9812-9910		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97233-129-0	04	1	9911-0012		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97251-696-0	04	1	0101-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97183-665-0	04	1	9812-9910		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97233-130-0	04	1	9911-0012		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97251-697-0	04	1	0101-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX	8-97176-652-1	04	1	9812-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX	8-97176-653-1	04	1	9812-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	9906-0105			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	9906-0105			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9812-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97166-992-1	04	1	9812-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL>	8-97078-779-1	04	1	9812-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9906-0105			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9812-9905	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9906-0105	●		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-				●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	04	1	9812-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	04	1	9812-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9812-0105	●		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	9812-		●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9812-0105	●		●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206				●
84	00.603 ROD ASM; CONN	8-97352-890-0	04	1	0207-				●
84	00.603 ROD ASM; CONN	8-94399-661-2	04	1	9812-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9812-0105	●		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0206				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	9812-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9812-0105	●		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-				●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9812-		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9812-0105	●		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0106-				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9812-0105	●		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	9812-		●
166	00.659 RUBBER; SPACE,PULLEY	8-97231-528-0	01	1	0106-				●
214	00.724 STOPPER; BEARING	8-97240-620-0	01	1	0106-				●
216	00.293 DOWEL	8-97259-856-0	01	1	0106-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
