Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#44552) — 346 parça

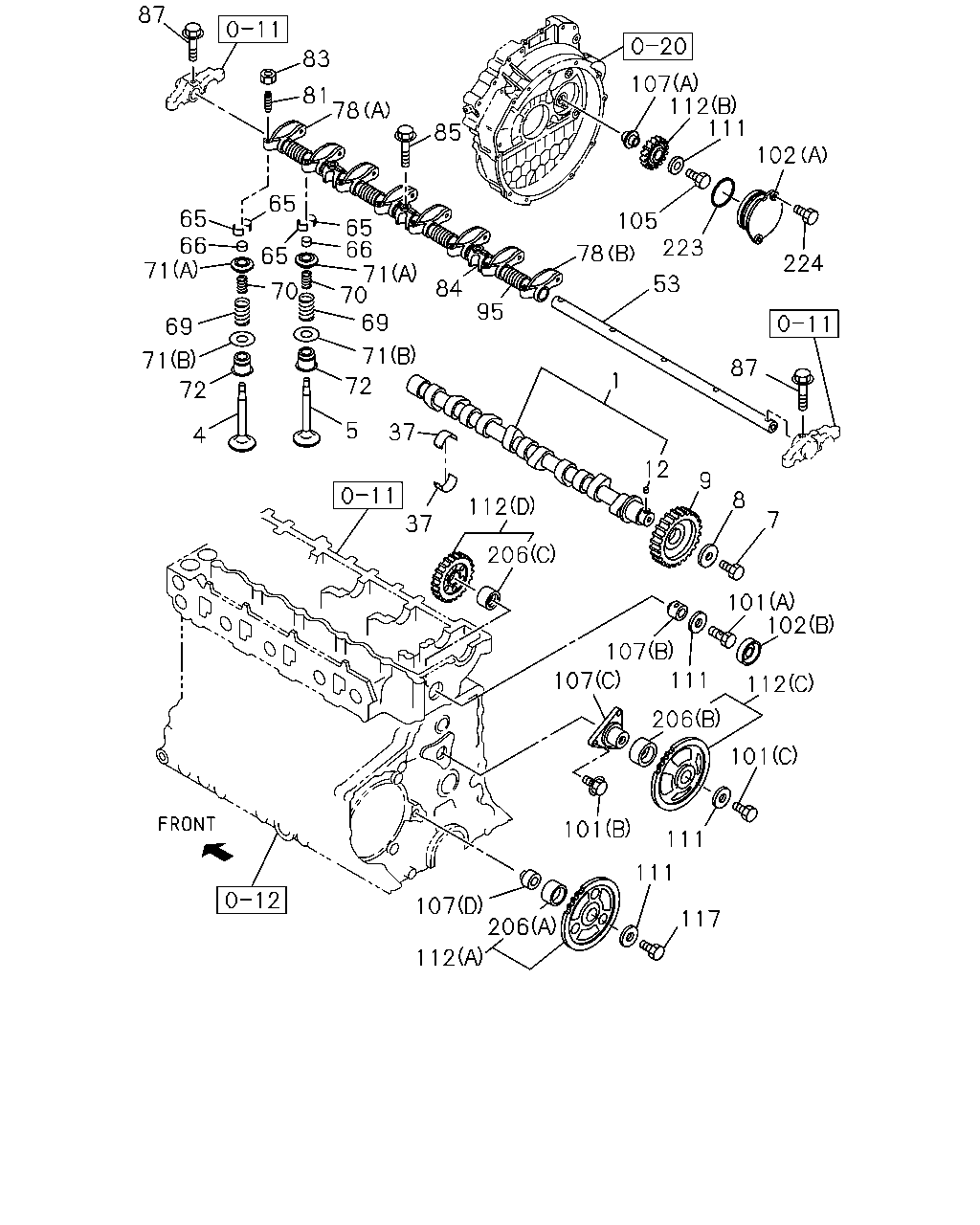

87 85 83 107 112 111 81 78 102 65 65 66 105 223 65 66 71 70 69 78 65 70 224 71 53 84 95 69 71 71 87 1 72 72 5 37 4 12 9 8 112 7 37 206 101 102 107 111 107 112 206 101 101 111 111 107 117 206 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9812-0012	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-0105	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0106-			●
1	00.519 CAMSHAFT	8-97077-830-0	01	1	9812-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9812-0105	●
4	00.296 VALVE; INL	8-97033-864-2	04	1	9812-				●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9906-0105		●
4	00.296 VALVE; INL	8-97131-729-0	04	1	0106-			●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9812-0105	●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97189-114-0	04	1	9812-9912				●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97234-613-0	04	1	0001-0008				●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97219-509-2	04	1	0009-				●
5	00.297 VALVE; EXH EXC. CHARGE AIR COOLER<6PL>	8-97019-337-1	04	1	9812-				●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9906-0105		●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0106-			●
7	00.738 BOLT; CM/SHF GEAR 08.900 M14X40	9-92061-440-0	01	1	9812-0204				●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0205-				●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9812-				●
9	00.736 GEAR; CM/SHF CHARGE AIR COOLER<6PL> Z=35	8-97094-440-2	01	1	9812-				●
9	00.736 GEAR; CM/SHF EXC. CHARGE AIR COOLER<6PL> Z=70 OD=208.6	8-97088-057-2	01	1	9812-				●
9	00.736 GEAR; CM/SHF Z=42	8-97229-594-0	01	1	9906-0105		●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0106-			●
12	00.738 KEY; CAM GEAR SET	8-94399-487-0	01	1	9812-				●
37	00.539 METAL; CM/SHF	8-97112-638-0	10	1	9812-0209				●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0210-				●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9812-0105	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0106-			●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	9812-				●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9812-				●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9812-0105	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0106-			●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9812-				●
66	00.303 CAP; VLV STEM END	8-97188-300-0	08	1	9812-0106				●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0107-				●
69	00.303 SPRING; VLV,OUTER EXHAUST MARK GREEN	8-97120-905-0	04	1	9812-				●
69	00.303 SPRING; VLV,OUTER INLET MARK PINK	8-97120-912-0	04	1	9812-				●
70	00.303 SPRING; VLV,INNER EXHAUST MARK GREEN	8-97120-899-0	04	1	9812-				●
70	00.303 SPRING; VLV,INNER INLET MARK PINK	8-97120-911-0	04	1	9812-				●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9812-0105	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0106-			●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9812-0105	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0106-			●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	9812-				●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9812-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9812-0105	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	0106-			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94396-609-2	08	1	9812-				●
78	00.333 ARM; ROCKER (C)	8-94152-344-0	08	1	9812-0105	●	●
78	00.333 ARM; ROCKER (C)	8-94152-344-0	08	1	0106-			●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	9812-				●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	9812-				●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9812-				●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9812-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9812-0105	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0106-			●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9812-				●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9812-0105	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0106-			●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9812-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9812-0105	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0106-			●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9812-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9812-				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9812-0105	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0106-			●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9812-				●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9812-				●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9812-0105	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0106-			●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9812-				●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9812-0105	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0106-			●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9812-				●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9812-				●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9812-				●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9812-0203				●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0204-				●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9812-				●
101	00.724 BOLT; THRUST COLLAR (D) M8X53 FLANGE	8-97223-999-0	02	1	9906-0105		●
101	00.724 BOLT; THRUST COLLAR (D) M8X53 FLANGE	8-97223-999-0	02	1	0106-			●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	9812-				●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	9812-				●
105	00.724 BOLT; IDLE GEAR SHAFT 08.900 M14X60	9-91666-460-0	01	1	9812-				●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9812-				●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9812-				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	9812-				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9812-0203				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0204-				●
107	00.724 SHAFT; IDLE GEAR (E)	8-97218-993-0	01	1	9906-0105		●
107	00.724 SHAFT; IDLE GEAR (E)	8-97240-021-0	01	1	0106-			●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	04	1	9812-				●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9906-0105		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0106-			●
112	00.724 GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	9812-				●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (C) Z=61	8-94393-439-3	01	1	9812-				●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (D) Z=41	8-97112-607-0	01	1	9812-				●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (A) Z=72-30	8-97212-794-0	01	1	9812-9902				●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (A) Z=72-30	8-97223-189-0	01	1	9903-				●
112	00.724 GEAR; IDLE EXC. CHARGE AIR COOLER<6PL> (C) Z=122	8-97088-053-1	01	1	9812-				●
112	00.724 GEAR; IDLE EXC. CHARGE AIR COOLER<6PL> (D) Z=82	8-97088-055-1	01	1	9812-				●
112	00.724 GEAR; IDLE EXC. CHARGE AIR COOLER<6PL> (A) Z=72-60	8-97114-602-1	01	1	9812-9902				●
112	00.724 GEAR; IDLE EXC. CHARGE AIR COOLER<6PL> (A) Z=72-60	8-97227-213-0	01	1	9903-				●
112	00.724 GEAR; IDLE (E) Z=31	8-97229-601-0	01	1	9906-0105		●
112	00.724 GEAR; IDLE (E) Z=43	8-97240-014-1	01	1	0106-			●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	9812-				●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	9812-				●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	9812-				●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	9812-				●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 ID=105.6	1-09623-247-0	01	1	9812-0211				●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0212-				●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9812-				●

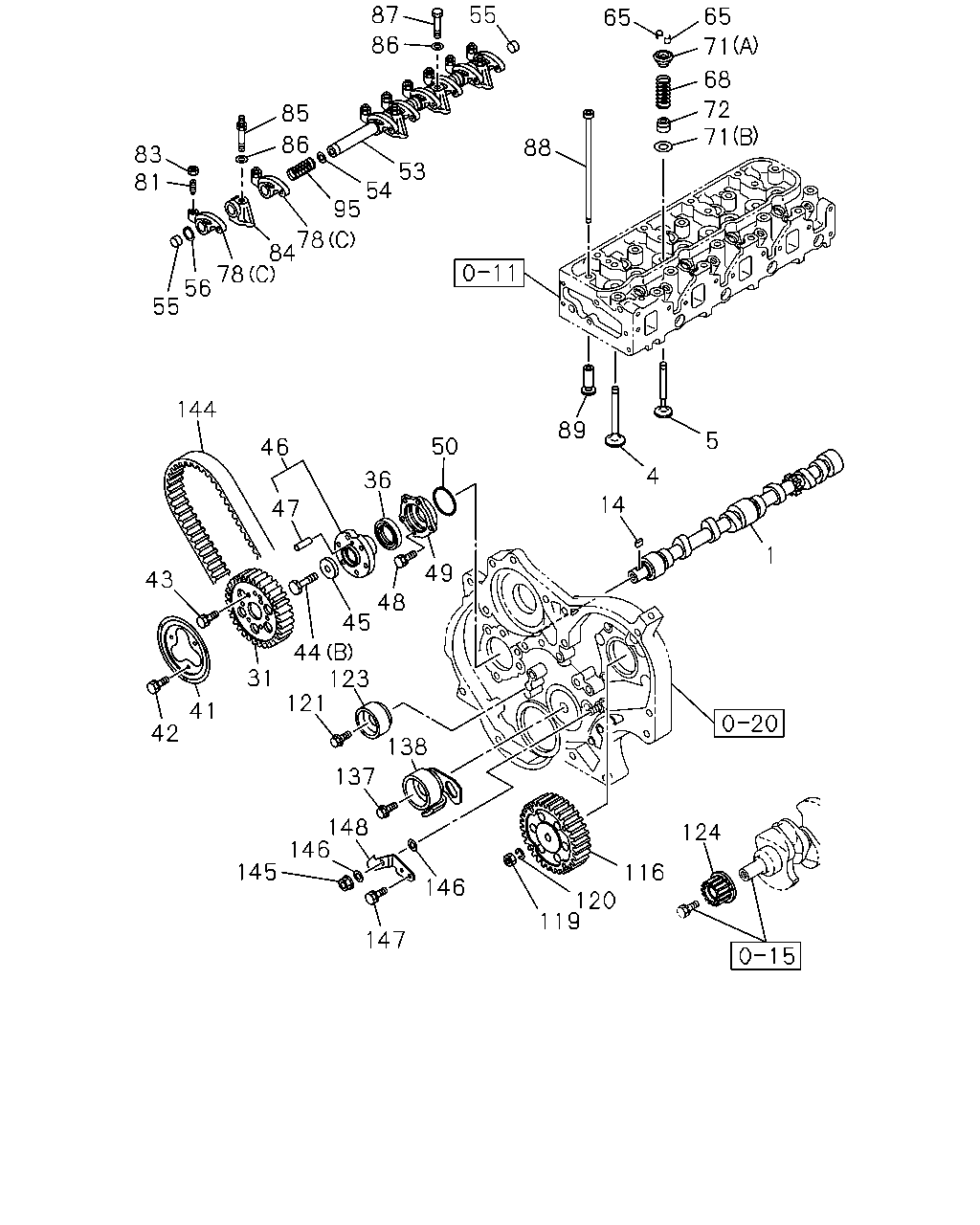

87 55 65 65 86 71 68 72 71 85 86 88 83 81 53 54 95 78 84 78 56 55 144 89 5 50 46 4 36 14 47 1 49 43 48 45 44 123 121 31 41 42 138 137 148 146 124 145 116 146 120 119 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9812-0012	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-0105	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0106-			●
1	00.519 CAMSHAFT	8-97077-830-0	01	1	9812-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9812-0105	●
4	00.296 VALVE; INL	8-97033-864-2	04	1	9812-				●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9906-0105		●
4	00.296 VALVE; INL	8-97131-729-0	04	1	0106-			●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9812-0105	●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97189-114-0	04	1	9812-9912				●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97234-613-0	04	1	0001-0008				●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97219-509-2	04	1	0009-				●
5	00.297 VALVE; EXH EXC. CHARGE AIR COOLER<6PL>	8-97019-337-1	04	1	9812-				●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9906-0105		●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0106-			●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9812-0105	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0106-			●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	9812-0105	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OD=56 T=7.0	8-97080-562-0	01	1	9812-0105	●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	9812-0105	●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9812-0105	●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9812-0105	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9812-0105	●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0106-			●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9906-0102		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0105		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0106-			●
44	00.738 BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0106-			●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9812-0105	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0106-			●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-0	01	1	9812-0105	●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	9812-0105	●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9812-0105	●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	9812-0105	●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97080-893-0	01	1	9812-0105	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9812-0105	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0106-			●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	9812-				●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9812-				●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9812-0105	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0106-			●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9812-0105	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0106-			●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9812-0105	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0106-			●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9812-0105	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0106-			●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9812-				●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9812-0105	●	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	0106-			●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9812-0105	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0106-			●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9812-0105	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0106-			●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	9812-				●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9812-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9812-0105	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	0106-			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94396-609-2	08	1	9812-				●
78	00.333 ARM; ROCKER (C)	8-94152-344-0	08	1	9812-0105	●	●
78	00.333 ARM; ROCKER (C)	8-94152-344-0	08	1	0106-			●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	9812-				●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	9812-				●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9812-				●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9812-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9812-0105	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0106-			●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9812-				●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9812-0105	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0106-			●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9812-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9812-0105	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0106-			●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9812-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9812-				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9812-0105	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0106-			●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9812-				●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9812-				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9812-0105	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0106-			●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9812-0105	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0106-			●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9812-				●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9812-0105	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0106-			●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9812-0105	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0106-			●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9812-0105	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0106-			●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9812-				●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9812-				●
116	00.659 PULLEY; TIMING,INJ PUMP Z=44	8-97043-289-0	01	1	9812-0105	●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	9812-0105	●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340	8-94226-554-0	01	1	9812-0105	●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	9812-0105	●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	9812-0105	●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9812-0105	●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	9812-0105	●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-1	01	1	9812-0105	●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	9812-0105	●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91150-208-0	01	1	9812-0105	●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9812-0105	●
147	00.724 BOLT; TENSION LEVER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-0105	●
148	00.724 LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	9812-0105	●

55 87 65 65 71 86 68 85 72 71 86 88 83 78 81 53 54 95 84 56 55 78 89 5 4 14 9 45 44 1 44 10 107 196 335 282 112 111 282 334 101 109 109 44 275 333 275 305 106 104 196 305 106 104 113

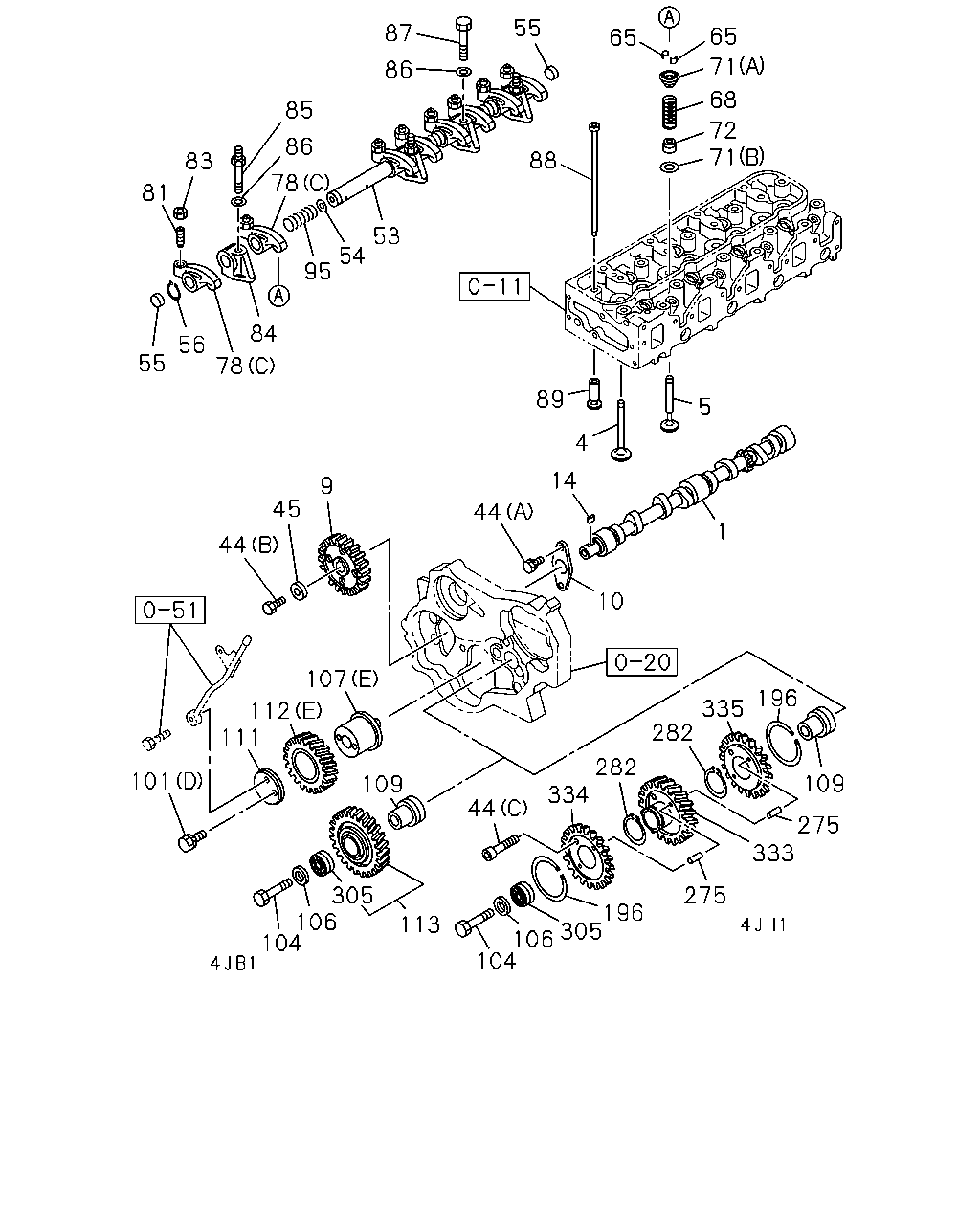

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9812-0012	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-0105	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0106-			●
1	00.519 CAMSHAFT	8-97077-830-0	01	1	9812-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9812-0105	●
4	00.296 VALVE; INL	8-97033-864-2	04	1	9812-				●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9906-0105		●
4	00.296 VALVE; INL	8-97131-729-0	04	1	0106-			●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9812-0105	●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97189-114-0	04	1	9812-9912				●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97234-613-0	04	1	0001-0008				●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97219-509-2	04	1	0009-				●
5	00.297 VALVE; EXH EXC. CHARGE AIR COOLER<6PL>	8-97019-337-1	04	1	9812-				●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9906-0105		●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0106-			●
9	00.736 GEAR; CM/SHF CHARGE AIR COOLER<6PL> Z=35	8-97094-440-2	01	1	9812-				●
9	00.736 GEAR; CM/SHF EXC. CHARGE AIR COOLER<6PL> Z=70 OD=208.6	8-97088-057-2	01	1	9812-				●
9	00.736 GEAR; CM/SHF Z=42	8-97229-594-0	01	1	9906-0105		●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0106-			●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9906-0105		●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0106-			●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9812-0105	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0106-			●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9812-0105	●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0106-			●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9906-0102		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0105		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0106-			●
44	00.738 BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0106-			●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9812-0105	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0106-			●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9812-0105	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0106-			●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	9812-				●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9812-				●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9812-0105	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0106-			●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9812-0105	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0106-			●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9812-0105	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0106-			●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9812-0105	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0106-			●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9812-				●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9812-0105	●	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	0106-			●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9812-0105	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0106-			●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9812-0105	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0106-			●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	9812-				●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9812-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9812-0105	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	0106-			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94396-609-2	08	1	9812-				●
78	00.333 ARM; ROCKER (C)	8-94152-344-0	08	1	9812-0105	●	●
78	00.333 ARM; ROCKER (C)	8-94152-344-0	08	1	0106-			●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	9812-				●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	9812-				●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9812-				●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9812-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9812-0105	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0106-			●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9812-				●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9812-0105	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0106-			●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9812-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9812-0105	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0106-			●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9812-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9812-				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9812-0105	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0106-			●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9812-				●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9812-				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9812-0105	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0106-			●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9812-0105	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0106-			●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9812-				●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9812-0105	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0106-			●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9812-0105	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0106-			●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9812-0105	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0106-			●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9812-				●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9812-				●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9812-				●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9812-0203				●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0204-				●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9812-				●
101	00.724 BOLT; THRUST COLLAR (D) M8X53 FLANGE	8-97223-999-0	02	1	9906-0105		●
101	00.724 BOLT; THRUST COLLAR (D) M8X53 FLANGE	8-97223-999-0	02	1	0106-			●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9906-0105		●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-0	01	1	0106-			●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9906-0105		●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0106-			●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9812-				●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9812-				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	9812-				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9812-0203				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0204-				●
107	00.724 SHAFT; IDLE GEAR (E)	8-97218-993-0	01	1	9906-0105		●
107	00.724 SHAFT; IDLE GEAR (E)	8-97240-021-0	01	1	0106-			●
109	00.724 SHAFT; IDLE GEAR	8-97218-780-0	01	1	9906-0105		●
109	00.724 SHAFT; IDLE GEAR	8-97240-023-1	01	1	0106-			●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	04	1	9812-				●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9906-0105		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0106-			●
112	00.724 GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	9812-				●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (C) Z=61	8-94393-439-3	01	1	9812-				●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (D) Z=41	8-97112-607-0	01	1	9812-				●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (A) Z=72-30	8-97212-794-0	01	1	9812-9902				●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (A) Z=72-30	8-97223-189-0	01	1	9903-				●
112	00.724 GEAR; IDLE EXC. CHARGE AIR COOLER<6PL> (C) Z=122	8-97088-053-1	01	1	9812-				●
112	00.724 GEAR; IDLE EXC. CHARGE AIR COOLER<6PL> (D) Z=82	8-97088-055-1	01	1	9812-				●
112	00.724 GEAR; IDLE EXC. CHARGE AIR COOLER<6PL> (A) Z=72-60	8-97114-602-1	01	1	9812-9902				●
112	00.724 GEAR; IDLE EXC. CHARGE AIR COOLER<6PL> (A) Z=72-60	8-97227-213-0	01	1	9903-				●
112	00.724 GEAR; IDLE (E) Z=31	8-97229-601-0	01	1	9906-0105		●
112	00.724 GEAR; IDLE (E) Z=43	8-97240-014-1	01	1	0106-			●
113	00.724 GEAR; IDLE Z=37	8-97229-602-0	01	1	9906-0105		●
196	00.724 RING; SNAP	8-97245-684-1	02	1	0106-			●
275	00.724 PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	0106-			●
282	00.738 SPRING; GEAR	8-97245-337-0	02	1	0106-			●
305	00.724 BEARING; IDLE GEAR	8-97218-947-1	01	1	9906-0105		●
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	0106-			●
333	00.724 GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	0106-			●
334	00.724 GEAR; IDLE,FRT Z=52	8-97245-232-2	01	1	0106-			●
335	00.724 GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	0106-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
