Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#44550) — 382 parça

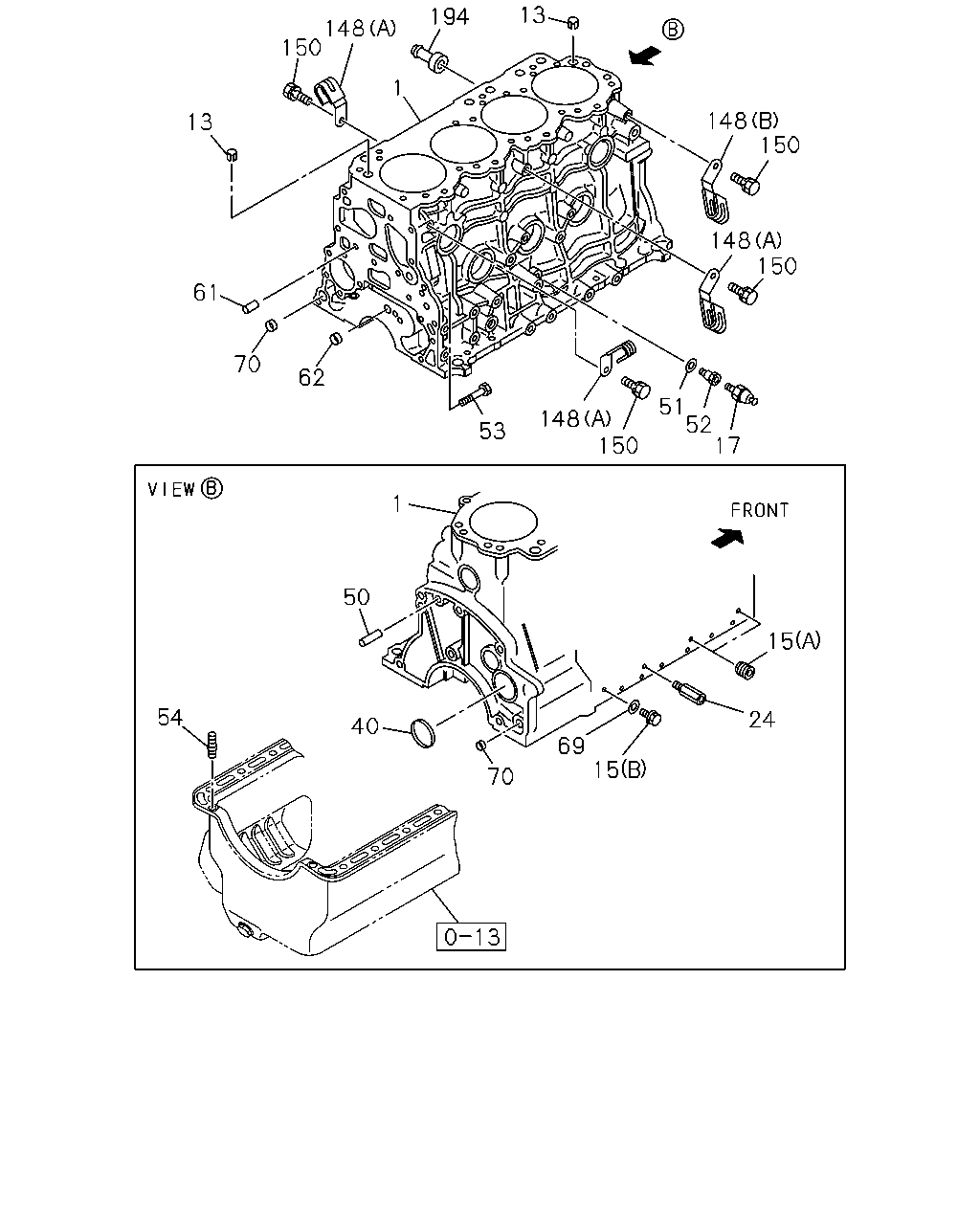

13 194 148 150 1 148 150 13 148 150 61 70 62 51 52 17 148 150 53 1 50 15 54 24 40 69 15 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9812-0105	●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9812-		●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9906-0105			●
1	00.033 BLOCK ASM; CYL	8-97257-264-2	01	1	0106-				●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9812-0105	●		●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0106-				●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9812-		●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9812-0105	●		●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	0106-				●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9812-0105	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9812-0105	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	0106-				●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9812-		●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9812-0105	●		●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	0106-				●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9812-0105	●		●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	0106-				●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9812-0105	●		●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	0106-				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9812-0105	●		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0106-				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	9812-0105	●		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0106-				●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9812-0105	●		●
53	00.862 BOLT; REAMER M10X43	9-09606-535-0	01	1	0106-				●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9812-0105	●		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	0106-				●
54	01.428 STUD; OIL PAN TO BLOCK EXC. CHARGE AIR COOLER<6PL> M8X20 L=38	8-97021-431-0	03	1	9812-		●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9812-0105	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9812-		●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	01	1	9906-0105			●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	01	1	0106-0201				●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0202-				●
62	00.034 CUP; SEALING,C/BL FRT OD=14	5-11219-011-0	01	1	9812-0105	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9812-0105	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9812-0105	●		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0106-				●
70	00.034 CUP; SEALING,FRT & RR 00.293 OD=25	1-09600-016-0	01	1	9812-		●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	9812-		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9812-9812	●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9901-9906	●		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9907-0105	●		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0106-				●
148	02.313 CLIP; HARNESS 04.930 (B) L=91 ID=8.5	8-94329-956-0	01	1	9907-0105	●		●
148	02.313 CLIP; HARNESS 04.785 (B) ID=16 H=30 L=30	1-09701-080-0	01	1	0106-0107				●
148	02.313 CLIP; HARNESS 04.686 (B) ID=21 L=24	8-94176-807-1	01	1	0108-				●
148	02.313 CLIP; HARNESS 01.516 (A) ID=13 L=20	9-09525-235-0	01	1	0106-				●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9812-9812	●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9901-0105	●		●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-				●
194	00.439 PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	9906-0105			●
194	00.439 PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	0106-				●

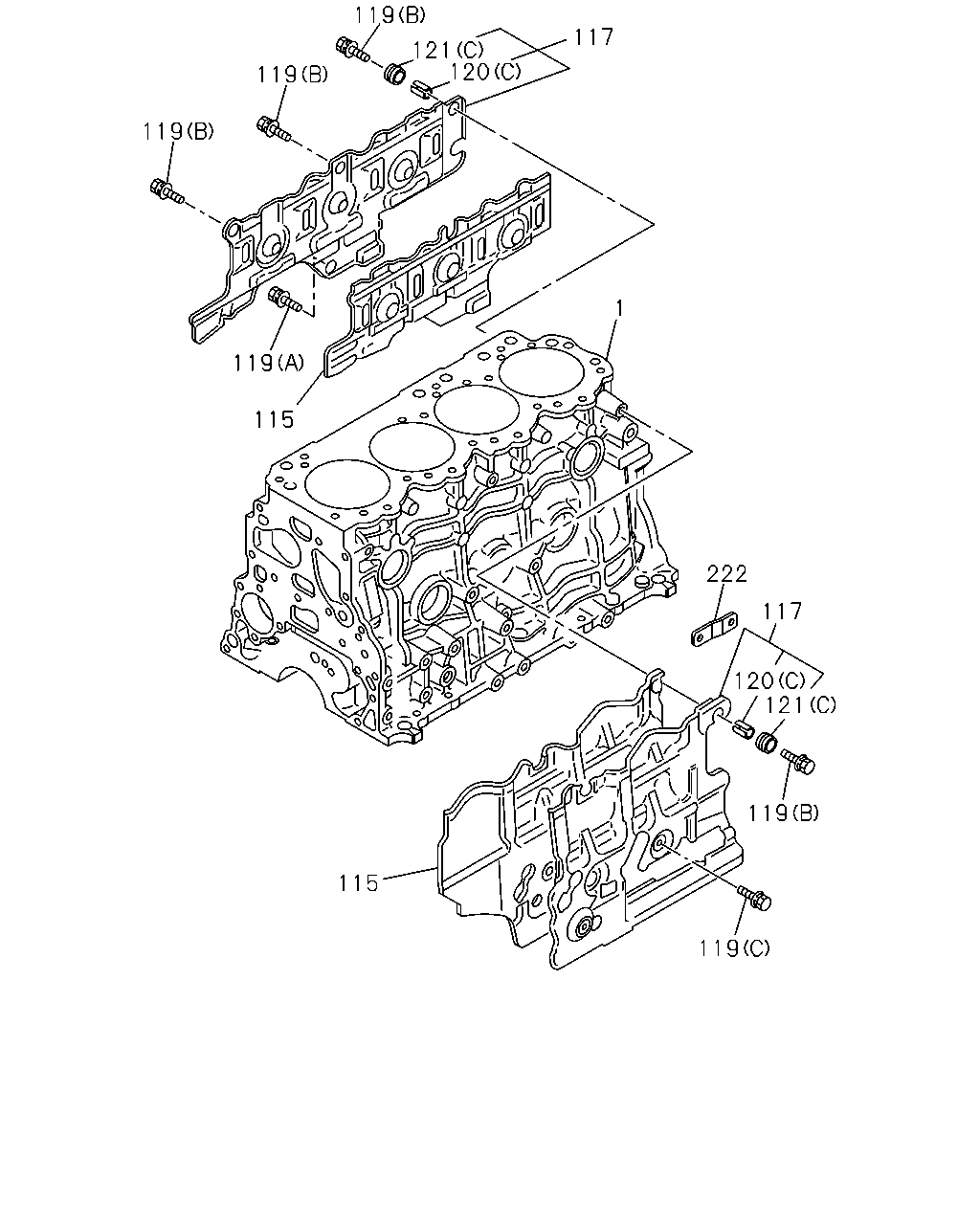

119 117 121 120 119 119 1 119 115 222 117 120 121 119 115 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9812-0105	●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9812-		●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9906-0105			●
1	00.033 BLOCK ASM; CYL	8-97257-264-2	01	1	0106-				●
115	00.034 RUBBER; SPACE	8-97141-688-2	01	1	9812-0105	●
115	00.034 RUBBER; SPACE	8-97141-687-0	01	1	9812-0105	●
115	00.034 RUBBER; SPACE	8-97204-194-0	01	1	9906-0105			●
115	00.034 RUBBER; SPACE	8-97204-194-0	01	1	0106-				●
115	00.034 RUBBER; SPACE	8-97204-193-0	01	1	9906-0105			●
115	00.034 RUBBER; SPACE	8-97204-193-0	01	1	0106-				●
117	00.030 COVER ASM; C/BL	8-97141-686-0	01	1	9812-0105	●
117	00.030 COVER ASM; C/BL	8-97141-685-1	01	1	9812-0105	●
117	00.030 COVER ASM; C/BL CHARGE AIR COOLER<6PL>	8-97258-620-1	01	1	0106-		●
117	00.030 COVER ASM; C/BL	8-97118-347-0	01	1	9812-0105		●
117	00.030 COVER ASM; C/BL EXC. CHARGE AIR COOLER<6PL>	8-97118-347-0	01	1	0106-		●
117	00.030 COVER ASM; C/BL	8-97020-126-0	01	1	9906-0105			●
117	00.030 COVER ASM; C/BL	8-97259-600-0	01	1	0106-				●
117	00.030 COVER ASM; C/BL	8-97204-191-0	01	1	9906-0105			●
117	00.030 COVER ASM; C/BL	8-97300-309-1	01	1	0106-				●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9812-0105	●
119	00.034 BOLT; COVER FIX 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9812-0105	●		●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	9812-0105	●		●
119	00.034 BOLT; COVER FIX (D) M10X28	8-94329-952-1	01	1	0106-				●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9812-0105	●		●
119	00.034 BOLT; COVER FIX (E) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0106-0112				●
119	00.034 BOLT; COVER FIX EXC. CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0201-		●
119	00.034 BOLT; COVER FIX (E) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0201-				●
119	00.034 BOLT; COVER FIX (E) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9812-0105		●
119	00.034 BOLT; COVER FIX CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0106-		●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9906-0105			●
119	00.034 BOLT; COVER FIX 00.004 (F) M8X32 FLANGE	0-28080-832-0	01	1	0106-				●
120	00.034 BUSHING; MTG RUBBER (C) OD=13 T=9.5	8-94140-427-1	06	1	9812-0105	●
120	00.034 BUSHING; MTG RUBBER EXC. CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5	8-94140-427-1	04	1	0106-		●
120	00.034 BUSHING; MTG RUBBER (A) OD=13 T=9.5	8-94140-427-1	04	1	9812-0105		●
120	00.034 BUSHING; MTG RUBBER CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5	8-94140-427-1	05	1	0106-		●
120	00.034 BUSHING; MTG RUBBER (A) OD=13 T=9.5	8-94140-427-1	05	1	0106-				●
120	00.034 BUSHING; MTG RUBBER (C) OD=13 T=9.5	8-94140-427-1	06	1	9906-0105			●
120	00.034 BUSHING; MTG RUBBER (B) OD=18 T=4.5	8-97188-506-0	01	1	0106-				●
121	00.034 RUBBER; MTG,COVER (C) OD=22	8-94140-428-1	06	1	9812-0105	●
121	00.034 RUBBER; MTG,COVER EXC. CHARGE AIR COOLER<6PL> (A) OD=22	8-94140-428-1	04	1	0106-		●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	04	1	9812-0105		●
121	00.034 RUBBER; MTG,COVER CHARGE AIR COOLER<6PL> (A) OD=22	8-94140-428-1	05	1	0106-0106		●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0106-0106				●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0107-				●
121	00.034 RUBBER; MTG,COVER CHARGE AIR COOLER<6PL> (A)	8-97315-987-0	05	1	0107-		●
121	00.034 RUBBER; MTG,COVER (C) OD=22	8-94140-428-1	06	1	9906-0105			●
121	00.034 RUBBER; MTG,COVER (B) OD=16	8-97188-507-0	01	1	0106-				●
222	00.340 BRACKET; COVER,C/BL	8-94460-512-0	01	1	9812-0105	●		●

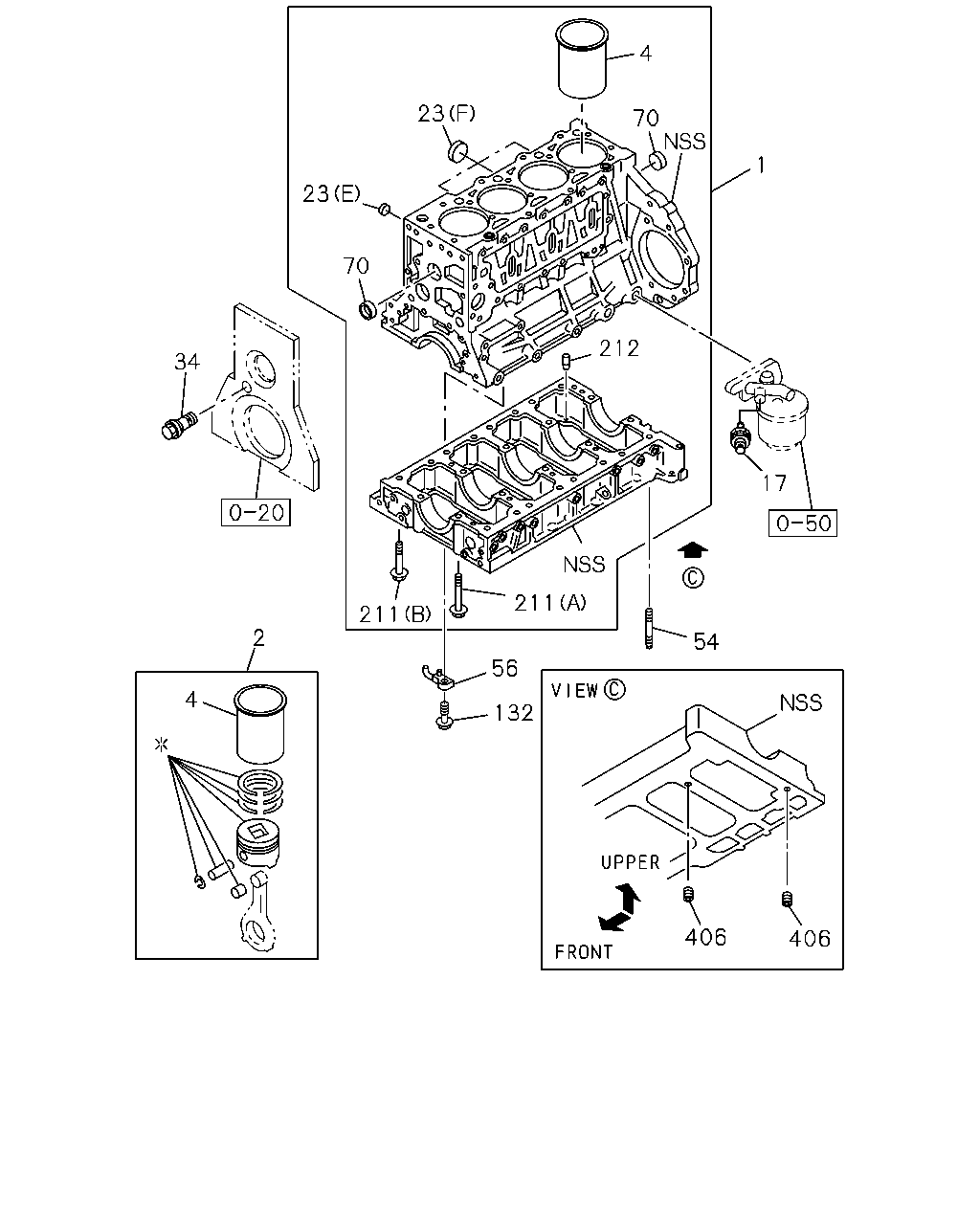

4 23 70 1 23 70 212 34 17 211 211 2 54 56 4 132 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9812-0105	●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9812-		●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9906-0105			●
1	00.033 BLOCK ASM; CYL	8-97257-264-2	01	1	0106-				●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-744-1	04	1	0106-		●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-745-1	04	1	0106-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-209-0	04	1	9812-0105	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-210-0	04	1	9812-0105	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-211-0	04	1	9812-0105	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-212-0	04	1	9812-0105	●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1	5-87813-409-0	04	1	9812-9907		●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-744-1	04	1	9908-0105		●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-410-0	04	1	9812-9907		●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-745-1	04	1	9908-0105		●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-328-0	04	1	9812-		●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-329-0	04	1	9812-		●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87813-193-0	04	1	9906-0105			●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87813-194-0	04	1	9906-0105			●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87813-195-0	04	1	9906-0105			●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87813-196-0	04	1	9906-0105			●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-090-1	04	1	0106-				●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-091-1	04	1	0106-				●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-092-1	04	1	0106-				●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-093-1	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	8-97176-723-0	04	1	9812-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	8-97176-724-0	04	1	9812-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	8-97176-725-0	04	1	9812-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	8-97176-726-0	04	1	9812-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9906-0105			●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9812-0105	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	0106-				●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9812-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9812-0105	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	0106-0210				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9812-0105	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	0106-				●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9812-0105	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0106-				●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9812-0105	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0106-				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (E) OD=25	1-09600-016-0	01	1	9812-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (F) OD=45	8-97036-550-1	03	1	9812-		●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	9906-0105			●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	9812-		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9812-0105	●		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	0106-				●
54	01.428 STUD; OIL PAN TO BLOCK EXC. CHARGE AIR COOLER<6PL> M8X20 L=38	8-97021-431-0	03	1	9812-		●
56	01.519 JET; OIL,PISTON COOLING	8-94399-166-0	04	1	9812-		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9812-0105	●		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0106-				●
70	00.034 CUP; SEALING,FRT & RR 00.293 OD=25	1-09600-016-0	01	1	9812-		●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	9812-		●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9812-		●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	9812-		●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	9812-		●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	9812-		●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	9812-		●

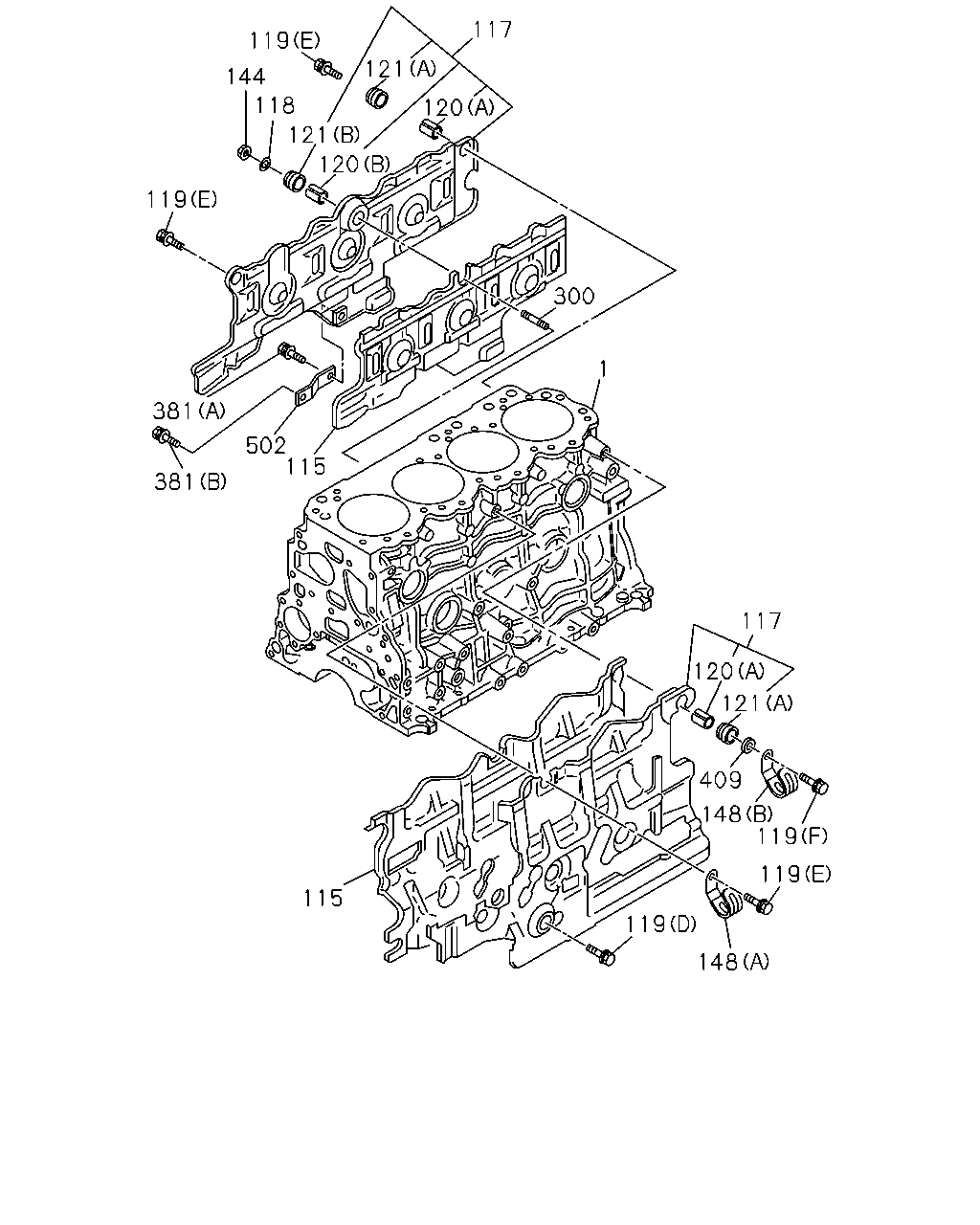

117 119 121 144 118 120 121 120 119 300 1 381 502 115 381 117 120 121 409 148 119 119 115 119 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9812-0105	●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9812-		●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9906-0105			●
1	00.033 BLOCK ASM; CYL	8-97257-264-2	01	1	0106-				●
115	00.034 RUBBER; SPACE	8-97141-688-2	01	1	9812-0105	●
115	00.034 RUBBER; SPACE	8-97141-687-0	01	1	9812-0105	●
115	00.034 RUBBER; SPACE	8-97204-194-0	01	1	9906-0105			●
115	00.034 RUBBER; SPACE	8-97204-194-0	01	1	0106-				●
115	00.034 RUBBER; SPACE	8-97204-193-0	01	1	9906-0105			●
115	00.034 RUBBER; SPACE	8-97204-193-0	01	1	0106-				●
117	00.030 COVER ASM; C/BL	8-97141-686-0	01	1	9812-0105	●
117	00.030 COVER ASM; C/BL	8-97141-685-1	01	1	9812-0105	●
117	00.030 COVER ASM; C/BL CHARGE AIR COOLER<6PL>	8-97258-620-1	01	1	0106-		●
117	00.030 COVER ASM; C/BL	8-97118-347-0	01	1	9812-0105		●
117	00.030 COVER ASM; C/BL EXC. CHARGE AIR COOLER<6PL>	8-97118-347-0	01	1	0106-		●
117	00.030 COVER ASM; C/BL	8-97020-126-0	01	1	9906-0105			●
117	00.030 COVER ASM; C/BL	8-97259-600-0	01	1	0106-				●
117	00.030 COVER ASM; C/BL	8-97204-191-0	01	1	9906-0105			●
117	00.030 COVER ASM; C/BL	8-97300-309-1	01	1	0106-				●
118	00.446 WASHER; PL,COVER FIX 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0106-				●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9812-0105	●
119	00.034 BOLT; COVER FIX 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9812-0105	●		●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	9812-0105	●		●
119	00.034 BOLT; COVER FIX (D) M10X28	8-94329-952-1	01	1	0106-				●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9812-0105	●		●
119	00.034 BOLT; COVER FIX (E) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0106-0112				●
119	00.034 BOLT; COVER FIX EXC. CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0201-		●
119	00.034 BOLT; COVER FIX (E) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0201-				●
119	00.034 BOLT; COVER FIX (E) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9812-0105		●
119	00.034 BOLT; COVER FIX CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0106-		●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9906-0105			●
119	00.034 BOLT; COVER FIX 00.004 (F) M8X32 FLANGE	0-28080-832-0	01	1	0106-				●
120	00.034 BUSHING; MTG RUBBER (C) OD=13 T=9.5	8-94140-427-1	06	1	9812-0105	●
120	00.034 BUSHING; MTG RUBBER EXC. CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5	8-94140-427-1	04	1	0106-		●
120	00.034 BUSHING; MTG RUBBER (A) OD=13 T=9.5	8-94140-427-1	04	1	9812-0105		●
120	00.034 BUSHING; MTG RUBBER CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5	8-94140-427-1	05	1	0106-		●
120	00.034 BUSHING; MTG RUBBER (A) OD=13 T=9.5	8-94140-427-1	05	1	0106-				●
120	00.034 BUSHING; MTG RUBBER (C) OD=13 T=9.5	8-94140-427-1	06	1	9906-0105			●
120	00.034 BUSHING; MTG RUBBER (B) OD=18 T=4.5	8-97188-506-0	01	1	0106-				●
121	00.034 RUBBER; MTG,COVER (C) OD=22	8-94140-428-1	06	1	9812-0105	●
121	00.034 RUBBER; MTG,COVER EXC. CHARGE AIR COOLER<6PL> (A) OD=22	8-94140-428-1	04	1	0106-		●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	04	1	9812-0105		●
121	00.034 RUBBER; MTG,COVER CHARGE AIR COOLER<6PL> (A) OD=22	8-94140-428-1	05	1	0106-0106		●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0106-0106				●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0107-				●
121	00.034 RUBBER; MTG,COVER CHARGE AIR COOLER<6PL> (A)	8-97315-987-0	05	1	0107-		●
121	00.034 RUBBER; MTG,COVER (C) OD=22	8-94140-428-1	06	1	9906-0105			●
121	00.034 RUBBER; MTG,COVER (B) OD=16	8-97188-507-0	01	1	0106-				●
144	02.100 NUT; COVER FIX 01.540 M8 FLANGE	0-91150-208-0	01	1	0106-				●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9812-9812	●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9901-9906	●		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9907-0105	●		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0106-				●
148	02.313 CLIP; HARNESS 04.930 (B) L=91 ID=8.5	8-94329-956-0	01	1	9907-0105	●		●
148	02.313 CLIP; HARNESS 04.785 (B) ID=16 H=30 L=30	1-09701-080-0	01	1	0106-0107				●
148	02.313 CLIP; HARNESS 04.686 (B) ID=21 L=24	8-94176-807-1	01	1	0108-				●
148	02.313 CLIP; HARNESS 01.516 (A) ID=13 L=20	9-09525-235-0	01	1	0106-				●
300	02.042 STUD; COVER 05.387 M8X30 L=41	9-04110-830-0	01	1	0106-				●
381	01.531 BOLT; BRKT 00.206 (B) M8X12 W/LK WASHER	0-50040-812-0	01	1	0106-0202				●
381	01.531 BOLT; BRKT 00.206 (B) M8X10 FLANGE	0-28080-810-0	01	1	0203-				●
381	01.531 BOLT; BRKT 11.377 (A) M10X20 W/LK WASHER	0-50041-020-0	01	1	0106-				●
409	00.033 SPACER; COVER ID=8.5 L=10	5-13642-077-0	01	1	0106-				●
502	00.340 BRACKET; BODY COVER	8-97209-129-0	01	1	0106-				●

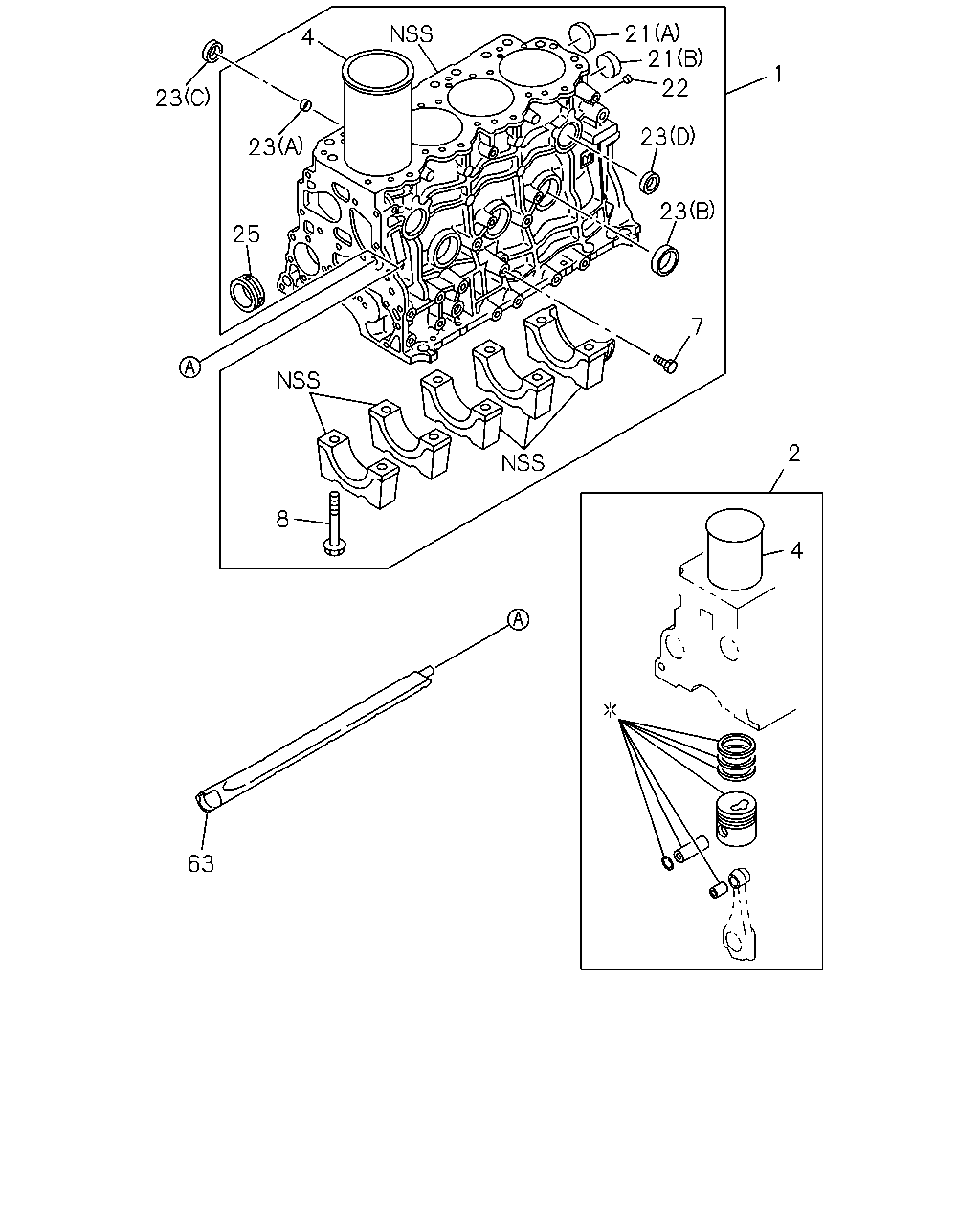

21 2 4 1 22 23 23 23 23 25 7 2 8 4 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9812-0105	●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9812-		●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9906-0105			●
1	00.033 BLOCK ASM; CYL	8-97257-264-2	01	1	0106-				●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-744-1	04	1	0106-		●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-745-1	04	1	0106-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-209-0	04	1	9812-0105	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-210-0	04	1	9812-0105	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-211-0	04	1	9812-0105	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-212-0	04	1	9812-0105	●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1	5-87813-409-0	04	1	9812-9907		●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-744-1	04	1	9908-0105		●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-410-0	04	1	9812-9907		●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-745-1	04	1	9908-0105		●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-328-0	04	1	9812-		●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-329-0	04	1	9812-		●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87813-193-0	04	1	9906-0105			●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87813-194-0	04	1	9906-0105			●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87813-195-0	04	1	9906-0105			●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87813-196-0	04	1	9906-0105			●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-090-1	04	1	0106-				●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-091-1	04	1	0106-				●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-092-1	04	1	0106-				●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-093-1	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9812-0105	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	0106-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	8-97176-723-0	04	1	9812-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	8-97176-724-0	04	1	9812-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	8-97176-725-0	04	1	9812-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	8-97176-726-0	04	1	9812-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9906-0105			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9906-0105			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9812-0105	●		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0106-				●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9812-0208		●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0209-		●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9812-0105	●		●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0106-				●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9812-0105	●		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0106-				●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9812-0105	●		●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0106-				●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9812-0105	●		●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0106-				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9812-0105	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	0106-0210				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9812-0105	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	0106-				●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9812-0105	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0106-				●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9812-0105	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0106-				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (E) OD=25	1-09600-016-0	01	1	9812-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (F) OD=45	8-97036-550-1	03	1	9812-		●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	9906-0105			●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9812-0105	●		●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	0106-				●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9812-0105	●		●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	0106-				●
63	01.153 DUCT; WATER,C/BL	8-94456-794-2	01	1	9812-0105	●
63	01.153 DUCT; WATER,C/BL	8-94419-436-1	01	1	9906-0105			●
63	01.153 DUCT; WATER,C/BL	8-94456-794-2	01	1	0106-				●

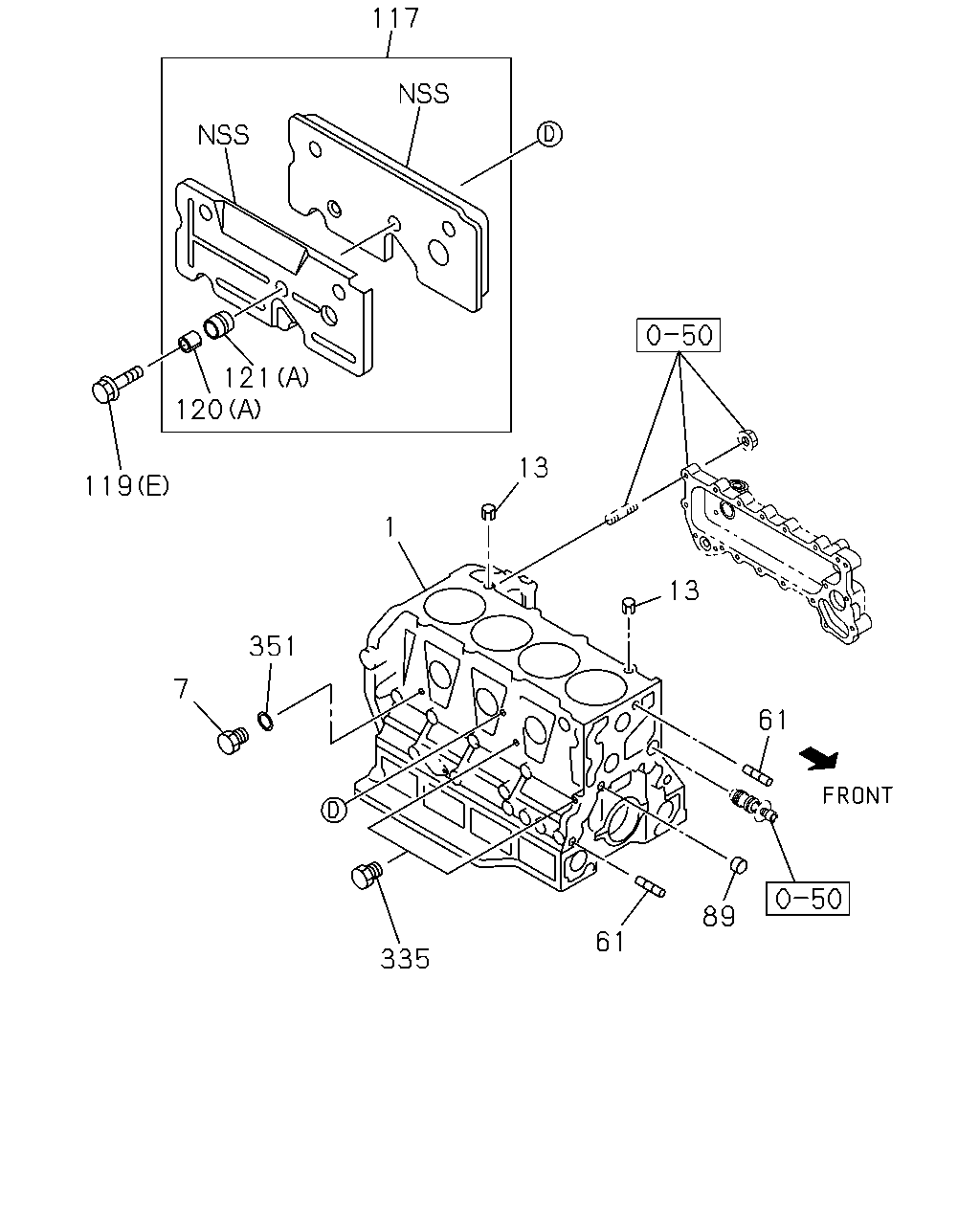

117 121 120 13 119 1 13 351 7 61 89 61 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9812-0105	●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9812-		●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9906-0105			●
1	00.033 BLOCK ASM; CYL	8-97257-264-2	01	1	0106-				●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9812-0105	●		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0106-				●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9812-0208		●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0209-		●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9812-0105	●		●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0106-				●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9812-		●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9812-0105	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9812-		●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	01	1	9906-0105			●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	01	1	0106-0201				●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0202-				●
89	00.034 CUP; SEALING,OIL GALLERY 03.265 OD=20	9-11219-192-0	03	1	9812-9907		●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	9908-		●
117	00.030 COVER ASM; C/BL	8-97141-686-0	01	1	9812-0105	●
117	00.030 COVER ASM; C/BL	8-97141-685-1	01	1	9812-0105	●
117	00.030 COVER ASM; C/BL CHARGE AIR COOLER<6PL>	8-97258-620-1	01	1	0106-		●
117	00.030 COVER ASM; C/BL	8-97118-347-0	01	1	9812-0105		●
117	00.030 COVER ASM; C/BL EXC. CHARGE AIR COOLER<6PL>	8-97118-347-0	01	1	0106-		●
117	00.030 COVER ASM; C/BL	8-97020-126-0	01	1	9906-0105			●
117	00.030 COVER ASM; C/BL	8-97259-600-0	01	1	0106-				●
117	00.030 COVER ASM; C/BL	8-97204-191-0	01	1	9906-0105			●
117	00.030 COVER ASM; C/BL	8-97300-309-1	01	1	0106-				●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9812-0105	●
119	00.034 BOLT; COVER FIX 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9812-0105	●		●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	9812-0105	●		●
119	00.034 BOLT; COVER FIX (D) M10X28	8-94329-952-1	01	1	0106-				●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9812-0105	●		●
119	00.034 BOLT; COVER FIX (E) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0106-0112				●
119	00.034 BOLT; COVER FIX EXC. CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0201-		●
119	00.034 BOLT; COVER FIX (E) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0201-				●
119	00.034 BOLT; COVER FIX (E) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9812-0105		●
119	00.034 BOLT; COVER FIX CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0106-		●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9906-0105			●
119	00.034 BOLT; COVER FIX 00.004 (F) M8X32 FLANGE	0-28080-832-0	01	1	0106-				●
120	00.034 BUSHING; MTG RUBBER (C) OD=13 T=9.5	8-94140-427-1	06	1	9812-0105	●
120	00.034 BUSHING; MTG RUBBER EXC. CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5	8-94140-427-1	04	1	0106-		●
120	00.034 BUSHING; MTG RUBBER (A) OD=13 T=9.5	8-94140-427-1	04	1	9812-0105		●
120	00.034 BUSHING; MTG RUBBER CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5	8-94140-427-1	05	1	0106-		●
120	00.034 BUSHING; MTG RUBBER (A) OD=13 T=9.5	8-94140-427-1	05	1	0106-				●
120	00.034 BUSHING; MTG RUBBER (C) OD=13 T=9.5	8-94140-427-1	06	1	9906-0105			●
120	00.034 BUSHING; MTG RUBBER (B) OD=18 T=4.5	8-97188-506-0	01	1	0106-				●
121	00.034 RUBBER; MTG,COVER (C) OD=22	8-94140-428-1	06	1	9812-0105	●
121	00.034 RUBBER; MTG,COVER EXC. CHARGE AIR COOLER<6PL> (A) OD=22	8-94140-428-1	04	1	0106-		●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	04	1	9812-0105		●
121	00.034 RUBBER; MTG,COVER CHARGE AIR COOLER<6PL> (A) OD=22	8-94140-428-1	05	1	0106-0106		●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0106-0106				●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0107-				●
121	00.034 RUBBER; MTG,COVER CHARGE AIR COOLER<6PL> (A)	8-97315-987-0	05	1	0107-		●
121	00.034 RUBBER; MTG,COVER (C) OD=22	8-94140-428-1	06	1	9906-0105			●
121	00.034 RUBBER; MTG,COVER (B) OD=16	8-97188-507-0	01	1	0106-				●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	9812-		●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9812-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
